2A5C6-Y12Smart Tracker

Shenzhen Xinfeiyi Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Shenzhen Xinfeiyi Technology Co., Ltd Address: One of B,Floor 3,Building A2,Zone A,Anle Industria Zone,Hangcheng Avenue,Xixiang Street,Bao'an District,Shenzhen, China Product Name: Smart Tracker FCCID: 2A5C6-Y12 Model(s): Y12, Y14, Y16, Y17, Y18, MF01, MF02, GP01 2.911(d)(5)(i) EquipmentType We, [Shenzhen Xinfeiyi Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: miao Wang Date: July 12, 2023 Title: manager Company name: Shenzhen Xinfeiyi Technology Co., Ltd Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Xinfeiyi Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Xinfeiyi Technology Co., Ltd Address: One of B,Floor 3,Building A2,Zone A,Anle Industria Zone,Hangcheng Avenue,Xixiang Street,Bao'an District,Shenzhen, China Product Name: Smart Tracker FCCID: 2A5C6-Y12 Model(s): Y12, Y14, Y16, Y17, Y18, MF01, MF02, GP01 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Xinfeiyi Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: miao Wang Date: July 12, 2023 Title: manager Company name: Shenzhen Xinfeiyi Technology Co., Ltd Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenXinfeiyiTechnologyCo.,Ltd 2.911(d)(7)USAAgentv1.3 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:ShenzhenXinfeiyiTechnologyCo.,Ltd Address:OneofB,Floor3,BuildingA2,ZoneA,AnleIndustriaZone,Hangcheng Avenue,XixiangStreet,Bao'anDistrict,Shenzhen,China ProductName:SmartTracker FCCID:2A5C6-Y12 Model(s):Y12,Y14,Y16,Y17,Y18,MF01,MF02,GP01 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[ShenzhenXinfeiyiTechnologyCo.,Ltd](“theapplicant”)designate[GSS SERVICEINC]N OTE1 forthepurposeofacceptingserviceofprocessonbehalfofthe applicant. Applicantconsent:WeAcknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeouracceptance ofourobligationtomaintainanagentforserviceofprocessintheUnitedStatesforno lessthanoneyearaftereitherthegranteehaspermanentlyterminatedallmarketing andimportationoftheapplicableequipmentwithintheU.S.,ortheconclusionofany Commission-relatedadministrativeorjudicialproceedinginvolvingtheequipment, whicheverislater. Agentobligation:WeAcknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,ortheconclusionofanyCommission-relatedadministrativeorjudicial proceedinginvolvingtheequipment,whicheverislater. USAAgent Companyname:GSSSERVICEINC Address:6547NAcademyBlvd#2266 ColoradoSpringsCo80918USA FCCRegistrationNumber(FRN): 0033402082 ContactName:MichouxLogan TelephoneNo:001-949-2990192 Email:[email protected] Applicant Companyname:ShenzhenXinfeiyi TechnologyCo.,Ltd Address:OneofB,Floor3,BuildingA2,Zone A,AnleIndustriaZone,Hangcheng Avenue,XixiangStreet,Bao'anDistrict, Shenzhen,China FCCGranteeCode:2A5C6 ContactName:miaoWang TelephoneNo:13189709310 Email:[email protected] Signature: Title: Signature: Title:manager ShenzhenXinfeiyiTechnologyCo.,Ltd 2.911(d)(7)USAAgentv1.3 Date:July11,2023Date:July11,2023 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Shenzhen Xinfeiyi Technology Co., Ltd Agent Authorization Company: Shenzhen Xinfeiyi Technology Co., Ltd Address: One of B,Floor 3,Building A2,Zone A,Anle Industria Zone,Hangcheng Avenue,Xixiang Street,Bao'an District,Shenzhen, China Product Name: Smart Tracker Model Number(s): Y12, Y14, Y16, Y17, Y18, MF01, MF02, GP01 Product Description: Smart Tracker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: July 12, 2023 Name: miao Wang Title: manager Company: Shenzhen Xinfeiyi Technology Co., Ltd

Shenzhen Xinfeiyi Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 12, 2023 Subject; Request for Confidentiality FCC ID: 2A5C6-Y12 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: miao Wang Title: manager

Shenzhen Xinfeiyi Technology Co., Ltd Model Difference Declaration To Whom It May Concern, We, Shenzhen Xinfeiyi Technology Co., Ltd (Smart Tracker); Model Number: Y12, Y14, Y16, Y17, Y18, MF01, MF02, GP01; All model’s the function, software and electric circuit are the same, only with appearance, product color and model named different. Test sample model: Y12. Please contact me if you have any question. Signature: Date: July 12, 2023 Name: miao Wang Title: manager

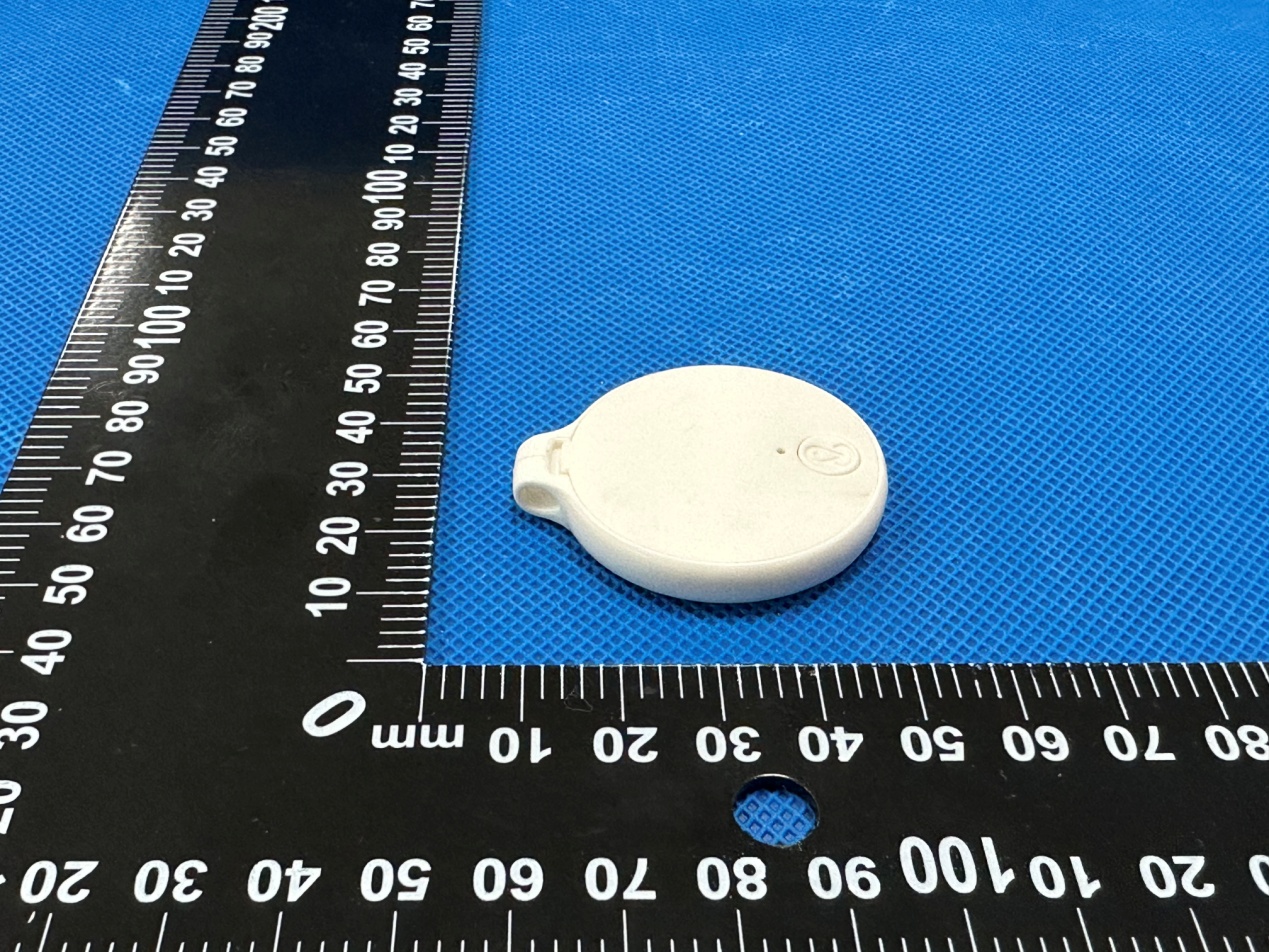

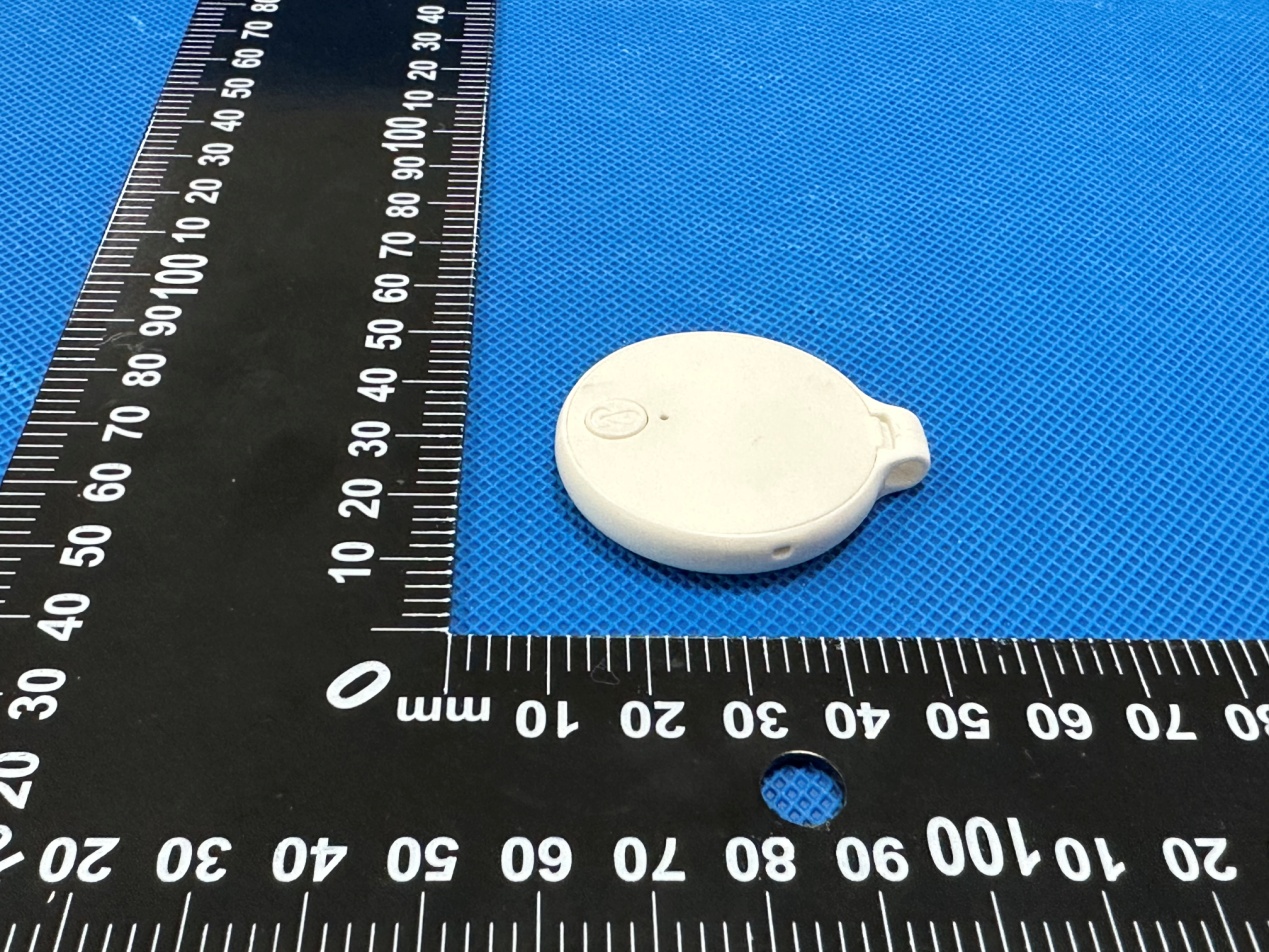

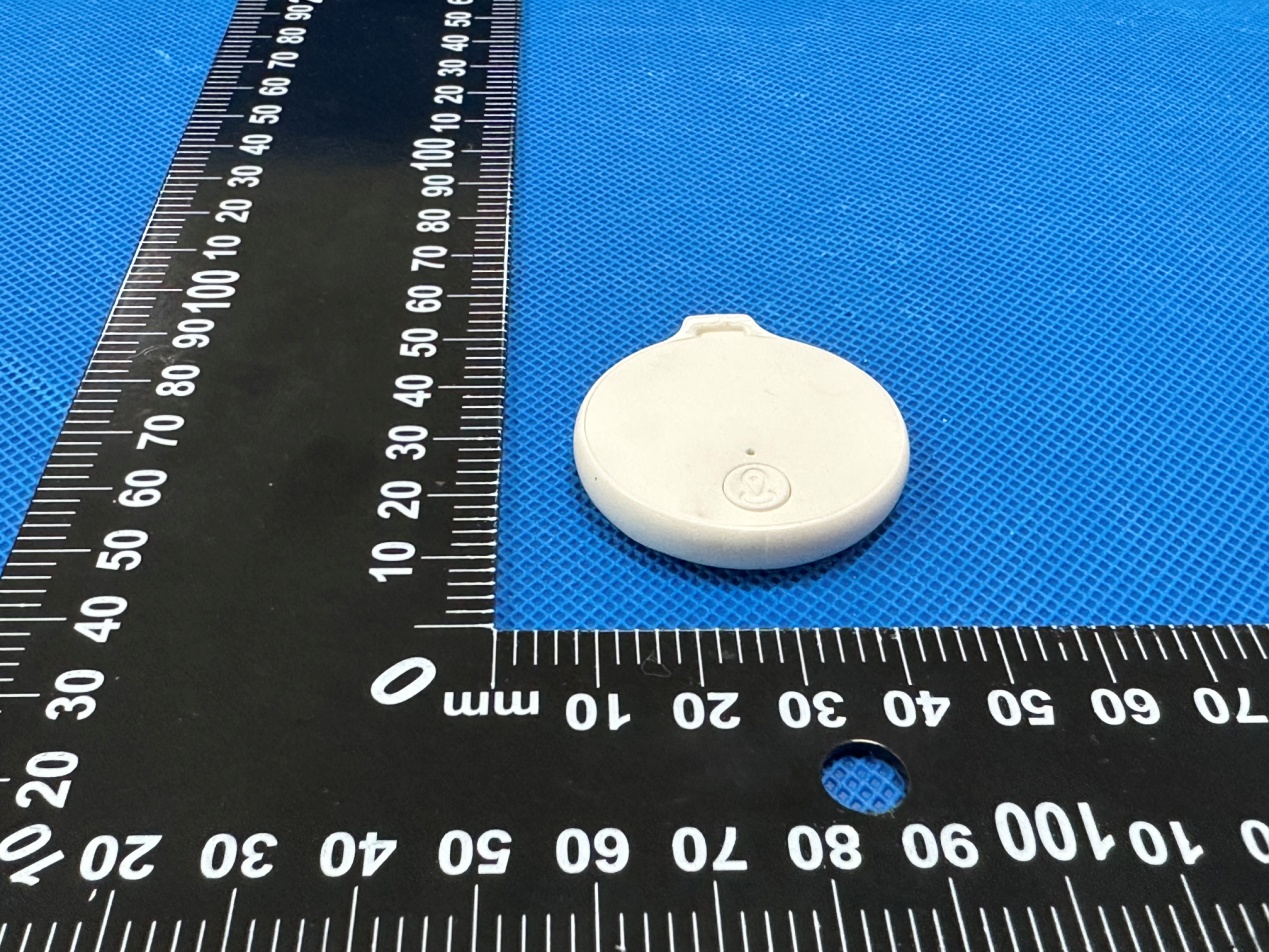

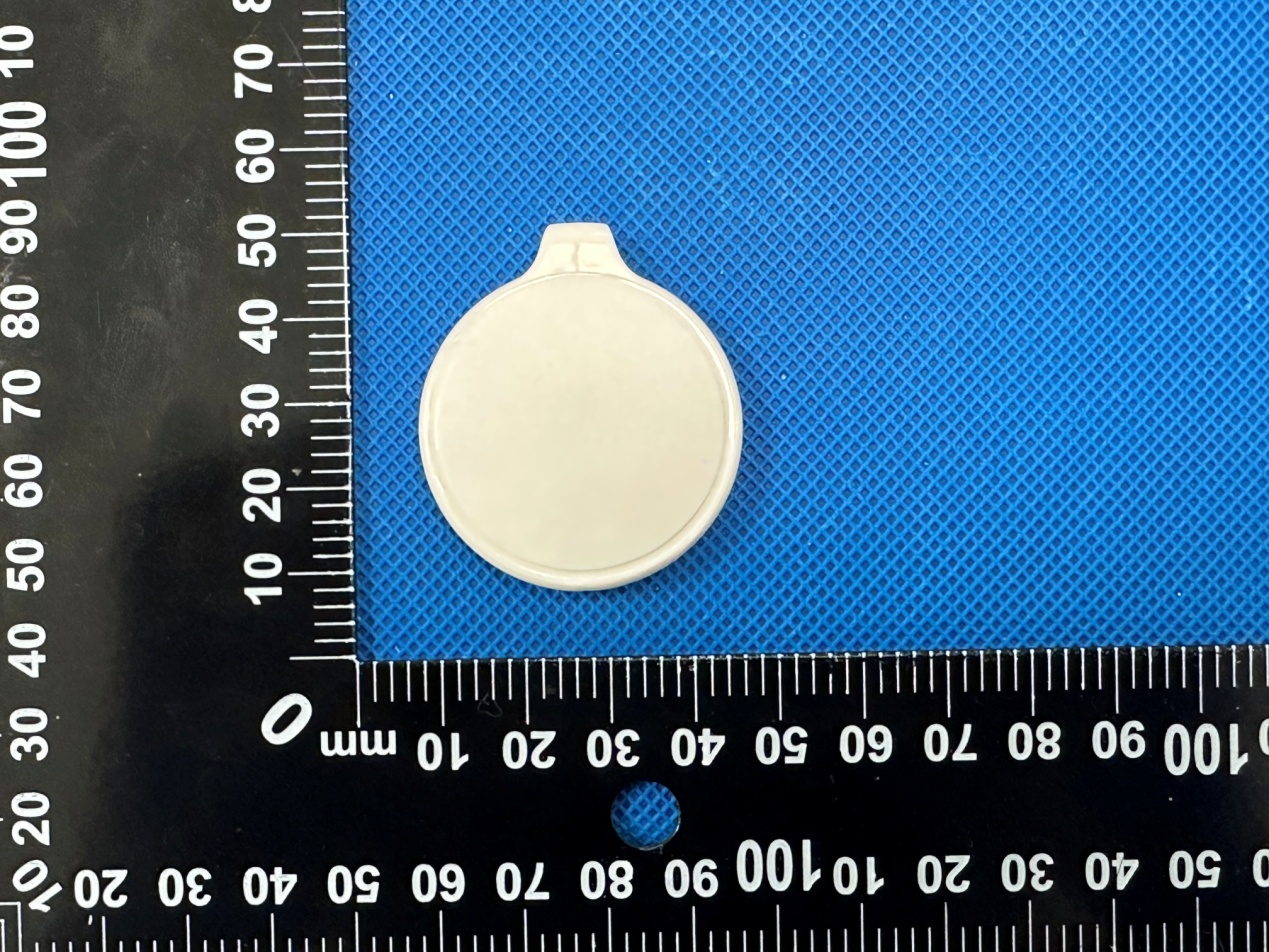

Annex A External Photos Report Number: HK2307042825-E Page 1 of 3 Report Number: HK2307042825-E Page 2 of 3 Report Number: HK2307042825-E Page 3 of 3

FCC ID LABEL: Ca. 15mm x 20mm label location FCC ID: 2A5C6-Y12

Annex B Internal Photos Report Number: HK2307042825-E Page 1 of 3 Antenna Report Number: HK2307042825-E Page 2 of 3 Report Number: HK2307042825-E Page 3 of 3

FCC RF Exposure EUT Description: Smart Tracker Model No.: Y12 FCC ID: 2A5C6‐Y12 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation BLE: Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2480 ‐3.54 ‐4±1 ‐3/0.5015 0.158 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2307042825‐E, antenna gain= 2dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.158 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

2.4GHz2012ChipAntenna:RANT2012F245C07 Dimension(mm) L2.05+-0.15 W1.20+-0.15 T0.85+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245C07 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=06 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain2.0dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 2.4GHz2012ChipAntenna:RANT2012F245C07 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% PeakGain1.72dBi1.95dBi1.69dBi Directivity2.26dBi2.69dBi2.11dBi 2.4GHz2012ChipAntenna:RANT2012F245C07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 2.4GHz2012ChipAntenna:RANT2012F245C07 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz2012ChipAntenna:RANT2012F245C06 2.4GHz2012ChipAntenna:RANT2012F245C07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12020/10/15NewDatasheet

Page 1 of 41 Report No.: HK2307042825-E FCC Test Report FCC PART 15 SUBPART C 15.247 Test Report On Behalf of Shenzhen Xinfeiyi Technology Co., Ltd For Smart Tracker Model No.: Y12, Y14, Y16, Y17, Y18, MF01, MF02, GP01 FCC ID: 2A5C6-Y12 Prepared For: Shenzhen Xinfeiyi Technology Co., Ltd One of B,Floor 3,Building A2,Zone A,Anle Industria Zone,Hangcheng Avenue,Xixiang Street,Bao'an District,Shenzhen, China Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: July 04, 2023 ~ July 11, 2023 Date of Report: July 11, 2023 Report Number: HK2307042825-E Page 2 of 41 Report No.: HK2307042825-E Test Result Certification Applicant’s Name ................... : Shenzhen Xinfeiyi Technology Co., Ltd Address .................................... : One of B,Floor 3,Building A2,Zone A,Anle Industria Zone,Hangcheng Avenue,Xixiang Street,Bao'an District,Shenzhen, China Manufacture's Name .............. : Shenzhen Xinfeiyi Technology Co., Ltd Address .................................... : One of B,Floor 3,Building A2,Zone A,Anle Industria Zone,Hangcheng Avenue,Xixiang Street,Bao'an District,Shenzhen, China Product Description Trade Mark: N/A Product Name ............................ : Smart Tracker Model and/or type reference .. : Y12, Y14, Y16, Y17, Y18, MF01, MF02, GP01 Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of Performance of Tests ............... : July 04, 2023 ~ July 11, 2023 Date of Issue ............................................. : July 11, 2023 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 41 Report No.: HK2307042825-E Contents Page 1 Test Summary ................................................................................................................................................ 6 1.1 Test Description ......................................................................................................................................... 6 1.2 Measurement Uncertainty ......................................................................................................................... 7 1.3 Information of the Test Laboratory ............................................................................................................ 7 2 General Information ....................................................................................................................................... 8 2.1 General Description of EUT ...................................................................................................................... 8 2.2 Description of Test Conditions ................................................................................................................ 10 2.3 Description of Support Units .................................................................................................................... 10 2.4 Description of Test Setup ........................................................................................................................ 11 3 Equipments List for All Test Items ............................................................................................................. 12 4 Test Result .................................................................................................................................................... 14 4.1 Antenna Requirement.............................................................................................................................. 14 4.1.1 Standard Requirement ..................................................................................................................... 14 4.1.2 EUT Antenna ................................................................................................................................... 14 4.2 Conduction Emissions Measurement ...................................................................................................... 15 4.2.1 Applied Procedures / Limit ............................................................................................................... 15 4.2.2 Test Procedure ................................................................................................................................ 15 4.2.3 Test Setup ........................................................................................................................................ 16 4.2.4 Test Results ..................................................................................................................................... 17 4.3 Radiated Emissions Measurement .......................................................................................................... 18 4.3.1 Applied Procedures / Limit ............................................................................................................... 18 4.3.2 Test Setup ........................................................................................................................................ 18 4.3.3 Test Result ....................................................................................................................................... 20 4.4 Maximum Output Power Measurement .............................................................................…

Text truncated - open the document above for the full version.

Report No.: HK2307042825-E Radiated Emissions
