2A5EV-FM100Bluetooth thermometer series

Power ON/OFF Pairing / Stop Alarm Button Back-light ON Numbers Probe Wrap Make when It service long-time monitoring Silicone handle long-time long-time Operation is subject to the following two conditions: FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Shenzhen Finemold Technologies CO.,LTD 2022.03.21 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Bluetooth thermometer series Trademark: N/A MODEL : FM100 FCC ID: 2A5EV-FM100 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Steven Wang /Manager Contact information / address: No. 85, Rentian Industrial Zone, Fuhai Street, Baoan District, Shenzhen City, Guangdong Province,China

Shenzhen Finemold Technologies CO.,LTD 2022.03.21 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Bluetooth thermometer series Trademark: N/A MODEL : FM100 FCC ID: 2A5EV-FM100 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Steven Wang /Manager Contact information / address: No. 85, Rentian Industrial Zone, Fuhai Street, Baoan District, Shenzhen City, Guangdong Province,China

Shenzhen Finemold Technologies CO.,LTD Model Difference 2022/03/21 EUT NAME: Shenzhen Finemold Technologies CO.,LTD FCC ID: 2A5EV-FM100 MODEL : FM100, FM100,FM108,FM109,FM200,FM201,FM202,FM203,FM204,FM205,FM206,FM207, FM208,FM209,FM210,FM211,FM212,FM213,FM214,FM215,FM216 All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s signature: Client’s name / title : Steven Wang /Manager Contact information / address: No. 85, Rentian Industrial Zone, Fuhai Street, Baoan District, Shenzhen City, Guangdong Province,China

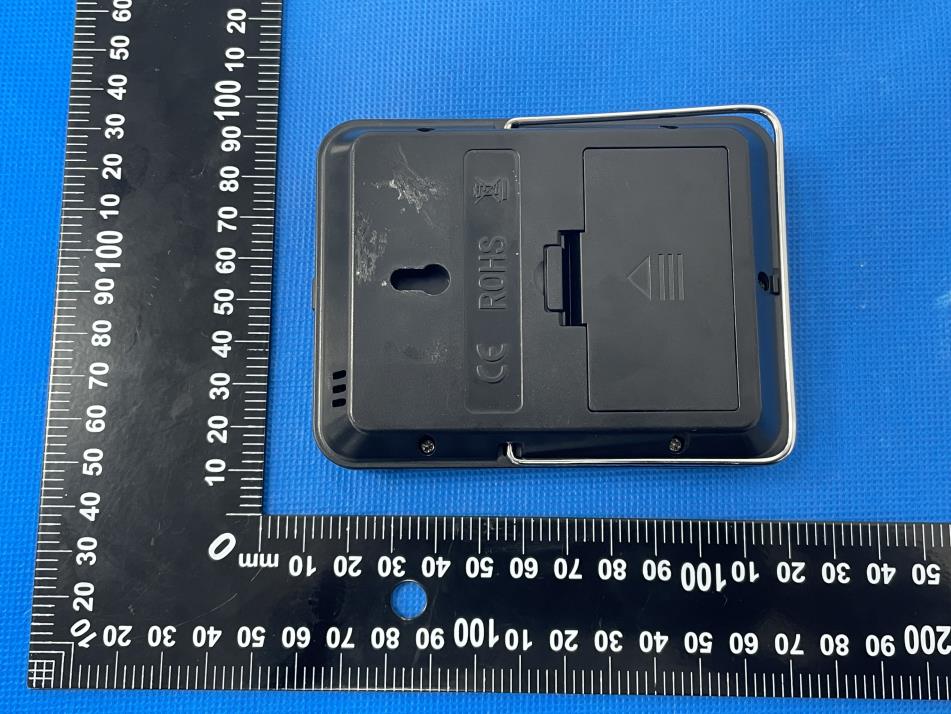

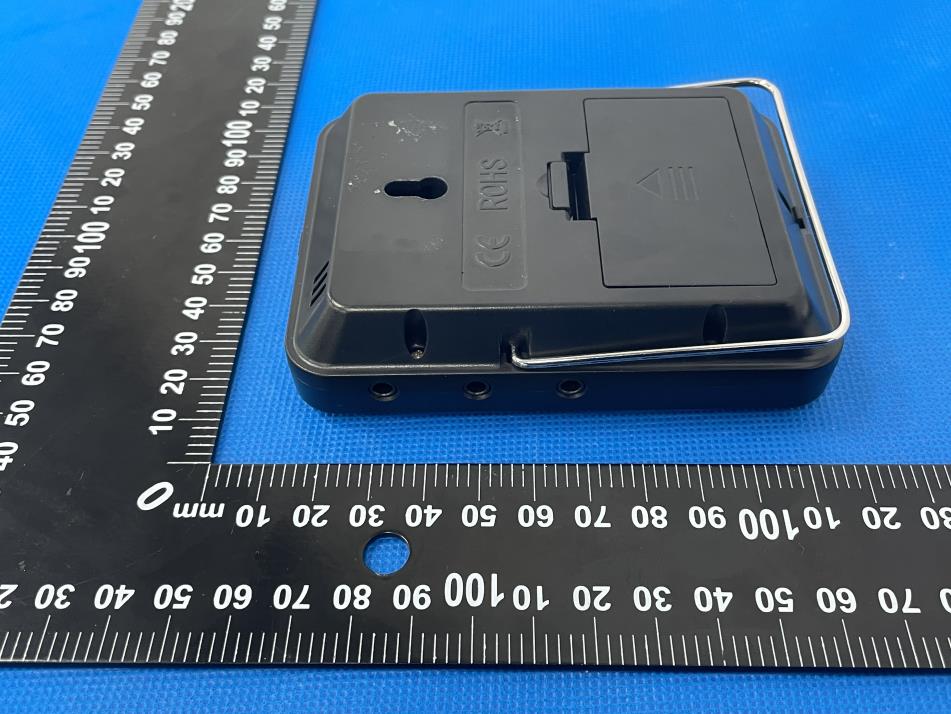

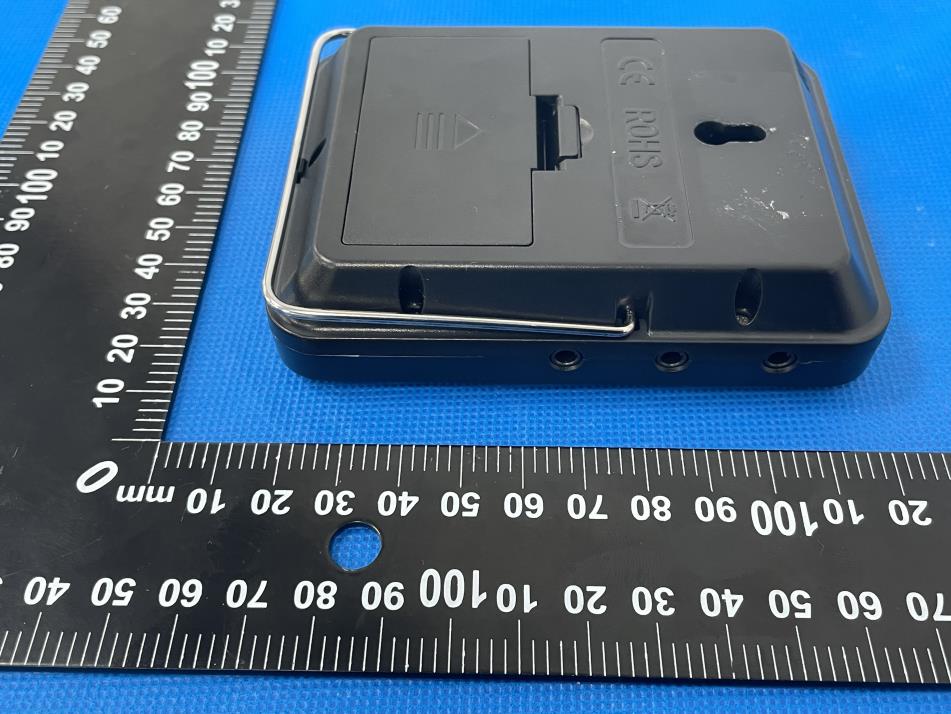

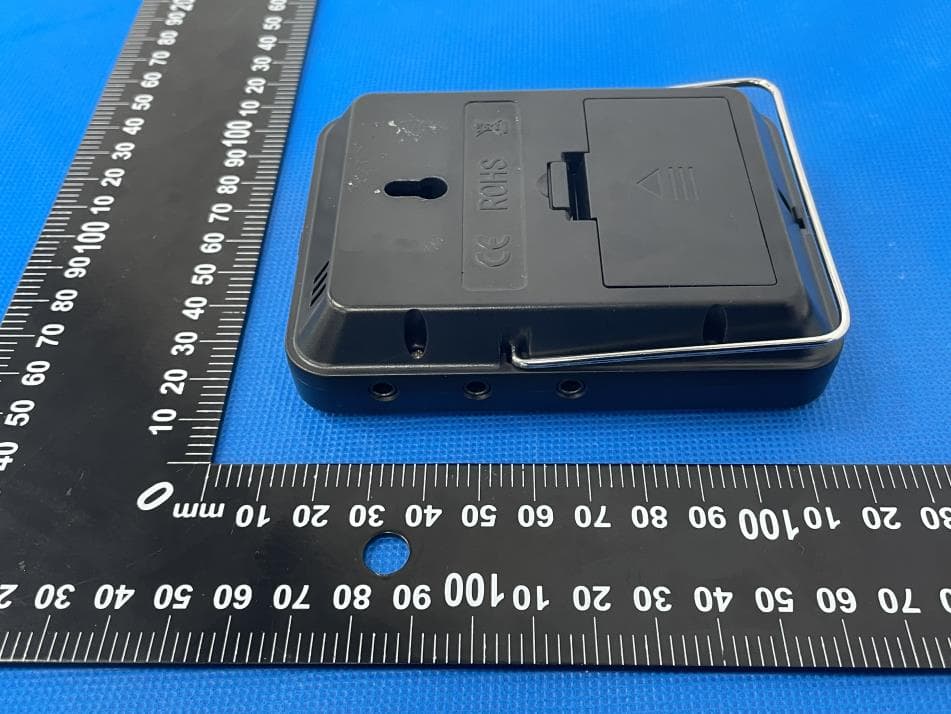

External Photos

Size:20*10mm FCC ID: 2A5EV-FM100 Label location

Internal Photos Antenna

FCC ID: 2A5EV-FM100 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison BLE Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR GFSK(2M) 2.402 -3.8 -4±1 -3 0.5 5 0.155 3.0 Conclusion: For the max result : 0.155W/Kg ≤ FCC Limit 3.0 for 1g SAR.

No.：BCTC/RF-EMC-005 Page: 1 of 51 Edition：A.4 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2203019728E Applicant: Shenzhen Finemold Technologies CO., LTD Product Name: Bluetooth thermometer series Model/Type Ref.: FM100 Tested Date: 2022-03-01 to 2022-03-07 Issued Date: 2022-03-07 Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 2 of 51 Edition：A.4 FCC ID: 2A5EV-FM100 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Bluetooth thermometer series Trademark: N/A Model/Type Ref.: FM100 FM108, FM109, FM200, FM201, FM202, FM203, FM204, FM205, FM206, FM207, FM208, FM209, FM210, FM211, FM212, FM213, FM214, FM215, FM216 Prepared For: Shenzhen Finemold Technologies CO., LTD Address: No. 85, Rentian Industrial Zone, Fuhai Street, Baoan District, Shenzhen City, Guangdong Province,China Manufacturer: Shenzhen Finemold Technologies CO., LTD Address: No. 85, Rentian Industrial Zone, Fuhai Street, Baoan District, Shenzhen City, Guangdong Province,China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2022-03-01 Sample tested Date: 2022-03-01 to 2022-03-07 Issue Date: 2022-03-07 Report No.: BCTC2203019728E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 3 of 51 Edition：A.4 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ..................................................... 9 5. Test Facility And Test Instrument Used ............................................................... 10 5.1 Test Facility ......................................................................................................... 10 5.2 Test Instrument Used .......................................................................................... 10 6. Conducted Emissions .......................................................................................... 12 6.1 Block Diagram Of Test Setup .............................................................................. 12 6.2 Limit .................................................................................................................... 12 6.3 Test Procedure ................................................................................................... 12 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 14 7.1 Block Diagram Of Test Setup .............................................................................. 14 7.2 Limit .................................................................................................................... 15 7.3 Test Procedure ................................................................................................... 16 7.4 EUT Operating Conditions .................................................................................. 17 7.5 Test Result .......................................................................................................... 18 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 22 8.1 Block Diagram Of Test Setup .............................................................................. 22 8.2 Limit .................................................................................................................... 22 8.3 Test Procedure ................................................................................................... 23 8.4 EUT operating Conditions ................................................................................... 23 8.5 Test Result .......................................................................................................... 24 9. Power Spectral Density Test ............................................................................... 25 9.1 Block Diagram Of Test Setup .............................................................................. 25 9.2 Limit .................................................................................................................... 25 9.3 Test Procedure ..................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 30 of 51 Edition：A.4 10. Bandwidth Test 10.1 Block Diagram Of Test Setup 10.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(a)(2) Bandwidth >= 500KHz (6dB bandwidth) 2400-2483.5 PASS 10.3 Test Procedure 1. Set RBW = 100 kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. . 10.4 EUT Operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 31 of 51 Edition：A.4 10.5 Test Result Temperature： 26°C Relative Humidity： 54% Test Mode ： GFSK 1Mbps Test Voltage ： AC 120V/60Hz Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result GFSK 1Mbps 2402 0.677 500 Pass 2440 0.674 500 Pass 2480 0.729 500 Pass GFSK 2Mbps 2402 1.153 500 Pass 2440 1.163 500 Pass 2480 1.16 500 Pass Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 32 of 51 Edition：A.4 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz -6dB Bandwidth NVNT BLE 1M 2440MHz Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 33 of 51 Edition：A.4 -6dB Bandwidth NVNT BLE 1M 2480MHz -6dB Bandwidth NVNT BLE 2M 2402MHz Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 34 of 51 Edition：A.4 -6dB Bandwidth NVNT BLE 2M 2440MHz -6dB Bandwidth NVNT BLE 2M 2480MHz Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 35 of 51 Edition：A.4 11. Peak Output Power Test 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(3) Peak Output Power 1 watt or 30dBm 2400-2483.5 PASS 11.3 Test Procedure a. The EUT was directly connected to the Power meter 11.4 EUT Operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 36 of 51 Edition：A.4 11.5 Test Result Temperature： 26°C Relative Humidity： 54% Test Mode ： GFSK Test Voltage ： AC 120V/60Hz Frequency Maximum Conducted Output Power(PK) Conducted Output Power Limit (MHz) (dBm) dBm GFSK 1Mbps 2402 -3.85 30 2440 -3.9 30 2480 -4.32 30 GFSK 2Mbps 2402 -3.8 30 2440 -3.88 30 2480 -4.32 30 Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 37 of 51 Edition：A.4 12. 100 KHz Bandwidth Of Frequency Band Edge 12.1 Block Diagram Of Test Setup 12.2 Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. 12.3 Test Procedure Using the following spectrum analyzer setting: a) Set the RBW = 100KHz. b) Set the VBW = 300KHz. c) Sweep time = auto couple. d) Detector function = peak. e) Trace mode = max hold. f) Allow trace to fully stabilize.. 12.4 EUT Operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 38 of 51 Edition：A.4 12.5 Test Result Band Edge Test Graphs Band Edge NVNT BLE 1M 2402MHz Band Edge NVNT BLE 1M 2402MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 39 of 51 Edition：A.4 Band Edge NVNT BLE 1M 2480MHz Band Edge NVNT BLE 1M 2480MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 40 of 51 Edition：A.4 Band Edge NVNT BLE 2M 2402MHz Band Edge NVNT BLE 2M 2402MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 41 of 51 Edition：A.4 Band Edge NVNT BLE 2M 2480MHz Band Edge NVNT BLE 2M 2480MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 42 of 51 Edition：A.4 Tx. Spurious Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Tx. Spurious NVNT BLE 1M 2402MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 43 of 51 Edition：A.4 Tx. Spurious NVNT BLE 1M 2440MHz Tx. Spurious NVNT BLE 1M 2440MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 44 of 51 Edition：A.4 Tx. Spurious NVNT BLE 1M 2480MHz Tx. Spurious NVNT BLE 1M 2480MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 45 of 51 Edition：A.4 Tx. Spurious NVNT BLE 2M 2402MHz Tx. Spurious NVNT BLE 2M 2402MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 46 of 51 Edition：A.4 Tx. Spurious NVNT BLE 2M 2440MHz Tx. Spurious NVNT BLE 2M 2440MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 47 of 51 Edition：A.4 Tx. Spurious NVNT BLE 2M 2480MHz Tx. Spurious NVNT BLE 2M 2480MHz Emission Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 48 of 51 Edition：A.4 13. Antenna Requirement 13.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 13.2 Test Result The EUT antenna is Internal antenna, Antenna Gain is 0dBi, fulfill the requirement of this section. Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 49 of 51 Edition：A.4 14. EUT Photographs EUT Photo 1 EUT Photo 2 Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 50 of 51 Edition：A.4 15. EUT Test Setup …

Text truncated - open the document above for the full version.

Report No.: BCTC2203019728E No.：BCTC/RF-EMC-005 Page: 50 of 51 Edition：A.4 15. EUT Test Setup Photographs Radiated Measurement Photos
