2A5FK-EZQUBEWSingle motor drive controller

(:) PULSEROLLER 25-March-2022 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Insi g ht Automation Inc. dba. PULSEROLLER 2748 Circleport Drive Erlan g er, KY. 41018 859-64 7-1111 800-764-6356 www.pulseroller.com RE: Long-Term Confidentiality Request for 2A5FK-EZ-Qube-W To Whom It May Concern: This letter serves as an official request for confidentiality under§ 0.457(d) and§ 0.459 of CFR 47. We have requested that the following documents required to be submitted with this application be permanently withheld from public review. •Block Diagram •Schema tics •Theory of Operation •Parts List/BOM These documents contain detailed system and equipment descriptions and related information about the product, which manufacturer/applicant considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, manufacturer/applicant feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. James P. Knapke Director of Engineering Insight Automation - Pulseroller

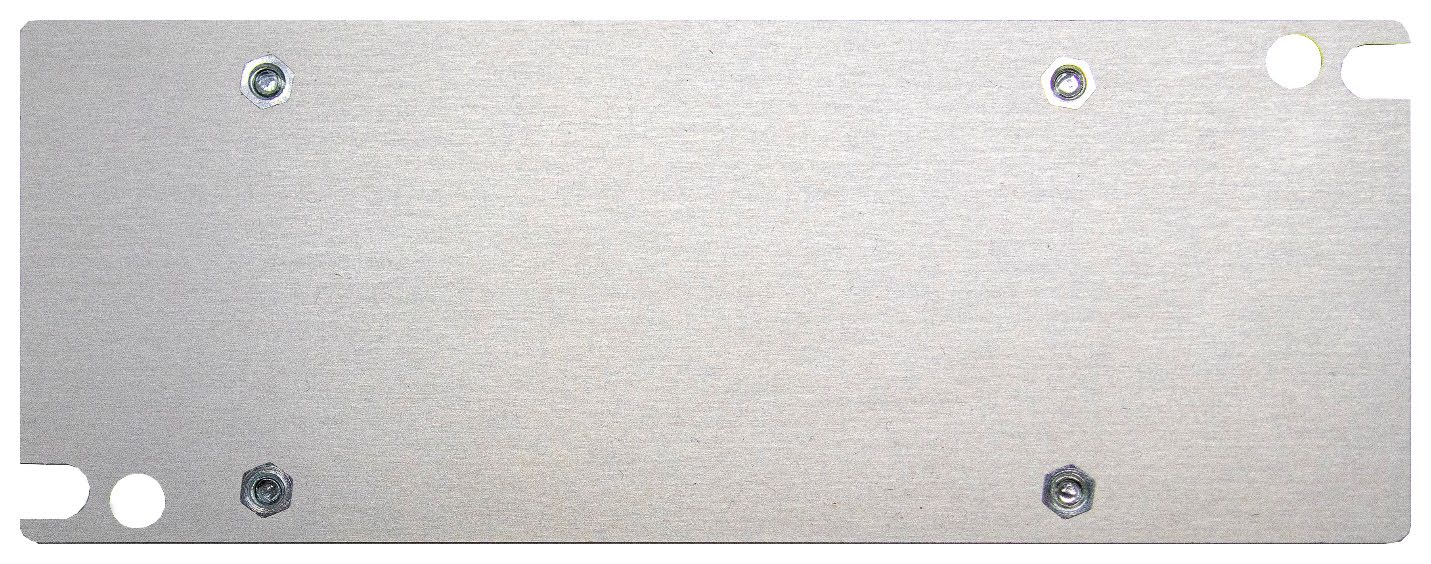

Dimensions of label only Updated label contents 09-Jun-2022

Toll-free: (866) 311-3268 www.ComplianceTesting.com [email protected] P21a0015_FCC_Part 15.247_DTS_Rev 2.0 Page 1 of 31 Test Report Prepared for : Pulse Roller Model: EZQube-W Description: Single motor, drive controller module for Synergy Motors S erial Number: 973 156 FCC ID: 2A5FK-EZQUBEW ISED ID: 28311-EZQUBEW To FCC Part 15.247 DTS ISED RSS-247 Issue 2 Date of Issue: February 23, 2022 On behalf of the applicant: Pulse Roller 2748 Circleport Dr. Erlanger, KY 41018 Attention of: Pat Knapke [email protected] Direct: 859-647-8945 Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p21a0015 Poona Saber Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. P21a0015_FCC_Part 15.247_DTS_Rev 2.0 Page 2 of 31 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 Feb 23, 2022 Poona Saber Original Document 2.0 March 29, 2022 Greg Corbin Added references for ISED. P21a0015_FCC_Part 15.247_DTS_Rev 2.0 Page 3 of 31 Table of Contents Description Page Standard Test Conditions Engineering Practices ................................................................................................................... 6 Test Results Summary ............................................................................................................................................................ 8 Peak Output Power ................................................................................................................................................................. 9 Occupied Bandwidth ............................................................................................................................................................. 12 Transmitter Power Spectral Density (PSD) ........................................................................................................................... 14 Conducted Spurious Emission .............................................................................................................................................. 17 Radiated Spurious Emissions ............................................................................................................................................... 19 Emissions at Band Edges ..................................................................................................................................................... 26 Emissions at Restricted Band Edges .................................................................................................................................... 28 Test Equipment Utilized ........................................................................................................................................................ 30 P21a0015_FCC_Part 15.247_DTS_Rev 2.0 Page 4 of 31 ANAB Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2017. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. FCC Site Reg. #349717 IC Site Reg. #2044A-2 P21a0015_FCC_Part 15.247_DTS_Rev 2.0 Page 5 of 31 The applicant has been cautioned as to the following 15.21 - Information to User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a) - Special Accessories Equipment marked to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. P21a0015_FCC_Part 15.247_DTS_Rev 2.0 Page 6 of 31 Standard Test Conditions Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.10-2013 and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Measurement results, unless otherw…

Text truncated - open the document above for the full version.

Toll-free: (866) 311-3268 Fax: (480) 926-3598 www.ComplianceTesting.com [email protected] P21a0015_FCC_Part 1.1310_Rev 3.0 Page 1 of 4 Test Report Prepared for: Pulse Roller Model: EZQube-W Description: Single motor, drive controller module for Synergy Motors S erial Number: 973 156 To FCC ID: 2A5FK-EZQUBEW To FCC Part 1.1310 Date of Issue: February 23, 2022 On the behalf of the applicant: Pulse Roller 2748 Circleport Dr. Erlanger, KY 41018 Attention of: Pat Knapke [email protected] Direct: 859-647-8945 Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p21a0015 Poona Saber Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested P21a0015_FCC_Part 1.1310_Rev 3.0 Page 2 of 4 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 February 23, 2022 Poona Saber Original Document 2.0 March 29, 2022 Greg Corbin Added FCC ID to page 1 3.0 May 16, 2022 Greg Corbin Updated calculations with highest power reported in RF test report P21a0015_FCC_Part 1.1310_Rev 3.0 Page 3 of 4 ANAB Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2017. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. FCC Site Reg. #349717 IC Site Reg. #2044A-2 EUT Description Model: EZQube-W Description: EZ-Qube is an economical single motor, drive controller module for Senergy Motors Firmware: NA Software: NA Serial Number: 973 156 Additional Information: EZ-Qube is an economical single motor, drive controller module for Senergy Motors. Its input power is 24 VDC and has 3 connectors- motor, power and I/0 terminal. It utilizes a Bluetooth low energy radio module that is controlled for testing purpose via an ESP RF test tool connected to a PC with a USB-UART bridge between UART connector on the module and USB port of the PC. Module has a PCB trace antenna of 2 dBi gain. P21a0015_FCC_Part 1.1310_Rev 3.0 Page 4 of 4 MPE Evaluation This is a fixed device used in uncontrolled Exposure environment. Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 2440 Power, Conducted, mW (P) 1.905 Antenna Gain Isotropic 2 dBi Antenna Gain Numeric (G) 1.58 Antenna Type PCB trace Distance (R) 20 cm 푆푆= 푃푃∗퐺퐺 4휋휋푟푟 2 Power Density (S) mw/cm 2 Power Density (S) = 0.000597 Limit = (from above table) = 1 Minimum separation distance is 20 cm. END OF TEST REPORT

Test Setup Photos FCC ID: 2A5FK-EZQUBEW ISED ID: 28311-EZQUBEW PMN = EZ-Qube-W HVIN = EZQUBEW Conducted RF Test Set-up Conducted RF Test Set-up Test Setup Photos FCC ID: 2A5FK-EZQUBEW ISED ID: 28311-EZQUBEW RF Radiated 30 MHz-1GHz RF Radiated 1-18 GHz
