2A5G3-HSK-H6-J1OTT TV BOX

Shenzhen Hua ShunKe Electronic Technology Co.,Ltd Agent Authorization Company: Shenzhen Hua ShunKe Electronic Technology Co.,Ltd Address: 2302, Meilan BIZ CEN, Baoyunda Logistics Center, Fuhua Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Product Name: OTT TV BOX Model Number(s): H6_J1, H6_M5 Product Description: OTT TV BOX We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-4-1 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

Differences Description We Shenzhen Hua ShunKe Electronic Technology Co.,Ltd state: Product： OTT TV BOX Model Name： H6_J1, H6_M5 Brand Name： N/A FCC ID： 2A5G3-HSK-H6-J1 The internal structure and design of the product are completely the same, Different appearance and shape. Signature: Date: 2022.3.28 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

2022.3.28 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize SHENZHEN STS TEST SERVICES CO.,LTD./ A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China/Jiankuai Li(Name of Agent company name and address, Name of Agent) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. Name: Jiankuai Li Title: PM E-mail:[email protected] This appointment is valid until further until December 31, 2022 Sincerely, Name: LI PEISHENG Title: PM E-mail: [email protected] Company: Shenzhen Hua ShunKe Electronic Technology Co.,Ltd Signature:

Shenzhen Hua ShunKe Electronic Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.3.28 Subject; Request for Confidentiality FCC ID: 2A5G3-HSK-H6-J1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Date: 2022.3.28 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

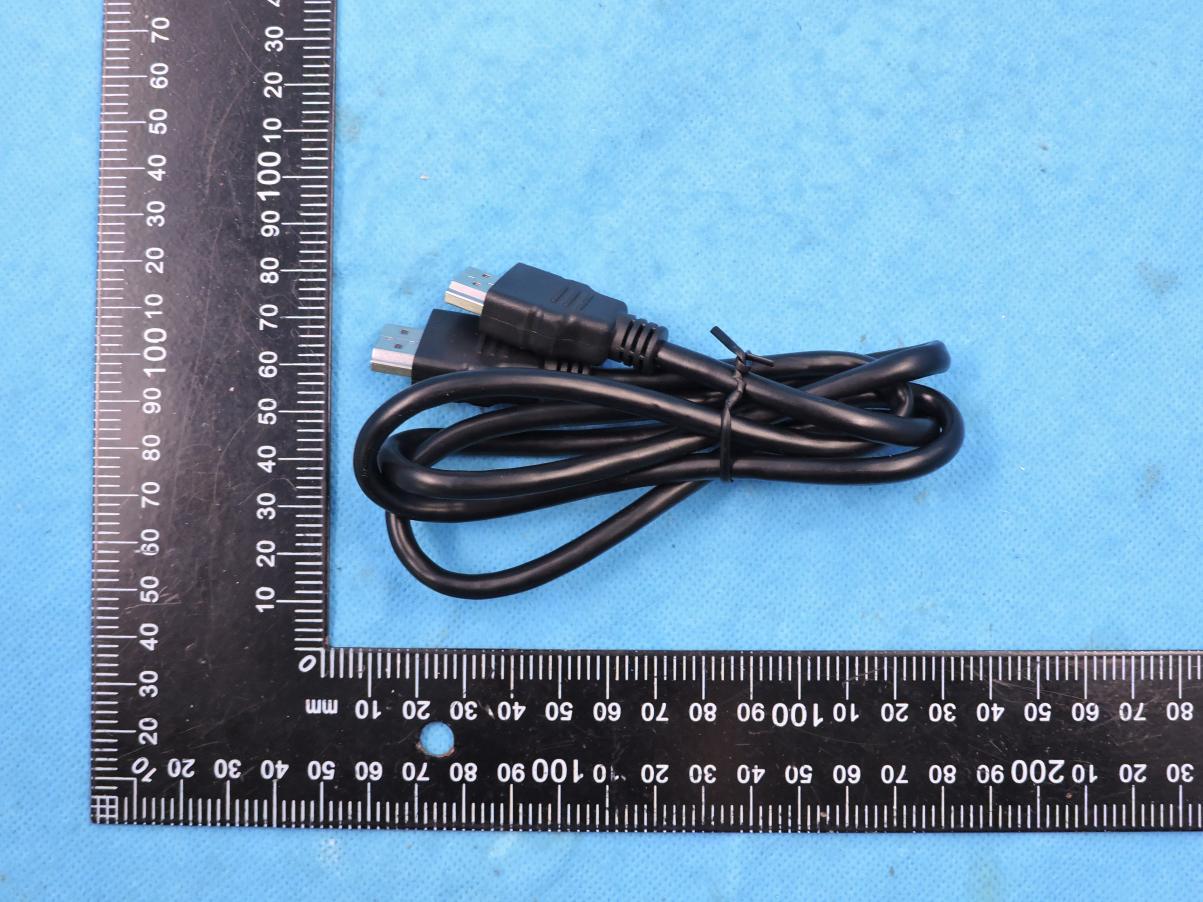

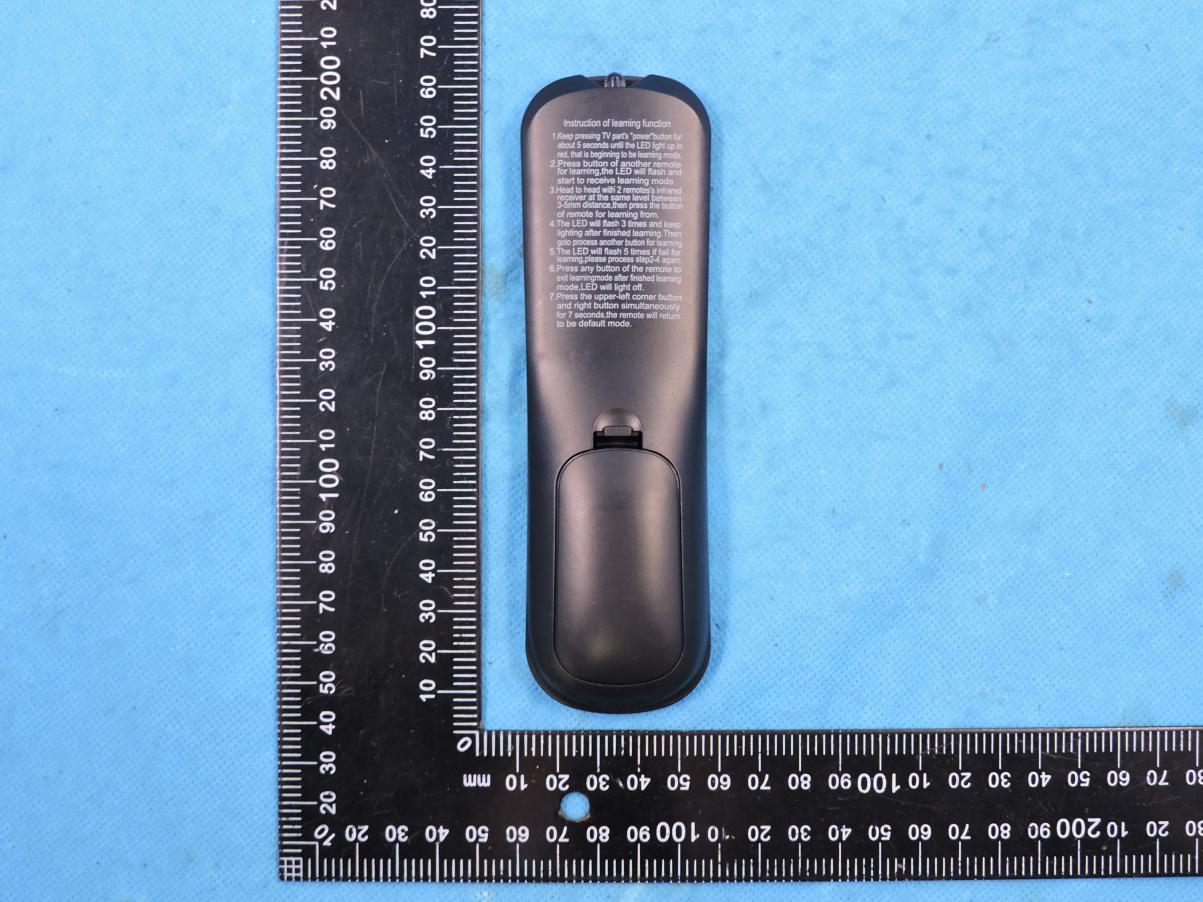

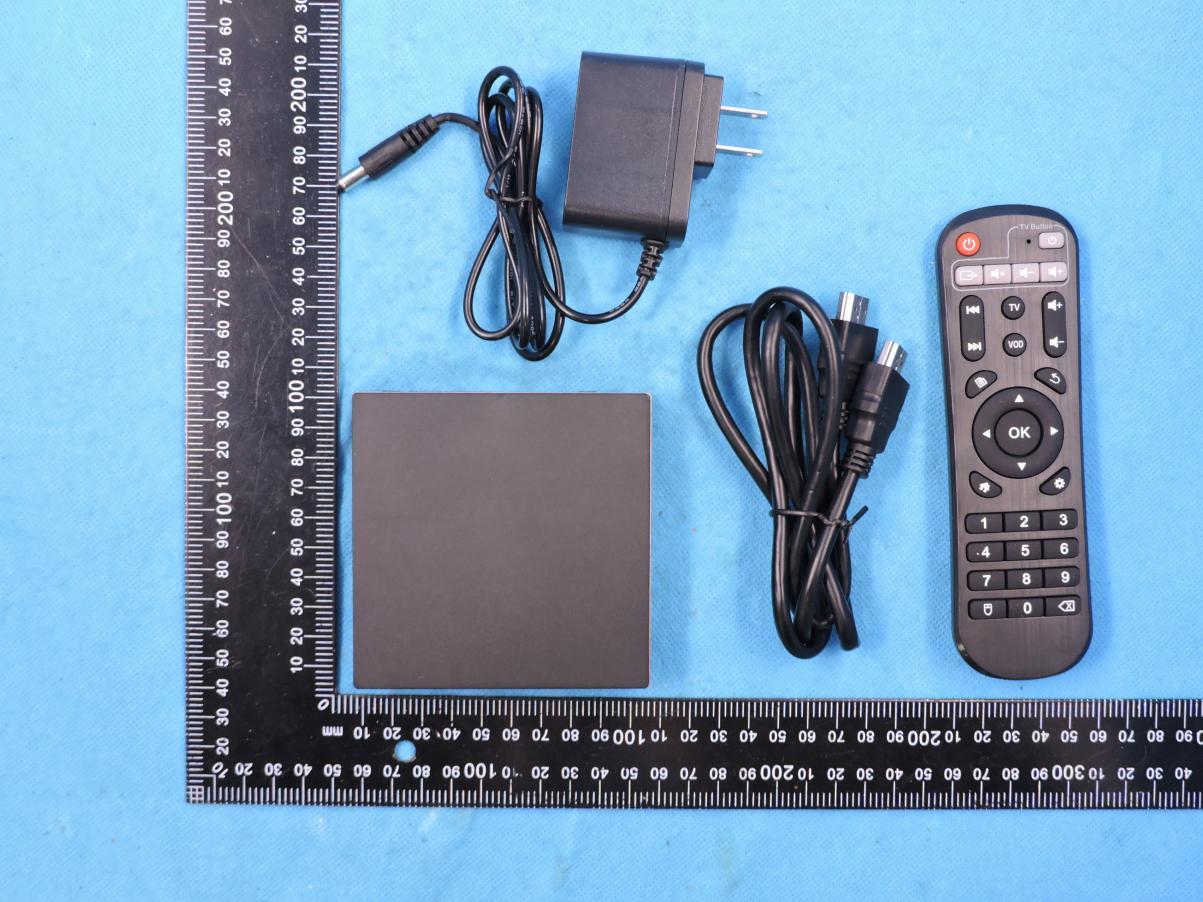

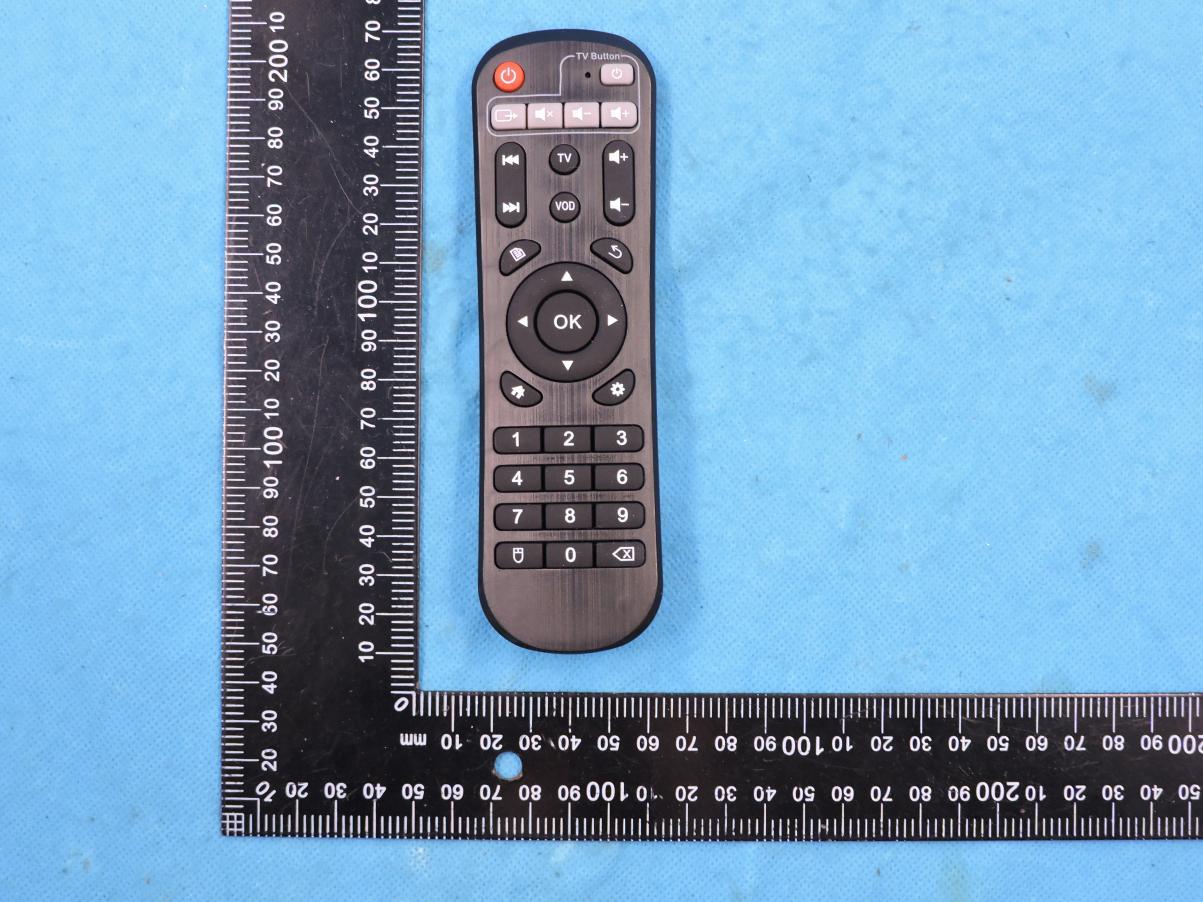

Page 1 of 6 Report No.: STS22203014 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: H6_J1 Photo 1 Photo 2 Photo 3 Page 2 of 6 Report No.: STS22203014 Photo 4 Page 3 of 6 Report No.: STS22203014 Photo 5 Photo 6 Page 4 of 6 Report No.: STS22203014 Photo 7 Photo 8 Page 5 of 6 Report No.: STS22203014 Photo 9 Photo 10 Page 6 of 6 Report No.: STS22203014 Photo 11 Photo 12

FCC Label Product Name: OTT TV BOX Model Name: H6_J1 Input: DC 5V2A 2A5G3-HSK-H6-J1 FCC ID:

Page 1 of 5 Report No.: STS2203014 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model:H6_J1 Photo 1 Photo 2 Photo 3 BLE/WIFI Antenna Page 2 of 5 Report No.: STS2203014 Photo 4 Page 3 of 5 Report No.: STS2203014 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2203014 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2203014 Photo 9

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2203014W01 Issued for Shenzhen Hua ShunKe Electronic Technology Co.,Ltd 2302, Meilan BIZ CEN, Baoyunda Logistics Center, Fuhua Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Product Name: OTT TV BOX Brand Name: N/A Model Name: H6_J1 Series Model: H6_M5 FCC ID: 2A5G3-HSK-H6-J1 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 46 Report No.: STS2203014W01 TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Hua ShunKe Electronic Technology Co.,Ltd Address ................................. : 2302, Meilan BIZ CEN, Baoyunda Logistics Center, Fuhua Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Manufacturer's Name .......... : Shenzhen Hua ShunKe Electronic Technology Co.,Ltd Address ................................. : 2302, Meilan Business Center, Baoyunda Logistics Center, Fuhua Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Product Description Product Name ....................... : OTT TV BOX Brand Name ........................ : N/A Model Name .......................... : H6_J1 Series Model ......................... : H6_M5 Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 02 Mar. 2022 Date (s) of performance of tests ............. : 02 Mar. 2022 ~ 22 Mar. 2022 Date of Issue .......................................... : 22 Mar. 2022 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 46 Report No.: STS2203014W01 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 TEST PROCEDURE 16 3.3 TEST SETUP 16 3.4 EUT OPERATING CONDITIONS 16 3.5 TEST RESULTS 17 4. RADIATED EMISSION MEASUREMENT 19 4.1 RADIATED EMISSION LIMITS 19 4.2 TEST PROCEDURE 21 4.3 TEST SETUP 22 4.4 EUT OPERATING CONDITIONS 22 4.5 FIELD STRENGTH CALCULATION 23 4.6 TEST RESULTS 24 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 5.1 LIMIT 31 5.2 TEST PROCEDURE 31 5.3 TEST SETUP 31 5.4 EUT OPERATION CONDITIONS 31 5.5 TEST RESULTS 32 6. POWER SPECTRAL DENSITY TEST 36 6.1 LIMIT 36 6.2 TEST PROCEDURE 36 Page 4 of 46 Report No.: STS2203014W01 Table of Contents 6.3 TEST SETUP 36 6.4 EUT OPERATION CONDITIONS 36 6.5 TEST RESULTS 37 7. BANDWIDTH TEST 39 7.1 LIMIT 39 7.2 TEST PROCEDURE 39 7.3 TEST SETUP 39 7.4 EUT OPERATION CONDITIONS 39 7.5 TEST RESULTS 40 8. PEAK OUTPUT POWER TEST 42 8.1 LIMIT 42 8.2 TEST PROCEDURE 42 8.3 TEST SETUP 43 8.4 EUT OPERATION CONDITIONS 43 8.5 TEST RESULTS 44 9. ANTENNA REQUIREMENT 45 9.1 STANDARD REQUIREMENT 45 9.2 EUT ANTENNA 45 10. EUT TEST PHOTO 46 Page 5 of 46 Report No.: STS2203014W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 22 Mar. 2022 STS2203014W01 ALL Initial Issue Page 6 of 46 Report No.: STS2203014W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 46 Report No.: STS2203014W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 8 of 46 Report No.: STS2203014W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name OTT TV BOX Trade Name N/A Model…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2203014W02 Issued for Shenzhen Hua ShunKe Electronic Technology Co.,Ltd 2302, Meilan BIZ CEN, Baoyunda Logistics Center, Fuhua Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Product Name: OTT TV BOX Brand Name: N/A Model Name: H6_J1 Series Model: H6_M5 FCC ID: 2A5G3-HSK-H6-J1 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 70 Report No.:STS2203014W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Hua ShunKe Electronic Technology Co.,Ltd Address ................................. : 2302, Meilan BIZ CEN, Baoyunda Logistics Center, Fuhua Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Manufacturer's Name ........... : Shenzhen Hua ShunKe Electronic Technology Co.,Ltd Address ................................. : 2302, Meilan Business Center, Baoyunda Logistics Center, Fuhua Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Product Description Product Name ........................ : OTT TV BOX Brand Name ........................... : N/A Model Name .......................... : H6_J1 Series Model .......................... : H6_M5 Test Standards ..................... : FCC Part 15.247 Test Procedure........................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ...................... : 02 Mar. 2022 Date (s) of performance of tests ............. : 02 Mar. 2022 ~ 22 Mar. 2022 Date of Issue .......................................... : 22 Mar. 2022 Test Result .............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 70 Report No.:STS2203014W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 32 5. POWER SPECTRAL DENSITY TEST 48 5.1 LIMIT 48 5.2 TEST PROCEDURE 48 5.3 DEVIATION FROM STANDARD 48 5.4 TEST SETUP 48 5.5 EUT OPERATION CONDITIONS 48 5.6 TEST RESULTS 49 6. BANDWIDTH TEST 56 6.1 LIMIT 56 6.2 TEST PROCEDURE 56 6.3 DEVIATION FROM STANDARD 56 6.4 TEST SETUP 56 6.5 EUT OPERATION CONDITIONS 56 Page 4 of 70 Report No.:STS2203014W02 Table of Contents Page 6.6 TEST RESULTS 57 7. PEAK OUTPUT POWER TEST 64 7.1 LIMIT 64 7.2 TEST PROCEDURE 64 7.3 DEVIATION FROM STANDARD 64 7.4 TEST SETUP 65 7.5 EUT OPERATION CONDITIONS 65 7.6 TEST RESULTS 66 8. ANTENNA REQUIREMENT 69 8.1 STANDARD REQUIREMENT 69 8.2 EUT ANTENNA 69 APPENDIX-PHOTOS OF TEST SETUP 70 Page 5 of 70 Report No.:STS2203014W02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 22 Mar. 2022 STS2203014W02 ALL Initial Issue Page 6 of 70 Report No.:STS2203014W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 70 Report No.:STS2203014W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 8 of 70 Report No.:STS2203014W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name OTT TV BOX Trade Name N/A Model Name H6_J1 Series Model H6_M5 Model Difference Different appearance and shape. Pro…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2A5G3-HSK-H6-J1 DSS&DTS&DXX Setup photo Model name: H6_J1 DSS&DTS&DXX conduction DSS&DTS&DXX radiation L Page 2 of 2 FCC ID: 2A5G3-HSK-H6-J1 DSS&DTS&U-NII radiation H
