FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. 2024.08.15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2A5HP-ZL99J [Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Liping Huang Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. 2024.08.15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2A5HP-ZL99J [Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Liping Huang

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. 2024.08.15 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Smart watch Trademark: N/A MODEL : ZL99J ZL55 FCC ID : 2A5HP-ZL99J To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Liping Huang /Manager Contact information / address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao'an District, Shenzhen, China

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. 2024.08.15 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Liping Huang /Manager Contact information / address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao'an District, Shenzhen, China

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Model Difference 2024.08.15 EUT NAME: Smart watch FCC ID: 2A5HP-ZL99J MODEL : ZL99J ZL55 All the model are the same circuit and RF module, except appearance color and model name. Regards Sincerely Client’s signature: Client’s name / title : Liping Huang /Manager Contact information / address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao'an District, Shenzhen, China

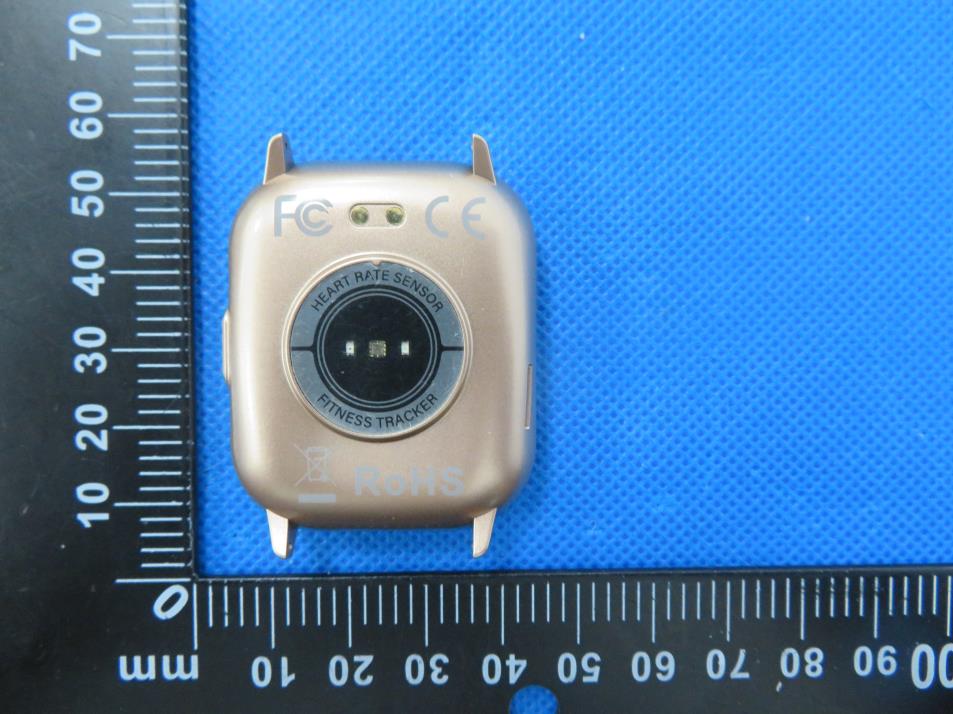

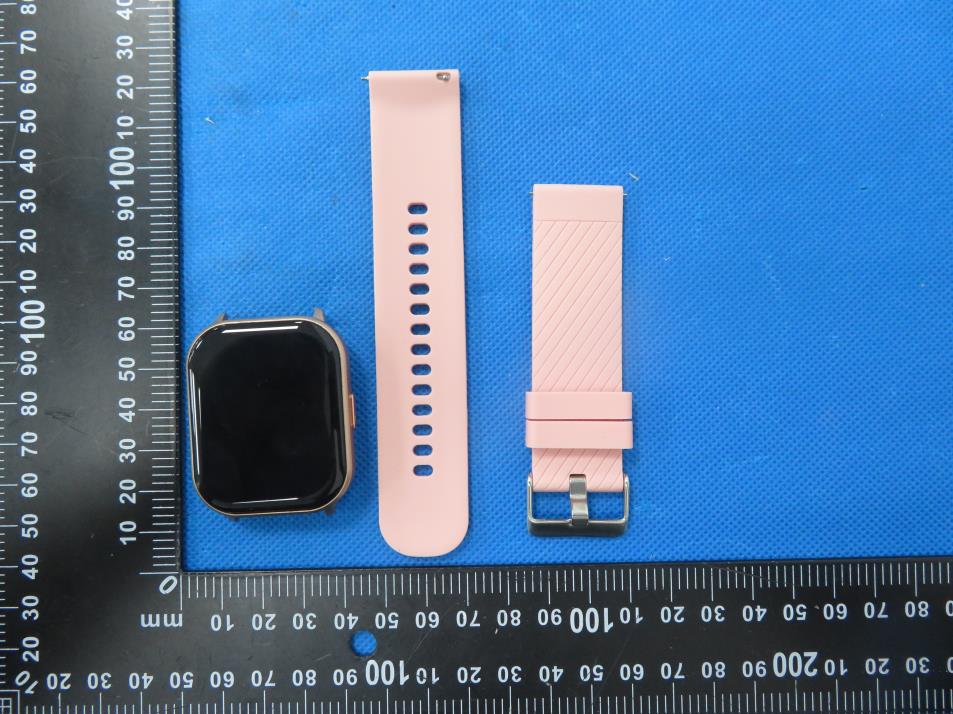

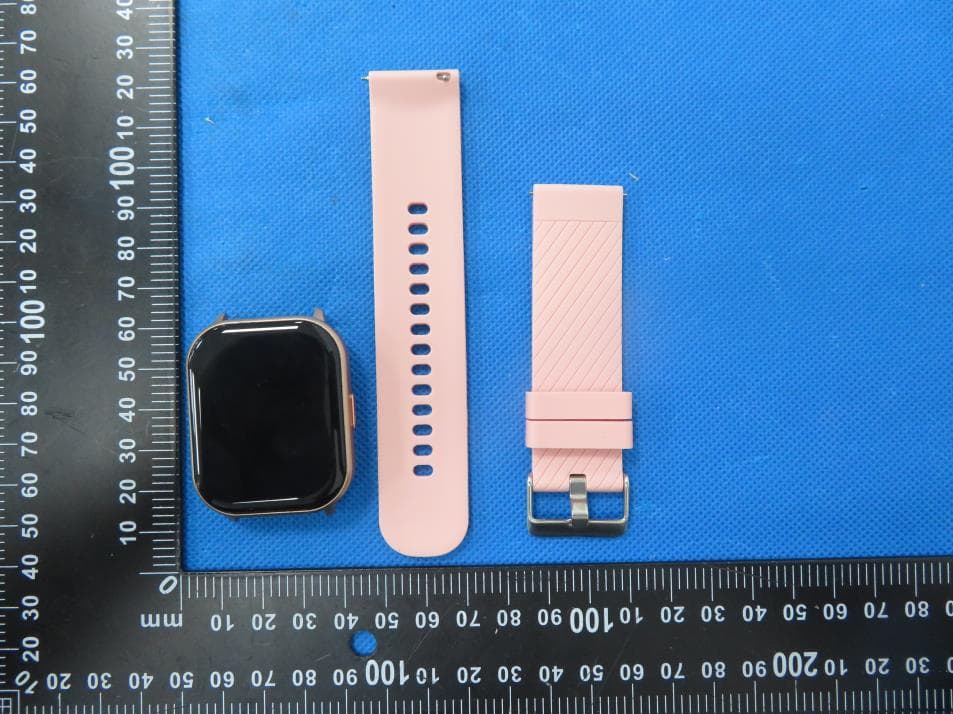

External Photos

Size:10*5mm FCC ID: 2A5HP-ZL99J Label location

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID:2A5HP-ZL99J Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK 2.402 -2.12 0.61 -2±1 -1.00 0.79 <5 0.24622 3.00 YES 2.441 -0.97 0.80 0±1 1.00 1.26 <5 0.39338 3.00 YES 2.480 -0.4 0.91 0±1 1.00 1.26 <5 0.39651 3.00 YES Pi/4 DQPSK 2.402 -1.24 0.75 -1±1 0.00 1.00 <5 0.30997 3.00 YES 2.441 -0.31 0.93 0±1 1.00 1.26 <5 0.39338 3.00 YES 2.480 0.32 1.08 1±1 2.00 1.58 <5 0.49918 3.00 YES 8DPSK 2.402 -0.72 0.85 0±1 1.00 1.26 <5 0.39023 3.00 YES 2.441 0.28 1.07 1±1 2.00 1.58 <5 0.49524 3.00 YES 2.480 0.91 1.23 1±1 2.00 1.58 <5 0.49918 3.00 YES BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK1M bps 2.402 5.13 3.26 6±1 7.00 5.01 <5 1.55352 3.00 YES 2.44 5.37 3.44 6±1 7.00 5.01 <5 1.56576 3.00 YES 2.480 5.59 3.62 6±1 7.00 5.01 <5 1.57854 3.00 YES GFSK 2Mbps 2.402 5.14 3.27 6±1 7.00 5.01 <5 1.55352 3.00 YES 2.44 5.42 3.48 6±1 7.00 5.01 <5 1.56576 3.00 YES 2.480 5.67 3.69 6±1 7.00 5.01 <5 1.57854 3.00 YES Conclusion: For the max result : 1.57854 W/Kg ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

ShenzhenYixiantong cable co.,ltd Address: Building 21, Wan Feng 98 Industrial City, Shajing StreetBaoan District, Shenzhen. 天线规格承认书 Antenna Specification for Approval 客户名称 CustomerName：深圳市魔样科技有限公司 产品名称： ProductName： 2.4G天线 全长22mm红色 客户型号： ProductName: 产品料号： Part NO.: C10- 35- 2.5 制 表 ： WriteBy：庄杰彬 日 期： IssuedDate: 2021- 10-08 客 户: 工程R& D Dept 采购Business Dept 承认 Approved By 一线通 研发R& D Dept 工程 Engineer Dept 审核 Approval 庄彩虹 庄杰彬 庄杰彬 Product Specification A. ElectricalCharacteristics Frequency 2400MHz ~2500MHz VSWR<3.0 Efficiency >30% Impedance 50 Ohm Polarization Line Gain 0.17DBi B. Material & MechanicalCharacteristics Material of Radiator Cu Cable Type 1.0 19P 红 Connector Type : NO Dimension C. Environmental Operation Temperature - 30 °C ~ + 80 ° CStorage Temperature - 30 ° C~+ 85 °C Test Equipment & Conditions 1. NetworkAnalyzers: Agilent 8753D 5071C 2. Communications TestSet: Agilent E5525C 3. 3D Chamber TestSystem Effiency& Gain Effiency& Gain 2.40 - 2.17 2.440 0.12 2.48 0.17 Radiation Pattern:

No.：BCTC/RF-EMC-005 Page: 1 of 83 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2408697966-1E Applicant: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Product Name: Smart watch Test Model: ZL99J Tested Date: 2024-08-01 to 2024-08-06 Issued Date: 2024-08-07 Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 2 of 83 Edition：B.2 FCC ID:2A5HP- ZL99J The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Smart watch Trademark: N/A Model/Type Reference: ZL99J ZL55 Prepared For: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao'an District, Shenzhen, China Manufacturer: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao'an District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-08-01 Sample tested Date: 2024-08-01 to 2024-08-06 Issue Date: 2024-08-07 Report No.: BCTC2408697966-1E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 3 of 83 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure .................................................................................................... 26 9.4 Test Result .........................…

Text truncated - open the document above for the full version.

Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 56 of 83 Edition：B.2 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 57 of 83 Edition：B.2 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 58 of 83 Edition：B.2 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 59 of 83 Edition：B.2 Power NVNT 3-DH1 2480MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 60 of 83 Edition：B.2 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2401.848 2402.848 1 0.57 Pass NVNT 1-DH1 2440.848 2441.848 1 0.585 Pass NVNT 1-DH1 2478.85 2479.848 0.998 0.583 Pass NVNT 2-DH1 2401.848 2402.848 1 0.828 Pass NVNT 2-DH1 2440.848 2441.846 0.998 0.835 Pass NVNT 2-DH1 2478.846 2479.846 1 0.84 Pass NVNT 3-DH1 2401.992 2402.994 1.002 0.813 Pass NVNT 3-DH1 2440.996 2441.99 0.994 0.813 Pass NVNT 3-DH1 2478.996 2479.994 0.998 0.813 Pass Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 61 of 83 Edition：B.2 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 62 of 83 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 63 of 83 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 64 of 83 Edition：B.2 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 65 of 83 Edition：B.2 CFS NVNT 3-DH1 2480MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 66 of 83 Edition：B.2 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 67 of 83 Edition：B.2 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 68 of 83 Edition：B.2 Hopping No. NVNT 3-DH1 2441MHz Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 69 of 83 Edition：B.2 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit ≤0.4 Second 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). 14.4 Test Result Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH1 2441 0.384 120.96 315 31600 400 Pass NVNT 1-DH3 2441 1.639 267.157 163 31600 400 Pass NVNT 1-DH5 2441 2.888 303.24 105 31600 400 Pass NVNT 2-DH1 2441 0.392 124.656 318 31600 400 Pass NVNT 2-DH3 2441 1.645 269.78 164 31600 400 Pass NVNT 2-DH5 2441 2.892 315.228 109 31600 400 Pass NVNT 3-DH1 2441 0.392 124.656 318 31600 400 Pass NVNT 3-DH3 2441 1.642 256.152 156 31600 400 Pass NVNT 3-DH5 2441 2.894 306.764 106 31600 400 Pass Note: Total Dwell Time (ms) = Pulse Time (ms)*Burst Count Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 70 of 83 Edition：B.2 Test Graphs Dwell NVNT 1-DH1 2441MHz One Burst Dwell NVNT 1-DH1 2441MHz Accumulated Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 71 of 83 Edition：B.2 Dwell NVNT 1-DH3 2441MHz One Burst Dwell NVNT 1-DH3 2441MHz Accumulated Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 72 of 83 Edition：B.2 Dwell NVNT 1-DH5 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz Accumulated Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 73 of 83 Edition：B.2 Dwell NVNT 2-DH1 2441MHz One Burst Dwell NVNT 2-DH1 2441MHz Accumulated Report No.: BCTC2408697966-1E No.：BCTC/RF-EMC-005 Page: 74 of 83 Edition：B.2 Dwell NVNT 2-DH3 2441M…

Text truncated - open the document above for the full version.

17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos
