2A5KA-M106LTE Wireless Router with WIFI

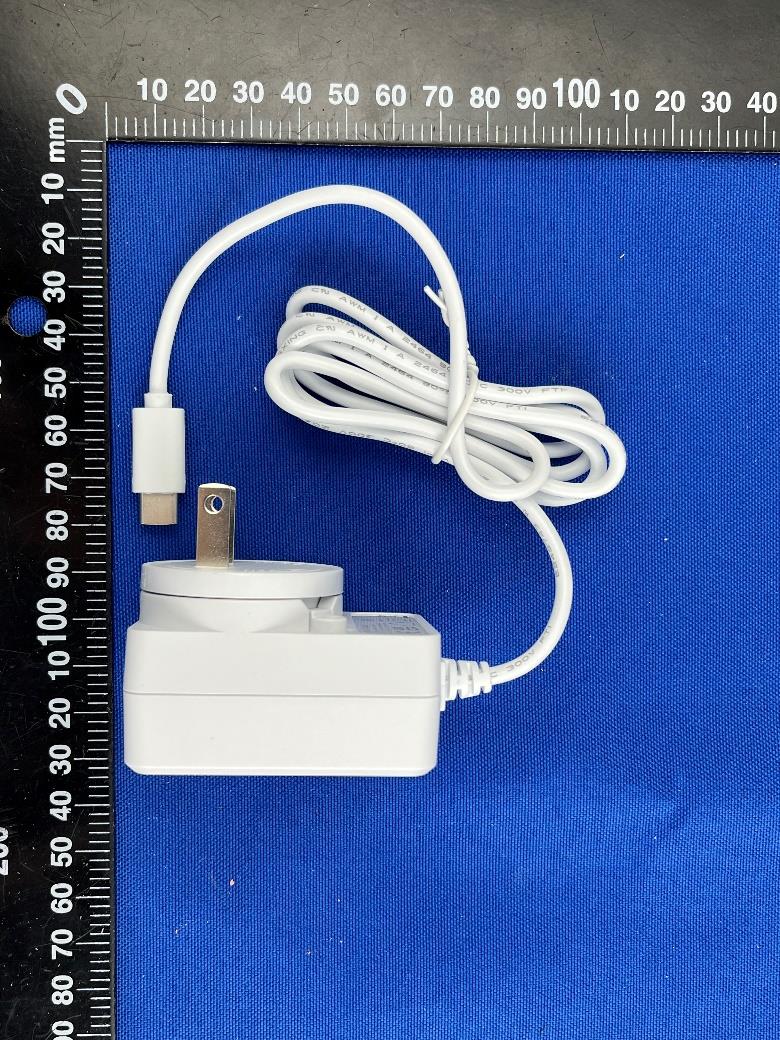

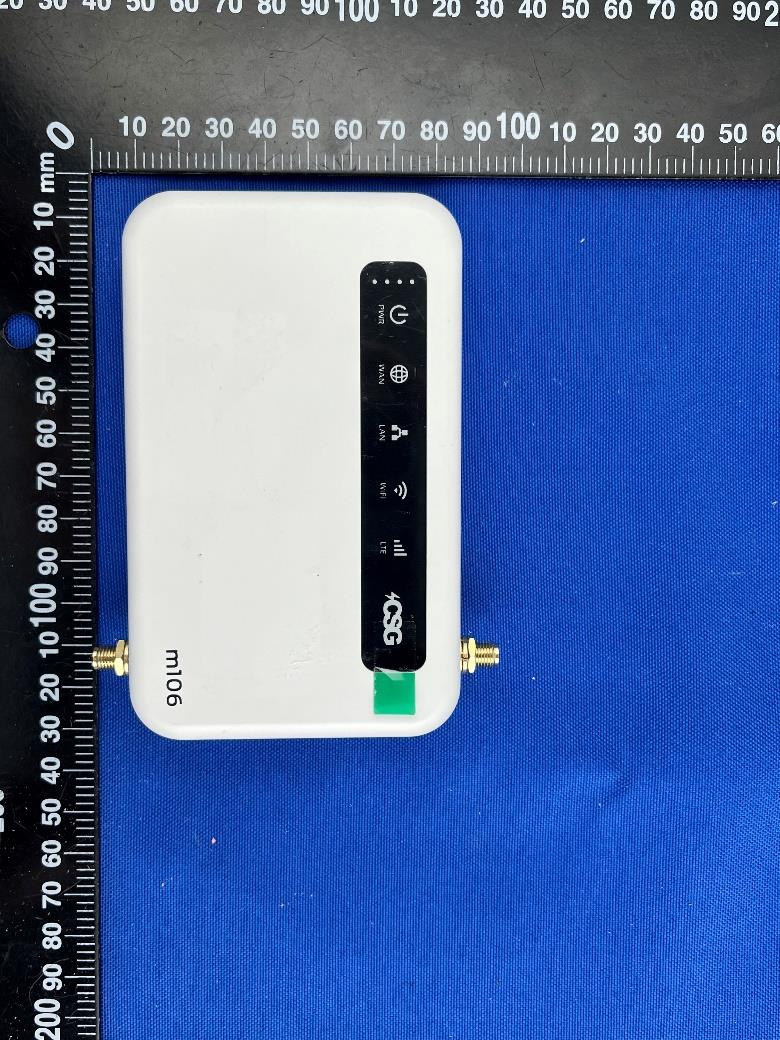

Report No.: BL-SZ2230807-AW 1 / 5 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2230807-AW 2 / 5 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ2230807-AW 3 / 5 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2230807-AW 4 / 5 Accessory-Adapter CLOSE-UP ‘ Report No.: BL-SZ2230807-AW 5 / 5 Accessory-Antenna WWAN Antenna

Label: Location:

Report No.: BL-SZ2230807-AI 1 / 7 EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 Report No.: BL-SZ2230807-AI 2 / 7 MAIN BOARD TOP VIEW (WITH SHIELDING) MAIN BOARD TOP VIEW (WITHOUT SHIELDING) RF Chip Report No.: BL-SZ2230807-AI 3 / 7 MAIN BOARD REAR VIEW (WITH SHIELDING) MAIN BOARD REAR VIEW (WITHOUT SHIELDING) WIFI Main Antenna WIFI Aux Antenna a Report No.: BL-SZ2230807-AI 4 / 7 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW Report No.: BL-SZ2230807-AI 5 / 7 MAIN BOARD TOP VIEW (WITH SHIELDING) MAIN BOARD TOP VIEW (WITHOUT SHIELDING) RF Chip Report No.: BL-SZ2230807-AI 6 / 7 MAIN BOARD REAR VIEW (WITH SHIELDING) MAIN BOARD REAR VIEW (WITHOUT SHIELDING) Report No.: BL-SZ2230807-AI 7 / 7 BATTERY (FRONT) BATTERY (REAR)

8 CONDUCTED RF OUPUT POWER 8.1 WCDMA Output Power 8.2 LTE Output Power 8.2.1 LTE Band2 Output Power 8.2.2 LTE Band4 Output Power 8.2.3 LTE Band5 Output Power 8.2.4 LTE Band7 Output Power 8.2.5 LTE Band12 Output Power 8.2.6 LTE Band17 Output Power 8.2.7 LTE Band25 Output Power 8.2.8 LTE Band26 Output Power 8.2.9 LTE Band30 Output Power 8.2.10 LTE Band66 Output Power 8.1WCDMA Output Power BandBand 2 Tune-up Limit Power(dBm) Channel926294009538 Frequency1852.40 1880.00 1907.60 RMC 12.2Kbps 23.31 23.17 23.28 24.00 HSDPA Subtest-1 22.11 22.09 22.20 23.00 HSDPA Subtest-2 22.20 22.12 21.98 23.00 HSDPA Subtest-3 21.57 21.64 21.64 22.50 HSDPA Subtest-4 21.59 21.63 21.50 22.50 HSUPA Subtest-1 22.33 22.15 22.14 23.00 HSUPA Subtest-2 20.35 20.20 20.39 21.50 HSUPA Subtest-3 21.04 21.12 21.31 22.50 HSUPA Subtest-4 20.15 20.11 20.25 21.50 HSUPA Subtest-5 22.01 22.08 21.98 23.00 BandBand 4 Tune-up Limit Power(dBm) Channel131214121513 Frequency1712.40 1732.40 1752.60 RMC 12.2Kbps18.72 18.70 19.02 19.50 HSDPA Subtest-1 17.60 17.59 17.29 18.50 HSDPA Subtest-2 17.63 17.51 17.77 18.50 HSDPA Subtest-3 16.99 17.10 17.01 18.00 HSDPA Subtest-4 16.86 16.86 16.86 18.00 HSUPA Subtest-1 17.79 17.65 17.72 18.50 HSUPA Subtest-2 15.61 15.73 15.48 17.00 HSUPA Subtest-3 16.25 16.53 16.56 18.00 HSUPA Subtest-4 15.71 15.67 15.53 17.00 HSUPA Subtest-5 17.48 17.58 17.45 18.50 BandBand 5 Tune-up Limit Power(dBm) Channel413241824233 Frequency826.40 836.40 846.60 RMC 12.2Kbps23.25 23.19 23.32 24.00 HSDPA Subtest-1 22.17 22.12 22.25 23.00 HSDPA Subtest-2 22.26 22.15 22.27 23.00 HSDPA Subtest-3 21.83 21.66 21.68 22.50 HSDPA Subtest-4 21.44 21.62 21.73 22.50 HSUPA Subtest-1 22.35 22.18 22.10 23.00 HSUPA Subtest-2 19.96 20.16 20.10 21.50 HSUPA Subtest-3 21.34 21.20 21.05 22.50 HSUPA Subtest-4 20.14 20.07 20.23 21.50 HSUPA Subtest-5 22.28 22.11 22.23 23.00 8.2.1LTE Band2 Output Power LTE B2 Bandwidth (MHz)RB Size RB offestModulation186071890019193 Tune-up power(dBm) 1.4 1 LOWQPSK23.55 23.36 23.39 24.00 MIDQPSK23.17 22.04 22.45 24.00 HIGHQPSK22.78 23.10 22.75 24.00 3 LOWQPSK23.30 23.06 23.38 24.00 MIDQPSK22.09 22.85 22.12 24.00 HIGHQPSK22.83 22.85 23.11 24.00 6LOWQPSK22.03 21.50 21.71 23.00 1.4 1 LOWQ1622.84 22.64 21.92 23.00 MIDQ1621.21 22.08 21.67 23.00 HIGHQ1622.55 22.86 21.96 23.00 3 LOWQ1622.73 22.36 22.41 23.00 MIDQ1622.00 21.96 21.76 23.00 HIGHQ1622.61 22.99 22.01 23.00 6LOWQ1620.87 21.01 20.70 22.00 1.4 1 LOW64QAM21.91 21.32 21.64 22.00 MID64QAM21.28 21.33 20.48 22.00 HIGH64QAM21.28 21.39 21.26 22.00 3 LOW64QAM21.21 21.71 21.17 22.00 MID64QAM21.21 21.20 20.69 22.00 HIGH64QAM21.87 21.71 21.12 22.00 6LOW64QAM20.17 19.68 19.76 21.00 Bandwidth (MHz)RB Size RB offestModulation186151890019185 Tune-up power(dBm) 3 1 LOWQPSK23.48 23.48 23.65 24.00 MIDQPSK22.73 22.33 22.73 24.00 HIGHQPSK23.51 23.48 22.87 24.00 8 LOWQPSK22.23 21.82 21.80 23.00 MIDQPSK22.09 21.94 21.71 23.00 HIGHQPSK21.72 22.07 22.03 23.00 15LOWQPSK21.86 21.77 21.90 23.00 3 1 LOWQ1622.90 22.82 22.69 23.00 MIDQ1622.13 22.08 22.35 23.00 HIGHQ1622.85 22.76 22.54 23.00 8 LOWQ1621.21 20.86 20.69 22.00 MIDQ1620.81 20.75 21.08 22.00 HIGHQ1621.21 21.32 20.70 22.00 15LOWQ1621.17 20.71 20.83 22.00 3 1 LOW64QAM21.87 21.87 21.78 22.00 MID64QAM21.04 20.58 20.85 22.00 HIGH64QAM21.55 21.93 21.50 22.00 8 LOW64QAM20.43 19.99 19.74 21.00 MID64QAM19.66 19.84 19.69 21.00 HIGH64QAM19.92 20.08 19.54 21.00 15LOW64QAM19.96 20.09 20.18 21.00 Bandwidth (MHz)RB Size RB offestModulation186251890019175 Tune-up power(dBm) 5 1 LOWQPSK23.43 23.51 23.60 24.00 MIDQPSK22.48 22.65 22.80 24.00 HIGHQPSK23.44 23.10 22.87 24.00 36 LOWQPSK22.32 22.00 21.82 23.00 MIDQPSK22.22 21.79 21.84 23.00 HIGHQPSK21.78 21.96 22.03 23.00 75LOWQPSK21.99 22.01 21.99 23.00 5 1 LOWQ1622.83 22.86 22.99 23.00 MIDQ1622.01 22.04 22.37 23.00 HIGHQ1622.72 22.71 22.36 23.00 36 LOWQ1621.33 20.86 20.73 22.00 MIDQ1620.89 20.75 20.79 22.00 HIGHQ1621.11 21.32 20.59 22.00 75LOWQ1621.19 20.69 20.77 22.00 5 1 LOW64QAM21.96 21.84 21.95 22.00 MID64QAM21.25 20.47 20.81 22.00 HIGH64QAM21.88 21.67 21.50 22.00 36 LOW64QAM20.55 20.15 19.68 21.00 MID64QAM19.50 20.02 19.73 21.00 HIGH64QAM19.82 19.92 19.54 21.00 75LOW64QAM20.20 19.93 19.88 21.00 LTE B2 Bandwidth (MHz)RB Size RB offestModulation186501890019150 Tune-up power(dBm) 10 1 LOWQPSK23.79 23.56 23.55 24.00 MIDQPSK22.76 22.31 22.56 24.00 HIGHQPSK23.13 23.38 23.30 24.00 50 LOWQPSK22.03 22.17 22.06 23.00 MIDQPSK22.09 21.62 21.70 23.00 HIGHQPSK21.75 21.56 22.15 23.00 100LOWQPSK22.11 21.68 21.96 23.00 10 1 LOWQ1622.91 22.96 22.76 23.00 MIDQ1622.50 21.95 22.28 23.00 HIGHQ1622.68 22.49 22.31 23.00 50 LOWQ1621.32 21.15 20.85 22.00 MIDQ1620.87 21.19 21.07 22.00 HIGHQ1620.92 21.29 20.97 22.00 100LOWQ1621.05 21.04 20.94 22.00 10 1 LOW64QAM21.98 21.94 21.57 22.00 MID64QAM21.36 20.99 21.23 22.00 HIGH64QAM21.60 21.70 21.07 22.00 50 LOW64QAM20.62 20.10 19.76 21.00 MID64QAM20.23 20.12 19.81 21.00 HIGH64QAM19.81 19.83 19.87 21.00 100LOW64QAM20.34 19.57 20.04 21.00 Bandwidth (MHz)RB Size RB offestModulation186751890019125 Tune-up power(dBm) 15 1 LOWQPSK23.98 23.48 23.46 24.00 MIDQPSK22.59 22.49 22.66 24.00 HIGHQPSK23.37 23.11 23.31 24.00 36 LOWQPSK21.97 22.17 21.70 23.00 MIDQPSK22.30 21.67 21.63 23.00 HIGHQPSK22.11 22.06 21.87 23.00 75LOWQPSK22.16 21.90 21.91 23.00 15 1 LOWQ1622.94 22.81 22.97 23.00 MIDQ1622.42 21.76 21.85 23.00 HIGHQ1622.73 22.39 22.26 23.00 36 LOWQ1621.29 21.09 21.07 22.00 MIDQ1620.82 20.93 20.80 22.00 HIGHQ1620.85 20.81 20.67 22.00 75LOWQ1621.11 21.10 20.81 22.00 15 1 LOW64QAM21.91 21.95 21.95 22.00 MID64QAM20.99 21.01 20.59 22.00 HIGH64QAM21.43 21.75 21.54 22.00 36 LOW64QAM20.34 20.08 20.29 21.00 MID64QAM19.86 19.75 19.89 21.00 HIGH64QAM19.86 19.81 19.87 21.00 75LOW64QAM20.51 20.35 19.97 21.00 Bandwidth (MHz)RB Size RB offestModulation187001890019100 Tune-up power(dBm) 20 1 LOWQPSK23.45 23.79 23.44 24.00 MIDQPSK22.33 22.48 22.71 24.00 HIGHQPSK23.13 22.91 23.07 24.00 50 LOWQPSK21.76 22.19 21.72 23.00 MIDQPSK22.07 21.87 21.72 23.00 HIGHQPSK21.89 22.16 22.06 23.00 100LOWQPSK22.12 22.17 21.71 23.…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2230807-AS 1 / 5 TEST SETUP PHOTOS Front Side (10mm) of WLAN Antenna Back Side (10mm) of WLAN Antenna 10 mm 10 mm Report No.: BL-SZ2230807-AS 2 / 5 Right Side (10mm) of WLAN Antenna Left Side (10mm) of WLAN Antenna 10 mm 10 mm Report No.: BL-SZ2230807-AS 3 / 5 Top Edge (10mm) of WLAN Antenna Front Side (10mm) of WWAN Antenna 10 mm 10 mm Report No.: BL-SZ2230807-AS 4 / 5 Back Side (10mm) of WWAN Antenna Right Side (10mm) of WWAN Antenna 10 mm 10 mm Report No.: BL-SZ2230807-AS 5 / 5 Left Side (10mm) of WWAN Antenna Top Edge (10mm) of WWAN Antenna 10 mm 10 mm
