2A5O5DL09-A60LED RECESSED DOWNLIGHT

80 mm 136 mm

QA-FR-170-B Huizhou Foryou Optoelectronics Technology Co., LTD ADD: Building 6, B Area, No.1 North Shangxia Road, Dongjiang High-Tech Industry Park Huizhou Guangdong China Tel: 13669573916 E- mail: [email protected] Date:2022-4-1 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam: We , Huizhou Foryou Optoelectronics Technology Co., LTD , hereby authorizes CHINA CERTIFICATION ICT CO., LTD (DONGGUAN) to act as a laboratory for testing and test report generation for the following project(s): (declare that the product: LED RECESSED DOWNLIGHT, FCC ID: 2A5O5DL09-A60, model: DL09-A60-015WW-RE,DL09-A60-015WW-RD,DL09-A60-015WW-9RH,DL09-A60-015WW- 9RE,DL09-A60-015WW-9RD,DL09-A60-015WW-RH ) The chipset BK7231N supports 2.4G Wifi, Bluetooth BDR, EDR and BLE(1M,2M) Mode, but for this device, BDR, EDR ,BLE(2M) was disable by software. Sincerely Yours, Printed Name: Huiqi Lee Title: Engineering Manager

Huizhou Foryou Optoelectronics Technology Co., LTD Add: Building 6, B Area, No.1 North Shangxia Road, Dongjiang High-Tech Industry Park Huizhou Guangdong China Tel: 13669573916 Email: [email protected] DE CLARATION OF SIMILARITY D ate: 2022-4-1 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 D ear Sir or Madam: We, Huizhou Foryou Optoelectronics Technology Co., LTD, hereby declare that the product: LED RECESSED DOWNLIGHT, FCC ID: 2A5O5DL09-A60. model: DL09-A60-015WW-RE DL09-A60-015WW-RD,DL09-A60-015WW-9RH,DL09-A60-015WW-9RE,DL09-A60-015WW-9RD is electrically identical with the model: DL09-A60-015WW-RH which was tested by China Certification ICT Co., Ltd (Dongguan) with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Huiqi Lee Title: Engineering Manager

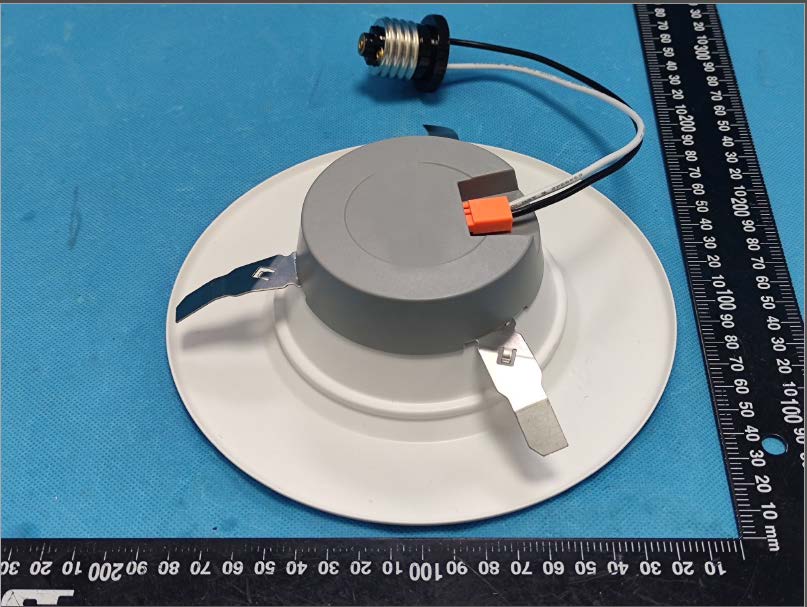

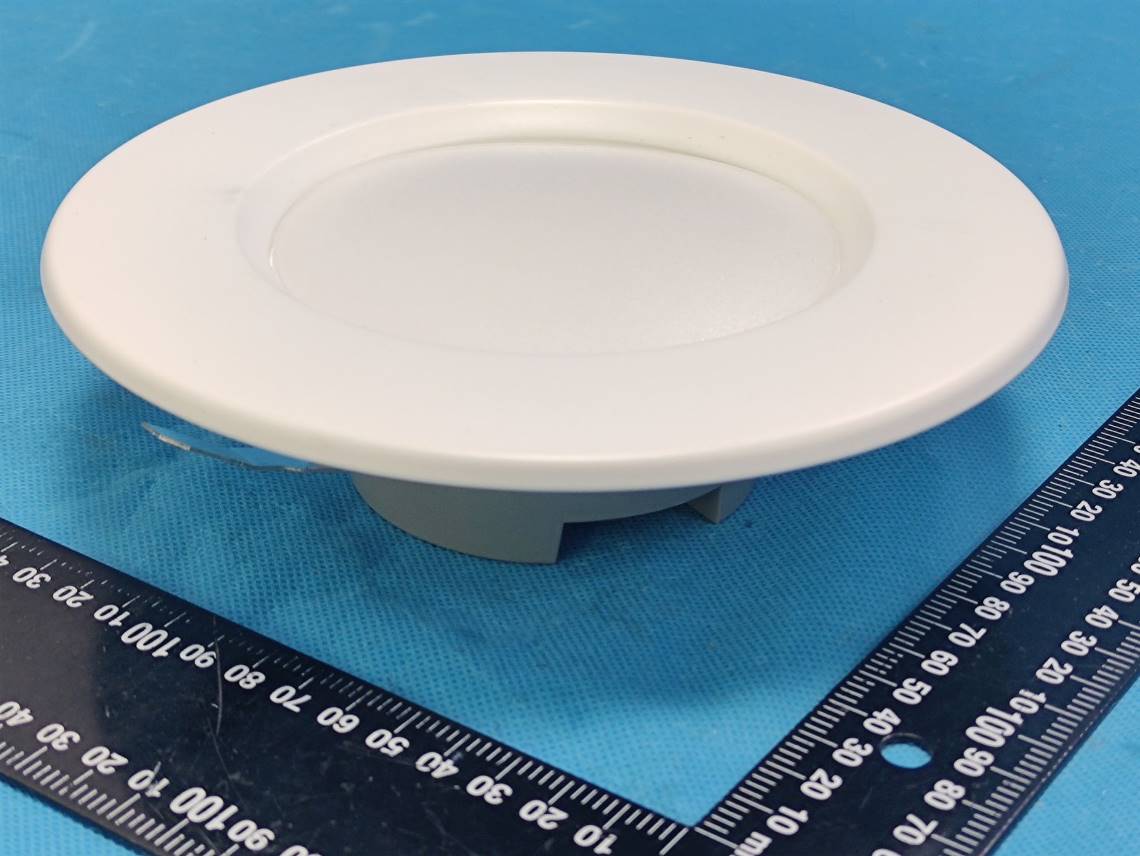

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

FCC ID : 2A5O5DL09-A60 AC120V~60Hz 15W 1350lm RGBCW 2700K-6500K Made in China xxxxx

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR22030015-00B Page 56 of 56 5. RF EXPOSURE EVALUATION 5.1 MAXIMUM PERMISSIBLE EXPOSURE (MPE) 5.1.1 Applicable Standard FCC §15.247 (i) & §1.1310 & §2.1091 Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. 5.1.2 Procedure Prediction of power density at the distance of the applicable MPE limit S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); 5.1.3 Calculated Result Operation Modes Frequency (MHz) Antenna Gain Conducted output power including Tune-up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) Wi-Fi 2412-2462 2.2 1.66 25 316.23 20.00 0.1045 1.0 BLE 2402-2480 2.2 1.66 3 2.00 20.00 0.0007 1.0 Note: BLE and Wi-Fi can`t transmission simultenuously. Result: The device meet FCC MPE at 20 cm distance. ===== END OF REPORT =====

TEST REPORT Applicant: Huizhou Foryou Optoelectronics Technology Co., LTD Address: Building 6, B Area, No.1 North Shangxia Road, Dongjiang High-Tech Industry Park Huizhou Guangdong China FCC ID: 2A5O5DL09-A60 Product Name: LED RECESSED DOWNLIGHT Model Number: DL09-A60-015WW-RH, DL09-A60-015WW-RE,DL09- A60-015WW-RD,DL09-A60-015WW-9RH,DL09-A60- 015WW-9RE,DL09-A60-015WW-9RD Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR22030015-00B Date Of Issue: 2022-04-01 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR22030015-00B Page 2 of 56 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR22030015-00B Page 3 of 56 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup .................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup .................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 16 3.3.1 Applicable Standard ............................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
