2A5P3-YETM2Wireless USB Dongle

Shenzhen yetor Technology Co., Ltd. Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: Nov. 21, 25 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2A5P3-YETM2 Shenzhen yetor Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Yue Li Title: Certification Contact Address: Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China Tel.: 18681554294 Email: [email protected]

Shenzhen yetor Technology Co., Ltd. Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China 1 | P a g e Attestation Statements To: Federal Communications Commission Date: Nov. 21, 25 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: 2A5P3-YETM2 Product Name: Wireless USB Dongle This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Yue Li Title: Certification Contact Address: Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China Tel.: 18681554294 Email: [email protected] Shenzhen yetor Technology Co., Ltd. Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ The Memory used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. Compliance ☒ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Compliance Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

Shenzhen yetor Technology Co., Ltd. Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China Date: 2025/11/21 Dear Sir/Madam, We, Shenzhen yetor Technology Co., Ltd., Hereby declares the following statement, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless USB Dongle FCC ID: 2A5P3-YETM2 Model no.: YET-M2, YET-M1, YET-M5, YET-M8, YET-M9 Sincerely, Name/Title： Yue Li / Certification Contact Company: Shenzhen yetor Technology Co., Ltd. Address: Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China Phone: 18681554294 Fax: 18681554294 E-Mail: [email protected]

Shenzhen yetor Technology Co., Ltd. Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China November 21, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2A5P3-YETM2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Pursuant to DA 04-1705, the applicant also requests temporary confidential treatment of the exhibits outlined below for a period of 45 days from the date of equipment authorization and prior to marketing in the United States to prevent the premature release of any sensitive information. Applicant is aware of their responsibility to notify DERYCOM in the event information regarding the product or the product is made available to the public before the requested period has expired. ⎯ User Manual ⎯ Internal Photos Sincerely, Title: Certification Contact Address: Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China Tel.: 18681554294 Email: [email protected]

Shenzhen yetor Technology Co., Ltd. Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China November 21, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2A5P3-YETM2 I, the undersigned, hereby authorize Shenzhen Tongzhou Testing Co.,Ltd. to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by Shenzhen Tongzhou Testing Co.,Ltd. shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with Shenzhen yetor Technology Co., Ltd.. We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Yue Li Certification Contact Tel: 18681554294 Fax: 18681554294 Email: [email protected]

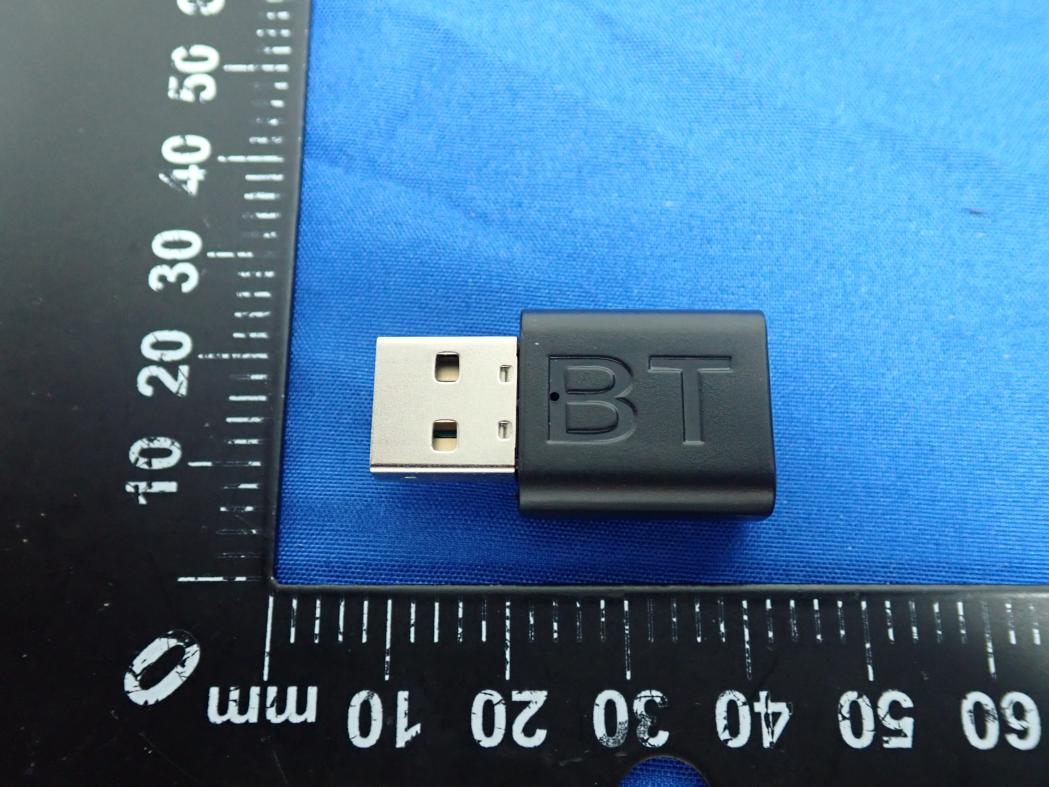

Report No.: TZ0032251015PH02 Page 1 of 3 Exterior Photographs of EUT Figure 1 Figure 2 Report No.: TZ0032251015PH02 Page 2 of 3 Figure 3 Figure 4 Report No.: TZ0032251015PH02 Page 3 of 3 Figure 5 Figure 6

Label Location FCC ID: 2A5P3-YETM2

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A5P3-YETM2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A5P3-YETM2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR-based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] DH5 Ant1 2402 0.37 0 1 2.7 1.55 1.43 2.79 DH5 Ant1 2441 0.49 0 1 2.7 1.55 1.43 2.75 DH5 Ant1 2480 -1.19 -1.5 1 2.7 0.05 1.01 2.72 2DH5 Ant1 2402 0.27 0 1 2.7 1.55 1.43 2.79 2DH5 Ant1 2441 0.47 0 1 2.7 1.55 1.43 2.75 2DH5 Ant1 2480 -1.31 -2 1 2.7 -0.45 0.90 2.72 3DH5 Ant1 2402 0.36 0 1 2.7 1.55 1.43 2.79 3DH5 Ant1 2441 0.39 0 1 2.7 1.55 1.43 2.75 3DH5 Ant1 2480 -1.29 -2 1 2.7 -0.45 0.90 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

2.4GHz3216ChipAntenna:RANT3216F245X02 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT3216F245X02 (A)(B)(C)(D)(E)(F) ElectricalSpecification ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 3.2x1.6mm( ± 0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=0X WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280 °C ) TerminationNi/Au(Leadless) Dimension(mm) L 3.20±0.20 W 1.60±0.20 T 0.45±0.20 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd. 7/F,BuildingF,ZhichuangPark,Tong'an,Gushu,Shenzhen  2.4GHz3216ChipAntenna:RANT3216F245X02 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ReturnLoss Frequency(MHz) S11(dB) 2400-10.50 2450-30.62 2500-11.47 Radiation X Y Z 2.4GHz3216ChipAntenna:RANT3216F245X02 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 32167”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType3216 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 2.4GHz3216ChipAntenna:RANT3216F245X02 _ ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz3216ChipAntenna:RANT3216F245X02 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic

Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 1 of 56 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Wireless USB Dongle Trade Mark: / Test Model: YET-M2 FCC ID: 2A5P3-YETM2 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 20db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 1.017 2401.487 2402.504 --- --- DH5 Ant1 2441 0.984 2440.508 2441.492 --- --- DH5 Ant1 2480 1.047 2479.445 2480.492 --- --- 2DH5 Ant1 2402 1.299 2401.352 2402.651 --- --- 2DH5 Ant1 2441 1.311 2440.337 2441.648 --- --- 2DH5 Ant1 2480 1.305 2479.331 2480.636 --- --- 3DH5 Ant1 2402 1.269 2401.361 2402.630 --- --- 3DH5 Ant1 2441 1.290 2440.343 2441.633 --- --- 3DH5 Ant1 2480 1.317 2479.331 2480.648 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 2 of 56 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 3 of 56 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 4 of 56 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 5 of 56 3DH5-Ant1-2402 3DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 6 of 56 3DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 7 of 56 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.91898 2401.5395 2402.4585 --- --- DH5 Ant1 2441 0.91390 2440.5376 2441.4515 --- --- DH5 Ant1 2480 0.91326 2479.5282 2480.4414 --- --- 2DH5 Ant1 2402 1.1908 2401.3987 2402.5895 --- --- 2DH5 Ant1 2441 1.1908 2440.3979 2441.5887 --- --- 2DH5 Ant1 2480 1.2127 2479.3763 2480.5890 --- --- 3DH5 Ant1 2402 1.1958 2401.3989 2402.5947 --- --- 3DH5 Ant1 2441 1.2006 2440.3908 2441.5914 --- --- 3DH5 Ant1 2480 1.2001 2479.3862 2480.5863 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 8 of 56 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 9 of 56 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 10 of 56 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 11 of 56 3DH5-Ant1-2402 3DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 12 of 56 3DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 13 of 56 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict DH5 Ant1 2402 0.37 ≤20.97 PASS DH5 Ant1 2441 0.49 ≤20.97 PASS DH5 Ant1 2480 -1.19 ≤20.97 PASS 2DH5 Ant1 2402 0.27 ≤20.97 PASS 2DH5 Ant1 2441 0.47 ≤20.97 PASS 2DH5 Ant1 2480 -1.31 ≤20.97 PASS 3DH5 Ant1 2402 0.36 ≤20.97 PASS 3DH5 Ant1 2441 0.39 ≤20.97 PASS 3DH5 Ant1 2480 -1.29 ≤20.97 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 14 of 56 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 15 of 56 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 16 of 56 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 17 of 56 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 18 of 56 3DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 19 of 56 Appendix D: Carrier frequency separation Test Result Test Mode Antenna Frequency [MHz] Result [MHz] Limit [MHz] Verdict DH5 Ant1 Hop 1.004 ≥0.698 PASS 2DH5 Ant1 Hop 1 ≥0.874 PASS 3DH5 Ant1 Hop 0.978 ≥0.878 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 20 of 56 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 21 of 56 3DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 22 of 56 Appendix E: Time of occupancy Test Result Test Mode Antenna Frequency [MHz] Burst Width [ms] TotalHops [Num] Result [s] Limit [s] Verdict DH5 Ant1 Hop 2.889 90 0.26 ≤0.4 PASS 2DH5 Ant1 Hop 2.885 120 0.346 ≤0.4 PASS 3DH5 Ant1 Hop 2.887 130 0.375 ≤0.4 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 23 of 56 Test Graphs DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 24 of 56 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 25 of 56 3DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 26 of 56 Appendix F: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 27 of 56 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 28 of 56 3DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0032251015FRF01 Page 29 of 56 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch.Name Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 0.08 -47.25 ≤-19.92 PASS DH5 Ant1 High 2480 -1.64 -48.13 ≤-21.64 PASS DH5 Ant1 Low Hop_2402 -1.20 -47.2 ≤-21.2 PASS DH5 Ant1 High Hop_2480 -1.83 -45.54 ≤-21.83 PASS 2DH5 Ant1 Low 2402 0.14 -44.44 ≤-19.86 PASS 2DH5 Ant1 High 2480 -2.03 -48.31 ≤-22.03 PASS 2DH5 …

Text truncated - open the document above for the full version.

Report No.: TZ0032251015FRF01 Page 1 of 34 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0032251015FRF01 Product Name : Wireless USB Dongle Model/Type reference : YET-M2, YET-M1, YET-M5, YET-M8, YET-M9 FCC ID : 2A5P3-YETM2 Prepared for : Shenzhen yetor Technology Co., Ltd. Room 303, 3rd Floor, Building 1, District 2 Fumin Industrial Zone, Pinghu Community, Pinghu Street, Longshangang District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020 Date of Test : 2025-10-29 ~ 2025-11-12 Date of Issue : 2025-11-13 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0032251015FRF01 Page 2 of 34 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2025-11-13 Valid Initial release Report No.: TZ0032251015FRF01 Page 3 of 34 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 5 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 7 2.1. EUT Configuration .................................................................................................................. 7 2.2. EUT Exercise ........................................................................................................................... 7 2.3. Test Sample ............................................................................................................................. 7 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 8 3.1. Justification ............................................................................................................................. 8 3.2. EUT Exercise Software ........................................................................................................... 8 3.3. Special Accessories ............................................................................................................... 8 3.4. Block Diagram/Schematics .................................................................................................... 8 3.5. Equipment Modifications ....................................................................................................... 8 3.6. Test Setup ................................................................................................................................ 8 4. S U M M A R Y O F T E S T R E S U L T S ................................................. 9 5. M E A S U R E M E N T R E S U L T S ...................................................... 10 5.1. Maximum Peak Conducted Output Power ......................................................................... 10 5.2. Frequency Separation and 20 Db Bandwidth .................................................................... 11 5.3. Number of Hopping Frequency ........................................................................................... 12 5.4. Time of Occupancy (Dwell Time) ......................................................................................... 13 5.5. Conducted Spurious Emissions and Band Edges Test .................................................... 15 5.6. Restricted Band Emission Limit .......................................................................................... 16 5.7. AC Power line conducted emissions .................................................................................. 25 5.8. Band-edge measurements for radiated emissions ........................................................... 28 5.9. Pseudorandom frequency hopping sequence ................................................................... 31 5.10. Antenna requirement ............................................................................................................ 32 6. S U M M A R Y O F T E S T E Q U I P M E N T ............................................ 33 7. T E S T S E T U P P H O T O G R A P H S ................................................. 34 8. E X T E R N A L P H…

Text truncated - open the document above for the full version.

Report No.: TZ0032251015PH01 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0032251015PH01 Page 2 of 2 Conducted Emission
