2A5PJ-LM138GMouse

90mm 110mm Dongguan Togran Electronics Technology Co., LtdAdd: No.262 Shidan Rd, 3rd Industrial Park, Juzhou Area, Shijie Town, Dongguan City, China 523290 Tel: +86 769 86308806 Fax: +86 769 86308826Email: [email protected] [email protected]: www.dareu.com User Manual LM138G Connection way: 2.4G wirelessàȌȲDzǞȁǐƮǞȺɈƊȁƧƵب׀ׁڞǿMaterial: ABS + Rubber enamelButtons: 6Microswitches lifespan: Left & Right up to 3 million clicksǿǿׅخׇ׆ؤ׆ׇؤׇׁׁبǞǿƵȁȺǞȌȁ(Weight: 89±5g (Not include battery) ÀǘǞȺƮƵɨǞƧƵƧȌǿȯǶǞƵȺɩǞɈǘȯƊȲɈׁׅȌǏɈǘƵI!!ªɐǶƵȺخ„ȯƵȲƊɈǞȌȁǞ ȺȺɐƦǯƵƧɈɈȌ the following two conditions: فׁـÀǘǞȺƮƵɨǞƧƵǿƊɯȁȌɈƧƊɐȺƵǘƊȲǿǏɐǶǞȁɈƵȲǏƵȲƵȁƧƵةƊȁƮ(2) this device must accept any interference received, including interference that may cause undesired operation.ȁɯ!ǘƊȁǐƵȺȌȲǿȌƮǞ ̨ƧƊɈǞȌȁȺȁȌɈƵɮȯȲƵȺȺǶɯƊȯȯȲȌɨƵƮƦɯɈǘƵȯƊȲɈɯ ȲƵȺȯȌȁȺǞƦǶƵ for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for Ɗ!ǶƊȺȺ ƮǞǐǞɈƊǶƮƵɨǞƧƵةȯɐȲȺɐƊȁɈɈȌȯƊȲɈׁׅȌǏɈǘƵI!!ªɐǶƵȺخ ÀǘƵȺƵǶǞǿǞɈȺƊȲƵ designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. How to use Mouse parameter FCC Caution What's in the box Product overview XȁȺƵȲɈؤׁƦƊɈɈƵȲɯ Insert dongle §ǘɯȺǞƧƊǶȺȯƵƧǞ ̨ƧƊɈǞȌȁ ׀׀׆ׁٌ׀׀ׁׂٌ׀׀׈بX§(Tracking speed: 30 IPSƧƧƵǶƵȲƊɈǞȌȁب׀ׁJªƵȯȌȲɈªƊɈƵبׁׂׅRɹàȌȲDzǞȁǐɨȌǶɈƊǐƵبׅخׁßàȌȲDzǞȁǐƧɐȲȲƵȁɈب׀ׁǿـwƊɮف!ȌǿȯƊɈǞƦǞǶǞɈɯبàǞȁƮȌɩȺå§شàǞȁشׇàǞȁ׈شàǞȁ׀ׁ0ǶƵƧɈȲǞƧƊǶȺȯƵƧǞ ̨ƧƊɈǞȌȁ §ȲƵȺȺɈȌ„y Enjoy your time Mouse ɮׁ User manual x ׁ Dongguan Togran Electronics Technology Co., Ltd Add: No.262 Shidan Rd, 3rd Industrial Park, Juzhou Area, Shijie Town, Dongguan City, China 523290 Tel.: +86 769 8630 8806 Fax: +86 769 8630 8826Email: [email protected] [email protected]: www.dareu.com LM138G Right buttonLeft buttonScroll WheelDPI buttonForward/Backward DPI indicator light ׁ 23 4 5 6

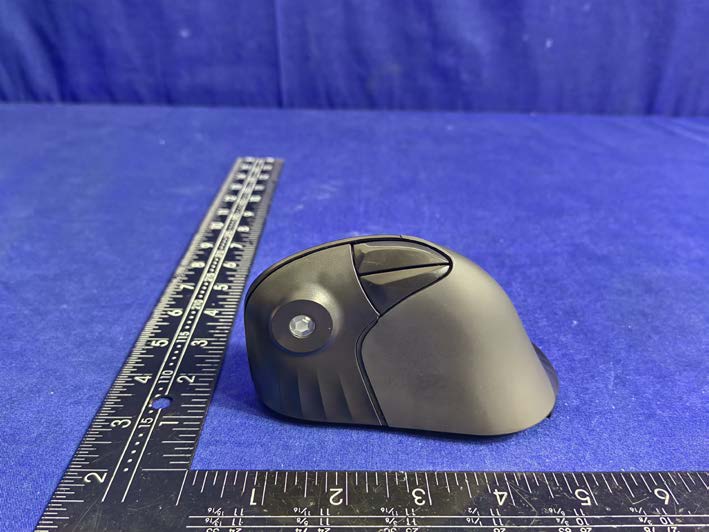

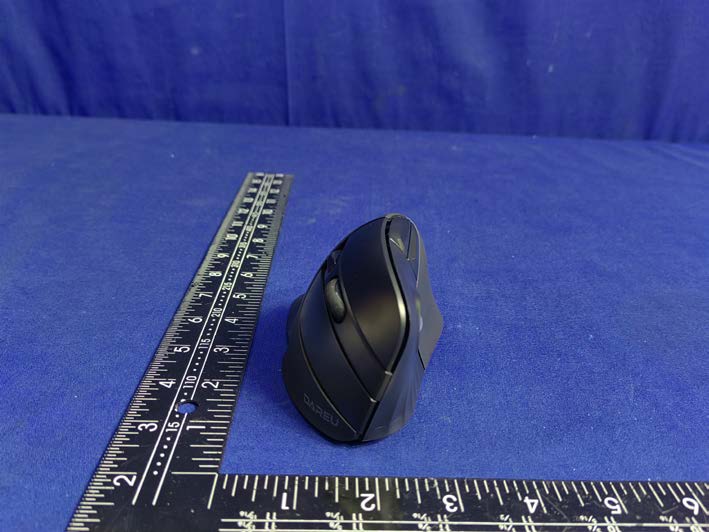

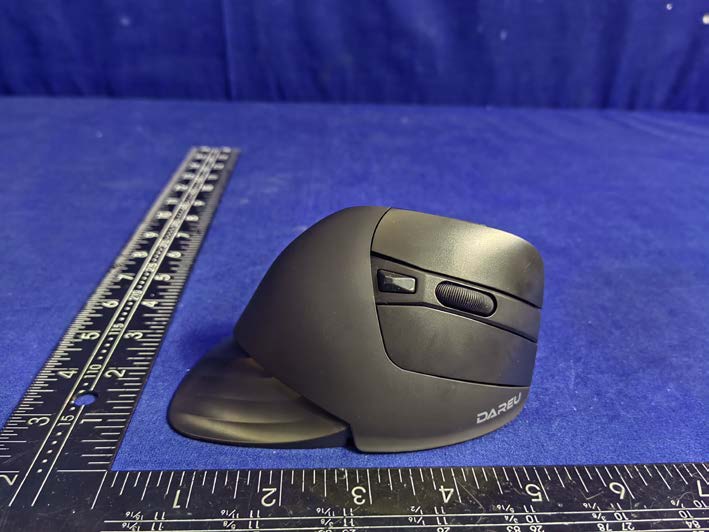

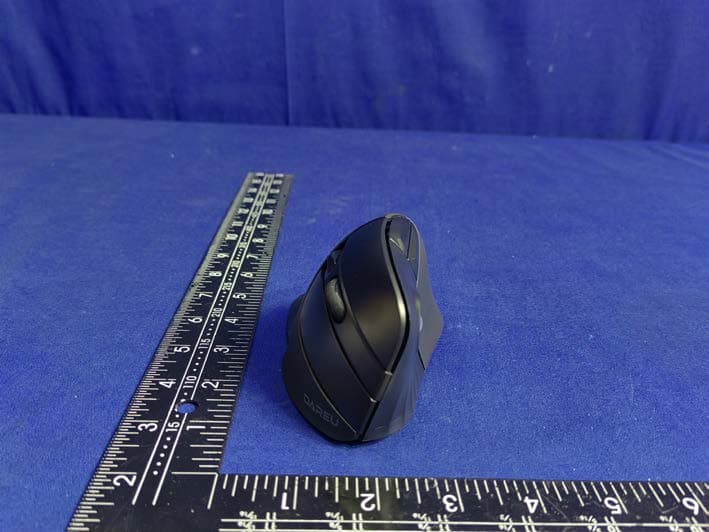

EUT EXTERNAL PHOTOGRAPHS ---------------The end----------------

38.3mm 27.3mm Model: LM138G Rating: 1.5V 23mA MADE IN CHINA FCC ID: 2A5PJ-LM138G S/N:LM138GBS2106000001

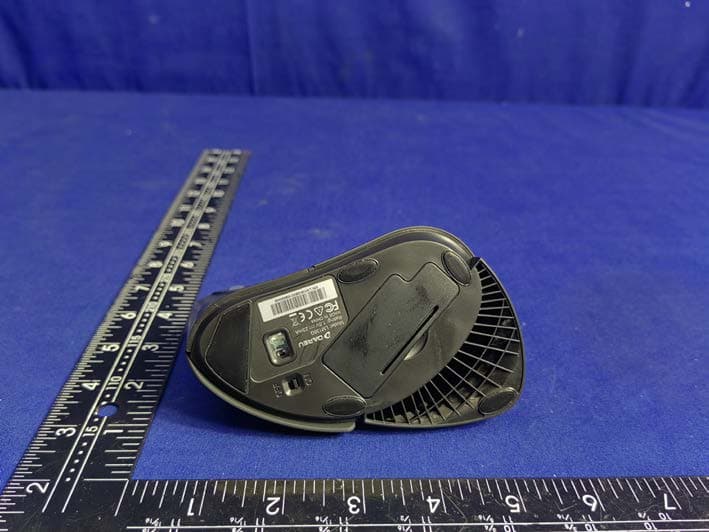

Label location

EUT INTERNAL PHOTOGRAPHS PCB ANT ----------------The end----------------

FCC ID : 2A5PJ-LM138G  Test Standards and Limits 1. According to KDB 447498 D01 v06, Section 4.3.1 2. FCC Radiofrequency radiation exposure limits: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel)/(min test separation distance)]*[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. For 2.4G band device, the limit of worse case is P max ≤3.0*D min )/ f =3.0*5/ [√2.474] =9.537mW  Measurement and Calculation 1. Maximum transmit power 2.4G SRD, Antenna Gain: -5.37dBi Operation Mode Channel Number Channel Frequency (MHz) EIRP (dBm) 2.4G SRD 1 2408 4.82 3 2440 2.47 16 2474 1.37 * EIRP[dBm] = E[dBμV/m] + 20 log(d[meters]) - 104.77 2. MPE Calculation According to the formula. calculate the EIRP test result: EIRP= 3.03mW < 9.525mW So the SAR report is not required. -End of the Report-

Report No. ENS2202280309W00601R Page 1 of 29 Ver.1.0 TEST REPORT Product Name ： Mouse Model Number ： TM241G, LM138G FCC ID ： 2A5PJ-LM138G Prepared for : Dongguan Dareu Electronics Audio Co., Ltd Address : No.262 Shidan Rd, 3rd Industrial Park,Juzhou Area, Shijie Town,Dongguan,China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2202280309W00601R Date(s) of Tests : February 28, 2022 to March 25, 2022 Date of issue : March 25, 2022 Report No. ENS2202280309W00601R Page 2 of 29 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................. 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES .................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ......................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ......................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 12 7.4 SUPPORT EQUIPMENT ............................................................................................................. 12 8 TEST REQUIREMENTS ......................................................................................................................... 13 8.1 BANDWIDTH TEST ..................................................................................................................... 13 8.2 RADIATED SPURIOUS EMISSION ............................................................................................. 16 8.3 CONDUCTED EMISSIONS TEST ............................................................................................... 27 8.4 ANTENNA APPLICATION ............................................................................................................ 28 Report No. ENS2202280309W00601R Page 3 of 29 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Dongguan Dareu Electronics Audio Co., Ltd Address： : No.262 Shidan Rd, 3rd Industrial Park,Juzhou Area, Shijie Town,Dongguan,China Manufacturer : Dongguan Dareu Electronics Audio Co., Ltd Address： : No.262 Shidan Rd, 3rd Industrial Park,Juzhou Area, Shijie Town,Dongguan,China EUT : Mouse Model Name : TM241G, LM138G Trademark : Dareu Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.249 The test results of this report relate only to the tested sample identified in this report Date of Test : February 28, 2022 to March 25, 2022 Prepared by : Luo peiye /Editor Reviewer : Joe Xia/Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ENS2202280309W00601R Page 4 of 29 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product: Mouse Model Number: TM241G, LM138G (These models are identical in circuitry and electrical, mechanical and physical construction; Only model for different market purposes; We chose TM241G as the final test prototype) Power Supply DC 1.5V Modulation: GFSK Frequency Range: 2408 MHz to 2474 MHz Number of Channels: 16 Channels Max Transmit Power: 95.61 dBuV/m Antenna Gain: -5.37 dBi Antenna: PCB Antenna Temperature Range: -20°C ~ +55°C Note: for more details, please refer to the User’s manual of the EUT. Report No. ENS2202280309W00601R Page 5 of 29 Ver.1.0 3 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.207 Conducted Emission N/A 15.209 Radiated Emission PASS 15.249 Radiated Spurious Emission PASS 15.249 Band edge test PASS 15.249 20dB Bandwidth PASS 15.203 Antenna Requirement PASS NOTE1: N/A (Not Applicable) NOTE2: The report use radiated measurements in the restricted frequency bands. In addition, the radiated test is also performed to ensure the emissions emanating from the device cabinet also comply with the applicable limits. RELATED SUBMITTAL(S) / GRANT(S): This submittal(s) (test report) is intended for FCC ID: 2A5PJ-LM138G filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. Report No. ENS2202280309W0060…

Text truncated - open the document above for the full version.

1.1. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
