2A5TQ-R100Wireless screen projector

70 mm 95 mm installation User Manual Ver. 1.0 Enjoy the vivid world HDMI Wireless Extender Physical interface diagram Connection instruction Product pairing 1. Power on the launcher and receiver. 2. Connect a pair of IR RX and IR TX cable to the 3.5mm IR IN and IR OUT TX launcher and receiver (when needed) 3. TX end LED light status: Power indicator light (blue light): Press and hold the power button for 3 seconds to turn on the machine; Signal indicator light (blue light): The indicator light flashes quickly during data transmission (remains on when not paired); Charging level indicator light (white light): battery level and charging status; 4. RX end LED light status: Power indicator light (blue light): Press and hold the power button for 3 seconds to turn on the machine; Signal indicator light (blue light): The indicator light flashes quickly during data transmission (remains on when not paired); Charging level indicator light (white light): battery level and charging status; Use the HDMI to connect the HDMI OUT from RX to the HDMI IN. The pairing success once the blue light on the receiver and launcher. HDMI wireless extender uses the standard 802.11AC protocol, transmitting high-definition video and audio signals through 5G WiFi network, this could transmit the HD signal from different devices like DVD, CD player, PC through WiFi network, to realize one-to-many devices transmitting. Supporting one-way IR extension. This device also has excellent graphic computing and transmitting performance that could make the signal smoother and more stable. · Long distance HDMI video and audio signal transmitting through WiFi, up to 200m · Supporting one-to-many application, pair up to 4 receivers · Supporting one-way IR extension · Compatible with HDMI 1.4, 1.3 standard · Work with HDCP 1.4 standard - High-bandwidth Digital Content Protection Introduction Maximum video resolution: 1920X1080 @60Hz WiFi protocol: standard 802.11 b/g/n/ac Infrared Ray (IR) port: 3.5mm Maximum distance: up to 200m in one space Power output: 9V， 5V/2.5A Maximum power consumption: MAX 25W, Dimensions (LxWxH): 116 x 70 x 45mm Working temperature/humidity: 0°C -45°C / 10% - 80%RH (Non-solidification) Specifications Features 1. Transmitter（TX） 2. Receiver（RX） Application diagrams Ports specifications： ports specifications： ①. ON-OFF Switch ②. Indicator Light ③. Power port ④. HDMI out ⑤. HDMI in ⑥. IR(Infrared Ray) out ①. ON-OFF Switch ②. Indicator Light ③. Power port ④. HDMI out ⑤. IR(Infrared Ray) in · Automatically compatible with multiple specs and display mode · Built-in equalizer to make the picture smooth, clear, and stable · Easy to install, plug and play, no need to setting PS: Product has been paired in factory settings. If any pairing failure during user operating, please reset the device, and following the instruction above to redo the pairing process. ①②③ ④⑥⑤ ①②③ ④⑤ Application 1: One-to-one application TXRX IR-TX HDMI Cable HDMI Cable IR-RX Projector DS-PAD TV TV PC STB PS3 DVD camera Application 2: One-to-many application HDMI Cable TX RX TV PC STB PS3 DVD camera 1 1. Install the antenna as shown in the diagram; 2. Install batteries (compatible with NP-F750/F770 series batteries); 3. Press and hold the power button to turn on the device. 23 Long press Produktinstallation Produktschnittstelle Anschluss und Bedienung Produktpaarung 1.Schließen Sie den Sender und den Empfänger jeweils an eine Stromquelle an. 2.Schließen Sie das IR RX- und das IR TX-Kabel an die 3,5-mm-IR IN RX- bzw. IR OUT TX-Anschlüsse des Senders und Empfängers an (falls erforderlich). 3.Erklärung der LED-Anzeigen an der TX-Seite： 1.Stromversorgungsanzeige (blaue LED): Drücken Sie die Ein-/Aus-Taste 3 Sekunden lang, um das Gerät einzuschalten. 2.Signalanzeige (blaue LED): Die LED blinkt schnell während der Datenübertragung (leuchtet konstant, wenn das Gerät nicht gepaart ist). 3.Ladezustandsanzeige (weiße LED): Zeigt den Akkuladestand und den Ladezustand an. 4.Erklärung der LED-Anzeigen an der RX-Seite： 1.Stromversorgungsanzeige (blaue LED): Drücken Sie die Ein-/Aus-Taste 3 Sekunden lang, um das Gerät einzuschalten. 2.Signalanzeige (blaue LED): Die LED blinkt schnell während der Datenübertragung (leuchtet konstant, wenn das Gerät nicht gepaart ist). 3.Batterieladeanzeige (weiße LED): Zeigt den Batteriestand und den Ladezustand an. Verbinden Sie den HDMI OUT des Empfängers (RX) mit dem HDMI IN des Senders (TX) mit einem HDMI-Kabel. Nach einigen Sekunden werden die blauen Lichter des Empfängers und des Senders schnell blinken, was auf eine erfolgreiche Paarung hinweist. Der HDMI-HD-Wireless-Transmitter verwendet den Standard 802.11 AC und überträgt hochauflösende Audio- und Videosignale über 5G -WLAN. Dadurch können HDMI-HD-Videosignale von Geräten wie DVD -Playern, Abspielgeräten oder PCs drahtlos übertragen werden. Der Transmitter unterstützt Multi-Point-Anwendungen und bietet gleichzeitig eine einseitige Infrarotverlängerung. Das Gerät zeichnet sich durch eine herausragende Bildverarbeitungs- und Übertragungsfähigkeit aus, um eine reibungslose und stabile Signalübertragung zu gewährleisten. · Drahtlose Übertragung von HDMI-Video- und Audiosignalen über WiFi mit einer Reichweite von bis zu 200 Metern · Unterstützt eine Vielzahl von Anwendungen, kann mit bis zu 4 Empfängern kombiniert werden · Unterstützt einseitige IR-Infrarotverlängerung · Kompatibel mit HDMI 1.4 und 1.3 Standards · Erfüllt den HDCP 1.4 Standard - Hochleistungs-Digital-Content- Protection-Technologie · Automatische Erkennung und Konfiguration verschiedener Anzeigemodi Produkteinführung Videoauflösungsunterstützung: 1920X1080@60Hz WLAN-Protokoll: Standard 802.11 b/g/n/ac Infrarotschnittstellentyp: 3,5 mm Übertragungsentfernung: Bis zu 200 Meter in freier Umgebung USB-C-Eingangsleistung: 9V oder 5V/2.5A Maximale Leistungsaufnahme: 25W, Schnellladung 20W, Langsamladung 5W Abmessungen (Länge-Breite-Höhe): 116 x 70 x 45 mm Betriebstemperatur/-feuchtigkeit: 0°C - 45°C / 10% - 80%…

Text truncated - open the document above for the full version.

SHENZHENSAGEIOTTECHNOLOGYCO.,LTD CERTIFICATIONSCONCERNING“COVERED”EQUIPMENT Date:Mar05,2024 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 FCCID:2A5TQ-R100 ToWhomItMayConcern: Asrequiredbysection 2.911(d)(5)(i),SHENZHENSAGEIOTTECHNOLOGY CO.,LTD (“theapplicant”)certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Asrequiredbysection2.911(d)(5)(ii), SHENZHENSAGEIOTTECHNOLOGY CO.,LTD (“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication, theapplicantisnotidentifiedontheCoveredListasanentityproducing“covered” equipment. Thankyouforyourattentiontothismatter. Sincerelyyours, Signature: PrintedName:ZhenyuShu Company:SHENZHENSAGEIOTTECHNOLOGYCO.,LTD JobTitle:Manager Email:[email protected] Telephone:18122050004

SHENZHENSAGEIOTTECHNOLOGYCO.,LTD ProductSimilarityDeclaration Date:2024-03-05 FCCID:2A5TQ-R100 Subject:authorizationforaddingfamilymodels TowhomitMayconcern,Statement WewouldliketoconfirmtheproductWirelessscreenprojectorwithmodels(R100,R101,R102, R103,R104,R105,R106,R107,R108,R109.）aresameinallrespects.Onlythemodelnamesare differentfordifferentmarket requirement Yourssincerely, Signature: PrintedName:ZhenyuShu Company:SHENZHENSAGEIOTTECHNOLOGYCO.,LTD JobTitle:Manager Email:[email protected] Telephone:18122050004

SHENZHENSAGEIOTTECHNOLOGYCO.,LTD LetterofAgency Date：Mar05,2024 ElementMaterialsTechnology 100FrobisherBusinessPark Malvern Worcestershire WR141BX UK FCCID:2A5TQ-R100 ToWhomItMayConcern: Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits, pursuanttoSection5301oftheAnti-DrugAbuseACTof1988,U.S.C.862.Further,noparty,as definedin47CFR1.2002(b),totheapplication,issubjecttodenialoffederalbenefits,that includesFCCbenefits. Thankyouforyourattentiontothismatter. Sincerelyyours, Signature: PrintedName:ZhenyuShu Company:SHENZHENSAGEIOTTECHNOLOGYCO.,LTD JobTitle:Manager Email:[email protected] Telephone:18122050004

SHENZHENSAGEIOTTECHNOLOGYCO.,LTD RequestforConfidentialityLetter-FCC Date：Mar05,2024 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 Re:Requestforconfidentiality FCCID:2A5TQ-R100 Towhomitmayconcern, Weherebyrespectfullyrequestthatundertheprovisionof47CFR0.459and0.457(d)the documentslistedbelowandattachedwiththisapplicationforcertificationbeprovidedwith confidentialstatus.  Schematics.pdf OperationalDescription.pdf  FrequencyBlockDiagrams.pdf  FCCSWSECURITYDESCRIPTIONletter Anyexhibit/informationforwhichwehaverequestedconfidentiality,butwhichmaynotbe accordedsuchtreatmentbytheFCC,shouldbereturnedtous. Thedocumentslistedabovecontaintradesecretsthataretreatedasconfidentialbyus. Substantialcompetitiveharmtouscouldresultshouldtheybemadeavailabletothepublic. Sincerelyyours, Signature: PrintedName:ZhenyuShu Company:SHENZHENSAGEIOTTECHNOLOGYCO.,LTD JobTitle:Manager Email:[email protected] Telephone:18122050004

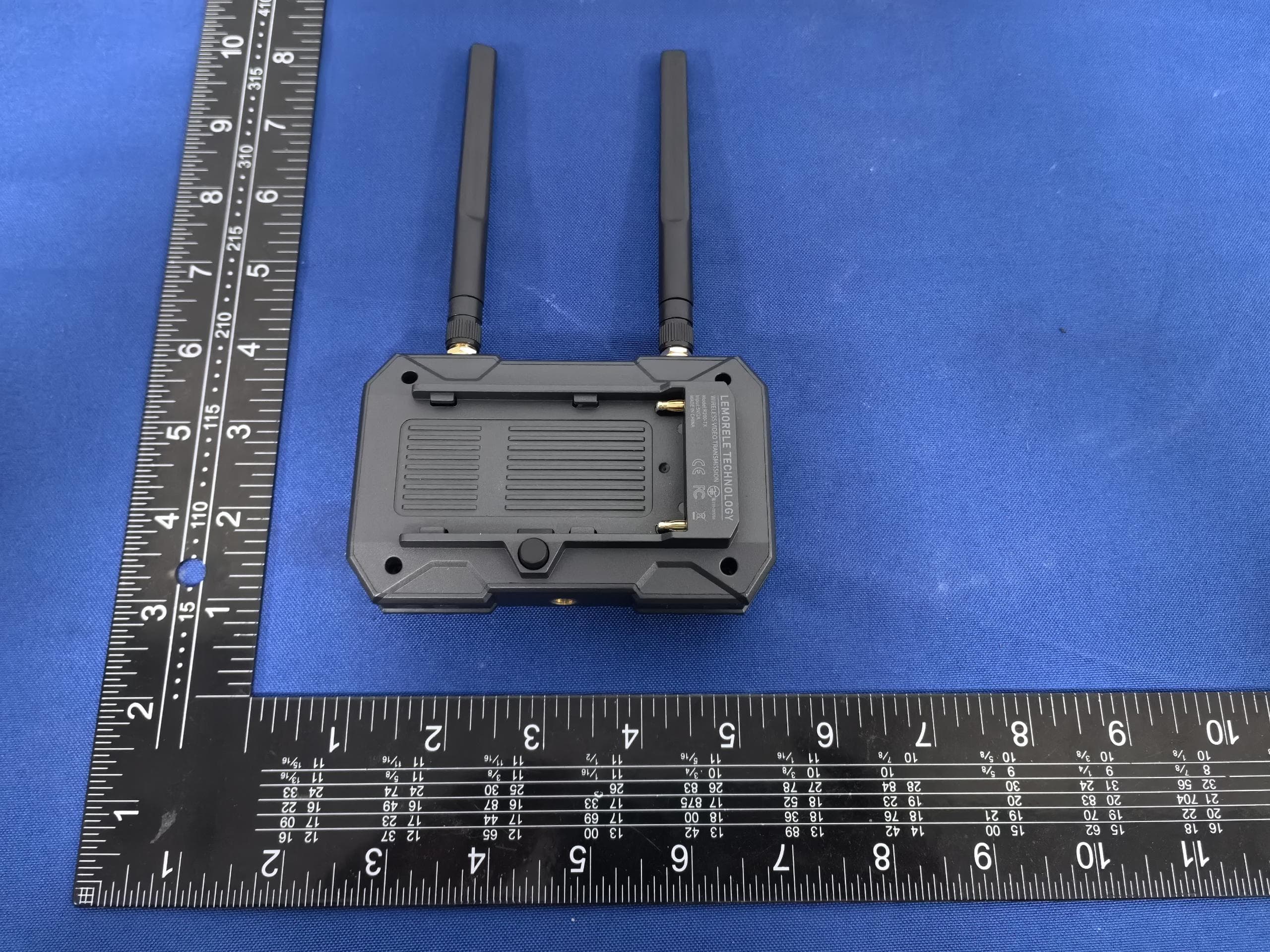

ExternalPhotos

ExternalPhotos ANT0 ANT1

FCCID:2A5TQ-R100 Thisdevicecomplieswithpart15oftheFCCRules.Operationissubject tothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and(2)Thisdevice mustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation.

InternalPhotos ※※※※※ENDOFREPORT※※※※※

FCCID:2A5TQ-R100 RFExposureEvaluation Limits 447498D01GeneralRFExposureGuidancev06 Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfieldstrength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500f/3006 1500–100,00056 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500f/150030 1500–100,0001.030 f=frequencyinMHz Friistransmissionformula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 ,Pout=outputpowertoantennainmW; G=gainofantennainlinearscale,Pi=3.1416; R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainoftheantennaandthetotalpowerinputto theantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleandhighest channelindividually. TestResultofRFExposureEvaluation 2.4GWIFImodeANT0 Antenna Gain (dBi) Antenna Gain (numeric) Maxtune-up conducted power Outputpower toantenna (mW) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result 3.001.99512.5017.780.0070591PASS 2.4GWIFImodeANT1 Antenna Gain (dBi) Antenna Gain (numeric) Maxtune-up conducted power Outputpower toantenna (mW) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result 3.001.99512.5017.780.0070591PASS 2.4GWIFImodeANT0+2.4GWIFImodeANT1 （ transmittedatthesametime ） Antenna Gain (dBi) Antenna Gain (numeric) Maxtune-up conducted power Outputpower toantenna (mW) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result 6.013.99015.5135.560.0282311PASS 5GWIFImodeANT0 Antenna Gain (dBi) Antenna Gain (numeric) Maxtune-up conducted power Outputpower toantenna (mW) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result 3.001.99513.5022.390.0088861PASS 5GWIFImodeANT1 Antenna Gain (dBi) Antenna Gain (numeric) Maxtune-up conducted power Outputpower toantenna (mW) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result 3.001.99513.5022.390.0088861PASS 5GWIFImodeANT0+5GWIFImodeANT1（transmittedatthesametime） Antenna Gain (dBi) Antenna Gain (numeric) Maxtune-up conducted power Outputpower toantenna (mW) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result 6.013.99016.5144.770.0355401PASS ForWIFI2.4G+WIFI5GSimultaneousTransmission Accordingtothefollowingformat:0.007059+0.008886=0.0159<1 Remark:2.4G/5GWIFIANT0Gain=3dBi,2.4G/5GWIFIANT1Gain=3dBi, 2.4GWIFIDirectionalgain=6.01dBi, 5GWIFIDirectionalgain=6.01dBi

Tengxiang Technology.Inc Product Number: AN2400-33BC01SM Product Name: Antenna File No.: 20211108002Version: 1.0Date: 2021.11.08 Specification For Approval Customer： Customer P/N： Tengxiang P/N：AN2400-33BC01SM Description : 2.4/5GHz 黑色胶棒天线,RP-SMA antenna 公头母针（双铜管结构) Tengxiang Checked By:CustomerApproved By: 工程：DWF 射频：韦佳 Tengxiang Technology.Inc NO.53 Shatou ShaChong Road, ChangAn Town, Guangdong province, China TEL:86-769-81873082 FAX:86-769-82663788 http://www.tenxiang.cn Tengxiang Technology.Inc Product Number:AN2400-33BC01SM Product Name: Antenna Page 1 Version: 1.0Issue Date: 2021.11.08 1. Specification Sample Photo A. Electrical Characteristics Frequency2400~2500/5150~5850 MHz S.W.R.2400-2500MHz<2.0 ; 5150-5850MHz <2.5 Antenna Gain3.0dBi PolarizationLinear Impedance50 Ohm B. Material & Mechanical Characteristics Material of RadiatorCu Material of PlasticABS,POM,CU Cable TypeRG178 Connector Type 公头母针 C. Environmental Operation Temperature- 30 ̊C ~ + 65 ̊C Storage Temperature- 30 ̊C ~ + 65 ̊C 2. Characteristics and Reliability Test Test ItemsTest Condition and ProcedureRequirements C1S.W.R.Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2Antenna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification TengxiangTechnology.Inc ProductNumber:AN2400-33BC01SM ProductName:Antenna Page 2 Version:1.0IssueDate:2021.11.08 M1VibrationMIL-STD-202G,201A Amplitude:0.03inch(0.76mm);Freq:10to55Hz 3directions;2hoursforeachdirection 1.NoVisualDamage 2.FrequencyTol.<=5% M2Random Drop Height:1.5Meter; 3directions;1timeforeachdirection 1.Nopartsseparated 2.FrequencyTol.<=5% M3SolderabilityMIL-STD-202G,210F,cond.A Solderiron:350±10°C;Duration:5seconds 1.MountedonPCB 2.NoVisualDamage M4Terminal- PullTest MIL-STD-202G,211A,cond.A Holdingwithindividualspecification;forceapplied toaxisofterminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M5Terminal- TorqueTest MIL-STD-202G,211A,cond.E Holdingwithindividualspecification;applied clockwiseandcounterclockwisetotheaxisof terminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M6DimensionInspectionofdimension,color,material,package, surfaceprocess DirectiveDUTspecification E1SaltSprayMIL-STD-202G,101E,cond.B Temp:35°C;RH:>=95%;NaClsolution:>=5%; Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E2HumidityMIL-STD-202G,103B,cond.B Temp:40°C;RH:>=95%;Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E3Thermal Shock 1Cycle:-30°C(30minutes)to+65°C(30minutes) Cycles:24 After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E4Life(High Temp.) MIL-STD-202G,108A,cond.A Temp:85°C;Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% R1RoHSWithReferencetoIEC62321:2008withflowchart DirectiveRoHSEU2015/863 TengxiangTechnology.Inc ProductNumber:AN2400-33BC01SM ProductName:Antenna Page 3 Version:1.0IssueDate:2021.11.08 3.Antenna-SParameterTestData 4.Antenna-RadiationPatternTestData Frequency(MHz)2400.02450.02500.05150.05550.05850.0 Efficiency(%)72.1074.9073.5065.3053.8062.80 Gain(dBi)2.851.901.631.201.553.02 TengxiangTechnology.Inc ProductNumber:AN2400-33BC01SM ProductName:Antenna Page 4 Version:1.0IssueDate:2021.11.08 5.MechanicalDrawing(Seeattachedfiles)

BSLTestingCo.,LTD.ProjectNo.:BSL2401318275088F-1 Page 1 of 91 FCCPART15C MeasurementandTestReport For SHENZHENSAGEIOTTECHNOLOGYCO.,LTD FCCID:2A5TQ-R100 FCCRule(s)/Methods: FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 ProductDescription: Wirelessscreenprojector Trademark N/A Model/Typereference.: R100,R101,R102,R103,R104,R105,R106,R107, R108,R109. ReportNo.:BSL2401318275088F-1 Dateofreceiptoftestitem: Feb.22,2024 Dateofsampling: Feb.22,2024 TestedDate: Feb.22,2024toMar04,2024 IssuedDate: Mar04,2024 TestedBy: LrisYao/Engineer ReviewedBy: LeviXiao/EMCManager Approved&AuthorizedBy: SalonOuyang/PSQManager BSLTestingCo.,LTD. 1/F,BuildingB,XinshidaiGRPark,ShiyanStreet,Bao'anDistrict,Shenzhen,Shiyan Street,Bao'anDistrict,Shenzhen,Guangdong,518052,People’sRepublicofChina Tel:400-882-9628Fax:86-755-26508703 BSLTestingCo.,LTD.ProjectNo.:BSL2401318275088F-1 Page 2 of 91 TableofContents Page 1.VERSION.....................................................................................................................4 2.SUMMARYOFTESTRESULTS..................................................................................5 2.1TESTFACILITY....................................................................................................................6 2.2MEASUREMENTUNCERTAINTY.......................................................................................6 3.GENERALINFORMATION..........................................................................................7 3.1GENERALDESCRIPTIONOFEUT....................................................................................7 3.2DESCRIPTIONOFTESTMODES......................................................................................8 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED.................8 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)...........................................9 3.5EQUIPMENTSLISTFORALLTESTITEMS.....................................................................10 4.EMCEMISSIONTEST...............................................................................................12 4.1CONDUCTEDEMISSIONMEASUREMENT....................................................................12 4.1.1POWERLINECONDUCTEDEMISSIONLimits.....................................................12 4.1.2TESTPROCEDURE..................................................................................................12 4.1.3DEVIATIONFROMTESTSTANDARD.....................................................................12 4.1.4TESTSETUP.............................................................................................................13 4.1.5EUTOPERATINGCONDITIONS..............................................................................13 4.1.6TESTRESULTS..............................................................................................................13 4.2RADIATEDEMISSIONMEASUREMENT.........................................................................16 4.2.1RADIATEDEMISSIONLIMITS.................................................................................16 4.2.2TESTPROCEDURE..................................................................................................16 4.2.3DEVIATIONFROMTESTSTANDARD.....................................................................17 4.2.4TESTSETUP.............................................................................................................17 4.2.5EUTOPERATINGCONDITIONS..............................................................................18 4.2.6TESTRESULTS.........................................................................................................18 5.RADIATEDBANDEMISSIONMEASUREMENT........................................................29 5.1TESTREQUIREMENT:......................................................................................................29 5.2TESTPROCEDURE..........................................................................................................29 5.3DEVIATIONFROMTESTSTANDARD.............................................................................29 5.4TESTSETUP......................................................................................................................30 5.5EUTOPERATINGCONDITIONS......................................................................................30 5.6TESTRESULT....................................................................................................................31 6.POWERSPECTRALDENSITYTEST........................................................................33 6.1APPLIEDPROCEDURES/LIMIT.....................................................................................33 6.2TESTPROCEDURE..........................................................................................................33 6.3DEVIATIONFROMSTANDARD.......................................................................................33 6.4TESTSETUP......................................................................................................................33 BSLTestingCo.,LTD.ProjectNo.:BSL2401318275088F-1 Page 3 of 91 6.5EUTOPERATIONCONDITIONS......................................................................................33 6.6TESTRESULT....................................................................................................................34 7.CHANNELBANDWIDTH&.........................................................................................44 7.1APPLIEDPROCEDURES/LIMIT.....................................................................................44 7.2TESTPROCEDURE..........................................................................................................44 7.3DEVIATIONFROMSTANDARD.......................................................................................44 7.4TESTSETUP......................................................................................................................44 7.5EUT…

Text truncated - open the document above for the full version.

BSLTestingCo.,LTD.ProjectNo.:BSL2401318275088F-2 Page 1 of 86 FCCPART15E MeasurementandTestReport For SHENZHENSAGEIOTTECHNOLOGYCO.,LTD FCCID:2A5TQ-R100 FCCRule(s)/Methods: FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 ProductDescription: Wirelessscreenprojector Trademark N/A Model/Typereference.: R100,R101,R102,R103,R104,R105,R106,R107, R108,R109. ReportNo.:BSL2401318275088F-2 Dateofreceiptoftestitem: Feb.22,2024 Dateofsampling: Feb.22,2024 TestedDate: Feb.22,2024toMar01,2024 IssuedDate: Mar01,2024 TestedBy: LrisYao/Engineer ReviewedBy: LeviXiao/EMCManager Approved&AuthorizedBy: SalonOuyang/PSQManager BSLTestingCo.,LTD. 1/F,BuildingB,XinshidaiGRPark,ShiyanStreet,Bao'anDistrict,Shenzhen,Shiyan Street,Bao'anDistrict,Shenzhen,Guangdong,518052,People’sRepublicofChina Tel:400-882-9628Fax:86-755-26508703 BSLTestingCo.,LTD.ProjectNo.:BSL2401318275088F-2 Page 2 of 86 TableofContentsPage 1.VERSION...................................................................................................................4 2.SUMMARYOFTESTRESULTS................................................................................5 2.1TESTFACILITY.................................................................................................................6 2.2MEASUREMENTUNCERTAINTY....................................................................................6 3.GENERALINFORMATION........................................................................................7 3.1GENERALDESCRIPTIONOFEUT.................................................................................7 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED..............9 3.4DESCRIPTIONOFSUPPORTUNITS..............................................................................9 3.5EQUIPMENTSLISTFORALLTESTITEMS.................................................................10 4.EMCEMISSIONTEST..............................................................................................12 4.1CONDUCTEDEMISSIONMEASUREMENT..................................................................12 4.1.1POWERLINECONDUCTEDEMISSIONLimits...................................................12 4.1.2TESTPROCEDURE...............................................................................................12 4.1.3DEVIATIONFROMTESTSTANDARD..................................................................12 4.1.4TESTSETUP...........................................................................................................13 4.1.5EUTOPERATINGCONDITIONS...........................................................................13 4.1.6TESTRESULT（Worstcase802.11a5180MHz-ant0）......................................14 4.2RADIATEDEMISSIONMEASUREMENT......................................................................16 4.2.1APPLICABLESTANDARD.....................................................................................16 4.2.2CONFORMANCELIMIT.........................................................................................16 4.2.3MEASURINGINSTRUMENTS...............................................................................17 4.2.4TESTCONFIGURATION........................................................................................17 4.2.5TESTPROCEDURE...............................................................................................18 4.2.6TESTRESULT........................................................................................................19 5.POWERSPECTRALDENSITYTEST......................................................................36 5.1APPLIEDPROCEDURES/LIMIT.............................................................................36 5.2TESTPROCEDURE..................................................................................................37 5.3DEVIATIONFROMSTANDARD...............................................................................37 5.4TESTMETHOD..........................................................................................................37 5.5TESTSETUP..............................................................................................................37 5.6EUTOPERATIONCONDITIONS..............................................................................37 5.7TESTRESULTS.........................................................................................................38 6.26DB&6DB&99%EMISSIONBANDWIDTH........................................................47 6.1APPLIEDPROCEDURES/LIMIT.............................................................................47 6.2TESTPROCEDURE..................................................................................................48 6.3EUTOPERATIONCONDITIONS..............................................................................48 6.4TESTRESULTS.........................................................................................................48 7.MAXIMUMCONDUCTEDOUTPUTPOWER...........................................................63 BSLTestingCo.,LTD.ProjectNo.:BSL2401318275088F-2 Page 3 of 86 TableofContentsPage 7.1PPLIEDPROCEDURES/LIMIT...............................................................................63 7.2TESTPROCEDURE..................................................................................................63 7.3DEVIATIONFROMSTANDARD...............................................................................64 7.4TESTSETUP..............................................................................................................64 7.5EUTOPERATIONCONDITIONS..............................................................................64 7.6TESTRESULTS.........................................................................................................65 8.OUTOFBANDEMISSIONS.....................................................................................66 8.1APPLICABLESTANDARD...................................................................................…

Text truncated - open the document above for the full version.

EUTTESTPHOTO
