2A5U7-RR106Remote Control

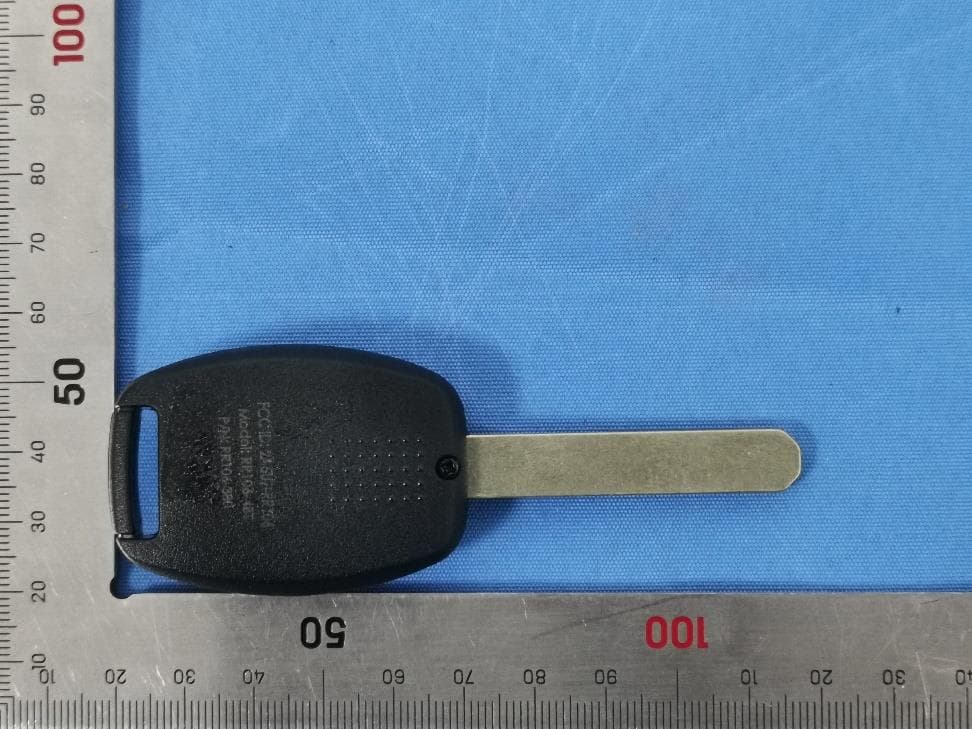

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 External Photos for KSCR2205000680AT Test Model No: RR106-4BT Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

Remark:It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC statement will be placed in the user manual which the device is marketed. FCC ID: 2A5U7-RR106 Model: RR106-4BT P/N: RR106-380

Compliance Certification Services (Kunshan) Inc. Page: 1 of 5 Internal Photos for KSCR2205000680AT Test Model No: RR106-4BT Compliance Certification Services (Kunshan) Inc. Page: 2 of 5 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 5 Compliance Certification Services (Kunshan) Inc. Page: 4 of 5 Compliance Certification Services (Kunshan) Inc. Page: 5 of 5

Compliance Certification Services (Kunshan) Inc. 1 of 7 Appendix A for KSCR220500068001 1 Spurious Emissions 1.1 Field Strength of the Fundamental Signal Test channel Freq. (MHz) Result Level (dBμV/m) Limit Line (dBμV/m) Over Limit (dB) Detector Polarization Channel 1 313.80 80.75 95.55 -14.80 Peak Vertical 87.20 95.55 -8.35 Peak Horizontal 68.16 75.55 -7.39 AVG Vertical 74.61 75.55 -0.94 AVG Horizontal 313.80MHz Remark: 1. If the Peak value below the AV Limit, the AV test doesn’t perform for this submission. 2. Average level=Peak level-Duty Cycle Factor 3. Duty Cycle Factor= 20log(Duty Cycle)= -12.59dB Compliance Certification Services (Kunshan) Inc. 2 of 7 1.2 Spurious Emissions Below 1GHz 313.80MHz Vertical: No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) Factor(dB/m) (dBuV/m) (dBuV/m) (dB) 1 122.1500 3.32 19.41 22.73 43.50 -20.77 QP 2 274.4400 3.85 20.24 24.09 46.00 -21.91 QP 3 313.2400 59.80 20.95 80.75 95.55 -14.80 peak 4 627.5200 5.16 27.43 32.59 75.55 -42.96 peak 5 879.7200 30.82 2.32 33.14 46.00 -12.86 QP 6 941.8000 37.02 2.60 39.62 75.55 -35.93 peak Compliance Certification Services (Kunshan) Inc. 3 of 7 Horizontal: No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) Factor(dB/m) (dBuV/m) (dBuV/m) (dB) 1 124.0900 3.00 19.44 22.44 43.50 -21.06 QP 2 267.6500 3.33 20.70 24.03 46.00 -21.97 QP 3 314.2100 66.22 20.98 87.20 95.55 -11.65 peak 4 627.5200 6.72 27.43 34.15 75.55 -41.40 peak 5 706.0900 30.21 2.47 32.68 46.00 -13.32 QP 6 941.8000 36.87 2.60 39.47 75.55 -36.08 peak Compliance Certification Services (Kunshan) Inc. 4 of 7 Peak value: Frequency (MHz) Level (dBuV/m) Limit Line (dBuV/m) Over Limit (dB) Polarization 314.2100 87.20 95.55 -8.35 Horizontal 627.5200 34.15 75.55 -41.40 Horizontal 941.8000 39.47 75.55 -36.08 Horizontal 313.2400 80.75 95.55 -14.80 Vertical 627.5200 32.59 75.55 -42.96 Vertical 941.8000 39.62 75.55 -35.93 Vertical Average value: Frequency (MHz) Average correction factor Peak Level (dBuV/m) Average Level (dBuV/m) Limit Line (dBuV/m) Over Limit (dB) Polarization 314.2100 -12.59 87.20 74.61 75.55 -0.94 Horizontal 627.5200 -12.59 34.15 21.56 55.55 -33.99 Horizontal 941.8000 -12.59 39.47 26.88 55.55 -28.67 Horizontal 313.2400 -12.59 80.75 68.16 75.55 -7.39 Vertical 627.5200 -12.59 32.59 20.00 55.55 -35.55 Vertical 941.8000 -12.59 39.62 27.03 55.55 -28.52 Vertical Compliance Certification Services (Kunshan) Inc. 5 of 7 1GHz~6GHz 313.80MHz Mark Frequency (MHz) Reading (dBuV) Factor (dB) Emission (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector polarization 1 1255.200 57.34 -23.79 33.55 54.00 -20.45 peak Vertical 2 1569.000 58.09 -23.17 34.92 54.00 -19.08 peak Vertical 3 1882.800 57.85 -23.05 34.80 54.00 -19.20 peak Vertical 4 1255.200 56.45 -23.79 32.66 54.00 -21.34 peak Horizontal 5 1569.000 57.11 -23.17 33.94 54.00 -20.06 peak Horizontal 6 1882.800 55.75 -23.05 32.70 54.00 -21.30 peak Horizontal Compliance Certification Services (Kunshan) Inc. 6 of 7 2 20dB Bandwidth Measurement Data: Frequency(MHz) 20dB bandwidth (kHz) Limit (kHz) Results 313.80 83.36 784.50 Pass Test plot as follows: Compliance Certification Services (Kunshan) Inc. 7 of 7 3 Dwell Time Measurement Data: Test item Limit (s) Results Transmission Duration ≤5s Pass Test plot as follows:

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220500068001 Page: 1 of 20 Eric Lin Laboratory Manager TEST REPORT Application No.: KSCR2205000680AT FCC ID: 2A5U7-RR106 Applicant: 1320 International, LLC Address of Applicant: 66 Main Street Suite 2457 Farmingdale NEW JERSEY 07727 Manufacturer: ShangHai HaoWei Precision mold & Injection Co., Ltd. Address of Manufacturer: No.333,6 Building,Changta rd,litahu Town,shanghai city. Factory: ShangHai HaoWei Precision mold & Injection Co., Ltd. Address of Factory: No.333,6 Building,Changta rd,litahu Town,shanghai city. Equipment Under Test (EUT): EUT Name: Remote Control Model No.: RR106-4BT Standard(s) : 47 CFR Part 15, Subpart C 15.231 Date of Receipt: 2022-05-10 Date of Test: 2022-07-31 to 2022-08-08 Date of Issue: 2022-08-09 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220500068001 Page: 2 of 20 Revision Record Version Chapter Date Modifier Remark 01 2022-08-09 Original Authorized for issue by: Tommie_Tang/Project Engineer Eric Lin /Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220500068001 Page: 3 of 20 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.231 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.231(c) Pass Radiated Emissions below 1GHz ANSI C63.10 (2013) Section 6.4&6.5 47 CFR Part 15C Section 15.231(b) and 15.209 Pass Dwell Time (15.231(a)) ANSI C63.10 (2013) Section 7.5 47 CFR Part 15, Subpart C 15.231(a) Pass Field Strength of the Fundamental Signal (15.231(b)) ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.231(b) Pass Radiated Emissions above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15C Section 15.231(b) and 15.209 Pass Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220500068001 Page: 4 of 20 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 DETAILS OF E.U.T. ............................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY .............................................................................................................. 6 4.4 TEST LOCATION .................................................................................................................................... 7 4.5 TEST FACILITY ...................................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS ............................................................................................................... 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 8 5 EQUIPMENT LIST ...................................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................... 10 6.1 ANTENNA REQUIREMENT .................................................................................................................... 10 6.1.1 Test Requirement: ....................................................................................................................... 10 6.1.2 Conclusion ................................................................................................................................... 10 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 11 7.1 20DB BANDWIDTH .............................................................................................................................. 11 7.1.1 E.U.T. Operation .......................................................................................................................... 11 7.1.2 Test Mode Description ................................................................................................................. 11 7.1.3 Test Setup Diagram ..................................................................................................................... 11 7.1.4 Measurement Procedure and Data............................................................................................. 11 7.2 RADIATED EMISSIONS BELOW 1GHZ .................................................................................................... 12 7.2.1 E.U.T. Operation .......................................................................................................................... 12 7.2.2 Test Mode Description ................................................................................................................. 12 7.2.3 Test Setup Diagram ..................................................................................................................... 13 7.2.4 Measurement Procedure and Data.............................…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 3 Appendix Photographs of Test Setup for KSCR2205000680AT Test Model No.: RR106-4BT Compliance Certification Services (Kunshan) Inc. Page: 2 of 3 Test Setup Photo Radiated Emissions below 1GHz Radiated Emissions above 1GHz Compliance Certification Services (Kunshan) Inc. Page: 3 of 3
