2A5U7-RR115Remote Control

SG~ SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name 1320 International, LLC Address 66 Main Street Suite 2457 Farmingdale New Jersey United States 07727 Grantee Code 2A5U7 FCCID 2A5U7-RR115 Authorized Contact Name Edward Matthews Contact Email [email protected] Contact Phone (732) 673-9706 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911 (d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant's expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a "party" for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, lnc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.qc.ca/eic/site/smt-qst.nsf/eng/sf01130.html Applicant Signature: Ir Date:2022/05/21 Print Name: I Edward Matthews Title: I Director *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authonzed person ltsted m the FCC database Applicant Declaration Rev:0.0

1320 International, LLC TO: Federal Communication Commission Equipment Authorization Branch 7 435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ASU7-RR115 To whom it may concern: Date: 2022-05-21 We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with 1320 International, LLC. This authorization is valid until further written notice from the applicant. Name (Printed): Edward Matthews Signature: On behalf of Company: 1320 International, LLC. Telephone: (732) 673-9706 Title: Director

1320 International, LLC To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: 1320 International, LLC 66 Main Street Suite 2457 Farmingdale New Jersey United States 07727 Regarding: Confidentiality Request regarding application for FCC ID: 2A5U7-RR115 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission's rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic( s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Edward Matthews Title: Director Company Name: 1320 International, LLC

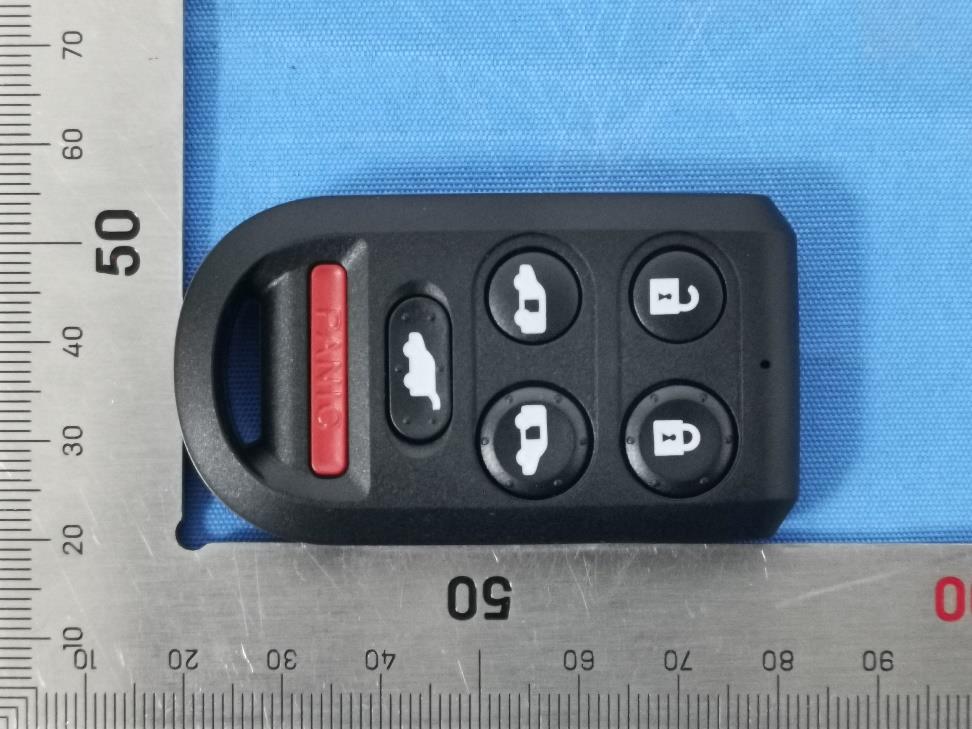

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 External Photos for KSCR2205000689AT Test Model No: RR115-6BT Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

Remark:It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC statement will be placed in the user manual which the device is marketed. FCC ID: 2A5U7-RR115 Model: RR115-6BT P/N: RR115-399

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 Internal Photos for KSCR2205000689AT Test Model No: RR115-6BT Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

Compliance Certification Services (Kunshan) Inc. 1 of 7 Appendix A for KSCR220500068901 1 Spurious Emissions 1.1 Field Strength of the Fundamental Signal Test channel Freq. (MHz) Result Level (dBμV/m) Limit Line (dBμV/m) Over Limit (dB) Detector Polarization Channel 1 313.80 81.20 95.55 -14.35 Peak Vertical 84.84 95.55 -10.71 Peak Horizontal 69.18 75.55 -6.37 AVG Vertical 72.82 75.55 -2.73 AVG Horizontal 313.80MHz Remark: 1. If the Peak value below the AV Limit, the AV test doesn’t perform for this submission. 2. Average level=Peak level-Duty Cycle Factor Compliance Certification Services (Kunshan) Inc. 2 of 7 3. Duty Cycle Factor= 20log(Duty Cycle)= -12.02dB Compliance Certification Services (Kunshan) Inc. 3 of 7 1.2 Spurious Emissions Below 1GHz 313.80MHz Vertical: No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) Factor(dB/m) (dBuV/m) (dBuV/m) (dB) 1 132.8200 3.01 19.25 22.26 43.50 -21.24 QP 2 265.7100 4.71 20.92 25.63 46.00 -20.37 QP 3 313.2400 60.25 20.95 81.20 95.55 -14.35 peak 4 627.5200 10.12 27.43 37.55 75.55 -38.00 peak 5 878.7500 30.40 2.31 32.71 46.00 -13.29 QP 6 941.8000 48.30 2.60 50.90 75.55 -24.65 peak Compliance Certification Services (Kunshan) Inc. 4 of 7 Horizontal: No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) Factor(dB/m) (dBuV/m) (dBuV/m) (dB) 1 118.2700 2.03 19.29 21.32 43.50 -22.18 QP 2 259.8900 2.76 20.90 23.66 46.00 -22.34 QP 3 314.2100 63.86 20.98 84.84 95.55 -10.71 peak 4 627.5200 12.41 27.43 39.84 75.55 -35.71 peak 5 759.4400 31.28 2.34 33.62 46.00 -12.38 QP 6 941.8000 52.60 2.60 55.20 75.55 -20.35 peak Compliance Certification Services (Kunshan) Inc. 5 of 7 Peak value: Frequency (MHz) Level (dBuV/m) Limit Line (dBuV/m) Over Limit (dB) Polarization 314.2100 84.84 95.55 -10.71 Horizontal 627.5200 39.84 75.55 -35.71 Horizontal 941.8000 55.20 75.55 -20.35 Horizontal 313.2400 81.20 95.55 -14.35 Vertical 627.5200 37.55 75.55 -38.00 Vertical 941.8000 50.90 75.55 -24.65 Vertical Average value: Frequency (MHz) Average correction factor Peak Level (dBuV/m) Average Level (dBuV/m) Limit Line (dBuV/m) Over Limit (dB) Polarization 314.2100 -12.02 84.84 72.82 75.55 -2.73 Horizontal 627.5200 -12.02 39.84 27.82 55.55 -27.73 Horizontal 941.8000 -12.02 55.20 43.18 55.55 -12.37 Horizontal 313.2400 -12.02 81.20 69.18 75.55 -6.37 Vertical 627.5200 -12.02 37.55 25.53 55.55 -30.02 Vertical 941.8000 -12.02 50.90 38.88 55.55 -16.67 Vertical 1GHz~6GHz 313.80MHz Mark Frequency (MHz) Reading (dBuV) Factor (dB) Emission (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector polarization 1 1255.200 58.18 -23.79 34.39 54.00 -19.61 peak Vertical 2 1569.000 58.35 -23.17 35.18 54.00 -18.82 peak Vertical 3 1882.800 58.49 -23.05 35.44 54.00 -18.56 peak Vertical 4 1255.200 54.68 -23.79 30.89 54.00 -23.11 peak Horizontal Compliance Certification Services (Kunshan) Inc. 6 of 7 5 1569.000 55.35 -23.17 32.18 54.00 -21.82 peak Horizontal 6 1882.800 55.49 -23.05 32.44 54.00 -21.56 peak Horizontal 2 20dB Bandwidth Measurement Data: Frequency(MHz) 20dB bandwidth (kHz) Limit (kHz) Results 313.80 81.04 784.50 Pass Test plot as follows: Compliance Certification Services (Kunshan) Inc. 7 of 7 3 Dwell Time Measurement Data: Test item Limit (s) Results Transmission Duration ≤5s Pass Test plot as follows:

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220500068901 Page: 1 of 20 Eric Lin Laboratory Manager TEST REPORT Application No.: KSCR2205000689AT FCC ID: 2A5U7-RR115 Applicant: 1320 International, LLC Address of Applicant: 66 Main Street Suite 2457 Farmingdale NEW JERSEY 07727 Manufacturer: ShangHai HaoWei Precision mold & Injection Co., Ltd. Address of Manufacturer: No.333,6 Building,Changta rd,litahu Town,shanghai city. Factory: ShangHai HaoWei Precision mold & Injection Co., Ltd. Address of Factory: No.333,6 Building,Changta rd,litahu Town,shanghai city. Equipment Under Test (EUT): EUT Name: Remote Control Model No.: RR115-6BT Standard(s) : 47 CFR Part 15, Subpart C 15.231 Date of Receipt: 2022-05-10 Date of Test: 2022-07-31 to 2022-08-08 Date of Issue: 2022-08-09 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220500068901 Page: 2 of 20 Revision Record Version Chapter Date Modifier Remark 01 2022-08-09 Original Authorized for issue by: Tommie_Tang/Project Engineer Eric Lin /Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220500068901 Page: 3 of 20 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.231 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.231(c) Pass Radiated Emissions below 1GHz ANSI C63.10 (2013) Section 6.4&6.5 47 CFR Part 15C Section 15.231(b) and 15.209 Pass Dwell Time (15.231(a)) ANSI C63.10 (2013) Section 7.5 47 CFR Part 15, Subpart C 15.231(a) Pass Field Strength of the Fundamental Signal (15.231(b)) ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.231(b) Pass Radiated Emissions above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15C Section 15.231(b) and 15.209 Pass Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220500068901 Page: 4 of 20 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 DETAILS OF E.U.T. ............................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY .............................................................................................................. 6 4.4 TEST LOCATION .................................................................................................................................... 7 4.5 TEST FACILITY ...................................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS ............................................................................................................... 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 8 5 EQUIPMENT LIST ...................................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................... 10 6.1 ANTENNA REQUIREMENT .................................................................................................................... 10 6.1.1 Test Requirement: ....................................................................................................................... 10 6.1.2 Conclusion ................................................................................................................................... 10 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 11 7.1 20DB BANDWIDTH .............................................................................................................................. 11 7.1.1 E.U.T. Operation .......................................................................................................................... 11 7.1.2 Test Mode Description ................................................................................................................. 11 7.1.3 Test Setup Diagram ..................................................................................................................... 11 7.1.4 Measurement Procedure and Data............................................................................................. 11 7.2 RADIATED EMISSIONS BELOW 1GHZ .................................................................................................... 12 7.2.1 E.U.T. Operation .......................................................................................................................... 12 7.2.2 Test Mode Description ................................................................................................................. 12 7.2.3 Test Setup Diagram ..................................................................................................................... 13 7.2.4 Measurement Procedure and Data.............................…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 3 Appendix Photographs of Test Setup for KSCR2205000689AT Test Model No.: RR115-6BT Compliance Certification Services (Kunshan) Inc. Page: 2 of 3 Test Setup Photo Radiated Emissions below 1GHz Radiated Emissions Above 1GHz Compliance Certification Services (Kunshan) Inc. Page: 3 of 3
