OPERATING MANUAL PT260A www.pyleUSA.com www.pyleUSA.comwww.pyleUSA.com Home Theater BT Digital Receiver,200 Watt 81 SAFETY INSTRUCTIONS 1. Make sure that all connections are properly connected and the main volume is set to minimum level before turning on the unit. 2. When more than one pair of speakers are used, (specially the main speaker output) make sure that the speakers used are of the same wattage and impedance, otherwise the unit maybe damaged under high power or long term operation. 3. To avoid humming sounds and unwanted noise, make sure that all the wires are properly inserted. 4. For speaker cords, strip off the vinyl coating and twist the wire tip. Push down the pink jack or loosen the screw terminal, before inserting the wire tip, then fasten it and tighten the screw. Be careful not to let the wires stick out of the terminal otherwise this may cause a short circuit when wires of different terminal contact each other. 5. After the unit is turned on, adjust the main volume to the desired level same is true with the bass and treble volume, etc. Please read this operating instruction carefully before using. It will acquaint you fully with all its features and help you enjoy your time . The product adopts the most advanced digital technique in the world. It is 4 channels with high power output, so to speak, the real acoustic centre of your family movie theatre. Thank you for purchasing this fine PYLE amplifier. Foreword Features Safety InstructionsForeword - Features ◆ Stereo Amplifier With A/B Speaker Output ◆ AM/FM Radio With Digital Display Screen ◆ Auto Scan, Memory, Radio Station PREVIOUS/NEXT control ◆ Remote Control Included ◆ 50 Radio Station Pre-Set Memory ◆ Volume/Balance/TREBLE/BASS Gain Control For Main Channel ◆ VOLUME/BASS/TREBLE/ECHO Control For Microphone ◆ Two Microphone Input Jacks ◆ Two RCA Input Source ◆ 110/220V power switch ◆ AM/FM Antenna Included ◆ BT Wireless Streaming Ability ◆ Play/Pause/PRE/Next/Stop Control for USB Function AUDIO INPUT CD/DVD IPOD/MP3 IPOD/MP3CD/DVD CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. OPENING THIS UNIT WILL VOID WARRANTY. NO USER SHOULD SERVICE ANY PARTS INSIDE. REFER SERVICING TO A QUALIFIED SERVICE PERSONNEL. ！ RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING LL RR VOLTAGE SELECTOR FUSE ~110V T5A ~220V T3A AC~115V/60HZ AC~230V/50HZ ~115V 60Hz ~230V 50Hz SPEAKER/IMPEDANCE L:4Ω-16Ω/SPEAKER R:4Ω-16Ω/SPEAKER ENGINEERED IN JAPAN DESIGNED IN THE USA www.pyleUSA.com 1.Power source-The unit should be connected to a power supply AC~110V/60Hz or AC~220V/50Hz. 2.Ventilation-The unit should be situated so that its location or position does not interfere with its proper ventilation. Place the unit at least 10cm away from the walls. 3.Water and moisture-The unit should not be used near water-for example, near a swimming pool in a wet basement, etc. 4.Electric shock-if a metal object, such as hair pin or needle comes into contact inside this unit, a dangerous electric shock may result. For families with children, never permit children to put anything, especially metal, inside this unit. 5.Enclosure removal-Never remove the enclosure. If the internal parts are touched accidentally, a serious electric shock might occur. 6.Abnormal smell-if an abnormal smell or smoke is detected, immediately turn the power OFF and pull out the power cord. Contact your dealer or nearest service station. Precautions 2 PrecautionsRear Panel Connecting Connecting to amplifier FM ANTENNA AM ANTENNA CD/DVD A (Left) B (Left) A (Right) B (Right) Speaker Speaker Speaker Speaker 7 2 MIC INPUTS Play music via bluetooth IPOD or MP3 input USB Remote Control Operation 1. Remote control should be operated within 6 meters and the scope of 30 in front of receiver. 2. Make sure that there is no big obstacle between remote control and machine. 3. Remote sensor should be far away from the light, high amounts of light can affect its performance. 6 Main Channel Power Output Technical ※ Specifications subject to change without prior notice Technical Specifications THD(1KHz) <1% ±2dB Input Sensitivity Impedance Signal to Noise Ratio Frequency Range Dimension 19(W) x 11.4(D) x 4.7(H) inch Normal Load Impedance 8 Ohm CD/DVD AUX Microphone Pure Amplifier >76dB KARAOKE >71dB Frequency Response(40Hz-15KHz) Tone Characteristic(100Hz-10KHz) Power Requirements AC~110V/60Hz AC~220V50Hz Weight PMPO, 4 Ohms, 1KHz test PT260A 100WX2 300mV/33k Ohm 6mV/600 Ohm ±14dB 9.9 lbs 3 RemoteTechnical Specifications 1. Signal input selector CD/DVD,IPOD/MP3,BT,TUNER selector 2. Number buttons Using for st SELECT & STORE 3. MEMORY After a station has been found，you can store the station by pressing the MEMORY button. 4. AUTO SCAN AM/FM auto scan selector，scan and store stations automatically. Can store 50 stations. 5. ST/MONO Stereo and mono selector. 6. AM/FM AM/FM selector. 7/10. DISP- / DISP+ Display Down And Up 8/11. VOL- / VOL+ Master Volume Down And Up 9. MUTE Mute Selector 12. TUNING▲ TUNING The two keys are used to adjust to the best signal of the stations. 13. USB/BT Play Next 14. USB/BT Play Prev 15. USB/BT Play/Pause NEXT>PLAY/PAUSE 1 3 6 9 4 7 1010+ 5 8 ST/MONO AUTO SCAN AM/FMTUNING MEMORY 2INPUT PREV< DISP- DISP+ VOL+ VOL- 1 2 3 4 5 6 7 12 13 14 15 11 10 9 8 1. POWER SWITCH 2. MIC BASS MIC TREBLE 4. ECHO CONTROL 5. MIC INPUT JACK 1 AM/FM SELECTOR Press to switch the power unit ON or OFF. Adjusts the bass of MIC. 3. Adjusts the treble of MIC. Turn the knob to adjust the MIC echo level. KARAOKE MIC connect to this jack. 6. PLAY/PAUSE USB/BT play/pause 7. PREV< When it is TUNER,it means the preview station;When it is USB/BT, it means the preview song. 8. NEXT> When it is TUNER,it means the next station; When it is USB/BT, it means the next song. 9. 10. AUTO Automatically search the signal of tuner. (2) AUDIO INPUT JACKS (1)TUNER ANT Connect the audio output jacks of IPOD/MP3 , CD/DV Dto these jacks. Connect for AM and FM antennas. (4) B SPEAKER OUTPUT TERMINALS (3)A SPEAKE…

Text truncated - open the document above for the full version.

DATE:2022-12-14 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent Onourbehalf,IappointDongguan New Testing Centre Co., Ltd；3F, No. 1 the 1st North Industry Road, Songshan Lake Science &Technology Park, Dongguan, Guangdong, China, 523808. toactasouragentinthepreparationofthisapplicationforequipmentcertification.Icertifythatsubmitte ddocumentsproperlydescribethedeviceorsystemforwhichequipmentcertificationissought.Ialsoc ertifythateachunitmanufactured,importedormarketed,asdefinedintheFederalCommunicationsC ommission’sregulationswillhaveaffixedtoit a label identical to that submitted for approval with thisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,Iack nowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,stillres ideswith SOUND AROUND INC.；1600, 63 RD STREET, BROOKLYN N.Y., 11204, U.S.A. <Signature> Name: Abe Brach Title: Manage Applicant Company: SOUND AROUND INC.

DATE 2022-12-14 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2A5X5-PT260A Product Name: amplifier Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Abe Brach Title: Manage Applicant Company: SOUND AROUND INC.

Date：2022-12-14 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). <Signature> Name: Abe Brach Title: Manage Applicant Company: SOUND AROUND INC.

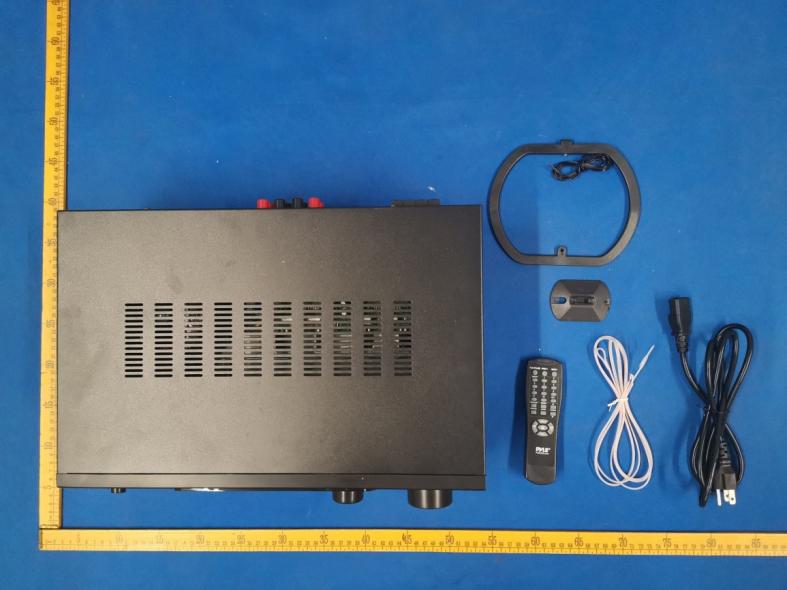

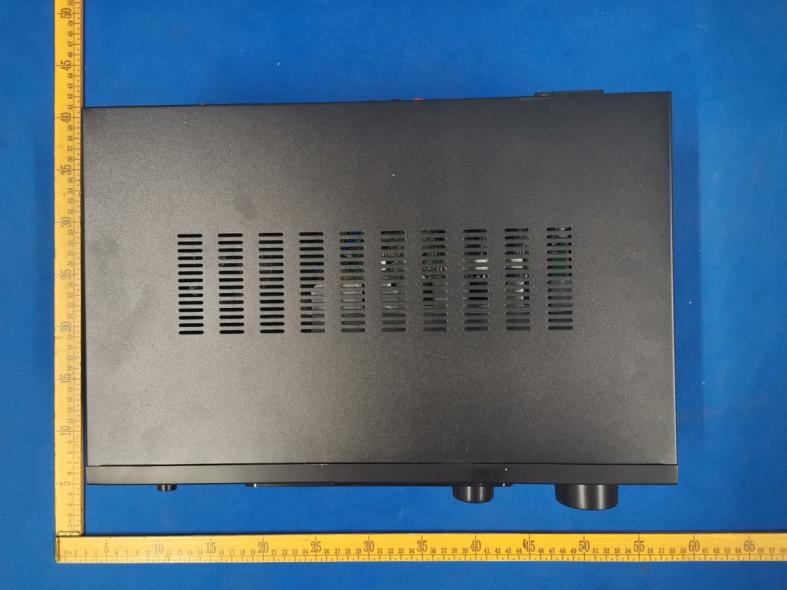

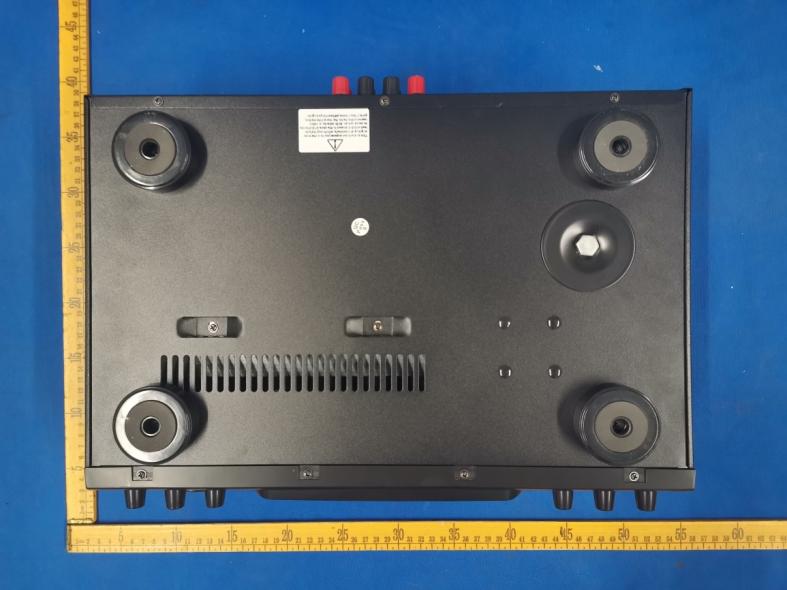

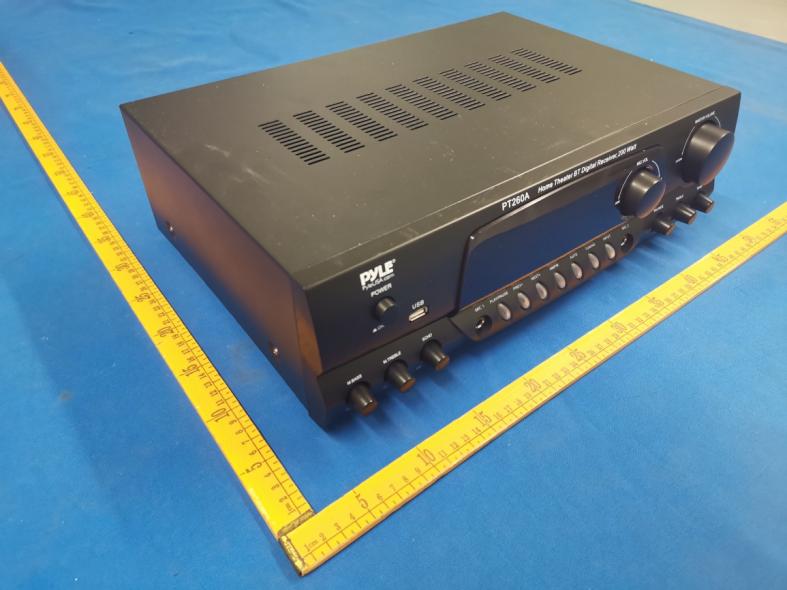

Page 1 of 3 FCC-ID:2A5X5-PT260A External photos Fig.1 (Model:PT260A) Fig.2 (Model:PT260A) Page 2 of 3 FCC-ID:2A5X5-PT260A Fig.3(Model:PT260A) Fig.4 (Model:PT260A) Page 3 of 3 FCC-ID:2A5X5-PT260A Fig.5(Model:PT260A)

Page 1 of 1 FCC-ID:2A5X5-PT260A Label and label location amplifier Model:PT260A FCC ID:2A5X5-PT260A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 8 FCC-ID:2A5X5-PT250BA Internal Photos Fig.6(Model:PT260A) Fig.7(Model:PT260A) Page 2 of 8 FCC-ID:2A5X5-PT250BA Fig.8(Model:PT260A) Fig.9(Model:PT260A) Page 3 of 8 FCC-ID:2A5X5-PT250BA Fig.10(Model:PT260A) Page 4 of 8 FCC-ID:2A5X5-PT250BA Fig.11(Model:PT260A) Fig.12(Model:PT260A) Page 5 of 8 FCC-ID:2A5X5-PT250BA Fig.13(Model:PT260A) Fig.14(Model:PT260A) Page 6 of 8 FCC-ID:2A5X5-PT250BA Fig.15(Model:PT260A) Fig.16(Model:PT260A) Page 7 of 8 FCC-ID:2A5X5-PT250BA Fig.17(Model:PT260A) Fig.18(Model:PT260A) Page 8 of 8 FCC-ID:2A5X5-PT250BA Fig.19(Model:PT260A) Fig.20(Model:PT260A) BT Antenna

FCC‐ID: 2A5X5‐PT260A Page 1 of 1 Report No.: NTC‐ER2210007 RF Exposure Letter According to 447498 D01 General RF Exposure Guidance v05 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz 2.911dBm（1.954 mW） output power] (1.954mW /5mm)·[√2.480(GHz)]= 0.6157<3.0 for 1‐g SAR Then SAR evaluation is not required

FCC TEST REPORT Report No. ...................................... : NTC-ER2210007 Applicant’s name ........................... : SOUND AROUND INC. Address .......................................... : 1600, 63 RD STREET, BROOKLYN N.Y., 11204, U.S.A. DONGGUAN NEW TESTING CENTRE CO., LTD ◎Address: 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Tel: +86-769-22212079 Web: http://www.ntc‐cert.com E-mail: [email protected] Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 1 of 76 Report No.: NTC-ER2210007 TABLE OF CONTENTS Test Report Declare ...................................................................................................................... 3 1. Summary of test results ........................................................................................................... 6 2. General test information .......................................................................................................... 6 2.1. Description of EUT ................................................................................................................... 6 2.2. Detail models ............................................................................................................................. 7 2.3. Block diagram EUT configuration for test ............................................................................. 7 2.4. Test environment conditions ................................................................................................... 7 2.5. Measurement uncertainty ........................................................................................................ 8 2.6. Test Peripheral List ................................................................................................................... 8 2.7. Test Facility ................................................................................................................................ 9 3. Power Line Conducted Emission Test ................................................................................ 10 3.1. Test equipment ....................................................................................................................... 10 3.2. Block diagram of test setup ................................................................................................... 10 3.3. Power Line Conducted Emission Limits (Class B) ............................................................ 10 3.4. Test Procedure ........................................................................................................................ 11 3.5. Test Result ............................................................................................................................... 11 4. Radiated emission test ........................................................................................................... 14 4.1. Test equipment ....................................................................................................................... 14 4.2. Block diagram of test setup ................................................................................................... 15 4.3. Limit .......................................................................................................................................... 17 4.4. Test Procedure ........................................................................................................................ 18 4.5. Test result ................................................................................................................................ 19 5. Maximum Peak Output Power .............................................................................................. 26 5.1. Applied procedures / Limit ..................................................................................................... 26 5.2. Test procedure ........................................................................................................................ 26 5.3. Deviation from standard ......................................................................................................... 26 5.4. Test setup ................................................................................................................................ 26 5.5. TEST RESULTS ..................................................................................................................... 26 6. BANDWIDTH TEST ............................................................................................................... 31 6.1. Applied procedures / Limit ..................................................................................................... 31 6.2. Test procedure ........................................................................................................................ 31 6.3. Deviation from standard ......................................................................................................... 31 6.4. Test setup ................................................................................................................................ 31 Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 2 of 76 Report No.: NTC-ER2210007 6.5. Test results .............................................................................................................................. 31 7. Carrier Frequencies Separated ............................................................................................ 36 7.1. Applied procedures / Limit ..................................................................................................... 36 7.2. Test …
