无线 433M 遥控器使用说明Wireless433Mremotecontrolinstruction 1.编码共24位，BYTE0+BYTE1+BYTE2+结束位 Totalhave24coding,BYTE0+BYTE1+BYTE2+endbit BYTE0，BYTE1为地址码， BYTE0andBYTE1aretheaddresscode, 地址码可设置为固定地址码FFFF，或其它地址值， AddresscodecansetasfixedaddresscodeFFFForotheraddressvalue, 也可设置为是滚动码，每个遥控器地址码不同。滚动码可实现一对一功能，即一个遥控 器，只控制一个接收设备。 alsocansetasrollingcode,theaddresscodeofpercontrollerareall different.rollingcodecanachieveonetoonefunction,meansoneremote controlcanonlycontrolonereceivingequipment. BYTE2为按键码值，每个按键的码值固定 BYTE2isthekeycodevalue,thecode valueofperkeyarefixed. 下图为K1的键值=01，地址码是20，03 Belowisthepicture,showkeyvalue ofK1=01,theaddresscodeis20,03 21键433RF遥控器编码说明 21key433RFremotecontrolcodedescription Firstrow 第一排 010203 第二排 040506 第三排 070809 第四排0A0B0C 第五排 0D0E0F 第六排 101112 第七排131415 1.有一个组合键0D与0F键同时按下发3F，可作学 习键码用。 haveakeycombination Pressthe0Dand0Fkeysatthesametimetosend3F,canuseasthelearnkeycode. 无线 433M 遥控器使用说明Wireless433Mremotecontrolinstruction 2. 码值是十六进制，地址码每个遥控器不同，可实现一个 遥控器控制一个设备，互不干扰。 Codevalueareinhexadecimal,theaddresscodeof perremotecontrolaredifferent. oneremotecontrolcanonlybeusedtocontrola device,don’tinterferewitheachother. 3.如果不需要一个遥控对一个接收功能，接收程式可以做 成不比较地址码，只比较按键码。 Ifyoudon’tneedthereceivingfunctionofoneremotecontrol toonereceivingequipment,thereceivingprogramcanbemadeto notcomparetheaddresscode,butonlycomparethekeycode. 无线 433M 遥控器使用说明Wireless433Mremotecontrolinstruction 接收解码编程说明 Receiveanddecodeprogramminginstructions 当遥控器没有发送 433 信号时，无线接收芯片信号脚 (DATA) 是无规律的杂波，这是正常的。当遥控器开始发送433信号时， 接收信号脚会出现有规律的波形，一般接收程式检测到每桢码间 隔时间为12MS的信号，解码程式进入开始解码 Whenremotecontroldoesn’tsendthe433 signal,wirelessreceiverchipsignalpin(DATA)isshow irregularclutter,thisisnormal. Whenremotecontrolstarttosendthe433signal,there willbearegularwaveformonthereceivingsignal pin.Generally,afterthereceivingprogramdetectsa signalwithanintervalof12MSperframecode,the decodingprogramwillenterandstartdecoding. 编写解码程式时，要注意实际的高电平的时间比理论值的要 短一些，并且每个遥控器出的高电平时间也会有些差异，所以我 们设置的高电平时间范围尽量大些 Whenwritingthedecodingprogram,itshouldbenotedthattheactual Highleveltimeisshorterthanthetheoreticalvalue.Andthehigh leveltimeoutputbyeachremotecontrolwillbealsohavesome different,sothehighleveltimerangewesetshouldbeaslargeas possible. 无线 433M 遥控器使用说明Wireless433Mremotecontrolinstruction 0 编程时， 0.4 的脉宽范围尽量放大些， 0.4 1编程时，1.2的脉宽范围尽量放大些，1.2 0programming(0.4MS+1.2MS) 1programming(1.2MS+0.4MS) thepulsewidthrangeof0.4shouldbeenlargedasmuchaspossible,therange of0.4isbetween0.2-0.6. thepulsewidthrangeof1.2shouldbeenlargedasmuchaspossible,therangeof 1.2isbetween0.8-1.4. 接收解码以接收12MS间隔时间，为启始信号，12MS信号间隔时间有 规律。 receiveanddecodetoreceivethe12MSintervaltimeas thestartsignal,andthe12MSsignalintervaltimeis regular. 0： 0.4MS +1.2MS为 的范围在0.2-0.6之间 1： 1.2MS +0.4MS为 的范围在0.8-1.4之间 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

Zhejiang Dingda Industrial Co. , Ltd. Model Difference Product description: steam sauna Model name: DDSS-618-06 DDSS-618-01,DDSS-618-09,DDSS-019D-01,DDSS-019D-06 DDSS-019D-09,DDSS-218-01,DDSS-218-06,DDSS-218-09 Trade Name: N/A FCC ID:2A5XA-DDSS All the model are the same circuit and RF module, only for model name. Regards Sincerely Client’s signature: Client’s name / title : Justin Zhang (N/A) Contact information / address: CANGSHAN BLOCK ,ZHEJIANG LIJIN HARDWARE TECHNICAL INDUSTRIAL PARK, JINYUN LISHUI China

C5266091_X8_Ed.1 1/1 Letter of Authorization <Zhejiang Dingda Industrial Co. , Ltd. > Company:Zhejiang Dingda Industrial Co. , Ltd. Address:CANGSHAN BLOCK ,ZHEJIANG LIJIN HARDWARE TECHNICAL INDUSTRIAL PARK, JINYUN LISHUI China Product Name: steam sauna Model Number:DDSS-618-06 DDSS-618-01,DDSS-618-09,DDSS-019D-01,DDSS-019D-06 DDSS-019D-09,DDSS-218-01,DDSS-218-06,DDSS-218-09 FCC Identifier:2A5XA-DDSS We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name:Justin Zhang Date: 2022-04-12 Title: N/A Signature of applicant:

C5266091_X10_Ed.1 1/1 < Zhejiang Dingda Industrial Co. , Ltd. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022-04-12 Subject: Request for Confidentiality FCC ID:2A5XA-DDSS To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Justin Zhang Title: N/A

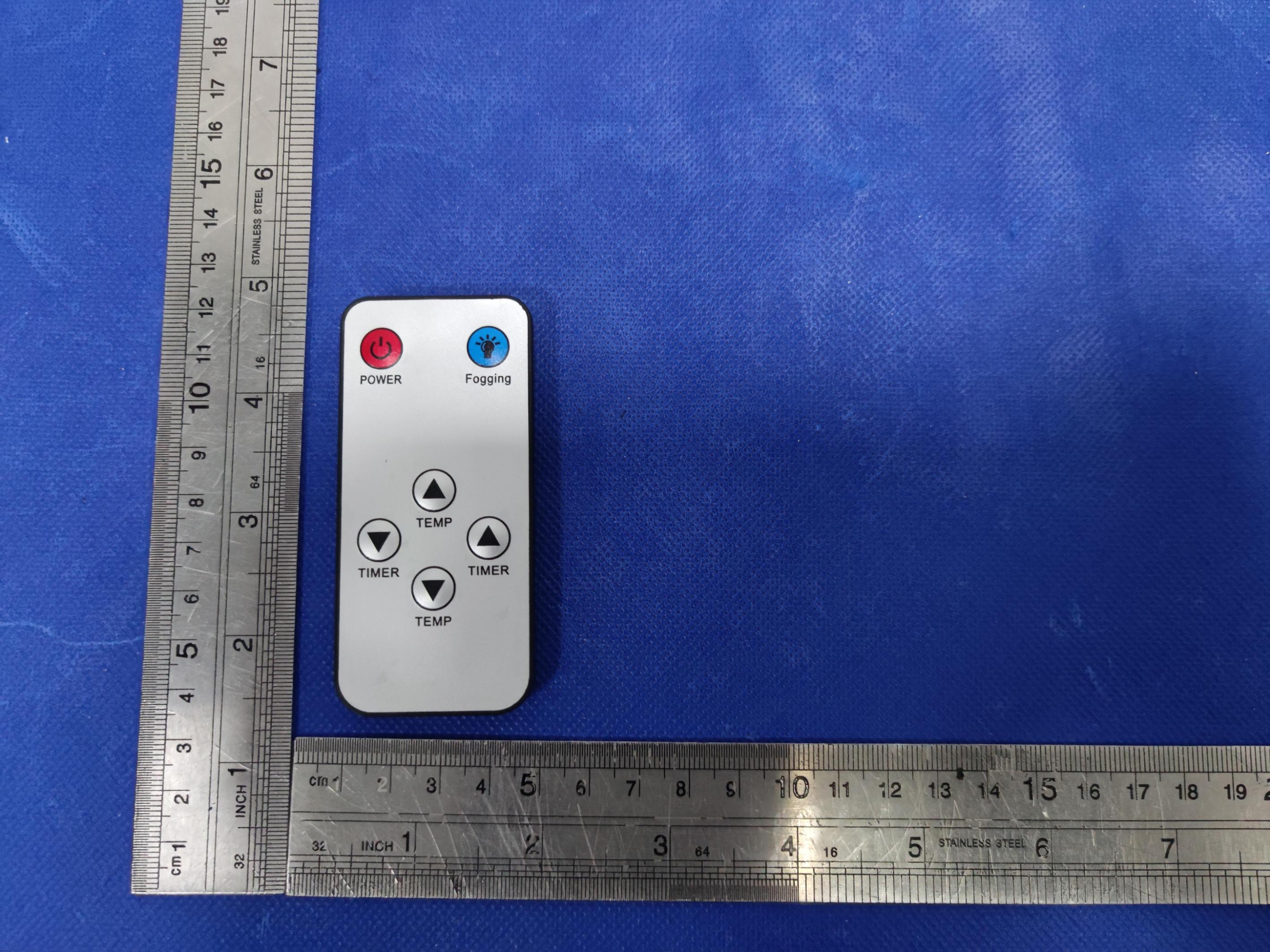

EUTPHOTO(ExternalPhotos)

Label and label location steam sauna FCC ID:2A5XA-DDSS

EUTPHOTO(InternalPhotos) ANT1 ※※※※※ENDOFREPORT※※※※※

ProjectNo.:ZKT-2203081433E Page 1 of 30 FCCTESTREPORT FCCID:2A5XA-DDSS ReportNumber...................................:ZKT-2203081433E DateofTest ....................................................... :Mar.08,2022toMar.25,2022 Dateofissue ......................................... :Mar.25,2022 Totalnumberofpages..........................30 TestResult .......................................... : PASS TestingLaboratory. ........................... : ShenzhenZKTTechnologyCo.,Ltd. Address ............................................... : 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname ............................. : ZhejiangDingdaIndustrialCo.,Ltd. Address ............................................... : CANGSHANBLOCK,ZHEJIANGLIJINHARDWARETECHNICAL INDUSTRIALPARK,JINYUNLISHUIChina Manufacturer'sname ...................... : ZhejiangDingdaIndustrialCo.,Ltd. Address...............................................: CANGSHANBLOCK,ZHEJIANGLIJINHARDWARETECHNICAL INDUSTRIALPARK,JINYUNLISHUIChina Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.231 ANSIC63.10:2013 Testprocedure ..................................... : / Non-standardtestmethod................:N/A TestReportFormNo........................: TRF-EL-108_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................:steamsauna Trademark ........................................... : N/A Model/Typereference.........................:DDSS-618-06 DDSS-618-01,DDSS-618-09,DDSS-019D-01,DDSS-019D-06 DDSS-019D-09,DDSS-218-01,DDSS-218-06,DDSS-218-09 Ratings..................................................:DC3VBattery ProjectNo.:ZKT-2203081433E Page 2 of 30 Testingprocedureandtestinglocation: TestingLaboratory.......................................:ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiuTestedby(name+signature).......................: TomZou Reviewer(name+signature).......................: LakeXieApproved(name+signature) ....................... : ProjectNo.:ZKT-2203081433E Page 3 of 30 TableofContentsPage 1.VERSION5 2.SUMMARYOFTESTRESULTS6 2.1TESTFACILITY7 2.2MEASUREMENTUNCERTAINTY7 3.GENERALINFORMATION8 3.1GENERALDESCRIPTIONOFEUT8 3.2DESCRIPTIONOFTESTMODES9 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED9 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)9 3.5EQUIPMENTSLISTFORALLTESTITEMS10 4.EMCEMISSIONTEST12 4.1CONDUCTEDEMISSIONMEASUREMENT12 4.1.1POWERLINECONDUCTEDEMISSIONLIMITS12 4.1.2TESTPROCEDURE13 4.1.3DEVIATIONFROMTESTSTANDARD13 4.1.4TESTSETUP13 4.1.5EUTOPERATINGCONDITIONS13 4.1.6TESTRESULTS13 4.2RADIATEDEMISSIONMEASUREMENT14 4.2.1RADIATEDEMISSIONLIMITS14 4.2.2TESTPROCEDURE15 4.2.3TESTSETUP16 4.2.4EUTOPERATINGCONDITIONS17 4.2.5TESTRESULTS17 5.1APPLIEDPROCEDURES/LIMIT22 5.2TESTPROCEDURE22 5.3DEVIATIONFROMSTANDARD22 5.4TESTSETUP22 5.5EUTOPERATIONCONDITIONS22 5.6TESTRESULTS23 6.CALCULATIONOFAVERAGEFACTOR24 7.DWELLTIME27 7.1APPLICABLESTANDARD27 7.2TESTPROCEDURE27 7.5EUTOPERATIONCONDITIONS27 7.6TESTRESULTS28 ProjectNo.:ZKT-2203081433E Page 4 of 30 TableofContentsPage 8.ANTENNAREQUIREMENT29 9.TESTSETUPPHOTO30 10.EUTCONSTRUCTIONALDETAILS30 ProjectNo.:ZKT-2203081433E Page 5 of 30 1.VERSION ReportNo.VersionDescriptionApproved ZKT-2203081433ERev.01InitialissueofreportMar.25,2022 ProjectNo.:ZKT-2203081433E Page 6 of 30 2.SUMMARYOFTESTRESULTS Testproceduresaccordingtothetechnicalstandards: FCCPart15(15.231),SubpartC Standard Section TestItemJudgmentRemark 15.207ConductedEmissionN/A 15.209,15.231b Fundamental&RadiatedSpuriousEmission Measurement PASS 15.231cOccupyBandwidthPASS 15.231aDwelltimePASS 15.203AntennaRequirementPASS NOTE: (1)”N/A”denotestestisnotapplicableinthisTestReport ProjectNo.:ZKT-2203081433E Page 7 of 30 2.1TESTFACILITY ShenzhenZKTTechnologyCo.,Ltd. Add.:1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrialAvenue,FuhaiStreet,Bao'an District,Shenzhen,China FCCTestFirmRegistrationNumber:692225 DesignationNumber:CN1299 ICRegisteredNo.:27033 CABidentifier:CN0110 2.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U ， whereexpendeduncertaintyUisbasedonastandard uncertaintymultipliedbyacoveragefactorofk=2，providingalevelofconfidenceofapproximately95 % 。 No.ItemUncertainty 1 3mcamberRadiatedspurious emission(9KHz-30MHz) U=4.5dB 2 3mcamberRadiatedspurious emission(30MHz-1GHz) U=4.8dB 3 3mchamberRadiatedspurious emission(1GHz-6GHz) U=4.9dB 4 3mchamberRadiatedspurious emission(6GHz-40GHz) U=5.0dB 5ConducteddisturbanceU=3.2dB 6RFBandEdgeU=1.68dB 7RFpowerconductedU=1.86dB 8RFconductedSpuriousEmissionU=2.2dB 9RFOccupiedBandwidthU=1.8dB 10RFPowerSpectralDensityU=1.75dB 11humidityuncertaintyU=5.3% 12Temperatureuncertainty U=0.59 °C ProjectNo.:ZKT-2203081433E Page 8 of 30 3.GENERALINFORMATION 3.1GENERALDESCRIPTIONOFEUT Equipment steamsauna TradeName N/A ModelName DDSS-618-06 DDSS-618-01,DDSS-618-09,DDSS-019D-01,DDSS-019D-06 DDSS-019D-09,DDSS-218-01,DDSS-218-06,DDSS-218-09 SerialModel N/A ModelDifference Onlyfordifferentmodelname. Hardwareversion H1.0 Softwareversion S1.0 OperationFrequency:433.92MHz ModulationType:ASK AntennaType:PCBAntenna AntennaGain:0dBi Ratings DC3VBattery ProjectNo.:ZKT-2203081433E Page 9 of 30 3.2DESCRIPTIONOFTESTMODES ForAllEmission FinalTestModeDescription TransmittingmodeKeeptheEUTincontinuouslytransmittingmode Note: (1)Fully-chargedbatteryisusedduringthetest 3.3BLOCKD…
