2A5XU-U20UHF Professional Wireless Microphone

LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 888.888 AF RF MHz IR LOCK SCAN SET IR IR LOCK SCAN SET LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 AF RF MHz POWER UHF KTV Series Professional Wireless Microphone 888.888 1 7 9 14 15 16 17 18 19 Matters Needing Attention FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. MATTERS NEEDING ATTENTION 19 LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 888.888 AF RF MHz IR LOCK SCAN SET IR IR LOCK SCAN SET LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 AF RF MHz POWER UHF KTV Series Professional Wireless Microphone 888.888 LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 888.888 AF RF MHz IR LOCK SCAN SET IR IR LOCK SCAN SET LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 AF RF MHz POWER UHF KTV Series Professional Wireless Microphone 888.888 1.Power 2.Set/Lock 3.IR button 4.Scan button 5.LCD display 6.IR window LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 888.888 AF RF MHz IR LOCK SCAN SET IR IR LOCK SCAN SET LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 AF RF MHz CHANNELACHANNELB POWER UHF KTV Series Professional Wireless Microphone 1 2 3 4 5 6 2 3 4 5 888.888 18 (ACT8) (604) 1. 2. 888.888 17 LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 888.888 AF RF MHz IR LOCK SCAN SET IR IR LOCK SCAN SET LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 AF RF MHz CHANNELACHANNELB POWER UHF KTV Series Professional Wireless Microphone 888.888 (ACT8) (ACT8) 5 16 470.2-607.8MHz GFSK 6. Adjust the height of power (604) 6 (604) 15 77 LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 AF RF MHz IR LOCK SCAN SET IR IR LOCK SCAN SET LOCK ANTENNA CHANNEL FREQUENCY GROUP VOLUNE 00 AF RF MHz CHANNELACHANNELB POWER UHF KTV Series Professional Wireless Microphone 14 88 HIGH TECH AUTO-MUTE SYSTEM FEATURES This function’s primary focus is to eliminate unwanted noise while being energy efficient. To do so,the microphones are equipped with a sic-axis gyroscope sensor. FEATURES: 1. Energy Saving The six-axis gyroscope senses speed in three directions as well as any angular changes in velocity. This information is transmitted through the sensor and minimizes power consumption by entering a “sleep mode” when it senses no movement within a preset time,allowing for more usage time without changing batteries as often as conventional microphones. 2. Instant “wake up”Response The microphone can switch from “sleep mode” to operating mode in milliseconds with its intelligent sensory technology. 3. Auto-Mute When Not Held The microphone detects and auto-mutes when it is dropping. This function can avoid most unwanted noise and greatly decrease the chances of any damage to the audio equipment. It is important to note the auto mute function will engage once the sensor detects a falling motion (the minimum falling distance for the sensor to activate is 12 inches/30cm). The microphone will operate normally again once it’s picked up. HOW TO TURN AUTO-MUTE ON/OFF step 1: When the display show the frequency .press the "POWER" key .then will closed the received . step 2: press the "POWER" key for a while .the window of the power off disappear . Then continue to press the "POWER" key for a while .Then the mute funtion automatic set up (G-ON or G-OFF) (604) 13 4. Auto-Mute 3 to 5 seconds Auto Mute 3 to 5seconds 9 (ACT8) 9 Through the function keys can be adjustment the frequency , automatic mute function , transmission power . Fine the button adjust Unscrew the mic body Z Z Intelligent sleep Intelligent awaken Intelligent mute Intelligent Power saving Auto Mute 3 to 5seconds (ACT8) 12 4. Auto-Mute 3 to 5 seconds Auto Mute 3 to 5seconds 10 (604) 1.Power Switch to turn on or off 2.When power supply is low-voltage,it will be off automatically 10 11 11 Through the function keys can be adjustment the frequency , automatic mute function , transmission power . Fine the button adjust Unscrew the mic body Z Z Intelligent sleep Intelligent awaken Intelligent mute Intelligent Power saving Auto Mute 3 to 5seconds

Enping Zhongpu Electronic Co.,Ltd. Add: No.2,Lane 16,Area 2, Shangniulan New Village,Enping City,Guangdong Province Date: 2022-4-3 FCC ID: 2A5XU-U20 Dear Sir/Madam, We, Enping Zhongpu Electronic Co.,Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: UHF Professional Wireless Microphone Model no.: U20, U40,AP-929WM,AP-926WM,VM-92U,M550i,M5+,M6,DB 550PRO,bce u900 Plus,SE45,KT-U9200ES,MR-U9330ES,BS- 8800W,SR-2000,MR-U9000ES,M-U9500,MR-550,MR-U68,MR- 1800B,MR-U90,AP-2100,AP-1100,WA-640,DMC973,SET 8042, MBD732, MBD832, MBD932,IEM 150,KT-U30,BK-U52 Sincerely, Name/Title： Jingwei Zheng/General Manager Company: Enping Zhongpu Electronic Co.,Ltd. Address: No.2,Lane 16,Area 2, Shangniulan New Village,Enping City,Guangdong Province Phone: 86-750-7182555 Fax: 86-750-7182559 E-Mail: [email protected]

Enping Zhongpu Electronic Co.,Ltd. No.2,Lane 16,Area 2, Shangniulan New Village,Enping City,Guangdong Province Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022-4-3 To whom it may concern: We, Enping Zhongpu Electronic Co.,Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A5XU-U20 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jingwei Zheng/General Manager Company: Enping Zhongpu Electronic Co.,Ltd. Address: No.2,Lane 16,Area 2, Shangniulan New Village,Enping City,Guangdong Province Phone: 86-750-7182555 Fax: 86-750-7182559 E-Mail: [email protected]

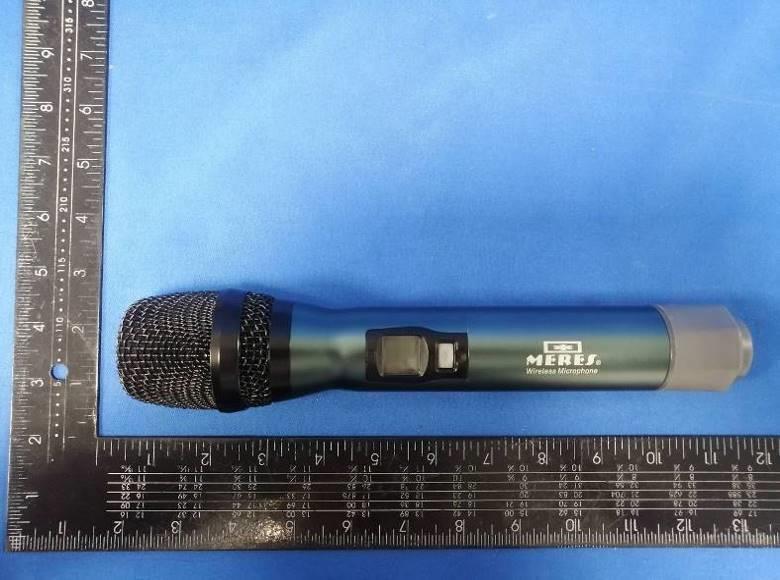

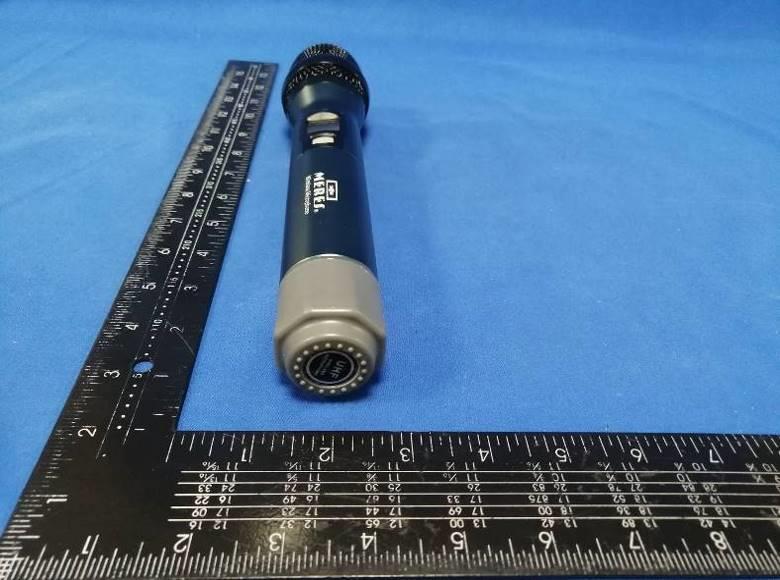

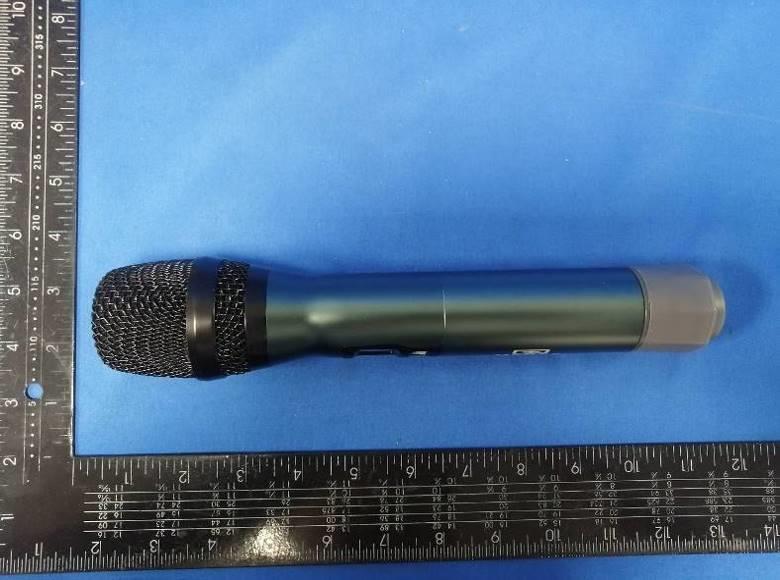

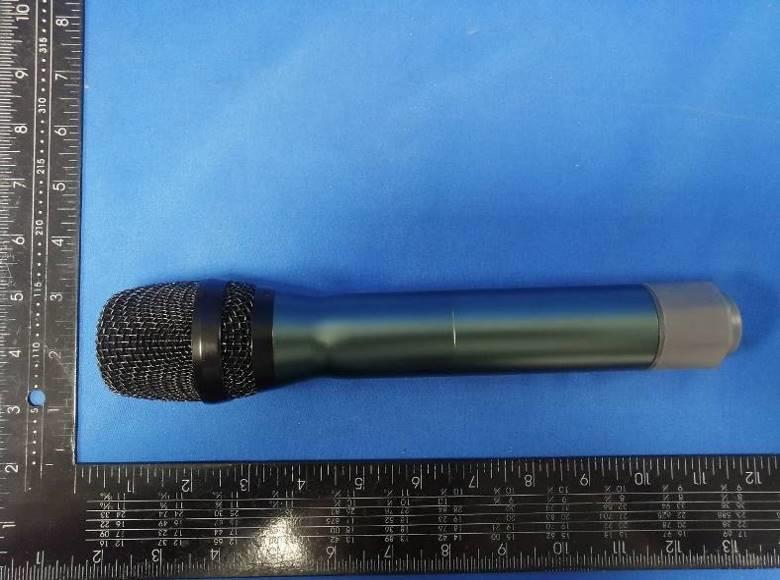

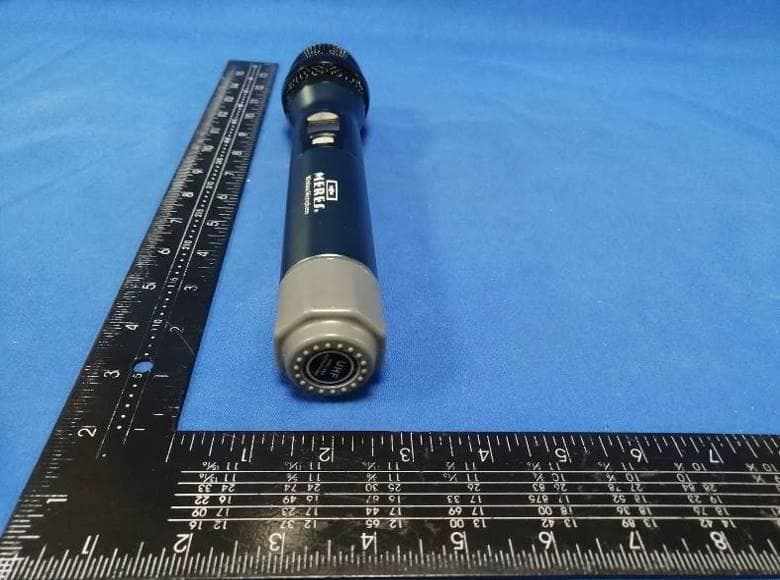

FCC ID: 2A5XU-U20 External Photos of the EUT FCC ID: 2A5XU-U20 FCC ID: 2A5XU-U20

FCC ID: 2A5XU-U20 Label and Location Size: L: 2.0cm*W: 1.5cm Label and Location FCC ID: 2A5XU-U20

FCC ID: 2A5XU-U20 Internal Photos of the EUT FCC ID: 2A5XU-U20 FCC ID: 2A5XU-U20 FCC ID: 2A5XU-U20 Antenna FCC ID: 2A5XU-U20 FCC ID: 2A5XU-U20 FCC ID: 2A5XU-U20

RF Exposure evaluation FCC ID: 2A5XU-U20 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK Channel Channel 1 Channel 2 Channel 3 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (MHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 499.70 5 8.0 6.3096 0.8920 <3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.236 Report Reference No. ..................... : FCC ID. .............................................: CTA22032500101 2A5XU-U20 Compiled by ( position+printedname+signature) ... : File administrators Kevin Liu Supervised by (position+printedname+signature) .... : Project Engineer Kevin Liu Approved by (position+printedname+signature) .... : RF Manager Eric Wang Date of issue ..................................... : Mar. 25, 2022 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : ENPING ZHONGPU ELECTRONIC CO.,LTD. Address ............................................ : No. 2, Lane 16, Area 2, Shangniulan New Village, Enping City, Guangdong Province, China Test specification ...........................: Standard ........................................... : FCC Part 15.236 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : UHF Professional Wireless Microphone Trade Mark ....................................... : N/A Manufacturer .................................... : ENPING ZHONGPU ELECTRONIC CO.,LTD. Model/Type reference....................... : U20 Listed Models .................................. : Referring to page 2 Modulation Type ............................... : GFSK Operation Frequency ........................ : 470.2-607.8MHz Rating ............................................... : DC 3.0V From Battery Result................................................ : PASS Report No.: CTA22032500101 Page 2 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : UHF Professional Wireless Microphone Model /Type : U20 Listed Models : U40,AP-929WM,AP-926WM,VM-92U,M550i,M5+,M6,DB 550PRO,bce u900 Plus,SE45,KT-U9200ES,MR-U9330ES,BS- 8800W,SR-2000,MR-U9000ES,M-U9500,MR-550,MR-U68,MR- 1800B,MR-U90,AP-2100,AP-1100,WA-640,DMC973,SET 8042, MBD732, MBD832, MBD932,IEM 150,KT-U30,BK-U52 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Applicant : ENPING ZHONGPU ELECTRONIC CO.,LTD. Address : No. 2, Lane 16, Area 2, Shangniulan New Village, Enping City, Guangdong Province, China Manufacturer : ENPING ZHONGPU ELECTRONIC CO.,LTD. Address : No. 2, Lane 16, Area 2, Shangniulan New Village, Enping City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22032500101 Page 3 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 7 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Maximum Output Power 11 4.3 Occupied Bandwidth 13 4.4 Necessary Bandwidth 15 4.5 Transmitter spurious emissions 17 4.6 Frequency Stability 19 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 21 6 P H O T O S O F T H E E U T ............................................................. 22 Report No.: CTA22032500101 Page 4 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.236: Operation of wireless UHF Professional Wireless Microphones in the bands 54-72 MHz, 76-88 MHz, 174-216 MHz, 470-608 MHz and 614-698 MHz. ANSI C63.10-2013:AmericanNationalStandardforTestingUnlicensedWirelessDevices Report No.: CTA22032500101 Page 5 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaoto…

Text truncated - open the document above for the full version.

FCC ID: 2A5XU-U20 Test Setup Photos of the EUT
