2A5Z9-DN49Portable Solar Charger

USER MANUAL SOLAR CHARGER Model: DN49 LAYOUT Hanging Ring Wireless Charging Indicator Light TYPE-C Port (Input/Output) Power Button TYPE-C Micro USB Input Port Micro USB Output Port Wireless Charging Panel Lightning Charging Cable Micro USB Charging Cable TYPE-C Charging Cable [email protected] - 1 - · High Capacity Wireless Portable Power Bank · Solar Charging, Charge your devices at any time · Exclusive design and convenience · Quick Charging Input and Output · Wireless Charging LED Indicator Light Solar Panel LED Flashlight Solar Indicator Light FEATURES [email protected] - 2 - 36800mAh Polymer lithium 5V/3A 5V/2A 5V/3A 5W 5V/2A 1.04lb 6.89*3.35*1.18 inches Battery Capacity Battery Type Type-C Quick Charge Input/Output Port Micro USB Input Port USB Quick Charge Output Port Wireless Charging Output Lightning/ Type-C / Micro USB Cable Output Solar panel output Product Weight Dimensions PACKAGE INCLUDE 1*36800mAh Wireless Solar Power Bank 1*Micro USB Cable 1*User Manual 1*Carabiner 1*Compass SPECIFICATION [email protected] - 3 - 5V/330mA INSTRUCTIONS 2. How to charge the power bank (1) Power supply Connect the TYPE-C USB input port/Micro USB input port and wall/car adapter USB port with a cable. The blue LED indicators will be flickering while charging. When they are all on and do not flash, it indicates that the Power Bank is fully recharged. (2) Solar Charging Place the Power Bank outside in direct sunlight. The green light is on and the blue light is flashing, indicating the unit is being charged. (Do not leave the Power Bank in an unattended vehicle, as the high temperature can damage the unit.) 3. Charge mobile phones or other devices Cable charging Don't need to press the power switch, just plug two ends of the cable into the power bank USB port and the devices. USB Quick Charge Output port and TYPE-C Bidirectional PD port support 5V/3A fast charging. [email protected] - 4 - 1. Turn on/Turn off Gently press the power switch, then the LED battery indicators and wireless charging function are on. If you do not need the LED battery indicators and wireless charging function, just plug in your device then it will charge. If there are no charging devices, the power bank will automatically shut down in 30 seconds. Wireless Charging Turn on the power switch and the BLUE indicators on the solar panel are on, the wireless charging RED indicator in the back is on. Put your mobile phone in the wireless charging area and the charging will be on. The indicator will turn green while it is charging. If you normally use a protective case for your phone, please make sure that your phone case is not made of metal and the suitable thickness is less than 6mm. 4. Three indicator lights below the wireless charging area (1) Red Indicator light: Wireless standby status (2) Green Indicator light: 5. LED flashlight function (1) Strong Light Mode: Press the power switch for about 3 seconds to turn on the LED flashlight. (2) Strobe Light Mode: Short press the power switch again. (3) SOS Light Mode: Short press power switch a third time, and SOS blasting flash mode is on. [email protected] - 5 - ATTENTION 1. Please do not disassemble the power bank. 2. Keep dry and keep away from fire. Please do not use chemicals to clean the power bank. 3. The operating temperature of this product is 32 to 113 (0 to 45), so please don't put it in temperatures above 140(60). (Including places close to heat sources, such as stoves, heating, etc.) 4. This product contains a Li-polymer battery, so it is strictly forbidden to disassemble, squeeze and puncture the product or put it into water or fire, as this may result in damage to the battery, short circuit, fire, and burning. 5. If there is a bulge, deformation, liquid leakage, overheating, or a significant drop in power, please stop using it immediately and dispose of it properly, and contact us and we will offer you a replacement or a full refund. REMINDER 1. Please fully charge your Power Bank by a wall charger before first use. 2. Please keep it out of the reach of children to avoid accidents, please don't let children use or play it. 3. Fully charge the unit every 3 months to extend battery life. 4. When charging your phone, please use the original cable of your phone to connect with the charger to achieve intelligent recognition and rapid charging. 5. Solar charging efficiency is determined by sunlight intensity, it will decrease on a cloudy day, so please try to charge the unit in direct sunlight. [email protected] - 6 - WARRANTY (1) We provided 24 months of warranty and lifetime technical support. (2) Within 30 days from the date of purchase, products in good packaging and without damage can be returned and fully refunded. (3) A free exchange for products having quality problems within 12 months. (3) If you are not 100% satisfied with our products, please feel free to contact our customer service at [email protected]. We attach great importance to customer feedback and will get back to you within 12 hours. CUSTOMER SERVICE [email protected] [email protected] - 7 - FCC Statement This device complies with part 15 and part 18 of the FCC Rules. Operation is Subject To the following two conditions: (1) This device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesired operation. Changes or modifications not explicitly approved by the partyresponsible for compliance could void the user's authority tooperate this equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communicati…

Text truncated - open the document above for the full version.

Shenzhen Xindeneng Technology Co., Ltd. Agent Authorization Company: Shenzhen Xindeneng Technology Co., Ltd. Address: 201, Building 7, Dalang Tongfuyu Industrial Zone, Longhua District, Shenzhen, P.R. China Product Name: Portable Solar Charger Model Number(s): DN49 Product Description: Portable Solar Charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: May 23,2022 Name: Liu cheng Title: Manager Company: Shenzhen Xindeneng Technology Co., Ltd.

Shenzhen Xindeneng Technology Co., Ltd. 201, Building 7, Dalang Tongfuyu Industrial Zone, Longhua District, Shenzhen, P.R. China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/5/23 Subject; Request for Confidentiality FCC ID: 2A5Z9-DN49 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shenzhen Xindeneng Technology Co., Ltd.

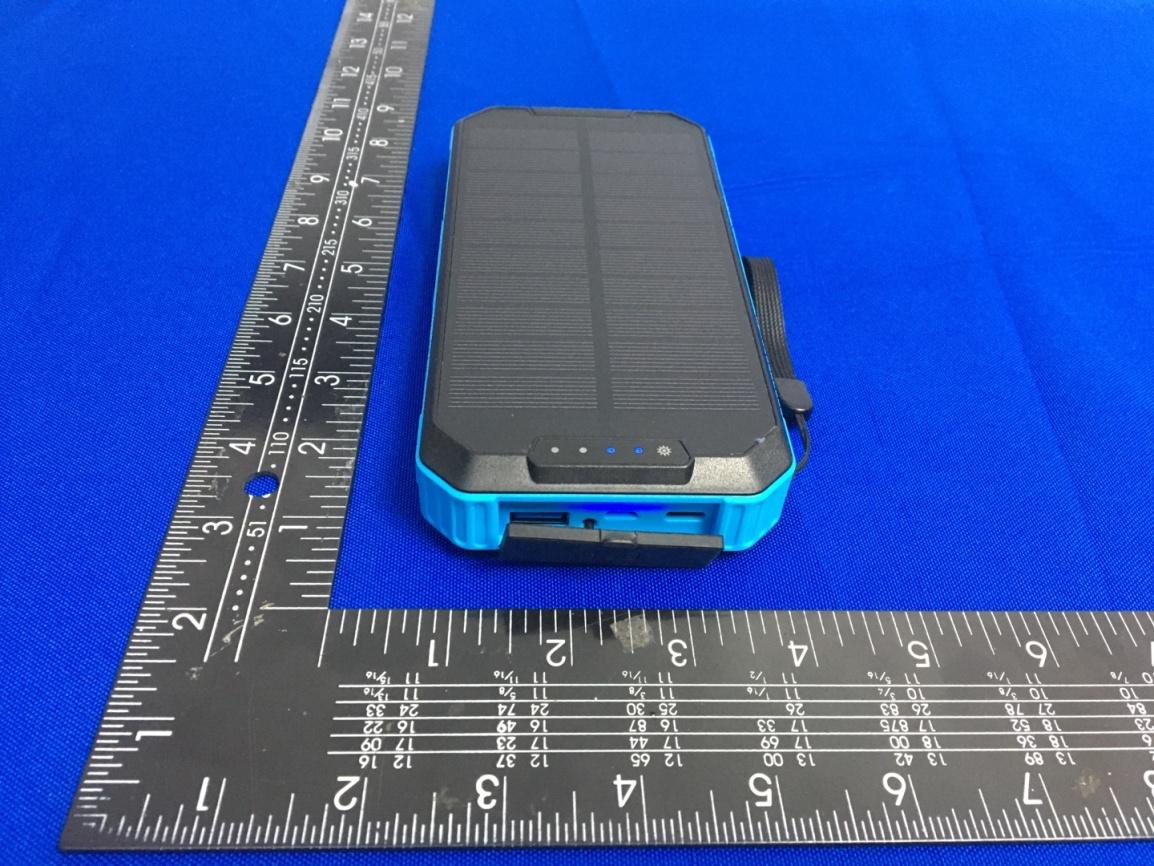

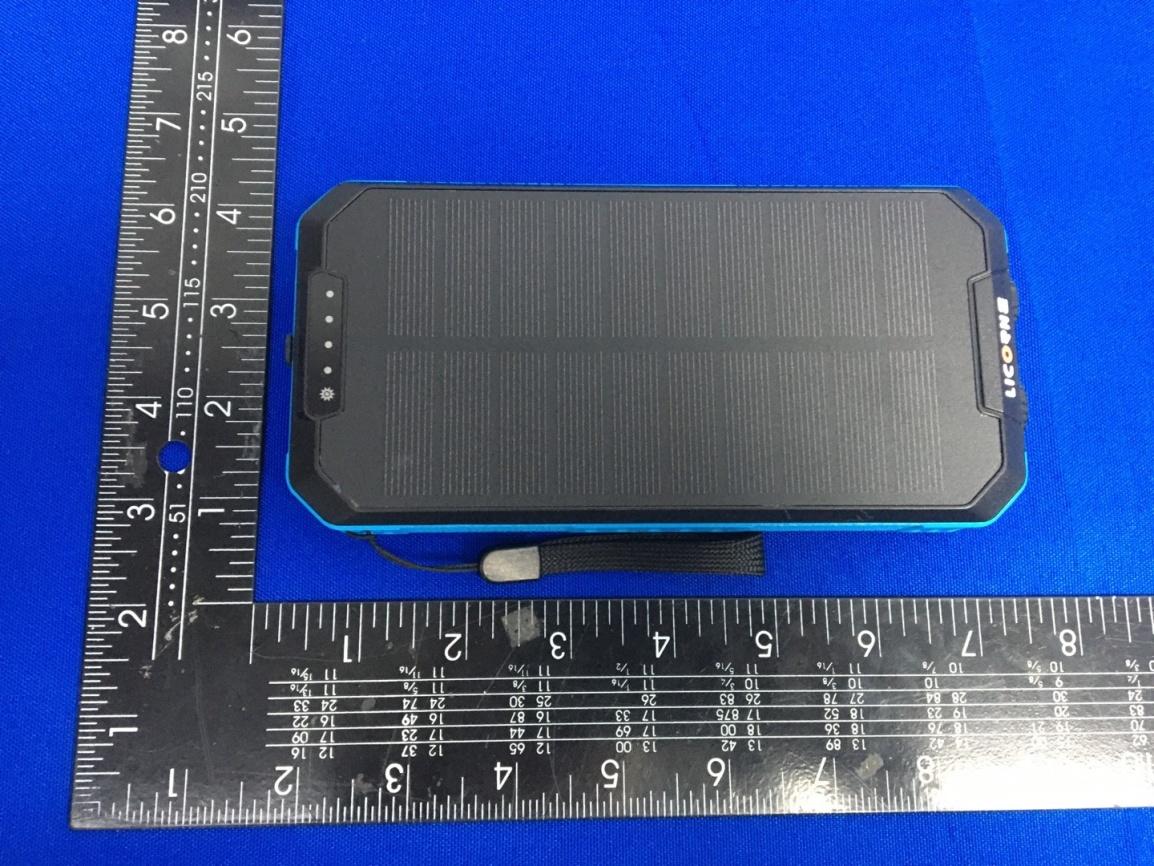

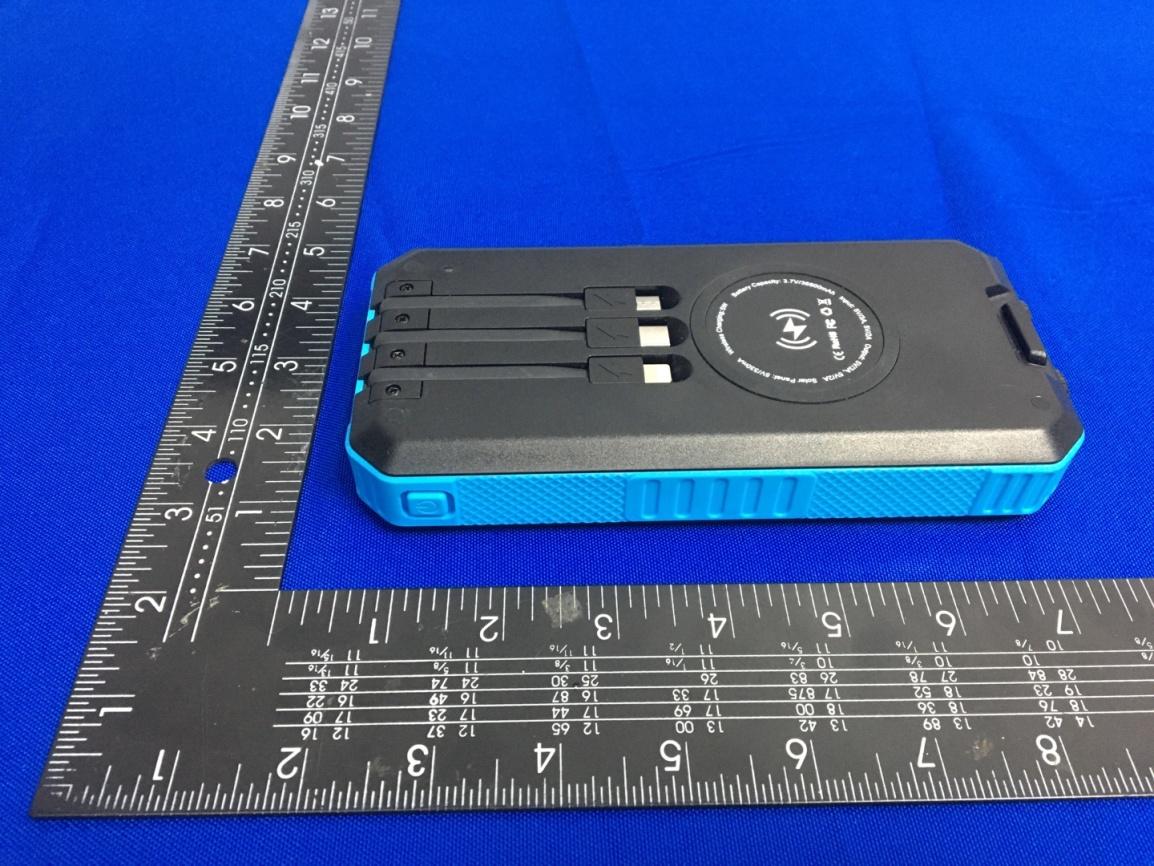

FCC ID: 2A5Z9-DN49 Page 1 of 3 Report No.: CTL2203256011-WF External Photos of EUT FCC ID: 2A5Z9-DN49 Page 2 of 3 Report No.: CTL2203256011-WF FCC ID: 2A5Z9-DN49 Page 3 of 3 Report No.: CTL2203256011-WF

FCC ID: 2A5Z9-DN49 Page 1 of 1 Report No.: CTL2203256011-WF FCC ID Label Information 1. Label location: V Portable Solar Charger Model: DN49 FCC ID: 2A5Z9-DN49

FCC ID: 2A5Z9-DN49 Page 1 of 3 Report No.: CTL2203256011-WF Internal Photos of EUT FCC ID: 2A5Z9-DN49 Page 2 of 3 Report No.: CTL2203256011-WF Antenna FCC ID: 2A5Z9-DN49 Page 3 of 3 Report No.: CTL2203256011-WF

V1.0 Page 1 of 11 Report No.: CTL2203256011-MPE ___________________________________________________________________________ Page 1 of 11 RF Exposure Evaluation Report 1. Product Information FCC ID: 2A5Z9-DN49 Product Name Portable Solar Charger Model Number DN49 Power Supply Input: 5V3A, 5V2A Output: 5V3A, 5V2A Solar Panel: 5V/300mA Wireless Charging: 5W Modulation Type CW (Continuous Wave) Frequency Range 115 –205 KHz WPT Operation Frequency 124.5KHz Antenna Type Coil Antenna Maximum Rated Power of WPT 5W Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mixed Mobile and Portable Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposureevaluation should be conducted assuming a user separation distance of 15 cm. E and H field strengthmeasurements or numerical modeling may be used to demonstrate compliance. Measurements shouldbe made from all sides and the top of the primary/client pair, with the 15 cm measured from thecenter of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should beassessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDBinquiry is required to determine the applicable exposure limits below 100 kHz 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field V1.0 Page 2 of 11 Report No.: CTL2203256011-MPE ___________________________________________________________________________ Page 2 of 11 strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 6) According to April 2018 TCB Workshop, No need to report E-field measurements. Only H-field required. 3. Evaluation Limit 3.1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 / / f/300 6 1,500-100,000 / / 5 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2…
