2A5ZU-BTL307PLAYBULB FLOOR

智能立柱氛围灯 说明书 1680万 适用苹果设备： iPhone 8以上手机 下载并安装 PL AYBULB X 应用到移动设备上。 效果： 控制不同的灯光效果. ● 蜡烛效果 ● 闪烁 ● 渐变 ● 彩虹 ● 彩虹渐变 群组： ● 在组栏目下，可选取多个Playbulb设置为一组，同时 控制多个Playbulb. ● 可添加多个组. PL AYBULB X 下载 产品参数： 型号：BTL307 品名：智能立柱氛围灯 输入：5V 2A 无线距离：10米 RGB色彩：1680万色彩 工作温度：0至45度 功率：6W 执行标准: GB 7000.1-2015.GB 7000.204-2008 产品特点： 安装图： 支持大多数安卓4.3和蓝牙4.0 及以上版本的安卓设备 App下载： ● 打开安装好的 PLAYBULB X 应用,从设备列表中选择连 接Playbulb,连接成功后点击Playbulb图标进入应用. 产品连接: ● 打开移动设备上的蓝牙. 光控： 菜单设置 摇动颜色 颜色盘 亮度 效果颜色块 摇动：晃动手机, 灯 会随之变换颜色 颜色：可从颜色盘选取各种颜色,关闭后 只有白光. 颜色盘/颜色块：可点选颜色控制 相应的色彩 亮度：调节 灯光的亮度. 场景： ● 可在默认的三个照片 上点选颜色，灯光会 对应的色彩. ● 可从手机中添加照片. APP菜单菜： ● 设备 显示可连接的Playbulb列表. ● 定时器 可设置Playbulb定时开/关或显示 不同的色彩(Playbulb Color还可 以设置闹钟) ● 偏好 1. 可设置移动设备与Playbulb自 动连接. 2. 可设置移动设备震动传感器的 灵敏度. 3. 可设置APP密码 ● 关于 MIPOW公司相关信息. 定时： 例如，如何设置“唤醒”定时器。 1.连 接到PL AYBULB 2. 进入定时器界面 3.开启“唤醒”模式 4.设 定时间 5.设 定灯光亮起的周期时间。比如， 选择0分钟，灯光在预定的时间立刻 全亮； 选择1分钟，灯光 在预定的时 间 逐渐亮起，1分钟后全亮 6.开 启颜色 （不开启的话灯亮时为 白光，可选择亮度） 7.设 定灯的颜色 8.保存设置，灯光会在预设时间开启。 设置： ● 更改Playbulb的名称 ● 恢复出厂设置 多谢选购MIPOW产品，本产品出厂时符合相关规定 标准并经过严格审核。 我司为客户提供自购买之日起十二个月内的保修服务。需要保修服务时，请出 示正本和发票正本，并详细填写保修相关内容。保修服务只限于产品在正常使 状态下出现的质量问题。不适用于因人为损坏、粗暴操作、不正确的使用、人为 摔伤、外力挤压、进水、人为拆装修改、过度高温、外壳人为磨损或不可抗力的 损坏(如地震、水灾、火灾、飓风或战争等),保修逾期的,保修服务 将收取相应的维修费。 注:MIPOW拥有对上述所有条件之最终裁诀权,并随时对条款和条件作出更改,而 无需另行通知。 保修卡须知 遥控说明： 保修卡 请仔细填写您的信息，请将此保修卡剪下，连同需维修产品一起寄回我司维修中心 。 PLAYBULB Floor Instruction Specification： Model No.：BTL307 Product Name：PLAYBULB Floor Input ：5V 2A Wireless Range: 10m(33ft) Available LED Colors: 16.8 million RGB Colors Storage Temperature: 0-45°C Power：6W TR remote control For Apple devices: iPhone 8 and above Group: ● choose several PLAYBULBs as one group to control them at the same time. ● available to create several groups Android version: Support most Android device of Android 4.3 and Bluetooth 4.0 or above version PLAYBULB X App Download： Download and install the PLAYBULB X App onto mobile device ● Open the PLAYBULB X App, choose and connect the PLAYBULB Floor from the device list, after connected, tap the PLAYBULB Floor icon /name into App main interface. Connection: ● Turn on your mobile device's Bluetooth. Light Control： Shake: shake your phone to change color randomly. Color: select color on the color wheel. lf turn off, PLAYBULB will only show white light. Color wheel/block: tap to select color to make it show on PLAYBULB. Brightness: adjust the light brightness of PLAYBULB Scene： ● tap to select colors on the three default pictures and PLAYBULB Will display the Corresponding colors. ● available to add scene pictures from your mobile device. App Menu： ● Devices show all connectable PLAYBULBS ● Timer set up PLAYBULB on / off or colors display at certain time (PLAYBULB color supports alarm clock.) ● Preferences 1.set up automatic reconnection. 2.Set up the sensitivity of the mobile device vibration sensor. 3. Set up App password. ● About MIPOW introduction. Timer: how to set "Wake Up" timer: 1.Connect your PLAYBULB. 2. Go to "Timer". 3.Slide the OFF/ON button to ON. 4.Set the time. 5. Set cycle time for lights on. For example, Select 0 minute, the light will be fully lit at the predetermined time Select 1 minute, the light will be gradually lit at the predetermined time, and full lit after 1 minute 6. Turn on the color (default color is white when the color is turn off, brightness is optional) 7. Set the color of the light 8. Save the Settings, the light will turn on at the preset time. WARRANTY CARD Product Name: Model No.: Purchase Date: Dealer Shop: Customer Name: Order No./ Website Name: Mobile Phone No.: Contact Addr.: Postal Code: Failure Description: For more efficiency on handling your case,pleaseprovide correct info and mail with the failure productto MIPOW authorized repair center. Setting Effect make PLAYBULB display different light effects. ● candle ● flashing ● pulsing ● rainbow ● rainbow fading ● rename PLAYBULB ● factory reset MenuSetting Shake Color Color Wheel Brightness Effect Color Block Installation Instruction： 1.Install the support leg on the base pole, tighten the screws at the bottom of the support 2. Connect the middle section and the first section of the leg 3. Connect the Type-C cable 1.先将支架腿安装到基灯杆上，支架底部螺丝扭紧 2.依次连接光杆的中段和第一段 3.连接Type-C电源线 Thank you for your purchase MlPOW's product. MlPOW warrants this producthas been tested and proved to be qualified for delivery in conformity with standard. This Limited Warranty for the product shall last for twelve (12)months from the date of original purchase. This original warranty card and original invoice must be presented at the time you require warranty service or such warranty will be voided. This limited warranty is valid only if the product is used for the purpose for which it was designed. lt does not apply to damageor loss caused by negligence; physical abuse; misuse; accident; exposure to moisture; dampness or extreme temperatures; unauthorized modifications; unauthorized opening or repair; forces of nature; or other actions beyond the reasonable control of MlPOW. In case of when the warranty does not apply, repair or replacement charge will be incurred. The customer shall be responsible for sending the defective product to and collecting the repaired or replaced product from the service center. MPOW reserves the right to amendment and the final interpretation of the above terms without prior notice. WARRANTY CARD： Remote Control Instructions： Sleep Mode Eight colors Mode Dynamic Mode Timing Mode Brightness Adjustment ON/OFF Warm White Light Musical Mode 16.8 www.playbulb.com www.playbulb.com FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not in…

Text truncated - open the document above for the full version.

Shenzhen Baojia Battery Technology Co.,Ltd. Unit 201, Block A, Building 6th, World Expo Bay South Coast, Heping community, Fuhai Street, Baoan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/24 U.S. Agent Designation Shenzhen Baojia Battery Technology Co.,Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A5ZU-BTL307): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Baojia Battery Technology Co.,Ltd. Shenzhen Baojia Battery Technology Co.,Ltd. with the FRN [0032172074] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Derek Hao Manager Shenzhen Baojia Battery Technology Co.,Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

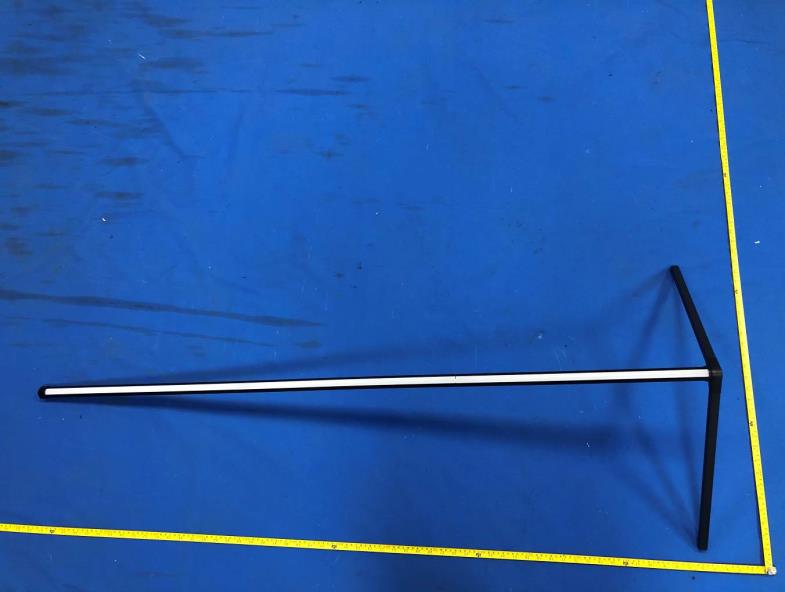

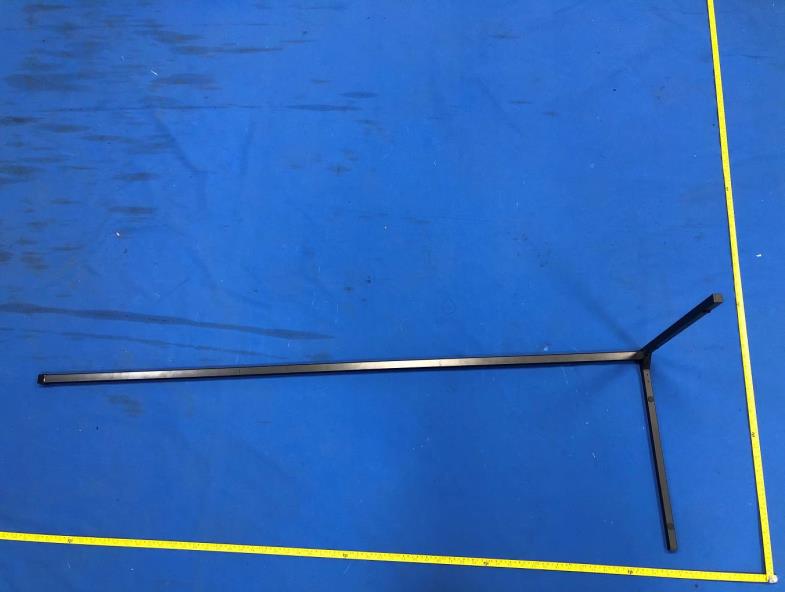

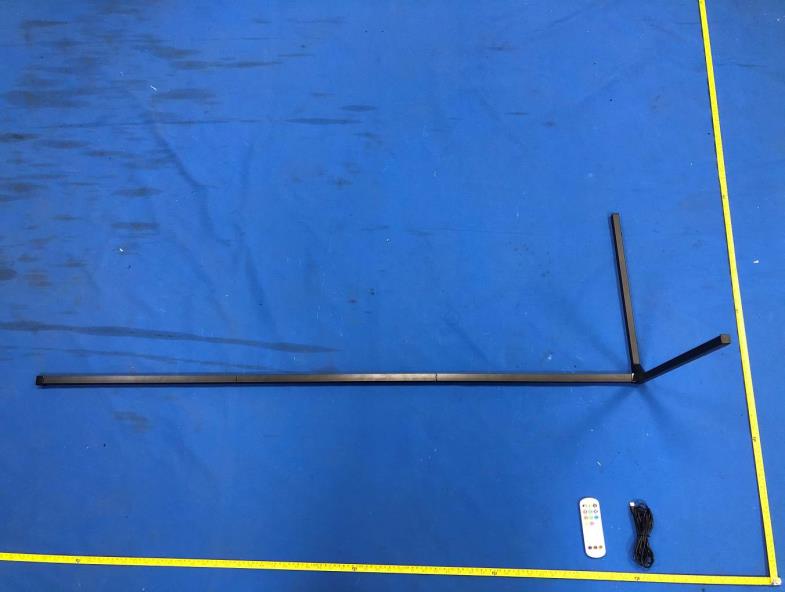

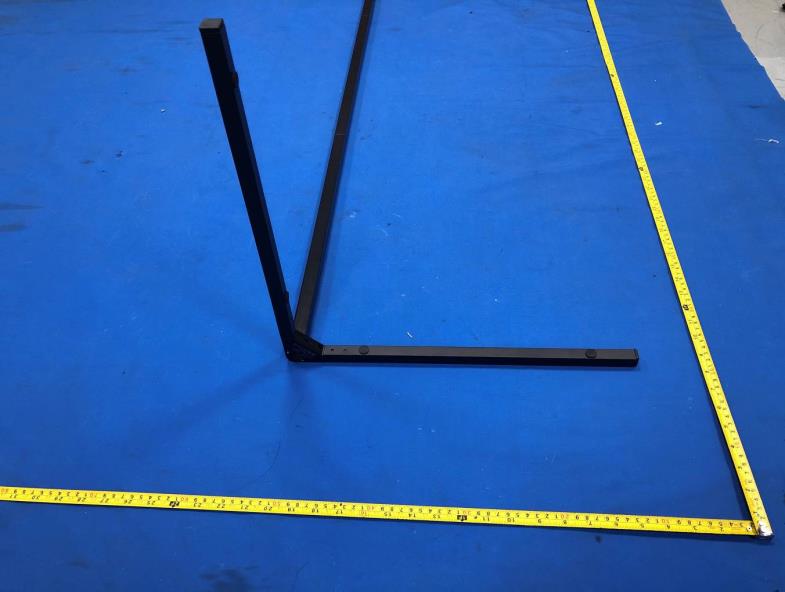

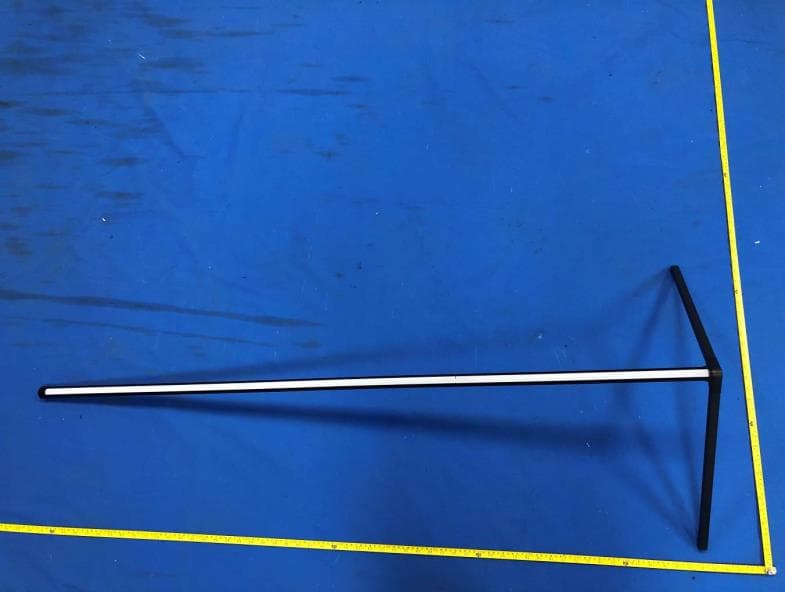

FCC ID:2A5ZU-BTL307 External Photos of the EUT FCC ID:2A5ZU-BTL307 FCC ID:2A5ZU-BTL307

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A5ZU-BTL307

FCC ID:2A5ZU-BTL307 Internal Photos of the EUT FCC ID:2A5ZU-BTL307 FCC ID:2A5ZU-BTL307 ANT FCC ID:2A5ZU-BTL307 FCC ID:2A5ZU-BTL307 FCC ID:2A5ZU-BTL307 FCC ID:2A5ZU-BTL307

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ............................................ : CTA25090200402 2A5ZU-BTL307 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 11, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Baojia Battery Technology Co.,Ltd. Address ............................................ : Unit 201, Block A, Building 6th, World Expo Bay South Coast, Heping community, Fuhai Street, Baoan District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : PLAYBULB FLOOR Trade Mark ........................................ MIPOW/PLAYBULB Manufacturer .................................... : Shenzhen Baojia Battery Technology Co.,Ltd. Model/Type reference ...................... : BTL307 Listed Models ................................... : N/A Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25090200402 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : PLAYBULB FLOOR Model /Type : BTL307 Listed Models : N/A Applicant : Shenzhen Baojia Battery Technology Co.,Ltd. Address : Unit 201, Block A, Building 6th, World Expo Bay South Coast, Heping community, Fuhai Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Baojia Battery Technology Co.,Ltd. Address : Unit 201, Block A, Building 6th, World Expo Bay South Coast, Heping community, Fuhai Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25090200402 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25090200402 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 232…

Text truncated - open the document above for the full version.

InvertedFAntennaSpecification Summary ITEM ModelName ANTSPEC 2.4GANT HorizontalVertical Center Frequency 2400M Hz -1.26 2450MHz -0.76 2500MHz -0.58 2400MHz -5.25 2450MHz -2.46 2500MHz -1.86 MAX.Gain Polarization AzimuthBeam Pattern Impedance AntennaLength -0.58dBi HorizontalandVertical Omni-directional 50 Ohm 38.20mm AntennaPhoto&Length(mm) Manufacturer:Shenzhen Baojia Battery Technology Co.,Ltd. Address:Unit 201, Block A, Building 6th, World Expo Bay South Coast, Heping community, Fuhai Street, Baoan District, Shenzhen, China Gain(dBi) Gain(dBi)

1 Appendix RF Test Data for BLE FCC ID : 2A5ZU-BTL307 Company : Shenzhen Baojia Battery Technology Co.,Ltd. EUT : PLAYBULB FLOOR Model Number : BTL307 Report No. : CTA25090200401 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.656 2401.656 2402.312 0.5 PASS 2440 0.704 2439.628 2440.332 0.5 PASS 2480 0.712 2479.620 2480.332 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0407 2401.4706 2402.5113 --- --- 2440 1.0360 2439.4752 2440.5112 --- --- 2480 1.0398 2479.4711 2480.5109 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 3.46 ≤30 PASS 2440 4.90 ≤30 PASS 2480 4.30 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -11.88 ≤8.00 PASS 2440 -10.60 ≤8.00 PASS 2480 -11.43 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 2.70 -41.87 ≤-17.3 PASS High 2480 4.35 -41.69 ≤-15.65 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 2.35 2.35 --- PASS 30~1000 2.35 -67.52 ≤-17.65 PASS 1000~26500 2.35 -53.99 ≤-17.65 PASS 2440 Reference 2.99 2.99 --- PASS 30~1000 2.99 -67.48 ≤-17.01 PASS 1000~26500 2.99 -54.57 ≤-17.01 PASS 2480 Reference 4.00 4.00 --- PASS 30~1000 4.00 -67.66 ≤-16 PASS 1000~26500 4.00 -54.67 ≤-16 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.39 0.62 0.6290 62.90 2.01 --- --- 2440 0.39 0.62 0.6290 62.90 2.01 --- --- 2480 0.39 0.62 0.6290 62.90 2.01 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25090200401 2A5ZU-BTL307 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Sep. 11, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name...........................: Shenzhen Baojia Battery Technology Co.,Ltd. Address ...........................................: Unit 201, Block A, Building 6th, World Expo Bay South Coast, Heping community, Fuhai Street, Baoan District, Shenzhen, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : PLAYBULB FLOOR Trade Mark ......................................: MIPOW/PLAYBULB Manufacturer ...................................: Shenzhen Baojia Battery Technology Co.,Ltd. Model/Type reference .....................: BTL307 Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 5.0V From external circuit Result ..............................................: PASS Report No.: CTA25090200401 Page 2 of 27 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : PLAYBULB FLOOR Model /Type : BTL307 Listed Models : N/A Applicant : Shenzhen Baojia Battery Technology Co.,Ltd. Address : Unit 201, Block A, Building 6th, World Expo Bay South Coast, Heping community, Fuhai Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Baojia Battery Technology Co.,Ltd. Address : Unit 201, Block A, Building 6th, World Expo Bay South Coast, Heping community, Fuhai Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25090200401 Page 3 of 27 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3…

Text truncated - open the document above for the full version.

FCC ID:2A5ZU-BTL307 Test Setup Photos of the EUT FCC ID:2A5ZU-BTL307
