2A62P-W25wireless charger

If an error is detected 1.Check that your phone supports wireless charging and does not have any credit cards, stands, or other metal aachments on the back (other than the magnec ring). 2.Aer checking the above, unplug and plug in the charging cable again to resume normal charging. Important Reminders 1.Compable with MagSafe-enabled iPhones cases,. 2. The maximum output of this charger is 15W. Its maximum output for iPhones is 7.5W. 3. Only use the cable provided with the charger. An Apple cable or other third-party cable may interfere with charging. 4. This charger requires a charging adapter that supports QC or PD fast charging and an output of at least 18W. 5. This charger will only aach to a caseless iPhone 13/12 series phone, offcial MagSafe cases. It will not aach to any other phones or cases. Safety Warnings 1.Do not place the device in temperatures below 0°C (32°F) or above 60°C (140°F). 2. Do not aempt to disassemble the device, expose it to an open flame, or submerge it in water to avoid damaging the device. 3. Always check for damage to the device, cables, or other accessories before using the device. If damaged, do not use the device. 4. Do not aempt to disassemble or modify the device in any way, as it may cause serious damage and void the warranty. 5. Do not expose the device to extremely hot, humid, or corrosive environments to avoid damaging the device. EN Indicator Light Guide Charger Status Plugged in Standby Charging iphone / Airpods Error Detected Indicator Light On for 3 mes On /on Flashing Off Si une erreur est détectée : 1. Assurez-vous que votre téléphone prend en charge le rechargement sans fil, et qu'il n'y a pas de cartes de crédit, béquille, ou autres accessoires métalliques sur le dos sauf l'anneau magnéque. 2. Après avoir vérifié les condions ci-dessus, débranchez puis rebranchez le câble pour le redémarrer et reprendre la charge normale. Rappels Importants Compable avec les MagSafe-acf iPhones et coques 2. L'output maximum de ce chargeur est de 15W. Son output maximum pour les iPhone est de 7.5W. 3. Ulisez que le câble fourni avec le chargeur. Le câble d'Apple ou d'un ers pourrait interfère la charge. 4. Ce chargeur nécessite un adaptateur secteur adapté au protocole de charge rapide QC ou PD et d'un output au moins 18W. 5. Ce chargeur ne peut s'aimanté qu'aux iPhone 13/12 sans coque, aux coques offcielles MagSafe. Elle ne endra pas sur d'autres smartphones ou coques Consignes de Sécurhé 1. Ne pas tenir l'appareil dans un environnement moins de 0°C ou plus de 60°C. 2. Ne pas tenter de désassembler l'appareil, ni l'exposer au feu ou le submerger dans l'eau pour éviter de l'endommager, 3. Toujours vérifier si l'appareil, les câbles, ou autres accessoires présentent une imperfecon avant de l'uliser. Si oui, veuillez ne pas uliser lappareil. 4. Ne pas tenter de désassembier ni modifier l'appareil sous toute circonstance car cela pourrait entralner de sérieux endommagement et qui disqualifie la garane. 5. Ne pas exposer l'appareil à des environnements extrêmement chauds, humides, ou corrosifs pour éviter de l'endommager. FR Guide sur l'Indicateur LED État du chargeur Branché Stand-by Iphone Charge Complète/ airpods Erreui détectée Indicateur LED On for 3 fois On Clignotant Off Se viene rilevato un errore: 1.Verificare che il telefono suppor la ricarica wireless e non abbia carte di credito, suppor o altri accessori metallici sul retro (diversi dall'anello magneco). 2. Dopo aver controllato quanto sopra, scollegare e collegare nuovamente il cavo di ricarica per riprendere la normale ricarica. Promemoria importan 1.Compabile con gli iPhone e le cover abilitate a Mag Safe;. 2. L'uscita massima di questo caricabaerie è di 15W. La sua uscita massima per iPhone è di 7,5W. 3. Ulizzare solo il cavo fornito con il caricabaerie. Un cavo Apple o un altro cavo di terze par potrebbe interferire con la ricarica. 4. Questo caricabaerie richiede un adaatore di ricarica che suppor la ricarica rapida QC o PD e un'uscita di almeno 18W. 5. Questo caricabaerie si fisserà solo a un telefono senza custodia della serie iPhone 13/12, alle custodie ufficiali MagSafe. Non si fisserà ad altri telefoni o cover. Avvertenze di sicurezza 1.Non posizionare il disposivo a temperature inferiori a 0 °C o superiori a 60 ° C. 2. Non tentare di smontare il disposivo, esporlo a una fiamma aperta o immergerlo in acqua per evitare di danneggiare il disposivo. 3. Controllare sempre la presenza di danni al disposivo, ai cavi o ad altri accessori prima di ulizzare il disposivo. Se danneggiato, non ulizzare il disposivo. 4. Non tentare di smontare o modificare il disposivo in alcun modo, in quanto potrebbe causare gravi danni e annullare la garanzia. 5. Non esporre il disposivo ad ambien estremamente caldi, umidi o corrosivi per evitare di danneggiare il disposivo. IT Indicatore Guida della luce Stato di Ricarica Inserita Standby Iphone In carica/ Airpods Errore Rilevato Spia Accesa per 3 volte Accesa lampeggiante Spenta Si se detectase un error: 1. Comprueba que tu teléfono es compable con la carga inalámbrica y que no tenga tarjetas de crédito, soportes u otros accesorios metálicos en la parte trasera (que no sean el anillo magnéco). 2. Después de comprobar lo anterior, desenchufa y vuelve a enchufar el cable de carga para reanudar la carga con normalidad. Recordatorios importantes 1.Compable con iPhones y fundas compables con MagSafe. 2. La salida máxima de este cargador es de 15 W. Su salida máxima para iPhone es de 7,5 W. 3. Uliza únicamente el cable incluido con este cargador. Un cable de Apple o cualquier otro cable de terceros podría interferir con la carga. 4. Este cargador requiere un adaptador de carga compable con carga rápida QC o PD y una salida de al menos 18W. 5. Este cargador solo se conectará con teléfonos de la serie iPhone 13/12 sin funda, con fundas oficiales MagSafe, pero no se conectará con ningún otro teléfono o funda. Advertencias d…

Text truncated - open the document above for the full version.

USA W-DODD INC 5Floor, B1 Building, Hongwan Industrial Zone Xixiang Gushu, Bao’an District ShenZhen GuangDong, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD21046 20.04.2023 To whom it may concern: We, USA W-DODD INC, hereby certify that the equipment for which authorization is sought (FCC ID: 2A62P-W25)is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist ) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature Yuzhao zhou Manager USA W-DODD INC 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii)-U, V02

USA W-DODD INC The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/20/2023 U.S. Agent Designation USA W-DODD INC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A62P-W25): Name and company of U.S. agent: Tim Payne, FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of USA W- DODD INC. USA W-DODD INC with the FRN 0032452344 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Yuzhao zhou Manager USA W-DODD INC Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V04

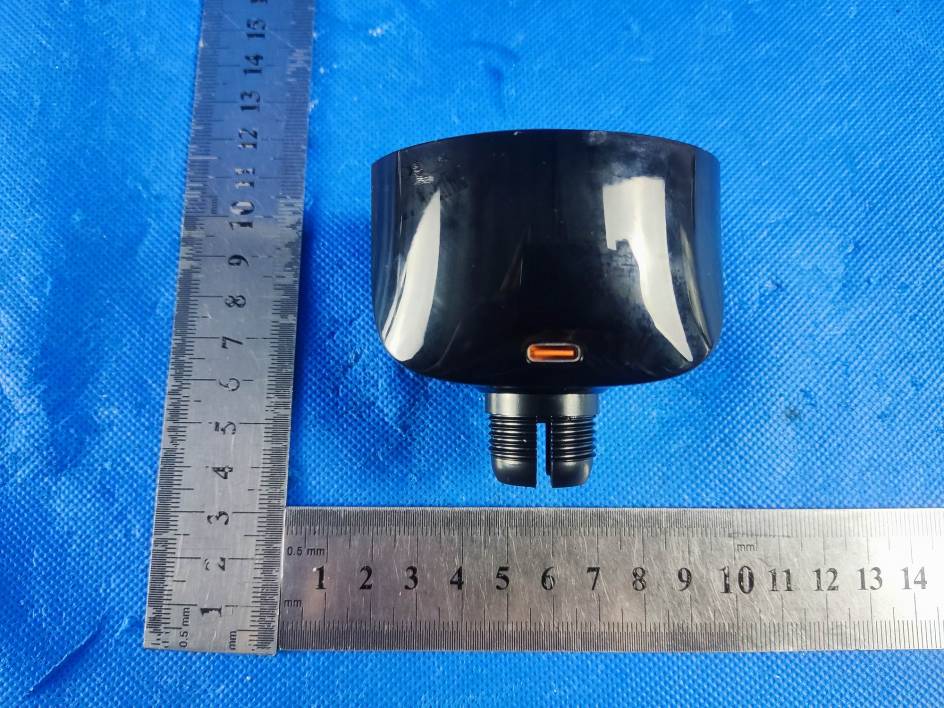

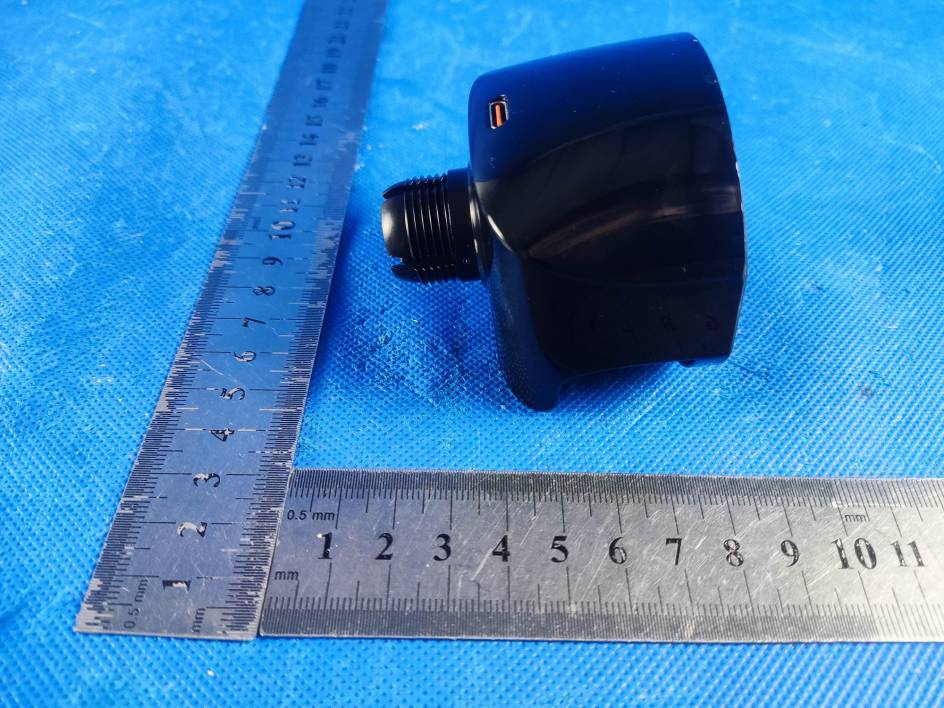

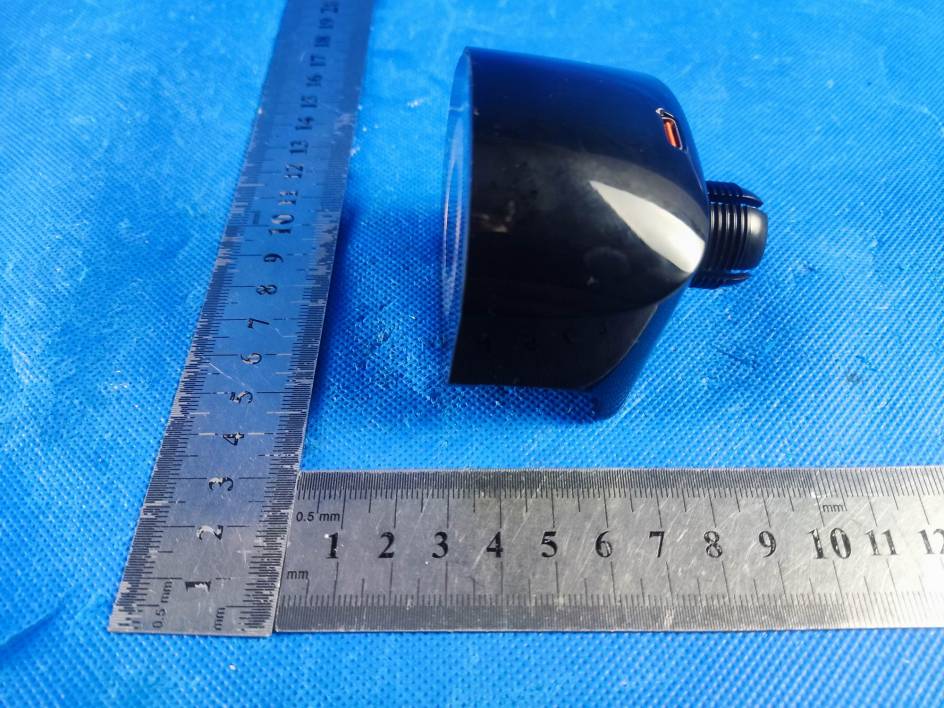

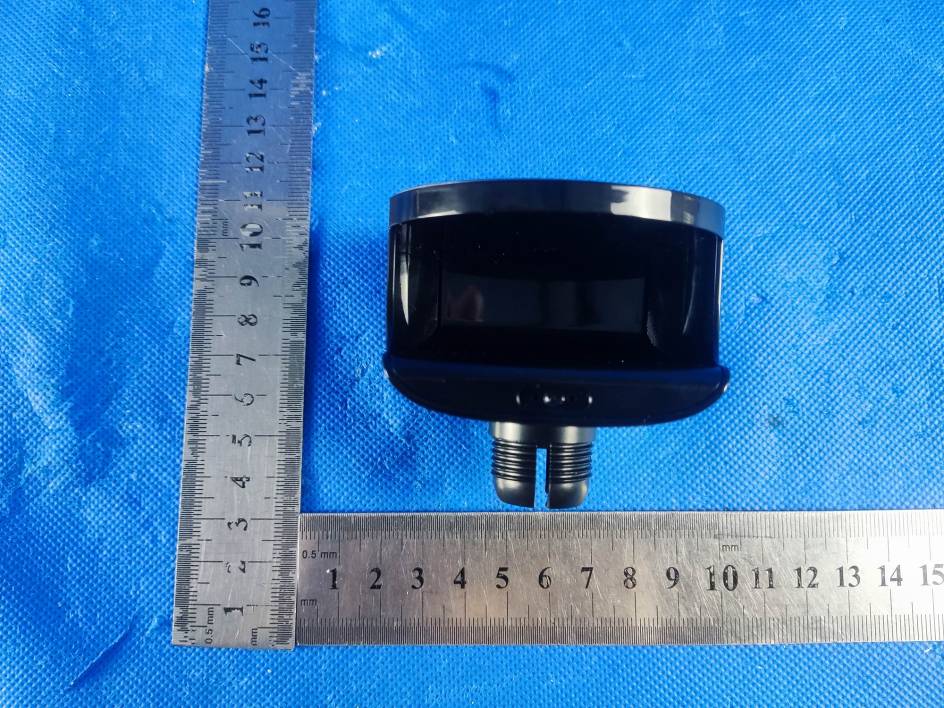

Page 1 of 4 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 ---The End---

FCC ID Label FCC ID:2A62P-W25

Page 1 of 6 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 6 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Antenna Page 3 of 6 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 6 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 6 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Antenna Page 6 of 6 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 ------End------

Page 1 of 6 FCC ID: 2A62P-W25 RF Exposure Evaluation 1 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 2 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 6 FCC ID: 2A62P-W25 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Test Mode Description Mode 1 AC Adapter + EUT + Mobile phone+ Earphone Record Mode 2 AC Adapter + EUT + Mobile phone Pre-tested Mode 3 AC Adapter + EUT + Earphone Pre-tested Mode 4 Test the EUT in idle mode. Pre-tested Note: All test modes were pre-tested, but we only recorded the worst case in this report. Page 3 of 6 FCC ID: 2A62P-W25 6 Peripheral List 7 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Electric and Magnetic Field Analyzer Narda EHP-200A 180ZX1050522.06.2022 21.06.2024 8 Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Unit Test mode Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (V/m) Limits (V/m) V/m TM1 89.78 102.4695.12 95.25 90.21 307 614 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Unit Test mode Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (A/m) Limits (A/m) A/m TM1 0.116 0.221 0.114 0.240 0.223 0.815 1.63 H-Filed Strength at 20 cm from the top of the EUT (A/m) Unit Test mode Test Position E 50% Limits (A/m) Limits (A/m) A/m TM1 0.202 0.815 1.63 Note: All test modes were pre-tested, but we only recorded the worst case in this report. N o. Equipment Manufacturer Model No. Serial No. Power cord signal cable 1 Adapter NOKIA F0302 N/A N/A N/A 2 Mobile lphone XIAOMI MI 11 N/A N/A N/A 3 Airpod Apple Airpod 3 N/A N/A N/A Page 4 of 6 FCC ID: 2A62P-W25 9 Test Setup photo Test Position A-15cm from the edge of EUT to the geometric center of the probe Test Position B-15cm from the edge of EUT to the geometric center of the probe Page 5 of 6 FCC ID: 2A62P-W25 Test Position C-15cm from the edge of EUT to the geometric center of the probe Test Position D-15cm from the edge of EUT to the geometric center of the probe Page 6 of 6 FCC ID: 2A62P-W25 Test Position E-15cm from the edge of EUT to the geometric center of the probe Test Position F-20cm from the edge of EUT to the geometric center of the probe ***End of report***

Page 1 of 24 Report No.: AIT23040703FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. FCC TEST REPORT Client Information: Applicant: USA W-DODD INC Applicant add.: 5Floor, B1 Building, Hongwan Industrial Zone Xixiang Gushu, Bao’an District ShenZhen GuangDong Manufacturer: Shenzhen Anxinwei Electronic Technology Co., Ltd Manufacturer add.: 5Floor, B1 Building, Hongwan Industrial Zone Xixiang Gushu, Bao’an District ShenZhen GuangDong Product Information: Product Name: wireless charger Model No.: W25, W13, W14, W15, W05, W29 Brand Name: N/A FCC ID: 2A62P-W25 Applicable standards : FCC CFR Title 47 Part 15 Subpart C Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Apr. 07, 2023 Date of Test: Apr. 07, 2023~ Apr. 13, 2023 Date of Issue: Apr. 14, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 24 Report No.: AIT23040703FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 S TATEMENT OF THE M EASUREMENT U NCERTAINTY ............................................................................................. 5 2.2 M EASUREMENT U NCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 D EVIATION FROM STANDARD ............................................................................................................................... 6 3.2 A BNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 T EST L OCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT T EST M ODE ............................................................................................................................................... 8 4.2 D ESCRIPTION OF T EST SETUP ............................................................................................................................. 8 4.3 P ERIPHERAL L IST ............................................................................................................................................... 9 4.4 EUT P ERIPHERAL L IST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION L IMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 T EST R ESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 R ADIATED E MISSION L IMITS .............................................................................................................................. 15 7.2 A NECHOIC C HAMBER T EST S ETUP D IAGRAM ..................................................................................................... 16 7.3 T EST P ROCEDURE ........................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD ..............................................................…

Text truncated - open the document above for the full version.

USA W-DODD INC 5Floor, B1 Building, Hongwan Industrial Zone Xixiang Gushu, Bao’an District ShenZhen GuangDong 1. Antenna Description: Antenna type: loop coil Antenna Manufacturer: USA W-DODD INC Model: USA W-DODD INC -A antenna Antenna Gain(Peak): 0 dBi Frequency range:110kHz-205kHz 2. Antenna Photo: Antennaφ=50mm USA W-DODD INC 5Floor, B1 Building, Hongwan Industrial Zone Xixiang Gushu, Bao’an District ShenZhen GuangDong Antennaφ=38mm

Page 1 of 2 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2A62P-W25 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission ------End------
