2A66J-Y5AX1800 Wi-Fi 6 High Power Range Extender with WiFi

WPS Gigabit Ethernet Port Reset

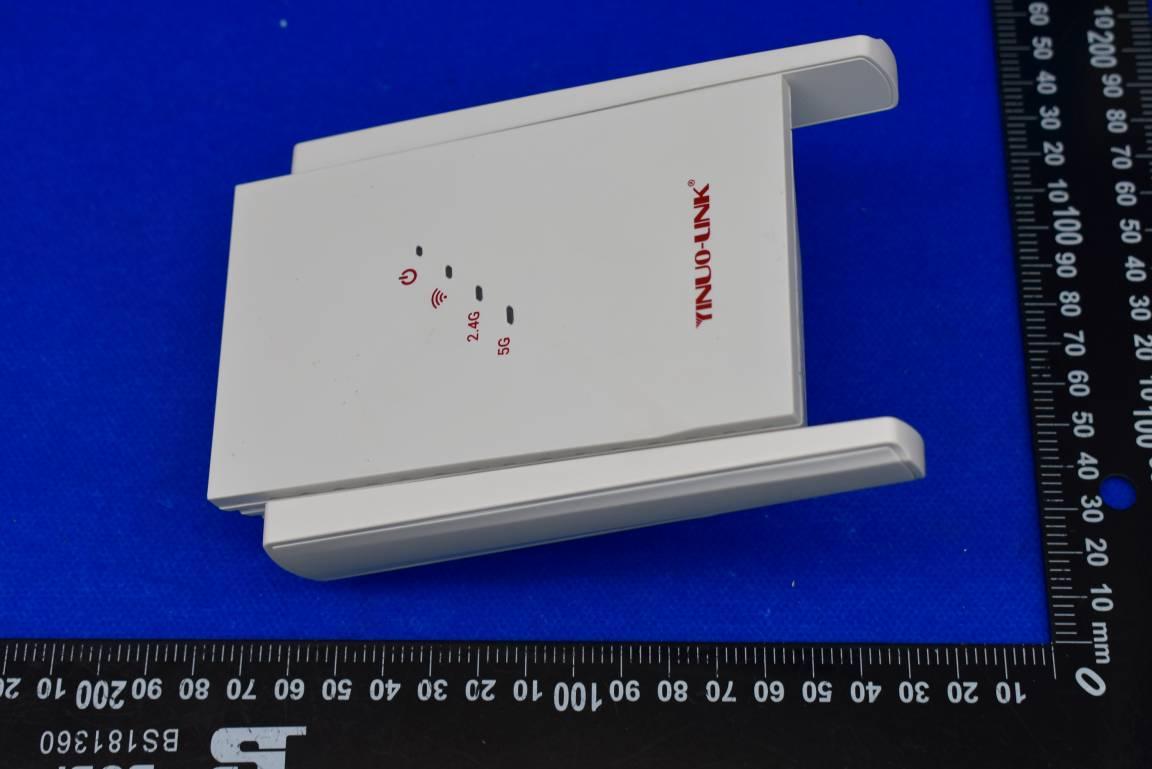

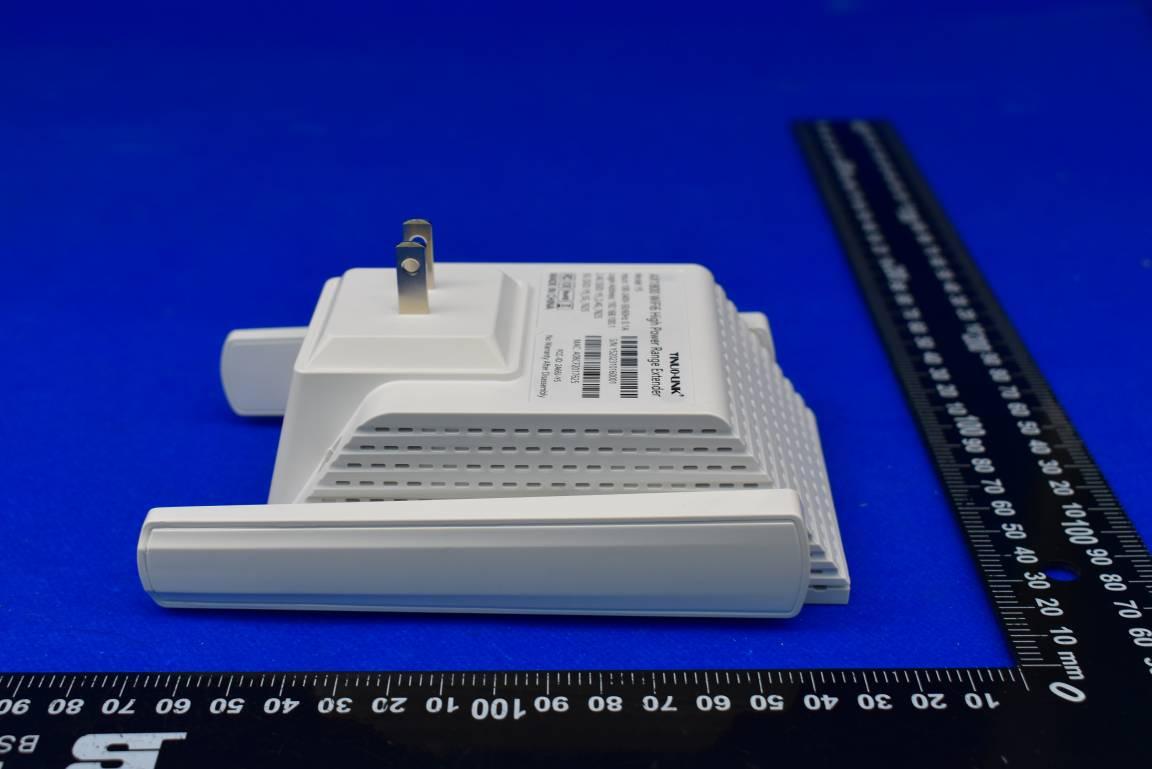

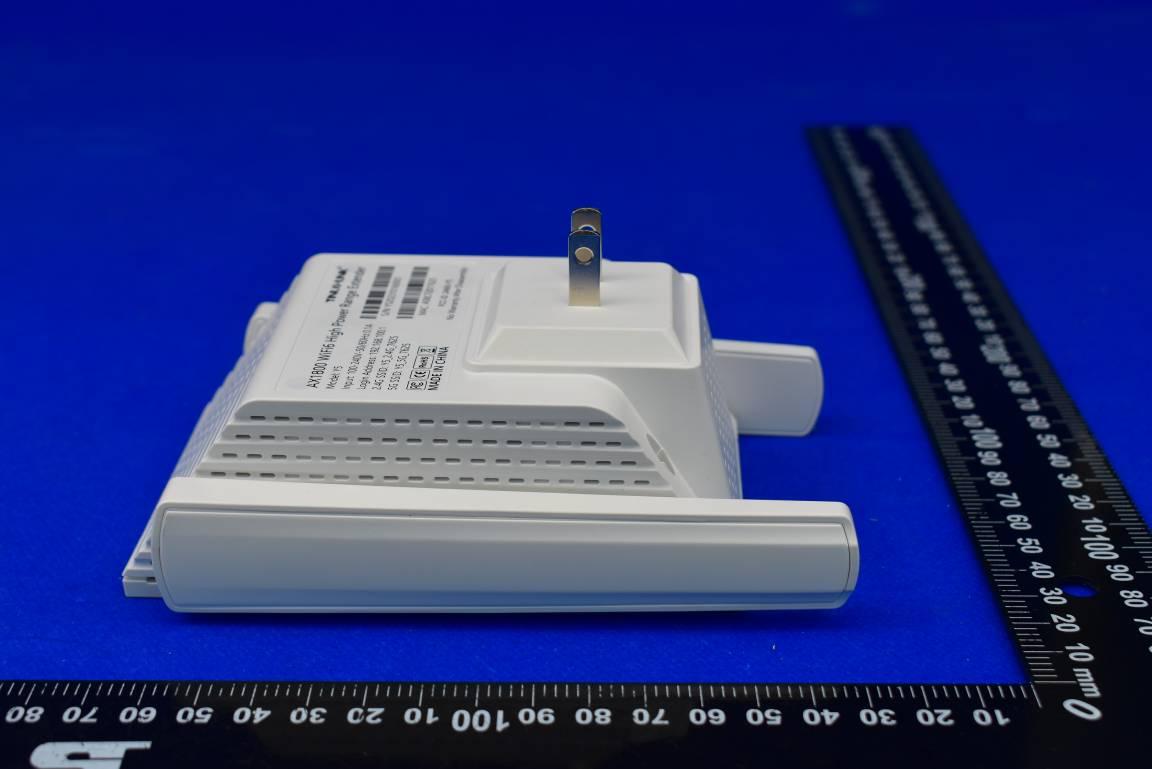

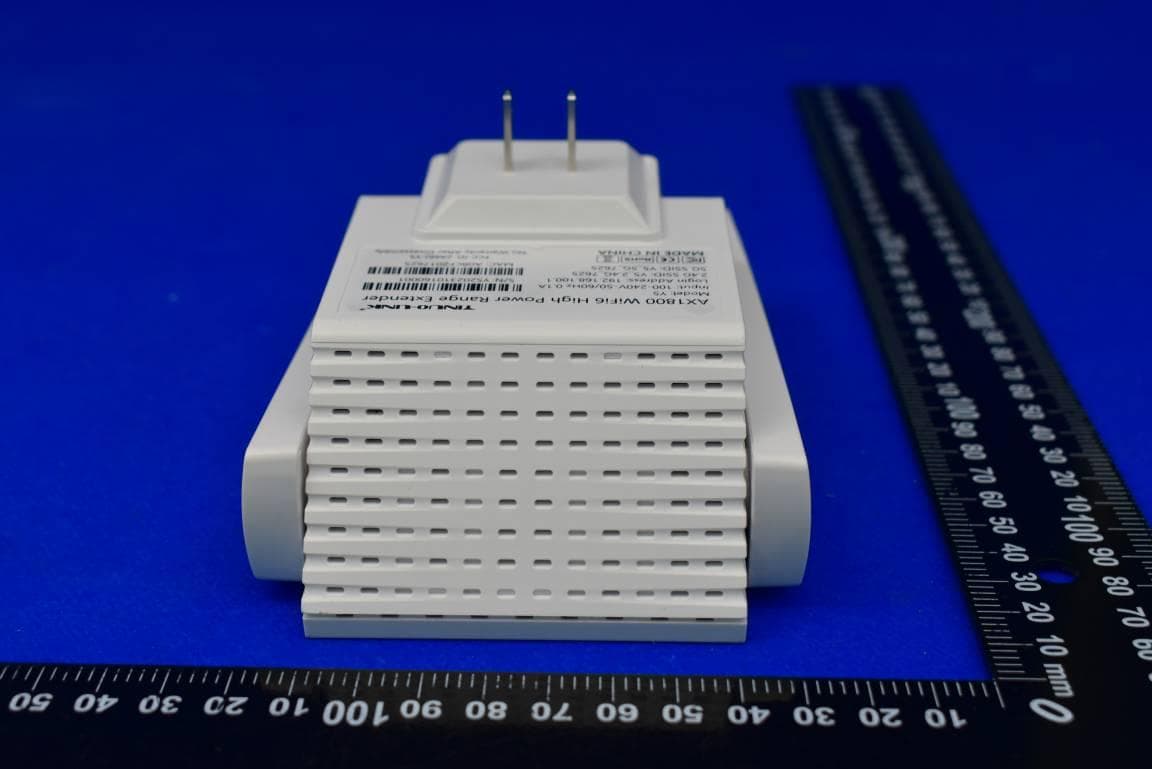

FCC ID: 2A66J-Y5 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

1、Label 2、location(at the bottom)

FCC ID: 2A66J-Y5 Internal Photos 1. EUT uncover view 2. Antenna view 2.4G WIFI / 5G WIFI Antenna

NOTE: This document is issued by ShenzhenMorlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB ShenzhenMorlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 9 REPORT No.：SZ23090108S01 RF EXPOSURE EVALUATION REPORT APPLICANT : YINUOLINK CO.,LTD PRODUCT NAME : A X1800 Wi-Fi 6 High Power Range Extender MODEL NAME : Y5 BRAND NAME :YINUO-LINK FCC ID :2A66J-Y5 STANDARD(S) : 47 CFR Part 2(2.1091) RECEIPT DATE : 2023-09-12 TEST DATE :2023-09-20 to 2023-10-24 ISSUE DATE :2023-10-30 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB ShenzhenMorlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23090108S01 Page2of 9 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. Maximum Average Power Summary ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Change History Version Date Reason for change 1.0 2023-10-30 First edition MORLAB ShenzhenMorlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23090108S01 Page3of 9 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: YINUOLINK CO.,LTD Applicant Address: 301,Bldg 6, Gaoxinjian Industrial Park, Fuyuan 1st Road, Heping, Fuhai, Bao'an, Shenzhen, China Manufacturer: YINUOLINK CO.,LTD Manufacturer Address: 301,Bldg 6, Gaoxinjian Industrial Park, Fuyuan 1st Road, Heping, Fuhai, Bao'an, Shenzhen, China 1.2 Equipment under Test (EUT) Description Product Name: AX1800 Wi-Fi 6 High Power Range Extender Sample No.: 1# Hardware Version: 1.2 Software Version: Y5EN140623OV1.01 Frequency Bands: WLAN 2.4GHz 2412MHz-2472MHz WLAN 5GHz 5180MHz-5240MHz; 5745MHz-5825MHz Modulation Mode: WLAN 2.4GHz DSSS, OFDM WLAN 5GHz OFDM Antenna Information: WLAN 2.4GHz Antenna Type: PCB Antenna Antenna Gain: ANT 1: 1.18dBi; ANT 2: 1.05dBi WLAN 5GHz Antenna Type: PCB Antenna Antenna Gain: ANT 1: 4.22dBi; ANT 2: 5.17dBi MORLAB ShenzhenMorlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23090108S01 Page4of 9 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method Determination /Remark 47 CFR Part 2(2.1091) Radio Frequency Radiation Exposure Assessment: mobile devices No deviation KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2:When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB ShenzhenMorlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23090108S01 Page5of 9 2. Device Category and RF Exposure Limit Per user manual, based on 47 CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47 CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement. General Population/Uncontrolled Exposure: The general population/uncontrolled exposure limits are applicable to situations in which the general pu…

Text truncated - open the document above for the full version.

0 A letter of recognition Customer Admit confirm ID DepartmentTest departmentStructure section Quality department Supplier Admit confirm confirmProofreadingTo examineApproval zhangwanzheyeqin APPROVAL No.ATCSZ-5-180124-001ISSUE1 DESCRIBE: YINUO-LINK (Y5) Customer NO: YN-PM0300326 PART NO: ATC1397-YN008B70RA Antenna type: WIFI-L PCB ANT ASM DATE: 2023.09.12 PROVIDER: AT&C TECHNOLOGIES(SHENZHEN) CO. LTD 1 2 BOM Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B70RA Revised By SHIN Revised Date 2023.09.12 Description WIFI -L Approved By HJ Approved Date 2023.09.12 Customer P/NATC P/NPart Name YN-PM0300326 ATC1397-YN008B70RA WIFI-L-PCB ANT (105.5X15.04X0.8mmmm)CABL E L=155 mm- 1.13 Gray--MHF-1 YN-PM0300327 ATC1397-YN008B71RA WIFI-R-PCB ANT (105.5X15.04X0.8mmmm)CABL E L=155 mm- 1.13 blk--MHF-1 301,Bldg 6, Gaoxinjian Industrial Park, Fuyuan 1st Road, Heping, Fuhai, Bao'an, Shenzhen, China 3 Antenna Matching network Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B70RA Revised By SHIN Revised Date 2023.09.12 Description WIFI -L Approved By HJ Approved Date 2023.09.12 4 2.4G&5.8 WiFi-L S11 Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B70RA Revised By SHIN Revised Date 2023.09.12 Description WIFI -L Approved By HJ Approved Date 2023.09.12 5 2.4G&5.8 WiFi-L Efficiency Frequency/MhzEfficiency / %MaxGain/dBi 2400 62.661.18 2410 59.020.58 2420 56.750.73 2430 55.080.48 2440 53.700.78 2450 51.050.34 2460 49.770.75 2470 49.430.62 2480 50.000.87 2490 49.770.87 2500 49.661.07 5150 66.683.72 5200 64.713.58 5250 65.614.22 5300 66.074.51 5350 65.924.75 5400 63.974.81 5450 64.424.61 5500 63.534.76 5550 62.814.22 5600 63.534.76 5650 63.244.59 5700 62.374.54 5750 63.104.76 5800 59.294.19 5850 61.244.77 6 WIFI-L 2.4G ANT 2D/3D radiography 7 WIFI-L 5.8G ANT 2D/3D radiography 8 WiFi-L Draw Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B70RA Revised By SHIN Revised Date 2023.09.12 Description WIFI -L Approved By HJ Approved Date 2023.09.12 9 Dimension report Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B70RA Revised By SHIN Revised Date 2023.09.12 Description WIFI -L Approved By HJ Approved Date 2023.09.12 Size informationMeasuring sample % Tolerance Handling opinions nu mb er Dime nsion prop erty Dime nsion Lower t olerance Upper toleran ce 123 UpperLower determi ne Supplier review c omment s Custome r review commen ts Measurin g tool 1 key point 105.5-0.400.40105.45105.56105..53PASS PJ 2 key point 15.04-0.250.2515.1215.0615.17PASS PJ 3 key point 155.0 -1.501.50156.1155.8156.0 PASS PJ 4 key point 201.8 -3.03.0202.3201.53 201.5 9 PASS PJ

0 A letter of recognition Customer Admit confirm ID DepartmentTest departmentStructure section Quality department Supplier Admit confirm confirmProofreadingTo examineApproval zhangwanzheyeqin APPROVAL No.ATCSZ-5-180124-001ISSUE1 DESCRIBE: YINUO-LINK (Y5) Customer NO: YN-PM0300327 PART NO: ATC1397-YN008B71RA Antenna type: WIFI-R PCB ANT ASM DATE: 2023.09.12 PROVIDER: AT&C TECHNOLOGIES(SHENZHEN) CO. LTD 1 2 BOM Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B71RA Revised By SHIN Revised Date 2023.09.12 Description WIFI -R Approved By HJ Approved Date 2023.09.12 Customer P/NATC P/NPart Name YN-PM0300326 ATC1397-YN008B70RA WIFI-L-PCB ANT (105.5X15.04X0.8mmmm)CABL E L=155 mm- 1.13 Gray--MHF-1 YN-PM0300327 ATC1397-YN008B71RA WIFI-R-PCB ANT (105.5X15.04X0.8mmmm)CABL E L=155 mm- 1.13 blk--MHF-1 301,Bldg 6, Gaoxinjian Industrial Park, Fuyuan 1st Road, Heping, Fuhai, Bao'an, Shenzhen, China 3 Antenna Matching network Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B71RA Revised By SHIN Revised Date 2023.09.12 Description WIFI -R Approved By HJ Approved Date 2023.09.12 4 2.4G&5.8 WiFi-R S11 Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B71RA Revised By SHIN Revised Date 2023.09.12 Description WIFI-R Approved By HJ Approved Date 2023.09.12 5 2.4G&5.8 WiFi-R Efficiency Frequency/MhzEfficiency / %MaxGain/dBi 2400 64.271.05 2410 61.240.76 2420 58.080.37 2430 56.750.58 2440 54.330.25 2450 51.170.03 2460 49.090.07 2470 48.980.24 2480 49.550.48 2490 48.870.45 2500 48.640.66 5150 70.794.99 5200 68.394.85 5250 68.715.17 5300 69.345.23 5350 69.025.33 5400 66.535.08 5450 66.994.74 5500 65.014.93 5550 63.684.37 5600 65.014.70 5650 63.684.68 5700 62.234.60 5750 63.974.68 5800 60.954.26 5850 63.835.12 6 WIFI-R 2.4G ANT 2D/3D radiography 7 WIFI-R 5.8G ANT 2D/3D radiography 8 WiFi-R Draw Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B71RA Revised By SHIN Revised Date 2023.09.12 Description WIFI-R Approved By HJ Approved Date 2023.09.12 9 Dimension report Size informationMeasuring sample % Tolerance Handling opinions nu mb er Dime nsion prop erty Dime nsion Lower t olerance Upper toleran ce 123 UpperLower determi ne Supplier review c omment s Custome r review commen ts Measurin g tool 1 key point 105.5-0.400.40105.5105.6105..5PASS PJ 2 key point 15.04-0.250.2515.1215.0615.17PASS PJ 3 key point 155.0 -1.501.50155.5155.3156.0 PASS PJ 4 key point 201.8 -3.03.0202.3201.53 201.5 9 PASS PJ Customer YINUO-LINK Written By LNF Orig.Date 2023.09.12 part Number ATC1397-YN008B71RA Revised By SHIN Revised Date 2023.09.12 Description WIFI -R Approved By HJ Approved Date 2023.09.12

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 231 REPORT No.：SZ23090108W02 TEST REPORT APPLICANT : YINUOLINK CO.,LTD PRODUCT NAME : A X1800 Wi-Fi 6 High Power Range Extender MODEL NAME : Y5 BRAND NAME :YINUO-LINK FCC ID :2A66J-Y5 STANDARD(S) :47 CFR Part 15 Subpart E RECEIPT DATE : 2023-09-12 TEST DATE :2023-09-20 to 2023-10-24 ISSUE DATE :2023-10-30 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 231 REPORT No.：SZ23090108W02 DIRECTORY 1. Summary of Test Result ·············································································· 4 1.1. Testing Applied Standards ········································································ 5 1.2. Test Equipment List ················································································· 6 1.3. Measurement Uncertainty ········································································· 8 1.4. Testing Laboratory ··················································································· 8 2. General Description ··················································································· 9 2.1. Information of Applicant and Manufacturer ················································· 9 2.2. Information of EUT ··················································································· 9 2.3. Channel List of EUT ··············································································· 10 2.4. Test Configuration of EUT ······································································· 11 2.5. Test Conditions ····················································································· 11 2.6. Test Setup Layout Diagram ····································································· 12 3. Test Results ···························································································· 15 3.1. Antenna Requirement ············································································ 15 3.2. Duty Cycle of Test Signal ········································································ 16 3.3. Maximum Conducted Output Power ························································· 17 3.4. Emission Bandwidth ·············································································· 20 3.5. Peak Power Spectral Density ·································································· 22 3.6. Frequency Stability ················································································ 23 3.7. Conducted Emission ·············································································· 24 3.8. Restricted Frequency Bands ··································································· 25 3.9. Radiated Emission ················································································· 27 Annex A Test Data and Result ······································································· 29 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 231 REPORT No.：SZ23090108W02 Change History Version Date Reason for change 1.0 2023-10-30 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 231 REPORT No.：SZ23090108W02 1. Summary of Test Result No. Section Description Test Date Test Engineer Result Method Determination /Remark 1 15.203 Antenna Requirement N/A N/A PASS No deviation 2 ANSI C63.10 Duty Cycle of the Test Signal Sep. 20, 2023 Zhong Yanshan PASS No deviation 3 15.407(a) Maximum Conducted Output Power Oct. 20, 2023 Zhong Yanshan PASS No deviation 4 15.407(a) (e) Emission Bandwidth Oct. 20, 2023 Zhong Yanshan PASS No deviation 5 15.407(a) Peak Power Spectral Density Sep. 20, 2023 Zhong Yanshan PASS No deviation 6 15.407(g) Frequency Stability Sep. 20, 2023 Zhong Yanshan PASS No deviation 7 15.207 Conducted Emission Sep. 25, 2023 Wang Deyong PASS No deviation 8 15.407(b) Restricted Frequency Bands Oct. 17, 2023 Gao Jianrou PASS No deviation 9 15.407(b) Radiated Emission Oct. 16, 2023 Gao Jianrou PASS No deviation Note 1: The tests of Conducted Emission and Radiated Emission were performed according to the method of measurements prescribed in ANSI C63.10 2013. Note 2: These RF tests were performed according to the method of measurements prescribed in KDB 789033 D02 v02r01. Note 3: These RF tests were performed according to the method of measurements prescribed in KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02. Note 4: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 5: When t…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 115 of 231 REPORT No.：SZ23090108W02 -6dB Bandwidth NVNT ax80 5775MHz Ant1 -6dB Bandwidth NVNT ax80 5775MHz Ant2 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 116 of 231 REPORT No.：SZ23090108W02 A.4. Peak Power Spectral Density Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total Conducted PSD (dBm) Limit Conducted (dBm) Verdict NVNT a 5180 Ant1 8.22 0.18 8.4 17 Pass NVNT a 5180 Ant2 5.61 0.18 5.79 17 Pass NVNT a 5220 Ant1 8.85 0.18 9.03 17 Pass NVNT a 5220 Ant2 5.64 0.18 5.82 17 Pass NVNT a 5240 Ant1 8.67 0.18 8.85 17 Pass NVNT a 5240 Ant2 5.05 0.18 5.23 17 Pass NVNT a 5745 Ant1 8.29 0.18 8.47 30 Pass NVNT a 5745 Ant2 5.57 0.18 5.75 30 Pass NVNT a 5785 Ant1 8.12 0.18 8.3 30 Pass NVNT a 5785 Ant2 6.23 0.18 6.41 30 Pass NVNT a 5825 Ant1 7.75 0.18 7.93 30 Pass NVNT a 5825 Ant2 6.78 0.18 6.96 30 Pass NVNT n20 5180 Ant1 7.46 0.19 7.65 17 Pass NVNT n20 5180 Ant2 5.26 0.19 5.45 17 Pass NVNT n20 5180 Ant1 7.7 0.19 7.89 17 Pass NVNT n20 5180 Ant2 5.37 0.19 5.56 17 Pass NVNT n20 5180 Sum NaN NaN 9.89 15.28 Pass NVNT n20 5220 Ant1 8.06 0.19 8.25 17 Pass NVNT n20 5220 Ant2 5.53 0.19 5.72 17 Pass NVNT n20 5220 Ant1 7.59 0.19 7.78 17 Pass NVNT n20 5220 Ant2 4.6 0.19 4.79 17 Pass NVNT n20 5220 Sum NaN NaN 9.55 15.28 Pass NVNT n20 5240 Ant1 8.01 0.19 8.2 17 Pass NVNT n20 5240 Ant2 5.32 0.19 5.51 17 Pass NVNT n20 5240 Ant1 7.31 0.19 7.5 17 Pass NVNT n20 5240 Ant2 4.29 0.19 4.48 17 Pass NVNT n20 5240 Sum NaN NaN 9.26 15.28 Pass NVNT n20 5745 Ant1 7.17 0.19 7.36 30 Pass NVNT n20 5745 Ant2 5.67 0.19 5.86 30 Pass NVNT n20 5745 Ant1 6.22 0.19 6.41 30 Pass NVNT n20 5745 Ant2 4.16 0.19 4.35 30 Pass NVNT n20 5745 Sum NaN NaN 8.51 28.28 Pass NVNT n20 5785 Ant1 7.19 0.19 7.38 30 Pass NVNT n20 5785 Ant2 5.77 0.19 5.96 30 Pass MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 117 of 231 REPORT No.：SZ23090108W02 NVNT n20 5785 Ant1 5.93 0.19 6.12 30 Pass NVNT n20 5785 Ant2 4.14 0.19 4.33 30 Pass NVNT n20 5785 Sum NaN NaN 8.33 28.28 Pass NVNT n20 5825 Ant1 7.1 0.19 7.29 30 Pass NVNT n20 5825 Ant2 6.78 0.19 6.97 30 Pass NVNT n20 5825 Ant1 5.94 0.19 6.13 30 Pass NVNT n20 5825 Ant2 5.05 0.19 5.24 30 Pass NVNT n20 5825 Sum NaN NaN 8.72 28.28 Pass NVNT n40 5190 Ant1 5.04 0.37 5.41 17 Pass NVNT n40 5190 Ant2 2.29 0.37 2.66 17 Pass NVNT n40 5190 Ant1 4.36 0.36 4.72 17 Pass NVNT n40 5190 Ant2 2.25 0.36 2.61 17 Pass NVNT n40 5190 Sum NaN NaN 6.8 15.28 Pass NVNT n40 5230 Ant1 5.61 0.37 5.98 17 Pass NVNT n40 5230 Ant2 1.85 0.37 2.22 17 Pass NVNT n40 5230 Ant1 4.64 0.36 5 17 Pass NVNT n40 5230 Ant2 1.72 0.36 2.08 17 Pass NVNT n40 5230 Sum NaN NaN 6.79 15.28 Pass NVNT n40 5755 Ant1 5.02 0.37 5.39 30 Pass NVNT n40 5755 Ant2 2.16 0.37 2.53 30 Pass NVNT n40 5755 Ant1 3.85 0.37 4.22 30 Pass NVNT n40 5755 Ant2 1.6 0.37 1.97 30 Pass NVNT n40 5755 Sum NaN NaN 6.25 28.28 Pass NVNT n40 5795 Ant1 4.72 0.37 5.09 30 Pass NVNT n40 5795 Ant2 2.55 0.37 2.92 30 Pass NVNT n40 5795 Ant1 3.65 0.37 4.02 30 Pass NVNT n40 5795 Ant2 1.61 0.37 1.98 30 Pass NVNT n40 5795 Sum NaN NaN 6.13 28.28 Pass NVNT ac20 5180 Ant1 7.3 0.35 7.65 17 Pass NVNT ac20 5180 Ant2 5.69 0.19 5.88 17 Pass NVNT ac20 5180 Ant1 6.78 0.35 7.13 17 Pass NVNT ac20 5180 Ant2 3.93 0.35 4.28 17 Pass NVNT ac20 5180 Sum NaN NaN 8.94 15.28 Pass NVNT ac20 5220 Ant1 7.68 0.35 8.03 17 Pass NVNT ac20 5220 Ant2 5.38 0.19 5.57 17 Pass NVNT ac20 5220 Ant1 7.48 0.35 7.83 17 Pass NVNT ac20 5220 Ant2 4.01 0.35 4.36 17 Pass NVNT ac20 5220 Sum NaN NaN 9.44 15.28 Pass MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 118 of 231 REPORT No.：SZ23090108W02 NVNT ac20 5240 Ant1 7.59 0.35 7.94 17 Pass NVNT ac20 5240 Ant2 4.92 0.19 5.11 17 Pass NVNT ac20 5240 Ant1 7.32 0.35 7.67 17 Pass NVNT ac20 5240 Ant2 3.61 0.35 3.96 17 Pass NVNT ac20 5240 Sum NaN NaN 9.21 15.28 Pass NVNT ac20 5745 Ant1 6.67 0.35 7.02 30 Pass NVNT ac20 5745 Ant2 5.5 0.19 5.69 30 Pass NVNT ac20 5745 Ant1 6.25 0.35 6.6 30 Pass NVNT ac20 5745 Ant2 4.12 0.35 4.47 30 Pass NVNT ac20 5745 Sum NaN NaN 8.68 28.28 Pass NVNT ac20 5785 Ant1 6.48 0.35 6.83 30 Pass NVNT ac20 5785 Ant2 5.62 0.19 5.81 30 Pass NVNT ac20 5785 Ant1 6.05 0.35 6.4 30 Pass NVNT ac20 5785 Ant2 4.06 0.35 4.41 30 Pass NVNT ac20 5785 Sum NaN NaN 8.53 28.28 Pass NVNT ac20 5825 Ant1 6.41 0.35 6.76 30 Pass NVNT ac20 5825 Ant2 6.81 0.19 7 30 Pass NVNT ac20 5825 Ant1 6.02 0.35 6.37 30 Pass NVNT ac20 5825 Ant2 4.93 0.35 5.28 30 Pass NVNT ac20 5825 Sum NaN NaN 8.86 28.28 Pass NVNT ac40 5190 Ant1 4.98 0.35 5.33 17 Pass NVNT ac40 5190 Ant2 2.05 0.66 2.71 17 Pass NVNT ac40 5190 Ant1 3.86 0.66 4.52 17 Pass NVNT ac40 5190 Ant2 0.96 0.66 1.62 17 Pass NVNT ac40 5190 Sum NaN NaN 6.31 15.28 Pass NVNT ac40 5230 Ant1 5.4 0.37 5.77 17 Pass NVNT ac40 5230 Ant2 1.7 0.66 2.36 17 Pass NVNT ac40 5230 Ant1 4.14 0.66 4.8 17 Pass NVNT ac40 5230 Ant2 0.8 0.66 1.46 17 Pass NVNT ac40 5230 Sum NaN NaN 6.45 15.28 Pass NVNT ac40 5755 Ant1 4.93 0.37 5.3 30 Pass NVNT ac40 5755 Ant2 2.09 0.66 2.75 30 Pass NVNT ac40 5755 Ant1 3.66 0.66 4.32 30 Pass NVNT ac40 5755 Ant2 1.21 0.66 1.87 30 Pass NVNT ac40 5755 Sum NaN NaN 6.27…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 215 of 231 REPORT No.：SZ23090108W02 Plot for Channel 44 Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 107.600 32.48 N/A N/A N/A 43.50 N/A Horizontal PASS 218.180 28.83 N/A N/A N/A 46.00 N/A Horizontal PASS 590.660 34.04 N/A N/A N/A 46.00 N/A Horizontal PASS 2413.333 47.61 N/A N/A 68.23 N/A N/A Horizontal PASS 5757.000 48.53 N/A N/A 68.23 N/A N/A Horizontal PASS 12120.280 47.18 N/A N/A 74.00 N/A 54.00 Horizontal PASS (Antenna Horizontal, 30MHz to 18GHz) Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 109.540 32.84 N/A N/A N/A 43.50 N/A Vertical PASS 228.850 30.21 N/A N/A N/A 46.00 N/A Vertical PASS 570.290 34.29 N/A N/A N/A 46.00 N/A Vertical PASS 2488.533 47.07 N/A N/A 74.00 N/A 54.00 Vertical PASS 5219.552 48.89 N/A N/A 68.23 N/A N/A Vertical PASS 12077.160 46.92 N/A N/A 74.00 N/A 54.00 Vertical PASS (Antenna Vertical, 30MHz to 18GHz) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 216 of 231 REPORT No.：SZ23090108W02 Plot for Channel 48 Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 105.660 32.21 N/A N/A N/A 43.50 N/A Horizontal PASS 342.340 32.20 N/A N/A N/A 46.00 N/A Horizontal PASS 909.790 38.30 N/A N/A N/A 46.00 N/A Horizontal PASS 2406.400 47.01 N/A N/A 68.23 N/A N/A Horizontal PASS 5236.480 46.93 N/A N/A 68.23 N/A N/A Horizontal PASS 12517.600 46.72 N/A N/A 74.00 N/A 54.00 Horizontal PASS (Antenna Horizontal, 30MHz to 18GHz) Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 101.780 31.66 N/A N/A N/A 43.50 N/A Vertical PASS 250.190 30.21 N/A N/A N/A 46.00 N/A Vertical PASS 691.540 36.13 N/A N/A N/A 46.00 N/A Vertical PASS 2446.400 46.74 N/A N/A 68.23 N/A N/A Vertical PASS 5757.000 48.08 N/A N/A 68.23 N/A N/A Vertical PASS 12148.000 47.07 N/A N/A 74.00 N/A 54.00 Vertical PASS (Antenna Vertical, 30MHz to 18GHz) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 217 of 231 REPORT No.：SZ23090108W02 Plot for Channel 149 Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 42.610 31.90 N/A N/A N/A 40.00 N/A Horizontal PASS 232.730 29.76 N/A N/A N/A 46.00 N/A Horizontal PASS 883.600 36.80 N/A N/A N/A 46.00 N/A Horizontal PASS 2413.867 47.37 N/A N/A 68.23 N/A N/A Horizontal PASS 5747.760 47.01 N/A N/A 68.23 N/A N/A Horizontal PASS 14005.240 45.88 N/A N/A 68.23 N/A N/A Horizontal PASS (Antenna Horizontal, 30MHz to 18GHz) Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 110.510 31.95 N/A N/A N/A 43.50 N/A Vertical PASS 225.940 30.09 N/A N/A N/A 46.00 N/A Vertical PASS 571.260 34.34 N/A N/A N/A 46.00 N/A Vertical PASS 2496.000 46.87 N/A N/A 74.00 N/A 54.00 Vertical PASS 5874.040 47.78 N/A N/A 68.23 N/A N/A Vertical PASS 11488.880 47.75 N/A N/A 74.00 N/A 54.00 Vertical PASS (Antenna Vertical, 30MHz to 18GHz) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 218 of 231 REPORT No.：SZ23090108W02 Plot for Channel 157 Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 106.630 31.92 N/A N/A N/A 43.50 N/A Horizontal PASS 221.090 29.45 N/A N/A N/A 46.00 N/A Horizontal PASS 667.290 34.53 N/A N/A N/A 46.00 N/A Horizontal PASS 2408.533 46.92 N/A N/A 68.23 N/A N/A Horizontal PASS 5633.800 46.93 N/A N/A 68.23 N/A N/A Horizontal PASS 13068.920 46.35 N/A N/A 68.23 N/A N/A Horizontal PASS (Antenna Horizontal, 30MHz to 18GHz) Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 109.540 32.78 N/A N/A N/A 43.50 N/A Vertical PASS 236.610 29.78 N/A N/A N/A 46.00 N/A Vertical PASS 582.900 33.66 N/A N/A N/A 46.00 N/A Vertical PASS 2416.000 47.71 N/A N/A 68.23 N/A N/A Vertical PASS 5867.880 48.50 N/A N/A 68.23 N/A N/A Vertical PASS 12505.280 46.73 N/A N/A 74.00 N/A 54.00 Vertical PASS (Antenna Vertical, 30MHz to 18GHz) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 219 of 231 REPORT No.：SZ23090108W02 Plot for Channel 165 Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Antenna Verdict 118.270 31.15 N/A N/A N/A 43.50 N/A Horizontal PASS 243.400 29.08 N/A N/A N/A 46.00 N/A Horizontal PASS 667.290 34.63 N/A N/A N/A 46.00 N/A Horizontal PASS 2480.000 47.92 N/A N/A 68.23 N/A N/A Horizontal PASS 5766.240 47.55 N/A N/A 68.23 N/A N/A Horizontal PASS 11495.040 47.70 N/A N/A 74.00 N/A 54.00 Horizontal PASS (Antenna Horizontal, 30MHz to 18GHz) Fre. (MHz) PK (dBμV/m) QP (dBμV/m) AV (dBμV/m) Limit-PK (dBμV/m) Limit-QP (dBμV/m) Limit-AV (dBμV/m) Anten…

Text truncated - open the document above for the full version.

FCC ID: 2A66J-Y5 Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement …
