2A66KU2WIFI CAMERA

CREATIVE HOME - SMART AND CONVENIENT QUICK GUIDE Thank you for using smart camera EN · Power supply: DC5V±10% · Microphone: voice input, you can hear the voice while viewing the image · SD card slot: local storage supported by micro SD card (up to 128G) · Reset button: Long press for 5 seconds to reset the camera and restore factory Settings This product only supports routers in the 2.4GHz band, but does not support routers in the 5GHz band. Set this parameter before configuring WiFi Set the relevant parameters of the router and do not include the WiFi password ~! Special characters such as @#$%^ &*(). Device in WiFi configuration Keep your phone and device as close as possible to the router to speed up device configuration Specification Router Settings Install the APP Please keep the WiFi network working EN · The APP is compatible with iOS and Android systems. Search for Tuya Smart or Smart Life in the APP Store or Android Market · Download APP: Scan the QR code of the APP below and complete the installation · Register and log in: Open the APP and register and log in as prompted · Registration: If you do not already have an App account, you can register an account or log in with an SMS verification code. For an explanation of the registration process,See current and next pages. Click "Register" to enter the privacy policy page of APP Click "Agree" to enter the mobile phone number or email registration page. · Login: If you already have an account, you can skip creating a new one and click "Sign in" to go to the login page. (1) The system automatically selects the current country/region, or you can manually select the country/region. (2) Enter your registered mobile phone number or email address, and enter your password to log in to the system. Log in Add equipment · Make sure wi-fi is available and connected to the Internet. · Open the APP and press "+" in the upper right corner of the main screen (see Figure 01); Select "Security Sensor" and click "Smart Camera" (e.gFigure 02) Adding camera equipment; Then click "Next" (figure 03); · Find the power cable interface of the device, insert the power cable, switch on the power supply, and the device is started. EN 01 03 · Enter the WiF account password, click "Next" (as shown in Figure 04), the camera will be powered on (the camera will perform a self-checking state after the camera is powered on, and the lens will rotate), when you hear the camera prompt, the mobile APP will generate a QR code, Use the QR code to align the camera lens (the camera is about 20-30cm away from the lens as shown in Figure 05); 04 05 02 EN EN Equipment sharing · The camera can only be connected to one phone at a time, but other family members can share the footage remotely Head, while requiring other family members to sign up for APP accounts. The detailed procedure for sharing is as follows: Open Settings and click Share Device Add a share. Enter the peer account. EN · When you hear the "beep" sound, the camera will make a sound, click "hear sound" and wait for the connection (as shown in Figure 06),The device is added successfully (as shown in Figure 07), select the device name and room scene. 0607 EN EN Q&A Q1: What should I do if the camera cannot be connected during the process? * If you don't hear the beep after the camera self-test is completed, you can use the card pin to press the reset button for 5-6s to reset camera. When the reset is successful, you will hear a beep sound, and you can use the mobile phone to configure the network normally; * The camera only supports 2.4GHz Wi-Fi, please make sure that the connection is correct; when connecting the camera, you will hear different voice prompts, please follow the Voice prompts to take corresponding measures; Q2: How to make my camera connect to another Wi-Fi? * If the current Wi-Fi of the camera and the Wi-Fi you want to switch can be connected at the same time, you can pull to the bottom in the setting interface, click Remove Device to configure the network in the new WiFi environment; if the camera is disconnected from the current Wi-Fi, the application The sequence will show "Device disconnected", click Troubleshoot to connect to another Wi-Fi. Or remove the camera from the app. Of course Then reconnect the camera to the Wi-Fi you want to switch to. Q3: After installing an SD memory card and selecting the memory card recording mode to record all day, why is there a blank part on the video timeline? * Confirm the SD card status is normal; if not, please format the SD card. If the timeline has blank parts after formatting the video,Please replace with another SD card Tip: When the camera clears cache memory and restarts, it also creates blank sections on the video's timeline. Q4: Why can't my phone receive notifications? * Make sure you allow APP to send you notifications in your mobile device settings; make sure you have push notification settings turned on All options in ; make sure the current time is not at the scheduled time to stop notifications. Tip: Mobile devices will not receive any notifications when you watch live video from the camera. Q5: When I choose to share privately, how many accounts can I share? How do I unshare? * Network bandwidth limitation and too many users accessing the camera at the same time. Cameras with cloud service subscription package can be combined with up to 10 Account sharing; On the private sharing interface, touch and hold the account you want to cancel sharing, and then click Cancel. Q6: Why is there a circle in the video, and why does the video buffer when watching? *The circle in the video means it is still loading, please check the network connection of the camera and mobile device. you can also change Change the video quality from HD to smooth. Q7: Why does the camera make noise? * When the camera rotates, the motor will make a small sound, and then the App will record these sounds through the camera's microphone sound. It can be eliminated by turning off t…

Text truncated - open the document above for the full version.

< SHENZHEN HARVEST KANG TECHNOLOGY CO., LTD> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: May. 31, 2022 Subject; Request for Long Term Confidentiality FCC ID: 2A66KU2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: BRUCE CHEN Title: Manager

SHENZHEN HARVEST KANG TECHNOLOGY CO., LTD Letter of Authorization Company: SHENZHEN HARVEST KANG TECHNOLOGY CO., LTD Address: 3/F A BLDG. DANLI INDUSTRIAL PARK NANWAN ST. LONGGANG DIST. SHENZHEN, CHINA Product name: WIFI CAMERA Trade name: N/A Model name: U2, U1, U3, U5, U6, U7, U8, U9, U10, U11, U12, G1, G2, G3, G5, G6, D1, D2, D3, D5, D6, D7, D8, D9, D10, EH-1080P15, EH-2048P17 FCC Identifier: 2A66KU2 We authorize MiCOM LabsInc, 575 Boulder Court, Pleasanton, California94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: BRUCE CHEN Date: May. 31, 2022 Title: Manager Signature of applicant:

Model Difference Declaration To Whom It May Concern, We, SHENZHEN HARVEST KANG TECHNOLOGY CO., LTD FCC ID: 2A66KU2 Product: WIFI CAMERA Trade Name: N/A Model Number: U2, U1, U3, U5, U6, U7, U8, U9, U10, U11, U12, G1, G2, G3, G5, G6, D1, D2, D3, D5, D6, D7, D8, D9, D10, EH-1080P15, EH-2048P17 All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: U2. Please contact me if you have any question. Name: BRUCE CHEN Date: May. 31, 2022 Title : Manager Signature of applicant:

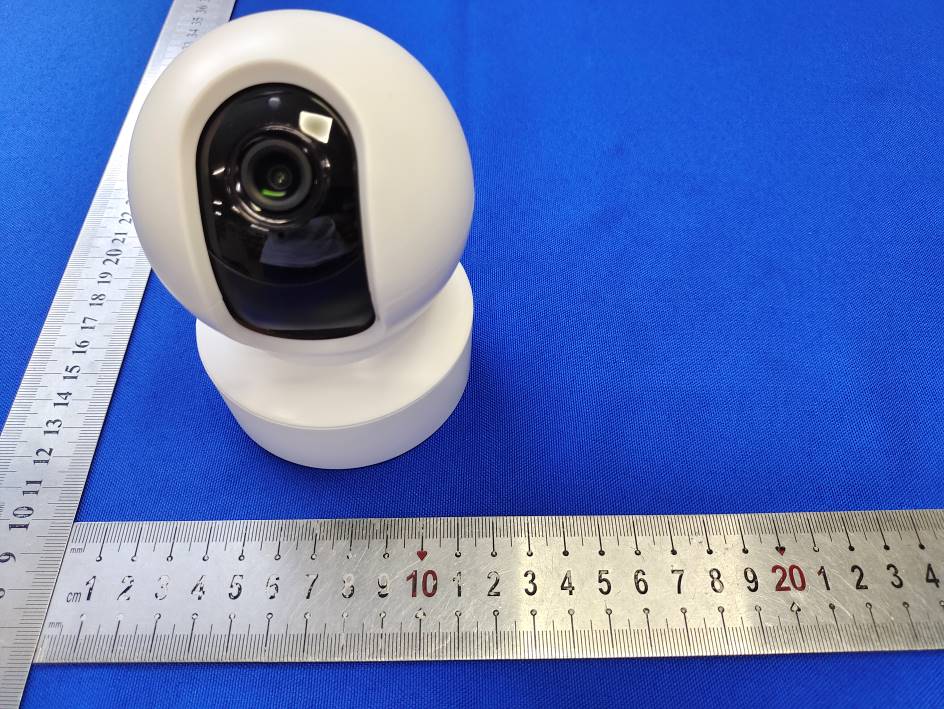

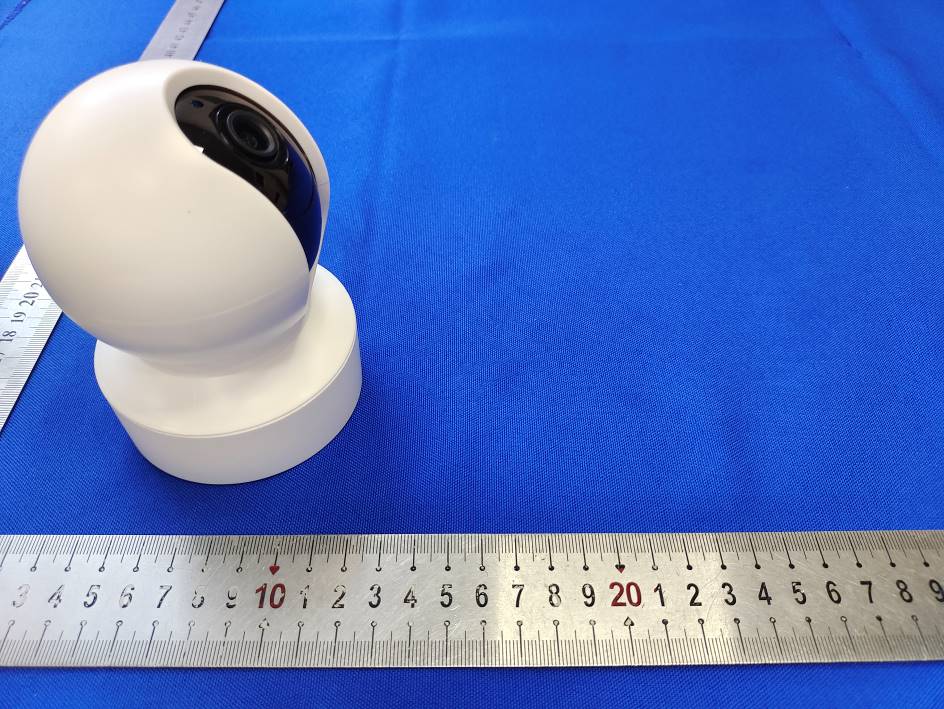

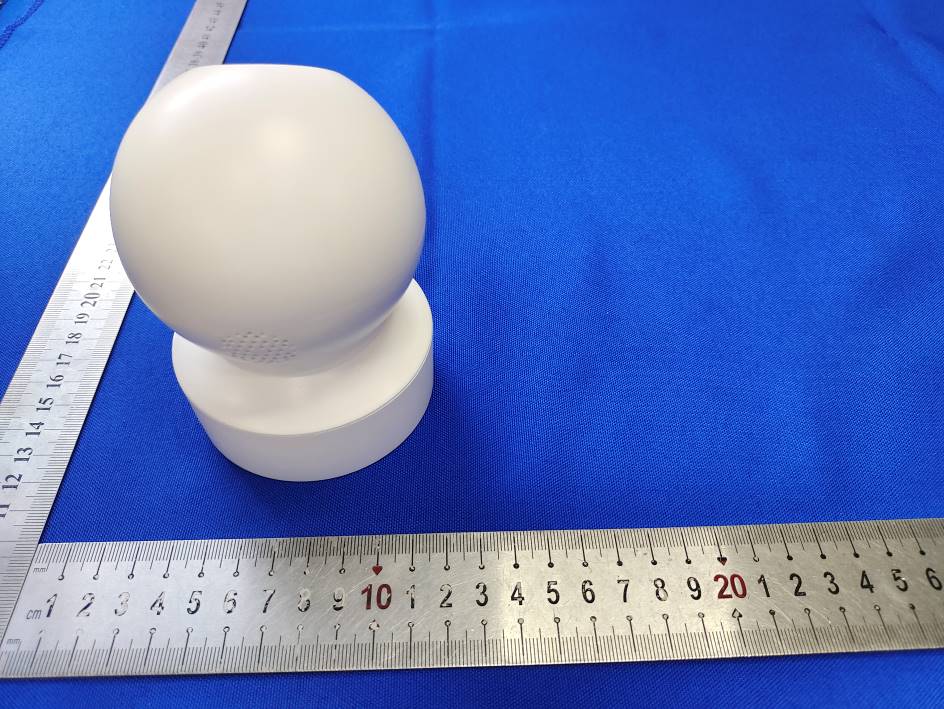

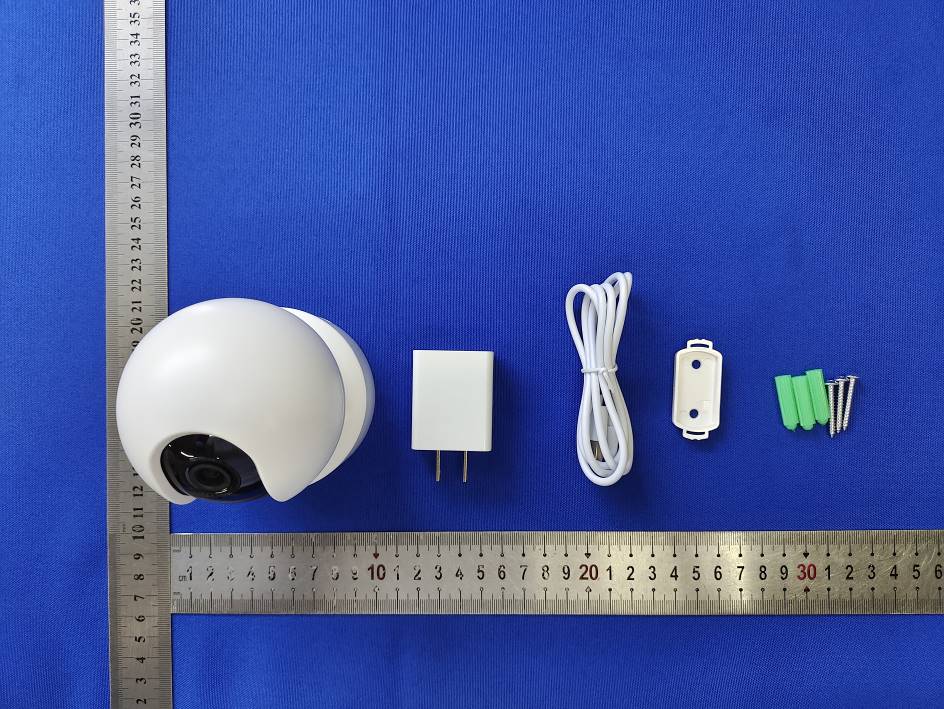

Model: U2 Model: U2 Model: U2 Model: U2

FCC ID LABEL: Label Location: FCC ID: 2A66KU2 Product Name: WIFI CAMERA Model Name: U2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Long: 3cm Width: 2cm

Model: U2 Model: U2 Model: U2 Model: U2 Model: U2 Model: U2 Model: U2 Model: U2 Model: U2 Model: U2 PCB antenna

MPE ESTIMATION FCC ID: 2A66KU2 1. Limit for General Population/Uncontrolled Exposures Frequency Power Density(mW/cm2) Averaging Time(minutes) 300MHz-1.5GHz F/1500 30 1.5GHz-100GHz 1.0 30 Note: F= Frequency in MHz 2. Estimation Result Mode Max PK Output Power(dBm) Tune Up Power(dBm) Max Tune Up Power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 11b 8.79 9±1(10) 10.0 3.0 0.5012 0.000997 11g 8.64 9±1(10) 10.0 3.0 0.5012 0.000997 11n20 8.61 9±1(10) 10.0 3.0 0.5012 0.000997 11n40 8.25 8±1(9) 7.94 3.0 0.5012 0.000792 Note: Note: The estimation distance is 20cm. Note: PK Output power=conducted power. Conducted power see the test report UNIA22052305ER-61, antenna gain=3.0dBi. ------The End------

Page 1 of 81 Report No.: UNIA22052305ER-61 FCC RADIO TEST REPORT FCC ID: 2A66KU2 Sample ： WIFI CAMERA Trade Name ： N/A Main Model ： U2 Additional Model： U1, U3, U5, U6, U7, U8, U9, U10, U11, U12, G1, G2, G3, G5, G6, D1, D2, D3, D5, D6, D7, D8, D9, D10, EH-1080P15, EH-2048P17 Report No.： UNIA22052305ER-61 Prepared for SHENZHEN HARVEST KANG TECHNOLOGY CO., LTD 3/F A BLDG. DANLI INDUSTRIAL PARK NANWAN ST. LONGGANG DIST. SHENZHEN, CHINA Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang Community, Xixiang Str, Bao'an District, Shenzhen, China Page 2 of 81 Report No.: UNIA22052305ER-61 TEST RESULT CERTIFICATION Applicant .............................. : SHENZHEN HARVEST KANG TECHNOLOGY CO., LTD Address ................................. : 3/F A BLDG. DANLI INDUSTRIAL PARK NANWAN ST. LONGGANG DIST. SHENZHEN, CHINA Manufacturer ........................ : SHENZHEN HARVEST KANG TECHNOLOGY CO., LTD Address ................................. : 3/F A BLDG. DANLI INDUSTRIAL PARK NANWAN ST. LONGGANG DIST. SHENZHEN, CHINA Product description Product ....................................... : WIFI CAMERA Trade Name ........................... : N/A Model Name .......................... : U2, U1, U3, U5, U6, U7, U8, U9, U10, U11, U12, G1, G2, G3, G5, G6, D1, D2, D3, D5, D6, D7, D8, D9, D10, EH-1080P15, EH-2048P17 Test Methods ........................ : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : Mar. 23, 2022 ~ Jun. 01, 2022 Date of Issue ........................................... : Jun. 06, 2022 Test Result ............................................... : Pass Prepared by: Jackson Fang/Editor Reviewer: Kahn yang/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 81 Report No.: UNIA22052305ER-61 Table of Contents Page 1 TEST SUMMARY ......................................................................................................................................................... 5 2 GENERAL INFORMATION ............................................................................................................................................ 8 2.1 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.2 CARRIER FREQUENCY OF CHANNELS .............................................................................................................................. 9 2.3 TEST MODE ..................................................................................................................................................................... 9 2.4 TEST SETUP ................................................................................................................................................................... 10 2.5 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL ............................................................................................... 10 2.6 MEASUREMENT INSTRUMENTS LIST ............................................................................................................................ 11 3 CONDUCTED EMISSION ............................................................................................................................................ 12 3.1 TEST LIMIT .................................................................................................................................................................... 12 3.2 TEST SETUP ................................................................................................................................................................... 12 3.3 TEST PROCEDURE ......................................................................................................................................................... 13 3.4 TEST RESULT ................................................................................................................................................................. 13 4 RADIATED EMISSION ................................................................................................................................................ 16 4.1 TEST LIMIT .................................................................................................................................................................... 16 4.2 TEST SETUP ................................................................................................................................................................... 17 4.3 TEST PROCEDURE ......................................................................................................................................................... 18 4.4 TEST RESULT ................................................................................................................................................................. 18 5 OCCUPIED BANDWIDTH ........................................................................................................................................... 41 5.1 TEST LIMIT .................................................................................................................................................................... 41 5.2 TEST PROCEDURE ......................................…

Text truncated - open the document above for the full version.

Model: U2 Radiated Emission test Model: U2 Conducted Emission test
