2A66L-TBGL2017AAndroid MiniPC Box

Abone Sagl
Android MiniPC Box - FCC ID 2A66L-TBGL2017A - Abone Sagl
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Jun 11, 2022
Application Purpose
Original Equipment
Date of Application
Jun 11, 2022
Equipment Note
Android MiniPC Box
Frequency Range
5745.00000000 - 5825.00000000
Company
Abone Sagl
Country
Switzerland

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

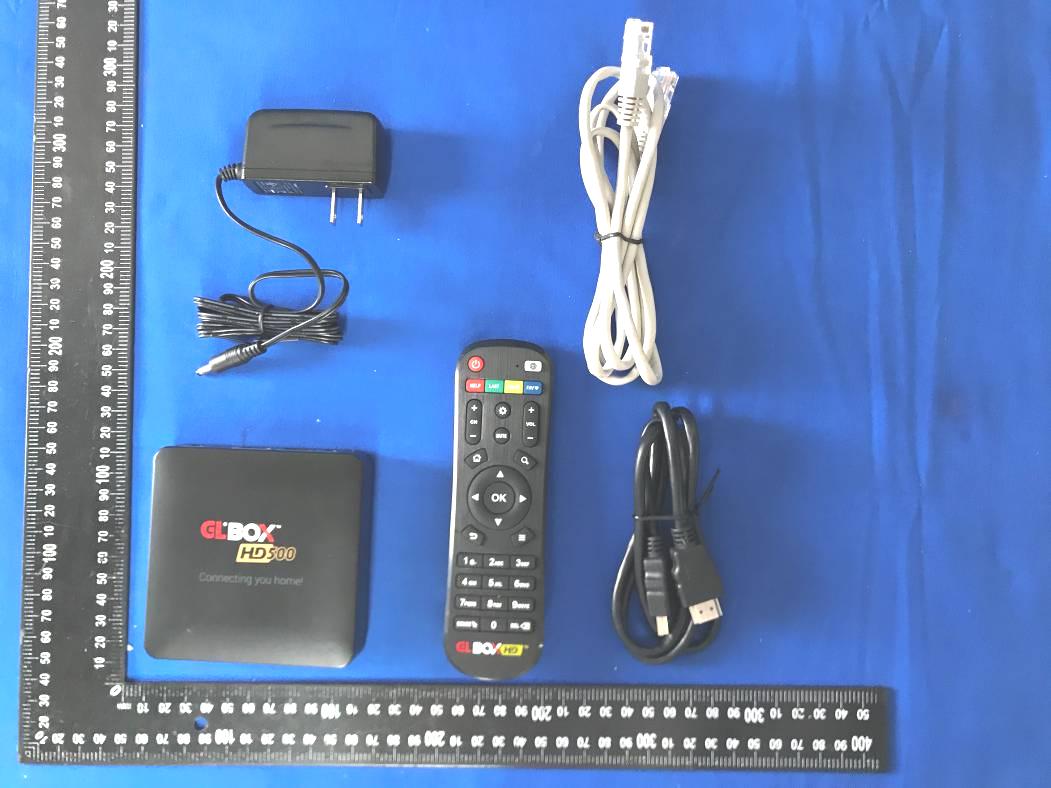

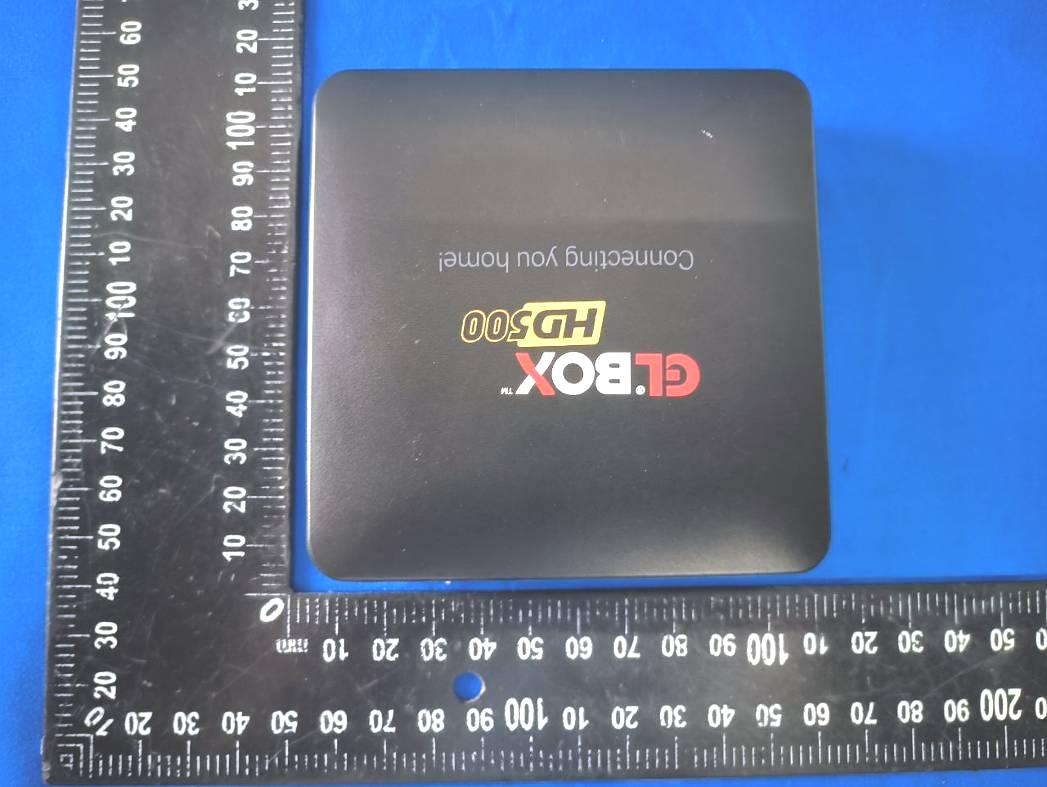

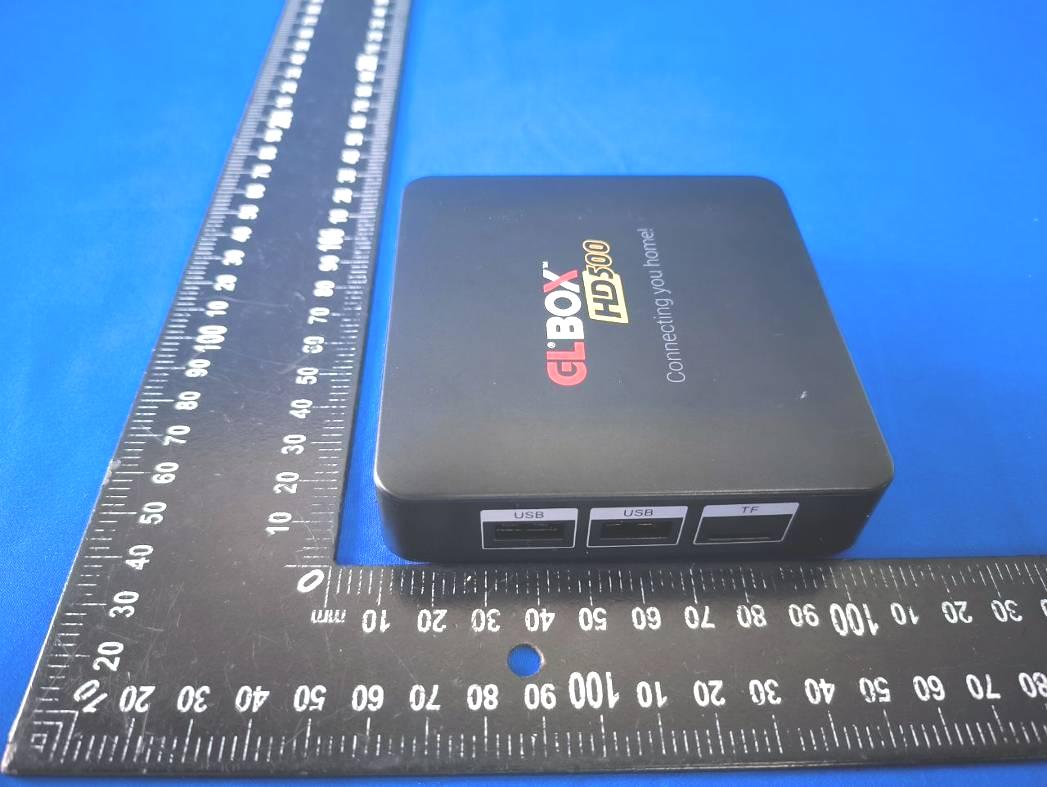

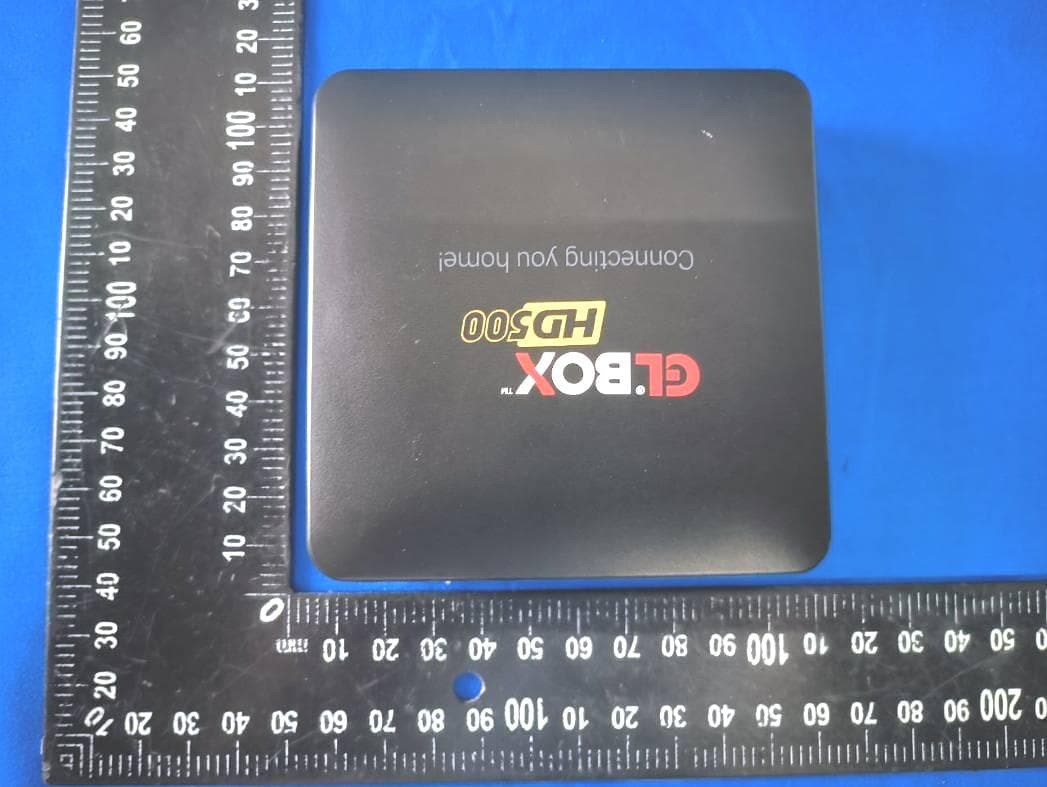

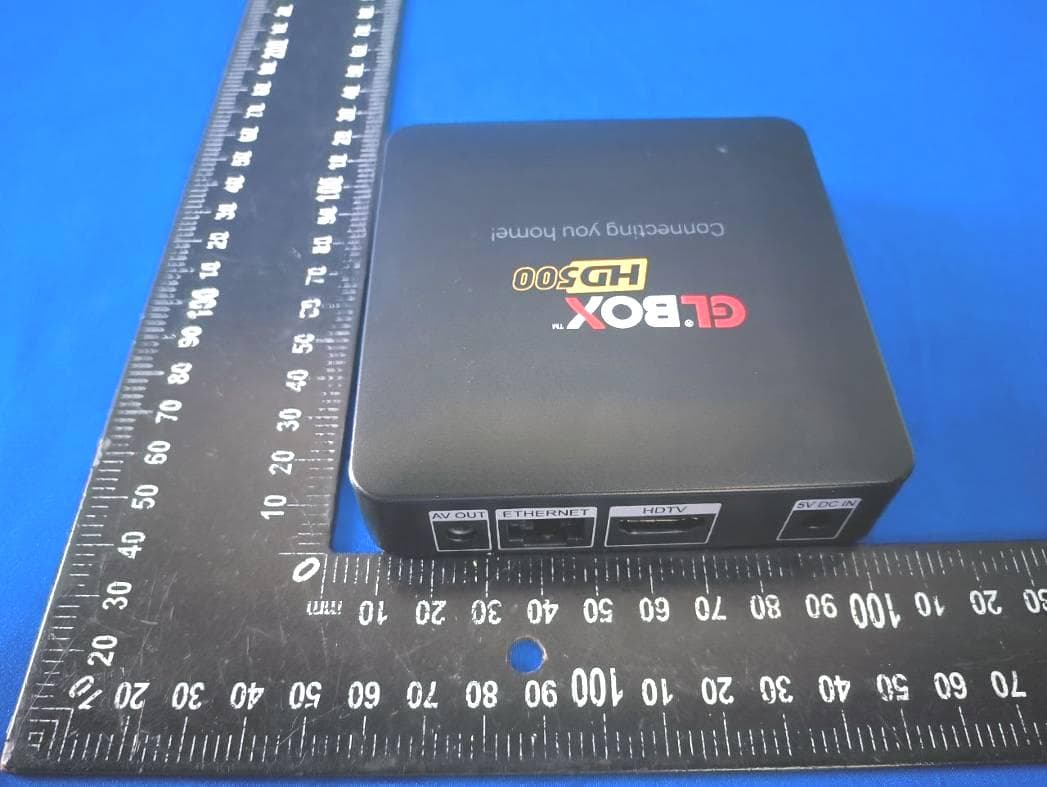

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ЬReorient or relocate the receiving antenna. ЬIncrease the separation between the equipment and receiver. ЬConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ЬConsult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitlyapproved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distancecm between the radiator & your body.

External Photos

FCC ID: 2A66L-TBGL2017A

ID Label/Location Info

5.0*2.0cm Label Location FCC ID: 2A66L-TBGL2017A Android MiniPC Box Model No.: TBGL2017A

Internal Photos

FCC ID: 2A66L-TBGL2017A ANT

RF Exposure Info

RF Exposure evaluation According to 447498 D04 Interim General RF Exposure Guidance v01 1-mW Test Exemption A single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. 1-mW Test Exemption for Multiple Sources The 1-mW exemption intended for single transmitters may be also applied to simultaneous transmission conditions, within the same host device, according one of the following criteria: a) When maximum available power each individual transmitting antenna within the same time averaging period is ≤ 1 mW, and the nearest parts of the antenna structures of the simultaneously operating transmitters are separated by at least 2 cm. b) When the aggregate maximum available power of all transmitting antennas is ≤ 1 mW in the same time-averaging period. This exemption may not be combined with any other exemption. SAR-Based Exemption This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This exemption threshold was derived based on general population 1-g SAR requirements. This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by follow Formulas , , “f” is in GHz, “d” is the separation distance (cm) Simultaneous Transmission with SAR-based Exemptions For these cases, a device with multiple RF sources transmitting simultaneously will be considered an RF exempt device if the condition of following Formula is satisfied. (SAR-Based Exemption) EDR: P th =ERP 20cm *(d/20) -log(60/(ERP20cm*√f) =3060*(20/20) -log(60/(3060*√2.441) =3060mW LE: P th =ERP 20cm *(d/20) -log(60/(ERP20cm*√f) =3060*(20/20) -log(60/(3060*√2.402) =3060mW 2.4G WiFi: P th =ERP 20cm *(d/20) -log(60/(ERP20cm*√f) =3060*(20/20) -log(60/(3060*√2.437) =3060mW 5G WiFi: P th =ERP 20cm *(d/20) -log(60/(ERP20cm*√f) =3060*(20/20) -log(60/(3060*√5.775) =3060mW As this equipment: EIRP = Pm + Gi (if Gi<0, to treat Gi value as 0) Pt=10 (EIRP/10) Where: Pm = measured transmitter output power in dBm, Pt = transmitter output power in milliwatts, Gi = numeric gain of the transmitting antenna (unit-dBi), EDR: Ant gain Gi= 3.55dBi Pm= 8.101dBm So Pt=10 (11.651/10) mW =14.625mW< P th (3060mW) LE: Ant gain Gi= 3.55dBi Pm= 4.157dBm So Pt=10 (7.707/10) mW =5.898mW< P th (3060mW) 2.4G WiFi: Ant gain Gi=3.55dBi Pm=18.279dBm So Pt=10 (21.829/10) mW =152.37mW< P th (3060mW) 5G WiFi: Ant gain Gi=4.44dBi Pm=15.551dBm So Pt=10 (19.991/10) mW =99.793mW< P th (3060mW) MPE = PG / 4πR 2 P = Power input to antenna G = Antenna Gain R = distance to the center of radiation of antenna (in meter) = 0.2m MPE (BT max) = PG/4πR 2= 0.0029 MPE (WIFI max) = PG/4πR 2= 0.0303 Maximum Simultaneous transmission MPE Ratios for BT+WIFI: Max MPE Ratio BT /Limit Max MPE ratio WIFI /Limit ∑MPE ratios Limit Result 0.0029 0.0303 0.0332 1 PASS Then the SAR test is exempted.

Test Report

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. FCC TEST REPORT FCC ID: 2A66L-TBGL2017A On Behalf of abone sagl Android MiniPC Box Model No.: TBGL2017A Prepared for : abone sagl Address : Via Alla Campagna 4, 6900 Lugano Switzerland Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2204065-C01-R10 Date of Receipt : April 25, 2022 Date of Test : April 26, 2022 – May 18, 2022 Date of Report : May 28, 2022 Version Number : V0 Page 2 of 52 Report No.: A2204065-C01-R10 Contents Page 1 TEST SUMMARY ..................................................................................................................................... 5 1.1 MEASUREMENT UNCERTAINTY............................................................................................................. 5 2 GENERAL INFORMATION ...................................................................................................................... 6 2.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 6 2.2 TEST MODE ........................................................................................................................................ 7 2.3 TEST FACILITY .................................................................................................................................... 7 2.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 2.5 DEVIATION FROM STANDARDS ............................................................................................................. 7 2.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................... 7 2.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 2.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 3 TEST INSTRUMENTS LIST ..................................................................................................................... 8 4 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 4.1 ANTENNA REQUIREMENT: .................................................................................................................. 10 4.2 CONDUCTED EMISSIONS ................................................................................................................... 11 4.3 EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH .................................................................... 14 4.4 PEAK TRANSMIT POWER ................................................................................................................... 30 4.5 POWER SPECTRAL DENSITY .............................................................................................................. 32 4.6 BAND EDGE ...................................................................................................................................... 41 4.7 RADIATED EMISSION ......................................................................................................................... 45 4.8 FREQUENCY STABILITY ...................................................................................................................... 52 Page 3 of 52 Report No.: A2204065-C01-R10 TEST REPORT DECLARATION Applicant : abone sagl Address : Via Alla Campagna 4, 6900 Lugano Switzerland Manufacturer : Artway Technology International Co., Ltd. Address : 621-622, B3 Block, NO.168, Baoyuan Road, Xixiang, Bao’an District, SHENZEN, CHINA EUT Description : Android MiniPC Box (A) Model No. : TBGL2017A (B) Trademark : N/A Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart E RSS-247 Issue 2, ANSI C63.4:2014, ANSI C63.10:2013 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart E limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).........: Lucas Pang Project Engineer Approved by (name + signature).......: Simple Guan Project Manager Date of issue...... .......................: May 28, 2022 Page 4 of 52 Report No.: A2204065-C01-R10 Revision History Revision Issue Date Revisions Revised By V0 May 28, 2022 Initial released Issue Lucas Pang Page 5 of 52 Report No.: A2204065-C01-R10 1 Test Summary Test Item Section in CFR 47 Result Antenna requirement Section 15.203 Section 7.1.4 RSS-Gen Issue 5 PASS AC Power Line Conducted Emission Section 15.207 Section 7.2.4 RSS-GEN(8.8), ANSI C63.10 PASS Peak Transmit Power Section 15.407(a), RSS-247 5.4(2) PASS Power Spectral Density Section 15.407(a), RSS-247 5.2(2) PASS Undesirable Emission Section 15.407(b), RSS-247 5.5 PASS Radiated Emission Section 15.407(b)&15.209 Section 5.5 RSS-Gen(8.9), RSS-247(5.5), ANSI C63.10 PASS Band Edge 15.205, RSS-247 Issue 2, ANSI C63.10 PASS Frequency Stability 15.407(f), RSS-GEN(6.11) PASS Remark:1.Pass: The EUT complies with the essential requirements in the standard. …

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: 2A66L-TBGL2017A 1.1. Photo of Radiated emission 1.2. Photo of Conducted Emission test

Contact Information

Applicant

andrea bosio(administrator)
[email protected]3481207532Fax: 00000000000

Test Firm

Shenzhen Alpha Product Testing Co., LTD.Real Yak
[email protected]+86 755 29766001

Technical Specifications

#Rule PartsFrequency RangePower Output
115E5.75 GHz - 5.83 GHz35.90 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This device has 20 MHz, 40 MHz and 80 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
