2A66N-SPARROWPRECISION ANCHOR

INSTRUCTION MANUAL Please keep reading the following safety notes before use or examination. i) Product description. 1. This product is a component that can detect the environment temperature,humidity,atmospheric pressure,etc,and then send the detected information to the server through biuetooth access to the network. 2. Based on DMI-WP-ANC-001;S001CEN0330010;DMANWPWMHWXX,this product adds the infrared sensor and light sensor of human body,as well as the DMIMING dimmer that controls the LED lamp. For example,when someone is detected and the ambient light is dark,the corresponding LED lamp will be adjusted to the corresponding brightness. 3. :FOR INDOOR USE ONLY. 4. This product is used for internal temperature meaurement in office. Ii).Warning. 1. If the device is connected to a voltage beyond a specified range(e.g.380V),it will caused damage to the device. 2. If the equipment is used in a manner not specified by the manufacturer,the protection provided by the equipment may be damaged. ii) Technical parameter. Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Model: DMI-WP-ANC-001;S001CEN0330010;DMANWPWMHWXX Product name: PRECISION ANCHOR Suppliers Name: DMI, LLC Suppliers Address (USA) ：850 White St, Dubuque, IA 52001-7035, US Suppliers internet contact : www.precisionreality.com FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1. Input: 100-277Vac 50/60Hz Black:AC-Live 10A/White:AC-Neutral 0.1A Use ambient temperature 0-40°C ,humidity 10-90%,altiude 2000m,overvoltage grade II,pollution grade III iv)Installation The device is fixed and installed through a 1/2” thread interface.The black and white wires are respectively connected to the fire line and the zero line of the mains power supply.The fire line of the mains power supply shall be equipped with a switch of no less than 10A/25V. v)Operation instruction. The Bluetooth chip detects the ambient temperature and humidity via IC2 or IC4,and then uploading to the server via the Bluetooth network. vi).Equipment mainten ance and service. 1.Check whether the indicator light of the device is on or the Bluetooth is enabled to determine whether the device is working. 2.Maintenance of equipment. If the indicator light of the equipment is not on or the Bluetooth is not working ,the equipment can be powered on again after power off. 3.When something goes worng with the product,if you can’t fix it yourself,send it back. 4.If the product is damaged,please send it back. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Manufacturer name: TEN PAO PRECISION TECHNOLOGY (HUIZHOU) COMPANY LIMITED Address: Block A, 27 Xianghe Avenue, Dongjiang Industrial Zone, Shuikou Street Office, Huicheng District, Huizhou City, Guangdong Province, China

TEN PAO PRECISION ELECTRONICS COMPANY LIMITED Address: RM 610-611 6/F KWONG SANG HONG CENTRE 151-153 HOI BUN RD KWUN TONG KL HONGKONG CHINA Confirmation Letter We, TEN PAO PRECISION ELECTRONICS COMPANY The product: PRECISION ANCHOR And model No.: DMI-WP-ANC-001;S001CEN0330010;DMANWPWMHWXX FCC ID: 2A66N-SPARROW DMI-WP-ANC-001;DMANWPWMHWXX have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with S001CEN0330010.The difference lies only the model number.all these changes do not degrade the unwanted emissions of the certified product. Company name: TEN PAO PRECISION ELECTRONICS COMPANY LIMITED Address ： RM 610-611 6/F KWONG SANG HONG CENTRE 151-153 HOI BUN RD KWUN TONG KL HONGKONG CHINA Contact Name: Joe He Title of Person: Senior engineer Date ： 06/14/2022

TEN PAO PRECISION ELECTRONICS COMPANY LIMITED Date:06/24/2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc . as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company name: TEN PAO PRECISION ELECTRONICS COMPANY LIMITED Address ： RM 610-611 6/F KWONG SANG HONG CENTRE 151-153 HOI BUN RD KWUN TONG KL HONGKONG CHINA Contact Name: Joe He Title of Person: Senior engineer Date ： 06/14/2022

TEN PAO PRECISION ELECTRONICS COMPANY LIMITED Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2A66N-SPARROW § To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR § 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Bom list Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company name: TEN PAO PRECISION ELECTRONICS COMPANY LIMITED Address ： RM 610-611 6/F KWONG SANG HONG CENTRE 151-153 HOI BUN RD KWUN TONG KL HONGKONG CHINA Contact Name: Joe He Title of Person: Senior engineer Date ： 06/14/2022

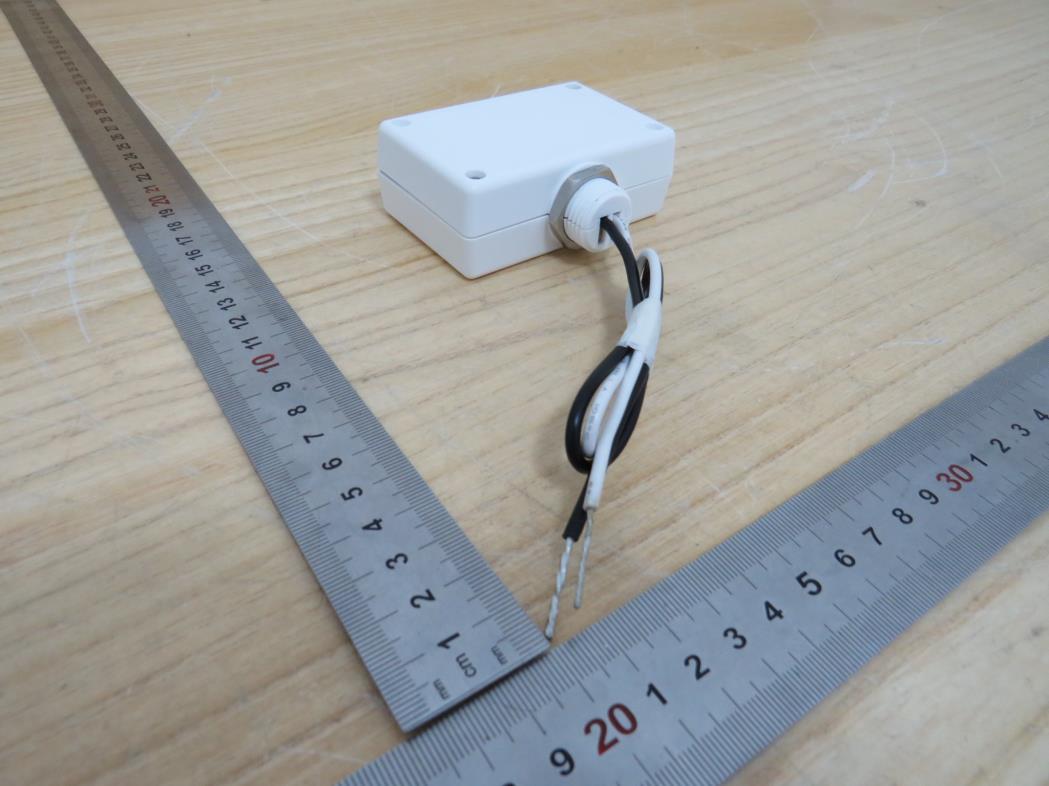

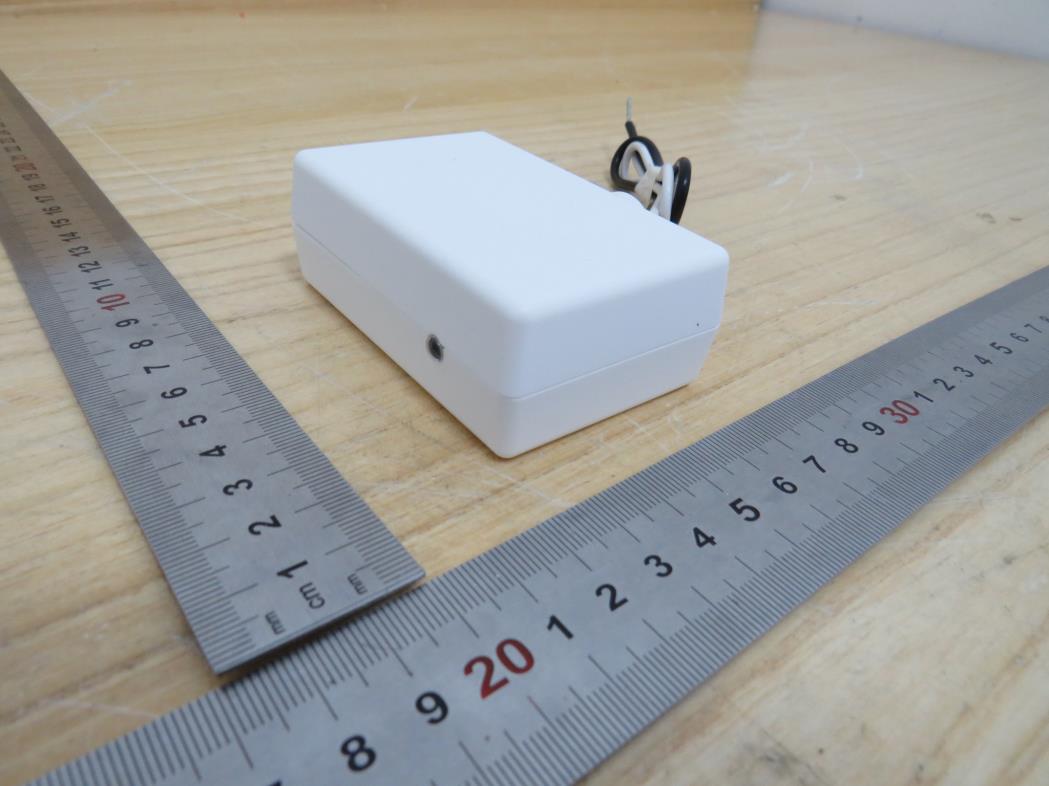

Appendix I External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3

Label： Label location：

Appendix II Internal Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Antenna Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3

FCC ID: 2A66N-SPARROW According to KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1 At 100 MHz to 6 GHz and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] x [√f(GHz)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 2480MHz (min. separation distances = 5 mm) SAR test exclusion thresholds (5 mm) = 3 x 5 / (√ 2.480) = 9.525 mW Max. Tune-up Tolerance (mW) SAR Test Exclusion Thresholds (5mm) (mW) 1 9.525 Calculation Value: 1 (mW) / 5 (mm) x √ 2.480 = 0.31 So, Calculation value ≤ 3.0 Remark: -Max. conducted power 0.316 mW is closet 1 mW, so 1 mW was calculated. -When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C CERTIFICATION TEST REPORT For PRECISION ANCHOR MODEL: DMI-WP-ANC-001, S001CEN0330010, DMANWPWMHWXX FCC ID: 2A66N-SPARROW REPORT NUMBER: 4790420108-5 ISSUE DATE: July 6, 2022 Prepared for TEN PAO PRECISION ELECTRONICS COMPANY LIMITED RM 610-611 6/F KWONG SANG HONG CENTRE 151-153 HOI BUN RD KWUN TONG KL HONGKONG CHINA Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790420108-5 Page 2 of 68 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 07/06/2022 Initial Issue REPORT NO.: 4790420108-5 Page 3 of 68 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a) (2) Pass 2 Peak Conducted Output Power FCC Part 15.247 (b) (3) Pass 3 Power Spectral Density FCC Part 15.247 (e) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 Pass 6 Conducted Emission Test for AC Power Port FCC Part 15.207 Pass 7 Antenna Requirement FCC Part 15.203 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C > when <Accuracy Method> decision rule is applied. REPORT NO.: 4790420108-5 Page 4 of 68 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 8 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. CHANNEL LIST ........................................................................................................... 9 5.3. MAXIMUM PEAK OUTPUT POWER ........................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................10 5.7. DESCRIPTION OF TEST SETUP ...............................................................................11 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................12 7. ANTENNA PORT TEST RESULTS ...................................................................................14 7.1. ON TIME AND DUTY CYCLE .....................................................................................14 7.2. 6 dB DTS BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ..................................15 7.3. CONDUCTED OUTPUT POWER ...............................................................................17 7.4. POWER SPECTRAL DENSITY ..................................................................................18 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................20 8. RADIATED TEST RESULTS .............................................................................................22 8.1. RESTRICTED BANDEDGE ........................................................................................27 8.1.1. BLE_1M MODE ...................................................................................................27 8.2. SPURIOUS EMISSIONS (1 GHz ~ 3 GHz) .................................................................29 8.2.1. BLE_1M MODE ...................................................................................................29 8.3. SPURIOUS EMISSIONS (3 GHz ~ 18 GHz) ...............................................................35 8.3.1. BLE_1M MODE ...................................................................................................35 8.4. SPURIOUS EMISSIONS (18 GHz ~ 26 GHz) .........................................................…

Text truncated - open the document above for the full version.

UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Antenna Gain Test Report Project No.: 4790420108 Client Name： TEN PAO PRECISION ELECTRONICS COMPANY LIMITED Client Address: RM 610-611 6/F KWONG SANG HONG CENTRE 151-153 HOI BUN RD KWUN TONG KL HONGKONG CHINA Product Name： / Manufacture： / Antenna Type： PCB Antenna Size: / Project Engineer： Dean Hua Test Standards： / Test Result： / Issued Date： 2022.7.7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1 Test Equipment Information Equipment Manufacturer Mode No. Serial No. Cal date Cal Due Test Software ETS-Lindgren EMQuest V1.12 1496 / / Network Analyzer Keysight E5071C MY46524531 2021.10.30 2022.10.29 2 Test Temperature and Humidity Temperature: 22.1°C Humidity: 66% UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 3 Test Result Frequency (MHz) Gain (dBi) 2400 -1.79 2410 -1.94 2420 -1.93 2430 -2.14 2440 -2.22 2450 -2.17 2460 -2.00 2470 -1.85 2480 -1.67 2490 -1.42 2500 -1.18 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4 Polarization Pattern Photos Theta Polarization(Theta Angle=90°) Phi Polarization(Theta Angle=90°) UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Total 3D Plot(Fre.2500MHz) UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 5 Photo END OF REPORT

Appendix III Setup Photographs Conducted Disturbance Radiated Disturbance Below 1 GHz and Above 30 MHz Radiated Disturbance Below 30 MHz RADIATED RF MEASUREMENT SETUP (Above 1 GHz – X axis) RADIATED RF MEASUREMENT SETUP (Above 1 GHz – Y axis) RADIATED RF MEASUREMENT SETUP (Above 1 GHz – Z axis)
