2A67L-X9Smart phone

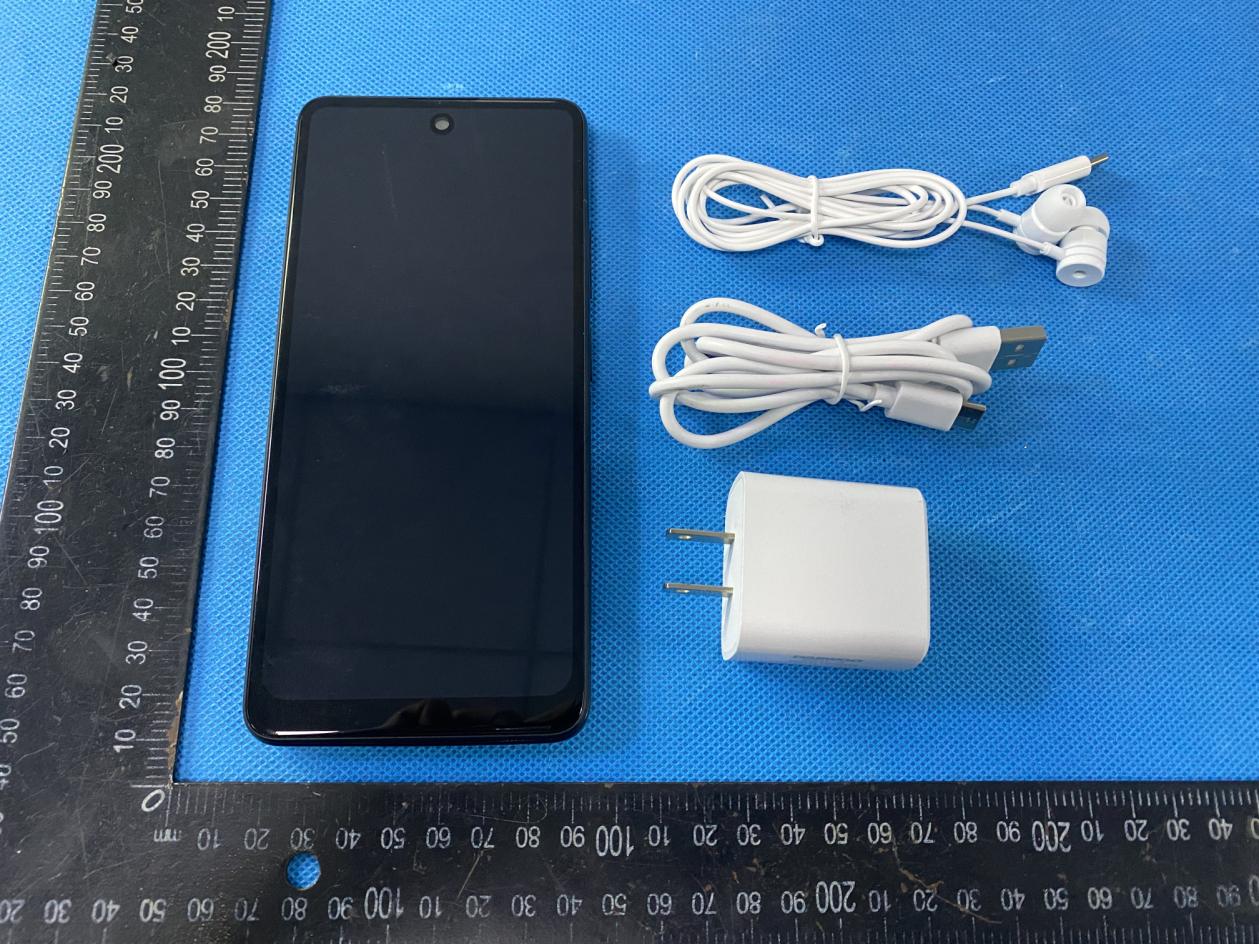

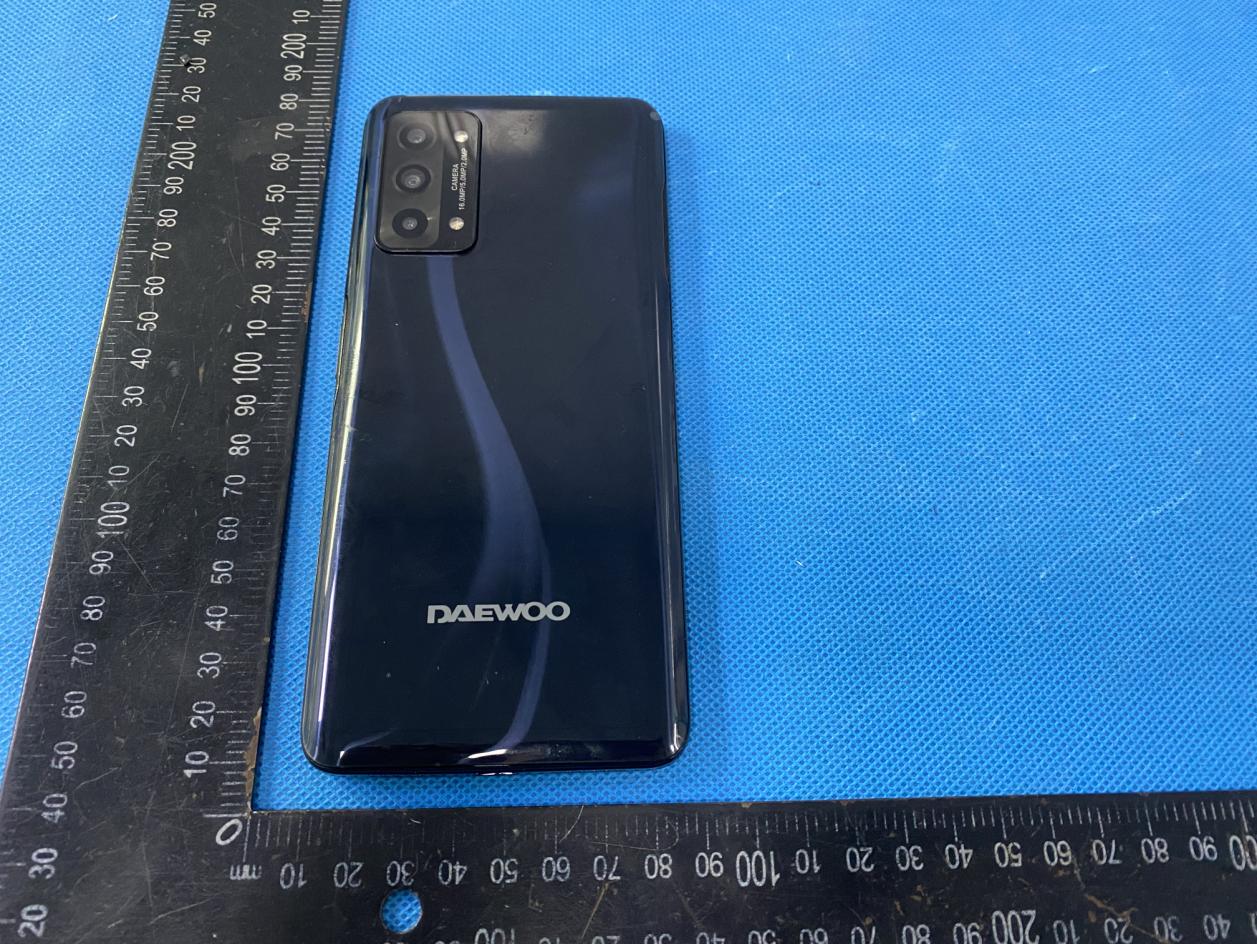

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Photo 9 Photo 10 Photo 11 Photo 12 BT/WIFI/GPS ANT 4G AUX ANT Photo 13 Photo 14 2/3/4G Main ANT Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23

M&M Electronics, S.A. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: X9 FCC ID: 2A67L-X9 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna 1: n/a Type of antenna: FPC Antenna Frequency range & gain: 2402 - 2480 MHz, 1 dBi Model No. of antenna 2: n/a Type of antenna: PIFA Antenna Frequency range & gain: 824 - 850 MHz, 1 dBi Frequency range & gain: 1850 - 1910 MHz, 1 dBi Frequency range & gain: 1717 - 1760 MHz, 1 dBi Frequency range & gain: 2500 - 2155 MHz, 1 dBi Model No. of antenna 3: n/a Type of antenna: FPC Antenna Frequency range & gain: RX only The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: M&M Electronics, S.A. Address: Cocosolito, Building 10Y, Panama City: Panama Colon ZIP / Postal code: 03050 Country: Panama Place: Colon Date: 2022-08-29 Signature:

版本:V1.0版作成日期：2022/8/22 serial number Material codeMaterial nameDescriptionManufacturerPart Numberlocation number 109.9863000000CPUSC9863A;774;FC VFBGA;13X12.6;040;BB;LTESPREADTRUMSC9863AU2100 209.2721G00000PMUPMU,SC2721G;166;FCVFBGA;5.8*6.2;040SpreadTrumSC2721GU0200 309.3550000000DCDCDC2DC;0.6V ~1.23V;5A;WLCSP-20 ETA ETA355DCSUU0301 10.1815708700SAW DPX;SAW DPX;2450MHz;1575MHz;1.6*0.8*0.7mmMURATALFD181G57DPFC087 10.1608060620GPS SAW DPX Multilayer Ceramic Diplexer GPS 1.57 GHz/ISM 2.4 GHz Band 1.6x0.8x0.6 mm3 WalsinRFDIP1608060TS6T20 10.1608060970GPS SAW DPX Multilayer Ceramic Diplexer GPS 1.57 GHz/ISM 2.4 GHz Band 1.6x0.8x0.6 mm3 WALSIN(华新科)RFDIP1608060T97Q1C 510.0202442000WIFI SAW WIFI SAW Filter,Unbalanced,IL=1.2dB,1.45*1.15*0.70mm CETCNDFG020-2442SAU7204 10.0451580000GPS SAW GPS SAW Filter,Unbalanced,1575.42MHz,1.15*0.95*0.65m CETCNDFH045-1580SA 10.3158110900GPS SAW GPS SAW Filter,Unbalanced,1575.42MHz,1.15*0.95*0.65m CETCNDFH003-1580SA 709.0515000000GPS LNAGNSS,LNA,DFN-6L,1.1*0.9*0.45mmAWINICAW5015DNRU7203 809.3692000000BL Driver Series backlight drive,Vfb=0.2V,max=36V,SOT23-6 BROADCHIPBCT3692BEUT-TRU1000 05.4010000000SchottkySchottky Barrier Diode;40V;0.5V/1A;SOD-323PrisemiPSBD3D40V1H 05.0140S00000SchottkySchottky Barrier Diode;40V;0.5V/1A;SOD-323ECOREECDCH0140S 1009.RPM6743310RFPA MMMB Power Amplifier Module;4.0*6.8*0.95mm RDARPM6743-31U0601 1109.RTM7916510RFPARFPA,5.5*5.3*0.8mmRDARTM7916-51U0705 1209.3595D10000TransceiverSR3595D1;123;FCVFBGA;4.5*4.5;035;RF;4GSPREADTRUM SR3595D1 U0600 08.2Z26000002CrystalTSX;26MHZ;+/-10ppm;9pf;2.5*2.0mmFAILONG2Z26000002 08.2502691T02TSXTSX;26MHZ;±10ppm;9.0pF;2.5*2.0*1.0mmTKDSXT25Y026000B91T02 09.1418R00000RF SWITCH 0.1 to 3.0 GHz SP8T Antenna Switch Small QFN (14-pin,2.0*2.0*0.58mm) CanaanTek CAN1418R 09.1418000000RF SWITCH 0.1 to 3.0 GHz SP8T Antenna Switch Small QFN (14-pin,2.0*2.0*0.58mm) CanaanTek CAN1418 09.5708SQ0000RF SWITCH 0.1 to 3.0 GHz SP8T Antenna Switch Small QFN (14-pin,2.0*2.0*0.58mm) LansusNZ5708SQTR1 1509.646EWX0000MIPI SWITCH 4-Data Lane MIPI Switch;4.5Gbps;VCC:1.5V to 5V;WLCSP-36L BROADCHIP(广芯) BCT646EWX-TRU5101 16 09.4321000000 音频&USB切换开关 USB2.0 Hi-Speed and Audio Switches,VCC Operating Range: 2.7V to 5.0V,-3dB Bandwidth: 720MHz(USB Mode),8.5-ohm at VCC = 3.6 V BROADCHIP(广芯) BCT4321NETB-TRU6201 1709.3798000000 电压检测 Audio Headset Analog Switch, Input Voltage Range: 2.6V to 5.0V, WLCSP-1.2×1.2-9B SGMICROSGM3798YG/TR U6202 1805.7232010000Digital Transistor P-MOSFET;-20V;-800mA;150mW;Vgs=- 0.5V;SOT-723 PrisemiPPM723T201E0Q1600 05.7237030200.1Digital TransistorN-MOSFET;20V 180mA SOT-723;1.2*1.2*0.8MMPrisemiPNM723T201E0 05.7237030200.2Digital TransistorN-MOSFET;20V 180mA SOT-723;1.2*1.2*0.8MMPrisemiPNM723T30V01 U7200 U7202 D1000 X0600 U0812 Q1602 4 6 9 13 14 19 第1页，共24页 版本:V1.0版作成日期：2022/8/22 09.63AD351232.RA0B eMMC+LPDDR364GB/32Gb,LPDDR3,eMMC 5.1,1866Mbps,11.5mm*13.0mm*1.2mm,0.5mm,221FBGASK HynixH9TQ52ACLTMCUR-KUM 09.63AD351232.RA5B eMMC+LPDDR364GB/32Gb,LPDDR3,eMMC 5.1,1866Mbps,11.5mm*13.0mm*1.2mm,0.5mm,221FBGASK HynixH9TQ53ACLTMCUR-KUM 09.63AD351232.RA1B eMMC+LPDDR364GB/32Gb,LPDDR3,eMMC 5.1,1866Mbps,11.5mm*13.0mm*1.2mm,0.5mm,221FBGASAMSUNGKMRH60014A-B614 09.63AD351232.RA2B eMMC+LPDDR364GB/32Gb,LPDDR3,eMMC 5.1,1866Mbps,11.5mm*13.0mm*1.2mm,0.5mm,221FBGASAMSUNGKMRH60014M-B614 09.63AD351232.RA3B eMMC+LPDDR364GB/32Gb,LPDDR3,eMMC 5.1,1866Mbps,11.5mm*13.0mm*1.2mm,0.5mm,221FBGASAMSUNGKMRP60014M-B614 09.63AD351232.RA4B eMMC+LPDDR364GB/32Gb,LPDDR3,eMMC 5.1,1866Mbps,11.5mm*13.0mm*1.2mm,0.5mm,221FBGASAMSUNGKMRC10014M-B809 01.0310663020CapacitorCAP,X5R,10uF,±20%,6.3V,0603SAMSUNGCL10A106MQ8NNNC 01.0310663020.1CapacitorCAP,X5R,10uF,±20%,6.3V,0603DAKAID0603X5R106M6R3NT 01.0310663020.2CapacitorCAP,X5R,10uF,±20%,6.3V,0603EyangC0603X5R106M6R3NTD 01.0310663020.3CapacitorCAP,X5R,10uF,±20%,6.3V,0603MURATAGRM188R60J106ME47D 01.0310663020.4CapacitorCAP,X5R,10uF,±20%,6.3V,0603TAIYOJMK107BJ106MA-T 01.0222563020CapacitorCAP,X5R,2.2uF,±20%,6.3V,0402SAMSUNGCL05A225MQ5NNNC 01.0222563020.1CapacitorCAP,X5R,2.2uF,±20%,6.3V,0402EyangC0402X5R225M6R3NTB 01.0222563020.2CapacitorCAP,X5R,2.2uF,±20%,6.3V,0402MURATAGRM155R60J225ME15D 01.0110563020CapacitorCAP,X5R,1uF,±20%,6.3V,0201EyangC0201X5R105M6R3NTX 01.0110563020.1CapacitorCAP,X5R,1uF,±20%,6.3V,0201SAMSUNGCL03A105MQ3CSN 01.0110563020.2CapacitorCAP,X5R,1uF,±20%,6.3V,0201MURATAGRM033R60J105MEA2J 01.0110563020.3CapacitorCAP,X5R,1uF,±20%,6.3V,0201KY0CERACM03X5R105M06AH 01.0110563020.4CapacitorCAP,X5R,1uF,±20%,6.3V,0201TAIYOJMK063ABJ105MP-F 01.0110463010CapacitorCAP,X5R,100nF,±10%,6.3V,0201EyangC0201X5R104K6R3NTA 01.0110463010.1CapacitorCAP,X5R,100nF,±10%,6.3V,0201FENGHUA0201X104K6R3NT 01.0110463010.2CapacitorCAP,X5R,100nF,±10%,6.3V,0201MURATAGRM033R60J104KE19D C0506 C0507 C0513 C0021 C0518 C0504 C0502 C0503 C0508 C0022 C0520 U0500 C0516 C0505 20 21 22 23 24 第2页，共24页 版本:V1.0版作成日期：2022/8/22 01.0110463010.3CapacitorCAP,X5R,100nF,±10%,6.3V,0201SAMSUNGCL03A104KQ3NNNC 01.0110463010.4CapacitorCAP,X5R,100nF,±10%,6.3V,0201VIIYONGV104K0201X5R6R3NAT 02.0124120001ResistorRES,240Ω±1%,1/20W,0201UniOhm0201F2400TCE 02.0124120001.1ResistorRES,240Ω±1%,1/20W,0201YageoRC0201FR-07240RL 02.0124120001.2ResistorRES,240Ω±1%,1/20W,0201RalecRR0603(0201)L2400FT 02.0124120001.3ResistorRES,240Ω±1%,1/20W,0201FENGHUARC-01W2410FT 02.0100020005ResistorRES,0Ω±5%,1/20W,0201UniOhm0201J0000TCE 02.0100020005.1ResistorRES,0Ω±5%,1/20W,0201YageoRC0201JR-070RL 02.0100020005.2ResistorRES,0Ω±5%,1/20W,0201RalecRR0603(0201)L0ROJT 02.0100020005.3ResistorRES,0Ω±5%,1/20W,0201FENGHUARC-01W000JT 02.0200016005ResistorRES,0Ω±5%,1/16W,0402UniOhm0402J0000TCE 02.0200016005.1ResistorRES,0Ω±5%,1/16W,0402YageoRC0402JR-070RL 02.0200016005.2ResistorRES,0Ω±5%,1/16W,0402RalecRR1005(0402)L0ROJT 02.0200016005.3ResistorRES,0Ω±5%,1/16W,0402FENGHUARC-02000JT 01.0322610020CapacitorCAP,X5R,22uF,±20%,10V,0603YageoCC0603MRX5R6BB226 01.0322610020.1CapacitorCAP,X5R,22uF,±20%,10V,0603MURATAGRM188R61A226ME15D 01.0322610020.2CapacitorCAP,X5R,22uF,±20%,10V,0603SAMSUNGCL10A226MP8NNNC 01.0310663020Ca…

Text truncated - open the document above for the full version.

M&M Electronics, S.A. Tune-up (dBm) procedure This is to formally certify that: The tune up procedures of Smart phone (FCC ID: 2A67L-X9) The tune up procedures of is not open to end user. The end user is not allowed to perform final tune. All the power and frequency set up were finished at the manufacturer stage. Tune up procedure shall be over the power range or at specific operating power levels. Procedure: 1. Set the phone to operational voltage and on one certain channel in a special service mode by means of company proprietary software. 2. The actual power is measured at several power levels. 3. The gain factors of each individual phone are adjusted via the Board-test SW using automatic adjustment arithmetic until the Tune-up Range (dBm) value is met. It must provide an operational voltage (DC 3.87V by battery) to turn on the device and on one certain channel in service mode by means of company proprietary software. spectrum analyzer(Agilent, N9020A) and Power meter (DARE, RPR3006W)measures the 2.4G/5G device specific RF characteristics. Base station simulator (R&S CMW500) measures the 2G/3G/4G device specific RF characteristics. The maximum power of each individual channels are adjusted until the target value met. Band GSM850 Burst-Averaged output Power (dBm) Frame-Averaged output Power (dBm) Tx Channel Tune- up (dBm) 128 189 251 Tune- up (dBm) 128 189 251 Frequency (MHz) 824.2 836.4 848.8 824.2 836.4 848.8 GSM (GMSK) 33.00 32.42 32.63 32.53 23.97 23.39 23.60 23.50 GPRS(GMSK,1 Tx slot) 33.00 32.45 32.65 32.54 23.97 23.42 23.62 23.51 GPRS(GMSK,2 Tx slot) 31.00 30.49 30.55 30.36 24.98 24.47 24.53 24.34 GPRS(GMSK,3 Tx slot) 29.00 28.56 28.60 28.41 24.74 24.30 24.34 24.15 GPRS(GMSK,4 Tx slot) 26.50 26.37 26.41 26.26 23.49 23.36 23.40 23.25 EGPRS(8PSK,1 Tx slot) 25.50 25.23 25.25 25.36 16.47 16.20 16.22 16.33 EGPRS(8PSK,2 Tx slot) 24.50 24.15 24.40 23.65 18.48 18.13 18.38 17.63 EGPRS(8PSK,3 Tx slot) 22.50 21.37 22.12 21.69 18.24 17.11 17.86 17.43 EGPRS(8PSK,4 Tx 20.00 18.98 19.70 18.98 16.99 15.97 16.69 15.97 slot) Band GSM1900 Burst-Averaged output Power (dBm) Frame-Averaged output Power (dBm) Tx Channel Tune- up (dBm) 512 661 810 Tune- up (dBm) 512 661 810 Frequency (MHz) 1850.2 1880.0 1909.8 1850.2 1880.0 1909.8 GSM (GMSK) 30.00 29.74 29.79 29.67 20.97 20.71 20.76 20.64 GPRS(GMSK,1 Tx slot) 30.00 29.73 29.77 29.67 20.97 20.70 20.74 20.64 GPRS(GMSK,2 Tx slot) 28.00 27.70 27.52 27.27 21.98 21.68 21.50 21.25 GPRS(GMSK,3 Tx slot) 26.50 26.14 25.95 25.70 22.24 21.88 21.69 21.44 GPRS(GMSK,4 Tx slot) 24.50 24.05 23.86 23.63 21.49 21.04 20.85 20.62 EGPRS(8PSK,1 Tx slot) 25.50 24.66 25.48 24.21 16.47 15.63 16.45 15.18 EGPRS(8PSK,2 Tx slot) 23.50 22.85 23.28 22.66 17.48 16.83 17.26 16.64 EGPRS(8PSK,3 Tx slot) 21.00 19.99 20.82 19.92 16.74 15.73 16.56 15.66 EGPRS(8PSK,4 Tx slot) 17.50 16.65 17.02 16.31 14.49 13.64 14.01 13.30 Note: The frame-averaged power is linearly scaled the maximum burst averaged power over 8 time slots. The calculated method are shown as below: Frame-averaged power = Maximum burst averaged power (1 TS) - 9.03 dB Frame-averaged power = Maximum burst averaged power (2 TS) - 6.02 dB Frame-averaged power = Maximum burst averaged power (3 TS) - 4.26 dB Frame-averaged power = Maximum burst averaged power (4 TS) - 3.01 dB Band WCDMA Band 2 Tx Channel Tune-up 9262 9400 9538 Frequency (MHz) 1852.4 1880 1907.6 RMC 12.2Kbps 23.00 22.82 22.91 22.86 HSDPA Subtest-1 23.00 22.59 22.39 22.28 HSDPA Subtest-2 22.50 22.20 22.18 21.86 HSDPA Subtest-3 22.50 22.03 21.85 21.69 HSDPA Subtest-4 22.00 21.66 21.40 21.34 HSUPA Subtest-1 22.50 22.41 22.31 22.00 HSUPA Subtest-2 22.50 22.46 22.43 22.22 HSUPA Subtest-3 22.00 21.92 21.93 21.67 HSUPA Subtest-4 22.50 22.44 22.37 22.23 HSUPA Subtest-5 22.50 22.28 22.25 22.12 Band WCDMA Band 5 Tx Channel Tune-up 4132 4182 4233 Frequency (MHz) 826.4 836.4 846.6 RMC12.2K 23.00 22.66 22.49 22.43 HSDPA Sub 1 22.50 22.11 21.93 22.05 HSDPA Sub 2 22.00 21.58 21.81 21.89 HSDPA Sub 3 22.00 21.58 21.56 21.49 HSDPA Sub 4 21.50 21.21 21.39 21.24 HSUPA Sub 1 22.00 21.96 21.65 22.00 HSUPA Sub 2 22.50 22.12 21.87 22.01 HSUPA Sub 3 22.00 21.93 21.58 21.87 HSUPA Sub 4 22.50 22.00 21.89 22.07 HSUPA Sub 5 22.00 21.89 21.87 21.92 Band Band Width Modulation RB Configuration Tune- up Channel/Frequency(MHz) RB Size RB Offset 19957/1710.7 20175/1732.5 20393/1754.3 LTE Band 4 1.4MHz QPSK 1 0 23.50 22.95 22.82 23.07 1 2 23.50 22.97 22.93 23.01 1 5 23.50 22.89 22.95 23.09 3 0 23.00 22.83 22.89 22.90 3 1 23.00 22.90 22.93 22.86 3 2 23.00 22.85 22.85 22.90 6 0 22.00 21.87 21.92 21.88 16QAM 1 0 23.00 22.86 21.97 22.40 1 2 23.00 22.96 22.11 22.43 1 5 23.00 22.97 22.04 22.48 3 0 22.50 22.15 22.01 22.30 3 1 22.50 22.05 21.98 22.23 3 2 22.50 22.09 22.02 22.20 6 0 21.50 20.97 21.28 21.08 Band Band Width Modulation RB Configuration Tune- up Channel/Frequency(MHz) RB Size RB Offset 19965/1711.5 20175/1732.5 20385/1753.5 LTE Band 4 3MHz QPSK 1 0 23.50 22.83 22.87 23.07 1 7 23.50 22.85 22.93 23.09 1 14 23.50 22.84 22.88 23.02 8 0 22.00 21.78 21.90 21.83 8 4 22.00 21.87 21.93 21.87 8 7 22.00 21.91 21.97 21.84 15 0 22.50 21.83 22.01 21.84 16QAM 1 0 23.50 23.03 22.59 22.49 1 7 23.50 23.03 22.68 22.47 1 14 23.50 22.98 22.67 22.32 8 0 21.50 20.85 21.23 20.97 8 4 21.50 20.87 21.33 21.03 8 7 21.50 20.90 21.37 20.98 15 0 21.50 21.06 21.06 20.97 Band Band Width Modulation RB Configuration Tune- up Channel/Frequency(MHz) RB Size RB Offset 19975/1712.5 20175/1732.5 20375/1752.5 LTE Band 4 5MHz QPSK 1 0 23.50 22.81 22.92 22.91 1 12 23.50 22.81 22.91 22.83 1 24 23.50 22.80 22.88 22.92 12 0 22.00 21.92 21.95 21.81 12 6 22.00 21.85 21.94 21.84 12 11 22.00 21.85 21.98 21.92 25 0 22.00 21.80 21.92 21.81 16QAM 1 0 22.50 22.44 22.11 21.58 1 12 22.50 22.48 22.20 21.59 1 24 22.50 22.49 22.13 21.60 12 0 21.00 20.91 20.98 20.81 12 6 21.00 21.00 20.99 20.84 12 11 21.00 20.98 20.93 20.81 25 0 21.50 21.09 21.08 21.04 Band Band Width Modulation RB Configuration Tune- up Channel/Frequency(MHz) RB Size RB Offset 20000/1715 2…

Text truncated - open the document above for the full version.

Page 1 of 155 Report No.: STR220711002006E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： smartphone Trademark： Daewoo Model Name： X9 Family Model： N/A Report No.： STR220711002006E FCC ID： 2A67L-X9 Prepared for M&M Electronics, S.A. Cocosolito, Building 10Y, Colon, Panama. Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel.: 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 155 Report No.: STR220711002006E TEST RESULT CERTIFICATION Applicant’s name .................. : M&M Electronics, S.A. Address .................................. : Cocosolito, Building 10Y, Colon, Panama. Manufacturer's Name ........... : Hongkong Lesia Technology CO., Ltd Address .................................. : UNIT 04 7/F BRIGHT WAY TOWER NO.33 MONG KOK ROAD KOWLOON Product description Product name ......................... : smartphone Trademark ............................ : Daewoo Model Name ......................... : X9 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992;IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number T220711002R002 Date of Test Date (s) of performance of tests ............. : Jul. 18, 2022 ~ Jul. 27, 2022 Date of Issue ........................................... : Jul. 29, 2022 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 155 Report No.: STR220711002006E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jul. 29, 2022 Jacob Chen Page 4 of 155 Report No.: STR220711002006E TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Positions ........................................................................................ 26 6.1. Ear and handset reference point ......................…

Text truncated - open the document above for the full version.

Page 101 of 155 Report No.: STR220711002006E Page 102 of 155 Report No.: STR220711002006E Page 103 of 155 Report No.: STR220711002006E Page 104 of 155 Report No.: STR220711002006E Page 105 of 155 Report No.: STR220711002006E Page 106 of 155 Report No.: STR220711002006E Page 107 of 155 Report No.: STR220711002006E Page 108 of 155 Report No.: STR220711002006E Page 109 of 155 Report No.: STR220711002006E Page 110 of 155 Report No.: STR220711002006E Page 111 of 155 Report No.: STR220711002006E Page 112 of 155 Report No.: STR220711002006E Page 113 of 155 Report No.: STR220711002006E Page 114 of 155 Report No.: STR220711002006E Page 115 of 155 Report No.: STR220711002006E Page 116 of 155 Report No.: STR220711002006E Page 117 of 155 Report No.: STR220711002006E Page 118 of 155 Report No.: STR220711002006E Page 119 of 155 Report No.: STR220711002006E Page 120 of 155 Report No.: STR220711002006E Page 121 of 155 Report No.: STR220711002006E Page 122 of 155 Report No.: STR220711002006E Page 123 of 155 Report No.: STR220711002006E Page 124 of 155 Report No.: STR220711002006E Page 125 of 155 Report No.: STR220711002006E Page 126 of 155 Report No.: STR220711002006E Page 127 of 155 Report No.: STR220711002006E Page 128 of 155 Report No.: STR220711002006E Page 129 of 155 Report No.: STR220711002006E Page 130 of 155 Report No.: STR220711002006E Page 131 of 155 Report No.: STR220711002006E Page 132 of 155 Report No.: STR220711002006E Page 133 of 155 Report No.: STR220711002006E Page 134 of 155 Report No.: STR220711002006E Page 135 of 155 Report No.: STR220711002006E Page 136 of 155 Report No.: STR220711002006E Page 137 of 155 Report No.: STR220711002006E Page 138 of 155 Report No.: STR220711002006E Page 139 of 155 Report No.: STR220711002006E Page 140 of 155 Report No.: STR220711002006E Page 141 of 155 Report No.: STR220711002006E Page 142 of 155 Report No.: STR220711002006E Page 143 of 155 Report No.: STR220711002006E Page 144 of 155 Report No.: STR220711002006E Page 145 of 155 Report No.: STR220711002006E Page 146 of 155 Report No.: STR220711002006E Page 147 of 155 Report No.: STR220711002006E Page 148 of 155 Report No.: STR220711002006E Page 149 of 155 Report No.: STR220711002006E Page 150 of 155 Report No.: STR220711002006E

Report No.: STR220711002004E 1 / 47 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 24.66 PASS EGPRS1900 1 Slot 661 1880 25.48 PASS EGPRS1900 1 Slot 810 1909.8 24.21 PASS EGPRS1900 2 Slot 512 1850.2 22.85 PASS EGPRS1900 2 Slot 661 1880 23.28 PASS EGPRS1900 2 Slot 810 1909.8 22.66 PASS EGPRS1900 3 Slot 512 1850.2 19.99 PASS EGPRS1900 3 Slot 661 1880 20.82 PASS EGPRS1900 3 Slot 810 1909.8 19.92 PASS EGPRS1900 4 Slot 512 1850.2 16.65 PASS EGPRS1900 4 Slot 661 1880 17.02 PASS EGPRS1900 4 Slot 810 1909.8 16.31 PASS EGPRS850 1 Slot 128 824.2 25.23 PASS EGPRS850 1 Slot 189 836.4 25.25 PASS EGPRS850 1 Slot 251 848.8 25.36 PASS EGPRS850 2 Slot 128 824.2 24.15 PASS EGPRS850 2 Slot 189 836.4 24.40 PASS EGPRS850 2 Slot 251 848.8 23.65 PASS EGPRS850 3 Slot 128 824.2 21.37 PASS EGPRS850 3 Slot 189 836.4 22.12 PASS EGPRS850 3 Slot 251 848.8 21.69 PASS EGPRS850 4 Slot 128 824.2 18.98 PASS EGPRS850 4 Slot 189 836.4 19.70 PASS EGPRS850 4 Slot 251 848.8 18.98 PASS Report No.: STR220711002004E 2 / 47 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 8.94696325 13.00 PASS EGPRS1900 661 1880 8.289291339 13.00 PASS EGPRS1900 810 1909.8 8.653531915 13.00 PASS EGPRS850 128 824.2 10.91548961 13.00 PASS EGPRS850 189 836.4 8.995788835 13.00 PASS EGPRS850 251 848.8 10.29877373 13.00 PASS EGPRS1900 Channel=512 Report No.: STR220711002004E 3 / 47 EGPRS1900 Channel=661 EGPRS1900 Channel=810 Report No.: STR220711002004E 4 / 47 EGPRS850 Channel=128 EGPRS850 Channel=189 Report No.: STR220711002004E 5 / 47 EGPRS850 Channel=251 Report No.: STR220711002004E 6 / 47 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 256.083 322.190 PASS EGPRS1900 661 1880 249.186 321.602 PASS EGPRS1900 810 1909.8 240.214 289.765 PASS EGPRS850 128 824.2 253.913 304.955 PASS EGPRS850 189 836.4 258.352 313.777 PASS EGPRS850 251 848.8 246.277 301.903 PASS EGPRS1900 Channel=661 EGPRS1900 Channel=512 Report No.: STR220711002004E 7 / 47 EGPRS1900 Channel=810 EGPRS850 Channel=189 Report No.: STR220711002004E 8 / 47 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: STR220711002004E 9 / 47 Report No.: STR220711002004E 10 / 47 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.99 -38.09 -13 PASS EGPRS1900 810 1909.8 1910.01 -37.59 -13 PASS EGPRS850 128 824.2 823.99 -36.21 -13 PASS EGPRS850 251 848.8 849.00 -38.38 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: STR220711002004E 11 / 47 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: STR220711002004E 12 / 47 Report No.: STR220711002004E 13 / 47 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 25520.61 -18.23 -13 PASS EGPRS1900 661 1880 25948.76 -18.26 -13 PASS EGPRS1900 810 1909.8 25488.18 -18.30 -13 PASS EGPRS850 128 824.2 26032.14 -19.56 -13 PASS EGPRS850 189 836.4 25969.28 -20.22 -13 PASS EGPRS850 251 848.8 25992.44 -19.92 -13 PASS EGPRS1900 Channel=661 EGPRS1900 Channel=512 Report No.: STR220711002004E 14 / 47 EGPRS1900 Channel=810 EGPRS850 Channel=189 Report No.: STR220711002004E 15 / 47 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: STR220711002004E 16 / 47 Report No.: STR220711002004E 17 / 47 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 29.73 PASS GPRS1900 1 Slot 661 1880 29.77 PASS GPRS1900 1 Slot 810 1909.8 29.67 PASS GPRS1900 2 Slot 512 1850.2 27.70 PASS GPRS1900 2 Slot 661 1880 27.52 PASS GPRS1900 2 Slot 810 1909.8 27.27 PASS GPRS1900 3 Slot 512 1850.2 26.14 PASS GPRS1900 3 Slot 661 1880 25.95 PASS GPRS1900 3 Slot 810 1909.8 25.70 PASS GPRS1900 4 Slot 512 1850.2 24.05 PASS GPRS1900 4 Slot 661 1880 23.86 PASS GPRS1900 4 Slot 810 1909.8 23.63 PASS GPRS850 1 Slot 128 824.2 32.45 PASS GPRS850 1 Slot 189 836.4 32.65 PASS GPRS850 1 Slot 251 848.8 32.54 PASS GPRS850 2 Slot 128 824.2 30.49 PASS GPRS850 2 Slot 189 836.4 30.55 PASS GPRS850 2 Slot 251 848.8 30.36 PASS GPRS850 3 Slot 128 824.2 28.56 PASS GPRS850 3 Slot 189 836.4 28.60 PASS GPRS850 3 Slot 251 848.8 28.41 PASS GPRS850 4 Slot 128 824.2 26.37 PASS GPRS850 4 Slot 189 836.4 26.41 PASS GPRS850 4 Slot 251 848.8 26.26 PASS Report No.: STR220711002004E 18 / 47 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.696974991 13.00 PASS GPRS1900 661 1880 2.691294964 13.00 PASS GPRS1900 810 1909.8 2.745379344 13.00 PASS GPRS850 128 824.2 2.705427964 13.00 PASS GPRS850 189 836.4 2.679342813 13.00 PASS GPRS850 251 848.8 2.697589019 13.00 PASS GPRS1900 Channel=512 GPRS1900 Channel=661 Report No.: STR220711002004E 19 / 47 GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: STR220711002004E 20 / 47 GPRS850 Channel=189 GPRS850 Channel=251 Report No.: STR220711002004E 21 / 47 Report No.: STR220711002004E 22 / 47 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 246.580 313.354 PASS GPRS1900 661 1880 238.504 309.609 PASS GPRS1900 810 1909.8 249.408 320.727 PASS GPRS850 128 824.2 246.057 313.776 PASS GPRS850 189 836.4 249.666 321.477 PASS GPRS850 251 848.8 248.063 315.121 PASS GPRS1900 Channel=661 GPRS1900 Channel=512 Report No.: STR220711002004E 23 / 47 GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: STR220711002004E 24 / 47 GPRS850 Channel=189 GPRS850 Channel=251 Report No.: STR220711002004E 25 / 47 Report No.: STR220711002004E 26 / 47 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1850.00 -29.22 -13 PASS GPRS1900 810 1909.8 1910.01 -30.05 -13 PASS GPRS850 128 824.2 824.00 -27.12 -13 PASS GPRS850 251 848.8 849.02 -26.53 -13 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: STR220711002004E 27 / 47 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: STR220711002004E 28 / 47 Report No.:…

Text truncated - open the document above for the full version.

Report No.: STR220711002004E Version.1.2 Page 1 of 43 FCC RADIO TEST REPORT FCC ID: 2A67L-X9 Product: smartphone Trade Mark: Daewoo Model No.: X9 Family Model: N/A Report No.: STR220711002004E Issue Date: Jul 29, 2022 Prepared for M&M Electronics, S.A. Cocosolito, Building 10Y, Colon, Panama. Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: STR220711002004E Version.1.2 Page 2 of 43 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS ............................................................................................................…
