2A699S9-BU-13-00IC Card Reader

S9 Contactless Smart Card Reader Reference Manual Page of 71 1 S9 Contactless Smart Card Reader Reference Manual S9 Contactless Smart Card Reader Reference Manual Page of 71 2 Contents 1. S9 Contactless IC Card Reader Introduction ........................................... 3 1.1 Overview ................................................................................................... 3 1.2 Features .................................................................................................... 3 1.3 Device Interface ......................................................................................... 4 1.4 Reader Packing List ..................................................................................... 4 1.5 Software ................................................................................................... 5 1.6 Typical Application ..................................................................................... 5 1.7 Reader Type Description ............................................................................. 5 1.8 Function Description .................................................................................. 6 1.9 API Functions List ....................................................................................... 7 1.10 Error codes and meanings ....................................................................... 13 1.11 Desfire return codes and meanings .......................................................... 15 2. API Function ............................................................................................. 16 2.1 Common Functions .................................................................................. 16 2.2 Device Functions ...................................................................................... 27 2.3 CPU(SAM) Functions ................................................................................ 30 2.4 S70 Card-Specific Functions ....................................................................... 32 2.5 Ultralight Card-Specific Functions .............................................................. 33 2.6 Mifare Pro Card-Specific Functions ............................................................ 35 2.7 ICODE2 card-specific functions .................................................................. 36 2.8 AT88RF020 card-specific functions ............................................................. 40 2.9 Contactless CPU (ISO1443) card-specific functions ...................................... 44 2.10. Desfire card-specific functions ................................................................ 45 2.11. 4442 card-specific function .................................................................... 59 2.12. 4428 card-specific functions ................................................................... 62 2.13. 24C64 card-specific functions ................................................................. 65 2.14. 125K(ID) Card-specific function ............................................................... 66 3．MIFARE ONE Card Structure ................................................................. 66 S9 Contactless Smart Card Reader Reference Manual Page of 71 3 1. S9 Contactless IC Card Reader Introduction 1.1 Overview S9 series Dual-Interface Smart Card Reader Writer can support both contact and contactless smart cards, with one slot for smart card of ISO7816 Size and Maximum 3 slots for SAM card of GSM11.11 size. With multi-slots structure, the reader can meet the higher level of security in smart card application. It connects to PC or related devices via RS232 Serial port or USB (PNP, plug and play) port which brings more convenience to customers whether in installation or operation of the reader. And there will be a CD for SDK (Software Development Kits) along with the reader which includes the USB Drivers and Examples for various development platforms, and customers can use the DEMO.exe program to do the testing for rfid card and reader. S9 Reader is essential front-end processing equipment for IC card applications and system integration. Owning rich and useful interfaces and functions, the reader can be easily applied to many fields such as industry and commerce, telecommunications, postal services, taxation, banking, insurance, medical, meeting attendance, Internet cafe management, gas stations, parking lots and other smart card application programs for charges, stored value and query. 1.2 Features Card type supported: —contactless card: ISO14443 TypeA/B,ISO15693 standard —contact card: ISO7816 logic encryption IC cards and the CPU card(T=0,1) Security: can add 3 GSM11.11SAM card slots Interface: RS232/USB (Plug and Play) Antenna: Built-in antenna Case Material: ABS plastic Operating Frequency: 13.56MHz S9 Contactless Smart Card Reader Reference Manual Page of 71 4 Operating voltage: DC5V ± 10% Communication speed between Card and equipment: 106Kbit Operating temperature: -20 °C ~ 60 °C Standards followed: ISO14443 TypeA/B, ISO15693, ISO7816,GSM11.11, FCC, CE Programming languages: a variety of programming languages available, with luxuriant Examples (refer to "1.5 Software" for more information) OS: Windows 98, Me, 2K, XP, 2003, Vista ,Unix and Linux Memory of reader: the standard internal memory of reader is 2K bytes (can be expanded upon customers’ requirements) Status display: LED lights, indicating power or the state of communication, user controllable buzzer Connection cable: length 1.5M, can choose serial K Line or usb cable Dimensions(L*W*H): 123 * 95 * 27 mm NW/GW: about 143g / 345g 1.3 Device Interface COM or USB DC5V Power RS232 Serial Interface or USB been used for communicating with PC. 1.4 Reader Packing List Contains: Reader, Communication cable, CD for driver, and Warranty Card. S9 Reader (Built-in antenna) RF card S9 Contactless Smart Card Reader Reference Manual Page of 71 5 1.5 Software Contains: Demo program, Lib of Function, Application E…

Text truncated - open the document above for the full version.

Shenzhen Fenghua Technology Co., Itd Agent Authorization Company: Shenzhen Fenghua Technology Co., Itd Ltd.Address: Room 502, Building A, Dakan industrial park road 2nd No.19, XiliTown, Nanshan District, Shenzhen City, Guangdong Province, China Product Name: IC Card Reader Model Number(s): S9-BU-13-00, S9-XX-XX-X（"XX-XX-XX"can be replaced by 1etter from"A"to"Z", number from"0"to"9"or blank) Product Description: IC Card Reader We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-06 Name: Yang Jie Title: manager Company: Shenzhen Fenghua Technology Co., Itd

Shenzhen Fenghua Technology Co., Itd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/06/06 Subject; Request for Confidentiality FCC ID: 2A699S9-BU-13-00 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yang Jie Title: Manager

Shenzhen Fenghua Technology Co., Itd Model Difference Data：2022.06.06 Product description: IC Card Reader Model name: S9-BU-13-00, S9-XX-XX-X（"XX-XX-XX"can be replaced by 1etter from"A"to"Z", number from"0"to"9"or blank) Trade Name: FONGWAH FCC ID: 2A699S9-BU-13-00 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Yang Jie (Manager) Contact information / address: Room 502, Building A, Dakan industrial park road 2nd No.19, XiliTown, Nanshan District, Shenzhen City, Guangdong Province, China

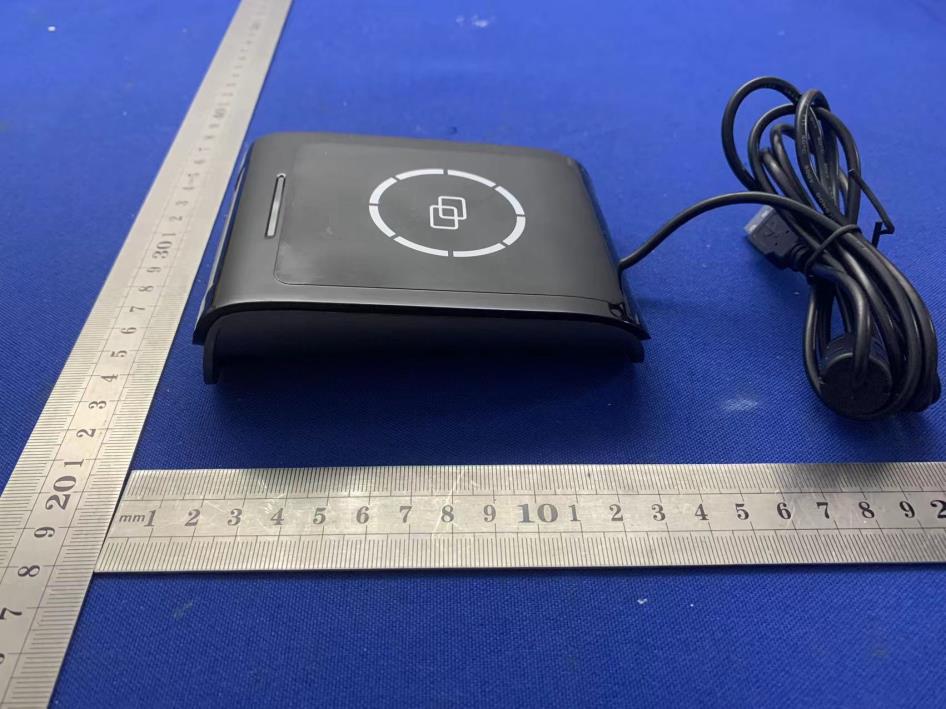

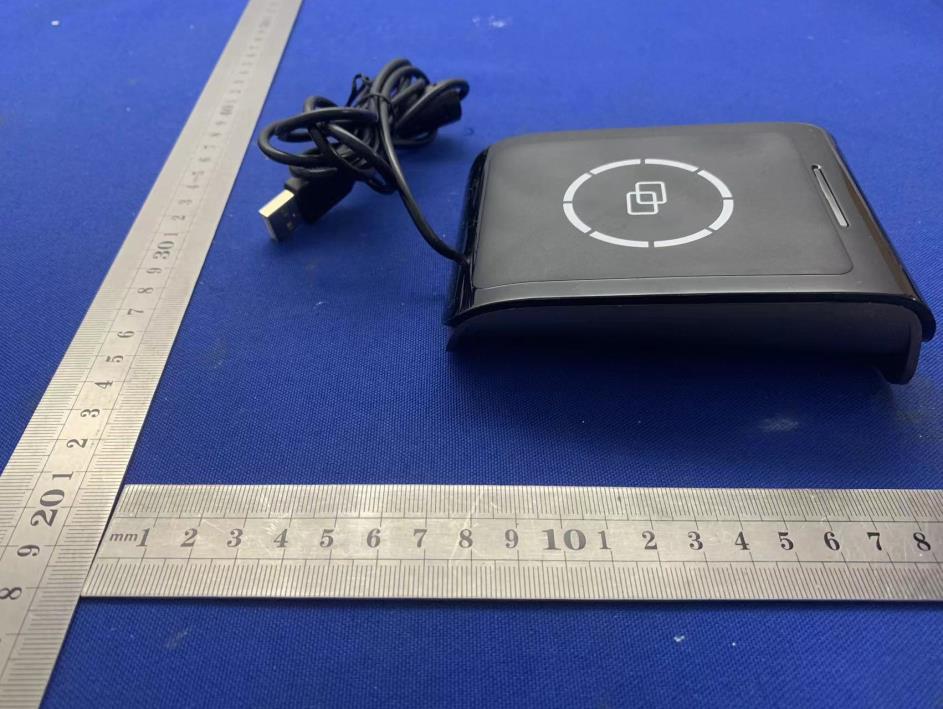

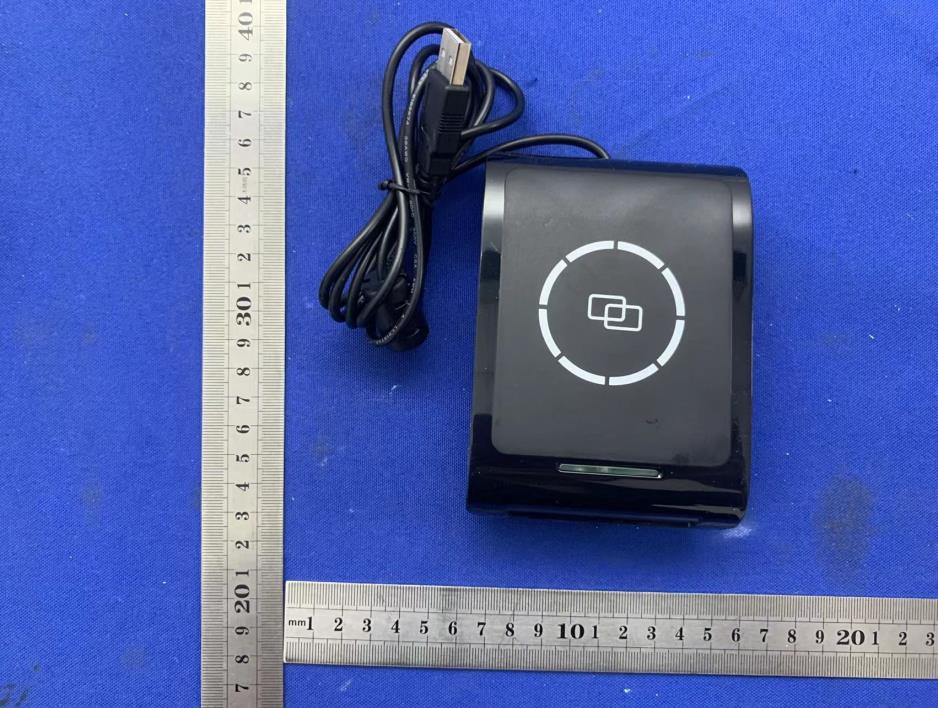

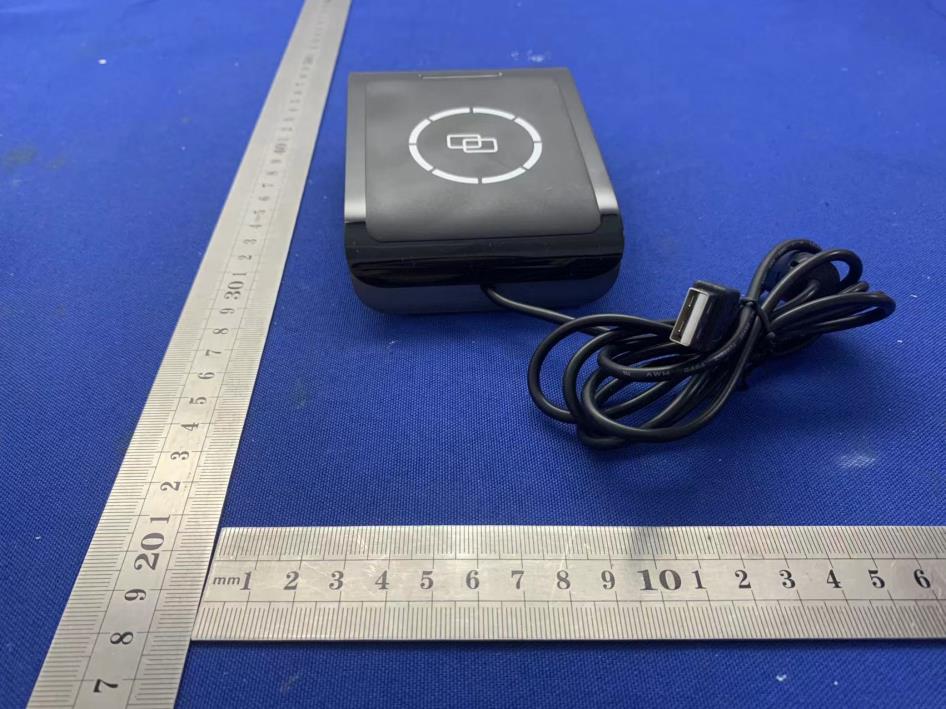

External Photos

Model:S9-BU-13-00 FCC ID: 2A699S9-BU-13-00 Label Location

Internal Photos ANT

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220526044RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 27 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: IC Card Reader FCC ID: 2A699S9-BU-13-00 Trademark: FONGWAH Model Number: S9-BU-13-00, S9-XX-XX-X（"XX-XX-XX"can be replaced by 1etter from"A"to"Z", number from"0"to"9"or blank) Prepared For: Shenzhen Fenghua Technology Co., Itd Address: Room 502, Building A, Dakan industrial park road 2nd No.19, XiliTown, Nanshan District, Shenzhen City, Guangdong Province, China Manufacturer: Shenzhen Fenghua Technology Co., Itd Address: Room 502, Building A, Dakan industrial park road 2nd No.19, XiliTown, Nanshan District, Shenzhen City, Guangdong Province, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Street, Baoan District, Shenzhen China Sample Received Date: Apr. 26, 2022 Sample tested Date: Apr. 26, 2022 to May. 26, 2022 Issue Date: May. 26, 2022 Report No.: CTB220526044RFX Test Standards FCC Part15.225 ANSI C63.10:2013 Test Results PASS Remark: This is 13.56MHz radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220526044RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 27 TABLE OF CONTENT Test Report Declaration Page 1. VERSION............................................................ 3 2. TEST SUMMARY ..................................................... 4 3. MEASUREMENT UNCERTAINTY ....................................... 5 4. PRODUCT INFORMATION AND TEST SETUP ........................... 6 4.1 Product Information ..................................................... 6 4.2 Test Setup Configuration ................................................ 6 4.3 Support Equipment ..................................................... 6 4.4 Test Mode ............................................................. 7 4.5 Test Environment ....................................................... 7 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 8 5.1 Test Facility ............................................................ 8 5.2 Test Instrument Used ................................................... 8 6. AC POWER LINE CONDUCTED EMISSION .............................. 11 6.1 Block Diagram Of Test Setup............................................ 11 6.2 Limit ................................................................. 11 6.3 Test procedure ........................................................ 11 6.4 Test Result ........................................................... 13 7. RADIATED EMISSION ............................................... 15 7.1 Block Diagram Of Test Setup............................................ 15 7.2 Limit ................................................................. 15 7.3 Test procedure ........................................................ 16 7.4 Test Result ........................................................... 17 8. FREQUENCY TOLERANCE .......................................... 20 8.1 Block Diagram Of Test Setup............................................ 20 8.2 Limit ................................................................. 20 8.3 Test procedure ........................................................ 20 8.4 Test Result ........................................................... 21 9. OCCUPIED BANDWIDTH ............................................. 22 9.1 Block Diagram Of Test Setup............................................ 22 9.2 Limit ................................................................. 22 9.3 Test procedure ........................................................ 22 9.4 Test Result ........................................................... 23 10. ANTENNA REQUIREMENT ........................................... 24 11. EUT PHOTOGRAPHS ................................................ 25 12. EUT TEST SETUP PHOTOGRAPHS ................................... 26 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220526044RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 27 1. VERSION Report No. Issue Date Description Approved CTB220526044RFX May. 26, 2022 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220526044RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 27 2. TEST SUMMARY The Product has been tested according to the following specifications: Test Item Test Requirement Test method Result AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 ANSI C63.10-2013 PASS Radiated Emission 47 CFR Part 15 Subpart C Section 15.209; 15.225(a)(b)(c)(d) ANSI C63.10-2013 PASS Frequency Tolerance 47 CFR Part 15 Subpart C Section 15.225(e) ANSI C63.10-2013 PASS Occupied Bandwidth 47 CFR Part 15 Subpart C Section 15.215 ANSI C63.10-2013 PASS Antenna requirement 47 CFR Part 15 Subpart C Section 15.203 ANSI C63.10-2013 PASS Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220526044RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 27 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Item Uncertainty Occupancy bandwidth U=±54.3Hz Conducted output power Above 1G U=±1.0dB Conducted output power below 1G U=±0.9dB Power Spectral Density , Conduction U=±1.0dB Conductio…

Text truncated - open the document above for the full version.

Radiated Emission 9KHz-30MHz 30M-1GHz Conducted Emission
