2A69FEB8204BLUETOOTH BODY FAT SCALE

EB8204 Bluetooth Body Fat Scale Instruction Manual Table of contents 2、Main performance indicators ...................................................................................................... 2 3. Power supply ................................................................................................................................. 3 4. weighing step ................................................................................................................................ 3 5. Calibration procedure .................................................................................................................... 4 6. Show up ........................................................................................................................................ 5 EB8204 Instruction manual 第 2 页 共 6 页 2018-06-09 1、Main function Communication: Through Bluetooth. Communication Protocol: Body Fat Scale Cloud Protocol. Lipid measurement: Bia Analysis. SUPPORT APP: core OKOK international version, domestic version. System Support: Android 4.3, ios 7.0 + . Bluetooth Support: Bluetooth 4.0 + . Connection tip: LCD Screen Flashing Display“Bluetooth Logo” connection, the connection successfully shows Bluetooth logo. 2、Main performance indicators 2.1 BOOT mode Start up the scale, the boot weight is 5.0kg 0.5kg. Press the unit key to boot. 2.2 Unit and display Three KG/LB/ST units are supported, with a default of KG. 2.3 Scale 0.1kg/0.2LB/ST:1LB。 2.4 Weighing range 1.0kg～183.0kg。 2.5 Voltage range EB8204：2.4V-3.0V。 2.6 Operating Current The operating current (18mA at 3.0 v) and the average standby current ≤10uA (actual minimum 5.2UA) . 2.7 Calibration The three-point calibration is 50kg, 100kg and 150kg respectively. 2.8 Overload indication When the weight is greater than 183.0 kg, the LCD will display“Err”, indicating the user's current weight overload (not calibrated, no overload function) . 2.9 Automatic shutdown time BOOT BACK TO ZERO: 10 seconds; EB8204 Instruction manual 第 3 页 共 6 页 2018-06-09 After Weight Lock: 10 Seconds; UNSTABLE SHUTDOWN: 15 seconds; Weight Hold: 10 seconds. 2.10 Return to zero Power-on full display after automatic return to zero (no range limit) ; Weighing status, the detection of weight ≤3kg, 1.0 kg and stable flicker 3 times after the display“C” 2 seconds to zero;； Standby status, regular chase zero every 4 hours for a return to zero processing: Timing catch zero conditions: With the same boot low-frequency AD acquisition, weight range in +/-0.5 kg, beyond the non-return to zero, AD to stability. Timing Zero Requirements: Can Not turn on Bluetooth, can not turn on display, can not turn on backlight, in the chase zero period, press the unit key can be normal boot, in 3 seconds if unconditional return to zero, enter the low-power shutdown state, starting from now on, the next 4 hours are timed by repeating the cycle. Each cycle is timed from automatic shutdown to boot. 2.11 Temperature and humidity characteristics Operating temperature: 0 ° C ~ 40 ° C. Relative humidity: ≤90% . 2.12 Back Light White backlight with black lettering on blue background. 3. Power supply EB8204：3.0 v Battery Powered (2 * Aaa Battery) . 4. weighing step 4.1 Power on, please put the scale on the level of hard plane for zero, zero time about 3 seconds, zero can be completed after the weighing, if the power has been unstable, LCD display. 4.2 In standby or on-line state, people can directly stand on the scale for weighing. 4.3 When the weight value is more than 3.0 kg and stabilized, the weight value flickers 3 times, and shows the stable weight all the time. If the weight is less than 3 kg, then zero treatment, and less than 3 kg and more than 1 kg, then zero treatment, then show: “C” shows zero in 2 seconds. However, when the weight is zero, the weight is negative need to chase zero processing (the greater the negative value is expressed as a smaller) display chase zero should not be prompted. EB8204 Instruction manual 第 4 页 共 6 页 2018-06-09 Notes: After zero, when the weight is locked under the scale to lift the scale, at this time for negative weight, you can chase zero processing, but can not unlock the locked weight, put down the scale can not unlock the lock. Only when weighing the weight to determine the stability will track zero tips, such as: On the scale to lock the weight, found on the next scale & Lt; 3.0 kg or found that the weight of the Negative Show Zero Weight; direct Weighing & Lt; 3.0kg •1.0kg • weight locked after zero-tracking • FLASH AFTER TREATMENT: “C”. When displayed as 0 Weight, lift the Scale & Lt; 3.0k (including negative weight) shows can chase zero, chase zero directly after the show zero weight, do not display: “C”. 4.4 Weight stability, the cumulative weight of more than 5kg re-weighing, unlock the weight of the lock. 4.5 BOOT more than 10s without on-scale action or weight stability more than 10s without under-scale action, into standby mode. 4.6 When the weighing value overload, LCD display“Err”, after the weighing value back to the normal range, LCD display normal weighing value. 4.7 The memory range above 10kg is 0.3 kg (more than 0.3 kg updated display) , no memory power. 4.8 Display“C” status: Weight & Lt; 3kg, $1kg, display“C” after zero. 5. Calibration procedure 5.1 Access calibration method: 5.1.1 First calibration, weighing the state, placed 100kg weight on the scale after the stable into the calibration; 5.1.2 Non-first calibration, power-on (that is, the first battery installed) , weighing state, put more than 100 kg weight onto the scale plate, stable and then placed 50 kg, into the calibration;. 5.1.3 Press the unit key is“Three short one long” into the calibration; 5.1.4 Short-connect calibration jumper into the calibration (PCB need to do a pair of pads, for tweezers touch) ; 5.2 Lift all the weights on the scale, the weight back to zero and stable 0.75 seconds, LCD display“50.0kg”; 5.3 Put 50kg weight onto the scale plate, to weig…

Text truncated - open the document above for the full version.

Guangzhoushi Desuo Dianzishangwu Youxiangongsi shundequ lunjiaojiedao lunjiao biguiyuan longwanyuan 8zuo220 foshanshi guangdongsheng, 528308 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022.06.01 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A69FEB8204 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jiewen LI/manager Company: Guangzhoushi Desuo Dianzishangwu Youxiangongsi Address: Shundequ lunjiaojiedao lunjiao biguiyuan longwanyuan 8zuo220 foshanshi guangdongsheng, 528308 Phone: 13580357630 Fax: 13580357630 E-Mail: [email protected]

Guangzhoushi Desuo Dianzishangwu Youxiangongsi shundequ lunjiaojiedao lunjiao biguiyuan longwanyuan 8zuo220 foshanshi guangdongsheng, 528308 CONFIDENTIALITY REQUEST for Certification Service in the U.S.A. Date:2022.06.01 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following products: FCC ID Number: FCC ID: 2A69FEB8204 Model Numbers: EB8204 For the product stated above, we request that the following information be held confidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days Block Diagram(s) Schematic Diagram(s)/ Circuit Diagram(s) Circuit Description/ Operational Description/ Theory of Operation Parts List/ Bill of Materials (BOM) Tune Up User’s Manual External Photos Internal Photos Test Setup Photos The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. Guangzhoushi Desuo Dianzishangwu Youxiangongsi shundequ lunjiaojiedao lunjiao biguiyuan longwanyuan 8zuo220 foshanshi guangdongsheng, 528308 If you have any questions, please feel free to contact me at the address shown below. Yours Sincerely, ----------------------------------------------------------------------------------- <CONTACT PERSON AT FCC GRANTEE CODE> Name/Title： Jiewen LI/manager Company: Guangzhoushi Desuo Dianzishangwu Youxiangongsi Address: Shundequ lunjiaojiedao lunjiao biguiyuan longwanyuan 8zuo220 foshanshi guangdongsheng, 528308 Phone: 13580357630

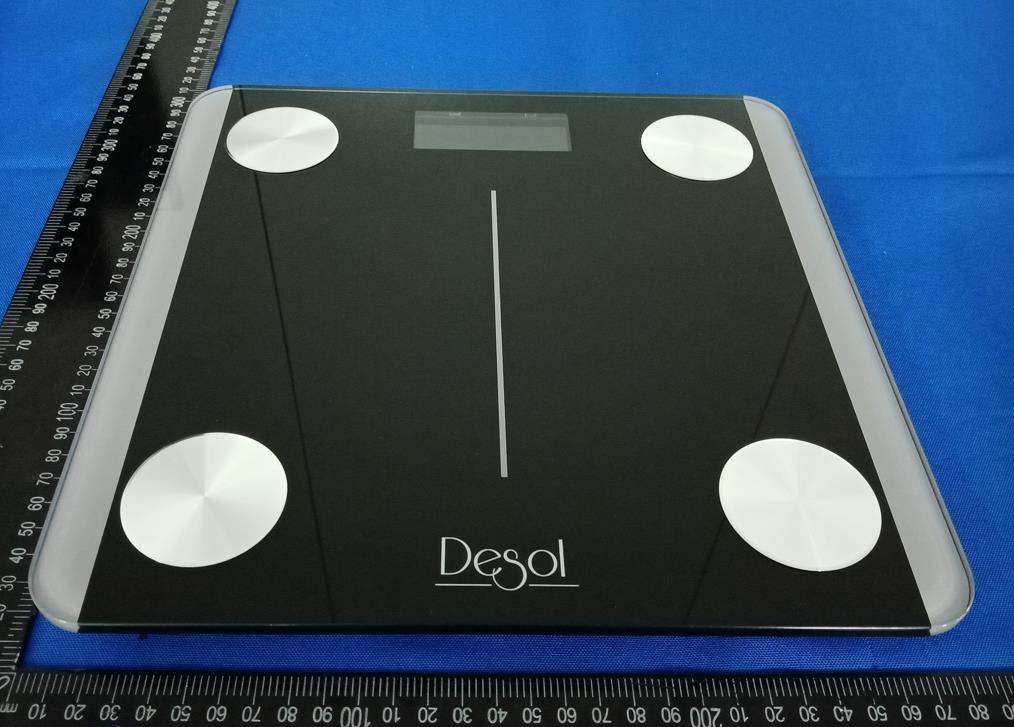

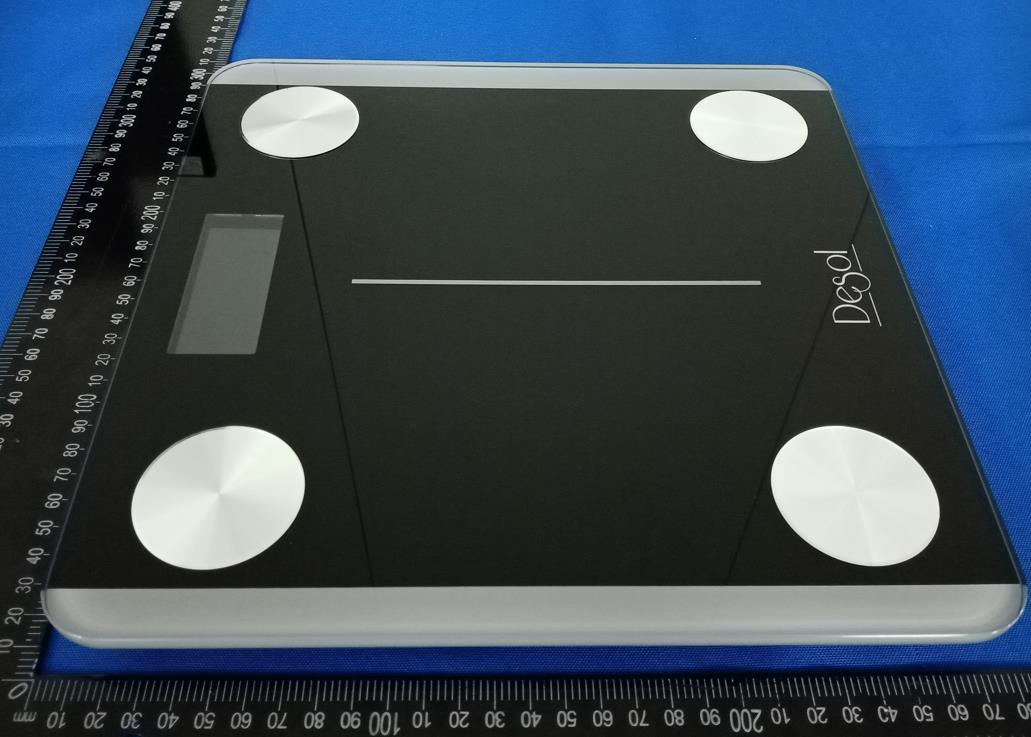

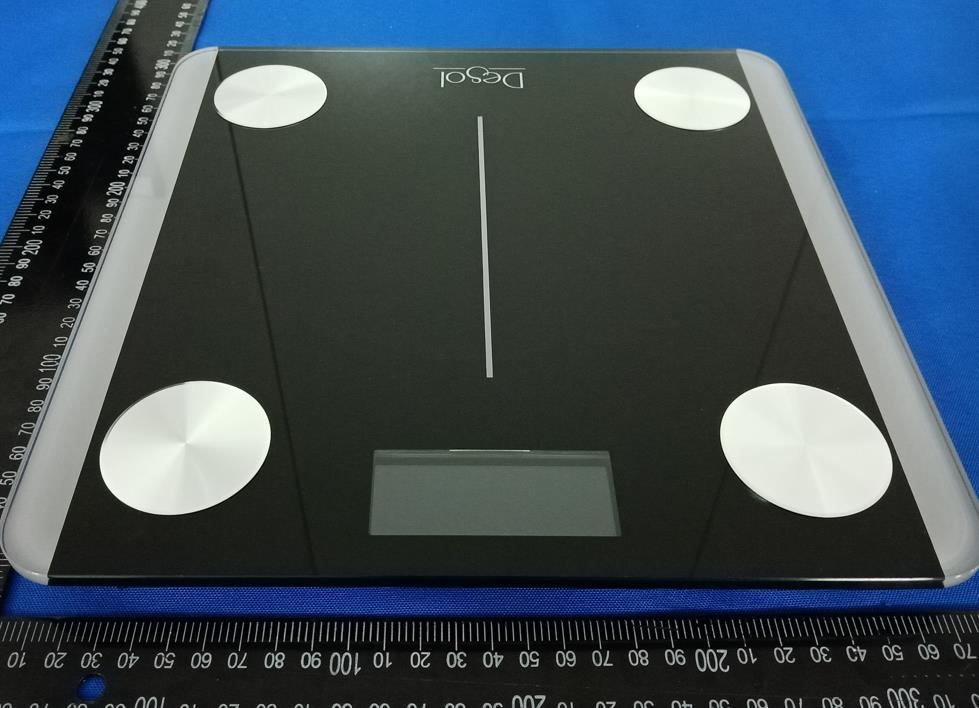

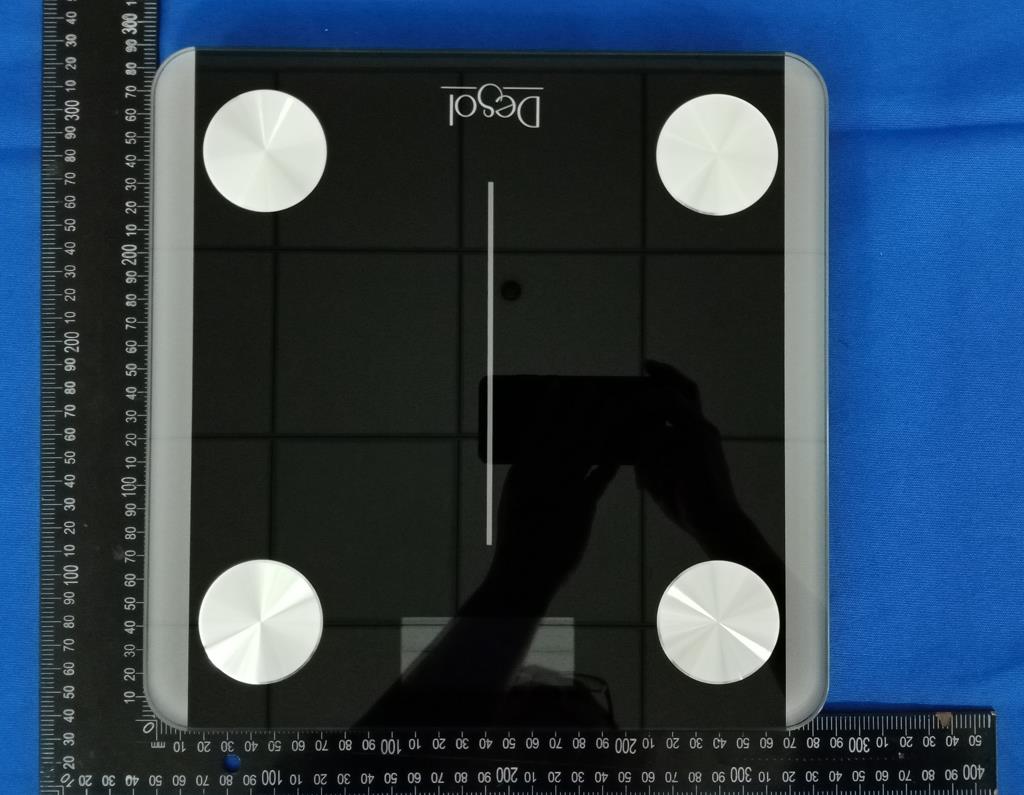

BLUETOOTH BODY FAT SCALE FCC ID: 2A69FEB8204 EB8204 External Photographs

EB8204 Label and Label Location BLUETOOTH BODY FAT SCALE EB8204 FCC ID: 2A69FEB8204

BLUETOOTH BODY FAT SCALE FCC ID: 2A69FEB8204 EB8204 Internal Photographs

RF Exposure Requirements 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Guangzhoushi Desuo Dianzishangwu Youxiangongsi Address of applicant: shundequ lunjiaojiedao lunjiao biguiyuan longwanyuan 8zuo220 foshanshi guangdongsheng, 528308 Manufacturer: ZHEJIANG PINXIN INTELLIGENT TECHNOLOGY CO.,LTD Address of manufacturer: 1-4 FLOOR,WEST BUILDING 1, NO.59 BAIMU ROAD, ECONOMIC DEVELOPMENT ZONE, YONGKANG CITY,ZHEJIANG PROVINCE, CHINA General Description of EUT Product Name: BLUETOOTH BODY FAT SCALE Brand Name: / Model No.: EB8204 Adding Model(s): / Rated Voltage: DC 3V Power Adapter: / Software Version: / Hardware Version: / Serial Number: 2JDLP2033 FCC ID: 2A69FEB8204 Technical Characteristics of EUT Bluetooth Version: V4.0 BLE Frequency Range: 2402-2480MHz RF Output Power: -10.12dBm Data Rate: 1Mbps Modulation: GFSK Quantity of Channels: 40 Channel Separation: 2MHz Type of Antenna: PCB Antenna Gain: 0.5dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, the following RF exposure evaluation shall to demonstrate RF exposure compliance. [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. 1.3 Calculation Method Bluetooth Tx frequency range: 2402~2480MHz Min. test separation distance: 5mm Maximum Conducted Output Power: -10.12Bm Maximum Tune-up Conducted Output Power: -9dBm RF channel transmit frequency: 2440MHz Result: 0.039 Limit: 3.0 So the transmitter complies with the RF exposure requirements and the SAR is not required.

BLUETOOTH BODY FAT SCALE FCC ID: 2A69FEB8204 EB8204 Test Setup Photos Radiated emission 30MHz~1GHz Radiated emission above 1GHz
