2A69J-S41310Car refrigerator

CAR REFRIGERATOR S41610 M odel ▲ 型号/SKU S41610车载冰箱148X210mm157g铜版纸-哑膜-骑马钉 设计稿：2022-04-20 ▲ 产品名称▲ 包装尺寸▲ 材质&工艺 MANUFACTURER NAME Anhui Saichao Electric Co., Ltd MANUFACTURER ADDRESS Building 4, magnetoelectric Industrial Park, Huaining Industrial Zone, Anqing City, Anhui Province SCHEUFER Technologies GmbH Address: Hertleinstrasse 37, 91052, Erlangen, Germany E-mail: [email protected] ECREP VISHTEC UK Co.,Ltd Address: Unit G25 Waterfront Studios,1 DockRoad,London,E16 1AH E-mail:[email protected] UKREP CATALOG ENGLISH001-012 DEUTSCH013-022 FRANÇAIS023-033 ESPAÑOL034-044 ITALIANO045-055 Product use safety Simple operation instructions 5V/1A L R H Max Eco L M 888 888 Warm up button Set button Cool down button Charge port Power button Do not t ouch the exposed power cor d with your hands. Do no t touch power sock ets and power strips with wet hands as this can cause danger . When using this pr oduc t on bo ar d, ple ase ensure tha t the po wer supply lines and fuses have sufficient carr ying current . When using AC de vic es on car s, RVs and yacht s, pr of essional ins talla tion is requir ed. Mak e sur e the power connection is corr ec t. Do not immerse this produc t in w ater . Do not put cans, beer, e tc. in the refrig er ator t o fr eez e a t lo w t emperatur e. Do not place any electric al equipment in the refrig er ator . Pr of essionals ar e requir ed to perf orm maintenance ser vic es, or ple ase cont ac t y our seller. Do no t use this pr oduc t by exposing it to rain or str ong sunlight for a long time. Aft er the refrig er ator is rec eiv ed and unp ack ed, ple ase stand for mor e than 6 hour s. ENGLISH - 001ENGLISH - 002 Product function introduction Using high-quality DC inverter compressor and drive module to create an efficient, energy-saving and stable mobile refrigeration system. Microcomputer intelligent control system, easy to operate and precise temperature control. Innovative and intelligent independent dual temperature and dual control, the freezer/refrigeration space can be switched at will to meet different storage needs. Compatible with a variety of power input, intelligent identification of DC12/24V voltage, to meet the needs of various scenarios, car, marine, home, outdoor as you like. With voltage detection and low-voltage protection functions, it can effective- ly prevent over-discharge of car batteries. The inner tank is made of food-grade plastic material, which is safe, leak-proof and odor-proof. Built-in LED lighting, more convenient to use at night. High-definition LED digital display. Intelligent touch operation buttons and keyboard child lock function to prevent false triggering. ENGLISH - 003ENGLISH - 004 Temperatur e c ontr ol r ang e: -20°C-20°C (-4°F∽68°F) Temperatur e display rang e: -30°C-40°C (-22°F∽104°F) Standard v olt ag e input rang e: DC12V/24V , up t o DC30V 4. Low voltage protection function setting: This pr oduc t has a lo w volt ag e pr otec tion func tion. When it de tec ts tha t the batter y volt ag e is lo wer than the se t value, it will aut oma tic ally turn off the compressor to pr event over -discharge fr om damaging the batter y or causing the car to fail to start normally. At this time, the "EI" code pr omp t will be displayed on the display scr een, such as 1 minute aft er the volt ag e returns to normal, the refrig er ator will aut oma tic ally ent er the working state. The fac tor y def ault is "Mid-Rang e" , if y ou need to change it , f ollo w the steps below: Unlock the keybo ar d Pr ess and hold the "Se t but ton ” for 3 sec onds, rele ase it aft er he aring the "di" sound of the buzz er , and then briefly pr ess the "Se t but ton" ag ain, and one of the batter y pr otec tion le vel ic ons "L, M, H" on the display will flash. Display and then pr ess the "UP /DO WN" to change the se tting. Ref er to the follo wing table for specific values: a： b: batter y pr otec tion12V disconnect 12V start24V 24V start L9.6 V10.9 V21.3 V22.7 V M10. 4 V11. 7 V22.8 V24.2 V H11.1 V12.4 V24.3 V25.7 V Note: If your refrigerator enters battery protection early, it is likely that the low voltage protection value is set too high due to insufficient power supply voltage. Or your DC power supply is wired incorrectly and cannot provide enough current. Check whether the power wiring is suitable, and consider lowering the battery protection gear appropriately. In order to ensure that the car can be started normally, it is recommended to set the protection level to "H" when using the refrigerator in the car. 2. Refrigerator keyboard locking and unlocking operations: For example, when the keyboard is locked (the child lock icon is on in the lower right corner of the display screen), long press the "UP/DOWN" button for 3 seconds to unlock, the child lock icon will not light up, and the keyboard will be locked automatically if there is no operation for 30 seconds. 3. Compressor working mode setting: In the unlocked state of the keyboard, press the "Set button" to freely switch the compressor working mode "ECO/MAX", if you need to quickly cool down to a lower temperature, switch to "MAX" mode, if you only need to refrigerate or keep warm, you can set the It is set to "ECO" mode to save energy. 1. Open and close the refrigerator: Connect the correct DC12/24V power supply. If the refrigerator is in standby state, the "OFF" symbol will appear in the middle of the display after the refrig- erator self-test is completed. At this time, you need to press and hold the "Power button" for 3 seconds to complete the startup. After the refrigerator is turned on, the display will show the current temperature and working mode of the refrigerator. After waiting for the power-on delay (the factory default is 1 minute), the refrigerator enters the working mode, and the compressor starts to work to cool down. To turn off the refrigerator, press and hold the "Power button" for 3 seconds while the keyboard is unlocked. ENGLISH - 005ENGLISH - 006 7. APP operation ins…

Text truncated - open the document above for the full version.

Anhui Saichao Electric Co., Ltd Agent Authorization Company: Anhui Saichao Electric Co., Ltd Ltd.Address: Building 4, magnetoelectric Industrial Park, Huaining Industrial Zone, Anqing City, Anhui Province China Product Name: Car refrigerator Model Number(s): S41310,S41320,S41330,S41340,S41350,S41360,S41370 Product Description: Car refrigerator We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-06 Name: Bill Yang Title: Manager Company: Anhui Saichao Electric Co., Ltd

Anhui Saichao Electric Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/06/6 Subject; Request for Confidentiality FCC ID: 2A69J-S41310 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Bill Yang Title: Manager

Anhui Saichao Electric Co., Ltd Model Difference Data：2022.06.06 Product description: Car refrigerator Model name: S41310,S41320,S41330,S41340,S41350,S41360,S41370 Trade Name: N/A FCC ID: 2A69J-S41310 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Bill Yang (Manager) Contact information / address: Building 4, magnetoelectric Industrial Park, Huaining Industrial Zone, Anqing City, Anhui Province China

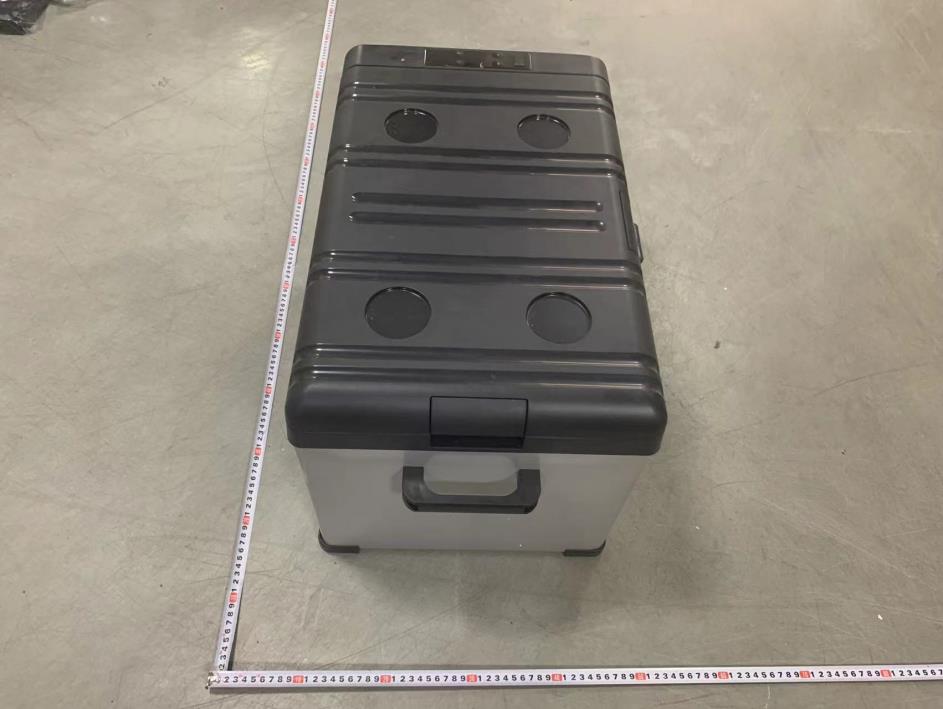

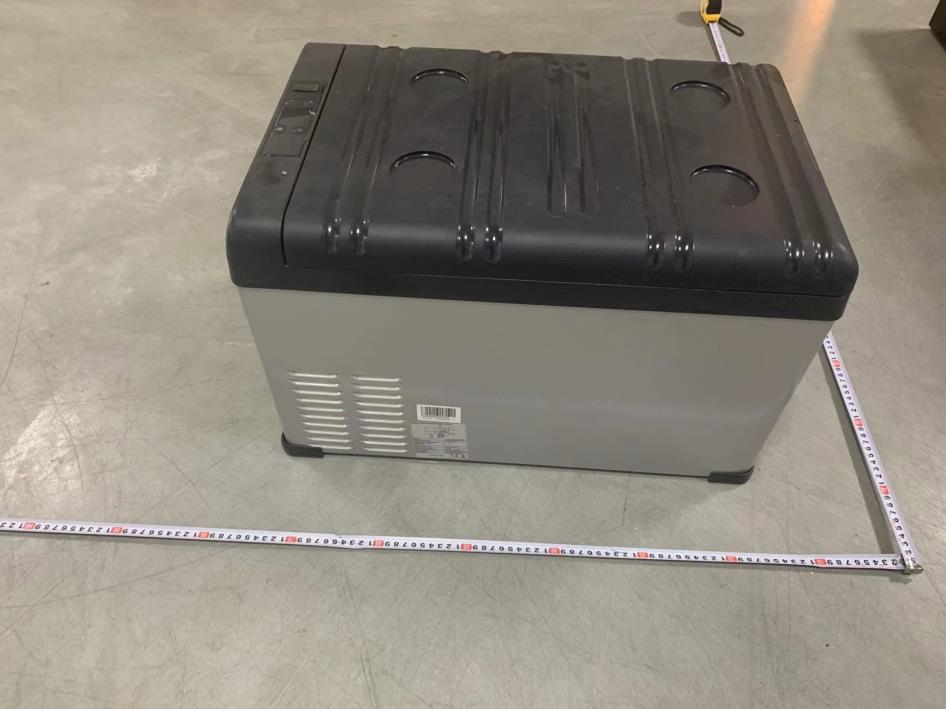

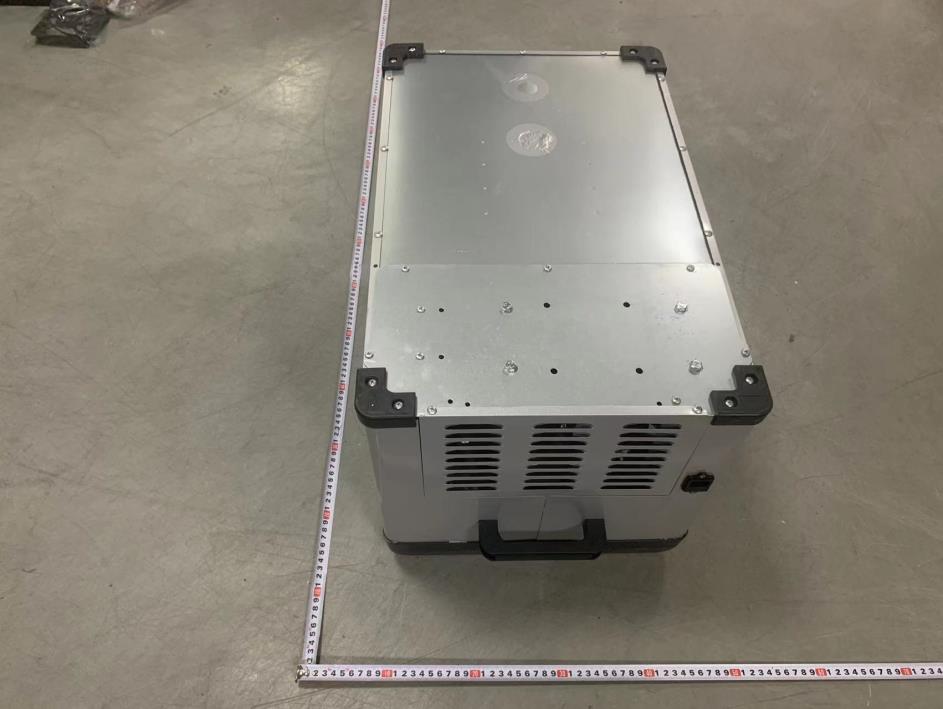

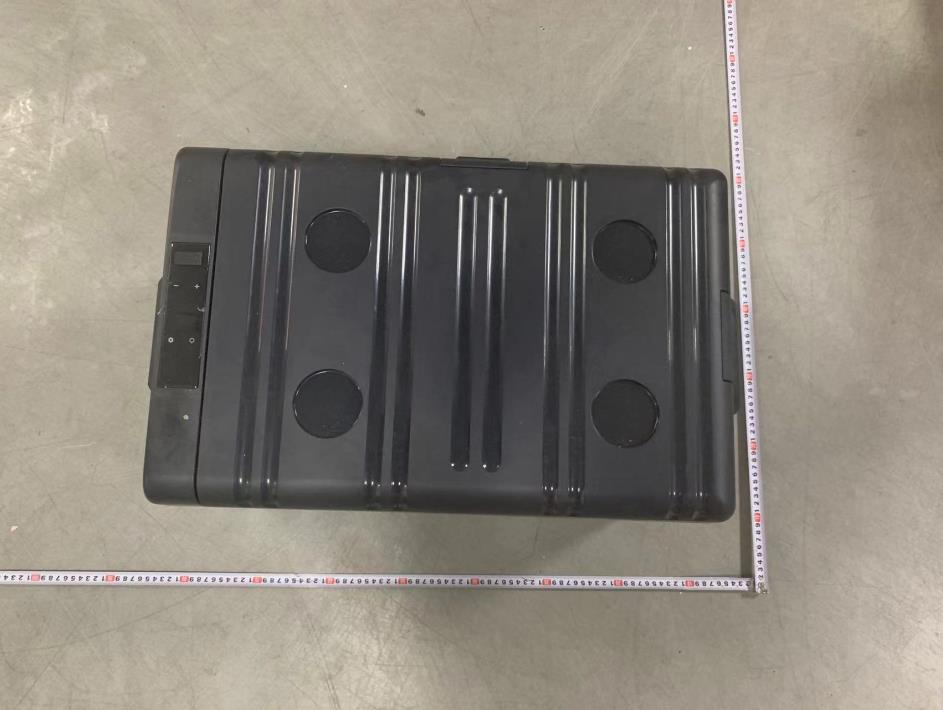

External Photos

Model: S41310 FCC ID: 2A69J-S41310 Label Location

Internal Photos ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A69J-S41310 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 2.4G 1±1 2 1.585 1.259 (1dBi) 0.000397 1 Pass

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220420024RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 37 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Car refrigerator FCC ID: 2A69J-S41310 Trademark: N/A Model Number: S41310, S41320, S41330, S41340, S41350, S41360, S41370 Prepared For: Anhui Saichao Electric Co., Ltd Address: Building 4, magnetoelectric Industrial Park, Huaining Industrial Zone, Anqing City, Anhui Province China Manufacturer: Anhui Saichao Electric Co., Ltd Address: Building 4, magnetoelectric Industrial Park, Huaining Industrial Zone, Anqing City, Anhui Province China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Apr. 16, 2022 Sample tested Date: Apr. 16, 2022 to Apr. 28, 2022 Issue Date: Apr. 28, 2022 Report No.: CTB220420024RF Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220420024RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 37 TABLE OF CONTENT Test Report Declaration Page 1. VERSION............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ........................... 7 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 7 4.4 Channel List ........................................................... 8 4.5 Test Mode ............................................................. 8 4.6 Test Environment ....................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. AC POWER LINE CONDUCTED EMISSION .............................. 12 6.1 Block Diagram Of Test Setup............................................ 12 6.2 Limit ................................................................. 12 6.3 Test procedure ........................................................ 12 6.4 Test Result ........................................................... 14 7. RADIATED SPURIOUS EMISSION ..................................... 16 7.1 Block Diagram Of Test Setup............................................ 16 7.2 Limit ................................................................. 16 7.3 Test procedure ........................................................ 17 7.4 Test Result ........................................................... 18 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............ 25 8.1 Block Diagram Of Test Setup............................................ 25 8.2 Limit ................................................................. 25 8.3 Test procedure ........................................................ 25 8.4 Test Result ........................................................... 26 9. COUDUCTED PEAK OUTPUT POWER ................................. 28 9.1 Block Diagram Of Test Setup............................................ 28 9.2 Limit ................................................................. 28 9.3 Test procedure ........................................................ 28 9.4 Test Result ........................................................... 29 10. 6DB OCCUPIED BANDWIDTH ........................................ 31 10.1 Block Diagram Of Test Setup .......................................... 31 10.2 Limit ................................................................ 31 10.3 Test procedure ....................................................... 31 10.4 Test Result .......................................................... 31 11. POWER SPECTRAL DENSITY ........................................ 33 11.1 Block Diagram Of Test Setup .......................................... 33 11.2 Limit ................................................................ 33 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220420024RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 37 11.3 Test procedure ....................................................... 33 11.4 Test Result .......................................................... 33 12. ANTENNA REQUIREMENT ........................................... 33 13. EUT TEST SETUP PHOTOGRAPHS ................................... 36 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220420024RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 37 1. VERSION Report No. Issue Date Description Approved CTB220420024RF Apr. 28, 2022 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220420024RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 37 2. TEST SUMMARY The Product has been tested according to the following specifications: Test Item Test Requirement Test method Result AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 ANSI C63.10-2013 Pass Radiated Spurious emissions 47 CFR Part 15 Subpart C Section 15.205/15.209 ANSI C63.10-2013 PASS Band edge and RF Conducted Spurious Emissions 47 CFR Part…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1GHz Conducted Emission
