2A69M-SFULL8RGBW LED Lights

Guangzhou Eurolite Lighting CO.,LTD Room 308, Building A, No. 906, North Baiyun Avenue, Helong Street Baiyun District, Guangzhou City, China Federal Communications Comm1ss1on Authorization and Evaluation Division Equipment Autho「izationBranch 7435 Oakland Mills Road Columbia, MD 21046 9/3/2024 U.S. Aoent Desionation Guangzhou Eurolite Lighting CO.,L TD acknowledges their consent fo「 the following contact located in the United States to act as their agent for service of process fo『 the equipment for which authorization is sought ( FCC ID: 2A69M-SFULL8 ) : AOCE Corpo『ationinc. Name and company of U.S. agent: Physical U.S. add「essof agent: 6547 N Academy Bivd #2266, Colo「adoSprings, CO, 80918 United States 0033401381 FRN of U.S. agent: Email address of U.S. agent: [email protected] AOCE Corporation inc. acknowledges their obligation to accept service of process on behalf of Guangzhou Eurolite Lighting CO.,L TD Guangzhou Eurolite Lighting CO.,LTD with the FRN [0032475451] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has pe『manently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission ” 「elatedadministrative O「 judicialproceeding involving the equipment, whichever is later. By signing this fo「m,we confirm the above and that we a「e aware of the application requirements listed under § 2.911 ( d ) ( 7 ) . The info「『nationp「ovidedin this letter is based on the 「efe「encedrule parts of Title 47 of the CFR as well as KDB 986446 001. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. · Signature Johnson Wang Signature Sanpeng Ren PN AOCE Corporation inc. Manager Guangzhou Eurolite Lighting CO.,L TD mGJJ － E （俨）（叫 J ）－一子们 H －5 功／、 i 出～｝｛－ u －U AJ 户口一出叶

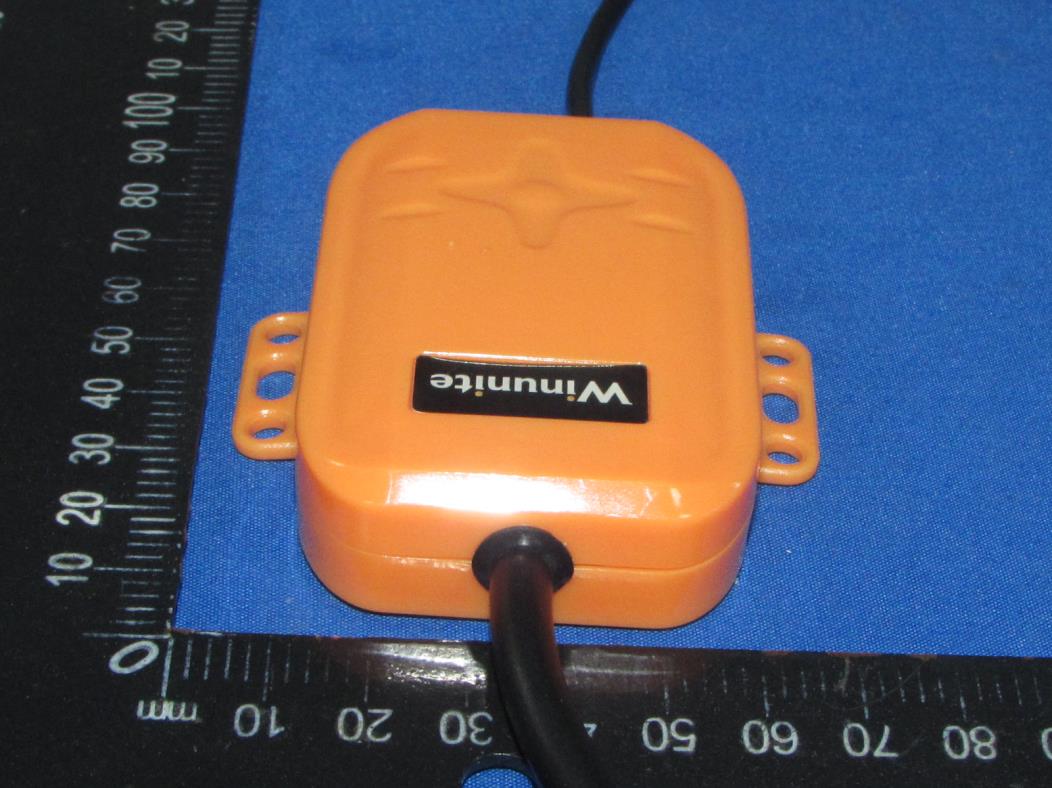

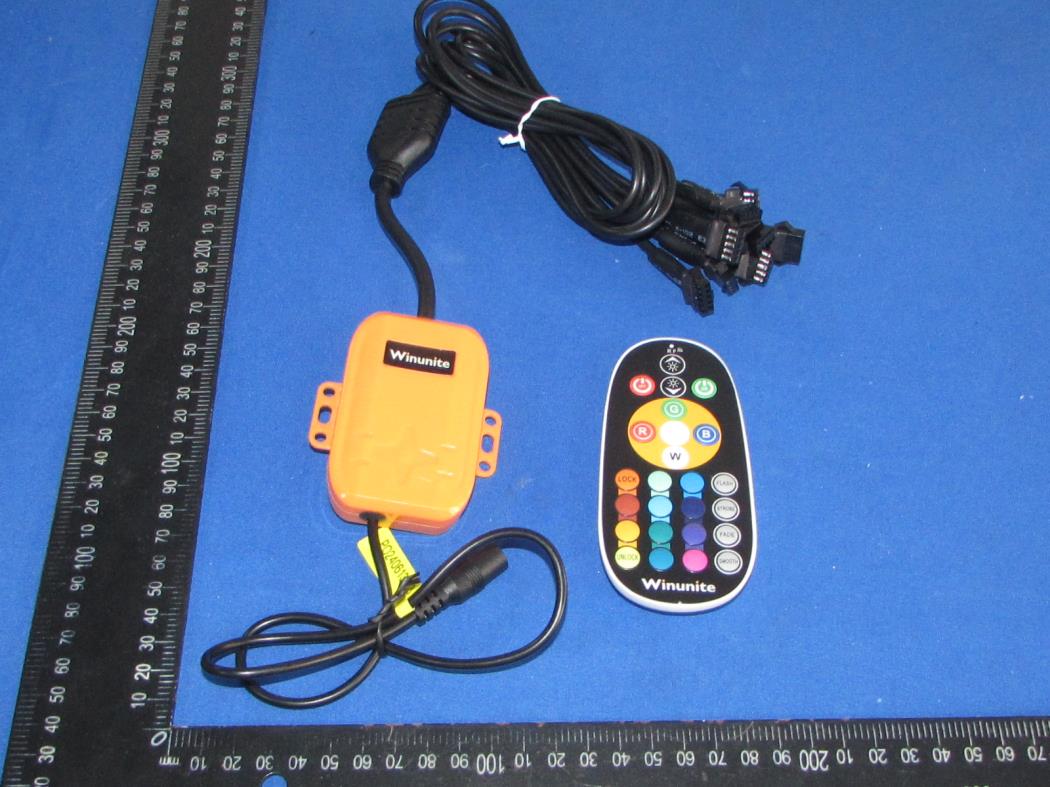

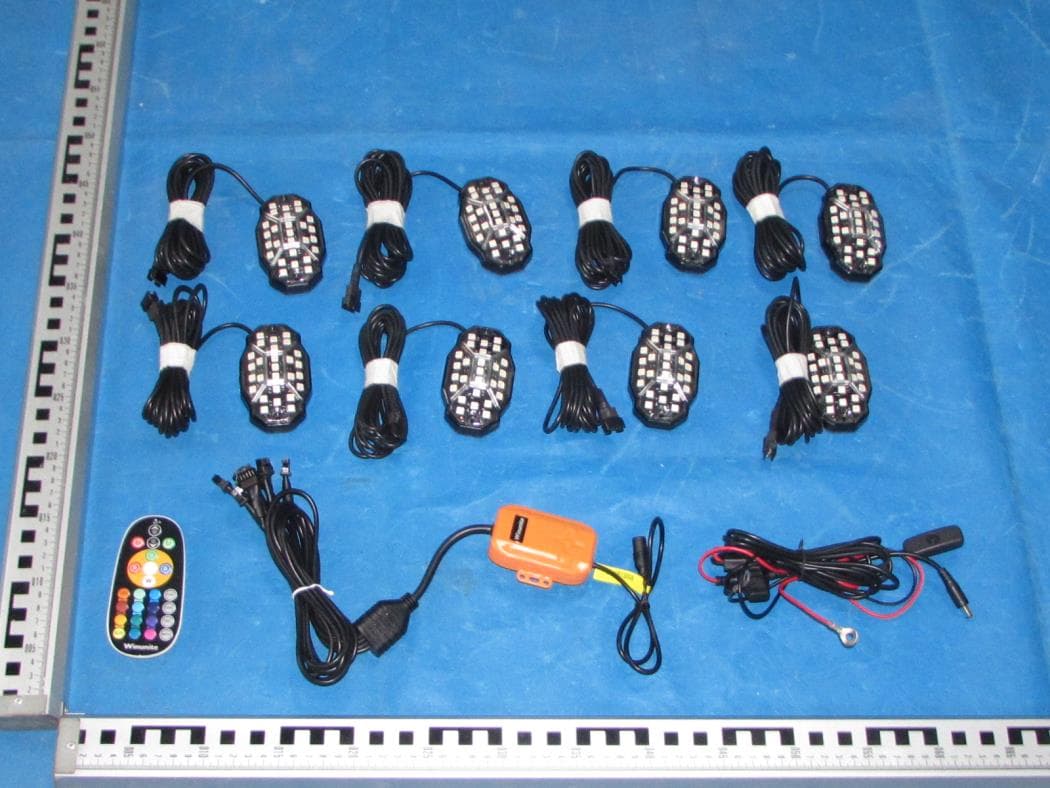

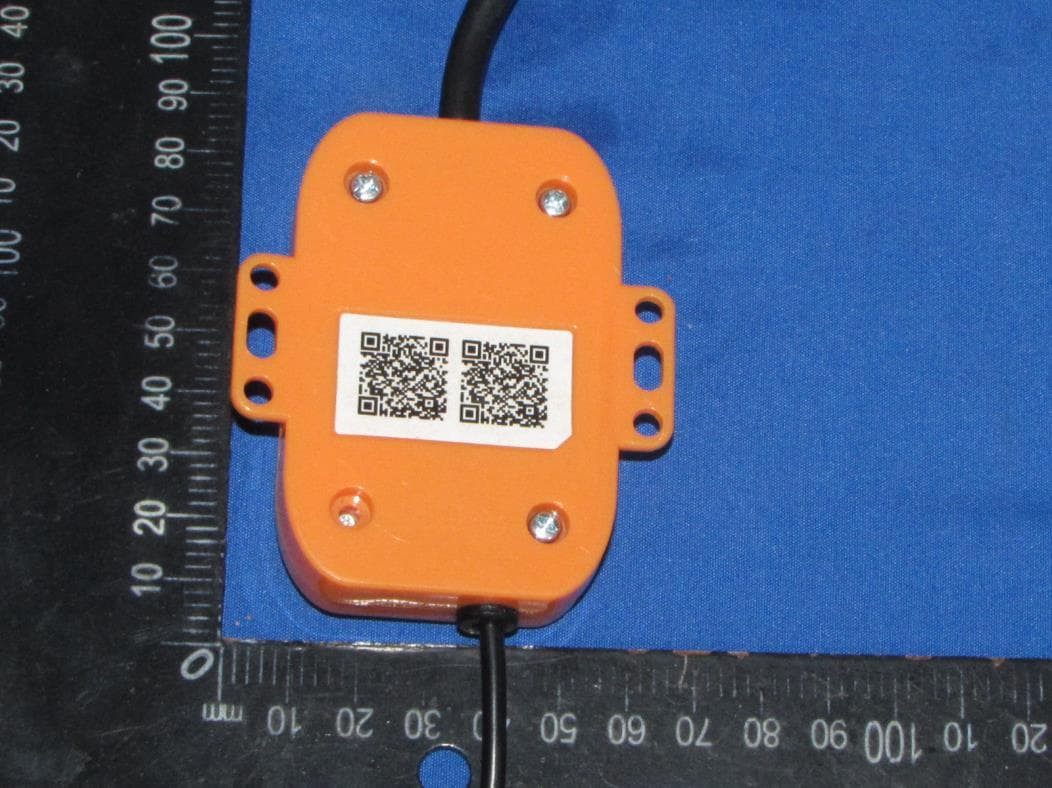

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 4 of 4 Fig.7 Fig.8

Label Location FCC ID: 2A69M-SFULL8

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 2 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 2 Fig.3 Fig.4 Bluetooth antenna

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 3 Conducted Power Results TestMode Antenna Frequency[MHz] Result[dBm] BLE_1M Ant1 2402 0.06 BLE_1M Ant1 2440 -0.05 BLE_1M Ant1 2480 -0.91 Manufacturing tolerance GFSK(1Mbps) (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -0.5 -0.5 -1.5 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK(1Mbps) 0.5 0.5 1.12 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is 0 dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Antenna describe 1. Antenna describe: Antenna plate PCB ANTENNA Make name/model name PDT-002 Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct Manufacturer Name: DONGGUANG XIAOKE INDUSTRLES.CO.,LTD Manufacture Address: NO. 227, DONGCHENG SECTION, GUANDONG ROAD, DONGCHENG STREET, DONGGUAN CITY,CHINA 2.External view drawing: Picture of antenna Antenna Dimensions L1 2.15 mm L2 1.20 mm L3 1.95 mm W1 0.35 mm W2 0.35 mm D1 1.25 mm D2 1.65 mm D3 0.50 mm 3.Antenna Radiation Pattern

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 1 of 22 Appendix Test Data for BLE (Conducted Measurement) Product Name: RGBW LED Lights Trade Mark: / Test Model: S-FULL-8 FCC ID: 2A69M-SFULL8 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.572 2401.792 2402.364 0.5 PASS BLE_1M Ant1 2440 0.572 2439.772 2440.344 0.5 PASS BLE_1M Ant1 2480 0.536 2479.800 2480.336 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 2 of 22 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 3 of 22 BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 4 of 22 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.3068 2401.4080 2402.7148 --- --- BLE_1M Ant1 2440 1.3184 2439.4018 2440.7202 --- --- BLE_1M Ant1 2480 1.3024 2479.4113 2480.7137 --- --- Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 5 of 22 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 6 of 22 BLE_1M-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 7 of 22 Appendix C: Maximum peak conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 0.06 ≤30 PASS BLE_1M Ant1 2440 -0.05 ≤30 PASS BLE_1M Ant1 2480 -0.91 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 8 of 22 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 9 of 22 BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 10 of 22 Appendix D: Maximum peak power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -7.68 ≤8.00 PASS BLE_1M Ant1 2440 -7.71 ≤8.00 PASS BLE_1M Ant1 2480 -8.67 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 11 of 22 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 12 of 22 BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 13 of 22 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -0.03 -42.43 ≤-20.03 PASS BLE_1M Ant1 High 2480 -0.99 -43.58 ≤-20.99 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 14 of 22 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 15 of 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 0~Reference -0.12 -0.12 --- PASS BLE_1M Ant1 2402 30~1000 -0.12 -62.47 ≤-20.12 PASS BLE_1M Ant1 2402 1000~26500 -0.12 -32.54 ≤-20.12 PASS BLE_1M Ant1 2440 0~Reference -0.27 -0.27 --- PASS BLE_1M Ant1 2440 30~1000 -0.27 -62.47 ≤-20.27 PASS BLE_1M Ant1 2440 1000~26500 -0.27 -37.02 ≤-20.27 PASS BLE_1M Ant1 2480 0~Reference -1.13 -1.13 --- PASS BLE_1M Ant1 2480 30~1000 -1.13 -62.34 ≤-21.13 PASS BLE_1M Ant1 2480 1000~26500 -1.13 -31.49 ≤-21.13 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 16 of 22 Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 17 of 22 BLE_1M-Ant1-2402-1000~26500-PASS BLE_1M-Ant1-2440-0~Reference-PASS BLE_1M-Ant1-2440-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 18 of 22 BLE_1M-Ant1-2440-1000~26500-PASS BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 19 of 22 BLE_1M-Ant1-2480-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 20 of 22 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2402 0.49 0.63 77.78 1.09 BLE_1M Ant1 2440 0.48 0.62 77.42 1.11 BLE_1M Ant1 2480 0.49 0.63 77.78 1.09 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 21 of 22 Test Graphs NTNV-BLE_1M-Ant1-2402 NTNV-BLE_1M-Ant1-2440 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 Report No.: TZ0028240806FRF02 Page 22 of 22 NTNV-BLE_1M-Ant1-2480

FCC TEST REPORT Test report On Behalf of Guangzhou Eurolite Lighting CO.,LTD For RGBW LED Lights Model No: S-FULL-8, Win-RGBW-T8, S-7inch-ch, Win-RGBW-T12, S-FULL-12, JLJ00R, S003-N, J00R-G, SUNPIE-12ROCK-SUPER, SUNPIE-RGBW-5.75, SP-7040-combo, DP, SP-JL-RGBW, 7RGBW-H-CHROME, S-FULL-16 FCC ID: 2A69M-SFULL8 Prepared for : Guangzhou Eurolite Lighting CO.,LTD Room 308, Building A, No. 906, North Baiyun Avenue, Helong Street, Baiyun District, Guangzhou City, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/8/22 ~ 2024/8/30 Date of Report: 2024/9/2 Report Number: TZ0028240806FRF02 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. ....... Report No.: TZ0028240806FRF02 Page 2 of 31 TEST RESULT CERTIFICATION Applicant’s name ................. : Guangzhou Eurolite Lighting CO.,LTD Address ................................. : Room 308, Building A, No. 906, North Baiyun Avenue, Helong Street, Baiyun District, Guangzhou City, China Manufacture's Name ............ : Guangzhou Eurolite Lighting CO.,LTD Address ................................. : Room 308, Building A, No. 906, North Baiyun Avenue, Helong Street, Baiyun District, Guangzhou City, China Product description Trade Mark: / Product name ............................ : RGBW LED Lights Model and/or type reference : S-FULL-8, Win-RGBW-T8, S-7inch-ch, Win-RGBW-T12, S-FULL-12, JLJ00R, S003-N, J00R-G, SUNPIE-12ROCK-SUPER, SUNPIE- RGBW-5.75, SP-7040-combo, DP, SP-JL-RGBW, 7RGBW-H- CHROME, S-FULL-16 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/8/22 ~ 2024/8/30 Date of Issue .......................................... : 2024/9/2 Test Result.............................................. : Pass Testing Engineer : (Allen Lai) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) ....... Report No.: TZ0028240806FRF02 Page 3 of 31 Revision History Revision Issue Date Revisions Revised By 000 2024/9/2 Initial Issue Andy Zhang ....... Report No.: TZ0028240806FRF02 Page 4 of 31 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 5 1.1 Description of Device (EUT).................................................................................................... 5 1.2 Wireless Function Tested in this Report .................................................................................. 5 1.3 EUT configuration ................................................................................................................... 6 1.4 Description of Test Facility ...................................................................................................... 6 1.5 Statement of the Measurement Uncertainty ............................................................................ 7 1.6 Measurement Uncertainty ....................................................................................................... 7 1.7 Description of Test Modes ...................................................................................................... 7 1.8 Frequency of Channels ........................................................................................................... 7 2 TEST METHODOLOGY ........................................................................................................ 8 2.1 EUT Configuration .................................................................................................................. 8 2.2 EUT Exercise .......................................................................................................................... 8 2.3 Test Sample ........................................................................................................................... 8 3 SYSTEM TEST CONFIGURATION ....................................................................................... 9 3.1 Justification ............................................................................................................................. 9 3.2 EUT Exercise Software ........................................................................................................... 9 3.3 Special Accessories ................................................................................................................ 9 3.4 Block Diagram/Schematics ..................................................................................................... 9 3.5 Equipment Modifications ......................................................................................................... 9 3.6 Test Setup .............................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ......................................................................................... 10 5 TEST RESULT..................................................................................................................... 11 5.1 On Time and Duty Cycle ....................................................................................................... 11 5.2 Maximum Peak Conducted Output Power Measurement ........................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2A69M-SFULL8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 1 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
