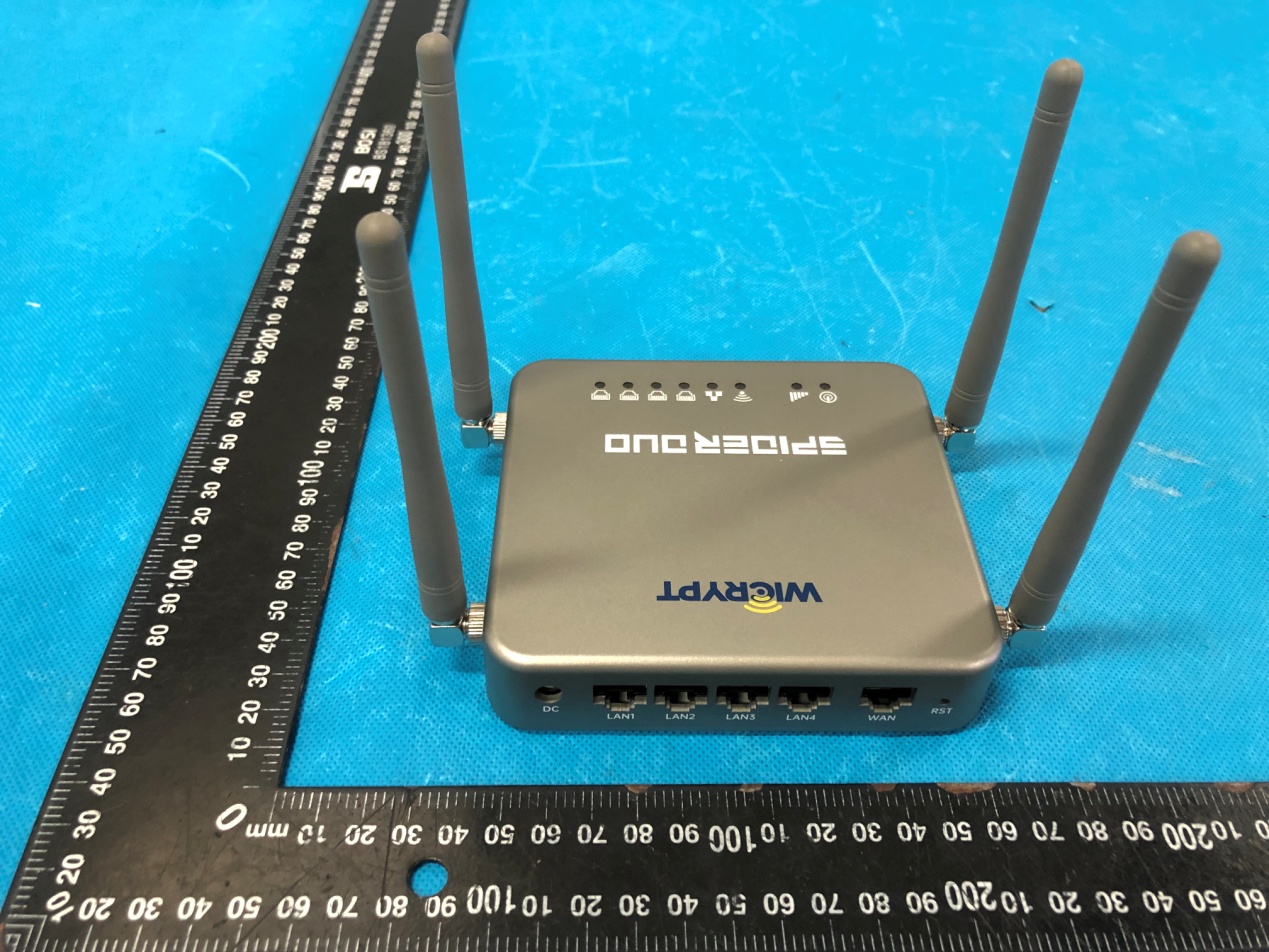

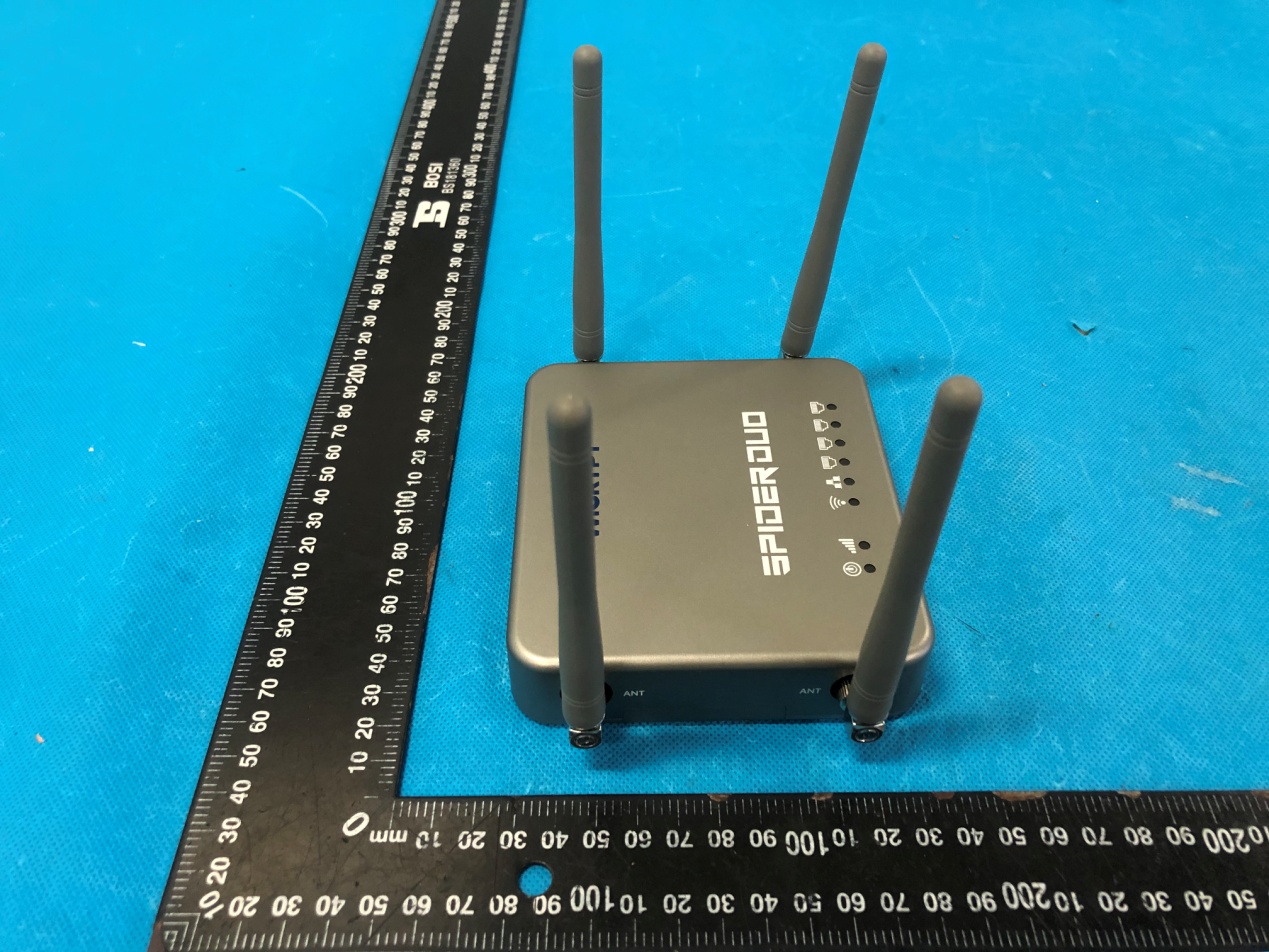

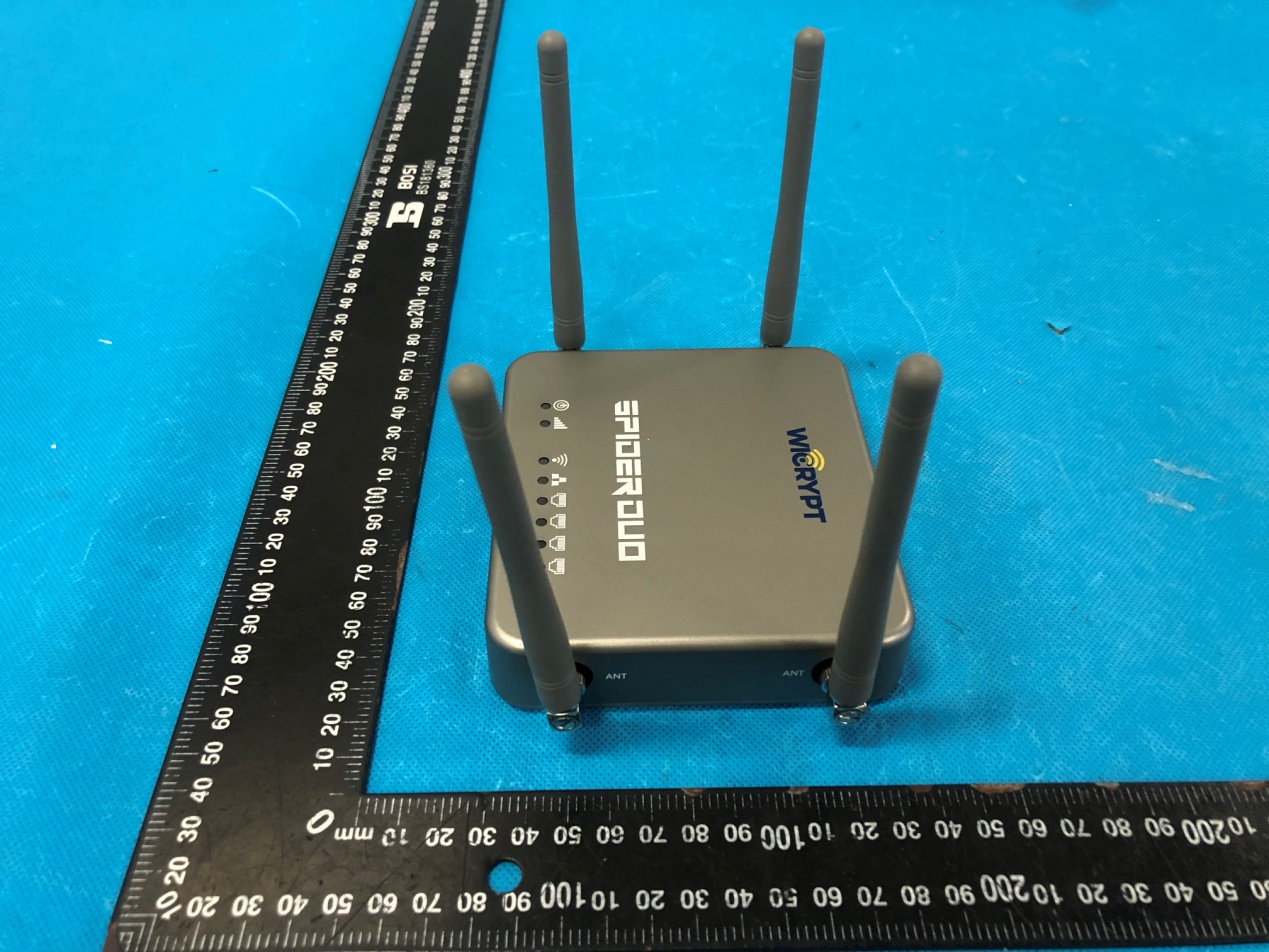

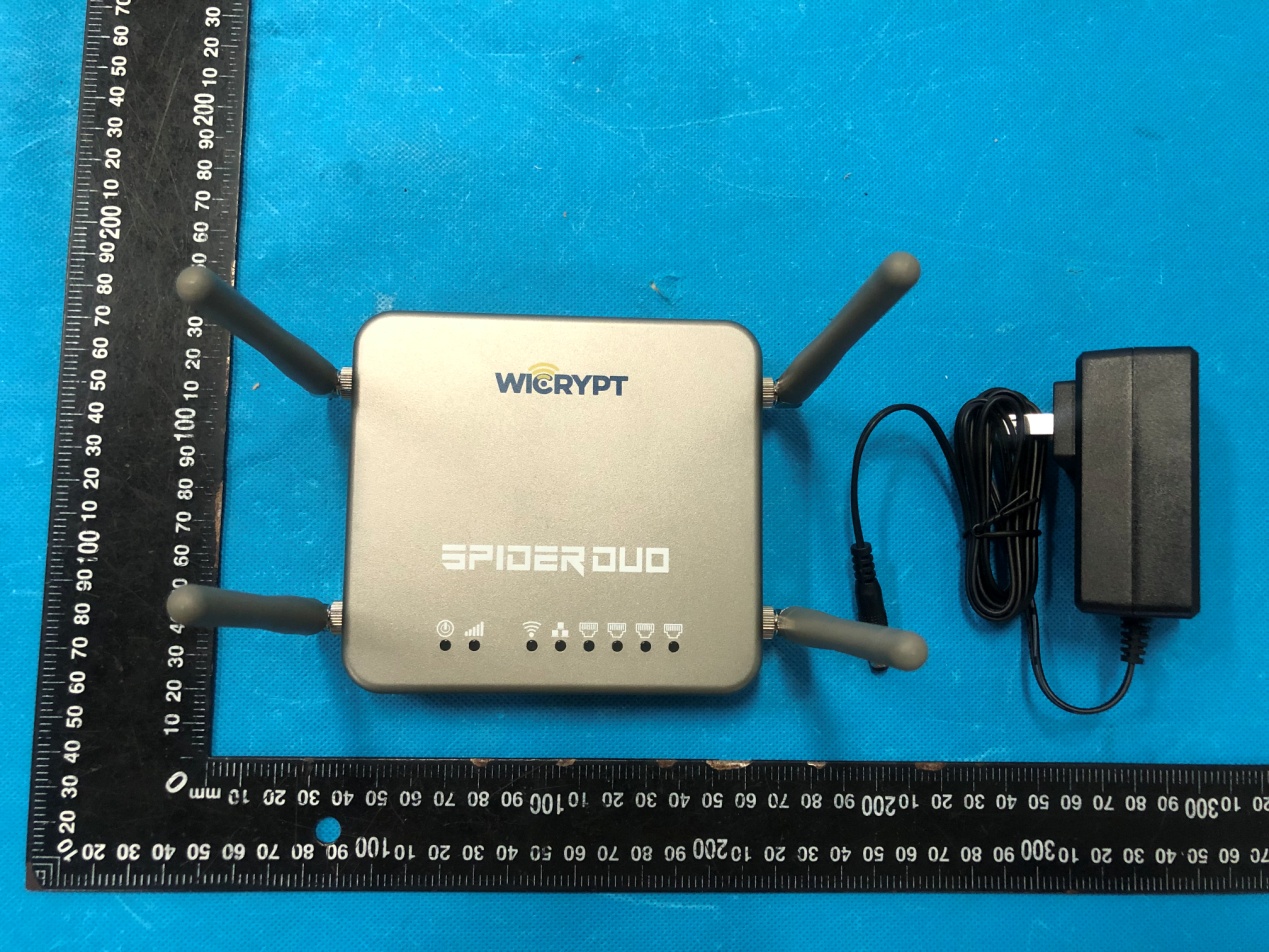

Annex A External Photos Model: WRS225 Page 1 of 4 Model: WRS225 Page 2 of 4 Model: WRS225 Page 3 of 4 2.4GWIFI Antenna 2G/3G/4G Antenna Model: WRS225 Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2A6DD-WRS225

Annex B Internal Photo Model: WRS225 Page 1 of 6 Module 2 GPS ANT Module 1 AUX ANT Module 2 AUX ANT Module 1 GPS ANT Model: WRS225 Page 2 of 6 Model: WRS225 Page 3 of 6 Model: WRS225 Page 4 of 6 Model: WRS225 Page 5 of 6 Model: WRS225 Page 6 of 6

RF Exposure evaluation FCC ID: 2A6DD-WRS225 1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. 2. Limit FCC: Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method FCC： Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result Mode Minimum Separation Distance Output Power (Turn-up Procedure) Antenna Gain (Numeri c) Power Density At 20 cm (mW/cm 2 ) Power Density Limit (mW/cm 2 ) Test Results (cm) dBmmW GSM1900 20.00 31.01258.93 1.78 0.44604 1.0 PASS GSM850 20.00 31.221324.34 1.78 0.46921 0.549 PASS WCDMA Band 2 20.00 24.5281.84 1.78 0.09986 1.0 PASS WCDMA Band 5 20.00 24.0251.19 1.78 0.08900 0.55 PASS LTE Band 2 20.00 24.2263.03 1.78 0.09319 1.0 PASS LTE Band 4 20.00 24.0251.19 1.78 0.08900 1.0 PASS LTE Band 5 20.00 24.0251.19 1.78 0.08900 0.549 PASS LTE Band 7 20.00 23.3213.80 1.78 0.07575 1.0 PASS LTE Band 12 20.00 23.2208.93 1.78 0.07402 0.466 PASS LTE Band 13 20.00 23.0199.53 1.78 0.07069 0.518 PASS LTE Band 25 20.00 24.0251.19 1.78 0.08900 1.0 PASS LTE Band 26 20.00 23.0199.53 1.78 0.07069 0.548 PASS LTE Band 41 20.00 23.0199.53 1.78 0.07069 1.0 PASS LTE Band 66 20.00 24.1257.04 1.78 0.09107 1.0 PASS 2.4GWiFi 20.00 20.01100.23 1.78 0.03551 1.0 PASS 5. Simultaneous transmission MPE Considerations According to KDB447498 :For mobile exposure host platform to qualify for simultaneous transmission MPE test exclusion, all transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 WiFi and GSM Simultaneous evaluation 0.03551/1.0+0.46921/0.549=0.89017 <1 6. Conclusion This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Shenzhen HUAK Testing Technology Co., Ltd. Report No.: HK2203211049-1E FCC PART 22/24 TEST REPORT FCC Part 22 /Part 24 Report Reference No.: HK2203211049-1E FCC ID: 2A6DD-WRS225 Compiled by ( position+printed name+signature) .. : File administrators Gary Qian Supervised by ( position+printed name+signature) .. : Technique principal Eden Hu Approved by ( position+printed name+signature) .. : Manager Jason Zhou Date of issue ..................................... : May. 07, 2022 Testing Laboratory Name .............. : Shenzhen HUAK Testing Technology Co., Ltd. Address............................................. : 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Wicrypt Labs Limited Address............................................. : Vistra Corporate Services Centre, Wickhams Cay II, Road Town, Tortola, VG1110, British Virgin Islands, United Kingdom Test specification ........................... : Standard ........................................... : FCC Part 22: PUBLIC MOBILE SERVICES FCC Part 24: PERSONAL COMMUNICATIONS SERVICES Shenzhen HUAK Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wicrypt Spider Duo Trade Mark ....................................... : N/A Model/Type reference ....................... : WRS225 Series Models .................................. : N/A Ratings.............................................. : DC 12V from Adapter Modulation ....................................... : GMSK/8PSK GPRS ................................................. Supported Hardware version ............................. : V2.0 Software version .............................. : V2.0 Frequency .......................................... GSM 850MHz; PCS 1900MHz; Result ................................................ : PASS Page 2 of 43 Report No.: HK2203211049-1E T E S T R E P O R T Test Report No. : HK2203211049-1E May. 07, 2022 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wicrypt Spider Duo Model /Type : WRS225 Series Models : N/A Applicant : Wicrypt Labs Limited Address : Vistra Corporate Services Centre, Wickhams Cay II, Road Town, Tortola, VG1110, British Virgin Islands, United Kingdom Manufacturer : Wicrypt Tech Limited Address : No. 36 Garden Avenue, Bethel Plaza, Enugu, Nigeria Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 3 of 43 Report No.: HK2203211049-1E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release May. 07, 2022 Jason Zhou Page 4 of 43 Report No.: HK2203211049-1E Contents 1 TEST STANDARDS .................................................................. 5 2 SUMMARY ............................................................................. 6 2.1 General Remarks 6 2.2 Product Description 6 2.3 Equipment Under Test 6 2.4 Short Description of The Equipment Under Test (EUT) 7 2.5 EUT Configuration 7 2.6 Related Submittal(s) / Grant (s) 7 2.7 Modifications 7 2.8 General Test Conditions/Configurations 7 2.9 Modifications 7 3 TEST ENVIRONMENT ............................................................... 8 3.1 Information of The Test Laboratory 8 3.2 Environmental Conditions 8 3.3 Test Description 8 3.4 Equipments Used During The Test 10 4 TEST CONDITIONS AND RESULTS ............................................ 11 4.1 Output Power 11 4.2 Radiated Spurious Emssion 16 4.3 Occupied Bandwidth and Emission Bandwidth 21 4.4 Band Edge Complicance 25 4.5 Spurious Emssion on Antenna Port 28 4.6 Frequency Stability Test 37 4.7 Peak-to-Average Ratio (PAR) 40 5 TEST SETUP PHOTOS OF THE EUT .......................................... 42 6 PHOTOS OF THE EUT ............................................................. 43 Page 5 of 43 Report No.: HK2203211049-1E 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS. FCC Part 22 Subpart H: PRIVATE LAND MOBILE RADIO SERVICES. FCC Part 24 Subpart E: PUBLIC MOBILE SERVICES. ANSI/TIA-603-E-2016: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.26-2015: IEEE/ANSI Standard for Compliance Testing of Transmitters Used in Licensed Radio Services. FCCKDB971168D01 Power Meas License Digital Systems. Page 6 of 43 Report No.: HK2203211049-1E 2 SUMMARY 2.1 General Remarks Date of receipt of test sample : Mar. 01, 2022 Testing commenced on : Mar. 01, 2022 Testing concluded on : May. 07, 2022 2.2 Product Description Product Name: Wicrypt Spider Duo Model/Type reference: WRS225 Series Models: N/A Power supply: DC 12V from adapter Adapter Information: Input:100-240V, 50/60Hz, 1.0A; Output:12V, 2A Modilation Type: GMSK/8PSK Antenna Type: External Antenna GSM/EDGE/GPRS: Supported EGPRS/GPRS GSM/GPRS Power Class: GSM850:Power Class 4/ PCS1900:Power Class 1 GSM/GPRS Operation Frequency: GSM850:824.2MHz-848.8MHz/PCS1900:1850.2MHz-1909.8MHz GPRS Operation Frequency Band: GPRS850/GPRS1900 GPRS/EDGE Multislot Class: EGPRS/GPRS: Multi-slot Class 12 EGPRS Multislot Class: / Extreme temp. Tolerance: -30°C to +50°C GPRS operation mode: Class B 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 230V / 50Hz ● …

Text truncated - open the document above for the full version.

Shenzhen HUAK Testing Technology Co., Ltd. Report No.: HK2203211049-2E TEST REPORT FCC Part 22 /Part 24 Report Reference No.: HK2203211049-2E FCC ID : 2A6DD-WRS225 Compiled by ( position+printed name+signature) .. : File administrators Gary Qian Supervised by ( position+printed name+signature) .. : Technique principal Eden Hu Approved by ( position+printed name+signature) .. : Manager Jason Zhou Date of issue ..................................... : Apr. 02, 2022 Testing Laboratory Name .............. : Shenzhen HUAK Testing Technology Co., Ltd. Address............................................. : 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Wicrypt Labs Limited Address............................................. : Vistra Corporate Services Centre, Wickhams Cay II, Road Town, Tortola, VG1110, British Virgin Islands, United Kingdom Test specification .......................... : Standard ......................................... : FCC Part 22: PUBLIC MOBILE SERVICES FCC Part 24: PERSONAL COMMUNICATIONS SERVICES Shenzhen HUAK Testing Technology Co., Ltd.All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd.as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd.takess no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wicrypt Spider Duo Trade Mark ....................................... : N/A Manufacturer ................................... : Wicrypt Tech Limited Model/Type reference ....................... : WRS225 Series Models .................................. : N/A Ratings.............................................. : DC 12V from adapter Modulation ....................................... : QPSK Hardware version ............................. : V2.0 Software version .............................. : V2.0 Frequency .......................................... UMTS Band II, UMTS Band V Result ................................................ : PASS Page 2 of 35 Report No.: HK2203211049-2E T E S T R E P O R T Test Report No. : HK2203211049-2E Apr. 02, 2022 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wicrypt Spider Duo Model /Type : WRS225 Series Models : N/A Applicant : Wicrypt Labs Limited Address : Vistra Corporate Services Centre, Wickhams Cay II, Road Town, Tortola, VG1110, British Virgin Islands, United Kingdom Manufacturer : Wicrypt Tech Limited Address : No. 36 Garden Avenue, Bethel Plaza, Enugu, Nigeria Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 3 of 35 Report No.: HK2203211049-2E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Apr. 02, 2022 Jason Zhou Page 4 of 35 Report No.: HK2203211049-2E Contents 1 TEST STANDARDS .................................................................. 5 2 SUMMARY ............................................................................. 6 2.1 General Remarks 6 2.2 Product Description 6 2.3 Equipment Under Test 6 2.4 Short Description of The Equipment Under Test (EUT) 7 2.5 EUT Configuration 7 2.6 Related Submittal(s) / Grant (s) 7 2.7 General Test Conditions/Configurations 7 2.8 Modifications 7 3 TEST ENVIRONMENT ............................................................... 8 3.1 Information of The Test Laboratory 8 3.2 Environmental Conditions 8 3.3 Test Description 8 3.4 Equipments Used During The Test 10 4 TEST CONDITIONS AND RESULTS ............................................ 11 4.1 Output Power 11 4.2 Radiated Spurious Emssion 15 4.3 Occupied Bandwidth and Emission Bandwith 19 4.4 Band Edge Compliance 21 4.5 Spurious Emssion on Antenna Port 23 4.6 Frequency Stability Test 30 4.7 Peak-to-Average Ratio (PAR) 32 5 TEST SETUP PHOTOS OF THE EUT .......................................... 34 6 PHOTOS OF THE EUT ............................................................. 35 Page 5 of 35 Report No.: HK2203211049-2E 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS. FCC Part 22 Subpart H: PRIVATE LAND MOBILE RADIO SERVICES. FCC Part 24 Subpart E: PUBLIC MOBILE SERVICES. ANSI/TIA-603-E-2016: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.26-2015: IEEE/ANSI Standard for Compliance Testing of Transmitters Used in Licensed Radio Services. FCCKDB971168D01 Power Meas License Digital Systems. Page 6 of 35 Report No.: HK2203211049-2E 2 SUMMARY 2.1 General Remarks Date of receipt of test sample : Mar. 01, 2022 Testing commenced on : Mar. 01, 2022 Testing concluded on : Apr. 02, 2022 2.2 Product Description The Model: WRS225 or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT: Wicrypt Spider Duo Model Number: WRS225 Modilation Type: QPSK for UMTS, Antenna Type: External Antenna UMTS Operation Frequency Band: Device supported UMTS FDD Band II, FDD Band V HSDPA Release Version: Release 10 HSUPA Release Version: Release 6 DC-HSUPA Release Version: Not Supported WCDMA Release Version: R99 Extreme temp. Tolerance: -30°C to +50°C Extreme vol. Limits: 10.2VDC to 13.8VDC (nominal: 12.0VDC) 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ● 12 V DC ○ 24 V DC ○ Other (specified in blank below) Test Mode TX/RX RF Channel Low(L) Middle (M) …

Text truncated - open the document above for the full version.

Shenzhen HUAK Testing Technology Co., Ltd. Report No.: HK2203211049-3E FCC PART 24TEST REPORT Part 24 Subpart E Report Reference No. .....................: HK2203211049-3E FCC ID. ............................................. : 2A6DD-WRS225 Compiled by ( position+printed name+signature) .. : File administrators Gary Qian Supervised by ( position+printed name+signature) .. : Technique principal Eden Hu Approved by ( position+printed name+signature) .. : Manager Jason Zhou Date of issue ..................................... :Apr. 02, 2022 Testing Laboratory Name .............. : Shenzhen HUAK Testing Technology Co., Ltd. Address ............................................ : 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Wicrypt Labs Limited Address ............................................ : Vistra Corporate Services Centre, Wickhams Cay II, Road Town, Tortola, VG1110, British Virgin Islands, United Kingdom Test specification ........................... : Standard ........................................... : FCC CFR Title 47 Part 2, Part 24E TRF Originator .................................. : Shenzhen HUAK Testing Technology Co., Ltd. Shenzhen HUAK Testing Technology Co., Ltd.All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd.as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd.takess no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wicrypt Spider Duo Trade Mark ....................................... : N/A Manufacturer ................................... : Wicrypt Tech Limited Model/Type reference....................... : WRS225 Series Models ................................. : N/A Modulation Type ............................... : QPSK, 16QAM Rating ............................................... : DC 12V from adapter Hardware version ............................. : V2.0 Software version ............................... : V2.0 Result................................................ : PASS Page 2 of 68 Report No.: HK2203211049-3E T E S T R E P O R T Test Report No. : HK2203211049-3E Apr. 02, 2022 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wicrypt Spider Duo Model /Type : WRS225 Series Models : N/A Applicant : Wicrypt Labs Limited Address : Vistra Corporate Services Centre, Wickhams Cay II, Road Town, Tortola, VG1110, British Virgin Islands, United Kingdom Manufacturer : Wicrypt Tech Limited Address : No. 36 Garden Avenue, Bethel Plaza, Enugu, Nigeria Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 3 of 68 Report No.: HK2203211049-3E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Apr. 02, 2022 Jason Zhou Page 4 of 68 Report No.: HK2203211049-3E Contents 1 TEST STANDARDS .................................................................. 5 2 SUMMARY ............................................................................. 6 2.1 General Remarks 6 2.2 Product Description 6 2.3 Equipment Under Test 6 2.4 Short Description of The Equipment Under Test (EUT) 6 2.5 Test Frequency List 7 2.6 Normal Accessory Setting 7 2.7 EUT Configuration 7 2.8 Related Submittal(s) / Grant (s) 7 2.9 Modifications 7 2.10 GeneralTest Conditions/Configurations 8 3 TEST ENVIRONMENT ............................................................... 9 3.1 Information of The Test Laboratory 9 3.2 Environmental Conditions 9 3.3 Test Description 9 3.4 Equipments Used During The Test 10 4 TEST CONDITIONS AND RESULTS ............................................ 11 4.1 Output Power 11 4.2 Peak-to-Average Ratio (PAR) 17 4.3 Occupied Bandwidth and Emission Bandwidth 24 4.4 Band Edge Compliance 31 4.5 Spurious Emssion on Antenna Port 38 4.6 Radiated Spurious Emssion 57 4.7 Frequency Stability 65 5 TEST SETUP PHOTOS OF THE EUT .......................................... 67 6 PHOTOS OF THE EUT ............................................................. 68 Page 5 of 68 Report No.: HK2203211049-3E 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 24: PUBLIC MOBILE SERVICES. TIA/EIA 603 D June 2010: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. 47 CFR FCC Part 15 Subpart B: Unintentional Radiators. FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS. KDB971168 D01:v02r02 MEASUREMENT GUIDANCE FOR CERTIFICATION OF LICENSED DIGITAL TRANSMITTERS. ANSI C63.4:2014: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Page 6 of 68 Report No.: HK2203211049-3E 2 SUMMARY 2.1 General Remarks Date of receipt of test sample : Mar. 01, 2022 Testing commenced on : Mar. 01, 2022 Testing concluded on : Apr. 02, 2022 2.2 Product Description The Wicrypt Labs Limited’s Model:WRS225 or the “EUT” as referred to in this report; more general information as follows,for more details, refer to the user’s manual of the EUT. Name of EUT: Wicrypt Spider Duo Model/Type reference: WRS225 Series Models: N/A Power supply: DC 12V from adapter Modilation Type: QPSK,16QAM Antenna Type: Externe Antenne Antenna Gain: 2.5dBi Operation Frequency Band: LTE Band 2 Operation frequency: LTE Band 2: 1850~1910 MHz(TX), 1930~1990 MHz(TX) LTE Release: R8 Extreme temp. Tolerance: -30°C to +70°C Extreme vol. Limits: 10.2VDC to 13.8VDC (nominal: 12.0VDC) 2.3 Equipment Unde…

Text truncated - open the document above for the full version.

LTE FDD Ban QPSK 75RB#0 75RB#0 nd 2–15MHz Page 36 of 6 Channel Ba Low Chan High Chan 68 andwidthBand nnel nnel Report d Edge Com 16Q 75R 75R No.: HK220 mpliance QAM RB#0 RB#0 03211049-3EE LTE FDD Ban QPSK 100RB#0 100RB#0 nd 2–20MHz Page 37 of 6 Channel Ba Low Chan High Chan 68 andwidthBand nnel nnel Report d Edge Com 16Q 100R 100R No.: HK220 mpliance QAM RB#0 RB#0 03211049-3EE Page 38 of 68 Report No.: HK2203211049-3E 4.5 Spurious Emssion on Antenna Port LIMIT Per FCC §24.238, the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. TEST CONFIGURATION TEST PROCEDURE The EUT was setup according to EIA/TIA 603D. a. Place the EUT on a bench and set it in transmitting mode. b. Connect a low loss RF cable from the antenna port to a spectrum analyzer andCMW500 by a Directional Couple. c. EUT Communicate with CMW500, then select a channel for testing. d. Add a correction factor to the display of spectrum, and then test. e. The resolution bandwidth of the spectrum analyzer was setsufficient scans were taken to show the out of band Emission if any up to10 th harmonic. f. Please refer to following tables for test antenna conducted emissions. Working Frequency Sub range (GHz) RBW VBW Sweep time (s) LTE FDD Band 2 0.01~20 1 MHz 3 MHz Auto TEST RESULTS Remark: 1. We were tested all RB Configuration refer 3GPP TS136 521 for each Channel Bandwidth of LTE FDD Band 2; recorded worst case at the QPSK Mode for each Channel Bandwidth of LTE FDD Band 2. 30 5G LT 0MHz~1GHz GHz~12GHz TE FDD Ban z z Page 39 of 6 nd 2-1.4MHz Low Chan QPSK 68 Channel Ba nnel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G LT 0MHz~1GHz GHz~12GHz TE FDD Ban z z Page 40 of 6 nd 2-1.4MHz Middle Cha QPSK 68 Channel Ba annel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G LT 0MHz~1GHz GHz~12GHz TE FDD Ban z z Page 41 of 6 nd 2-1.4MHz High Chan QPSK 68 Channel Ba nnel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5 L 0MHz~1GHz GHz~12GHz LTE FDD Ban z Page 42 of 6 nd 2-3MHz C Low Chan QPSK 68 Channel Ban nnel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G L 0MHz~1GHz GHz~12GHz LTE FDD Ban z z Page 43 of 6 nd 2-3MHz C Middle Cha QPSK 68 Channel Ban annel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G L 0MHz~1GHz GHz~12GHz LTE FDD Ban z z Page 44 of 6 nd 2-3MHz C High Chan QPSK 68 Channel Ban nnel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G L 0MHz~1GHz GHz~12GHz LTE FDD Ban z z Page 45 of 6 nd 2-5 MHz C Low Chan QPSK 68 Channel Ban nnel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G L 0MHz~1GHz GHz~12GHz LTE FDD Ban z z Page 46 of 6 nd 2-5 MHz C Middle Cha QPSK 68 Channel Ban annel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G L 0MHz~1GHz GHz~12GHz LTE FDD Ban z z Page 47 of 6 nd 2-5 MHz C High Chan QPSK 68 Channel Ban nnel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G LT 0MHz~1GHz GHz~12GHz TE FDD Ban z z Page 48 of 6 nd 2-10 MHz Low Chan QPSK 68 Channel Ba nnel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G LT 0MHz~1GHz GHz~12GHz TE FDD Ban z z Page 49 of 6 nd 2-10 MHz Middle Cha QPSK 68 Channel Ba annel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G LT 0MHz~1GHz GHz~12GHz TE FDD Ban z z Page 50 of 6 nd 2-10 MHz High Chan QPSK 68 Channel Ba nnel K Report ndwidth 1GHz 12GHz~ No.: HK220 z~5GHz ~26.5GHz 03211049-3EE 30 5G LT 0MHz~1GHz GHz~12GHz TE FDD Ban z z…
