2A6EB-RYYT002Speaker

RYYT002-01 User Manual Overallpicture Wireless Pilot lamp：When the LED is not connected in wireless mode the LED is blinking, but the LED is connected to the wireless. AUX Pilot lamp：When playing in AUX mode, the LED light is long on, and the LED light flashes when silent. Key tone light ： After pressing the key, the key atmosphere light will light up simultaneously for 60 seconds. Shutdown light： The LED light under the symbol is off when it is turned on, and the LED light under the symbol is on when it is turned off. Product Features and description: This product is a speaker whose main function is to play music. Link instruction 1.Input power: After the 12-29V power supply is turned on, the system starts. If the AUX cable is inserted on the top, the system enters the AUX function, if the AUX cable is not inserted on the side, the system enters the wir eless function. 2.Turn on the phone to connect to a wireless device, Open the” Audio System”of the wireless device connected to the mobile phone, and you can play music on the mobile phone. 3.Plug the Aux signal cable into the headphone jack and the sound system will switch to AUX mode. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter.

(RongYuan(ZhuHai) Electronic Technology Co., Ltd.) (2023.11.23) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A6EB-RYYT002) [RongYuan(ZhuHai) Electronic Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Huangbo Lan (RongYuan(ZhuHai) Electronic Technology Co., Ltd.) (2023.11.23) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A6EB-RYYT002) [RongYuan(ZhuHai) Electronic Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Huangbo Lan

RongYuan(ZhuHai) Electronic Technology Co., Ltd. 2023.11.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Huangbo Lan / R&D Manager Contact information / address: 3rd Floor, 1st Workshop, No.2, Pingbei 2nd Road, Nanping Industrial Park, Zhuhai, Guangdong, China

RongYuan(ZhuHai) Electronic Technology Co., Ltd. 2023.11.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Speaker Trademark: N/A MODEL: RYYT002-01, RYYT002A-01, RYYT002B-01, RYYT002C-01, RYYT002D-01 FCC ID: 2A6EB-RYYT002 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Huangbo Lan / R&D Manager Contact information / address: 3rd Floor, 1st Workshop, No.2, Pingbei 2nd Road, Nanping Industrial Park, Zhuhai, Guangdong, China

RongYuan(ZhuHai) Electronic Technology Co., Ltd. Model Difference 2023/11/23 EUT NAME: Speaker Trademark: N/A MODEL: RYYT002-01 RYYT002A-01, RYYT002B-01, RYYT002C-01, RYYT002D-01 FCC ID: 2A6EB-RYYT002 All the models are the same circuit and RF module, except model number and appearance color. Regards Sincerely Client’s signature: Client’s name / title : Huangbo Lan / R&D Manager Contact information / address: 3rd Floor, 1st Workshop, No.2, Pingbei 2nd Road, Nanping Industrial Park, Zhuhai, Guangdong, China

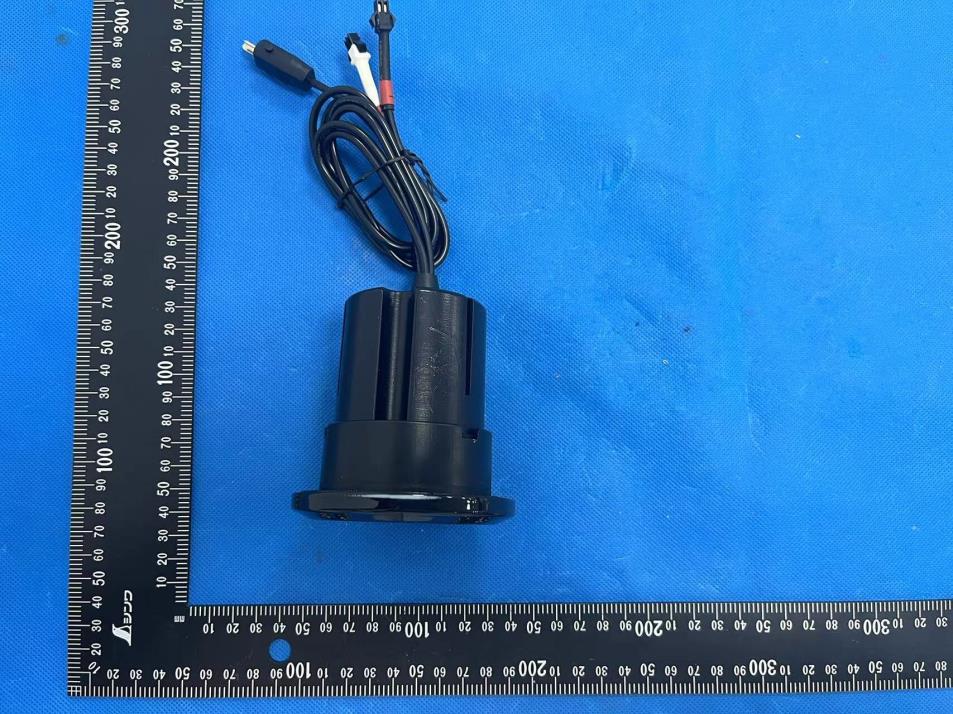

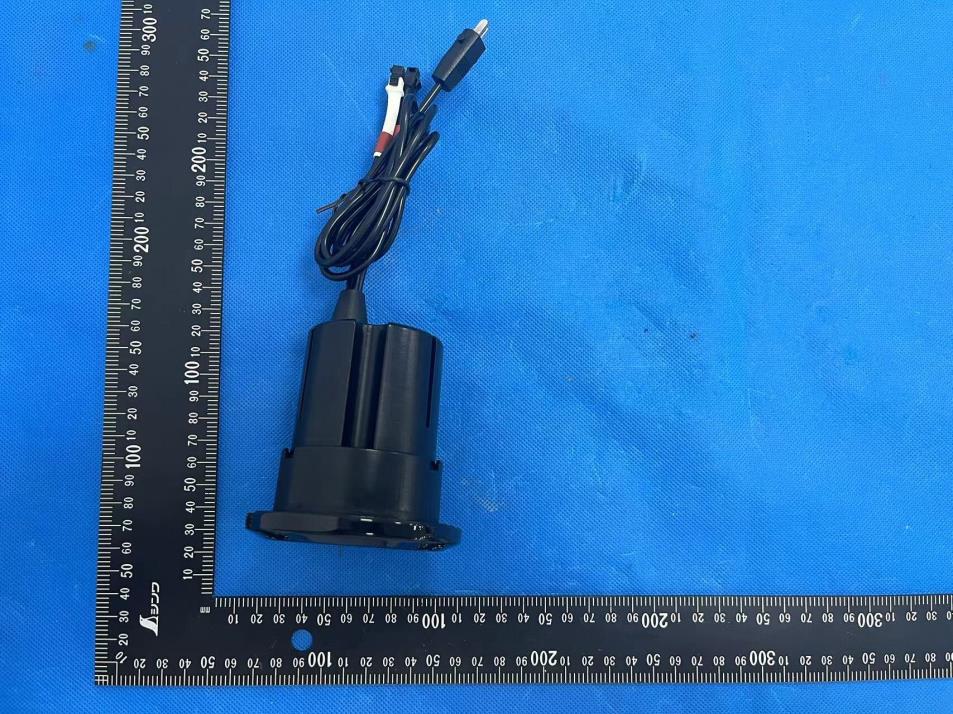

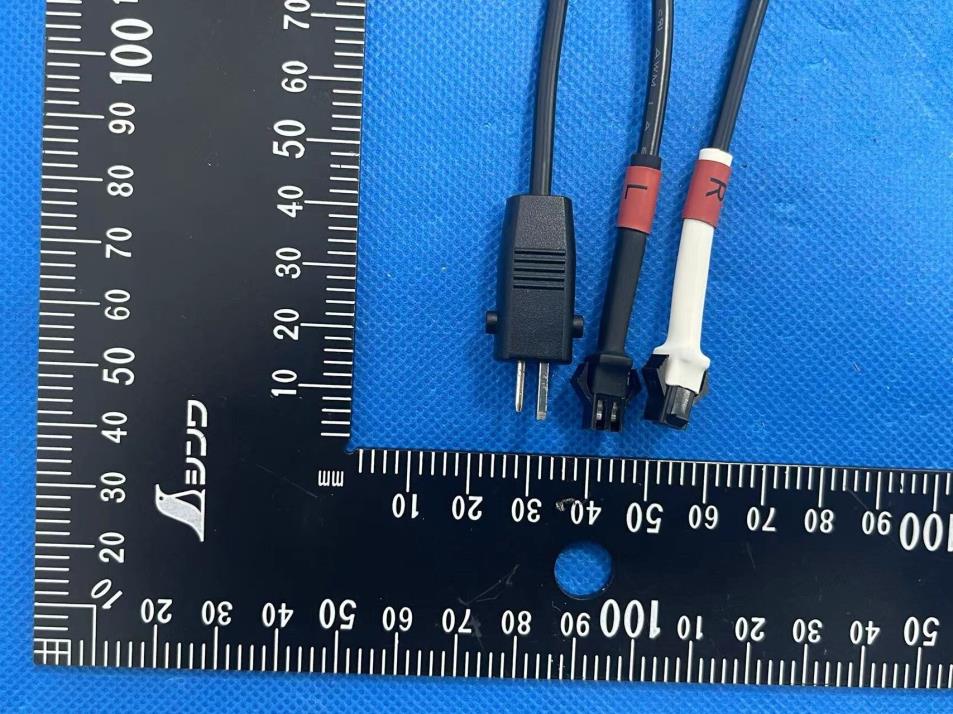

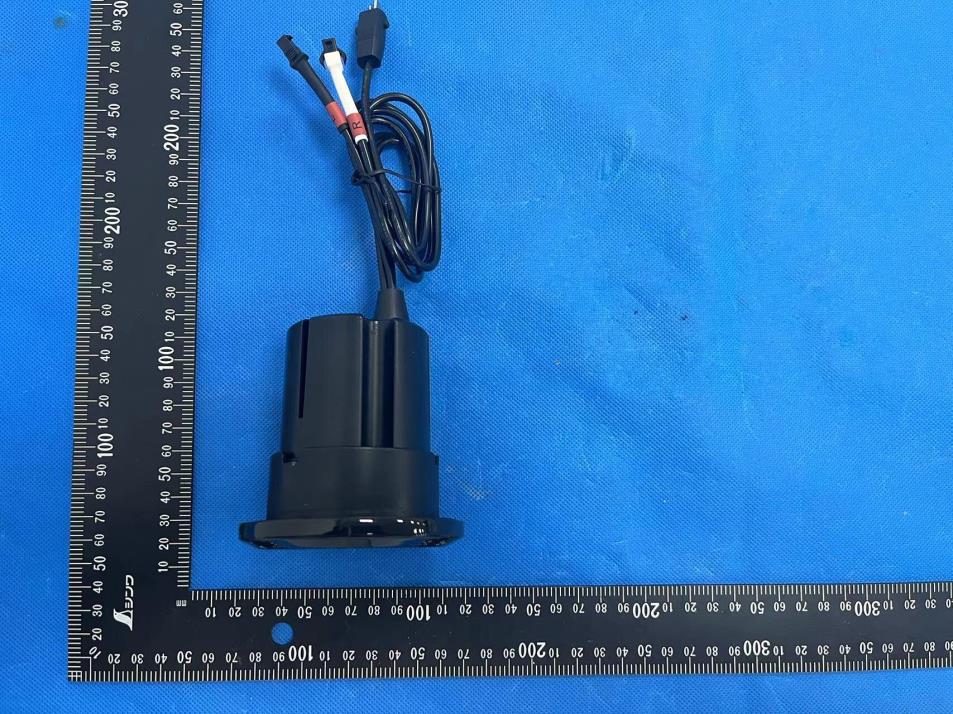

External Photos

Label & label location

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A6EB-RYYT002 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result BLE 0±1 1 1.26 1.48 (1.7dBi) 0.000371 1 Pass Conclusion: For the max result ≤ 1.0, compliance with FCC's RF Exposure

RongYuan(ZhuHai) Electronic Technology Co., Ltd. 3rd Floor, 1st Workshop, No.2, Pingbei 2nd Road, Nanping Industrial Park, Zhuhai, Guangdong, China

No.：BCTC/RF-EMC-005 Page: 1 of 76 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2311439118E Applicant: RongYuan(ZhuHai) Electronic Technology Co., Ltd. Product Name: Speaker Model/Type Reference: RYYT002-01 Tested Date: 2023-11-18 to 2023-11-24 Issued Date: 2023-11-24 Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 2 of 76 Edition：B.0 FCC ID: 2A6EB-RYYT002 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Speaker Trademark: N/A Model/Type Reference: RYYT002-01 RYYT002A-01, RYYT002B-01, RYYT002C-01, RYYT002D-01 Prepared For: RongYuan(ZhuHai) Electronic Technology Co., Ltd. Address: 3rd Floor, 1st Workshop, No.2, Pingbei 2nd Road, Nanping Industrial Park, Zhuhai, Guangdong, China Manufacturer: RongYuan(ZhuHai) Electronic Technology Co., Ltd. Address: 3rd Floor, 1st Workshop, No.2, Pingbei 2nd Road, Nanping Industrial Park, Zhuhai, Guangdong, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-11-17 Sample Tested Date: 2023-11-18 to 2023-11-24 Issue Date: 2023-11-24 Report No.: BCTC2311439118E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 3 of 76 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 13 7. Radiated emissions ............................................................................................. 14 7.1 Block Diagram Of Test Setup .............................................................................. 14 7.2 Limit .................................................................................................................... 15 7.3 Test procedure .................................................................................................... 16 7.4 EUT operating Conditions ................................................................................... 17 7.5 Test Result .......................................................................................................... 17 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 21 8.1 Block Diagram Of Test Setup .............................................................................. 21 8.2 Limit .................................................................................................................... 21 8.3 Test procedure .................................................................................................... 22 8.4 EUT operating Conditions ................................................................................... 22 8.5 Test Result .......................................................................................................... 23 9. Spurious RF Conducted Emissions ..................................................................... 24 9.1 Block Diagram Of Test Setup .............................................................................. 24 9.2 Limit .................................................................................................................... 24 9.3 Test procedure .................................................................................................... 24 9.4 Tes…

Text truncated - open the document above for the full version.

Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 42 of 76 Edition：B.0 Band Edge(Hopping) NVNT 2-DH1 2402MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2402MHz Hopping Emission Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 43 of 76 Edition：B.0 Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Emission Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 44 of 76 Edition：B.0 Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Emission Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 45 of 76 Edition：B.0 Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Emission Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 46 of 76 Edition：B.0 10. 20 dB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 10.4 Test Result Condition Mode Frequency (MHz) -20 dB Bandwidth (MHz) Verdict NVNT 1-DH1 2402 0.948 Pass NVNT 1-DH1 2441 0.918 Pass NVNT 1-DH1 2480 0.954 Pass NVNT 2-DH1 2402 1.256 Pass NVNT 2-DH1 2441 1.348 Pass NVNT 2-DH1 2480 1.270 Pass NVNT 3-DH1 2402 1.245 Pass NVNT 3-DH1 2441 1.293 Pass NVNT 3-DH1 2480 1.358 Pass Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 47 of 76 Edition：B.0 Test Graphs -20dB Bandwidth NVNT 1-DH1 2402MHz -20dB Bandwidth NVNT 1-DH1 2441MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 48 of 76 Edition：B.0 -20dB Bandwidth NVNT 1-DH1 2480MHz -20dB Bandwidth NVNT 2-DH1 2402MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 49 of 76 Edition：B.0 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 50 of 76 Edition：B.0 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 51 of 76 Edition：B.0 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 52 of 76 Edition：B.0 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 -1.87 21 Pass NVNT 1-DH1 2441 -0.73 21 Pass NVNT 1-DH1 2480 -0.92 21 Pass NVNT 2-DH1 2402 -1.02 21 Pass NVNT 2-DH1 2441 -0.35 21 Pass NVNT 2-DH1 2480 -0.68 21 Pass NVNT 3-DH1 2402 -0.87 21 Pass NVNT 3-DH1 2441 -0.27 21 Pass NVNT 3-DH1 2480 -0.58 21 Pass Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 53 of 76 Edition：B.0 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 54 of 76 Edition：B.0 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 55 of 76 Edition：B.0 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 56 of 76 Edition：B.0 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 57 of 76 Edition：B.0 Power NVNT 3-DH1 2480MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 58 of 76 Edition：B.0 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result odulation Test Channel Separation (MHz) Limit(MHz) Result GFSK Low 1.000 0.632 PASS GFSK Middle 0.998 0.612 PASS GFSK High 1.002 0.636 PASS π/4 DQPSK Low 1.000 0.837 PASS π/4 DQPSK Middle 0.998 0.899 PASS π/4 DQPSK High 0.998 0.847 PASS 8DPSK Low 1.000 0.830 PASS 8DPSK Middle 1.004 0.862 PASS 8DPSK High 0.998 0.905 PASS Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 59 of 76 Edition：B.0 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 60 of 76 Edition：B.0 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 61 of 76 Edition：B.0 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 62 of 76 Edition：B.0 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.: BCTC2311439118E No.：BCTC/RF-EMC-005 Page: 63 of 76 Edition：B.0 CFS NVNT 3-DH1 2480MHz Report No.: BCTC2311…
