2A6FC-PMXAKB2POWER AMPLIFIER

SOUND AROUND INC
POWER AMPLIFIER - FCC ID 2A6FC-PMXAKB2 - SOUND AROUND INC
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jun 26, 2023
Application Purpose
Original Equipment
Date of Application
Jun 26, 2023
Equipment Note
POWER AMPLIFIER
Frequency Range
2402.00000000 - 2480.00000000
Company
SOUND AROUND INC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2000 Watt Wireless BT Streaming Stereo Mixer Karaoke Amplifier PMXAKB2000 Microphone/RCA Audio/Video Inputs, Mic-Talkover, USB/SD Readers, Rack Mountable Amp Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: [email protected] www.PyleUSA.comwww.PyleUSA.com1 Table of Contents Introduction Safety Instructions ................................................................................................................................................ 1 CAUTION .................................................................................................................................................................. 2 Getting Connected CD/DVD player connection ............................................................................................................................... 3 TV/Display device connection ......................................................................................................................... 3 Wireless BT Streaming function ...................................................................................................................... 3 Amplifier, mixer and external sound system connections .................................................................... 4 External speaker connection ............................................................................................................................ 4 Mic(s) connection ................................................................................................................................................ 5 Effects Loop connections Music ......................................................................................................................................................................... 5 Vocal .......................................................................................................................................................................... 5 Controls and Functions Rear Panel .............................................................................................................................................................. 6 Front Panel ............................................................................................................................................................ 7 Remote Control ..................................................................................................................................................... 9 Basic and Advanced Operations .................................................................................................................. 10 Troubleshooting ................................................................................................................................................. 12 Specifications and Features ............................................................................................................................ 13 What is Included: t6TFShTNBOVBM_ t3FNPUFDPOUSPM_ t0OF"$1PXFS$PSE_ t5XP  3BDLNPVOUCSBDLFUTXJUITDSFXT_ 6TFShTNBOVBMRemote Control0OF  "$1PXFS$PSE 5XP  3BDLNPVOUCSBDLFUTXJUITDSFXT Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric Shock, Do not remove cover (or back). No user-serviceable parts inside. Only Refer servicing to qualified service Personnel. Explanation of Graphical Symbols 5IFMJHIUOJOHøBTIBSSPXIFBETZNCPM  XJUIJOBOFRVJMBUFSBM5SJBOHMF JTJOUFOEFEUPBMFSU you to the presence of Danger. 5IFFYDMBNBUJPOQPJOUXJUIJOBOFRVJMBUFSBM triangle is Intended to Alert you to the presence of important operating and servicing instructions. 1. Read Instructions: All the safety and Operating instructions should be read before the Appliance is operated. 2. Retain Instructions: The safety and Operating instructions should be retained for future reference. 3. Heed Warnings: "MMXBSOJOHTPOUIFBQQMJBODF and in the operating instructions should be adhered to. 4. Follow Instructions: All operating and use JOTUSVDUJPOTTIPVMECFGPMMPXFE 5. Attachments: Do not use attachments not SFDPNNFOEFECZUIFQSPEVDUhTNBOVGBDUVSFSBT they may cause hazards. 6. Water and Moisture: Do not use this unit near XBUFS'PSFYBNQMF OFBSBCBUIUVCPSJOBXFU basement and the like. 7. Carts and Stands: The appliance should be VTFEPOMZXJUIBDBSUPSTUBOEUIBUJT  recommended by the manufacturer. 7A. An appliance and cart combination should CFNPWFEXJUIDBSF2VJDL4UPQT FYDFTTJWF  force, and uneven surface may cause an overturn. 8. Ventilation: The appliance should be situated TPJUTMPDBUJPOEPFTOPUJOUFSGFSFXJUIJUTQSPQFS ventilation. For Example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation slots. 9. Heat:5IFBQQMJBODFTIPVMECFTJUVBUFEBXBZ from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 10. Power Sources: The appliance should be DPOOFDUFEUPBQPXFSTVQQMZPOMZPGUIFUZQF  described in the operating instructions or as marked on the appliance. 11. Grounding or Polarization: Precautions should be taken so that the grounding or polarization means of an appliance is not defeated. 12. Power-Cord Protection:1PXFSTVQQMZDPSET should be routed so that are they not likely to CFXBMLFEPOPSQJODIFECZJUFNTQMBDFEVQPO or against them, paying particular attention to cords at plugs, convenience receptacles, and UIFQPJOUXIFSFUIFZFYJUGSPNUIFBQQMJBODF 13. Cleaning:6OQMVHUIJTVOJUGSPNUIFXBMMPVUMFU before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 14. Power Lines: An outdoor antenna should be MPDBUFEBXBZGSPNQPXFSMJOFT 15. Non-Use Periods:5IFQPXFSDPSEPGUIF  appliance should be unplugged from the outlet …

Text truncated - open the document above for the full version.

Attestation Statements

SOUND AROUND INC 1600 63 rd Street, Brooklyn,NY 11204-USA Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-6-15 U.S. Agent Designation SOUND AROUND INC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A6FC-PMXAKB2): Name and company of U.S. agent: SOUND AROUND INC Physical U.S. address of agent: 1600 63 rd Street, Brooklyn,NY 11204-USA FRN of U.S. agent: 0032254179 Email address of U.S. agent: [email protected] SOUND AROUND INC acknowledges their obligation to accept service of process on behalf of SOUND AROUND INC . SOUND AROUND INC with the FRN [0032254179] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Roby Wu manager SOUND AROUND INC Signature Roby Wu (181) 240-7298 9 SOUND AROUND INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Cover Letter(s)

Sincerely, Name/Title: Roby Wu/manager Company: SOUND AROUND INC Address: 1600 63 rd Street, Brooklyn,NY 11204-USA Phone: 18124072989 Fax: 718-535-1800 E-Mail: [email protected]

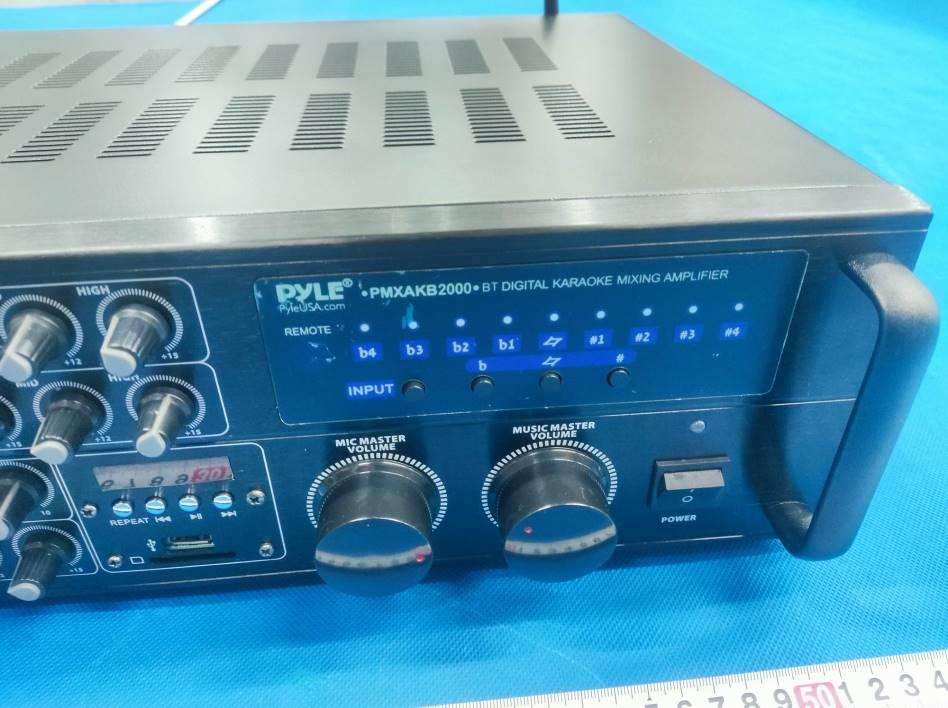

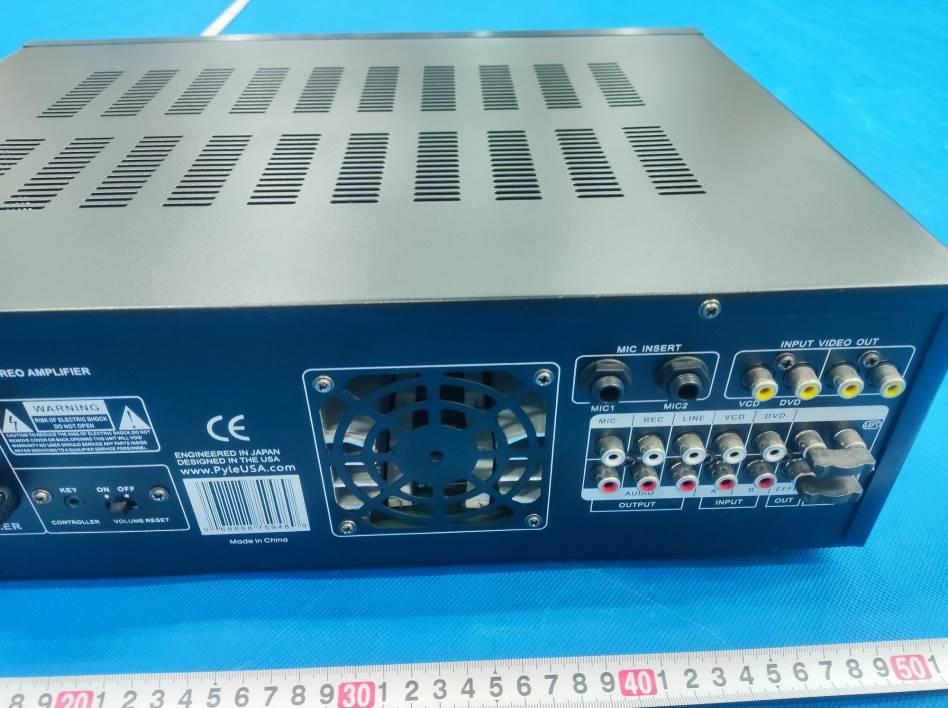

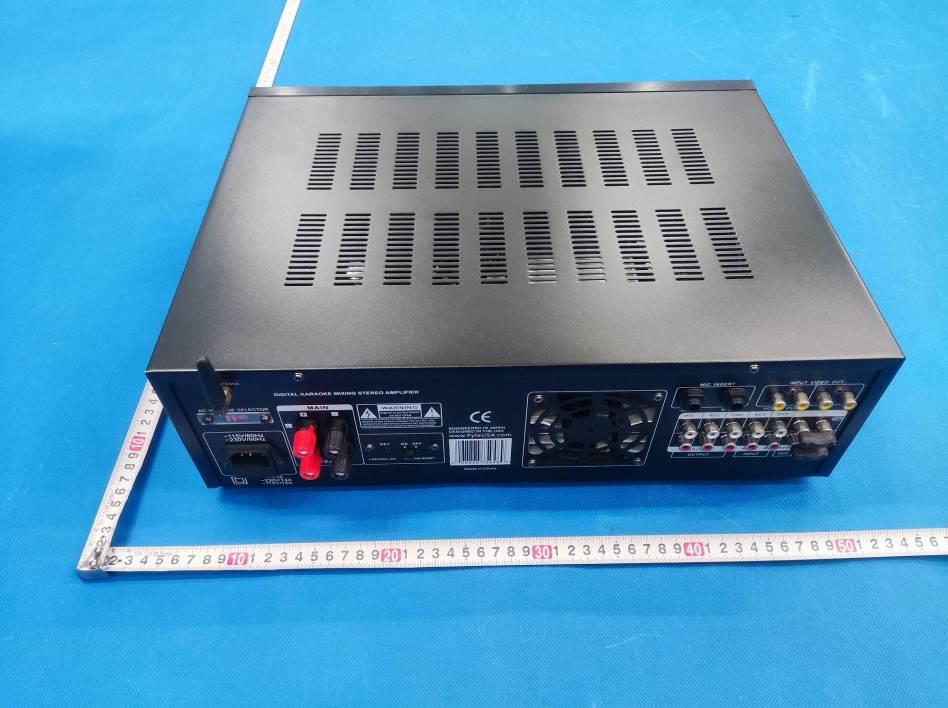

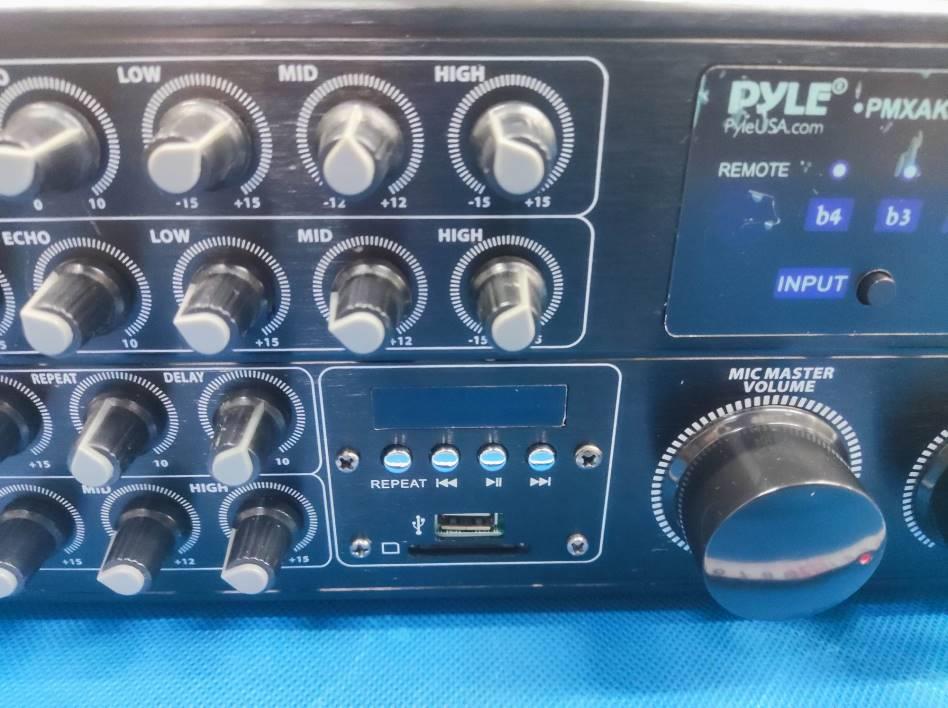

External Photos

Page 1 of 7 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. xternal Photos Photo 1 Photo 2 Page 2 of 7 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 7 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 7 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 7 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 7 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 7 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 ------End------

ID Label/Location Info

FCC ID Label FCC ID: 2A6FC-PMXAKB2

Internal Photos

Page 1 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 Page 2 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 Page 8 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 Page 9 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 17 Photo 18 Page 10 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 19 Photo 20 Page 11 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 21 Photo 22 Page 12 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 23 Photo 24 Page 13 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 25 Photo 26 Page 14 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 27 Photo 28 Page 15 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 29 Photo 30 Antenna Page 16 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 31 Photo 32 Page 17 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 33 Photo 34 Page 18 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 35 Photo 36 Page 19 of 19 FCC ID: 2A6FC-PMXAKB2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 37 ------End------

RF Exposure Info

RF Exposure evaluation FCC ID: 2A6FC-PMXAKB2 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information Can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / Internal antenna -0.58dBi for 2402-2480MHz; 5. Manufacturing Tolerance [Bluetooth] GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.5 1.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 1.5 1.5 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is -0.58dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 2.5 1.78 -0.58 0.875 0.0003 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Test Report

Page 1 of 38 Report No.: AIT23060705FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: SOUND AROUND INC Applicant add.: 1600 63 rd Street, Brooklyn,NY 11204-USA Manufacturer: SOUND AROUND INC Manufacturer add.: 1600 63 rd Street, Brooklyn,NY 11204-USA Product Information: Product Name: POWER AMPLIFIER Model No.: PMXAKB2000, PMXAKB1000, PFA400U, PFA330BT, PCA4BT, PCA12BT Brand Name: PYLE FCC ID: 2A6FC-PMXAKB2 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: June 07, 2023 Date of Test: June 07, 2023~ June 11, 2023 Date of Issue: June 12, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 38 Report No.: AIT23060705FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................................... 2 2 TEST SUMMARY .......................................................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty .............................................................................. 4 2.2 Measurement Uncertainty ......................................................................................................... 4 3 TEST FACILITY ............................................................................................................................................................. 5 3.1 Deviation from standard ............................................................................................................ 5 3.2 Abnormalities from standard conditions .................................................................................... 5 3.3 Test Location ............................................................................................................................. 5 4 GENERAL INFORMATION ......................................................................................................................................... 6 4.1 Test frequencies ........................................................................................................................ 7 4.2 EUT Peripheral List ................................................................................................................... 8 4.3 Test Peripheral List ................................................................................................................... 8 4.4 TEST METHODOLOGY............................................................................................................ 9 4.5 Description of Test Modes ....................................................................................................... 10 5 EQUIPMENT USED DURING TEST ........................................................................................................................ 11 6 TEST RESULTS AND MEASUREMENT DATA .................................................................................................... 12 6.1 Antenna requirement .............................................................................................................. 12 6.2 Peak Power Measurement ...................................................................................................... 13 6.3 Frequency Separation and 20 dB Bandwidth .......................................................................... 15 6.4 Number of Hopping Frequency ............................................................................................... 17 6.5 Time of Occupancy (Dwell Time) ............................................................................................ 18 6.6 Conducted Spurious Emissions and Band Edges Test ........................................................... 20 6.7 Restrict-band Band-edge Measurements ............................................................................... 22 6.8 Radiated Emissions Measurement ......................................................................................... 24 6.9 Conducted Emissions ............................................................................................................. 34 6.10 Pseudorandom frequency hopping sequence ......................................................................... 37 7 TEST SETUP PHOTOGRAPHS OF EUT ................................................................................................................ 38 8 EXTERNAL PHOTOGRAPHS OF EUT ................................................................................................................... 38 9 INTERNAL PHOTOGRAPHS OF EUT .................................................................................................................... 38 Page 3 of 38 Report No.: AIT23060705FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, Chin…

Text truncated - open the document above for the full version.

Test Report

Inverted F Antenna Specification Summary ITEM ANT SPEC 2.4G ANTModel Name Horizontal Vertical 2400MHz2400MHz 2400MHz2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 -0.58dBi MAX. Gain Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 2400MHz 2500MHz Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs:Attestation of Global Compliance Co., Ltd.

Test Report

Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23060705FW1 FCC ID: 2A6FC-PMXAKB2 Page 1 of 42 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: POWER AMPLIFIER Trade Mark: PYLE Test Model: PMXAKB2000 Environmental Conditions Temperature: 25.8°C Relative Humidity: 52.5% ATM Pressure: 101Kpa Test Engineer: Simba Huang Supervised by: Seal Chen Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23060705FW1 FCC ID: 2A6FC-PMXAKB2 Page 2 of 42 Contents Page COVER PAGE 1 Duty Cycle ........................................................................................................................................................................................... 3 1.1 Test Result ............................................................................................................................................................................... 3 1.2 Test Graphs ............................................................................................................................................................................. 4 2 Maximum Conducted Peak Output Power .......................................................................................................................................... 7 2.1 Test Result ............................................................................................................................................................................... 7 2.2 Test Graphs ............................................................................................................................................................................. 8 3 20dB Bandwidth ................................................................................................................................................................................ 11 3.1 Test Result ............................................................................................................................................................................. 11 3.2 Test Graphs ........................................................................................................................................................................... 12 4 Carrier Frequency Separation ........................................................................................................................................................... 15 4.1 Test Result ............................................................................................................................................................................. 15 4.2 Test Graphs ........................................................................................................................................................................... 16 5 Hopping Channel Number ................................................................................................................................................................. 17 5.1 Test Result ............................................................................................................................................................................. 17 5.2 Test Graphs ........................................................................................................................................................................... 18 6 Dwell Time ......................................................................................................................................................................................... 19 6.1 Test Result ............................................................................................................................................................................. 19 6.2 Test Graphs ........................................................................................................................................................................... 20 7 RF Conducted Spurious Emissions ................................................................................................................................................... 22 7.1 Test Result ............................................................................................................................................................................. 22 7.2 Test Graphs ........................................................................................................................................................................... 23 8 Band-edge for RF Conducted Emissions .......................................................................................................................................... 29 8.1 Test Result ............................................................................................................................................................................. 29 8.2 Test Graphs ........................................................................................................................................................................... 30 9 Restrict-band band-edge measurements .......................................................................................................................................... 38 9.1 Test Result ............................................................................................................................................................................. 38 9.2 Test Graphs ........................................................................................................................................................................... 39 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23060705FW1 FCC ID: 2A6FC-PMXAKB2 Page 3 of 42 1 Duty Cycle 1.1 Test Result Mode Frequency (MHz) Duty Cycle (%) 1/T (kHz) 1-DH1 2402 31.2 2.63 1-DH1 2441 31.2 2.63 1-DH1 2480 31.2 2.63 2-DH1 2402 32 2.56 2-DH1 2441 32 2.56 2-DH1 2480 32.01 2.56 Dongguan Yaxu(AiT) Technology Li…
