2A6FW-MS100Monochrome Thermal Instant Camera

Xiamen Print Future Technology Co.,Ltd. 2023-11-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A6FW-MS100 ) [Xiamen Print Future Technology Co.,Ltd. ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Eddie Chou Manager Xiamen Print Future Technology Co.,Ltd. Area C, Room 502, No.17 kengping Road, GuanKou Town, Jimei District, Xiamen City Xiamen Print Future Technology Co.,Ltd. 2023-11-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2A6FW-MS100) [Xiamen Print Future Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Eddie Chou Manager Xiamen Print Future Technology Co.,Ltd. Area C, Room 502, No.17 kengping Road, GuanKou Town, Jimei District, Xiamen City

Attestation Statements (2023/11/14) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (GC: 2A6FW) (Xiamen Print Future Technology Co.,Ltd. ), the undersigned, hereby authorize（Wilson Tech Service LLC） to act as our designated U.S. agent for service of process, (Xiamen Print Future Technology Co.,Ltd.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. （Wilson Tech Service LLC）accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Xiamen Print Future Technology Co.,Ltd. Contact Name: Eddie Chou Address: No.17-502,KengPing Road, GuanKou Town,Jimei District，Xiamen City,Fujian China FRN：0032255218 Telephone No: 18136659593 Email: [email protected] Signature [Eddie Chou] U.S. Agent Information: Company Name: Wilson Tech Service LLC Address: 1312 17th Street Suite 692, Denver, CO, 80202, US FRN: 0033402033 Contact Name: Wilson Cheung Telephone No: +1-716-965-5112 Email: [email protected] Signature [Wilson Cheung]

Xiamen Print Future Technology Co.,Ltd. 2023-11-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Guangdong Global Testing Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Eddie Chou Manager Xiamen Print Future Technology Co.,Ltd. Area C, Room 502, No.17 kengping Road, GuanKou Town, Jimei District, Xiamen City

Xiamen Print Future Technology Co.,Ltd. 2023-11-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: Monochrome Thermal Instant Camera /Model: MS100, MS100W, MS100Y /FCC ID: 2A6FW-MS100) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram ,Operational Description,Schematics ) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Eddie Chou Manager Xiamen Print Future Technology Co.,Ltd. Area C, Room 502, No.17 kengping Road, GuanKou Town, Jimei District, Xiamen City

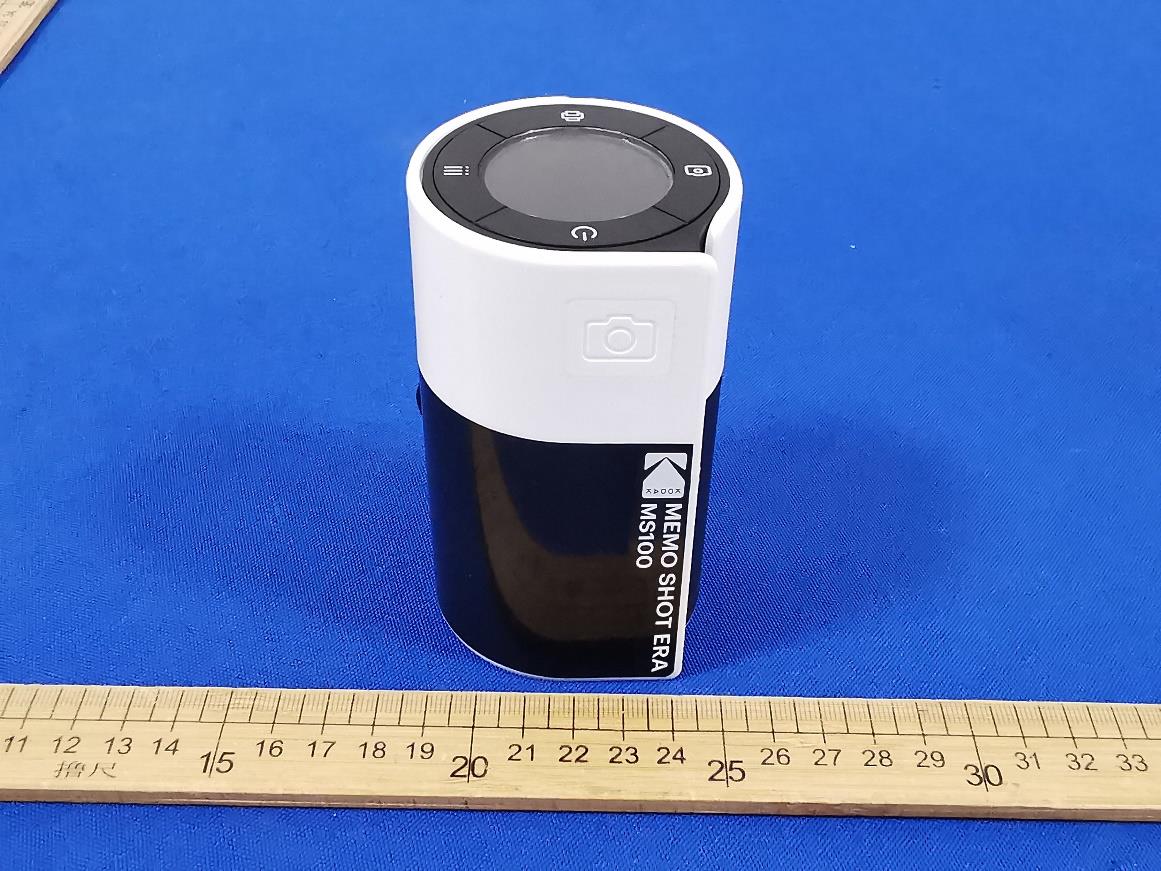

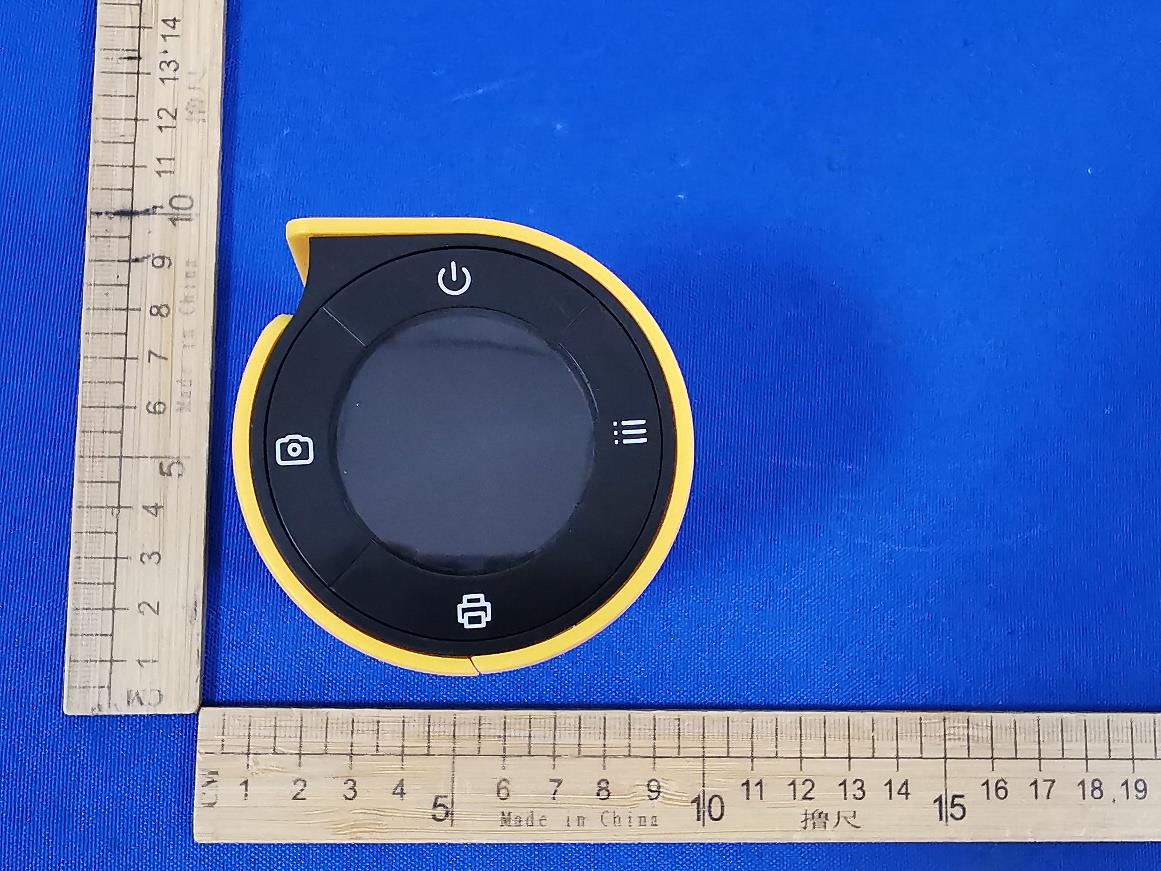

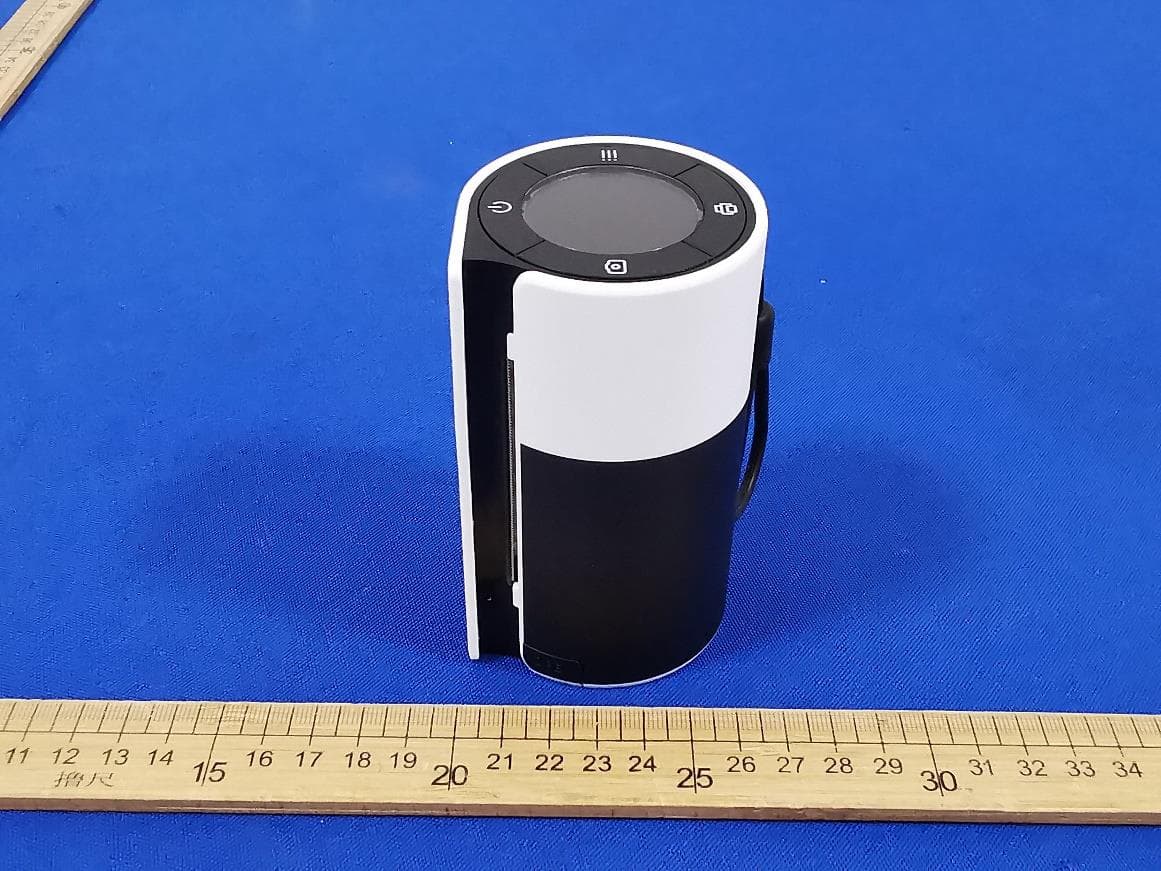

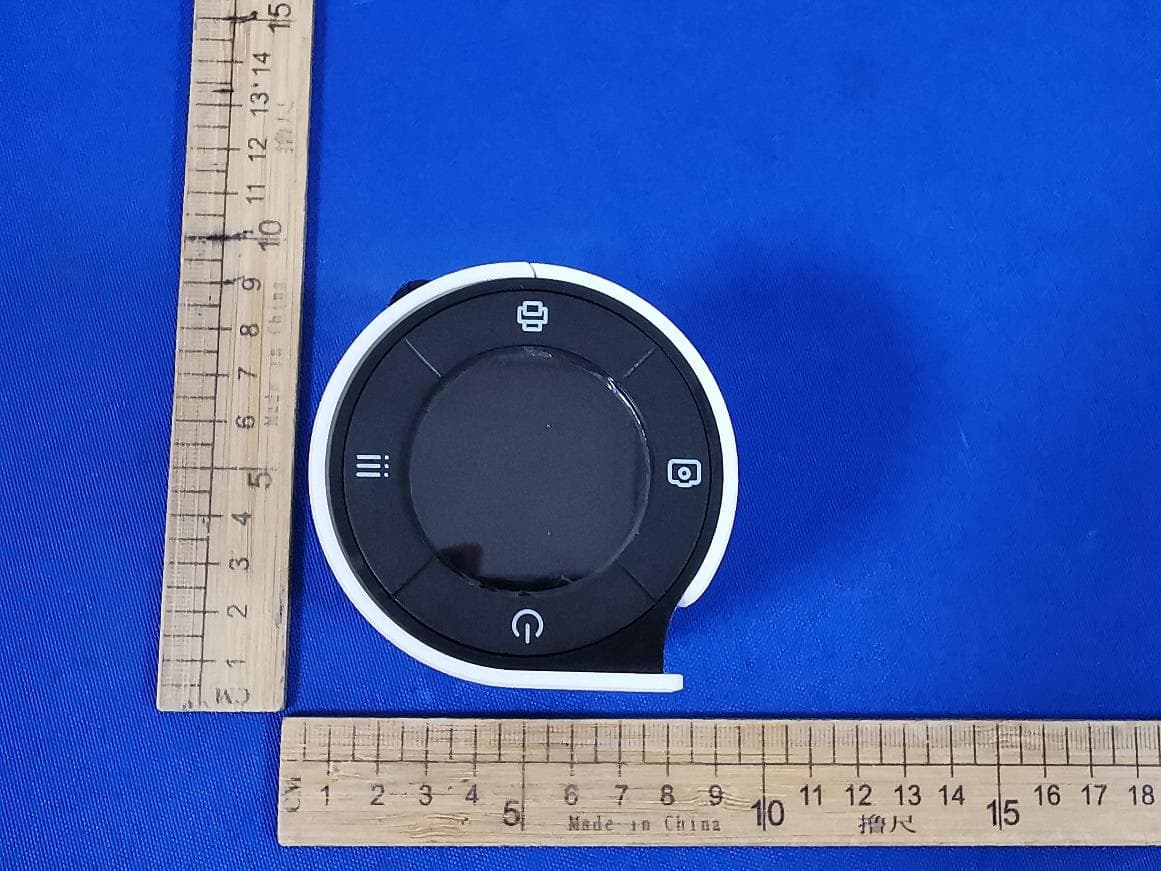

External

Internal 2.4GHz BT Antenna

RF EXPOSURE EVALUATION EUT Specification EUT Monochrome Thermal Instant Camera Model Number MS100 Serial Model MS100W, MS100Y Series Model N/A FCC ID 2A6FW-MS100 Antenna gain (Max) 2.58 dBi Operation Frequency 2402-2480MHz Rating DC 5V 2A Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK, 2GFSK, π/4-DQPSK, 8DPSK Max. output power BR+EDR: 6.77 dBm(0.0048W), BLE: 4.99 dBm(0.0032W) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. BR+EDR: Transmit Frequency (MHz) Mode Measur ed Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR 2402 GFSK 2.29 2±1 3 0.618 3 2441 GFSK 4.44 4±1 5 0.988 3 2480 GFSK 6.77 7±1 8 1.987 3 2402 π/4-DQPSK 2.31 2±1 3 0.618 3 2441 π/4-DQPSK 4.13 4±1 5 0.988 3 2480 π/4-DQPSK 6.30 6±1 7 1.579 3 2402 8DPSK 2.25 2±1 3 0.618 3 2441 8DPSK 4.14 4±1 5 0.988 3 2480 8DPSK 6.69 7±1 8 1.987 3 BLE: According to KDB 447498, no stand-alone required for BT antenna, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2023-10-25 Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR 2402 GFSK 0.95 1±1 2 0.491 3 2440 GFSK 2.73 3±1 4 0.785 3 2480 GFSK 4.99 5±1 1.254 0.198727 3

BluetoothAntenna specification&Testreport YichipMicroelectronics ©2014 ANT5: GianandEfficiency Frequency (MHz) Efficiency(%)Gain(dBi) 230034.81-0.14 232038.900.50 234038.951.16 236040.111.28 238039.281.80 240041.772.20 242049.712.34 244050.232.58 246045.912.45 248042.462.09 250041.102.01 252035.580.96 254032.430.44 3Dand1DRadiationPatterns Total P o w e r ( d B m ) -15 10 -10 -5 0 5 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Cut1 P o w e r ( d B m ) Angle (? Scale: 1/div Min: -5 Max: 5 0 180 30 210 60 240 90270 120 300 150 330 Cut2 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -16 Max: 4 0 180 30 210 60 240 90270 120 300 150 330 Cut3 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -6 Max: 6 0 180 30 210 60 240 90270 120 300 150 330

Appendix A Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) E.I.R.P (dBm E.I.R.P Limit (dBm) Verdict NVNT 1-DH5 2402 Ant1 2.29 0 2.29 21 4.87 <=36.02 Pass NVNT 1-DH5 2441 Ant1 4.44 0 4.44 21 7.02 <=36.02 Pass NVNT 1-DH5 2480 Ant1 6.77 0 6.77 21 9.35 <=36.02 Pass NVNT 2-DH5 2402 Ant1 2.31 0 2.31 21 4.89 <=36.02 Pass NVNT 2-DH5 2441 Ant1 4.13 0 4.13 21 6.71 <=36.02 Pass NVNT 2-DH5 2480 Ant1 6.3 0 6.3 21 8.88 <=36.02 Pass NVNT 3-DH5 2402 Ant1 2.25 0 2.25 21 4.83 <=36.02 Pass NVNT 3-DH5 2441 Ant1 4.14 0 4.14 21 6.72 <=36.02 Pass NVNT 3-DH5 2480 Ant1 6.69 0 6.69 21 9.27 <=36.02 Pass Note1: Antenna Gain: 2.58dBi; Note2: E.I.R.P = Measured Power + Antenna Gain Test Graphs Power NVNT 1-DH5 2402MHz Ant1 Power NVNT 1-DH5 2441MHz Ant1 Power NVNT 1-DH5 2480MHz Ant1 Power NVNT 2-DH5 2402MHz Ant1 Power NVNT 2-DH5 2441MHz Ant1 Power NVNT 2-DH5 2480MHz Ant1 Power NVNT 3-DH5 2402MHz Ant1 Power NVNT 3-DH5 2441MHz Ant1 Power NVNT 3-DH5 2480MHz Ant1 -20dB Bandwidth Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant1 0.942 Pass NVNT 1-DH5 2441 Ant1 0.931 Pass NVNT 1-DH5 2480 Ant1 0.932 Pass NVNT 2-DH5 2402 Ant1 1.225 Pass NVNT 2-DH5 2441 Ant1 1.175 Pass NVNT 2-DH5 2480 Ant1 1.175 Pass NVNT 3-DH5 2402 Ant1 1.186 Pass NVNT 3-DH5 2441 Ant1 1.2 Pass NVNT 3-DH5 2480 Ant1 1.166 Pass Test Graphs -20dB Bandwidth NVNT 1-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 1-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 1-DH5 2480MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2480MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2480MHz Ant1 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT 1-DH5 2402 Ant1 0.835 NVNT 1-DH5 2441 Ant1 0.858 NVNT 1-DH5 2480 Ant1 0.845 NVNT 2-DH5 2402 Ant1 1.157 NVNT 2-DH5 2441 Ant1 1.16 NVNT 2-DH5 2480 Ant1 1.146 NVNT 3-DH5 2402 Ant1 1.166 NVNT 3-DH5 2441 Ant1 1.146 NVNT 3-DH5 2480 Ant1 1.139 Test Graphs OBW NVNT 1-DH5 2402MHz Ant1 OBW NVNT 1-DH5 2441MHz Ant1 OBW NVNT 1-DH5 2480MHz Ant1 OBW NVNT 2-DH5 2402MHz Ant1 OBW NVNT 2-DH5 2441MHz Ant1 OBW NVNT 2-DH5 2480MHz Ant1 OBW NVNT 3-DH5 2402MHz Ant1 OBW NVNT 3-DH5 2441MHz Ant1 OBW NVNT 3-DH5 2480MHz Ant1 Carrier Frequencies Separation Condition Mode Antenna Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 Ant1 2402.006 2403.002 0.996 0.628 Pass NVNT 1-DH5 Ant1 2440.996 2441.996 1 0.621 Pass NVNT 1-DH5 Ant1 2478.96 2479.94 0.98 0.621 Pass NVNT 2-DH5 Ant1 2402.148 2403.122 0.974 0.764 Pass NVNT 2-DH5 Ant1 2440.87 2441.854 0.984 0.783 Pass NVNT 2-DH5 Ant1 2478.972 2480.052 1.08 0.783 Pass NVNT 3-DH5 Ant1 2401.996 2403.022 1.026 0.790 Pass NVNT 3-DH5 Ant1 2441.144 2442.154 1.01 0.8 Pass NVNT 3-DH5 Ant1 2478.968 2480.066 1.098 0.777 Pass Test Graphs CFS NVNT 1-DH5 2402MHz Ant1 CFS NVNT 1-DH5 2441MHz Ant1 CFS NVNT 1-DH5 2480MHz Ant1 CFS NVNT 2-DH5 2402MHz Ant1 CFS NVNT 2-DH5 2441MHz Ant1 CFS NVNT 2-DH5 2480MHz Ant1 CFS NVNT 3-DH5 2402MHz Ant1 CFS NVNT 3-DH5 2441MHz Ant1 CFS NVNT 3-DH5 2480MHz Ant1 Number of Hopping Channel Condition Mode Antenna Hopping Number Limit Verdict NVNT 1-DH5 Ant1 79 15 Pass NVNT 2-DH5 Ant1 79 15 Pass NVNT 3-DH5 Ant1 79 15 Pass Test Graphs Hopping No. NVNT 1-DH5 2402MHz Ant1 Hopping No. NVNT 2-DH5 2402MHz Ant1 Hopping No. NVNT 3-DH5 2402MHz Ant1 Dwell Time Condition Mode Frequency (MHz) Antenna Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH5 2402 Ant1 2.886 161.616 56 31600 400 Pass NVNT 1-DH5 2441 Ant1 2.885 138.48 48 31600 400 Pass NVNT 1-DH5 2480 Ant1 2.886 158.73 55 31600 400 Pass NVNT 2-DH5 2402 Ant1 2.892 121.464 42 31600 400 Pass NVNT 2-DH5 2441 Ant1 2.892 141.708 49 31600 400 Pass NVNT 2-DH5 2480 Ant1 2.892 156.168 54 31600 400 Pass NVNT 3-DH5 2402 Ant1 2.892 130.14 45 31600 400 Pass NVNT 3-DH5 2441 Ant1 2.892 121.464 42 31600 400 Pass NVNT 3-DH5 2480 Ant1 2.893 127.292 44 31600 400 Pass Test Graphs Dwell NVNT 1-DH5 2402MHz Ant1 One Burst Dwell NVNT 1-DH5 2402MHz Ant1 Accumulated Dwell NVNT 1-DH5 2441MHz Ant1 One Burst Dwell NVNT 1-DH5 2441MHz Ant1 Accumulated Dwell NVNT 1-DH5 2480MHz Ant1 One Burst Dwell NVNT 1-DH5 2480MHz Ant1 Accumulated Dwell NVNT 2-DH5 2402MHz Ant1 One Burst Dwell NVNT 2-DH5 2402MHz Ant1 Accumulated Dwell NVNT 2-DH5 2441MHz Ant1 One Burst Dwell NVNT 2-DH5 2441MHz Ant1 Accumulated Dwell NVNT 2-DH5 2480MHz Ant1 One Burst Dwell NVNT 2-DH5 2480MHz Ant1 Accumulated Dwell NVNT 3-DH5 2402MHz Ant1 One Burst Dwell NVNT 3-DH5 2402MHz Ant1 Accumulated Dwell NVNT 3-DH5 2441MHz Ant1 One Burst Dwell NVNT 3-DH5 2441MHz Ant1 Accumulated Dwell NVNT 3-DH5 2480MHz Ant1 One Burst Dwell NVNT 3-DH5 2480MHz Ant1 Accumulated Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -40.68 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -45 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -38.09 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -49.58 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -38.7 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -49.05 -20 Pass Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Band Edge(Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -47.59 -20 Pas…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2023-08-25 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 (DSS) TEST REPORT For Monochrome Thermal Instant Camera MODEL NUMBER: MS100 REPORT NUMBER: E04A23100008F00301 ISSUE DATE: Nov. 14, 2023 FCC ID: 2A6FW-MS100 IC: 30818-MS100 Prepared for Xiamen Print Future Technology Co.,Ltd. Area C, Room 502, No.17 kengping Road, GuanKou Town, Jimei District, Xiamen City Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A23100008F00301 Page 2 of 64 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 Nov. 14, 2023 Initial Issue Win REPORT NO.: E04A23100008F00301 Page 3 of 64 TRF No.: 04-E001-1A Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2013 Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2013 Clause 7.8.5 FCC Part 15.247 (b)(1) Pass 20 dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013 Clause 6.9.2 FCC Part 15.247 (a)(1) Pass Carrier Hopping Channel Separation ANSI C63.10-2013 Clause 7.8.2 FCC Part 15.247 (a)(1) Pass Number of Hopping Frequency ANSI C63.10-2013 Clause 7.8.3 FCC Part 15.247 (b)(1) Pass Time of Occupancy (Dwell Time) ANSI C63.10-2013 Clause 7.8.4 FCC Part 15.247 (a)(1) Pass Conducted Bandedge and Spurious Emission ANSI C63.10-2013 Clause 6.10.4 & Clause 7.8.8 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013 Clause 6.3 & 6.5 & 6.6 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 (DSS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A23100008F00301 Page 4 of 64 TRF No.: 04-E001-1A Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM CONDUCTED OUTPUT POWER ........................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.8. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 20 dB Bandwidth and 99% Occupied Bandwidth..................................................... 15 7.3. Carrier Hopping Channel Separation ...................................................................... 17 7.4. Number of Hopping Frequency ............................................................................... 19 7.5. Time of Occupancy (Dwell Time) ............................................................................ 21 7.6. Conducted Bandedge and Spurious Emission ........................................................ 23 7.7. Duty Cycle .............................................................................................................. 25 8. RADIATED TEST RESULTS ............................................................................................... 26 9. ANTENNA REQUIREMENT ................................................................................................ 45 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 46 11. TEST DATA ............................................................................................................ 49 APPENDIX: PHOTOGRAPHS OF TEST CONFIGURATION ..................................................... 50 APPENDIX: PHOTOGRAPHS OF THE EUT .............................................................................. 52 REPORT NO.: E04A23100008F00301 Page 5 of 64 TRF No.: 04-E001-1A Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Xia…

Text truncated - open the document above for the full version.

AC Power Line Conducted Emission Radiated Band edge and Spurious Emission
