2A6HU-WXC5W02Wireless charger

C172524 28.5MM 13MM 2MM C172524 WXC-5W-02 FCC Radiation Exposure Statement This equipment must be installed and operated in accordance with providedinstructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure WXC-5W-02 Wireless Charger with Dual USB Ports(X1)

DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD Agent Authorization Company: DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD Address: ROOM NO. 202, BUILDING 2, NO. 11, NIULING ROAD,CHANGPING TOWN, DONGGUAN CITY, CHINA Product Name: Wireless charger Model Number(s): WXC-5W-02 Product Description: Wireless charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun.06,2022 Name: Jerry Huang Title: General manager Company: DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD

DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 6, 2022 Subject; Request for Confidentiality FCC ID: 2A6HU-WXC5W02 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jerry Huang Title: General manager

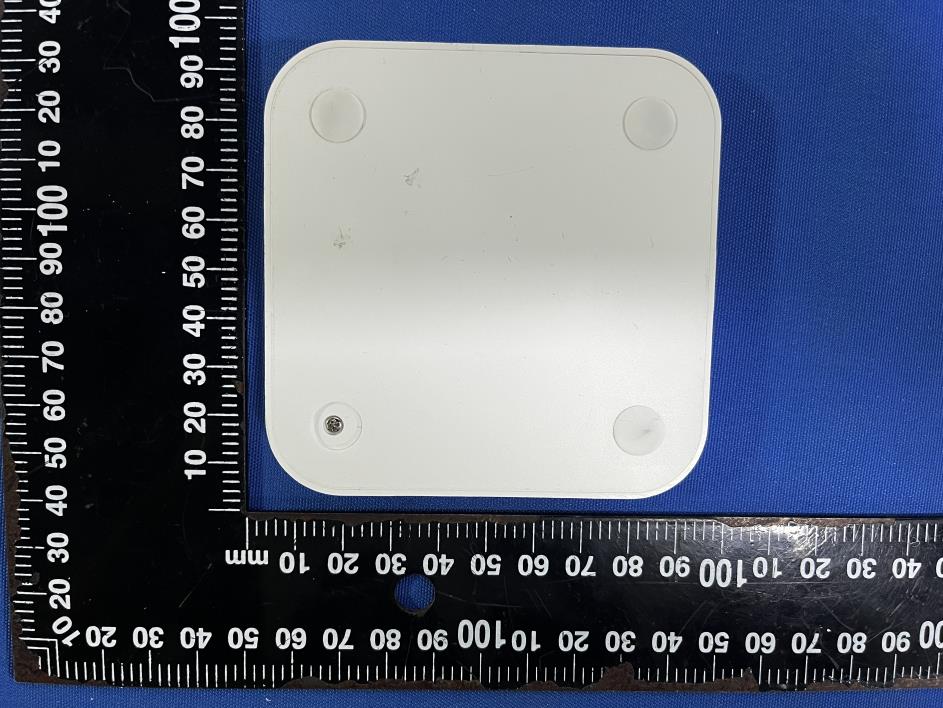

- Page 1 of 5 - Ext Photos - Page 2 of 5 - - Page 3 of 5 -

Label and label location Product Name: Wireless charger Model No.: WXC-5W-02 Input: 5V2A Output: 5V1A FCC ID: 2A6HU-WXC5W02 Manufacturer: DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD 13mm 28.5mm Location

- Page 4 of 5 - Internal photos - Page 5 of 5 - ------END----- RF module RF antenna

R Report No.: ET-22040185E This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen ETR Standard Technology Co., Ltd TEST REPORT Applicant: DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD Address of Applicant: ROOM NO. 202, BUILDING 2, NO.11, NIULING ROAD,CHANGPING TOWN, DONGGUAN CITY, CHINA Manufacturer/Factory: DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD Address of Manufacturer/Factory: ROOM NO. 202, BUILDING 2, NO.11, NIULING ROAD,CHANGPING TOWN, DONGGUAN CITY, CHINA Product Name: Wireless charger Model No.: WXC-5W-02 Trade Mark: N/A FCC ID: 2A6HU-WXC5W02 Applicable standards: FCC CFR Title 47 Part 1.1310 Date of Test: May.20,2022- May.28,2022 Date of report issued: Jun.06,2022 Test Result : PASS Remark: * In the configuration tested, the EUT complied with the standards specified above. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Authorized Signature - Page 2 of 10 - Report No.: ET-22040185E Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Report Revision History Report No. Description Issue Date ET-22040185E Original Jun.06,2022 - Page 3 of 10 - Report No.: ET-22040185E Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1 TEST SUMMARY ..................................................................................................................................... 4 2 GENERAL INFORMATION ...................................................................................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 2.2 TEST MODE ........................................................................................................................................ 6 2.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 2.4 DEVIATION FROM STANDARDS ............................................................................................................. 6 2.5 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 6 2.6 TEST FACILITY .................................................................................................................................... 6 2.7 TEST LOCATION .................................................................................................................................. 6 2.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 6 3 TEST INSTRUMENTS LIST ..................................................................................................................... 7 4 MAXIMUM PERMISSIBLE EXPOSURE .................................................................................................. 8 4.1 LIMIT .................................................................................................................................................. 8 4.2 REQUIREMENTS .................................................................................................................................. 8 4.3 MEASURE PROCEDURES ..................................................................................................................... 9 4.4 MEASURE SETUP ................................................................................................................................ 9 4.5 MEASUREMENT DATA .......................................................................................................................... 9 5 TEST SETUP PHOTO ............................................................................................................................ 10 - Page 4 of 10 - Report No.: ET-22040185E Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 1 Test Summary Test Item Section in CFR 47 Result Test by Electric Field strength (E) (V/m) KDB 680106 D01 RF Exposure Wireless Charging App v03r01 Pass Yvan Magnetic strength (H) (A/m) Pass Yvan Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 30MHz-1000MHz ±4.30 dB (1) Radiated Emission 1GHz-18GHz ±4.35 dB (1) Radiated Emission 18GHz-40GHz ±4.59 dB (1) AC Power Line Conducted Emission 0.15MHz ~ 30MHz ± 3.02 dB (1) Occupied Channel Bandwidth / ±0.55% (1) Note (1): The measurement uncertainty is for coverage factor of k=2 and a level of confidence of 95%. - Page 5 of 10 - Report No.: ET-22040185E Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 2 General Information 2.1 General Description of EUT Product Name: Wireless charger Model No.: WXC-5W-02 Model of difference: N/A Test model: WXC-5W-02 Sample(s) Status: Engineer sample Hardware Version: V1.0 Software Version: V1.0 Operation Frequency: 115~205KHz Channel numbers: 1 Modulation type: …

Text truncated - open the document above for the full version.

R Report No.: ET-22050296E01 This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen ETR Standard Technology Co., Ltd TEST REPORT Applicant: DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD Address of Applicant: ROOM NO. 202, BUILDING 2, NO.11, NIULING ROAD,CHANGPING TOWN,DONGGUAN CITY, CHINA Manufacturer/Factory: DONGGUAN YI RUI ELECTRONIC TECHNOLOGY CO.,LTD Address of Manufacturer/Factory: ROOM NO. 202, BUILDING 2, NO.11, NIULING ROAD,CHANGPING TOWN,DONGGUAN CITY, CHINA Product Name: Wireless charger Model No.: WXC-5W-02 Trade Mark: N/A FCC ID: 2A6HU-WXC5W02 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Date of Test: May.20,2022- May.28,2022 Date of report issued: Jun.06,2022 Test Result : PASS Remark: * In the configuration tested, the EUT complied with the standards specified above. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Authorized Signature - Page 2 of 18 - Report No.: ET-22050296E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Report Revision History Report No. Description Issue Date ET-22050296E01 Original Jun.06,2022 - Page 3 of 18 - Report No.: ET-22050296E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1 TEST SUMMARY ..................................................................................................................................... 4 2 GENERAL INFORMATION ...................................................................................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 2.2 TEST MODE ........................................................................................................................................ 6 2.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 2.4 DEVIATION FROM STANDARDS ............................................................................................................. 6 2.5 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 6 2.6 TEST FACILITY .................................................................................................................................... 6 2.7 TEST LOCATION .................................................................................................................................. 6 2.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 6 3 TEST INSTRUMENTS LIST ..................................................................................................................... 7 4 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 8 4.1 ANTENNA REQUIREMENT ..................................................................................................................... 8 4.2 CONDUCTED EMISSIONS ..................................................................................................................... 9 4.3 RADIATED EMISSION MEASUREMENT .................................................................................................. 12 4.4 20DB BANDWIDTH ............................................................................................................................ 17 5 TEST SETUP PHOTO ............................................................................................................................ 18 6 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 18 - Page 4 of 18 - Report No.: ET-22050296E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 1 Test Summary Test Item Section in CFR 47 Result Test by Antenna requirement 15.203 Pass / AC Power Line Conducted Emission 15.207 Pass Qiao Li Radiated Emission 15.209 Pass Qiao Li 20dB Occupied Bandwidth 2.1049&15.215 Pass Yvan Fan Remarks: 1. Pass: The EUT complies with the essential requirements in the standard. 2. Test according to ANSI C63.10:2013 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 30MHz-1000MHz ±4.30 dB (1) Radiated Emission 1GHz-18GHz ±4.35 dB (1) Radiated Emission 18GHz-40GHz ±4.59 dB (1) AC Power Line Conducted Emission 0.15MHz ~ 30MHz ± 3.02 dB (1) Occupied Channel Bandwidth / ±0.55% (1) Note (1): The measurement uncertainty is for coverage factor of k=2 and a level of confidence of 95%. - Page 5 of 18 - Report No.: ET-22050296E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 2 General Information 2.1 General Description of EUT Product Name: Wireless charger Model No.: WXC-5W-02 Model of difference: N/A Test model: WXC-5W-02 Sample(s) Status: En…

Text truncated - open the document above for the full version.

ET-22050296 Page 1 of 2 Product Name: Wireless charger Test Model No.: WXC-5W-02 Test Setup Photo Radiated Emission ET-22050296 Page 2 of 2 Conducted Emission ------End------
