RAIN International Technology Co., Ltd.TEL:13530576606 2.4GHz 5020 Chip Antenna: RANT5020F245M01 第 1 页共 10 页 5020 Chip antenna For Bluetooth / WLAN Applications P/N: RANT5020F245M01 Dimension (mm) L5.02 ± 0.20 W2.02 ± 0.20 T0.60 ± 0.20 RAIN International T echnology Co., Ltd.TEL:13530576606 2.4GHz 5020 Chip Antenna: RANT5020F245M01 第 2 页共 10 页 Part Number Information RANT5020F245M01 ABCDEF AProduct SeriesAntenna BDimension L x W5.0X2.0mm (+-0.2mm) CMaterialHigh K material D Working Frequency2.4 ~ 2.5GHz EFeeding modeMonopole & Single Feeding FAntenna typeType=01 1.Electrical Specification Specification Part NumberRANT5020F245M01 Central Frequency2450MHz Bandwidth100 (Min.)MHz Return Loss-10 (Max)dB Peak Gain4.01dBi Impedance50Ohm Operating Temperature -40～+85°C Maximum Power4W Resistance to Soldering Heats 10 ( @ 260 °C ) sec. PolarizationLinear Azimuth BeamwidthOmni-directional TerminationCu / Sn (Leadless) Remark : Bandwidth & Peak Gain was measured under evaluation board of next page RAIN International T echnology Co., Ltd.TEL:13530576606 2.4GHz 5020 Chip Antenna: RANT5020F245M01 2.Recommended PCB Pattern Evaluation Board Dimension Unit : mm Suggested Matching Circuit RAIN International T echnology Co., Ltd.TEL:13530576606 2.4GHz 5020 Chip Antenna: RANT5020F245M01 Layout Dimensions in Clearance area(Size=7.0*5.0mm) 50 ohm transmission Line Matching Circuit FootPrint (Unit : mm) RAIN International T echnology Co., Ltd.TEL:13530576606 2.4GHz 5020 Chip Antenna: RANT5020F245M01 3.Measurement Results Return Loss RAIN International T e chnology Co., Ltd.TEL:13530576606 2.4GHz 5020 Chip Antenna: RANT5020F245M01 RadiationPattern Efficiency Peak Gain 2450MHz77.56%4.01dBi RAIN International Technology Co., Ltd. TEL:13530576606 . 2.4GHz 5020 Chip Antenna: RANT5020F245M01 4. Reliability and Test Condictions ITEMREQUIREMENTSTEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No visible mechanical damage TEMP (°C) 230°C 4±1 sec. 150 °C 60sec Pre-heating temperature:150 °C /60sec. Solder temperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% TEMP (°C) 260°C 10±0.5 sec. 150°C 60sec Pre-heating temperature: 150°C/60sec. Solder temperature:260±5 °C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damage The device should be reflow soldered(230±5°Cfor 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with-ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% +85 °C =>30±3min -40 °C =>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1.No visible mechanical damage 2.Central Freq. change :within ±6% 3.No disconnection or short circuit. Temperature: 85±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1.No visible mechanical damage 2.Central Freq. change :within ±6% 3.No disconnection or short circuit. Temperature:-40±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1.No visible mechanical damage 2.Central Freq. c hange :within ±6% 3.No disconnection or short circuit. Temperature: 40±2°C Humidity: 90% to 95% RH Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Phase Temperature(°C) Time(min) 1 +85±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec RAIN International Technology Co., Ltd. TEL:13530576606 . 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. ReflowSoldering PRE-HEATING 250~260 230 180 150 SOLDERING 10s max. NATURAL COOLING Iron Soldering PRE-HEATINGSOLDERINGNATURAL COOLING 60~120 s30~60s TIME(sec.) TIME(sec.) Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ‧Preheatcircuitand products to 150°C ‧Never contact theceramic withthe irontip ‧Use a 20 wattsoldering iron withtip diameter of1.0mm ‧280°Ctiptemperature(max) ‧1.0mm tip diameter (max) ‧Limitsolderingtimeto 3sec. within 3s 350 150 Over 60s Gradual cooling 300 TEMPERATURE(° C) TEMPERATURE(°C) RAIN International Technology Co., Ltd. TEL:13530576606 . 6.Packaging Information K0 Tape Specification: T WAoBoKoPFEDD1PoP2t 16.0 ±0.30 1.30 ±0.10 5.30 ±0.10 1.50 ±0.10 4.00 ±0.10 7.50 ±0.10 1.75 ±0.10 1.50 ±0.10 0.00 ±0.10 4.00 ±0.10 2.00 ±0.10 0.30 ±0.05 Reel Specification: (7’’, Φ180 mm) Tape Width(mm) A(mm) B(mm) C(mm) D(mm) Chip/Reel(pcs) 1212±1.0 60±2 13.5±0.5 178±25000 P0 P2 P A0 F E B0 W RAIN International Technology Co., Ltd. TEL:13530576606 . 7.Storage and Transportation Information Storage Conditions To maintain the solderability of terminal electrodes: 1.Temperature and humidity conditions: -10~ 40°Cand 30~70% RH. 2.Recommended products should be used within 6 months from the timeof delivery. 3.The packaging material should be kept where no chlorine or sulfur exist…

Text truncated - open the document above for the full version.

Shenzhen Telesin Digital Co,. Ltd. Family models declaration letter Jan. 14, 2026 We Shenzhen Telesin Digital Co,. Ltd. Of Room 522,5/F,Block B,Bairuida Building,Vanke City Community,Bantian Street,Longgang District, Shenzhen Guangdong, China Declare under our sole responsibility that the product FCC ID: 2A6I2-P1TSS006 Product: Magnetic Mini Selfie Stick Model Number: TPTSS006-01, TPTSS006-02, TPTSS006-03, TPTSS006-04, TPTSS006-05, TPTSS006-06 All the models are the same circuit and module, except the colour and model No.. ming zhong/ general manager E-mail : [email protected] Phone : 0755 32947086 Fax : 0755 32947086 Address : Room 522,5/F,Block B,Bairuida Building,Vanke City Community,Bantian Street,Longgang District, Shenzhen Guangdong, China

Shenzhen Telesin Digital Co,. Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: January 19, 2026 Subject; Request for Confidentiality FCC ID: 2A6I2-P1TSS006 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: ming zhong Title: general manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Shenzhen Telesin Digital Co,. Ltd. Date: Jan. 14, 2026 Product Model Number: TPTSS006-01, TPTSS006-02, TPTSS006-03, TPTSS006-04, TPTSS006-05, TPTSS006-06 FCC ID: 2A6I2-P1TSS006 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: general manager Email: [email protected] Telephone: 0755 32947086 On behalf of: Shenzhen Telesin Digital Co., Ltd.

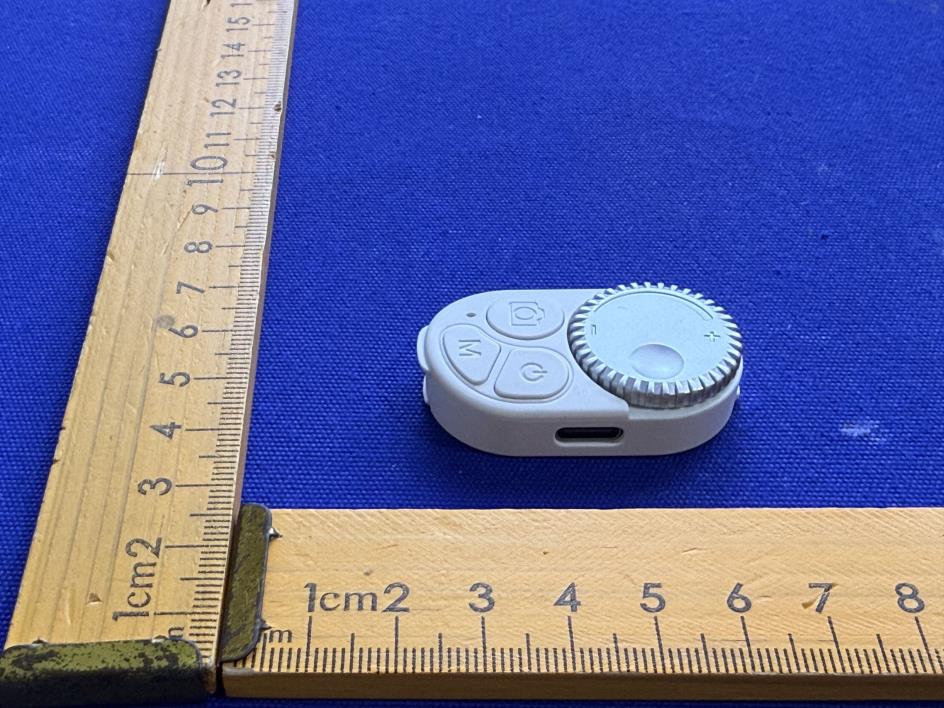

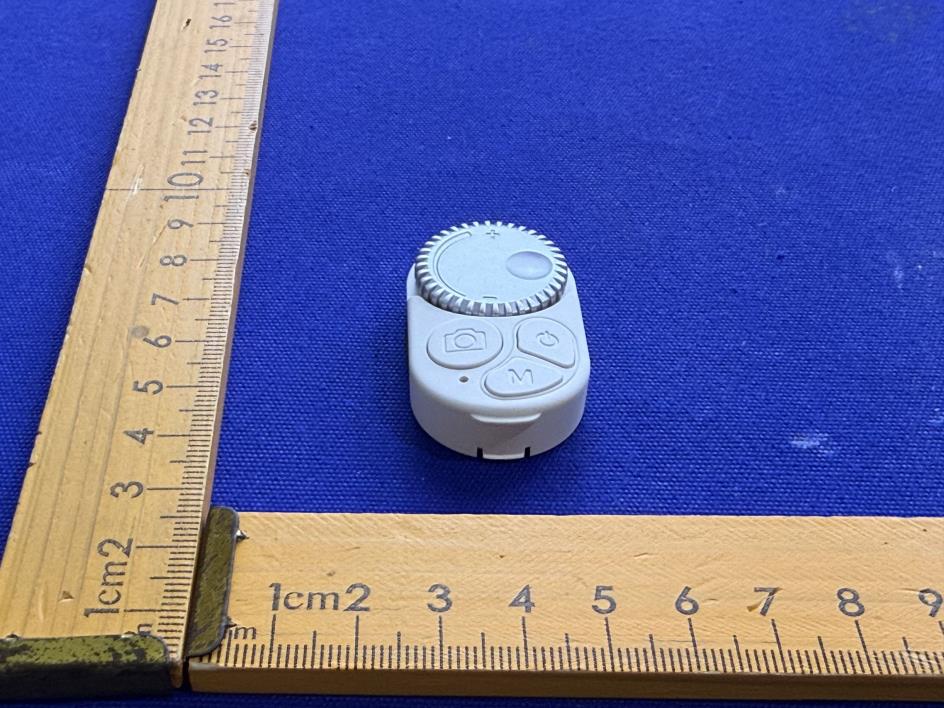

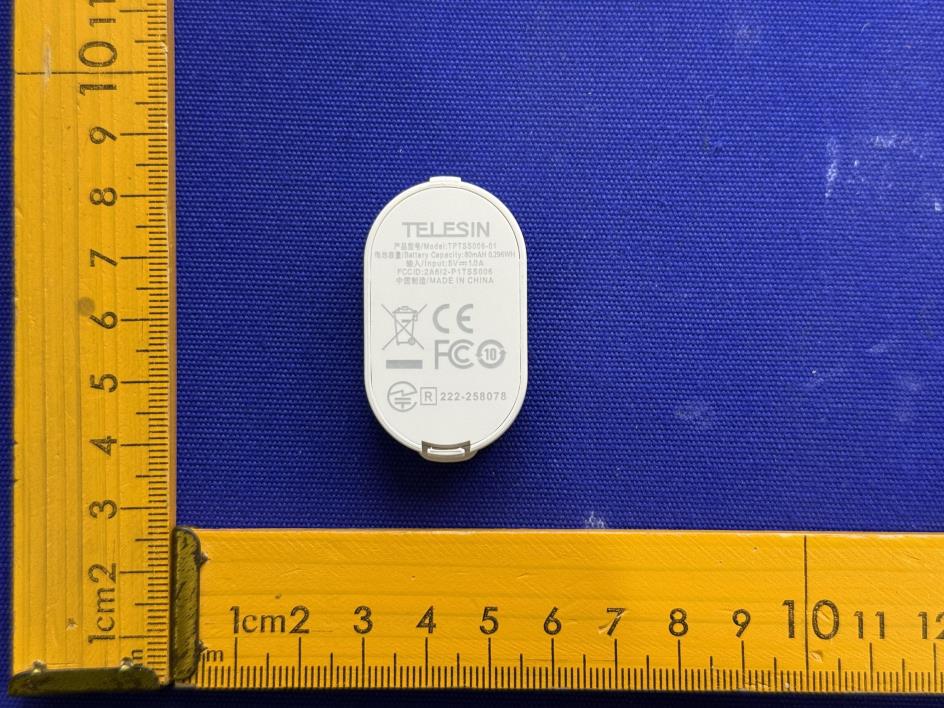

Ext Photos Model: TPTSS006-01 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

22.95 30.46 22.95 30.46 5.49

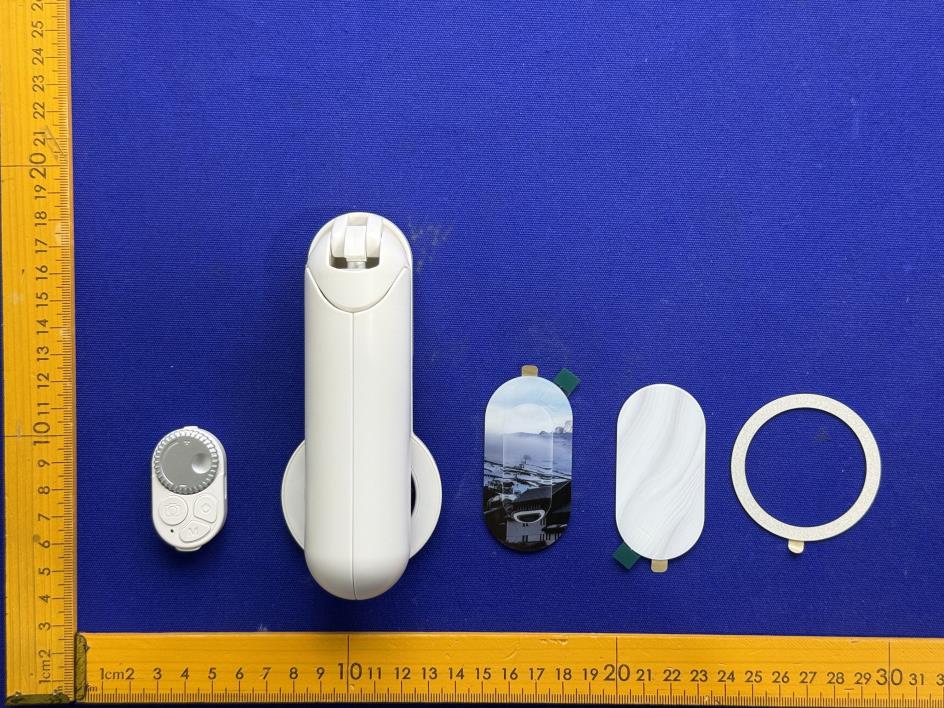

Int Photos Model: TPTSS006-01 Photo 1 Photo 2 Photo 3 Photo 4 ANT Photo 5
