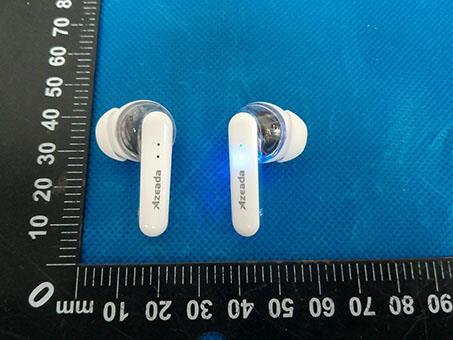

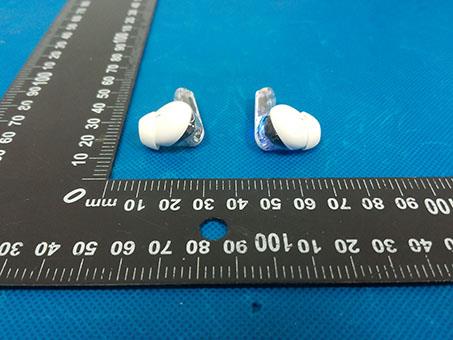

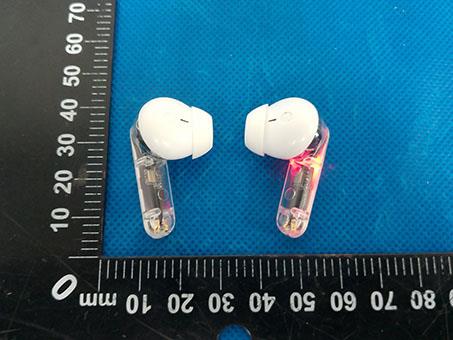

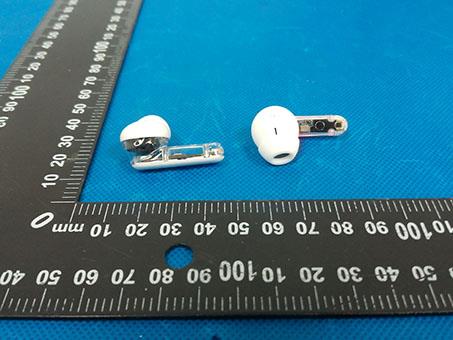

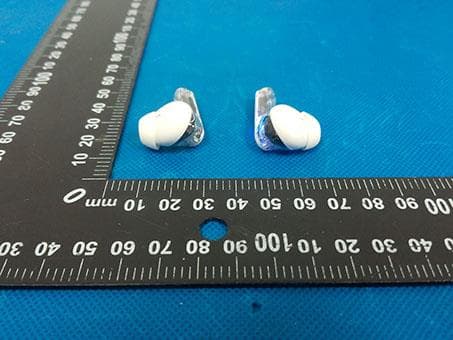

2A6JG-AZ-BT01AZEADA YonLe TWS Wireless Earbuds

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shenzhen Rehosin Technology Co.,Ltd 2023-6-05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2A6JG-AZ-BT01) [Shenzhen Rehosin Technology Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Name: Zhu meijing Title: Manager Shenzhen Rehosin Technology Co.,Ltd 2023-6-05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2A6JG-AZ-BT01) [Shenzhen Rehosin Technology Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Name: Zhu meijing Title: Manager

Shenzhen Rehosin Technology Co.,Ltd 2023-6-05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT NAME: AZEADA YonLe TWS Wireless Earbuds MODEL: AZ-BT01, AZ-BT02, AZ-BT03, AZ-BT04, AZ-BT05, AZ-BT06, AZ-BT07, AZ-BT08, AZ-BT09, AZ-BT10, AZ-BT11, AZ-BT12, AZ-BT13, AZ-BT14, AZ-BT15, AZ-BT16, AZ-BT17, AZ-BT18, AZ-BT19, AZ-BT20, AZ-BT21, AZ-BT22, AZ-BT23, AZ-BT24, AZ-BT25, AZ-BT26, AZ-BT27, AZ-BT28, AZ-BT29, AZ-BT30, AZ-BT31, AZ-BT32, AZ-BT33, AZ-BT34, AZ-BT35, AZ-BT36, AZ-BT37, AZ-BT38, AZ-BT39, AZ-BT40, AZ-BT41, AZ-BT42, AZ-BT43, AZ-BT44, AZ-BT45, AZ-BT46, AZ-BT47, PD-BH400 FCC ID: 2A6JG-AZ-BT01 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Company name: Shenzhen Rehosin Technology Co.,Ltd Address: Room 301, Building A1, Mingjun Industrial Park, No. 2, Yuangao Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen, China Signature: Zhu meijing/Manager

Shenzhen Rehosin Technology Co.,Ltd 2023-6-05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen DL Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Company name: Shenzhen Rehosin Technology Co.,Ltd Address: Room 301, Building A1, Mingjun Industrial Park, No. 2, Yuangao Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen, China Signature: Zhu meijing/Manager

Shenzhen Rehosin Technology Co.,Ltd Product Similarity Declaration Company: Shenzhen Rehosin Technology Co.,Ltd Address: Room 301, Building A1, Mingjun Industrial Park, No. 2, Yuangao Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen, China Product Name: AZEADA YonLe TWS Wireless Earbuds Model Number: AZ-BT01, AZ-BT02, AZ-BT03, AZ-BT04, AZ-BT05, AZ-BT06, AZ-BT07, AZ- BT08, AZ-BT09, AZ-BT10, AZ-BT11, AZ-BT12, AZ-BT13, AZ-BT14, AZ-BT15, AZ-BT16, AZ- BT17, AZ-BT18, AZ-BT19, AZ-BT20, AZ-BT21, AZ-BT22, AZ-BT23, AZ-BT24, AZ-BT25, AZ- BT26, AZ-BT27, AZ-BT28, AZ-BT29, AZ-BT30, AZ-BT31, AZ-BT32, AZ-BT33, AZ-BT34, AZ- BT35, AZ-BT36, AZ-BT37, AZ-BT38, AZ-BT39, AZ-BT40, AZ-BT41, AZ-BT42, AZ-BT43, AZ- BT44, AZ-BT45, AZ-BT46, AZ-BT47, PD-BH400 FCC Identifier: 2A6JG-AZ-BT01 We (Shenzhen Rehosin Technology Co.,Ltd ) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name and appearance color. Client’s signature Client’s name / title : Zhu meijing / Manager Contact information /address: Room 301, Building A1, Mingjun Industrial Park, No. 2, Yuangao Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen, China Date: 2023-06-05

Size:14*5mm MODEL: AZ-BT01 FCC ID: 2A6JG-AZ-BT01 Label location

ANT

FCC ID: 2A6JG-AZ-BT01 RF Exposure Evaluation According to KDB 447498 D01 V06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Here, Field strength (dBuV/m) EIRP (dBm) Max tune-up (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds limit 91.21 -3.95 0.403 2480 5 0.125 3.0 So a SAR test is not required

承 認 書 SPECIFICATION FOR APPROVAL 客戶名稱 CUSTOMER ： 客戶料號 CUSTOMER’S P/N ： 料號 PART NUMBER ： WAN3216F245H0X 規格 DESCRIPTION ： Chip Antenna 3216 L Ant 2.45G Type 0X 版本 VERSION ： V2.1 日期 ISSUE DATE ： 2018/07/01 客 戶 承 認 CUSTOMER APPROVED 工 程 部 R&D CENTER 承 認 APPROVAL 確 認 CHECKED 製 作 DRAWN Ray Nate Kelvin 萬誠科技股份有限公司 OneWave Electronic Co., Ltd. 112台北市北投區中央南路二段36號3樓 2F., No.163, Sec. 1, Xi'an St., Beitou Dist., Taipei City 112, Taiwan 電話: (02) 2898-2220 TEL: +886 2 2898-2220 傳真: (02) 2898-5055 FAX: +886 2 2898-5055 2/11 ONEWAVE TECHNOLOGY CO., LTD. 3216 Chip antenna For Bluetooth / WLAN Applications Dimension (mm) L 3.23 ± 0.20 W 1.66 ± 0.20 T 0.45 ± 0.20 P/N: WAN3216F245H0X 3/11 ONEWAVE TECHNOLOGY CO., LTD. Part Number Information WAN 3216 F 245 H 0X A B C D E F A Product Series Antenna B Dimension L x W 3.2X1.6mm (+-0.2mm) C Material High K material D Working Frequency 2.4 ~ 2.5GHz E Feeding mode PIFA & Single Feeding F Antenna type X=06,07,08 / Type=06,07,08 1. Electrical Specification Remark : Bandwidth & Peak Gain was measured under evaluation board of next page Specification Part Number WAN3216F245H0X Central Frequency 2450 MHz Bandwidth 120 (Min.) MHz Return Loss -6.5 (Max) dB Peak Gain 2.21 dBi Impedance 50 Ohm Operating Temperature -40～+85 °C Maximum Power 4 W Resistance to Soldering Heats 10 ( @ 260°C) sec. Polarization Linear Azimuth Beamwidth Omni-directional Termination Ni / Au (Leadless) 4/11 ONEWAVE TECHNOLOGY CO., LTD. 2. Recommended PCB Pattern Evaluation Board Dimension 2 nd Evaluation Board Dimension Suggested Matching Circuit 重要資訊 : 匹配元件建議使用精準度±1%以下的電感、電容、電阻 Layout Dimensions in Clearance area( Size=5.9*5.0mm) 5/11 ONEWAVE TECHNOLOGY CO., LTD. FootPrint (Unit : mm) ◆ 2 nd Layout Dimensions in Clearance area( Size=8.0*3.0mm) Matching Circuit 50 ohm transmission Line 6/11 ONEWAVE TECHNOLOGY CO., LTD. 3. Measurement Results Return Loss 7/11 ONEWAVE TECHNOLOGY CO., LTD. Radiation Pattern Efficiency Peak Gain Directivity 2450MHz 85.65% 2.21 dBi 2.89 dBi Chamber Coordinate System X Y Z 8/11 ONEWAVE TECHNOLOGY CO., LTD. 4.Reliability and Test Condictions ITEM REQUIREMENTS TEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No visible mechanical damage Pre-heating temperature:150°C/60sec. Solder temperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% 10±0.5 sec. 60sec .. TEMP (°C) 150°C 260°C Pre-heating temperature:150°C/60sec. Solder temperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damage The device should be reflow soldered(230±5°C for 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with-ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% Phase Temperature(°C) Time(min) 1 +85±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec +85°C=>30±3min -40°C=>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 85±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature:-40±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 40±2°C Humidity: 90% to 95% RH Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. 4±1 sec. 60sec TEMP (°C) 150°C 230°C 9/11 ONEWAVE TECHNOLOGY CO., LTD. 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ‧Preheat circuit and products to 150°C ‧Never contact the ceramic with the iron tip ‧Use a 20 watt soldering iron with tip diameter of 1.0mm ‧280°C tip temperature (max) ‧1.0mm tip diameter (max) ‧Limit soldering time to 3 sec. SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) 60~120 s 10s max. 30~60s 250~260 230 180 150 TIME(sec.) Reflow Soldering SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) within 3s Gradualcooling 150 TIME(sec.) Iron Soldering Over 60s 350 300 10/11 ONEWAVE TECHNOLOGY CO., LTD. 6.Packaging Information Tape Specification: Reel Specification: (7’’, Φ180 mm) Tape Width(mm) A(mm) B(mm) C(mm) D(mm) Chip/Reel(pcs) 8 9.0±0.5 60±2 13.5±0.5 178±2 3000 11/11 ONEWAVE TECHNOLOGY CO., LTD. 7.Storage and Transportation Information Storage Conditions To maintain the solderability of terminal electrodes: 1. Temperature and humidity conditions: -10~ 40°C and 30~70% RH. 2. Recommended products should be used within 6 months from the time of delivery. 3. The packaging material shou…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230603024E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 36 FCC Part 15C Test Report FCC ID: 2A6JG-AZ-BT01 Applicant: Shenzhen Rehosin Technology Co.,Ltd Address: Room 301, Building A1, Mingjun Industrial Park, No. 2, Yuangao Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen, China Manufacturer: Shenzhen Rehosin Technology Co.,Ltd Address: Room 301, Building A1, Mingjun Industrial Park, No. 2, Yuangao Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen, China EUT: AZEADA YonLe TWS Wireless Earbuds Trade Mark: N/A Model Number: AZ-BT01 AZ-BT02, AZ-BT03, AZ-BT04, AZ-BT05, AZ-BT06, AZ-BT07, AZ-BT08, AZ-BT09, AZ-BT10, AZ-BT11, AZ-BT12, AZ-BT13, AZ-BT14, AZ-BT15, AZ-BT16, AZ-BT17, AZ-BT18, AZ-BT19, AZ-BT20, AZ-BT21, AZ-BT22, AZ-BT23, AZ-BT24, AZ-BT25, AZ-BT26, AZ-BT27, AZ-BT28, AZ-BT29, AZ-BT30, AZ-BT31, AZ-BT32, AZ-BT33, AZ-BT34, AZ-BT35, AZ-BT36, AZ-BT37, AZ-BT38, AZ-BT39, AZ-BT40, AZ-BT41, AZ-BT42, AZ-BT43, AZ-BT44, AZ-BT45, AZ-BT46, AZ-BT47, PD-BH400 Date of Receipt: May. 26, 2023 Test Date: May. 26, 2023 - Jun. 03, 2023 Date of Report: Jun. 03, 2023 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 C 15.249 ANSI C63.10:2013 Test Result: Pass Report Number: DL-20230603024E Prepared (Test Engineer): Pxing Huang Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230603024E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 36 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 7 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 8 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 9 3 . EMC EMISSION TEST 10 3.1 CONDUCTED EMISSION MEASUREMENT 10 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 10 3.1.2 TEST PROCEDURE 10 3.1.3 DEVIATION FROM TEST STANDARD 10 3.1.4 TEST SETUP 11 3.1.5 EUT OPERATING CONDITIONS 11 3.1.6 TEST RESULTS 11 3.2 RADIATED EMISSION MEASUREMENT 14 3.2.1 RADIATED EMISSION LIMITS 14 3.2.2 TEST PROCEDURE 15 3.2.3 DEVIATION FROM TEST STANDARD 15 3.2.4 TEST SETUP 15 3.2.5 EUT OPERATING CONDITIONS 16 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 17 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 18 3.2.8 TEST RESULTS (1GHZ~25GHZ) 20 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 4 . BANDWIDTH TEST 28 4.1 APPLIED PROCEDURES / LIMIT 28 4.1.1 TEST PROCEDURE 28 4.1.2 DEVIATION FROM STANDARD 28 4.1.3 TEST SETUP 28 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230603024E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 36 Table of Contents Page 4.1.4 EUT OPERATION CONDITIONS 28 4.1.5 TEST RESULTS 29 5 . ANTENNA REQUIREMENT 33 5.1 STANDARD REQUIREMENT 33 5.2 EUT ANTENNA 33 6 . TEST SEUUP PHOTO 34 7 . EUT PHOTO 36 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230603024E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 36 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.249) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205(a), 15.209(a) 15.249(a), 15.249(c) Fundamental &Radiated Spurious Emission Measurement PASS 15.249(d) Band Edge Emission PASS 15.215(c) 20dB Bandwidth PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 20dB Bandwidth ±0.2MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230603024E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 36 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: AZEADA YonLe TWS Wireless Earbuds Trademark N/A Model No.: AZ-BT01 AZ-BT02, AZ-BT03, AZ-BT04, AZ-BT05, AZ-BT06, AZ-BT07, AZ-BT08, AZ-BT09, AZ-BT10, AZ-BT11, AZ-BT12, AZ-BT13, AZ-BT14, AZ-BT15, AZ-BT16, AZ-BT17, AZ-BT18, AZ-BT19, AZ-BT20, AZ-BT21, AZ-BT22, AZ-BT23, AZ-BT24, AZ-BT25, AZ-BT26, AZ-BT27, AZ-BT28, AZ-BT29, AZ-BT30, AZ-BT31, AZ-BT32, AZ-BT33, AZ-BT34, AZ-BT35, AZ-BT36, AZ-BT37, AZ-BT38, AZ-BT39, AZ-BT40, AZ-BT41, AZ-BT42, AZ-BT43, AZ-BT44, AZ-BT45, AZ-BT46, AZ-BT47, PD-BH400 Model Difference The product's different for model number and appearance color. Operation Frequency: 2402~2480MHz Channel numbers: 79 Channels Channel separation: 1M Modulation technology: GFSK, PI/4 DQPSK, 8DPSK Antenna Type: Chip antenna Antenna gain: 2.21dBi Power supply: DC 3.7V from battery DC 5V from USB Note: 1.For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2.The EUT’s all information provided by client. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230603024E Test Report Tel: 400-688-3552 Web:www.dl-cert.…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
