Jiangsu Jinshi Legend Technology Co., Ltd Agent Authorization Company: Jiangsu Jinshi Legend Technology Co., Ltd Address: Room 105-7, Building 17, Phase I, Human Resources Service Industrial Park, Jiangbei New District, Nanjing, No. 1, Qiliqiao North Road, Jiangbei New District, Nanjing, Jiangsu province, China Product Name: Projector Model Number(s): ZMLE3030, ZMLE3031, ZMLE3032, ZMLE3033, ZMLE3034, ZMLE3035, ZMLE3036, ZMLE3037, ZMLE3038, ZMLE3039 Product Description: Projector We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 09, 2023 Name: Qizheng Liang Title: manager Company: Jiangsu Jinshi Legend Technology Co., Ltd

Jiangsu Jinshi Legend Technology Co., Ltd Date: Jan. 09, 2023 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2A6K3-ZMLE3030 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Qizheng Liang Title: manager Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices

Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 Difference Statement We Jiangsu Jinshi Legend Technology Co., Ltd Claim that we are applying for FCCID certification for products: Projector, with many models: ZMLE3030, ZMLE3031, ZMLE3032, ZMLE3033, ZMLE3034, ZMLE3035, ZMLE3036, ZMLE3037, ZMLE3038, ZMLE3039 The BOM and pcb used in these models have the same design and layout, and the appearance color of the products may be a little different (such as black, gray and white, etc.), or the models may be different because of different customer requirements, but these differences will not affect the EMC and wireless performance of the products themselves, so the test model is ZMLE3030 Date: 2023-01-09 Name: Qizheng Liang Title: manager Signature of applicant

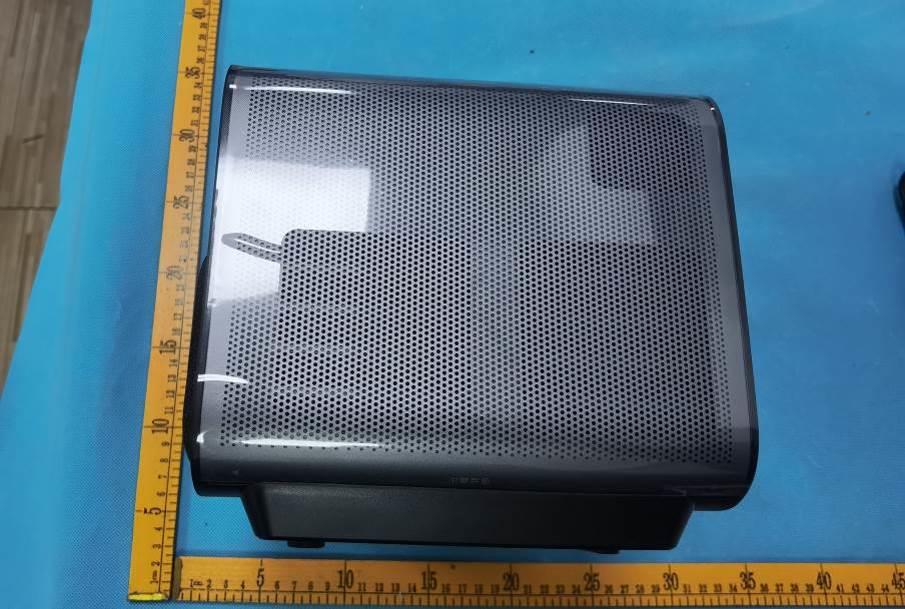

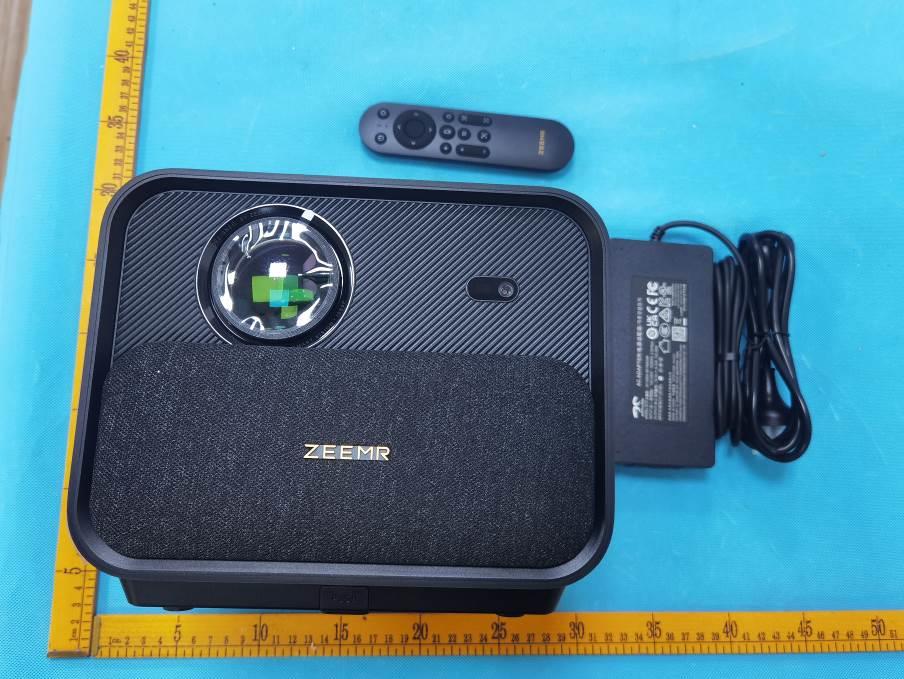

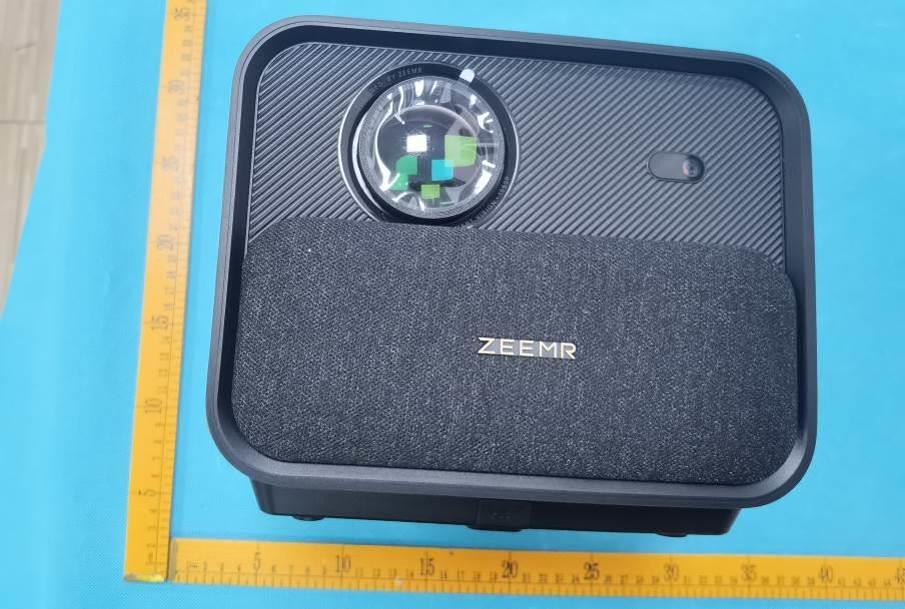

Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 External photos Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030

Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 Label place SIZE: 95.6*74.6mm SAMPLE:

Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 Internal photos Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 BTANT & WIFI ANT2 Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 WIFI ANT1

FCC ID: 2A6K3-ZMLE3030 RF Exposure Evaluation Applicable standard FCC KDB447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Result of RF Exposure Evaluation BT ANT1: 3.64dBi; 2.4G- WIFI ANT1: 3.64dBi; WIFI ANT2: 3.64dBi;MIMO: 6.65dBi 5G- ANT1:4.15dBi ; ANT2:4.15dBi ; MIMO: 7.16Bi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.0 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: FCC ID: 2A6K3-ZMLE3030 Measurement Data The Max Conducted Peak Output Power data refer to report Report No.: ZKT-221226L9673-01 & ZKT-221226L9673-02 & ZKT-221226L9673-03 & ZKT-221226L9673-04 BT/BLE-worst mode and channel: Test channel Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value (mW/cm2) (dBm) (mW) (BT) 8-DPSK Lowest channel 3.33 3±1 4 2.512 0.0012 (BLE)GFSK -0.91 0±1 1 1.259 0.0006 Limit: 1.0 mW/cm2 EUT RF Exposure Evaluation simultaneous transmission operations According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits : Simultaneous transmission mode The sum of the ratios (mW/cm2) SUM (mW/cm2) Limit (mW/cm2) BT+ BLE 0.0012+0.0006 0.0018 1.0 conclusion : 0.0018 <1.0(mW/cm2), So there is no sar requirement 2.4GWIFI worst mode and channel: Test channel Antenna Output Power (dBm) Maximum tune-up Power (dbm) Maximum tune-up Power (dbm) ANT1 ANT2 ANT1 ANT2 802.11n –2412MHz 14.74 14.44 15±1 15±1 19.01 802.11n –2437MHz 14.39 14.24 15±1 15±1 19.01 802.11n –2462MHz 14.16 14.02 15±1 15±1 19.01 Test worst case Maximum tune-up Power (dbm) Maximum tune-up Power (mW) Calculated value (mW/cm2) Limit (mW/cm2) 19.01 79.62 0.0732 1.0 Remark: 1)The Max Conducted Peak Output Power data refer to report Report No.: ZKT-221226L9673-03 2) Pd = (Pout*G)/(4* Pi * R 2 )=( 79.62*4.6238)/(4*3.1415*20*20)= 0.0732 , G=10 gain/10 =4.6238 FCC ID: 2A6K3-ZMLE3030 5GWIFI- worst mode and channel: U-NII-1 Mode Test channel Antenna Output Power (dBm) Tune up tolerance(dBm) Max Tune up (dBm) ANT1 ANT2 ANT1 ANT2 802.11ac(VHT20)-5180 11.27 10.95 11±1 11±1 15.01 802.11ac(VHT20)-5200 11.98 11.64 11±1 11±1 15.01 802.11ac(VHT20)-5240 13.17 12.76 13±1 13±1 17.01 U-NII-3 Mode Test channel Antenna Output Power (dBm) Tune up tolerance(dBm) Max Tune up (dBm) ANT1 ANT2 ANT1 ANT2 802.11ac(VHT20)-5745 9.72 9.19 10±1 10±1 14.01 802.11ac(VHT20)-5785 10.25 10.02 10±1 10±1 14.01 802.11ac(VHT20)-5825 11.36 11.14 11±1 11±1 15.01 Test worst case Maximum tune-up Power(dbm) Maximum tune-up Power(mW) Calculated value (mW/cm2) Limit (mW/cm2) 17.01 50.24 0.05197 1.0 Remark: 1)The Max Conducted Peak Output Power data refer to report Report No.: ZKT-221226L9673-04 2) Pd = (Pout*G)/(4* Pi * R 2 )=( 50.24*5.2)/(4*3.1415*20*20)= 0.05197, G=10 gain/10 =5.2 EUT RF Exposure Evaluation simultaneous transmission operations According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits : Simultaneous transmission mode The sum of the ratios SUM Limit BT+2.4G WIFI + 5G WIFI 0.0018+0.0732+0.05197 0.127 1.0 Conclusion : 0.127 < 1.0 , So there is no sar requirement NOTE:1. EUT is more than 20cm away from the human body. 2.The sum of the ratios(2.4GWIFI + 5G WIFI+BT) is less than the limit value of 1.0, so there is no sar requirement.

Project No.: ZKT-221226L9673-01 Page 1 of 71 FCC TEST REPORT FCC ID: 2A6K3-ZMLE3030 Report Number. ............................... : ZKT-221226L9673-01 Date of Test ..................................... : Dec. 15, 2022 -- Dec. 30, 2022 Date of issue .................................... : Dec. 30, 2022 Total number of pages ..................... : 71 Test Result ..................................... : PASS Testing Laboratory. .......................... : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ............................ : Jiangsu Jinshi Legend Technology Co., Ltd Address .......................................... : Room 105-7, Building 17, Phase I, Human Resources Service Industrial Park, Jiangbei New District, Nanjing, No. 1, Qiliqiao North Road, Jiangbei New District, Nanjing, Jiangsu province, China Manufacturer's name ..................... : Jiangsu Jinshi Legend Technology Co., Ltd Address .......................................... : Room 105-7, Building 17, Phase I, Human Resources Service Industrial Park, Jiangbei New District, Nanjing, No. 1, Qiliqiao North Road, Jiangbei New District, Nanjing, Jiangsu province, China Test specification: Standard .......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : KDB558074 D0115.247 Meas Guidance v 05r02 Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-112_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................... : Projector Trademark ...................................... : 知麻 ZEEMR Model/Type reference ...................... : ZMLE3030, ZMLE3031, ZMLE3032, ZMLE3033, ZMLE3034, ZMLE3035, ZMLE3036, ZMLE3037, ZMLE3038, ZMLE3039 Ratings ............................................. : DC 19V/6.3A from adapter Project No.: ZKT-221226L9673-01 Page 2 of 71 Testing procedure and testing location: Testing Laboratory .................................. : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-221226L9673-01 Page 3 of 71 Table of Contents Page 1. VERSION .............................................................. 5 2. TEST SUMMARY ........................................................ 6 3. GENERAL INFORMATION ............................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................ 7 3.2 Test Setup Configuration .................................................. 8 3.3 Support Equipment ....................................................... 8 3.4 Test Mode .............................................................. 9 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................ 10 4. EMC EMISSION TEST .................................................. 11 4.1 Conducted emissions .................................................... 11 4.1.1 POWER LINE CONDUCTED EMISSION Limits ........................... 11 4.1.2 TEST PROCEDURE ................................................... 11 4.1.3 DEVIATION FROM TEST STANDARD ................................... 11 4.1.4 TEST SETUP ......................................................... 11 4.1.5 EUT OPERATING CONDITIONS ........................................ 11 4.1.6 Test Result ........................................................... 12 4.2 Radiated emissions ..................................................... 14 4.2.1 Radiated Emission Limits ............................................... 14 4.2.2 TEST PROCEDURE ................................................... 14 4.2.3 DEVIATION FROM TEST STANDARD ................................... 15 4.2.4 TEST SETUP ......................................................... 15 4.2.5 EUT OPERATING CONDITIONS ........................................ 16 4.2.6 TEST RESULTS ...................................................... 17 5. RADIATED BAND EMISSION MEASUREMENT ............................ 22 5.1 Test Requirement: ...................................................... 22 5.2 TEST PROCEDURE .................................................... 22 5.3 DEVIATION FROM TEST STANDARD .................................... 23 5.4 TEST SETUP .......................................................... 23 5.5 EUT OPERATING CONDITIONS ......................................... 23 5.6 TEST RESULT ......................................................... 24 6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION .................... 26 6.1 Limit ................................................................... 26 6.2 Test Setup ............................................................. 26 6.3 Test procedure ......................................................... 26 6.4 DEVIATION FROM STANDARD .......................................... 26 6.5 Test Result ............................................................. 26 7. 20DB BANDWIDTH ..................................................... …

Text truncated - open the document above for the full version.

SHENZHEN YINGJIACHUANG ELECTRONIC TECHNOLOGY CO.,LTD. Product Antenna Tuning Report TIME：2022/05/09 Address of Shenzhen Company: Building A&C of Guangguang Valley, Shihong District, Matian Office, Shenzhen Guangming District Address of Hangzhou Company: Building B 212, Dahua Jianghong International Innovation Park, 369 Internet of Things Street, Binjiang District, Hangzhou TEL：0755-27810060 FAX：0755-27810057 WEB：http://www.szsyjc.com EMAIL：[email protected] Map of antenna position: WIFI ANT1 WIFI ANT2 & BT ANT OTA数据 ItemMeasurementAzimuthsElevationsStandardBandChannelFrequencyMaxMinTotal 1TRPEvery30Every30WIFI (AP)WIFI_B (11M)1241218.01-0.3413.89 2TRPEvery30Every30WIFI (AP)WIFI_B (11M)6243718.01-3.6913.74 3TRPEvery30Every30WIFI (AP)WIFI_B (11M)11246217.16-4.9113.45 4TIS(EIRP)Every30Every30WIFI (AP)WIFI_B (11M)12412-64.37-82.83-78.61 5TIS(EIRP)Every30Every30WIFI (AP)WIFI_B (11M)62437-60.88-82.08-77.87 6TIS(EIRP)Every30Every30WIFI (AP)WIFI_B (11M)112462-61.83-83.31-79.17 7TRPEvery30Every30WIFI (AP)WIFI_G (54M)1241217.5-1.8113.16 8TRPEvery30Every30WIFI (AP)WIFI_G (54M)6243716.23-4.9512.07 9TRPEvery30Every30WIFI (AP)WIFI_G (54M)11246215.6-6.3411.51 10TIS(EIRP)Every30Every30WIFI (AP)WIFI_G (54M)12412-49.81-69.52-65.14 11TIS(EIRP)Every30Every30WIFI (AP)WIFI_G (54M)62437-47.07-69.63-65.46 12TIS(EIRP)Every30Every30WIFI (AP)WIFI_G (54M)112462-48.01-70.06-65.86 13TRPEvery30Every30WIFI (AP)WIFI_N_ISM (65M)1241216.33-3.612.11 14TRPEvery30Every30WIFI (AP)WIFI_N_ISM (65M)6243715.21-711.15 15TRPEvery30Every30WIFI (AP)WIFI_N_ISM (65M)11246214.51-9.9210.41 16TIS(EIRP)Every30Every30WIFI (AP)WIFI_N_ISM (65M)12412-46.75-66.46-62.31 17TIS(EIRP)Every30Every30WIFI (AP)WIFI_N_ISM (65M)62437-44.36-65.99-61.91 18TIS(EIRP)Every30Every30WIFI (AP)WIFI_N_ISM (65M)112462-42.54-67.25-62.98 19TRPEvery30Every30WIFI (AP)WIFI_A (54M)36518020.7-3.9414.66 20TRPEvery30Every30WIFI (AP)WIFI_A (54M)100550022.8-3.5315.64 21TRPEvery30Every30WIFI (AP)WIFI_A (54M)165582525.52-0.5517.82 22TIS(EIRP)Every30Every30WIFI (AP)WIFI_A (54M)365180-51.63-77.03-70.95 23TIS(EIRP)Every30Every30WIFI (AP)WIFI_A (54M)1005500-52.03-78.74-71.55 24TIS(EIRP)Every30Every30WIFI (AP)WIFI_A (54M)1655825-51.51-77.56-69.91 WIFI Subnet Test Standing Wave Map FrequencyEfficiency (%)Gain.(dBi) 240048.873.56 2410523.64 242047.423.43 243046.992.75 244048.082.77 245053.092.95 246050.823.03 247047.422.37 248049.092.64 249052.722.65 250052.723.23 515059.292.56 525057.023.02 535066.072.37 545054.952.3 555061.83.1 565062.234 575063.834.15 585063.13.84 WIFI Passive Test Data Phi 0 Phi 90 Theta 90 WIFI Test 2D Diagram 240024502500 WIFI Test 3D Diagram 51505550 5850

Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 Radiated Emission Project No.: ZKT-221226L9673-01 FCC ID: 2A6K3-ZMLE3030 Conducted Emission
