( Receiver 6. Supporting 24W lighting power at maximum. PS: please connect the ground wire correctly, otherwise it may cause the light micro-light or flash. 1. Press and hold the transmitter's Pair code "Light ON/OFF while the receiver is powering on within 5 seconds. After hearing "DIDI" for three long rings, " the learning code pairing is successful and can work normally. If not, please turn off the power and restart the above operation. (Note: Do not accept learning code pairing after powering for more than 5 seconds.) ) Manufacturer:Foshan NengQU electronic technology Co.Ltd; Warning:changes or modificatitions to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device conplies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radi- ate radio frequency energy and, if not installed and used in accordance with the instructions, may cau- se harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele- vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connect- ed. -- Consult the dealer or an experienced radio/TV technician for help. ALL OFF LIGHT ON/OFF 1H 4H 8 BATTERY:1.5V x 2 AAALR03. Turn off the fan and the light. Turn on/off the Light. Turn on the Fan and set up the fan’s speed. Long press 2s to switch the fan to Forward or Reverse.(When the fan is working.) Fan/ OFF 2H ~ FR ~ ~ Turn off the fan. Fan/ OFF Fan/ OFF ALL OFF Activate the Natural wind MODE. Set up the Timer for the fan.Long press 2s to cancel the Timer.(When the fan is working.) LIGHT ON/OFF Long press 2s to matching code with the receiver. (When the fan is working.) ALL OFFALL OFFALL OFFALL OFF LIGHT ON/OFF LIGHT ON/OFF LIGHT ON/OFF Fan/ OFF Fan/ OFF FFF 1H1H 2H RR 4H4H 2H2H
Hualing Dong, President

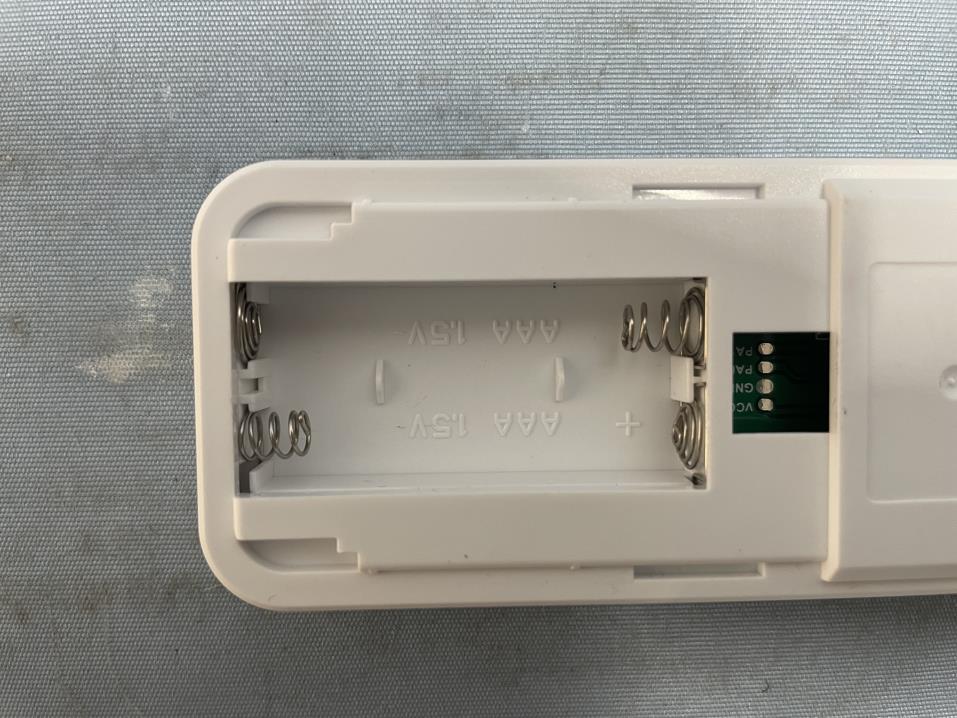

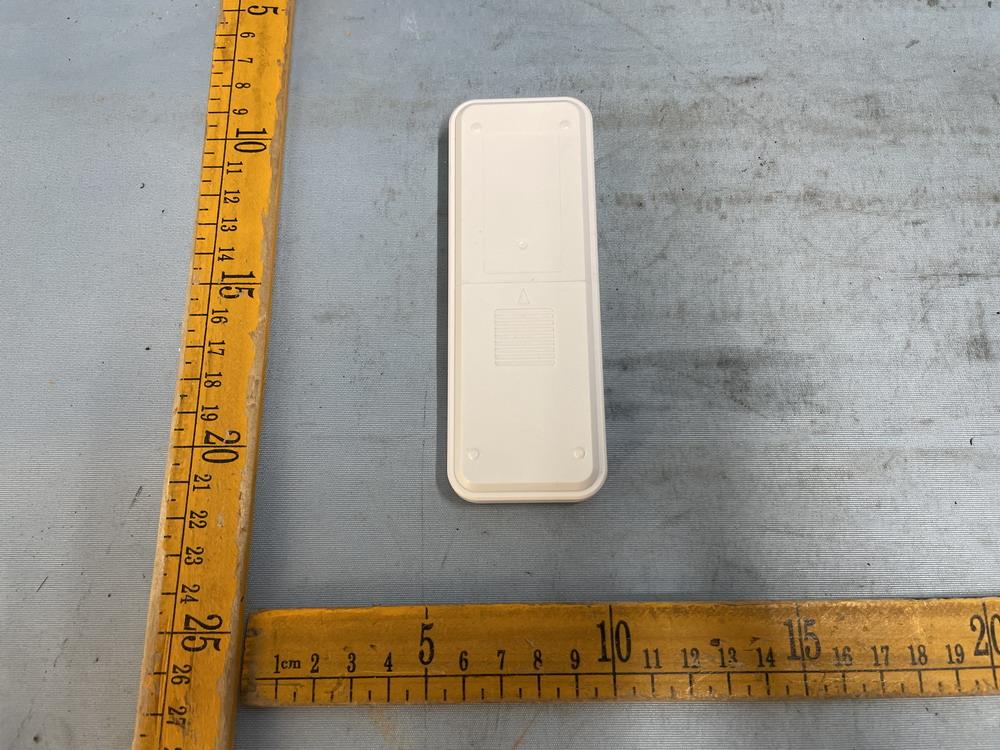

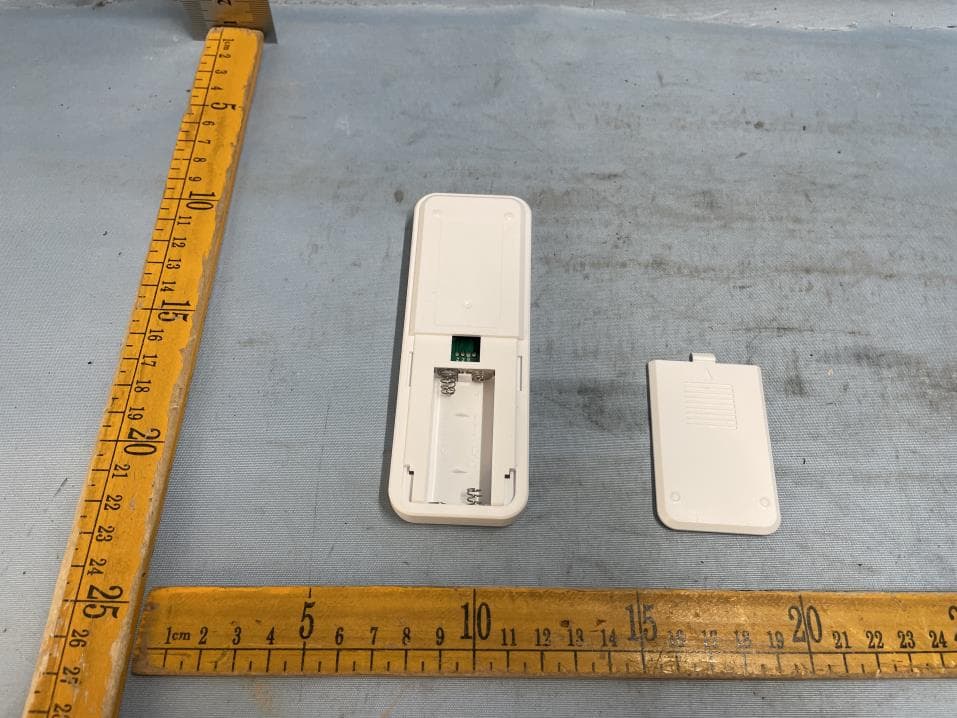

Model: F01038 Page 1 of 4 Picture 1 Picture 2 Model: F01038 Page 2 of 4 Picture 3 Picture 4 Model: F01038 Page 3 of 4 Picture 5 Picture 6 Model: F01038 Page 4 of 4 Picture 7 Picture 8
Model: F01038 Page 1 of 2 Picture 1 Picture 2 Model: F01038 Page 2 of 2 Picture 3 Picture 4
RF Exposure Requirements 1 General Information Client Information Applicant ....................................... : Foshan NengQu electronic technology Co.Ltd Address of applicant ................... : 2F NO.8 Xianganbei Road, Junan Town, Shunde District,Foshan City, Guangdong Provice, China Manufacturer ................................. : Foshan NengQu electronic technology Co.Ltd Address of manufacturer ............. : 2F NO.8 Xianganbei Road, Junan Town, Shunde District,Foshan City, Guangdong Provice, China General Description of E.U.T FCC ID ............................................ : 2A6KM-F1038 Equipment Type ............................ : Portable Device Product Name ............................... : Remote Control Model No. ..................................... : F01038 Model Description ........................ : --- Rated Voltage ................................ : Battery 3V (2*1.5V AAA) Battery Capacity ........................... : --- Power Adapter .............................. : --- Technical Characteristics of EUT Operating Frequency ................... : 433.92MHz Max. Field Strength ...................... : 82.69dBuV/m (at 3m distance) Modulation .................................... : ASK Type of Antenna ........................... : PCB Printed Antenna Antenna Gain ................................ : 3dBi Lowest oscillator .......................... 13.56MHz 2 RF Exposure Exemption According to S1.1307(b)(3) and 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radiofrequency energy level in excess limit for maximum permissible exposure. FCC Rule Part 1.1307 (b)(3)(i)(A): The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A). 3 RF Exposure Evaluation Calculated the EIRP from the radiated field strength in the far field using Equation: EIRP=E Meas +20log(d Meas )-104.7 Where EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m 4 Calculation Result Radio Access Technology Min. Distance (cm) Prediction Frequency (MHz) Max. Field Strength (dBμV/m) EIRP (dBm) EIRP (mW) SAR Test Exclusion Threshold (mW) Result SRD 0.5 433.92 82.69 -12.47 0.06 1 Pass ======End of Report======
Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn Page 1 of 24 WT-510-201-12-A TEST REPORT Reference No. .................... : WTF23F03045640W FCC ID ................................ : 2A6KM-F1038 Applicant ............................ : Foshan NengQu electronic technology Co.Ltd Address .............................. : 2F NO.8 Xianganbei Road, Junan Town, Shunde District,Foshan City, Guangdong Provice, China Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Remote Control Model No. ........................... : F01038 Test specification .............. : FCC CFR47 Part 15 Subpart C (Section 15.231):2020 Date of Receipt sample .... : 2023-03-09 Date of Test ....................... : 2023-03-14 to 2023-04-19 Date of Issue ...................... : 2023-04-20 Test Report Form No. ....... : WEW-15231A-01A Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Foshan) Co., Ltd. Address: No.13-19, 2/F., 2nd Building, Sunlink International Machinery City, Chencun, Shunde District, Foshan, Guangdong, China Tel:+86-757-23811398 Fax:+86-757-23811381 E-mail:[email protected] Tested by: Approved by: Kyrie Yun Danny Zhou Reference No.: WTF23F03045640W Page 2 of 24 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 1 Revision History Test Report No. Date of Issue Description Status WTF23F03045640W 2023-04-20 Original Valid Reference No.: WTF23F03045640W Page 3 of 24 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 2 Contents Page 1 REVISION HISTORY ................................................................................................................................. 2 2 CONTENTS ............................................................................................................................................... 3 3 GENERAL INFORMATION ....................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T ................................................................................................... 4 3.2 TECHNICAL CHARACTERISTICS OF EUT ........................................................................................... 4 3.3 STANDARDS APPLICABLE FOR TESTING ............................................................................................ 4 3.4 TEST FACILITY ................................................................................................................................ 5 3.5 SUBCONTRACTED ........................................................................................................................... 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................ 5 3.7 DISCLAIMER .................................................................................................................................... 5 4 EUT SETUP AND TEST MODE ................................................................................................................ 6 5 EQUIPMENT USED DURING TEST ......................................................................................................... 7 5.1 EQUIPMENT LIST ............................................................................................................................. 7 5.2 TEST SOFTWARE ............................................................................................................................ 8 5.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ......................................................................... 8 5.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 8 6 SUMMARY OF TEST RESULT ................................................................................................................ 9 6.1 ANTENNA REQUIREMENT ............................................................................................................... 10 6.2 RADIATED SPURIOUS EMISSIONS ................................................................................................... 11 6.3 20DB BANDWIDTH ......................................................................................................................... 15 6.4 TRANSMISSION TIME ..................................................................................................................... 16 6.5 DUTY CYCLE ................................................................................................................................. 17 7 PHOTOGRAPHS TEST SETUP ............................................................................................................. 19 7.1 PHOTOGRAPHS - RADIATED EMISSION TEST SETUP ........................................................................ 19 8 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ............................................................................... 20 8.1 EUT - EXTERNAL PHOTOS ............................................................................................................. 20 8.2 EUT - INTERNAL PHOTOS .............................................................................................................. 23 Reference No.: WTF23F03045640W Page 4 of 24 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 3 General Information 3.1 General Description of E.U.T Product Name ............................... : Remote Control Model No. ..................................... : F01038 Model Descr…
Text truncated - open the document above for the full version.
Model:F01038 Page 1 of 2 Test Setup For Radiated Emission (30MHz to 1GHz) Test Setup For Radiated Emission (Above 1GHz) Model:F01038 Page 2 of 2
