2A6LIHLCAMSLAilofy Immersion TV Backlight

字体：Arial pt/pt Ailofy视频灯说明书 105g无光铜 风琴折 审核 批准 刘璐 产品名 CMYK 100*100mm 规格: 物料编码: UPC: 型号: 品牌 Immersion TV Backlight Basic Operations Switch Button: Device on/Off/Hold on to change colors Function Button When first powered on, the device flashes blue. If not, press and hold the function button for 5 seconds until the camera flashes blue. : Camera mode/Music mode/Pairing mode Note Snap DC5.5/2.1 Interface Bracket Indicator Light Function Button Switch Button Camera ControllerPower AdapterStrip Light Status Indicator Installation Flashing blue & yellow In pairing mode Solid blue Device on Off Offline Flashing blue Connecting to the cloud or offine Keep the installation surface clean and dry. Remove the adhesive backing on the strip light and stick it on the installation surface. Starting position Install the adhesive clips buckle on the strip light and fix it. Remove the adhesive backing on the controller, position the controller to the top-center of the TV and support it with the bracket. 1. 1. 2. 2. 3. Cautions ● Do not leave this device on while it is coiled, as it might overheat. ● Avoid bending the strip where an LED is located as it might damage the strip light . ● Apply this device to the TV with a suitable size. Do not cut or stretch the ● Indoor use only. ● Do not use this device if the power is damaged. Connect the strip light to the controller, and connect the controller to the power adapter. Fix the wires with wire adhesive clips. Getting Started Download the Ailofyapp and sign in or create an account. Follow the instructions in the Ailofy app to set up. Open the Ailofy app and tap the + sign on the top right corner of the My Home tab. Tap Add Device and then select CAM TV backlight. Note This device only supports the 2.4GHz and 802.11 b/g/n bands. Please make sure your smartphone turns on the Bluetooth. The phone must be connected to the same network as the device. 5GHz is not supported. Calibration Enter the page for calibration, and select the camera installation position as per instructions. Note Need Help Service Email: [email protected] Service URL: www.ailofy.com Tap Done to complete the calibration. Note Select the correct position point, and the calibration lines do not overlap or cross. When you calibrate each position of a segment of the strip light, it flashes. Connecting To Your Voice Assistant Alexa Enter the Ailofy app, go to your Account settings, and tap Smart Integrations. Tap Alexa to bind your Ailofy account. Get started, just ask Alexa. Google Assistant Open the Googe Home app, and log in to your account. Tap Set up device. Tap Works with google. Search the Ailofy device list and log in with your Ailofy account. Wait a few more seconds, and it is completed. FCC Warning Rf Radiation Exposure Statement Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ·Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. ·Connect the equipment into an outlet on a circuit different from that to which receiver is connected. ·Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. QUICK START GUIDE 3 4 5 1 2 1 2 1 2 3 1 2 3 4 5 2 3 1 strip light. GET IT ON GET IT ON

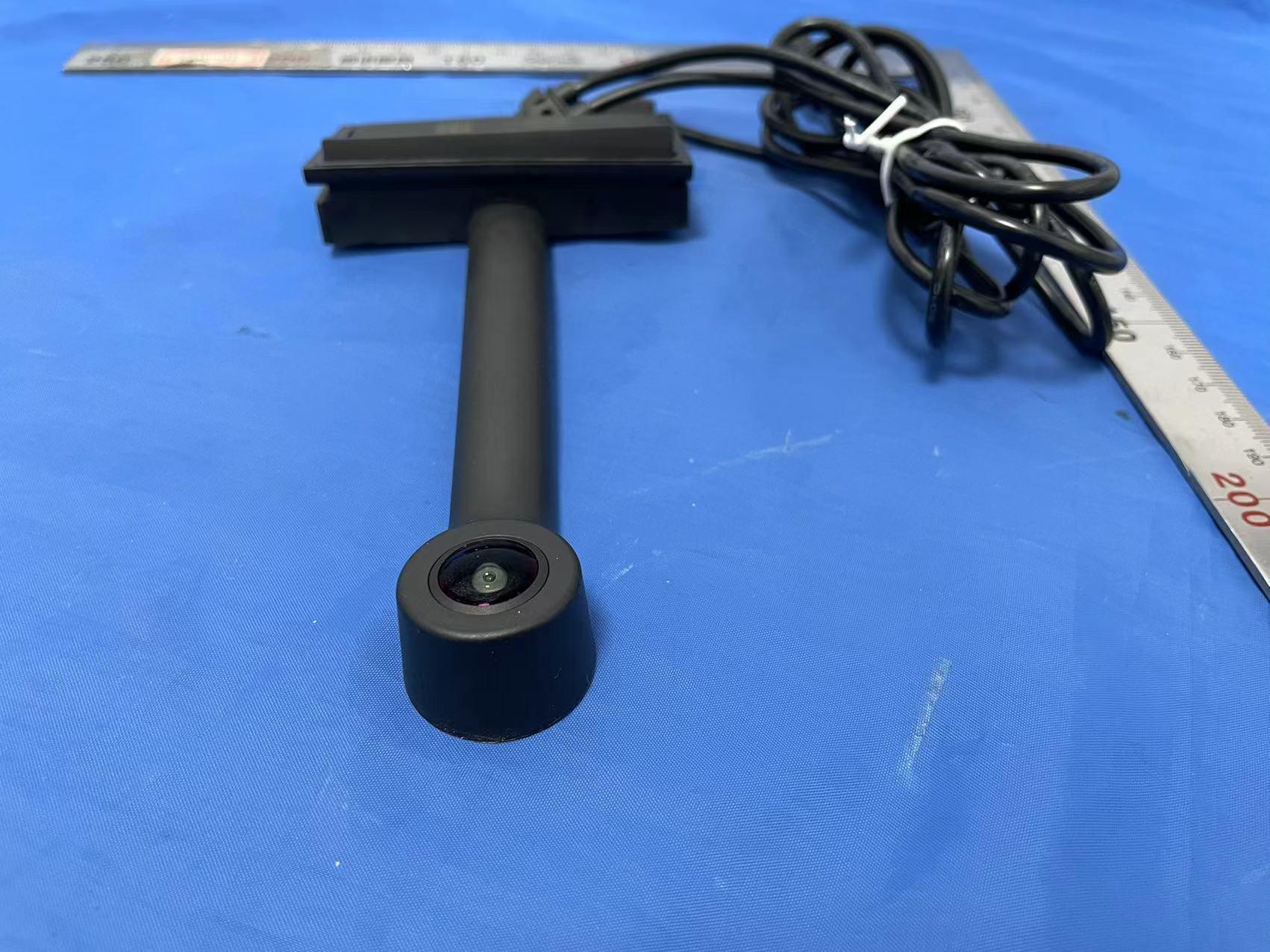

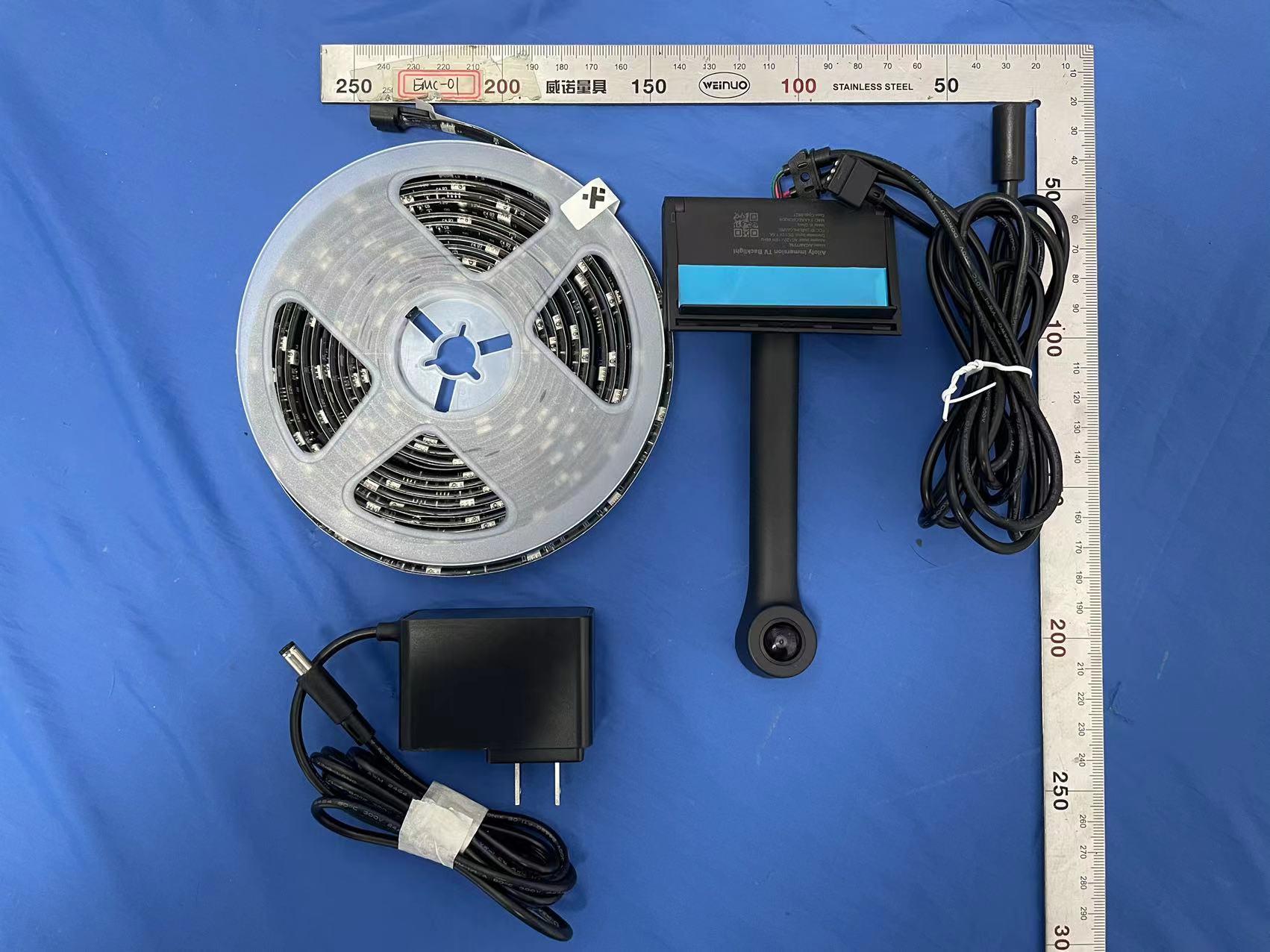

AnnexNo.:AJBH(W)20221128001-6 1 / 5 ANNEXDEUTEXTERNALPHOTOS FRONTVIEWOFEUT REARVIEWOFEUT AnnexNo.:AJBH(W)20221128001-6 2 / 5 LEFTSIDEVIEWOFEUT RIGHTSIDEOFEUT AnnexNo.:AJBH(W)20221128001-6 3 / 5 TOPVIEWOFEUT BOTTOMVIEWOFEUT AnnexNo.:AJBH(W)20221128001-6 4 / 5 Partialclose-upOFEUT AnnexNo.:AJBH(W)20221128001-6 5 / 5

Ailofy Immersion TV Backlight Model:AICAMTVSLAdapter Input: AC120V,18W 60HzController Input: DC12V 1.5AFCC ID:2A6LIHLCAMSLMade in ChinaMAC:000000000000Date Code:0927 Arial Bold 6Pt Arial Regular 4Pt 0927 Date Code: 0721 MAC0000000000006X6mm 20mm 19.2048mm 20mm 20mm

AnnexNo.:AJBH(W)20221128001-3 1 / 3 ANNEXCEUTINTERNALPHOTOS UNCOVERVIEW UNCOVERVIEW AnnexNo.:AJBH(W)20221128001-3 2 / 3 UNCOVERVIEW wirelessmodule AnnexNo.:AJBH(W)20221128001-3 3 / 3 Antenna

RFEXPOSUREREPORTFORFCC RZBG(W)20221128001-5 Applicant:HuzhouHualaiTechnologyCo.,Ltd. Address: NationalUniversitySciencePark,No.669,GaotieRdRm.316 ComprehensiveBuilding. ProductName:AilofyImmersionTVBacklight Type/Model:AICAMTVSL FCCID:2A6LIHLCAMSL TESTRESULT:PASS SUMMARY Theequipmentcomplieswiththerequirementsaccordingtothefollowingstandard(s): FCCKDB447498D04：InterimGeneralRFExposureGuidancev01 Dateofissue:Jan.5,23 PreparedbyReviewedby:Issuedby： HaoWei(Projectengineer)HaohuiQiu(Reviewer)BingCai(GeneralManager) TestreportNo.:RZBG(W)20221128001-5 HangzhouTDTTechnologiesCo.,Ltd. Page2of11 Content SUMMARY ..........................................................................................................................................................1 CONTENT..............................................................................................................................................................2 1.GENERALINFORMATIONOFEUT......................................................................................................................3 1.1Applicantinformation.................................................................................................................................3 1.2Manufactureinformation............................................................................................................................3 1.3Generaldescriptionforequipmentundertest(EUT)..................................................................................3 1.4Technicalinformationofequipmentundertest(EUT)...............................................................................4 2.DESCRIPTIONOFTESTFACLITY..........................................................................................................................5 3.SUMMARYOFTESTRESULT..............................................................................................................................6 3.1Teststandard.....................................................................................................................................................6 4.DEVICECATEGORYANDLEVELSLIMITS.............................................................................................................7 5.MPEASSESSMENT...........................................................................................................................................10 ANNEXAREVISIONHISTORY....................................................................................................................................11 TestreportNo.:RZBG(W)20221128001-5 HangzhouTDTTechnologiesCo.,Ltd. Page3of11 1.GENERALINFORMATIONOFEUT 1.1Applicantinformation ApplicantHuzhouHualaiTechnologyCo.,Ltd AddressNationalUniversitySciencePark,No.669,GaotieRdRm.316 ComprehensiveBuilding ContactpersonChenhaoYan Phonenumber15657872505 1.2Manufactureinformation ManufactureHuzhouHualaiTechnologyCo.,Ltd AddressNationalUniversitySciencePark,No.669,GaotieRdRm.316 ComprehensiveBuilding 1.3Generaldescriptionforequipmentundertest(EUT) EUTnameAilofyImmersionTVBacklight TradenameAilofy Undertestmode name AICAMTVSL SeriesmodelnameN/A Descriptionof differentmodel name N/A Hardwareversion0.0.0.0 Softwareversion4.16.1.25 Networkand Wireless connectivity IEEE802.11b/g/n（HT20/HT40），BLE1M&2M TestreportNo.:RZBG(W)20221128001-5 HangzhouTDTTechnologiesCo.,Ltd. Page4of11 1.4Technicalinformationofequipmentundertest(EUT) OperateFreq.rangeFrequency range(MHz) ModulationChannelbandwidth （MHz） Daterate （Mbps） IEEE802.11b2412-2462DSSS/CCK20Upto11 IEEE802.11g2412-2462OFDM20Upto54 IEEE802.11n(20MHz)2412-2462OFDM20Upto72.2 IEEE802.11n(40MHz)2422-2452 OFDM 40Upto150 BLE2402-2480 GFSK 21to2 TestchannelLow(2412for20MHzbandwidth,2422for40MHzbandwidth) Middle(2437for20MHzbandwidth,2437for40MHzbandwidth) High(2462for20MHzbandwidth,2452for40MHzbandwidth) BLE(Low2402Middle2440High2480) MaximumRFOutput Power(dBm) IEEE802.11b:21.59 IEEE802.11g:25.38 IEEE802.11n(20MHz):24.58 IEEE802.11n(40MHz):24.04 BLE:6.3 FCCID2A6LIHLCAMSL Equipmenttype Mobile Portable FixLocation AbouttheProduct Thiswifiisusedfordatatransmission AntennaType PCBAntenna AntennaGain 2dBi Note:Theantennagainwasdeclaredbythemanufacture. TestreportNo.:RZBG(W)20221128001-5 HangzhouTDTTechnologiesCo.,Ltd. Page5of11 2.DESCRIPTIONOFTESTFACLITY CompanyNameHangzhouTDTTechnologiesCo.,Ltd. Address Room101,Building3,No.12,BinwenRoad,Xixing Street,Binjiangdistrict,Hangzhou,Zhejiang,China Telephone+86571-88317620 Telefax+86571-88316350 TestLocationHangzhouTDTTechnologiesCo.,Ltd. Address Room101,Building3,No.12,BinwenRoad,Xixing Street,Binjiangdistrict,Hangzhou,Zhejiang,China Telephone+86571-88317620 Telefax+86571-88316350 A2LACertificationnumber4037.01 CNASCertificationnumberCNASL7728 VCCISiteregistrationnumberC-14683,G-10832,R-14200,T-12223 FCCSiteregistrationnumber645845 Announce： 1Thetestreportreferencetothereporttemplateversionv1.0 2 Thetestreportisinvalidifnotmarkedwiththesignaturesofthepersonsresponsible Forpreparingandapprovingthetestreport. 3Thetestreportisinvalidifthereisanyevidenceand/orfalsification. 4 Theresultdocumentedinthisreportapplyonlytothetestedsample,underthe conditionsandmodesofoperationasdescribedherein 5 Contentofthetestreport,inpartorinfull,cannotbeusedforpublicityand/or promotionalpurposewithoutpriorwrittenapprovalfromthelaboratory 6 ThisdocumentmaynotbealteredorrevisedinanywayunlessdonesobyTDT TechnologiesCo.,Ltdandallrevisionsaredulynotedintherevisionssection. 7 Thistestreportoftestresultsonlyrelatedtotestingsamples,whichcanbe duplicatedcompletelyforthelegalusewiththeapprovaloftheapplicant;The laboratoryberesponsibleforalltheinformationprovidedinthereport,exceptwhen informationisprovidedbythecustomer.itshallnotbereproducedexceptinfull, withoutthewrittenapprovalofHangzhouTDTTechnologiesCo.,Ltd.Anyobjections shouldberaisedwithinthirtydaysfromthedateofissue.Tovalidatethereport, pleasecontactus. TestreportNo.:RZBG(W)20221128001-5 HangzhouTDTTechnologiesCo.,Ltd. Page6of11 3.SUMMARYO…
