1 Wireless Adapter Instructions Contents A. Instructions (for Windows 10, 8.1, 7) ..................................................................................................................................... 1 B. Manually installdriver ............................................................................................................................................................. 2 C. Important: Not Connected ..................................................................................................................................................... 4 D.Warning .................................................................................................................................................................................. 4 E.Contact us ............................................................................................................................................................................... 5 A. Instructions (for Windows 10, 8.1, 7) 1) Plug the adapter into USB ports. 2) Windows 10: waiting 10 seconds for Installing driver automatically. Windows 8 7: need to install driver manually 3) Press the pairing button on the Wireless Adapter 3 seconds (it starts to flash). 4) Press the pairing button on the top of the controller (the raised button).(Xbox button starts to fast flash). 5) Wait for pairing, LED keep light and don’t flash: pair successfully! 6) Pair more controllers: Press the pairing button on the Wireless Adapter 1 second it starts to flash, repeat 4) and 5) Note: please use USB extension cable and move adapter away from the metal/router. Please update driver if adapter can’t work. Please install Xbox accessories and update controller firmware for better gaming experience. Since windows are frequently updated, please try to use different PC if adapter can’t work, you may need to download a driver or update system in the PC that doesn’t works with adapter. 2 B. Manually installdriver Try to update driver maybe resolve everything. 1. Go to Microsoft catalog update website, search "Xbox Wireless" in search box. Find the version file corresponding to your windows (a driver that does not match your windows will cause adapter to not work), downloaded file to a memorable folder. The windows 10 driver title: “Microsoft - Other hardware - Xbox Wireless Adapter for Windows” 3 2. Click Start, type Device Manager, and press Enter. Left click Network adapters, Right click "Xbox Wireless Adapter for Windows" and choose "Update Driver." Select "Browse my computer for driver software." Browse for the folder that you extracted the driver to in step 1. Then choose next. 3. After successful driver update, reboot computer. Press the pairing button on the Wireless Adapter 3 seconds, which should now start slowly blinking. Hold down button on your XB wireless controller for syncing, and two should link up . 4. Click Start, open “Microsoft store”, install ” Xbox Accessories” in Microsoft store. Go to setting of xbox accessories then update controller firmware. 4 C. Important: Not Connected Adapter LED didn’t light up after pressing button 3 seconds 1. USB port is no power or loose contact, try plug into other USB port or use USB extension cable. 2. Didn't install driver successfully, uninstall and install driver again. 3. Adapter is broken by accident, contact with us for replacement or refund. Adapter LED light up but can’t connect controllers or headset. 1. Turn off Xbox or any other devices that has connected headset and controllers already. 2. Wireless headset must be 2.4G signal and design for Xbox. 360 controller and universal wireless headset can’t to connect 3. Update controller firmware in xbox console or xbox accessories app on PC Disconnect randomly 1. Move it away from the metal/TV/router, connect it to USB extension cable. 2. Battery no power One year replacement or refund warranty If you have any questions, please feel free to contact us (Email: [email protected]) D.Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant 5 to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different. from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. NOTE: This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter The device has been evaluated to meet general RF exposure requirement. E.Contact us Please email us if you can’t make the adapter to works (Email: [email protected])

Co m Ad d sha Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Lin dress: Gao ndongshe n oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: Linyiga yigaoxinjish xinjishucha ng China e: Wireless er(s): PG-XB ription: Wi MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Pengjian Manager Linyigaox aoxinjishuc Agen huchanyeka anyekaifaqu Adapter B1006, CP- reless Adap bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect Liu xinjishucha chanyekaif nt Auth aifaqushisha luoliuluyus -000344 pter Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of anyekaifaq faqushisha horizat angjianmeir shuangyuey ourt, Pleasa certification forward all i agencies as and all acts our own. ushishang ngjianmeir tion rihua yuanlujiaohu anton, Califo of above na information s required a s carried ou Date: gjianmeirih rihua uibei50milux ornia 94566 amed equip related to t nd to discu ut by MiCOM Apr. 26, 20 ua xi linyishi 6, USA, to pment. the approva ss any M Labs on 022 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2A6M6-P om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio Tune-up r understand pondence du ents and thi zation is iss ely, ure: Pengjian Li anage r Linyigaox ing Techno cations Com s Road 046 for Confiden G-XB1006 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri p Procedure ding that all uring the ce s informatio sued. u xinjishucha logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption e l measurem ertification re on will be av anyekaifaq ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for qushishang s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e gjianmeirih Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the hua Date: Apr. 457 and § 0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 26, 2022 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We, Liny igaoxinjishuchanyekaifaqushishangjianmeirihua(Wireless Adapter) ; Model Number:PG-XB1006, CP-000344; All model’s the function, software and electric circuit are the same, only model named different. Test sample model: PG- XB1006. Please contact me if you have any question. Name: Pengjian Liu Date: Apr. 26, 2022 Title: Manager Signature of applicant:

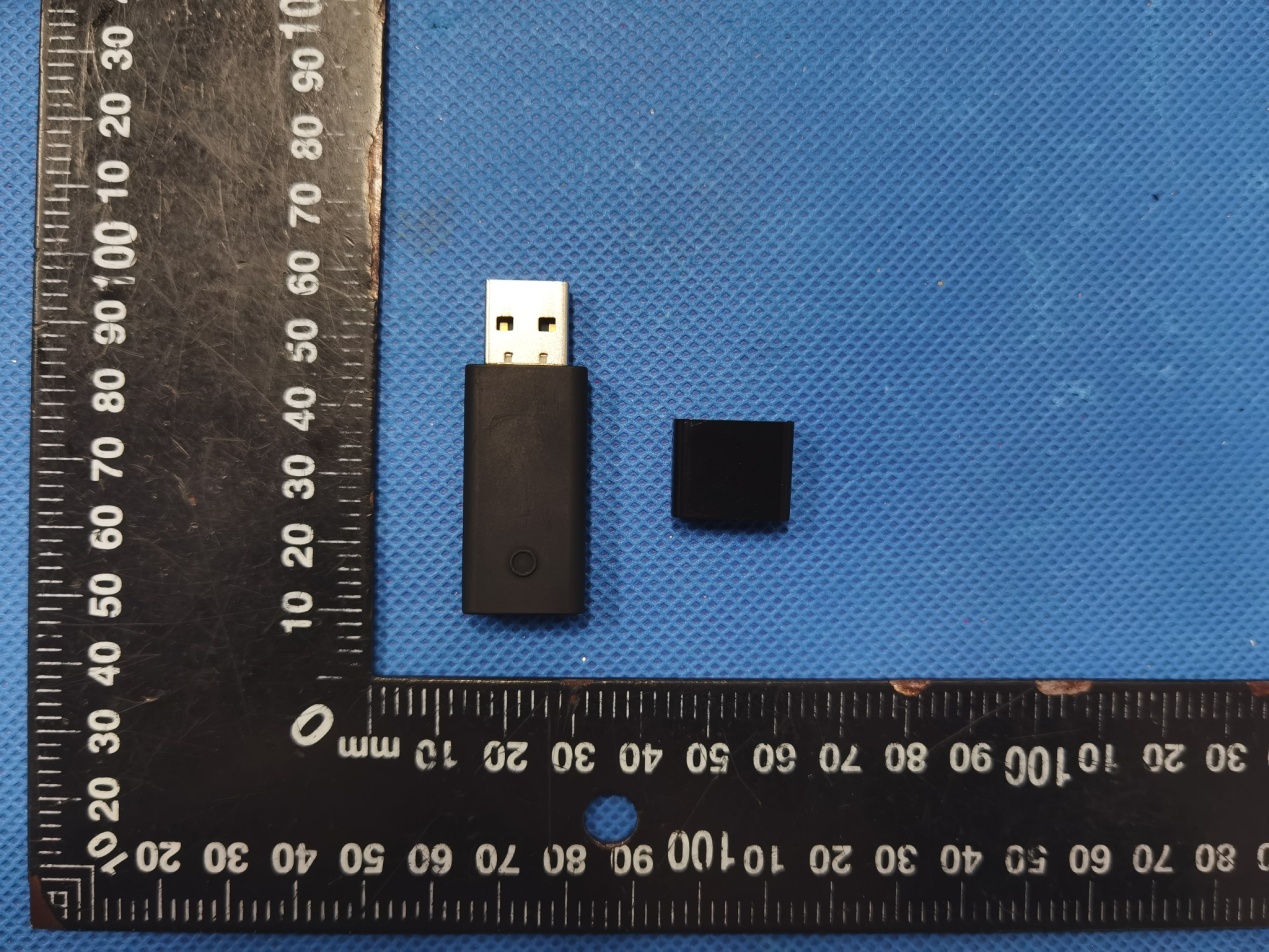

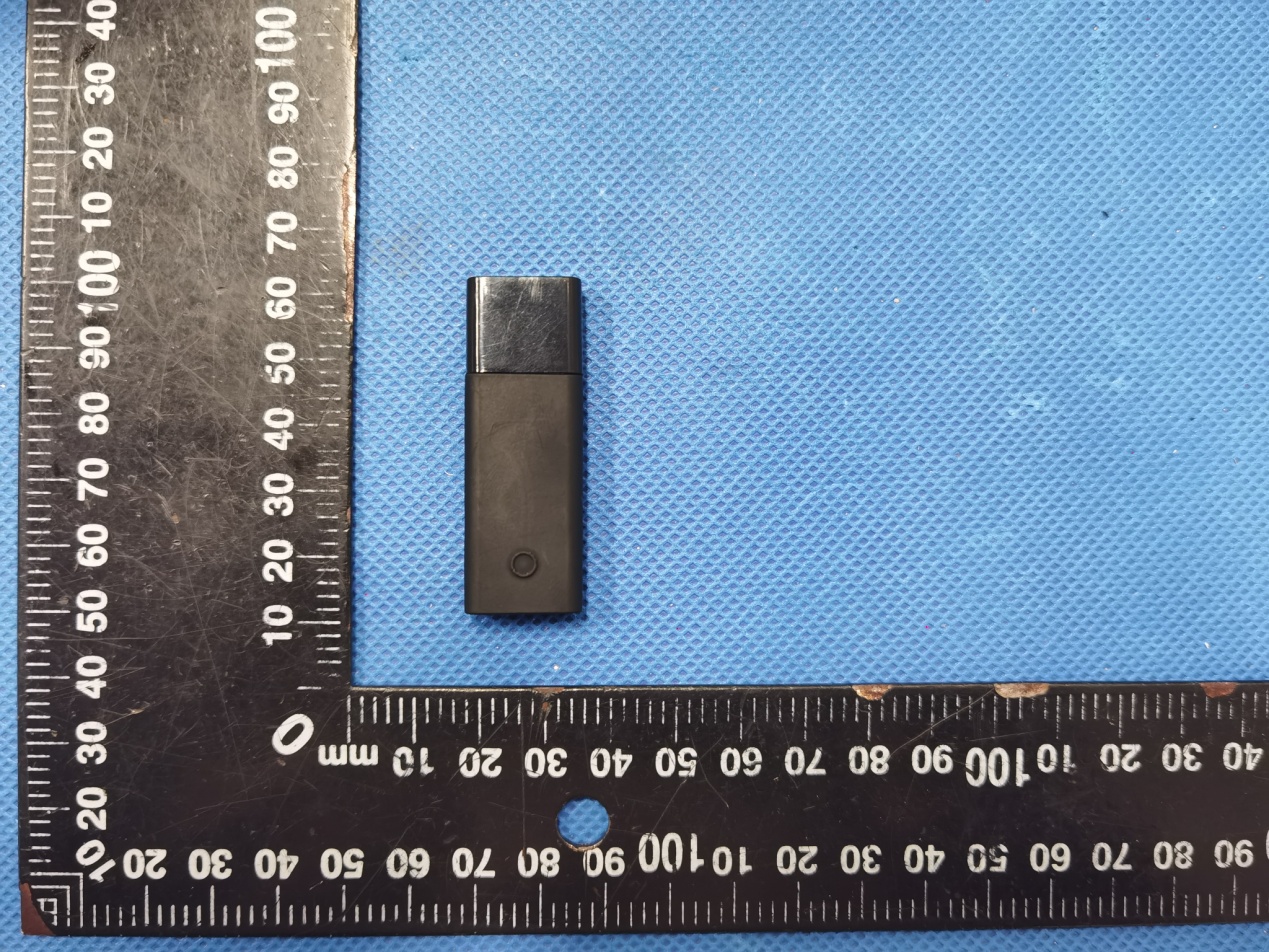

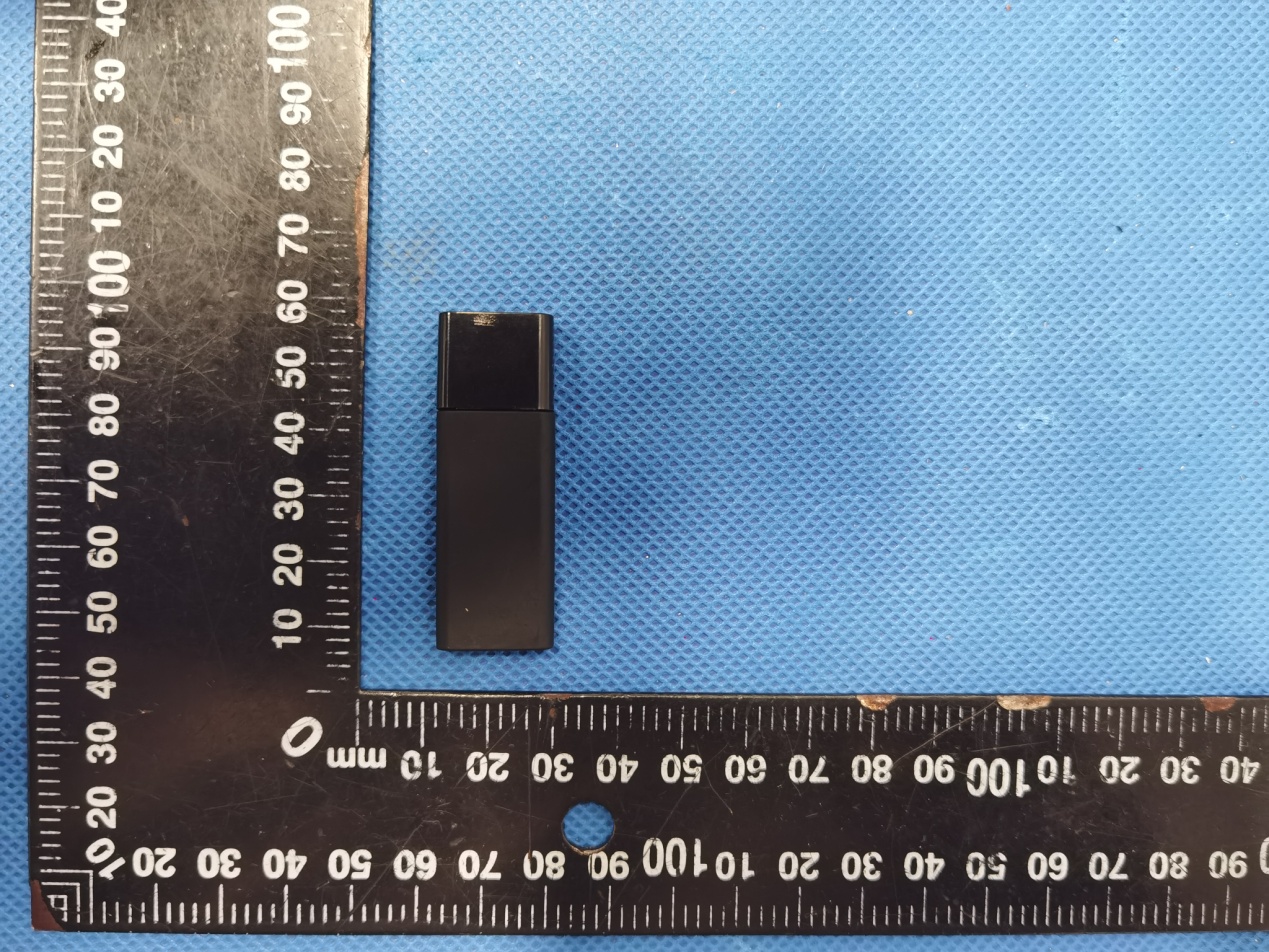

Annex A External Photos Report No.: HK2203241194-E Page 1 of 4 Report No.: HK2203241194-E Page 2 of 4 Report No.: HK2203241194-E Page 3 of 4 Report No.: HK2203241194-E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2A6M6‐PG‐XB1006

Annex B Internal Photo Report No.: HK2203241194-E Page 1 of 2 Antenna Report No.: HK2203241194-E Page 2 of 2

FCC RF Exposure EUT Description: Wireless Adapter Model No.: PG‐XB1006, CP‐000344 FCC ID: 2A6M6‐PG‐XB1006 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion Ant. 1: 2412 7.91 7±1 8/6.31 5 1.960 3.0 Pass Ant. 2: 2412 7.79 7±1 8/6.31 5 1.960 3.0 Pass MIMO: 2412 9.59 8.7±1 9.7/9.335 2.898 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2203241194‐E, Antenna 1:1dBi, Antenna 2:1dBi, MIMO: 4.010dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 2.898 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Report No.: HK2203241194-E FCC TEST REPORT Test report On Behalf of Linyigaoxinjishuchanyekaifaqushishangjianmeirihua For Wireless Adapter Model No.: PG-XB1006, CP-000344 FCC ID: 2A6M6-PG-XB1006 Prepared for : Linyigaoxinjishuchanyekaifaqushishangjianmeirihua Gaoxinjishuchanyekaifaqu luoliuluyushuangyueyuanlujiaohuibei50miluxi linyishi shandongsheng China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Apr. 08, 2022 ~ Apr. 20, 2022 Date of Report: Apr. 20, 2022 Report Number: HK2203241194-E Page 2 of 88 Report No.: HK2203241194-E TEST RESULT CERTIFICATION Applicant’s name .................. : Linyigaoxinjishuchanyekaifaqushishangjianmeirihua Address .................................. : Gaoxinjishuchanyekaifaqu luoliuluyushuangyueyuanlu jiaohuibei50miluxi linyishi shandongsheng China Manufacture's Name ............. : Tomsheir Technology Shenzhen Co Ltd Address .................................. : Lian Wei Street, Dalangnan Road, 516 room, NO.2, Shenzhen City Guangdong Province, 518109 China Product description Trade Mark: TOMSHEIR Product name ............................ : Wireless Adapter Model and/or type reference . : PG-XB1006, CP-000344 Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Apr. 08, 2022 ~ Apr. 20, 2022 Date of Issue ........................................... : Apr. 20, 2022 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 88 Report No.: HK2203241194-E TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................. 5 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. EUT Description ........................................................................................ 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. CARRIER FREQUENCY OF CHANNELS ..................................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .................................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. Genera Information ................................................................................. 10 3.1. TEST ENVIRONMENT AND MODE ............................................................................................................ 10 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 11 4. Test Results and Measurement Data .................................................... 12 4.1. CONDUCTED EMISSION ........................................................................................................................ 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 16 4.3. EMISSION BANDWIDTH ......................................................................................................................... 18 4.4. POWER SPECTRAL DENSITY ................................................................................................................ 29 4.5. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ..................................................... 41 4.6. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 59 4.7. ANTENNA REQUIREMENT ............................................................................................................. 85 4.8. PHOTOS OF THE EUT ..................................................................................................................... 88 Page 4 of 88 Report No.: HK2203241194-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Apr. 20, 2022 Jason Zhou Page 5 of 88 Report No.: HK2203241194-E 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge 1§5.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. INFORMATION OF THE TEST LABORATORY Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park…

Text truncated - open the document above for the full version.

Page 45 of 88 Report No.: HK2203241194-E 802.11g Modulation Lowest Channel Highest Channel Band Edge Band Edge Spurious emission(2412MHz) Spurious emission(2462MHz) Page 46 of 88 Report No.: HK2203241194-E Spurious emission(2437MHz) Page 47 of 88 Report No.: HK2203241194-E 802.11n (HT20) Modulation Lowest Channel Highest Channel Band Edge Band Edge Spurious emission(2412MHz) Spurious emission(2462MHz) Page 48 of 88 Report No.: HK2203241194-E Spurious emission(2437MHz) Page 49 of 88 Report No.: HK2203241194-E 802.11n (HT40) Modulation Lowest Channel Highest Channel Band Edge Band Edge Spurious emission(2422MHz) Spurious emission(2452MHz) Page 50 of 88 Report No.: HK2203241194-E Spurious emission(2437MHz) Page 51 of 88 Report No.: HK2203241194-E Chain 2 802.11b Modulation Lowest Channel Highest Channel Band Edge Band Edge Spurious emission(2412MHz) Spurious emission(2462MHz) Page 52 of 88 Report No.: HK2203241194-E Spurious emission(2437MHz) Page 53 of 88 Report No.: HK2203241194-E 802.11g Modulation Lowest Channel Highest Channel Band Edge Band Edge Spurious emission(2412MHz) Spurious emission(2462MHz) Page 54 of 88 Report No.: HK2203241194-E Spurious emission(2437MHz) Page 55 of 88 Report No.: HK2203241194-E 802.11n (HT20) Modulation Lowest Channel Highest Channel Band Edge Band Edge Spurious emission(2412MHz) Spurious emission(2462MHz) Page 56 of 88 Report No.: HK2203241194-E Spurious emission(2437MHz) Page 57 of 88 Report No.: HK2203241194-E 802.11n (HT40) Modulation Lowest Channel Highest Channel Band Edge Band Edge Spurious emission(2422MHz) Spurious emission(2452MHz) Page 58 of 88 Report No.: HK2203241194-E Spurious emission(2437MHz) Page 59 of 88 Report No.: HK2203241194-E 4.6. Radiated Spurious Emission Measurement 4.6.1. Test Specification Test Requirement: FCC Part15 C Section 15.209 Test Method: ANSI C63.10: 2013 Frequency Range: 9 kHz to 25 GHz Measurement Distance: 3 m Antenna Polarization: Horizontal & Vertical Operation mode: Transmitting mode with modulation Receiver Setup: Frequency Detector RBW VBW Remark 9kHz- 150kHzQuasi-peak200Hz 1kHz Quasi-peak Value 150kHz- 30MHz Quasi-peak9kHz 30kHz Quasi-peak Value 30MHz-1GHzQuasi-peak120KHz300KHz Quasi-peak Value Above 1GHz Peak 1MHz 3MHz Peak Value Peak 1MHz 10Hz Average Value Limit: Frequency Field Strength (microvolts/meter) Measurement Distance (meters) 0.009-0.490 2400/F(KHz) 300 0.490-1.705 24000/F(KHz) 30 1.705-30 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Frequency Field Strength (microvolts/meter) Measurement Distance (meters) Detector Above 1GHz 500 3 Average 5000 3 Peak Test setup: For radiated emissions below 30MHz 30MHz to 1GHz 0.8m Page 60 of 88 Report No.: HK2203241194-E Above 1GHz Test Procedure: 1. For the radiated emission test below 1GHz: The EUT was placed on a turntable with 0.8 meter above ground. The EUT was set 3 meters from the interference receiving antenna, which was mounted on the top of a variable height antenna tower. The EUT was arranged to its worst case and then tune the antenna tower (from 1 m to 4 m) and turntable (from 0 degree to 360 degrees) to find the maximum reading. A pre-amp and a high PASS filter are used for the test in order to get better signal level. For the radiated emission test above 1GHz: Place the measurement antenna on a turntable with 1.5 meter above ground, which is away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which Page 61 of 88 Report No.: HK2203241194-E maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 3. Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level 4. For measurement below 1GHz, If the emission level of the EUT measured by the peak detector is 3 dB lower than the applicable limit, the peak emission level will be reported. Otherwise, the emission measurement will be repeated using the quasi-peak detector and reported. 5. Use the following spectrum analyzer settings: (1) Span shall wide enough to fully capture the emission being measured; (2) Set RBW=100 kHz for f < 1 GHz; VBW ≥RBW; Sweep = auto; Detector function = peak; Trace = max hold; (3) Set RBW = 1 MHz, VBW= 3MHz for f 1 GHz for peak measurement. For average measurement: VBW = 10 Hz, when duty cycle is no less than 98 percent. VBW ≥ 1/T, when duty cycle is less than 98 percent where T is the minimum transmission duration over which the transmitter is on and is transmitting at its maximum power control level for the tested mode of operation. Test results: PASS Page 62 of 88 Report No.: HK2203241194-E 4.6.2. Test Instruments Radiated Emission Test Site (966) Name of Equipment Manufacturer Model Serial Number Calibration Date Calibration Due Receiver R&S ESR-7 HKE-010 Feb. 18, 2022 Feb. 17, 2023 Spectrum analyzer Agilent N9020A HKE-048 Feb. 18, 2022 Feb. 17, 2023 Preamplifier EMCI EMC051845 SE HKE-015 Feb. 18, 2022 Feb. 17, 2023 Preamplifier Agilent 83051A HKE-016 Feb. 18, 2022 Feb. 17, 2023 Loop antenna Schwarzbeck FMZB 1519 B HKE-014 Feb. 18, 2022 Feb. 17, 2023 Broadband antenna Schwarzbeck VULB 9163HKE-012 Feb. 18, 2022 Feb. 17, 2023 Horn antenna Schwarzbeck 9120D HKE-013 Feb. 18, 2022 Feb. 17, 2023 Antenna Mast Keleto CC-A-4M N/A N/A N/A Position controller Taiwan MF MF7802 HKE-011 Feb. 18, 2022 Feb. 17, 2023 Radiated test software Tonscend TS+ Rev 2.5.0.0 HKE-082 N/A N/A RF cable (9KHz-1GHz) Times 381806-001N/A N/A N/A RF cable Times 1-40G HKE-034 Feb. 18, …

Text truncated - open the document above for the full version.

Test Model：PG-XB1006 Radiated Emission
