2A6NFEJ5340Bluetooth low energy/ANT/802.15.4 Module

6-Sep. 2023 Ver.0.2 KAGA FEI Co., Ltd. KAGA FEI Co., Ltd. 1/6 EJ5340 User manual (for EJ5340) FCC ID: 2A6NFEJ5340 IC: 28568-EJ5340 6-Sep. 2023 Ver.0.2 KAGA FEI Co., Ltd. KAGA FEI Co., Ltd. 2/6 EJ5340 This module should be installed in the host device according to the interface specification. 1) Japan Regulatory Information a) This Product is a radio system and obtained certification of construction type combined with the specific antenna. b) Please ensure that your product has a label with the following certification mark at easily viewable location. If your product is too small to have the label, please place it in the instruction manual and package of your product. The mark diameter shall be easily legible. In case your product does not have the label with the following certification mark, you or your customer who uses your product may be against the Radio Law and subjected to criminal punishment. KAGA FEI shall not be liable for any loss or damage incurred by you or your customer arising from use of your product which does not have following certification mark. This product installs a radio system which has been approved as a radio station in a low power data communication system based on the Radio Law. EJ5340 : 005-103334 2) Canada Regulatory Information The following information must be indicated on the host device of this module; a) This device complies with Innovation, Science and Economic Development Canada’s applicable licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’ Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. b) This product is certified as type of the portable device with Innovation, Science and Economic Development Canada Rules. To maintain compliance with RF Exposure requirement, please use within specification of this product. Ce produit est certifié comme type de l'appareil portable avec Règles de Innovation, Sciences et Développement économique Canada. Pour maintenir l'acquiescement avec exigence Exposition de RF, veuillez utiliser dans spécification de ce produit. - IC: 28568-EJ5340 c) Please notify certified ID on your product. -Contains IC : 28568-EJ5340 Veuillez indiquer le numéro d'identification certifié sur votre produit. -Contains IC : 28568-EJ5340 005-103334 6-Sep. 2023 Ver.0.2 KAGA FEI Co., Ltd. KAGA FEI Co., Ltd. 3/6 EJ5340 3) FCC Regulatory Information a) This device complies with part 15 of the FCC Rules. -Part 15 Subpart C b) The following statement shall be indicated on the host device or the user manual of the host device; Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. c) Please notify certified ID by either one of the following method on your product. -Contains Transmitter Module FCC ID: 2A6NFEJ5340 -Contains FCC ID: 2A6NFEJ5340 d) Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed must also display a label referring to the enclosed module. e) The following statement shall be indicated in the user manual of the host device; CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the use’s authority to operate the equipment. f) The modular transmitter is only FCC authorized for the specific rule parts (Part 15 Subpart C) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. g) This product is certified as type of the portable device with FCC Rules. To maintain compliance with RF Exposure requirement, please use within specification of this product. h) The following statement shall be indicated in the user manual of the host device; The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. i) The module installer shall integrate the module within the range (including output power) under which the module is certified, by means of application software depending on the circumstances. The module installer must follow the integration instructions provided by Kaga FEI and ensure that the end product complies with the FCC requirements. Any end user cannot change the output power. The test software is developed by Kaga FEI, and during regulatory testing the output power is set to maximum power. j) Antenna List No.1 Antenna Category Monopole Antenna Type PCB antenna Dimensions 3.45mm x 4.7mm 4) CE Regulatory Information a) When your end product installs this module, it is required to proceed additional certification processes before placing on the market in EU member states to make your products fully comply with relative EU standards. b) KAGA FEI can provide you the test reports of conducted measurement portion for the radio module. You can utilize the test reports for the certification processes of your end product as it requires radio testing. 6-Sep. 2023 Ver.0.2 KAGA FEI Co., Ltd. KAGA FEI Co., Ltd. 4/6 EJ5340 Control No. (1/3) Control name Pin Layout Pin Descriptions Pin Pin name Pin function Description 1 …

Text truncated - open the document above for the full version.

Certification Designating a US Agent for Service of Process To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 06-06-2023 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2A6NFES2820, 2A6NFED2833, 2A6NFEJ2833,2A6NFEB2833, 2A6NFES2805, 2A6NFES2811, 2A6NFED2840,2A6NFEC2811, 2A6NFEB5340 and 2A6NFEJ5340 KAGA FEI Co., Ltd. (“the applicant”) certifies that as of the date of the filing of the application, TianHeng Consulting, LLC (“the agent”) is our designated U.S. agent. We acknowledge the applicant’s consent and the designated agent for service of process’s obligation to accept service of process.The applicant accepts to maintain an agent for service of process for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. APPLICANT Company Name: KAGA FEI Co., Ltd. Contact Person: Mikio Aoki Address: Gunseisha ANNEX Bldg. 5th floor, 382-1, Kaminamie-machi, Takasaki, Gunma, 370-0801, Japan Tel.: +81-27-381-5797 Email: [email protected] FCC FRN: 0032316325 U.S. Agent Company Name: TianHeng Consulting, LLC Contact Person: Hualing Dong Address: 392 Andover Street, Wilmington, MA 01887, United States Tel.: +1 (617) 997-4010 Email: [email protected] FCC FRN: 0033401258 Sincerely yours, The Applicant The Agent Company Name KAGA FEI Co., Ltd. TianHeng Consulting, LLC Contact Person Mikio Aoki Hualing Dong Signature

Attestation Statements Not Covered Equipment To: Federal Communications Commission Date: June-6-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: 2A6NFES2820, 2A6NFED2833, 2A6NFEJ2833, 2A6NFEB2833, 2A6NFES2805, 2A6NFES2811, 2A6NFED2840, 2A6NFEC2811, 2A6NFEB5340 and 2A6NFEJ5340 KAGA FEI Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Mikio Aoki Deputy executive manager Address: Gunseisha ANNEX Bldg. 5th floor, 382-1, Kaminamie-machi, Takasaki, Gunma, 370-0801, Japan Tel.: +81-27-381-5797 Email: [email protected]

Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: June-6-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: 2A6NFES2820, 2A6NFED2833, 2A6NFEJ2833, 2A6NFEB2833, 2A6NFES2805, 2A6NFES2811, 2A6NFED2840, 2A6NFEC2811, 2A6NFEB5340 and 2A6NFEJ5340 KAGA FEI Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely yours, Mikio Aoki Deputy executive manager Address: Gunseisha ANNEX Bldg. 5th floor, 382-1, Kaminamie-machi, Takasaki, Gunma, 370-0801, Japan Tel.: +81-27-381-5797 Email: [email protected]

Confidentiality Letter Date: 2023-09-05 Subject: Confidentiality Request for FCC ID: 2A6NFEJ5340 and IC: 28568-EJ5340; Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual KAGA FEI Co., Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, By: Mikio Aoki (Deputy executive manager) (Print name)

Applicant/Grantee KAGA FEI Co., Ltd. FCC ID: 2A6NFEJ5340 Section 15.212 Modular Transmitters / Request for Modular Approval X Request for Limited Modular Approval Requirements Device Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements must have the radio frequency circuitry must be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. The module has its own RF shielding.” Shield Can is employed on the board structure, please see exhibition External Photo, the emission measurement was conducted without further shielding added. Y 2 The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. All modulation and data input(s) are buffered. The EUT has buffered data inputs, it is integrated on the RF chip Y 3 The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. Requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. Output power is controlled by the RF Chip and de-coupled from supply voltage variations. Frequencies are determined by Crystal. Y 4 The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The Equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The antenna is part of the module Y 5 The module shall be tested for compliance with the applicable standard in a stand- alone configuration, i.e. the module must not be inside another device during testing. The modular transmitter was tested in a stand-alone configuration via a UART Interface. Y 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. FCC identification number is not displayed on the label as the shielding is too small. N 7 The modular transmitter complies with all specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer will provide adequate instructions along with the module to explain any such requirements. A copy of these instructions is included in this application for equipment authorization. Instructions in User Manual Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Please refer the Maximum Permissible Exposure Information. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. ______________________________________ Signature Name/Title: Mikio Aoki / Deputy executive manager Company Name: KAGA FEI Co., Ltd. Date: 2023-09-05

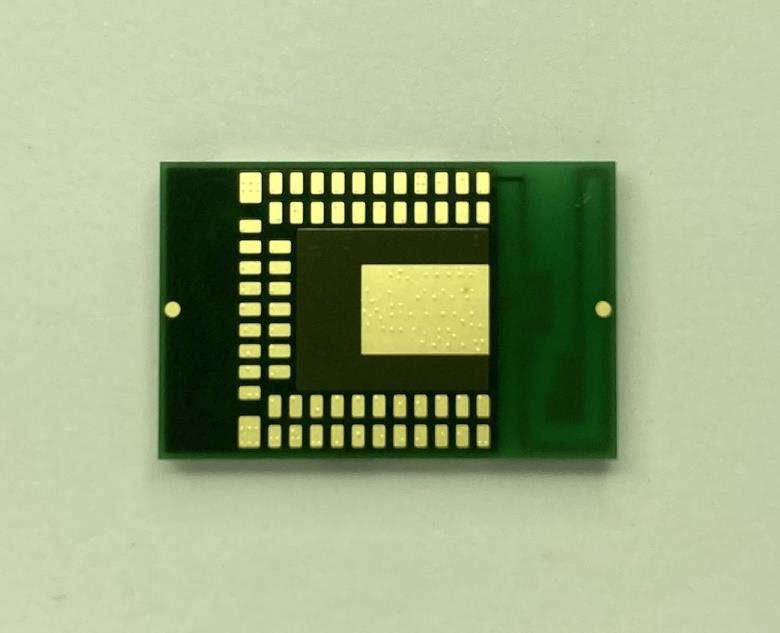

KAGA FEI Co., Ltd. External Photo “EJ5340” Top Bottom Antenna 5.55mm±0.2mm

Description of laser Marking 1) Manufacturer : KAGA FEI 2) Model (upper 6 digits): EJ5340 3) User-Code: 4) Product Lot number: Four digits (Refer to [Instruction for Lot Number]) 5) 1 pin mark Marking of ID number KAGA FEI Co., Ltd. Outline･Appearance 外形・外観図 It is impossible to put a label on this very small metal shielding case. Therefore the marking of model number and user code is written by LASER marker. It needs to consider about alignment accuracy as well. The traceability requirement in quality control under ISO standard is secured by the Lot number, the Model number and user code marking on each product. The marking can be not removed by our company regulation for product management. Putting on this together, marking of ID number on this shielding case with 4.4mm width is impossible. It's describe on a user's manual and a packaging because it isn't possible to indicated " FCC ID:2A6NFEJ5340 ". （1／2） Control No.Title APPROVEDDESIGNEDDRAWNCHECKED KAGA FEI Lot No. EJ5340 1) 2) 3) User-Code 4) 5) Shield case dimensionsUnit:mm Packaging Figure Reel or cut tapeAluminum moisture Corrugated cardboard box barrier bag Packaging Label KAGA FEI Co., Ltd. Outline･Appearance 外形・外観図 A reel or cut tape is packaged in an aluminum moisture barrier bag and stored in an individual box. Label 1-3 are attached to each and contain " FCC ID:2A6NFEJ5340 ". （2／2） Control No.Title APPROVEDDESIGNEDDRAWNCHECKED Label 2Label 3Label 1

KAGA FEI Co., Ltd. Internal Photo “EJ5340” Top

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: JP23AY2G (FCC-RFEXP) 001 Auftrags-Nr.: Order no.: 48220973 Seite 1 von 8 Page 1 of 8 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-06-30 Auftraggeber: Client: KAGA FEI Co., Ltd. Gunseisha ANNEX Building 5th floor, 382-1 Kaminamie-machi, Takasaki, Gunma, 370-0801, Japan Prü fgegenstand: Test item: Bluetooth low energy/ANT/802.15.4 Module Bezeichnung / Typ-Nr.: Identification / Type no.: EJ5340 Auftrags-Inhalt: Order content: FCC Certification Prü fgrundlage: Test specification: IEEE Std C95.1 47 CFR §2.1093 47 CFR §1.1310 Wareneingangsdatum: Date of sample receipt: 2023-07-12 Prü fmuster-Nr.: Test sample no: A003515558-004 A003515558-001 Prü fzeitraum: Testing period: 2023-07-24 - 2023-08-10 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: compiled by: Anderson Chiu genehmigt von: authorized by: Brenda Chen Datum: Date: 2023-08-16 Ausstellungsdatum: Issue date: 2023-08-16 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. JP23AY2G (FCC-RFEXP) 001 Seite 2 von 8 Page 2 of 8 Contents HISTORY OF THIS TEST REPORT .............................................................................. 3 1 GENERAL REMARKS ............................................................................................. 4 1.1 COMPLEMENTARY MATERIALS ............................................................................... 4 1.2 DECISION RULE OF CONFORMITY ........................................................................... 4 2 TEST SITES .......................................................................................................... 5 2.1 TEST FACILITIES ................................................................................................... 5 2.2 TEST FACILITY ...................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ......................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 6 3.2 RATINGS AND SYSTEM DETAILS ............................................................................. 6 4 RF EXPOSURE EVALUATION .................................................................................. 7 4.1 SAR TEST EXCLUSION .......................................................................................... 7 5 TEST RESULTS ..................................................................................................... 8 5.1 SAR TEST EXCLUSION THRESHOLD ....................................................................... 8 APPENDIX EP - PHOTOGRAPHS OF EUT Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. JP23AY2G (FCC-RFEXP) 001 Seite 3 von 8 Page 3 of 8 HISTORY OF THIS TEST REPORT Report No. Description Date Issued JP23AY2G (FCC-RFEXP) 001 Original Release 2023-08-16 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. JP23AY2G (FCC-RFEXP) 001 Seite 4 von 8 Page 4 of 8 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix EP - Photographs of EUT 1.2 Decision Rule of Conformity The decision rule of conformity of this test report is following the requirements of the requested standard in the quotation, and agreed among testing laboratory and manufacturer (applicant) to exclude the consideration of Measurement Uncertainty, unless it is required by the specific standard. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. JP23AY2G (FCC-RFEXP) 001 Seite 5 von 8 Page 5 of 8 2 Test Sites 2.1 Test Facilities Taipei Testing Laboratories 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) 2.2 Test Facility Taipei Testing Laboratories No.458-18, Sec. 2, Fenliao Rd., Linkou Dist., New Taipei City 244 Taiwan (R.O.C.) FCC Registration No.: 180491 ISED Registration No.: 25563 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. JP23AY2G (FCC-RFEXP) 001 Seite 6 von 8 Page 6 of 8 3 General Product Information 3.1 Product Function and Intended Use The EUT is Bluetooth low energy/ANT/802.15.4 Module. It contains Bluetooth & IEEE802.15.4 compatible module enabling the user to communicate data through Wireless interface. For details refer to the User Guide, Data Sheet and Circuit Diagram. 3.2 Ratings and System Details Basic Information of EUT Item EUT Info…

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: JP23AY2G (P15C-BLE) 001 Auftrags-Nr.: Order no.: 48220973 Seite 1 von 29 Page 1 of 29 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-06-30 Auftraggeber: Client: KAGA FEI Co., Ltd. Gunseisha ANNEX Building 5th floor, 382-1 Kaminamie-machi, Takasaki, Gunma, 370-0801, Japan Prü fgegenstand: Test item: Bluetooth low energy/ANT/802.15.4 Module Bezeichnung / Typ-Nr.: Identification / Type no.: EJ5340 Atuftrags-Inhalt: Order content: FCC Part 15C Test report (BLE) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2023-07-12 Prü fmuster-Nr.: Test sample no: A003515558-004 A003515558-001 Prü fzeitraum: Testing period: 2023-07-24 - 2023-08-10 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass zusammengestellt von: compiled by: Anderson Chiu genehmigt von: authorized by: Brenda Chen Datum: Date: 2023-08-16 Ausstellungsdatum: Issue date: 2023-08-16 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. JP23AY2G (P15C-BLE) 001 Seite 2 von 29 Page 2 of 29 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b)(3) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. JP23AY2G (P15C-BLE) 001 Seite 3 von 29 Page 3 of 29 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 11 4.3 TEST OPERATION AND TEST SOFTWARE............................................................... 13 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 14 4.5 TEST SETUP DIAGRAM ........................................................................................ 15 5. TEST RESULTS ................................................................................................... 16 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 16 5.1.1 Antenna Requirement ......................................................................................................... 16 5.1.2 Peak Output Power ..............................…

Text truncated - open the document above for the full version.

Prü fbericht - Nr.: Test Report No. JP23AY2G (P15C-BLE) 001 Seite A1 von A9 Page A1 of A9 Appendix A: Test Results of Conducted Test_BLE Test Result of 6 dB Bandwidth BLE_1M Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Low Channel 2402 0.69 > 0.5 Pass Middle Channel 2440 0.70 > 0.5 Pass High Channel 2480 0.69 > 0.5 Pass Low Channel Middle Channel High Channel Prü fbericht - Nr.: Test Report No. JP23AY2G (P15C-BLE) 001 Seite A2 von A9 Page A2 of A9 BLE_2M Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Low Channel 2402 1.18 > 0.5 Pass Middle Channel 2440 1.18 > 0.5 Pass High Channel 2480 1.18 > 0.5 Pass Low Channel Middle Channel High Channel Prü fbericht - Nr.: Test Report No. JP23AY2G (P15C-BLE) 001 Seite A3 von A9 Page A3 of A9 Test Result of 99% Occupied Bandwidth BLE_1M Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Low Channel 2402 1.07 Middle Channel 2440 1.07 High Channel 2480 1.06 Low Channel Middle Channel High Channel Prü fbericht - Nr.: Test Report No. JP23AY2G (P15C-BLE) 001 Seite A4 von A9 Page A4 of A9 BLE_2M Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Low Channel 2402 2.11 Middle Channel 2440 2.11 High Channel 2480 2.10 Low Channel Middle Channel High Channel Prü fbericht - Nr.: Test Report No. JP23AY2G (P1…

Text truncated - open the document above for the full version.
