2A6NQ-SR360RFID Reader

Technical Parameters: Features working frequency: National standard (920~925MHz) American Standard (902~928MHz) Other multinational frequency standards (customized) Label Agreement: ISO18000‐6C (EPC GEN2) Frequency hopping method: Broad spectrum frequency hopping (FHSS) or fixed frequency that can be set by software; Antenna parameters: 2dBi circular polarization antenna (built‐in) Output Power: 12.5dBm~26dBm (software adjustable) Reading distance: The maximum reading distance of the tag: 0.5m (related to factors such as transmit power, antenna type, tag type and application environment) Maximum distance to write tags: 0.2m (depending on factors such as transmit power, antenna type, tag type and application environment) Operating mode: Active mode Passive mode Answer mode (not recommended) External interface working environment Power interface: DC +5V Operating temperature: -20°C～55°C Communication Interface: USB virtual keyboard storage temperature: -40°C～85°C USB virtual serial port (need to be customized) Physical parameter size: 104mm×65mm×14mm weight: 200g/300g annex Power Adapter: USB powered RS‐232 signal line: Optional. Power cable: Equipped Development kit: Provide SDK SR360UHF READER Introduction: SR360 is a small desktop reader, compatible with ISO 18000‐6C standard. The operating frequency is 902MHz~928MHz.work for short‐distance identification or background card issuer management. Easy to carry, suitable for personnel access control, picture file management, and back‐end electronic tag reading, writing, authorization, formatting and other operations. Support ASCII co de setting output before and after suffix, support custom development. Application areas: Logistics warehouse management, intelligent parking lot management, product anti‐counterfeiting detection, consumption management, attendance management, catering management, swimming pool management and other systems have been widely used. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SLon Technology Co., Limited Agent Authorization Company: SLon Technology Co., Limited Address: Room 1003, 10/F, Weida Commercial Building, 1A-1L, Tung Choi Street, Mong Kok, Kowloon, Hongkong Product Name: RFID Reader Model Number(s): SR360, SR2, AR180, AR980, SR160, SR180, SR200, SR300, SR681, SR781, SI801, SI861, SR891 Product Description: RFID Reader We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 26, 2022 Name: SHIMING HE Title: CTO Company: SLon Technology Co., Limited

SLon Technology Co., Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 26, 2022 Subject; Request for Confidentiality FCC ID: 2A6NQ-SR360 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: SHIMING HE Title: CTO

Model Difference Declaration To Whom It May Concern, We, SLon Technology Co., Limited(RFID Reader) Trademark:YANZEO; Model Number:SR360, SR2, AR180, AR980, SR160, SR180, SR200, SR300, SR681, SR781, SI801, SI861, SR891;All model’s the function, software and electric circuit are the same, only with a product color, appearance and model named different for commerc ial purpose. Test sample model: SR360. Please contact me if you have any question. Name: SHIMING HE Date: Apr. 26, 2022 Title: CTO Signature of applicant:

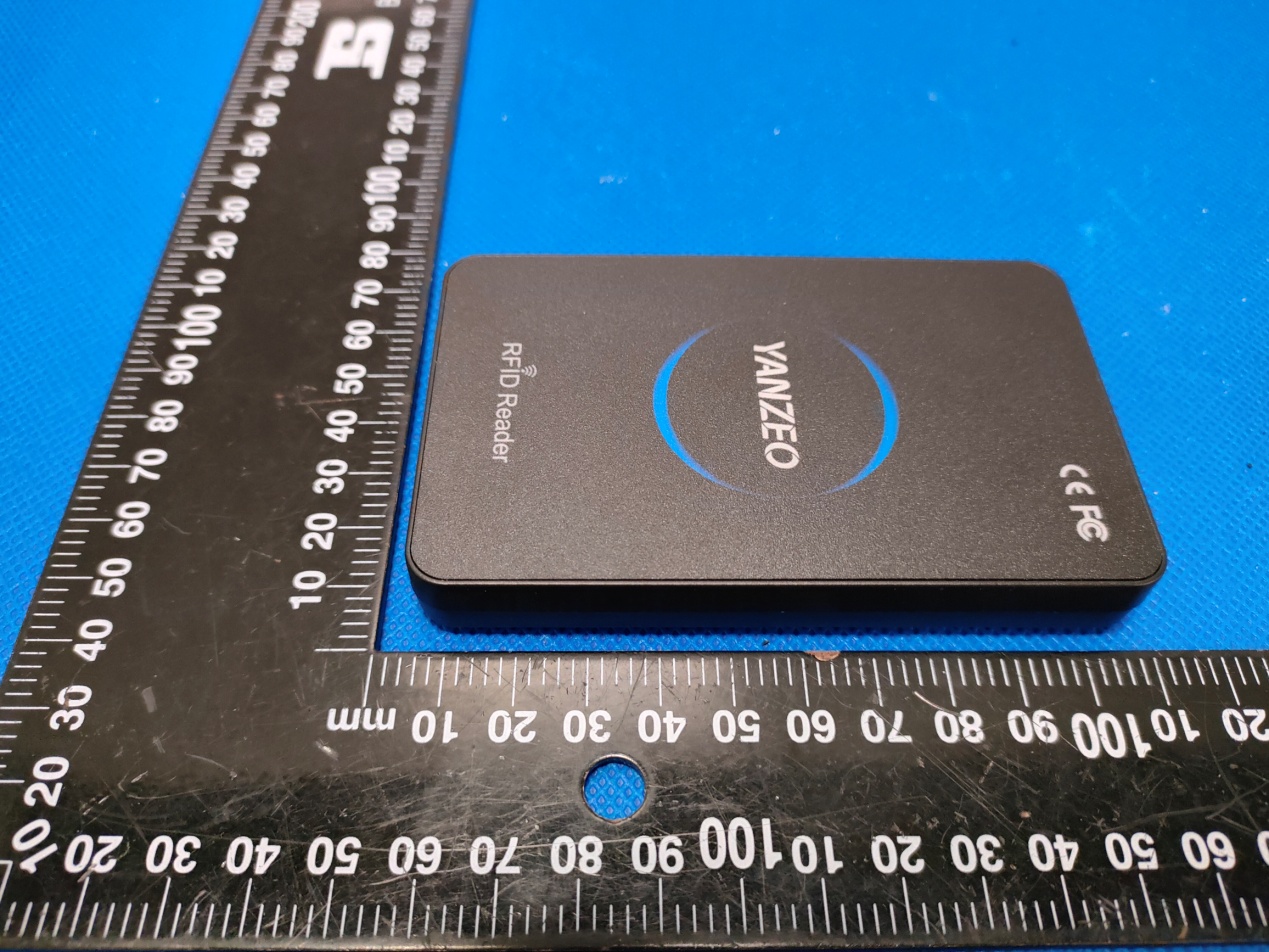

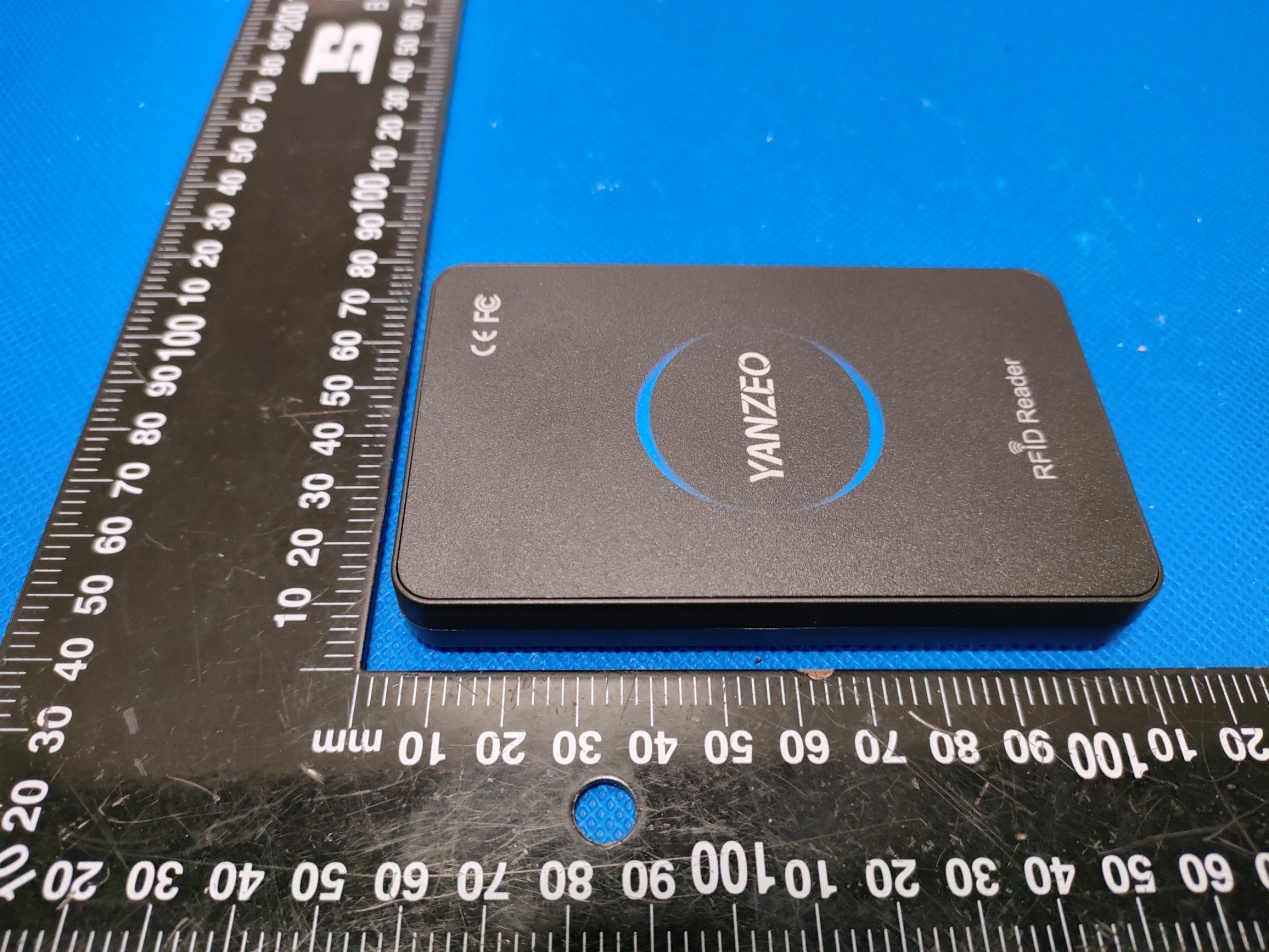

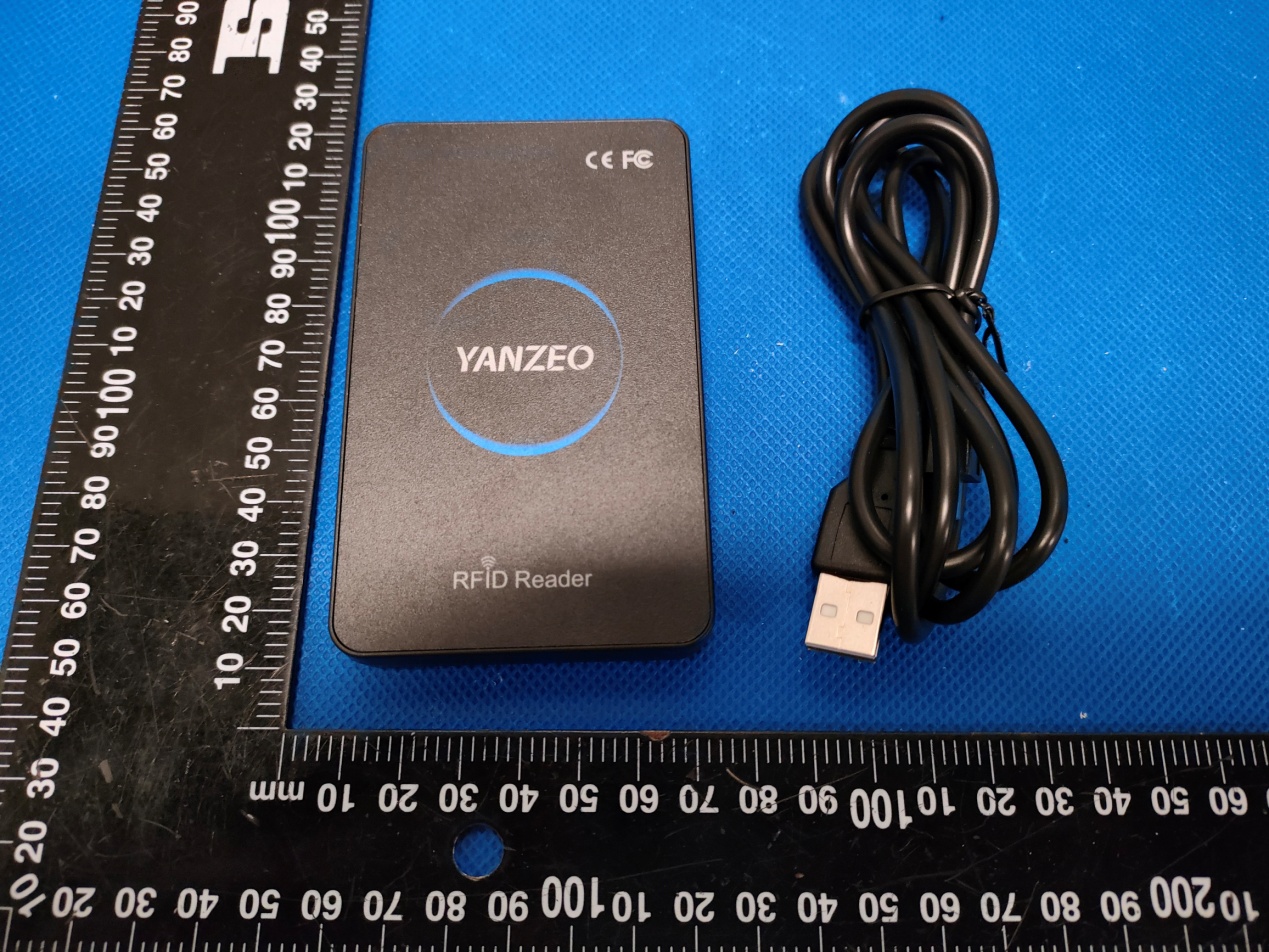

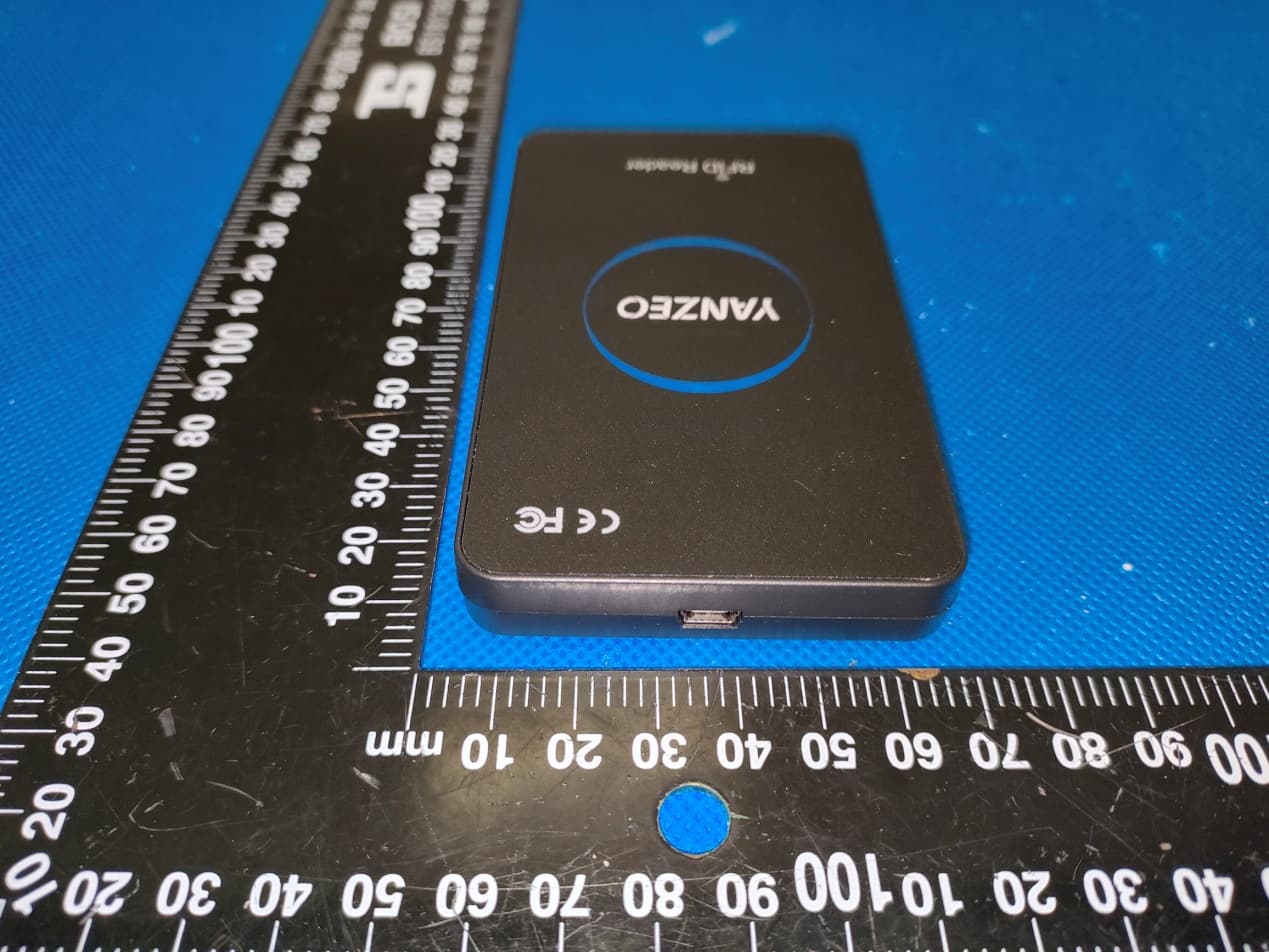

Annex A External Photos Report No.:HK2203070912-E Page 1 of 4 Report No.:HK2203070912-E Page 2 of 4 Report No.:HK2203070912-E Page 3 of 4 Report No.:HK2203070912-E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2A6NQ-SR360

Annex B Internal Photo Report No.:HK2203070912-E Page 1 of 4 Antenna Report No.:HK2203070912-E Page 2 of 4 Report No.:HK2203070912-E Page 3 of 4 Report No.:HK2203070912-E Page 4 of 4

Radiated Emissions Conducted Emission
