2A6NVPAF-V06W-WIFIAutomatic Pet Feeder

Low/Battery Simple troubleshooting of pet feeder Manual Please read carefully before using the product AUTOMATIC PET FEEDER WITH WIFI APP Microphone Button: Press and hold the “drop” sound to start recording, release the “two drops” prompt to stop recording. The maximum recording time is 10 seconds. SET Key: When the connection mode is switched/reset, press and hold for 7 seconds to make 3 sounds of “drop, drop, drop”, and the red/blue indicator light is on for 6 seconds to switch to slow flashing(hot spot connection mode). After the machine is configured successfully, press and hold it again to send out “drop, drop, drop” sound,and the red/blue indicator light will stay on for 6 seconds, and the equipment will return to the factory settings. FEED Key: Short press to send out 1 portion of food, Press and hold for 10 seconds and the red indictor will flash twice, and the machine will be locked. Press and hold the red indicator light for 10 seconds again to unlock. In the locked state, press and hold the reset key to restore the factory settings, do not press record and FEED Key. Flash:Flash twice second, add WiFi quickly Slow flash: flash once 3 seconds, hot spot connection It’s always on: Network connection successful Modes switching: Log on for 6 seconds Blue Light Usually it’s not bright Limit switch detection abnormal flashing red light Flash twice when unlocking/ locking Modes switching: Log on for 6 seconds Blue Light Revolving Lamp Key Operation Smart App Specific Operation WiFi Intelligent Pet Feeder Simple trouble shooting of pet feeder 1 Please check if you can't connect. a): The WiFi name and password should not be in Chinese or more than 12 digits . Please use combination of numbers and letters . 5G WiFi signal is not supported. Please use 2.4G WiFi signal. b): Some community broadband, radio and television broadband, multi-level network or mobile Tietong network, due to network restrictions , the feeder can not connect to the network server, so it is recommended to use Telecom or Unicom Network. c): Some software conflicts in the phone will also cause connection failure. Please restart the phone. Turn off the non mobile system software that starts with the phone, turn on Bluetooth and location, and then try reconnecting to the feeder. 0 Function Introduction If the feeding device is inaccurate or not feeding, please check whether there is too much food in the food plate and whether the food channels is blocked. Please clean the food outlet and channels. When using the battery power supply , please check whether the battery is dead and whether the battery leaks. 02 Download the app and sign in with your exclusiveac count. 01 After entering the interface, wait for the device to be discovered automatically and click "add”. 02 Select Add Device “+ ". 03 Input WiFi password (user name cannot use Chinese, password cannot take special symbol). 04 Waiting to connect to the network. 05 Add successfully, you can customize the device name, click finish. 06 In the main interface, you can select the appropriate number of servings according to your needs and click "feeding" to feed immediately. 07 Waiting to connect to the network. 08 Click "add share" and enter the app account of the other party to share the device with multiple people. 12 Enter the settings menu and click "shared device". 11 Sharing device steps: in the main interface, click the icon in the upper right corner to enter the setting options. 10 You can set the time and the number of servings accaording to your pet‘s eating pattern. You can choose from Monday to Sunday every day and click save. 09 Features of Automatic Pet Feeder SUS304 Stainless steel grain storage barrels. Special button protection design, your feeding sched- ules won't be changed even if your pets accidentally touch it. User-friendly design makes it easy to set up, voice record function helps you care your pets in anytime. The base is stable and anti-skidding which can better protect your pets. With accurate dispense, the feeder can keep your pets in good health, and the stainless steel food tray is also easy to clean. Imported Environ- mental Protection ABS Materials. Dual Power supply: external power supply and battery mode. Three NO.1 batteries can be placed as stand by power supply. (When the battery is powered, the feeder only retains the automatic feeding function set by app, and other functions cannot be used.) Bottom battery box 1.Use three NO.1 alkaline batteries for power supply. 2.The positive and negative electrodes of the battery refer to the positive and negative signs in the battery compartment. 3.When the battery is low, the feeder should be powered off before replacing with a new battery. 4.The battery must be removed from the feeder before the feeder is discarded. 5.When removing the battery, the feeder must be powered off. 6. According to the relevant national regulations,please place the waste batteries in the special sotorage point. 7. If the battery is not used for a long time,please take out the battery. In case of leakage,please clean the battry compartment immediately and put the leaking battery in a special storage point. Battery description There are two connecting holes on the side of the food plate. Insert the connecting column at the bottom of the body into the connecting holes. How to install food tray After the feeder is configured, a recording can be added to the feeder. This recording will be played every time you press the feeding key manually or automatically to remind the pet that the feeding time is up. The specific operation is as follows : Press and hold the microphone button and start recording. After recording, release the button to send out two"didi" prompts to complete the recording. The recording time is up to 10 seconds . If you are not satisfied, you can repeat this operation to cover the previous recording. Recording settings Please configure according to the diagram in the manual. If the configuration is no…

Text truncated - open the document above for the full version.

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: Companyname:HOPEKCORPORATIONINC FRN:0034562900 ContactName:PeterDavis Address:4358SBANNOCKSTENGLEWOOD,CO80110UnitedStates TelephoneNo:561-235-6113 Email:[email protected] Applicant: Companyname:DongguanDiruiElectronicTechnologyCo.,Ltd. GranteeCode:2A6NV FCCID:2A6NVPAF-V06W-WIFI FRN:0032316762 ContactName:ZhushiTu Address:Room501,Building7,TailianlaneNo.1,ChangAnTown,DongguanCity, GuangdongProvince TelephoneNo: +86-0769-83003534 FaxNo: +86-0769-83003534 Email: [email protected] DongguanDiruiElectronicTechnologyCo.,Ltd.certifiesthat,asofthedateofthisfilingof theapplicationwiththeTCB,[HOPEKCORPORATIONINC]isourdesignatedUSagentfor serviceofprocessfortheabovereferencedFCCID.DongguanDiruiElectronicTechnology Co.,Ltd.acceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanycommissionrelated proceedinginvolvingequipment.[HOPEKCORPORATIONINC]accepts,asofthedateofthe filingoftheapplication,theobligationofthedesignatedUSagentforserviceofprocessforthe abovereferenceFCCID. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,and clause§2.911. TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. Date:2024-09-28 Applicant’sName:ZhushiTuUSAgent’sName:PeterDavis Title:ManagerTitle:CEO Signature:Signature:

Dongguan Dirui Electronic Technology Co., Ltd. 9/24/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2A6NVPAF-V06W-WIFI Dongguan Dirui Electronic Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: September 24, 2024 Name Zhushi Tu Position Manager Company Name Dongguan Dirui Electronic Technology Co., Ltd. Address Room 501, Building 7, Tailian lane No.1, Chang An Town, Dongguan City, Guangdong Province Tel 0769-83003534 Fax 0769-83003534 Email [email protected] Dongguan Dirui Electronic Technology Co., Ltd. 9/24/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2A6NVPAF-V06W-WIFI Dongguan Dirui Electronic Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: September 24, 2024 Name Zhushi Tu Position Manager Company Name Dongguan Dirui Electronic Technology Co., Ltd. Address Room 501, Building 7, Tailian lane No.1, Chang An Town, Dongguan City, Guangdong Province Tel 0769-83003534 Fax 0769-83003534 Email [email protected]

Dongguan Dirui Electronic Technology Co., Ltd. Difference Description We Dongguan Dirui Electronic Technology Co., Ltd. state: Product name: Automatic Pet Feeder Model: PAF-V06W-Wifi, PAF-V06B-Wifi, PAF-V06WZBT-Wifi, PAF-V06BZWT-Wifi, PAF-V06B Pr3L-Wifi, PAF-V06W Pr3L-Wifi, PAF-V06B Pr3L-Wifi, PAF-V06W Pr3L-WZBT-Wifi, PAF-V06B Pr3L-BZWT-Wifi, PAF-186W-Wifi, PAF-186B-Wifi, PAF-186W-WZBT-Wifi, PAF-186B-BZWT-Wifi, PAF-232-W-Wifi, PAF-232-B-Wifi a. PAF-V06W-Wifi, PAF-V06B-Wifi, PAF-V06WZBT-Wifi, PAF-V06BZWT-Wifi. (Just the appearance color is different.) b. PAF-V06B Pr3L-Wifi, PAF-V06W Pr3L-Wifi, PAF-V06B Pr3L-Wifi, PAF-V06W Pr3L-WZBT-Wifi, PAF-V06B Pr3L-BZWT-Wifi. c. PAF-186W-Wifi, PAF-186B-Wifi, PAF-186W-WZBT-Wifi, PAF-186B-BZWT-Wifi. (Just the appearance color is different.) d. PAF-232-W-Wifi, PAF-232-B-Wifi. (Just the appearance color is different.) Note: The models between a, b, c, and d only differ in appearance shape, and color, but their circuit principles and functions are completely identical. Signature: September 24, 2024 Name Zhushi Tu Position Manager Company Name Dongguan Dirui Electronic Technology Co., Ltd. Address Room 501, Building 7, Tailian lane No.1, Chang An Town, Dongguan City, Guangdong Province Tel 0769-83003534 Fax 0769-83003534 Email [email protected]

Dongguan Dirui Electronic Technology Co., Ltd. 9/24/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product Name: Automatic Pet Feeder FCC ID: 2A6NVPAF-V06W-WIFI Model(s): PAF-V06W-Wifi, PAF-V06B-Wifi, PAF-V06WZBT-Wifi, PAF-V06BZWT-Wifi, PAF-V06B Pr3L-Wifi, PAF-V06W Pr3L-Wifi, PAF-V06B Pr3L-Wifi, PAF-V06W Pr3L- WZBT-Wifi, PAF-V06B Pr3L-BZWT-Wifi, PAF-186W-Wifi, PAF-186B-Wifi, PAF-186W- WZBT-Wifi, PAF-186B-BZWT-Wifi, PAF-232-W-Wifi, PAF-232-B-Wifi To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Schematic Diagram, Block Diagram, Operational Description) required to be submitted with this application be permanently withheld from public review. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market Please contact me if there is any information you may need. Sincerely, Signature: September 24, 2024 Name Zhushi Tu Position Manager Company Name Dongguan Dirui Electronic Technology Co., Ltd. Address Room 501, Building 7, Tailian lane No.1, Chang An Town, Dongguan City, Guangdong Province Tel 0769-83003534 Fax 0769-83003534 Email [email protected]

Dongguan Dirui Electronic Technology Co., Ltd. 9/24/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen PSI Testing Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: September 24, 2024 Name Zhushi Tu Position Manager Company Name Dongguan Dirui Electronic Technology Co., Ltd. Address Room 501, Building 7, Tailian lane No.1, Chang An Town, Dongguan City, Guangdong Province Tel 0769-83003534 Fax 0769-83003534 Email [email protected]

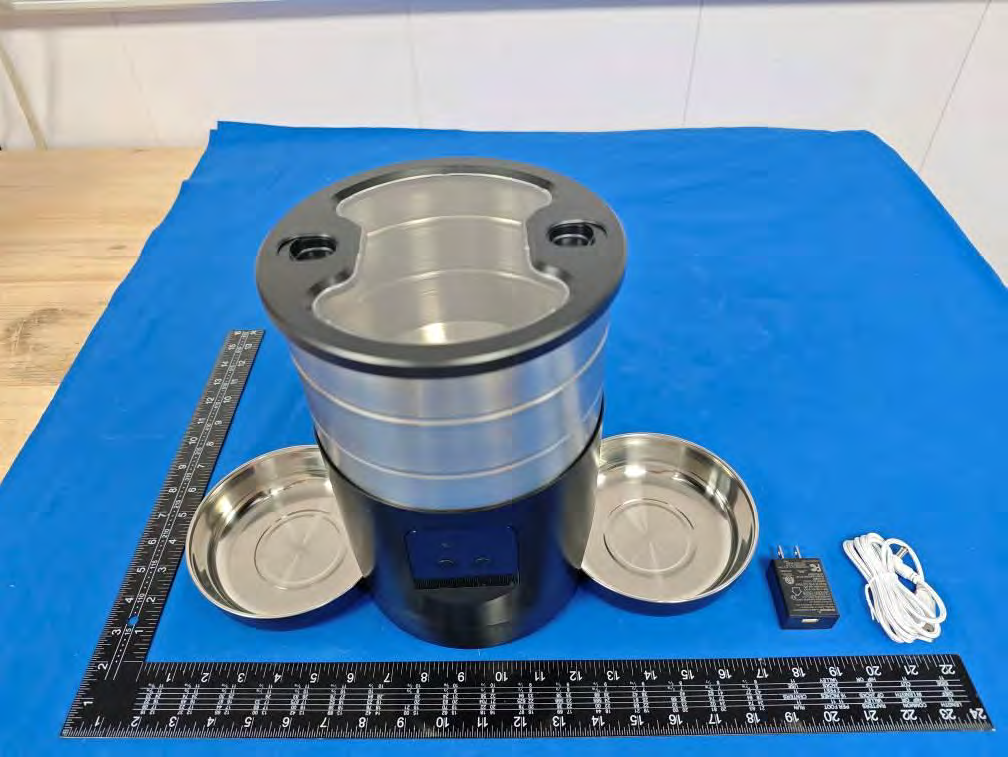

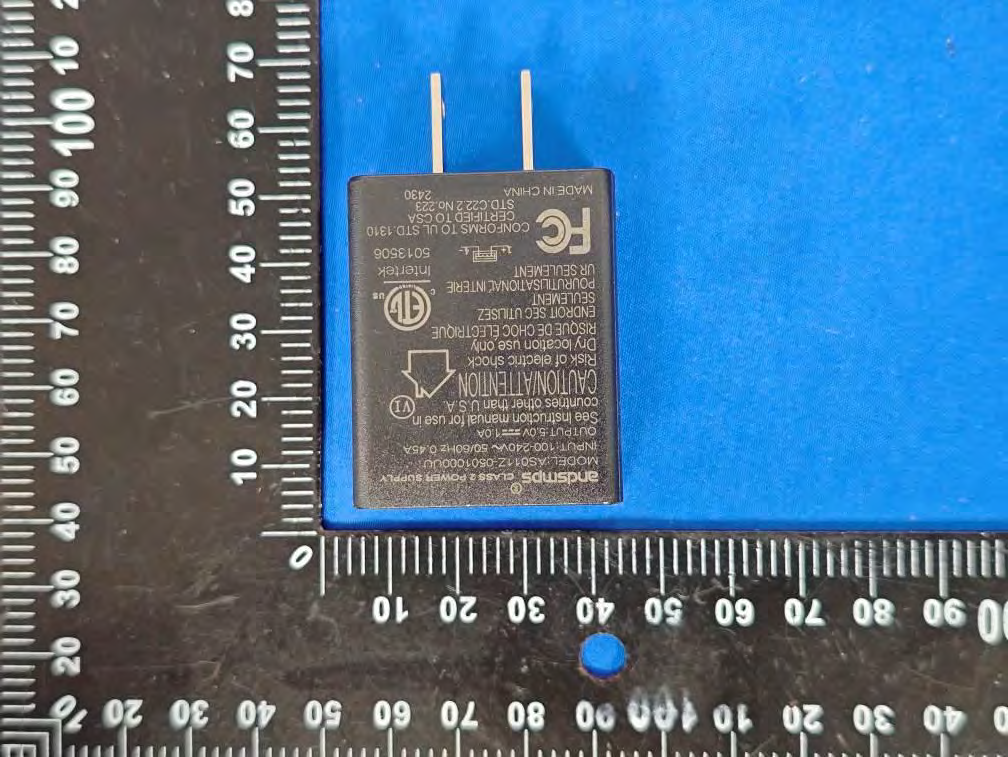

Page 1 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix II external photos FCC ID: 2A6NVPAF-V06W-WIFI PAF-V06B-Wifi PAF-V06W-Wifi Page 2 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 3 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 4 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 5 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 6 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 7 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China PAF-V06WZBT-Wifi PAF-V06BZWT-Wifi Page 8 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China PAF-186B-Wifi PAF-186W-Wifi Page 9 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 10 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 11 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 12 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 13 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 14 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China PAF-186W-WZBT-Wifi PAF-186B-BZWT-Wifi Page 15 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China PAF-V06B Pr3L-Wifi Page 16 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 17 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 18 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 19 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 20 of 25 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China PAF-232-W-Wifi Page 21 of 25 Report No.: psi240…

Text truncated - open the document above for the full version.

Label Location FCC ID: 2A6NVPAF-V06W-WIFI Model No.: PAF-V06W-Wifi Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix III internal photos FCC ID: 2A6NVPAF-V06W-WIFI PAF-V06W-Wifi Page 2 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 3 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 4 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 5 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 6 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ANT Page 7 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China PAF-186W-Wifi Page 8 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 9 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 10 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 11 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 12 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ANT Page 13 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China PAF-V06B Pr3L-Wifi Page 14 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 15 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 16 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 17 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 18 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ANT Page 19 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China PAF-232-W-Wifi Page 20 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 21 of 24 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: service@psi-la…

Text truncated - open the document above for the full version.

FCC ID: 2A6NVPAF-V06W-WIFI Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) KDB Test Methodology: KDB 447498 D01 v06. 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2A6NVPAF-V06W-WIFI Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China 3. Result Mode Frequency (MHz) Prediction distance (cm) RF output power(Max) (dBm) Tune-up power (Max) MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW 2.4G WIFI 2412-2462 20 15.77 16 39.8107 0.0069 1 Yes 2.4G WiFi Antenna Gain: max gain -0.58dBi, 1.61(numeric) Then SAR evaluation is not required.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2450MHz 2500MHz2400MHz 2450MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture Dongguan Dirui Electronic Technology Co., Ltd. Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(d B) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(d B) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2A6NVPAF-V06W-WIFI On Behalf of Dongguan Dirui Electronic Technology Co., Ltd. Automatic Pet Feeder Model No.: PAF-V06W-Wifi, PAF-V06B-Wifi, PAF-V06WZBT-Wifi, PAF-V06BZWT-Wifi, PAF-V06B Pr3L-Wifi, PAF-V06W Pr3L-Wifi, PAF-V06B Pr3L-Wifi, PAF-V06W Pr3L-WZBT-Wifi, PAF-V06B Pr3L-BZWT-Wifi, PAF-186W-Wifi, PAF-186B-Wifi, PAF-186W-WZBT-Wifi, PAF-186B-BZWT-Wifi, PAF-232-W-Wifi, PAF-232-B-Wifi Prepared for : Dongguan Dirui Electronic Technology Co., Ltd. Address : Room 501, Building 7, Tailian Lane No.1, Chang An Town, Dongguan City, Guangdong Province Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2408017-C01-R07 Date of Receipt : August 12, 2024 Date of Test : August 12, 2024- August 26, 2024 Date of Report : August 27, 2024 Version Number : V0 Page 2 of 81 Report No.: psi2408017-C01-R07 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ----------------------------------------------------------------------------------- 6 1.1. Description of Standards and Results --------------------------------------------------------------------------- 6 2. General Information --------------------------------------------------------------------------------------------------------- 7 2.1. Description of Device (EUT) --------------------------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) -------------------------------------------------------------------------------------- 8 2.3. Tested Supporting System Details-------------------------------------------------------------------------------- 8 2.4. Block Diagram of Connection Between EUT and Simulators ---------------------------------------------- 8 2.5. Test Mode Description -----------------------------------------------------------------------------------…

Text truncated - open the document above for the full version.
