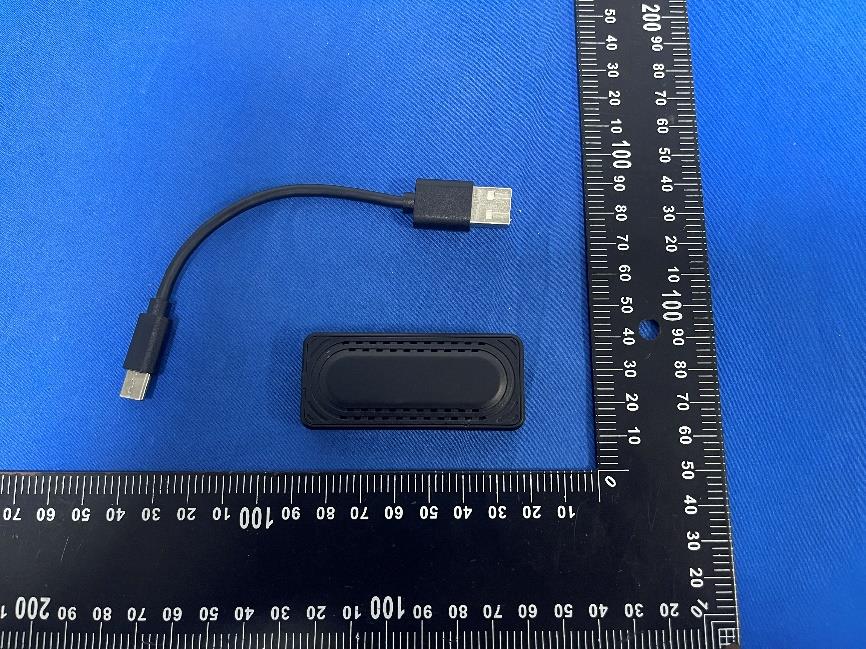

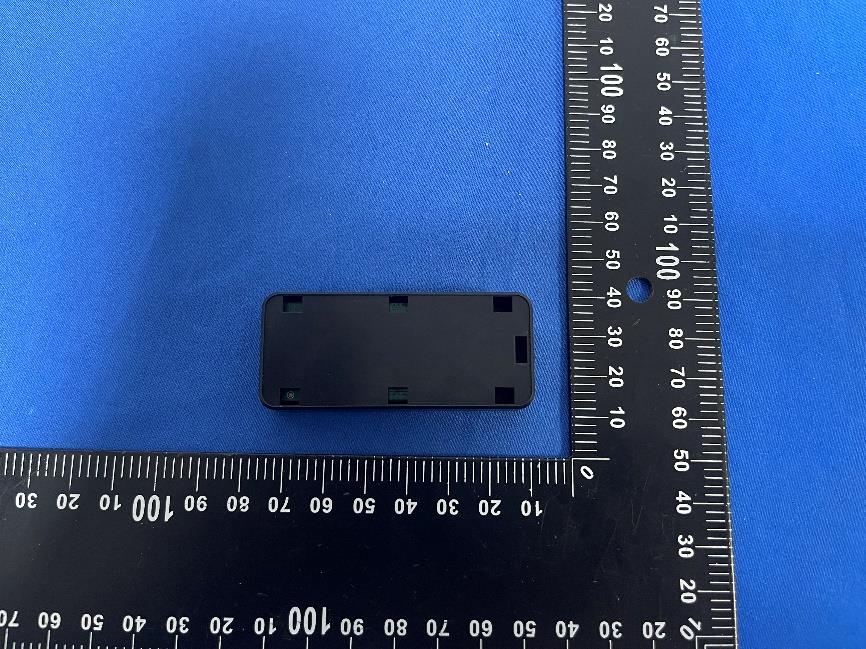

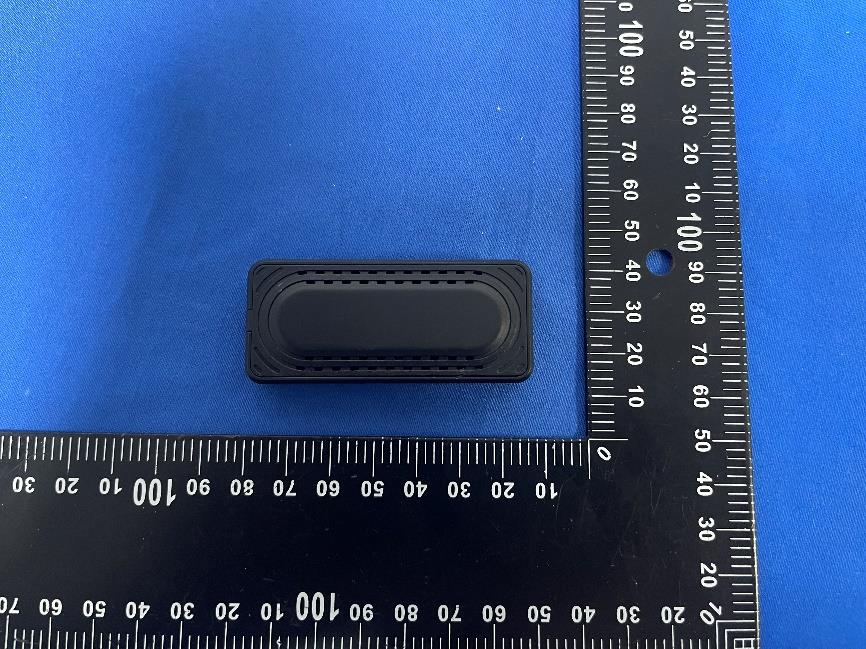

2A6P9-AS-BMA01Wireless CP&AA adaptor

CONTENT About Product What's in the box Specification How to connect User interface Interfaces How to upgrade your product How to report an issue About Product This product uses a USB data cable to easily connect to the original car's USB interface： 1, It allows users to wirelessly connect the camera to the device via Wi-Fi and display videos on the vehicle multimedia screen; 2, it’s designed for smartphones to use Apple Car Play and Google Android Auto wireless on the factory car multimedia system which has built in Apple Car Play function. Note: When using this product, you can only use the remote control or other control mode of the external HDMI device. What's in the box Wireless Carplay&Android Auto adaptor *1 USB A to C plug adapter *1 USB C to C plug adaptor *1 Baby monitor *1 1.5M USB extension cable for power supply*1 Brackets for baby monitor * 3 Specification Compatibility Car with OEM Apple Car Play Baby monitor 1080P resolution 150 degrees wide angle Power input USB 5V Wi-Fi 2.4G+5G Connectors USB-C Product Size 60*60*11.2mm How to connect 1, Use USB-A to USB-C plug adaptor if the original USB port in the car is USB-A female 2, Use USB-C to USB-C plug adaptor if the original USB port in the car is USB-C female 3，1.5M USB A to USB C cable for baby camera, and the power supply for this camera must be guaranteed at 5V, 1A Tips! Some car have two ports, one for power charging ,one for transmitting data. Please use the data port for wireless carplay&Android Auto adaptor. User interface Home Menu How to use wireless CarPlay: 1,Tap the Wireless Car Play icon; 2, On your iPhone, go to “Settings”>”Bluetooth”, in Other Devices list, you will see a Bluetooth device name started with “AutoSky-XXXX”, tap to paid, allow permission and tap Use Car-play box to connect wireless Note: If the factory car supports Car-play connection via USB cable, please plug the device into the USB port in the car. Usually that USB port marked with Car play or smart-phone icon, select the Car play function in the original car radio system, it goes to above interface: Make sure your iPhone’s Bluetooth and Wi-Fi features are turned on and no other in-car devices are connected How to use Wireless Android Auto 1, Tap the Wireless Android Auto icon 2, Enable “wireless Android Auto ”in Android Auto settings 3, Tuurn on Android phone’s Wi-Fi and Bluetooth, then search bluetooth name: AutoSky-XXXX, tap to pair; 4, It will connect to wireless Android Auto automatically after a few seconds Note: Before using Android Auto,please make sure you have the latest Android Auto application in your Android Smart-phone How to use Baby camera 1, Make sure Baby camera with 5V power supply, the blue LED keeps on; 2,Tap the Baby Camera icon 3,It goes to below menu, tap refresh to find the Wi-Fi name:BM-XXXX and choose this Wi-Fi, Then tap Connect icon, it goes to Camera mode and display the video once Wi-Fi connected Interfaces USB C port Reset hole USB Port: Connect to Car Reset hole: Reset the device LED indicator Blue light Flashing: Power on Blue light on: Connected to the car Red light Flashing: Upgrading White light: Upgrade completed Green light: P2P mode White Light Flashing: Reset successful How to upgrade your product Update on iPhone While the power on, join the adapter's WiFi network [AutoSky-XXXX] and the password is 88888888.Next enter 192.168.2.1 on iPhone's browser, and tap "Update” Update on Android smartphone Connect the adapter's WiFi network [AutoSky-XXXX](you can find it in the car screen) in your Android phone and the password is 88888888. Tap YES if there is a pop-up notification of internet access. Enter 192.168.2.1 on smartphone browser, go to the bottom of the page, and tap "Switch P2P" On your phone, go to WiFi >> Advanced settings >>WiFi direct, tap [AutoSky-XXXX] and make sure it has connected. Enter 192.168.2.1 again on smartphone browser,next tap "Update" Note: 1.The led indicator will flash rapidly while updating.Wait for more 30s after the light is always on, then disconnect and reconnect the adapter from USB port to finish the whole update. 2. Android phone interface may be different, the above link is a rough description. How to report an issue How to report an issue Any issue while using the adapter, you could directly report the issue online and send us the feedback screenshot. We will fix it as soon as possible. For iPhone users, please enter 192.168.2.1 on your iPhone browser to submit the issue details after connected to the WiFi network [ AutoSky-XXXX ] While the power on; For Android users, please follow the steps of [update on Android smartphone] on the previous page, then enter 192.168.2.1 to submit the issue. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26052800901 2A6P9-AS-BMA01 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Jun. 06, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Promaster Electronic LLC Address ...........................................: 25275 Budde Rd Suite 31 Spring, TX 77380 Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Wireless CP&AA adaptor Trade Mark ......................................: Autosky Manufacturer ...................................: Huizhou Funnavi Electronics Co., Ltd Model/Type reference .....................: AS-BMA-100 Listed Models ..................................: AS-BMA-101, AS-BMA-102 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: DC 5V Result ..............................................: PASS Report No.: CTA26052800901 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless CP&AA adaptor Model /Type : AS-BMA-100 Listed Models : AS-BMA-101, AS-BMA-102 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model AS-BMA-100 and the test results for the main test model can cover the listed models. Applicant : Promaster Electronic LLC Address : 25275 Budde Rd Suite 31 Spring, TX 77380 Manufacturer : Huizhou Funnavi Electronics Co., Ltd Address : 3rd floor, No.:25 Xiangda road Xiao Jin kou street, Huicheng district, Huizhou city, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26052800901 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .......................................................…

Text truncated - open the document above for the full version.

FCC ID: 2A6P9-AS-BMA01 Test Setup Photos of the EUT FCC ID: 2A6P9-AS-BMA01

Shenzhen Ning Yi Technology Co., Ltd LA7Antenna Test Report Customerliao yuan Project LA7 Antenna BANDWiFi Product DescriptionPCB Product No Shenzhen Ning Yi Technology Co., Ltd Product Overview & Dimension 3 Shenzhen Ning Yi Technology Co., Ltd This report is to measure the performance of BT antenna for W1.The antennaoperating frequency at (2400-5850MHZ) , All test data are showed as below. Content 1.P r o d u c t O v e r v i e w & D i m e n s i o n 2 . Te s t s y s t e m 3 . A n t e n n a M a t c h i n g N e t w o r k 4.Te s t Re s u l t 4 . 1 S 1 1 Pa r a m e t e r 4 . 2 G a i n & E f f i c i e n c y 4 . 3 Te s t c o o r d i n a t e 4 . 4 2 D Pa t t e r n 4 . 5 OTA D a t a 4 . 6 W i F i B o o t m e a s u r e d 5 . A n t e n n a A s s e m b l y & e n v i r o n m e n t a l p r o c e s s i n g 4 Shenzhen Ning Yi Technology Co., Ltd 2.Test System Sequence Number Test Itemequipment S parameterVSWRAgilent 5071C & HP 8753 OTA TestTRP&TISCMW500 &CMW270 ETS& FT SG24 Gain & Efficiency Gain & Efficiency ETS&FT SG24 Agilent 5071C Test Result Sample status & coordinates Shenzhen Ning Yi Technology Co., Ltd WIFI2.4+5G Shenzhen Ning Yi Technology Co., Ltd 天线S11 OTA DATA-WIFI-2.4G/5G Shenzhen Ning Yi Technology Co., Ltd Frequency ID1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz)2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0 Gain (dBi)2.92 3.20 2.83 2.89 3.15 3.74 4.04 4.29 3.83 4.02 3.99 Efficiency (%)24.79 25.68 26.13 28.35 28.77 29.77 30.65 29.63 27.37 27.64 28.22 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 5150.0 5200.0 5250.0 5300.0 5350.0 5400.0 5450.0 5500.0 5550.0 5600.0 5650.0 5700.0 5750.0 5800.0 5850.0 0.60 0.57 0.60 0.67 0.66 0.31 0.50 1.18 1.91 2.23 1.76 2.67 2.61 2.42 2.31 23.32 24.39 26.96 25.75 27.13 28.18 29.81 29.20 34.32 38.25 35.10 38.69 32.04 21.14 27.85 OTA DATA-WIFI-2.4G, Shenzhen Ning Yi Technology Co., Ltd OTA DATA-WIFI-5G, Shenzhen Ning Yi Technology Co., Ltd Thanks for your comment! Shenzhen Ning Yi Technology Co., Ltd 1 2 0 2 B , B u i l d i n g C 6 , H e n g f e n g I n d u s t r i a l C i t y, X i x i a n g , B a o ' a n D i s t r i c t , S h e n z h e n Shenzhen Ning Yi Technology Co., Ltd

1 FCC Appendix RF Test Data for BLE FCC ID : 2A6P9-AS-BMA01 Company : Promaster Electronic LLC EUT : Wireless CP&AA adaptor Model Number : AS-BMA-100 Report No. : CTA26052800901 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant0 2402 0.688 2401.656 2402.344 0.5 PASS 2440 0.692 2439.644 2440.336 0.5 PASS 2480 0.720 2479.616 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant0_2402 BLE_1M_Ant0_2440 BLE_1M_Ant0_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant0 2402 1.0246 2401.4896 2402.5142 --- --- 2440 1.0144 2439.4954 2440.5098 --- --- 2480 1.0193 2479.4918 2480.5111 --- --- 6 Test Graphs BLE_1M_Ant0_2402 BLE_1M_Ant0_2440 BLE_1M_Ant0_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant0 2402 -3.31 ≤30 PASS 2440 -3.51 ≤30 PASS 2480 -4.08 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant0 2402 -18.51 ≤8.00 PASS 2440 -18.84 ≤8.00 PASS 2480 -19.30 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant0_2402 BLE_1M_Ant0_2440 BLE_1M_Ant0_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant0 Low 2402 -3.62 -57.38 ≤-23.62 PASS High 2480 -4.36 -58.27 ≤-24.36 PASS 13 Test Graphs BLE_1M_Ant0_Low_2402 BLE_1M_Ant0_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant0 2402 Reference -4.58 -4.58 --- PASS 30~1000 -4.58 -66.93 ≤-24.58 PASS 1000~26500 -4.58 -50.12 ≤-24.58 PASS 2440 Reference -3.82 -3.82 --- PASS 30~1000 -3.82 -68.36 ≤-23.82 PASS 1000~26500 -3.82 -51.22 ≤-23.82 PASS 2480 Reference -5.38 -5.38 --- PASS 30~1000 -5.38 -66.96 ≤-25.38 PASS 1000~26500 -5.38 -51.7 ≤-25.38 PASS 15 Test Graphs BLE_1M_Ant0_2402_0~Reference BLE_1M_Ant0_2402_30~1000 BLE_1M_Ant0_2402_1000~26500 16 BLE_1M_Ant0_2440_0~Reference BLE_1M_Ant0_2440_30~1000 17 BLE_1M_Ant0_2440_1000~26500 BLE_1M_Ant0_2480_0~Reference BLE_1M_Ant0_2480_30~1000 18 BLE_1M_Ant0_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant0 2402 0.40 0.63 0.6349 63.49 1.97 --- --- 2440 0.40 0.63 0.6349 63.49 1.97 --- --- 2480 0.41 0.63 0.6508 65.08 1.87 --- --- 20 Test Graphs BLE_1M_Ant0_2402 BLE_1M_Ant0_2440 BLE_1M_Ant0_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant0 Low 2402 AV 2310.000 -60.46 4.04 1.97 40.75 ≤54 PASS AV 2339.270 -59.2 4.04 1.97 42.01 ≤54 PASS AV 2390.000 -59.77 4.04 1.97 41.44 ≤54 PASS Peak 2310.000 -51.46 4.04 0.00 47.78 ≤74 PASS Peak 2328.455 -48.68 4.04 0.00 50.56 ≤74 PASS Peak 2390.000 -51.61 4.04 0.00 47.63 ≤74 PASS High 2480 AV 2483.500 -59.64 4.04 1.87 41.47 ≤54 PASS AV 2492.320 -58.93 4.04 1.87 42.18 ≤54 PASS AV 2500.000 -59.55 4.04 1.87 41.56 ≤54 PASS Peak 2483.500 -49.62 4.04 0.00 49.62 ≤74 PASS Peak 2486.720 -48.7 4.04 0.00 50.54 ≤74 PASS Peak 2500.000 -52.38 4.04 0.00 46.86 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant0_Low_2402_AV BLE_1M_Ant0_Low_2402_Peak BLE_1M_Ant0_High_2480_AV 24 BLE_1M_Ant0_High_2480_Peak

99 11G_Ant1_2412 11G_Ant1_2437 100 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 101 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 102 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 103 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.87 4.04 0.02 39.39 ≤54 PASS AV 2385.800 -57.4 4.04 0.02 41.86 ≤54 PASS AV 2390.000 -58 4.04 0.02 41.26 ≤54 PASS Peak 2310.000 -51.11 4.04 0.00 48.13 ≤74 PASS Peak 2388.270 -48 4.04 0.00 51.24 ≤74 PASS Peak 2390.000 -50.97 4.04 0.00 48.27 ≤74 PASS High 2462 AV 2483.500 -58.88 4.04 0.02 40.38 ≤54 PASS AV 2489.060 -57.57 4.04 0.02 41.69 ≤54 PASS AV 2500.000 -59.23 4.04 0.02 40.03 ≤54 PASS Peak 2483.500 -49.75 4.04 0.00 49.49 ≤74 PASS Peak 2496.100 -48.58 4.04 0.00 50.66 ≤74 PASS Peak 2500.000 -52.12 4.04 0.00 47.12 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.46 4.04 1.33 41.11 ≤54 PASS AV 2389.180 -58.75 4.04 1.33 41.82 ≤54 PASS AV 2390.000 -59.4 4.04 1.33 41.17 ≤54 PASS Peak 2310.000 -51.26 4.04 0.00 47.98 ≤74 PASS Peak 2374.750 -48.46 4.04 0.00 50.78 ≤74 PASS Peak 2390.000 -52.19 4.04 0.00 47.05 ≤74 PASS High 2462 AV 2483.500 -58.92 4.04 1.25 41.57 ≤54 PASS AV 2499.730 -58.22 4.04 1.25 42.27 ≤54 PASS AV 2500.000 -58.57 4.04 1.25 41.92 ≤54 PASS Peak 2483.500 -49.14 4.04 0.00 50.1 ≤74 PASS Peak 2493.790 -48.49 4.04 0.00 50.75 ≤74 PASS Peak 2500.000 -52.13 4.04 0.00 47.11 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.01 4.04 0.87 40.1 ≤54 PASS AV 2383.070 -58.71 4.04 0.87 41.4 ≤54 PASS AV 2390.000 -59.1 4.04 0.87 41.01 ≤54 PASS Peak 2310.000 -52.29 4.04 0.00 46.95 ≤74 PASS Peak 2322.490 -48.13 4.04 0.00 51.11 ≤74 PASS Peak 2390.000 -51.73 4.04 0.00 47.51 ≤74 PASS High 2462 AV 2483.500 -58.86 4.04 1.06 41.44 ≤54 PASS AV 2485.980 -58.21 4.04 1.06 42.09 ≤54 PASS AV 2500.000 -59.29 4.04 1.06 41.01 ≤54 PASS Peak 2483.500 -50.11 4.04 0.00 49.13 ≤74 PASS Peak 2494.890 -48.69 4.04 0.00 50.55 ≤74 PASS Peak 2500.000 -52.38 4.04 0.00 46.86 ≤74 PASS 104 11N40SI SO Ant1 Low 2422 AV 2310.000 -59.81 4.04 1.06 40.49 ≤54 PASS AV 2386.400 -57.51 4.04 1.06 42.79 ≤54 PASS AV 2390.000 -58.66 4.04 1.06 41.64 ≤54 PASS Peak 2310.000 -50.69 4.04 0.00 48.55 ≤74 PASS Peak 2383.700 -48.04 4.04 0.00 51.2 ≤74 PASS Peak 2390.000 -49.98 4.04 0.00 49.26 ≤74 PASS High 2452 AV 2483.500 -58.47 4.04 0.87 41.64 ≤54 PASS AV 2496.875 -58.05 4.04 0.87 42.06 ≤54 PASS AV 2500.000 -58.65 4.04 0.87 41.46 ≤54 PASS Peak 2483.500 -51.64 4.04 0.00 47.6 ≤74 PASS Peak 2493.125 -48.18 4.04 0.00 51.06 ≤74 PASS Peak 2500.000 -51.02 4.04 0.00 48.22 ≤74 PASS Note： 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 105 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 106 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 107 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 108 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 109 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 110 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 111 11N40SISO_Ant1_High_2452_Peak

66 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 67 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 68 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 69 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[M Hz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.42 ≤30.00 PASS 2437 13.73 ≤30.00 PASS 2462 13.68 ≤30.00 PASS 11G Ant1 2412 12.63 ≤30.00 PASS 2437 12.75 ≤30.00 PASS 2462 12.89 ≤30.00 PASS 11N20SISO Ant1 2412 12.45 ≤30.00 PASS 2437 12.67 ≤30.00 PASS 2462 12.75 ≤30.00 PASS 11N40SISO Ant1 2422 12.67 ≤30.00 PASS 2437 13.03 ≤30.00 PASS 2452 12.96 ≤30.00 PASS 70 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.76 ≤8.00 PASS 2437 -12.75 ≤8.00 PASS 2462 -12.42 ≤8.00 PASS 11G Ant1 2412 -18.87 ≤8.00 PASS 2437 -18.60 ≤8.00 PASS 2462 -19.36 ≤8.00 PASS 11N20SISO Ant1 2412 -19.01 ≤8.00 PASS 2437 -18.26 ≤8.00 PASS 2462 -17.15 ≤8.00 PASS 11N40SISO Ant1 2422 -20.92 ≤8.00 PASS 2437 -20.77 ≤8.00 PASS 2452 -20.44 ≤8.00 PASS 71 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 72 11G_Ant1_2412 11G_Ant1_2437 73 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 74 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 75 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 76 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.37 -54.28 ≤-18.63 PASS High 2462 1.59 -57.16 ≤-18.41 PASS 11G Ant1 Low 2412 -3.82 -35.12 ≤-23.82 PASS High 2462 -3.46 -57.97 ≤-23.46 PASS 11N20SIS O Ant1 Low 2412 -3.86 -35.15 ≤-23.86 PASS High 2462 -3.66 -56.89 ≤-23.66 PASS 11N40SIS O Ant1 Low 2422 -7.14 -35.15 ≤-27.14 PASS High 2452 -6.83 -57.71 ≤-26.83 PASS 77 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 78 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 79 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 80 81 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.17 1.17 --- PASS 30~1000 1.17 -68.32 ≤-18.83 PASS 1000~26500 1.17 -55.47 ≤-18.83 PASS 2437 Reference 0.89 0.89 --- PASS 30~1000 0.89 -68.09 ≤-19.11 PASS 1000~26500 0.89 -55.91 ≤-19.11 PASS 2462 Reference 1.18 1.18 --- PASS 30~1000 1.18 -67.53 ≤-18.82 PASS 1000~26500 1.18 -55.71 ≤-18.82 PASS 11G Ant1 2412 Reference -4.35 -4.35 --- PASS 30~1000 -4.35 -67.36 ≤-24.35 PASS 1000~26500 -4.35 -54.9 ≤-24.35 PASS 2437 Reference -4.21 -4.21 --- PASS 30~1000 -4.21 -66.43 ≤-24.21 PASS 1000~26500 -4.21 -55.46 ≤-24.21 PASS 2462 Reference -3.71 -3.71 --- PASS 30~1000 -3.71 -68.33 ≤-23.71 PASS 1000~26500 -3.71 -56.36 ≤-23.71 PASS 11N20SISO Ant1 2412 Reference -4.32 -4.32 --- PASS 30~1000 -4.32 -67.43 ≤-24.32 PASS 1000~26500 -4.32 -54.88 ≤-24.32 PASS 2437 Reference -5.00 -5.00 --- PASS 30~1000 -5.00 -67.83 ≤-25 PASS 1000~26500 -5.00 -55.27 ≤-25 PASS 2462 Reference -4.10 -4.10 --- PASS 30~1000 -4.10 -68.25 ≤-24.1 PASS 1000~26500 -4.10 -54.44 ≤-24.1 PASS 11N40SISO Ant1 2422 Reference -7.35 -7.35 --- PASS 30~1000 -7.35 -67.61 ≤-27.35 PASS 1000~26500 -7.35 -55.48 ≤-27.35 PASS 2437 Reference -7.20 -7.20 --- PASS 30~1000 -7.20 -68.23 ≤-27.2 PASS 1000~26500 -7.20 -55.03 ≤-27.2 PASS 2452 Reference -7.21 -7.21 --- PASS 30~1000 -7.21 -67.93 ≤-27.21 PASS 1000~26500 -7.21 -55.67 ≤-27.21 PASS 82 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 83 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 84 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 85 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 86 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 87 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 88 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 89 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 90 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 91 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 92 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 93 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 94 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 95 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 96 11N40SISO_Ant1_2452_1000~26500 97 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.39 99.52 0.02 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.36 8.40 99.52 0.02 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.22 81.82 0.87 5.56 2437 0.17 0.22 77.27 1.12 5.88 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.22 81.82 0.87 5.56 98 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462

35 11N20SISO_Ant0_2412_1000~26500 11N20SISO_Ant0_2437_0~Reference 11N20SISO_Ant0_2437_30~1000 36 11N20SISO_Ant0_2437_1000~26500 11N20SISO_Ant0_2462_0~Reference 37 11N20SISO_Ant0_2462_30~1000 11N20SISO_Ant0_2462_1000~26500 11N40SISO_Ant0_2422_0~Reference 38 11N40SISO_Ant0_2422_30~1000 11N40SISO_Ant0_2422_1000~26500 39 11N40SISO_Ant0_2437_0~Reference 11N40SISO_Ant0_2437_30~1000 11N40SISO_Ant0_2437_1000~26500 40 11N40SISO_Ant0_2452_0~Reference 11N40SISO_Ant0_2452_30~1000 41 11N40SISO_Ant0_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant0 2412 8.35 8.39 99.52 0.02 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant0 2412 0.15 0.20 75.00 1.25 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant0 2412 0.18 0.23 78.26 1.06 5.56 2437 0.17 0.22 77.27 1.12 5.88 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant0 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant0_2412 11B_Ant0_2437 11B_Ant0_2462 44 11G_Ant0_2412 11G_Ant0_2437 45 11G_Ant0_2462 11N20SISO_Ant0_2412 11N20SISO_Ant0_2437 46 11N20SISO_Ant0_2462 11N40SISO_Ant0_2422 47 11N40SISO_Ant0_2437 11N40SISO_Ant0_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant0 Low 2412 AV 2310.000 -60.09 4.04 0.02 39.17 ≤54 PASS AV 2389.830 -57.29 4.04 0.02 41.97 ≤54 PASS AV 2390.000 -58.29 4.04 0.02 40.97 ≤54 PASS Peak 2310.000 -51.96 4.04 0.00 47.28 ≤74 PASS Peak 2388.270 -48.98 4.04 0.00 50.26 ≤74 PASS Peak 2390.000 -49.56 4.04 0.00 49.68 ≤74 PASS High 2462 AV 2483.500 -58.75 4.04 0.03 40.52 ≤54 PASS AV 2484.220 -57.69 4.04 0.03 41.58 ≤54 PASS AV 2500.000 -58.74 4.04 0.03 40.53 ≤54 PASS Peak 2483.500 -49.98 4.04 0.00 49.26 ≤74 PASS Peak 2493.460 -48.08 4.04 0.00 51.16 ≤74 PASS Peak 2500.000 -51.06 4.04 0.00 48.18 ≤74 PASS 11G Ant0 Low 2412 AV 2310.000 -60.55 4.04 1.25 39.94 ≤54 PASS AV 2380.990 -58.87 4.04 1.25 41.62 ≤54 PASS AV 2390.000 -59.06 4.04 1.25 41.43 ≤54 PASS Peak 2310.000 -51.72 4.04 0.00 47.52 ≤74 PASS Peak 2377.350 -47.45 4.04 0.00 51.79 ≤74 PASS Peak 2390.000 -51.17 4.04 0.00 48.07 ≤74 PASS High 2462 AV 2483.500 -59.33 4.04 1.25 41.16 ≤54 PASS AV 2489.610 -58.53 4.04 1.25 41.96 ≤54 PASS AV 2500.000 -59.1 4.04 1.25 41.39 ≤54 PASS Peak 2483.500 -51.38 4.04 0.00 47.86 ≤74 PASS Peak 2498.080 -48.67 4.04 0.00 50.57 ≤74 PASS Peak 2500.000 -50.05 4.04 0.00 49.19 ≤74 PASS 11N20SI SO Ant0 Low 2412 AV 2310.000 -59.78 4.04 1.06 40.52 ≤54 PASS AV 2389.310 -58.72 4.04 1.06 41.58 ≤54 PASS AV 2390.000 -58.99 4.04 1.06 41.31 ≤54 PASS Peak 2310.000 -50.1 4.04 0.00 49.14 ≤74 PASS Peak 2379.950 -48.34 4.04 0.00 50.9 ≤74 PASS Peak 2390.000 -51.08 4.04 0.00 48.16 ≤74 PASS High 2462 AV 2483.500 -58.85 4.04 1.06 41.45 ≤54 PASS AV 2490.710 -58.23 4.04 1.06 42.07 ≤54 PASS AV 2500.000 -59.39 4.04 1.06 40.91 ≤54 PASS Peak 2483.500 -51.01 4.04 0.00 48.23 ≤74 PASS Peak 2488.840 -48.25 4.04 0.00 50.99 ≤74 PASS Peak 2500.000 -51.54 4.04 0.00 47.7 ≤74 PASS 49 11N40SI SO Ant0 Low 2422 AV 2310.000 -59.91 4.04 1.06 40.39 ≤54 PASS AV 2386.850 -58.11 4.04 1.06 42.19 ≤54 PASS AV 2390.000 -58.24 4.04 1.06 42.06 ≤54 PASS Peak 2310.000 -53.03 4.04 0.00 46.21 ≤74 PASS Peak 2389.700 -48.51 4.04 0.00 50.73 ≤74 PASS Peak 2390.000 -51.07 4.04 0.00 48.17 ≤74 PASS High 2452 AV 2483.500 -58.19 4.04 1.06 42.11 ≤54 PASS AV 2483.875 -57.75 4.04 1.06 42.55 ≤54 PASS AV 2500.000 -…
