2A6QF-19000MOTO GUZZI IC

Document Name: User Manual – M19000 Moto Guzzi Cluster PREFACE The M19000 Instrument Cluster / Dashboard is intended to be used on a motor-bike. It is an indicator instrument used to display vehicle speed, RPM, fuel level, gear position and many such vehicle parameters listed in the sections ahead Page 1 Document Name: User Manual – M19000 Moto Guzzi Cluster DISPLAY CONTENT 1 2 3 4 5 6 7 8 Num ber Description Function 1 RPM indicator This will indicate vehicle engine RPM. Multiplying factor is 1000. Range: 0-8000 RPM 2 Speed This will indicate vehicle speed. Range is 0 – 299 km/hr 3 Gear Position Gear number is displayed here: N,1,2,3,4,5 4 Clock This shows clock in [hh:mm] 12H format 5 Temperature Ambient temperature is indicated in this field Range: -15°C(+5°F) to + 50°C (+122°F) 6 Odometer The ODO meter is of 6 digits (0 – 999999 Km/mi). 7 ICON list The following icons are displayed in LCD - Grip warming, Service Alert, TPMS, Generic Alarm, Message alert, Helmet alert, Call alert 8 LED Tale Tales LED tell-tales are used to indicate warning and such conditions listed in the ‘Warning Indicators’ section on next page Page 2 Document Name: User Manual – M19000 Moto Guzzi Cluster Operating conditions S. No. Specification Value 1 Operating Voltage 7V to 16V 2 Test Voltage 13.5V 3 Operating current <1A 4 Dark current/ Parasitic current ≤ 1mA @ 12.6V & 25°C 5 Operating Temperature -30°C to +85°C 6 Storage Temperature -40°C to +90°C Warning Indicators Sr. no Name Symbol Colour Function 1 Left Indicator Green This will glow if left indicator switch is pressed 2 Right Indicator Green This will glow if right indicator switch is pressed 3 High Beam Blue This will glow if high beam is selected 4 Engine Orange This will indicate engine fault 5 Fuel Reserve Orange This will glow if fuel is at reserve level 6 Neutral Green This will glow if gear is in Neutral position 7 ABS Orange This will glow if ABS malfunction Page 3 Document Name: User Manual – M19000 Moto Guzzi Cluster Connection Details Pin No. Pin Specification Signal Details Pin No. Pin Specification Signal Details 1 CAN HIGH can high 14 ANTEENA B IMMOBILIZER 2 HIGH BEAM high input 15 AIR TEMPERATURE SENSOR air temperature sensor input 3 OIL SENSOR current input 16 NC nc 4 LEFT INDICATOR COMMAND current input 17 NC nc 5 HAZARD low current input 18 NC nc 6 GROUND Gnd 19 BATTERY battery 7 GROUND Gnd 20 ANTEENA A immobilizer 8 CAN LOW can low 21 IGNITION Ignition input 9 DRL high input 22 RIGHT INDICATOR (front) indicator output 10 FUEL NTC SENSOR fuel reserve sensor input 23 RIGHT INDICATOR (rear)) indicator output 11 RIGHT INDICATOR COMMAND current input 24 LEFT INDICATOR (front) indicator output 12 MODE HW current input 25 LEFT INDICATOR (rear) indicator output 13 GROUND Gnd 26 BATTERY BATTERY +ve Page 4 Document Name: User Manual – M19000 Moto Guzzi Cluster Immobilizer function For enhanced safety, the vehicle start is not safeguarded only by mechanical key but also by Immobilizer function. Here digital authentication of valid user is carried out before the vehicle engine can start. Digital authentication happens as in following steps: 1. The key which contains embedded transponder is placed into the key slot for starting the bike. 2. The transponder key gets within readable distance of read antenna on the keylock. 3. Once ignition key is mover to ON position, the Instrument Cluster/Speedometer/dashboard receives power. 4. It fires the read antenna on keylock to read the digital key code which resides in transponder IC in the key. The controller in the speedometer reads the key code. This read happens at 125kHz frequency. Thus, there is wireless read of key code. 5. This key-code is then compared with the code stored within the cluster. If they match, authentication is successful and engine is commanded to start. If key code doesn’t match, vehicle would not start. This function is enabled only at ignition ON. Page 5 ANTENNA is in the lockset. Lockset is mounted on vehicle handle bar. Connections from Speedometer to antenna is via 2 wires Document Name: User Manual – M19000 Moto Guzzi Cluster Compliance Caution: Any changes or modifications not expressly approved by the party responsible for compliance shall invalidate the user’s authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Page 6

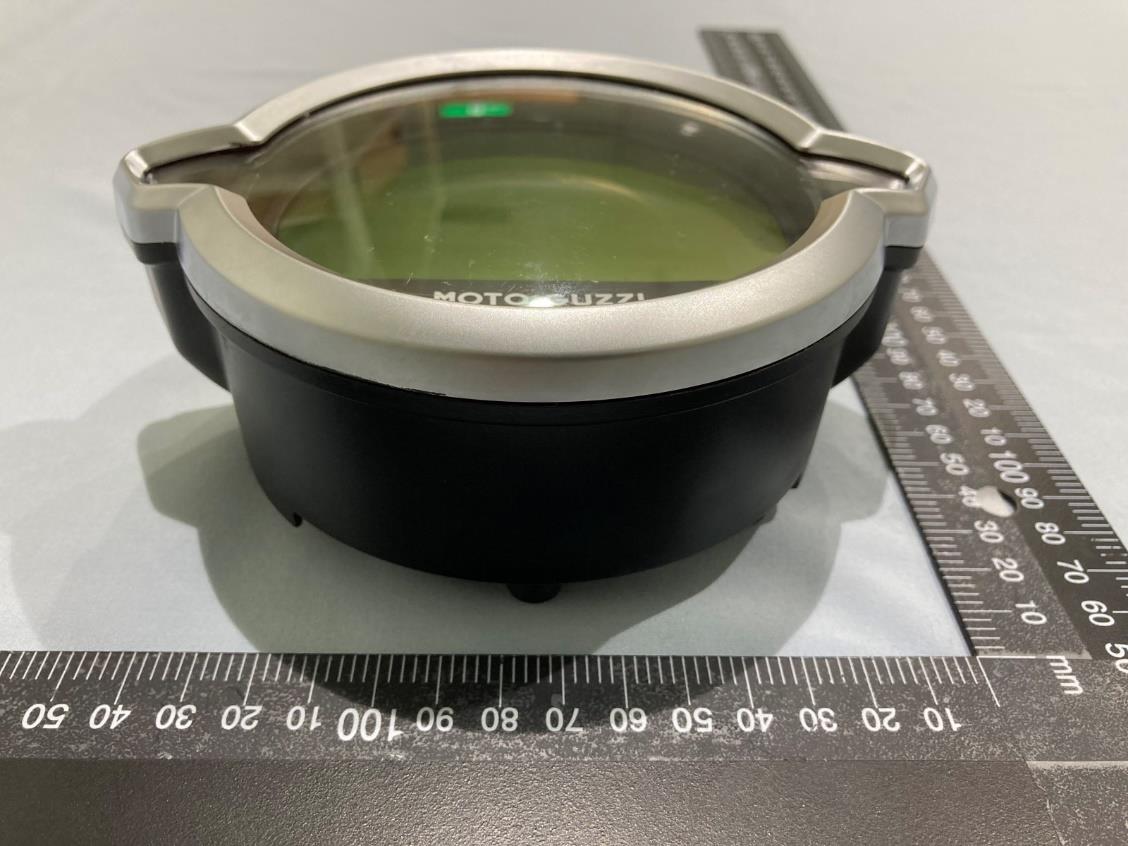

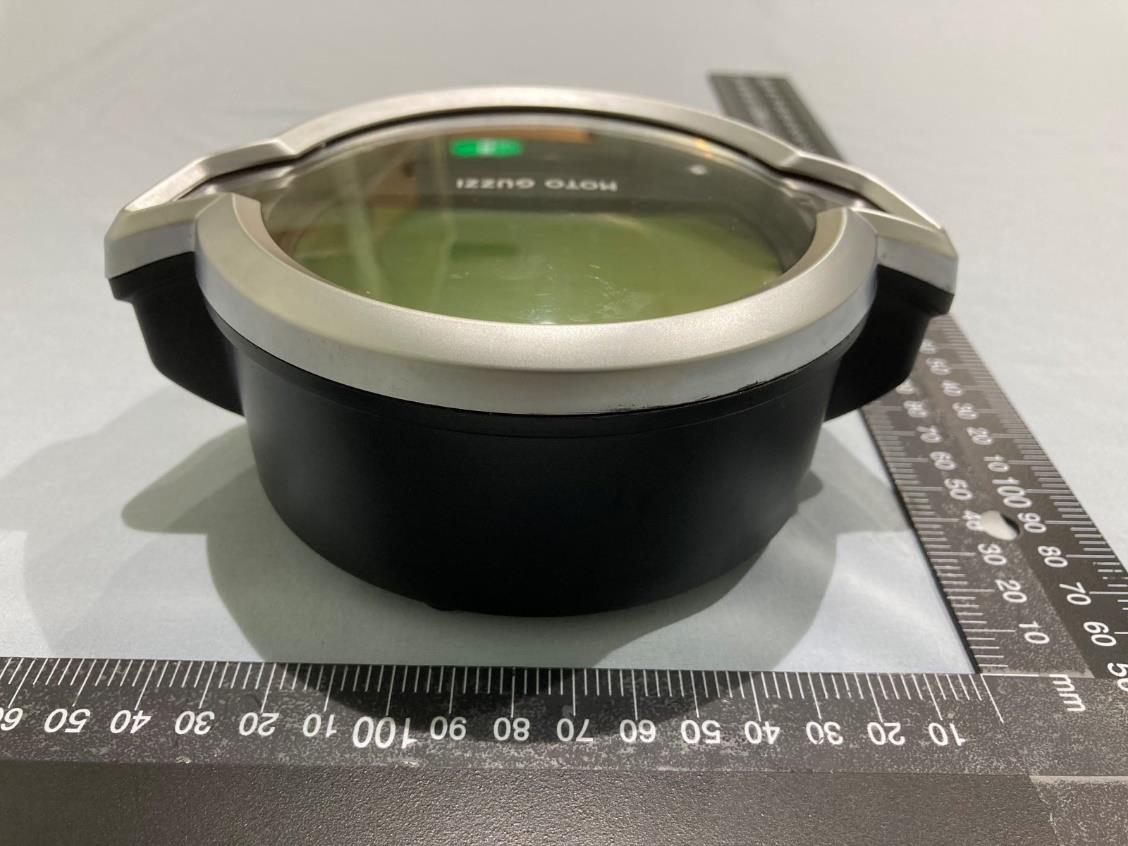

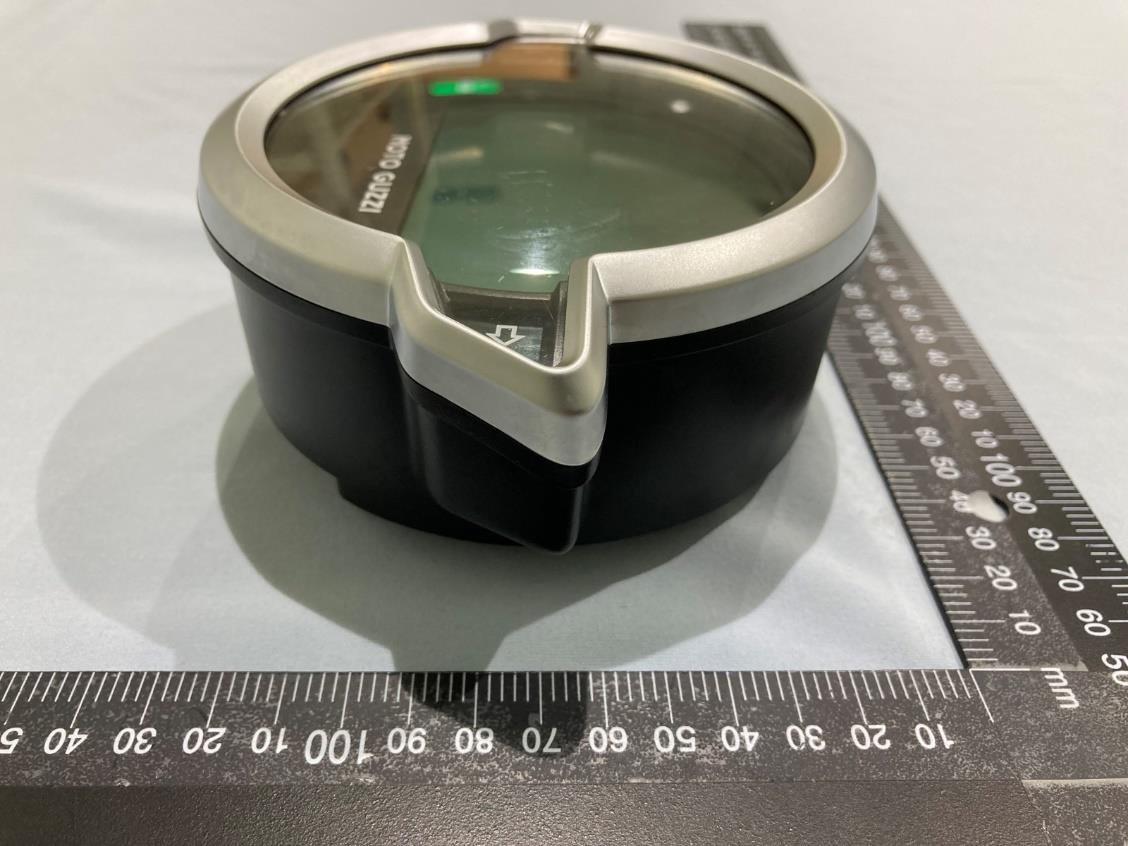

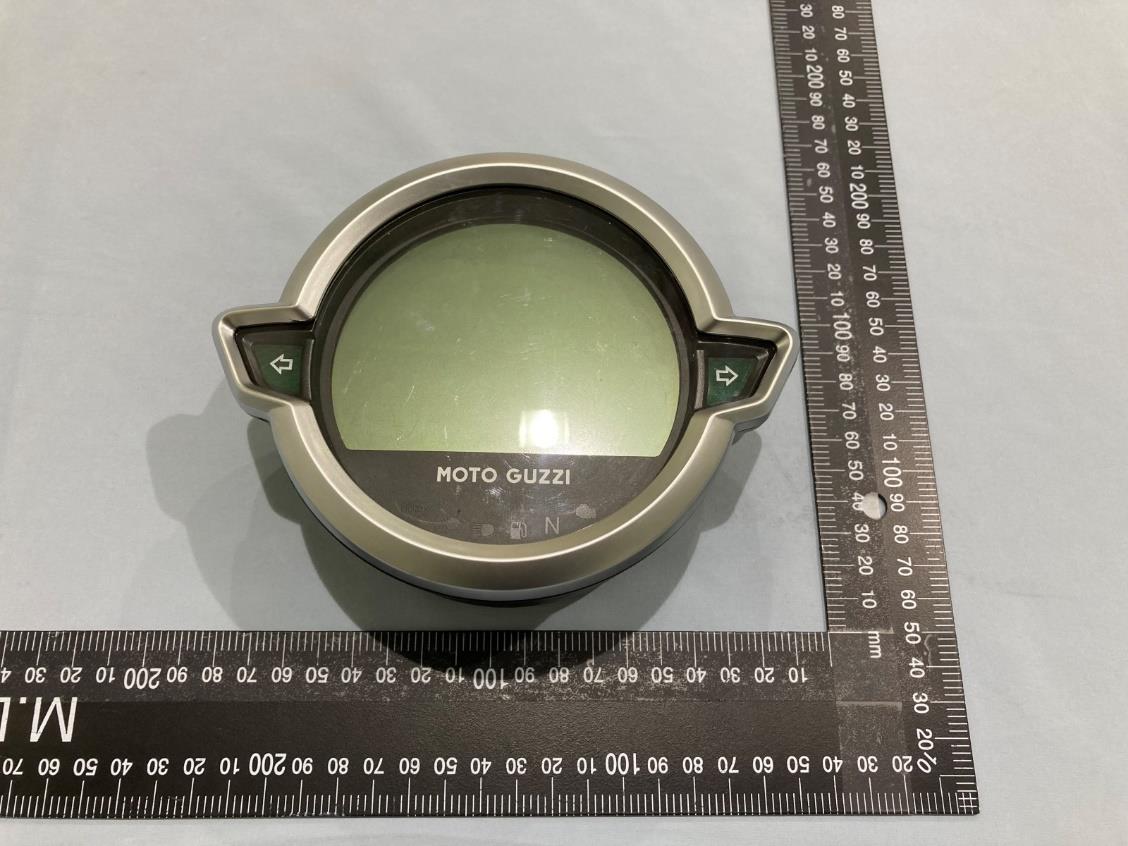

Test report No. : 4790039760-EP Page : 1 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 External Photos Outview: M19000 Pic 1 Outview: M19000 Pic 2 Test report No. : 4790039760-EP Page : 2 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: M19000 Pic 3 Outview: M19000 Pic 4 Test report No. : 4790039760-EP Page : 3 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: M19000 Pic 5 Outview: M19000 Pic 6

FCC LABEL IMAGE: FCC LABEL LOCATION: The Label image pasted on EUT.

Test report No. : 4790039760-EP Page : 4 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Internal Photos M19000 Pic 1 M19000 Pic 2 Test report No. : 4790039760-EP Page : 5 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 3 M19000 Pic 4 Test report No. : 4790039760-EP Page : 6 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 5 M19000 Pic 6 Test report No. : 4790039760-EP Page : 7 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 7 M19000 Pic 8 Test report No. : 4790039760-EP Page : 8 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 9 M19000 Pic 10 Test report No. : 4790039760-EP Page : 9 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 11 M19000 Pic 12 Test report No. : 4790039760-EP Page : 10 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 13 M19000 Pic 14 Test report No. : 4790039760-EP Page : 11 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 15 M19000 Pic 16 Test report No. : 4790039760-EP Page : 12 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 17 M19000 Pic 18 Test report No. : 4790039760-EP Page : 13 of 13 Issued date : Nov. 22, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 M19000 Pic 19 M19000 Pic 20 RF ANTENNA_A RF ANTENNA_B RFIC

Test report No. : 4790039760-US-R0-V0 Page : 1 of 25 Issued date : 2022/12/13 FCC ID : 2A6QF-19000 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0972 / 4.1 RADIO TEST REPORT Product : MOTO GUZZI IC Model Name : M19000 FCC ID : 2A6QF-19000 Test Regulation : FCC 47 CFR Part 15 Subpart C (Section 15.209) Received Date : 2022/1/11 Test Date : 2022/1/12 ~ 2022/1/20 Issued Date : 2022/12/13 Applicant : Minda Instruments Limited Gut No 287-295, Nanekarwadi, Chakan, Taluka Khed. Pune , Maharashtra – INDIA , 4101501 Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4790039760-US-R0-V0 Page : 2 of 25 Issued date : 2022/12/13 FCC ID : 2A6QF-19000 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0972 / 4.1 REVISION HISTORY Original Test Report No.: 4790039760-US-R0-V0 Rev. Test report No. Date Page revised Contents Original 4790039760-US-R0-V0 2022/12/13 - Initial issue Test report No. : 4790039760-US-R0-V0 Page : 3 of 25 Issued date : 2022/12/13 FCC ID : 2A6QF-19000 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0972 / 4.1 Table of Contents 1. Attestation of Test Results .............................................................................................4 2. Summary of Test Results ...............................................................................................5 3. Test Methodology and Reference Procedures.............................................................6 4. Facilities and Accreditation ...........................................................................................6 5. Measurement Uncertainty .............................................................................................7 6. Equipment under Test ...................................................................................................8 6.1. Description of EUT .............................................................................................. 8 6.2. Test Condition ...................................................................................................... 9 6.3. Channel List ......................................................................................................... 9 6.4. Description of Available Antennas ...................................................................... 9 6.5. Test Mode Applicability and Tested Channel Detail ......................................... 10 7. Test Equipment ............................................................................................................ 11 8. Description of Test Setup ............................................................................................ 12 9. Test Results ................................................................................................................... 14 9.1. 20dB Bandwidth ................................................................................................ 14 9.2. Radiated Spurious Emission .............................................................................. 16 9.3. AC Power Line Conducted Emission ................................................................ 22 Test report No. : 4790039760-US-R0-V0 Page : 4 of 25 Issued date : 2022/12/13 FCC ID : 2A6QF-19000 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0972 / 4.1 1. Attestation of Test Results APPLICANT: Minda Instruments Limited Gut No 287-295, Nanekarwadi, Chakan, Taluka Khed. Pune , Maharashtra – INDIA , 4101501 MANUFACTURER: Minda Instruments Limited Gut No 287-295, Nanekarwadi, Chakan, Taluka Khed. Pune , Maharashtra – INDIA , 4101501 EUT DESCRIPTION: MOTO GUZZI IC BRAND: PIAGGIO-MOTO GUZZI IC MODEL: M19000 SAMPLE STAGE: Mass-Production DATE of TESTED: 2022/1/12 ~ 2022/1/20 APPLICABLE STANDARDS STANDARD Test Results FCC 47 CFR PART 15 Subpart C (Section 15.209) PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Underwriters Laboratories Taiwan Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Underwriters Laboratories Taiwan Co., Ltd. will constitute fraud and shall nullify the document. This report …

Text truncated - open the document above for the full version.

Page : 1 of 3 Issued date : 2022/11/22 Project No. : 4790039760 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Radiated Spurious Emission Setup Configurations 30 MHz ~ 1 GHz Page : 2 of 3 Issued date : 2022/11/22 Project No. : 4790039760 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 9 kHz ~ 30 MHz Page : 3 of 3 Issued date : 2022/11/22 Project No. : 4790039760 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 AC Power Line Conducted Emission Setup Configurations
