2A6RONBCWireless Interlinked Combination Smoke and Carbon Monoxide Alarm

AEGISLINK Wireless Interlinked Combination Smoke and Carbon Monoxide Alarm Model: SC-RF200/SC-RF220/SC-RF240 User Manual This user manual contains important information regarding the installation and operation of your AEGISLINK combination smoke and carbon monoxide alarm. Please take a few minutes to thoroughly read this manual which should be saved for future reference. If you are installing this smoke and carbon monoxidealarm for use by others, you must leave this manual—or a copy of it—with the end user. Introduction This AEGISLINK combinationsmoke and carbonmonoxide alarm conforms with European Standards EN14604 and EN 50291 and are designed to detect both smoke andcarbonmonoxide. Product Profile SC-RF200 SC-RF220 SC-RF240 Buzzer Test/Silence Button LED Indicator (red/green/yellow) LCD Display Pinhole Pairing Button Package Contents 1 × Alarm Unit 1 × Mounting Bracket 2 × Screws 2 × Anchor Plugs 1 × Pin 1 × User Manual Basic Safety Information IMPORTANT! 1. DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT OPERATING INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS. PAY SPECIAL ATTENTION TO THESE SITUATIONS. 2. THIS COMBINATION SMOKE & CARBON MONOXIDE ALARM IS ONLY APPROVED FOR HOME USE. 3. THIS CARBON MONOXIDE ALARM IS DESIGNED TO DETECT CARBON MONOXIDE FROM ANY SOURCE OF COMBUSTION. 4. CONSTANT EXPOSURES TO HIGH OR LOW HUMIDITY MAY REDUCE BATTERY LIFE. 5. SMOKE ALARMS ARE NOT TO BE USED WITH DETECTOR GUARDS UNLESS THE COMBINATION HAS BEEN EVALUATED AND FOUND SUITABLE FOR THAT PURPOSE. CAUTION! THIS SMOKE & CARBON MONOXIDE ALARM HAS TWO SEPARATE ALARMS WHICH WORK INDEPENDENTLY. THE CARBON MONOXIDE ALARM IS NOT DESIGNED TO DETECT FIRE OR ANY OTHER GAS. IT WILL ONLY INDICATE THE PRESENCE OF CARBON MONOXIDE GAS AT THE SENSOR. CARBON MONOXIDE GAS MAY BE PRESENT IN OTHER AREAS. THE SMOKE ALARM WILL ONLY INDICATE THE PRESENCE OF SMOKE THAT REACHES THE SENSOR. THE SMOKE ALARM IS NOT DESIGNED TO DETECT GAS, HEAT OR FLAMES. WARNING! 1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS INJURY OR DEATH. 2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL PROBLEM AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY OR DEATH. 3. TEST THIS SMOKE/CO ALARM ONCE A WEEK. IF THE ALARM EVER FAILS TO TEST CORRECTLY, REPLACE IT IMMEDIATELY! IF THE ALARM CANNOT WORK PROPERLY, IT WILL NOT ALERT YOU TO A PROBLEM. 4. THIS PRODUCT IS INTENDED FOR USE IN ORDINARY INDOOR LOCATIONS OF FAMILY LIVING UNITS. IT IS NOT DESIGNED TO MEASURE CO LEVELS IN COMPLIANCE WITH OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION (OSHA) COMMERCIAL OR INDUSTRIAL STANDARDS. INDIVIDUALS WITH MEDICAL CONDITIONS THAT MAY MAKE THEM MORE SENSITIVE TO CARBON MONOXIDE MAY CONSIDER USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND VISUAL SIGNALS FOR CARBON MONOXIDE CONCENTRATIONS UNDER 30 PPM. FOR ADDITIONAL INFORMATION ON CARBON MONOXIDE AND YOUR MEDICAL CONDITION CONTACT YOUR PHYSICIAN. 5. THE REPLACEMENT DATE THAT APPEARS ON THE DEVICE IS THE DATE BEYOND WHICH THE DEVICE MAY NO LONGER DETECT CARBON MONOXIDE ACCURATELY AND SHOULD BE IMMEDIATELY REPLACED. 6. THIS DEVICE IS DESIGNED TO PROTECT INDIVIDUALS FROM THE ACUTE EFFECTS OF CARBON MONOXIDE EXPOSURE. IT MAY NOT FULLY SAFEGUARD INDIVIDUALS WITH SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT, CONSULT A MEDICAL PRACTITIONER. How to Set Up and Interconnect Wireless Alarms All AEGISLINK wireless interlinked alarms contain a built-in RF module that enables you to wirelessly connect 2 or more interlinked alarms and create an interlinked network. When one unit is triggered, all interconnected alarms will sound. The AEGISLINKseries contain wirelessinterlinked smoke alarms, wirelessinterlinked carbon monoxide alarms, and wirelessinterlinked combination smoke and carbon monoxide alarms. This model is designed to be wirelessly interlinked with other AEGISLINK alarms, but is not designed to communicate with wirelessinterlinked alarms from other manufacturers. The wireless interlinked alarms in one multi-pack have already been interconnected to each other, so the alarms in each multi-pack have their own independent interlinked network. If you have more than one multi-pack, you will need to connect them all to the same network, but you do not have to disconnect each alarm individually. Choose one multi-pack as your base network and connect the other multi-packs to it. NOTE! The following instructions regarding wireless interconnection are applicable to AEGISLINK wireless interlinked alarms only. How to Interconnect 1. Make sure you only work with 2 units at a time, and that they are both activated to ensure successful connection. NOTE: To activate your alarm, remove the back cover from the device and pull out the battery insulating film from the battery compartment. To learn how to turn on different models of wireless interlinked alarms, please refer to their specific user manuals for more details. 2. Press the pinhole pairing button on the back of one of the 2 units using the included pin. It will beep once and the LED will flash red slowly, indicating it has entered pairing mode and is waiting for a new unit to be added. Hold down the pinhole pairing button on the other unit until it beeps once and its LED flashes red rapidly as it is searching for a unit to connect to. 3. After the search is successful and an interconnected group is created, both units will beep once and automatically exit the interconnection mode. At this point, both units will only flash once every 60 seconds, indicating they are in normal standby mode. 4. If you want to connect a third alarm to this group, first activate the new device according to its operating instructions. Press the pinhole pairing button on either of the 2 previously interconnected units using the included pin, it will beep once and the LED will flash red slowly, indicating it has entered pairing mode and is waiting for a new unit to be added. Hold down the pinhole pairing …

Text truncated - open the document above for the full version.

Differences Declaration To whom concern, We company Smartie International LLC hereby declares: The product models SC-RF200, SC-RF220, SC-RF240 are identical in the same PCB layout, interior structure and electrical circuits, The differences are the shape of shell(the material of shell is the same, only the shape is different and not affect the radiation) and model name for commercial purpose. Authorized signature: Date: 2022-05-18

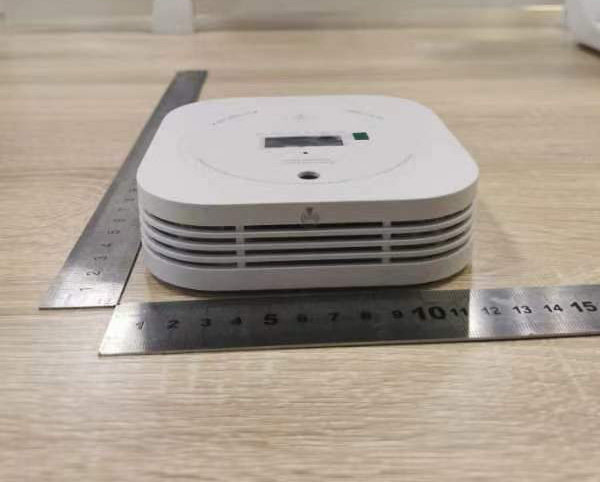

Test Model No.: SC‐RF200

1 mm + - 料号: 品名: 材质: 工艺: 尺寸: 公差: 100g铜板不干胶 SC200-WR(SC-RF200)-产品标贴-UL 单黑印刷，表面覆哑膜 93*61.5mm 93mm 61.5mm F.2.01.SC2005 备注： Batch number: 请按销售下单的批号填写，文字字体为Arial(Italic)，字体大小为5号 Date of manufacture: 请按采购提交的交货日期填写，文字字体为Arial(Italic)，字体大小为5号 图上编号时间仅为示意。 注：图中的虚线圆圈，需做镂空挖孔处理 CO Sensitivity: 70 ppm: 60–240 minutes; 150 ppm: 10–50 minutes; 400 ppm: 4–15 minutes. Standby Mode: The LED will flash green once every 60 seconds. Smoke Alarm: The LED will flash red with 3 long beeps every 4 seconds. CO Alarm: The LED will flash red with 4 quick beeps every 5.8 seconds. Silence Mode: Silence time of around 9 minutes. Low Battery: The LED will flash yellow with 1 beep every 60 seconds. Fault: The LED will flash yellow with 2 beeps every 60 seconds. Maintenance: Test weekly by pushing the test/silence button. Clean the alarm cover and vents with a soft brush once a month to remove dust and dirt. WARNING: The battery is replaceable. It’s recommended to use a Huiderui CR123A 3 V lithium battery. CONSTANT EXPOSURE TO HIGH OR LOW TEMPERATURES OR HIGH HUMIDITY MAY REDUCE THE BATTERY LIFE. IMPORTANT: Once the device reaches its maximum lifetime, it will beep 3 times every 60 seconds. Replace the device immediately. A d d r e s s : 1 6 0 G r e e n t r e e D r , D o v e r , D E 1 9 9 0 4 , U S A E m a i l : s u p p o r t @ a e g i s l i n k . c o . u F . 2 . 0 1 . S C 2 0 0 5 F C C I D : 2 A 6 R O N B C Wireless Interlinked Combination Smoke and Carbon Monoxide Alarm Smartie International LLC Batch Number: ZN0220314001 Date of Manufacture: 2022-03-14MADE IN CHINA Model: SC-RF200 Pairing Button CO Sensitivity: 70 ppm: 60–240 minutes; 150 ppm: 10–50 minutes; 400 ppm: 4–15 minutes. Standby Mode: The LED will flash green once every 60 seconds. Smoke Alarm: The LED will flash red with 3 long beeps every 4 seconds. CO Alarm: The LED will flash red with 4 quick beeps every 5.8 seconds. Silence Mode: Silence time of around 9 minutes. Low Battery: The LED will flash yellow with 1 beep every 60 seconds. Fault: The LED will flash yellow with 2 beeps every 60 seconds. Maintenance: Test weekly by pushing the test/silence button. Clean the alarm cover and vents with a soft brush once a month to remove dust and dirt. WARNING: The battery is replaceable. It’s recommended to use a Huiderui CR123A 3 V lithium battery. CONSTANT EXPOSURE TO HIGH OR LOW TEMPERATURES OR HIGH HUMIDITY MAY REDUCE THE BATTERY LIFE. IMPORTANT: Once the device reaches its maximum lifetime, it will beep 3 times every 60 seconds. Replace the device immediately. A d d r e s s : 1 6 0 G r e e n t r e e D r , D o v e r , D E 1 9 9 0 4 , U S A E m a i l : s u p p o r t @ a e g i s l i n k . c o . u F . 2 . 0 1 . S C 2 0 0 5 F C C I D : 2 A 6 R O N B C Wireless Interlinked Combination Smoke and Carbon Monoxide Alarm Smartie International LLC Batch Number: ZN0220314001 Date of Manufacture: 2022-03-14 MADE IN CHINA Model: SC-RF200 Pairing Button

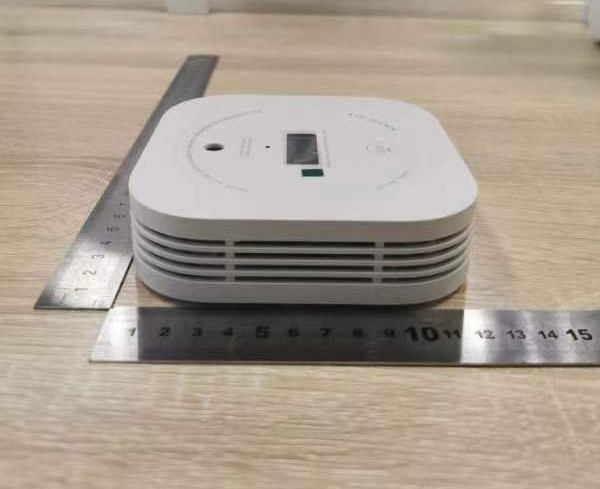

Test Model No.: SC‐RF200

Global United Technology Services Co., Ltd. Report No.: GTS202205000063F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 18 TEST REPORT Applicant: Smartie International LLC Address of Applicant: 160 Greentree Dr Ste 101, Dover, Delaware 19904, United States Manufacturer/Factory: Smartie International LLC Address of Manufacturer/Factory: 160 Greentree Dr Ste 101, Dover, Delaware 19904, United States Equipment Under Test (EUT) Product Name: Wireless Interlinked Combination Smoke and Carbon Monoxide Alarm Model No.: SC-RF200, SC-RF220, SC-RF240 FCC ID: 2A6RONBC Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 Date of sample receipt: May 10, 2022 Date of Test: May 10-18, 2022 Date of report issued: May 18, 2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202205000063F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 18 2 Version Version No. Date Description 00 May 18, 2022 Original Prepared By: Date: May 18, 2022 Project Engineer Check By: Date: May 18, 2022 Reviewer Report No.: GTS202205000063F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 18 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 6 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 6 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 6 5.6 TEST FACILITY .................................................................................................................................... 6 5.7 TEST LOCATION ................................................................................................................................. 6 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 6 6 TEST INSTRUMENTS LIST ..................................................................................................................... 7 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT ..................................................................................................................... 9 7.2 RADIATED EMISSION METHOD ........................................................................................................... 10 7.2.1 Field Strength of The Fundamental Signal ................................................................................ 12 7.2.2 Spurious emissions and Band Edge .......................................................................................... 13 7.3 20DB OCCUPY BANDWIDTH .............................................................................................................. 17 8 TEST SETUP PHOTO ............................................................................................................................ 18 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 18 Report No.: GTS202205000063F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 18 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 Pass AC Power Line Conducted Emission 15.207 N/A Field strength of the fundamental signal 15.249 (a) Pass Spurious emissions 15.249 (a) (d)/15.209 Pass Band edge 15.249 (d)/15.205 Pass 20dB Occupied Bandwidth 15.215 (c) Pass Remarks: 1. Test according to ANSI C63.10: 2013. 2. Pass: The EUT complies with the essential requirements in the standard. 4.1 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Note…

Text truncated - open the document above for the full version.

Test Model No.: SC‐RF200 Radiated Emission
