2A6SK-S023 in 1 Wireless Charger

Note: To ensure charging 3 devices safely and efficiently, you must use 18W adapter and quick charging cable (which include in package). Otherwise, you may not charge 3 devices at the same time, also may damage the wireless charger. 3 IN 1 Magnetic Wireless Charger User Manual Product Features 1.Compatible for iPhone 12/13 Series magnetic wireless charging, Qi enable phone, watch, earbuds wireless charging. 2.Support 15W wireless fast charging for phone, 3W wireless charging for earbuds. 3.Magnetic charging position can be rotated 30°, allow you to adjust the phone viewing angle. 4.The 18W adapter comes with the wireless charger support charge phone, watch, earbuds three devices at the same time. If you want to charge two phones simultaneously and achieve fast charging, need to use a 35W adapter. 5.Put the devices into the corresponding charging area correctly, and the color indicator of the corresponding area will be on (red for mobile phone, green for earbuds, blue for watch). 6.When metal foreign objects are detected, the color indicators corresponding to the positions of mobile phone and headphone flashes, and the color indicators corresponding to the position of watch is off. When over-temperature protection is detected, the yellow light flashes. Precautions 1.To achieve fast charging, please use a qualified power adapter and fast charging cable, otherwise it may cause unstable charging. 2.If charging stops due to overheated, please remove the charging devices, and try to re-charge after cooling down. 3.Do not put metal objects or magnetic cards on the charging pad, which may cause damage or abnormality of the charger. 4.Do not clean the product unless make sure it is power off. 5.Do not disassemble the wireless charger by yourself, please contact us if necessary. 6.Do not use the product in high temperature, humid or corrosive environments. FAQ & Solution charging position (let the charging coil in your phone lineup with the one inside the wireless charger). (3)The wireless charging coil on Sony phones is located slightly below center. (4)Phone cases should be no thicker than 5 mm for effective charging. (5)Check whether the adapter is QC3.0 fast charger. 1.How does magnetic wireless charging work Firstly make sure your phone has the magnetic charging function, just need to put the phone on magnetic charging area. Or if your phone doesn’t has magnetic charging function, also can put on the earbuds / phone charging area achieve wireless charging. 2.If you're experiencing interrupted or slow charging, check the following: (1)The back of your phone should not have any metal, magnetic or credit cards. (2)Put the phone in the center of the charging surface, move your phone slightly to find the best 3.If you're failing to charge your device, please try out the following: (1)Please restart your cell phone and test with other USB cables. (2)Please check whether the indicator light is on or not. (3)Please make sure the devices are placed in the proper position. 4.If you're using the wireless charger with the QC3.0 adapter as suggested and have removed any potential charging obstructions, but are still experiencing issues, try this: (1)Replacing the cable connecting with your wireless charger. (2)Rebooting your phone. (3)Unplug the adapter and reinsert. 5.Charging is still slow: The mobile phone itself or the external receiving coil allows the wireless charging current to be different,or the application running consumption is large while the mobile phone is charging. It is recommended to reduce or close the application. 6.The phone is charging intermittently,or the indicator light flashes: Input: 9V/3A max Output: 15W/10W/7.5W/5W (for Phone) Output: 5W (for Earbuds) Output: 3W (for Watch) Transmission Distance: 2-5mm Color: Black / White Product Specification Package List 1* Magnetic Wireless Charger 1* 18W Charging Adapter 1* Type-c Charging Cable 1* User Manual It may the charging current is not enough, please use an adapter with sufficient power of 9V/2A or 18W above. 7.Charging fever: It is normal for the receiving coil or transmitter board to generate heat during wireless charging. If the wireless charger is too hot, please take your phone off it. When the wireless charger is cooled down, you can charge it again. 8.If there are other problems, please contact our after-sales for a solution. MADE IN CHINA Type-C input port Indicator light Watch charging area (foldable) How to Use 1.Connect the adapter and type-c cable to power on the wireless charger. 2.Put devices on the corresponding wireless charging area. Wireless Earbuds / phone charging area Magnetic charging area (for phone) Angle adjust axis FCCWarnin g This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the eq…

Text truncated - open the document above for the full version.

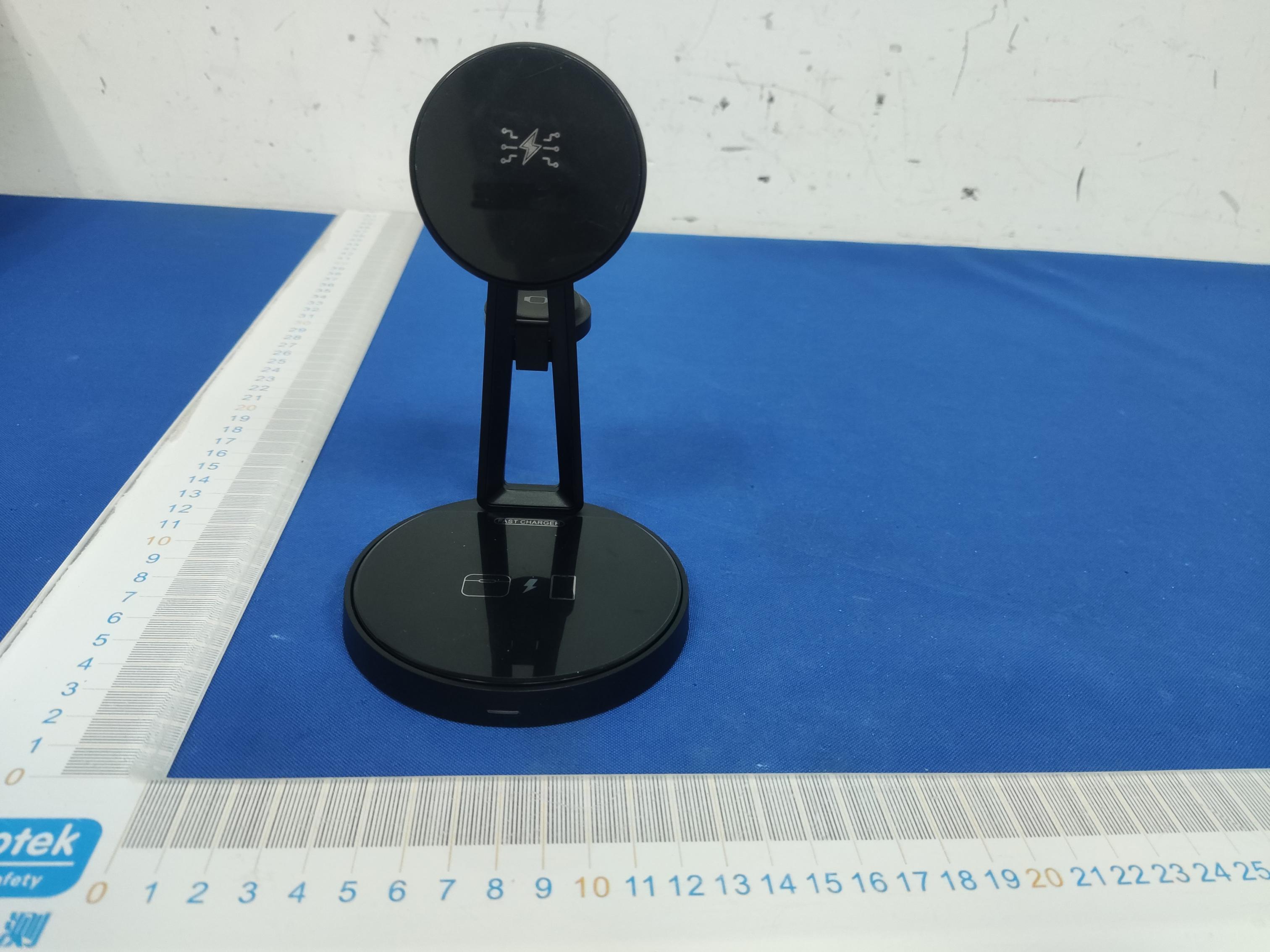

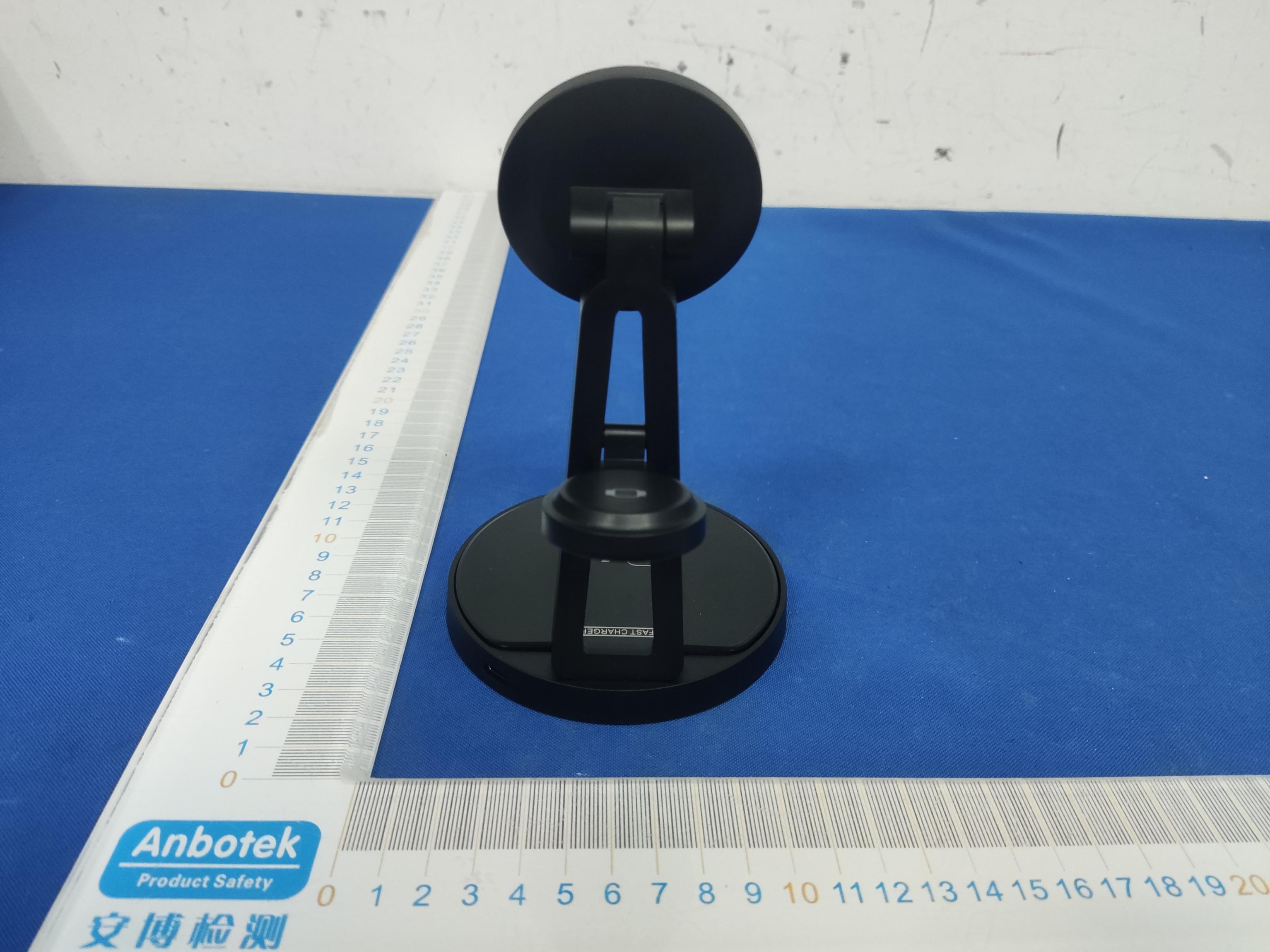

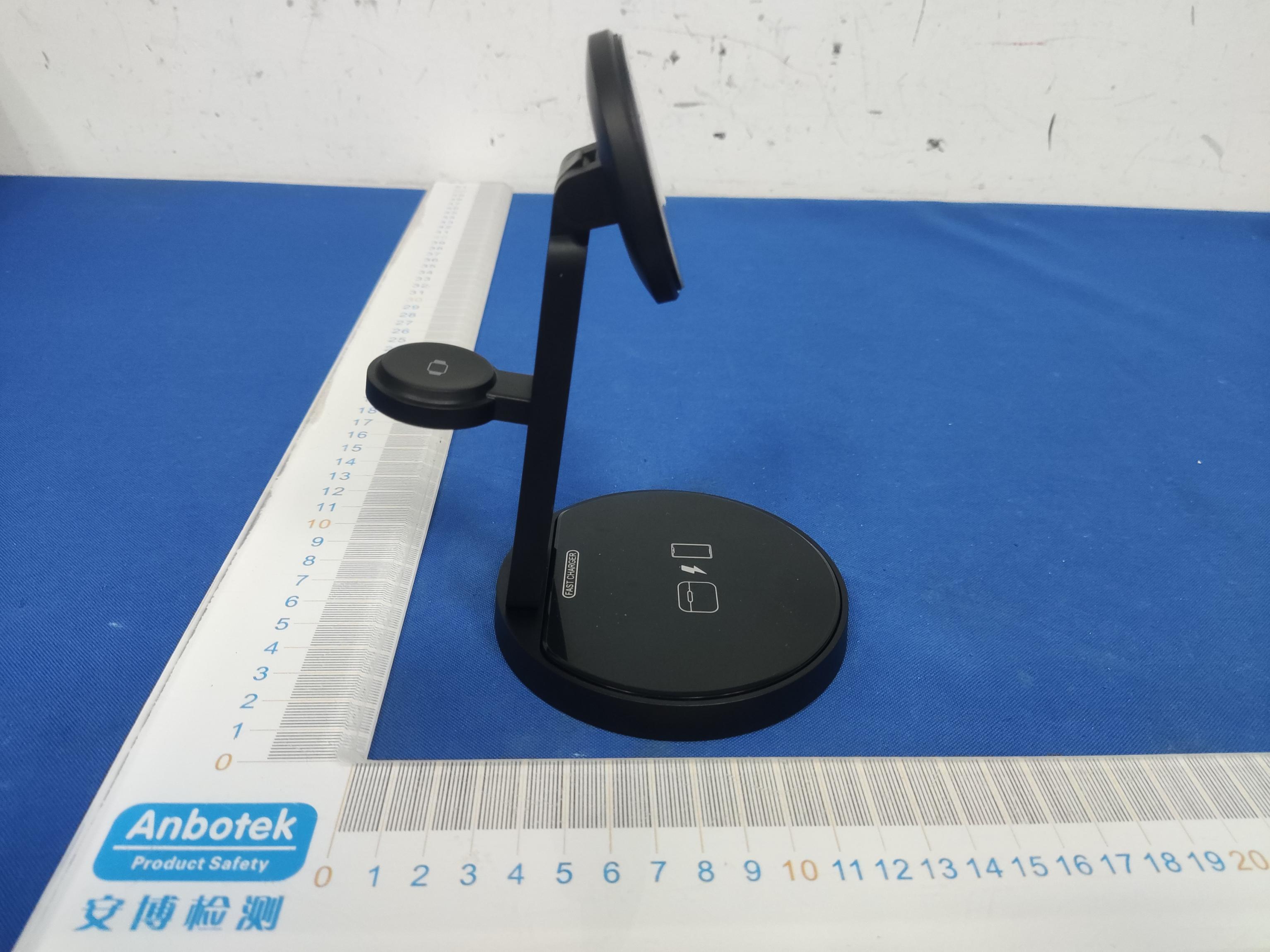

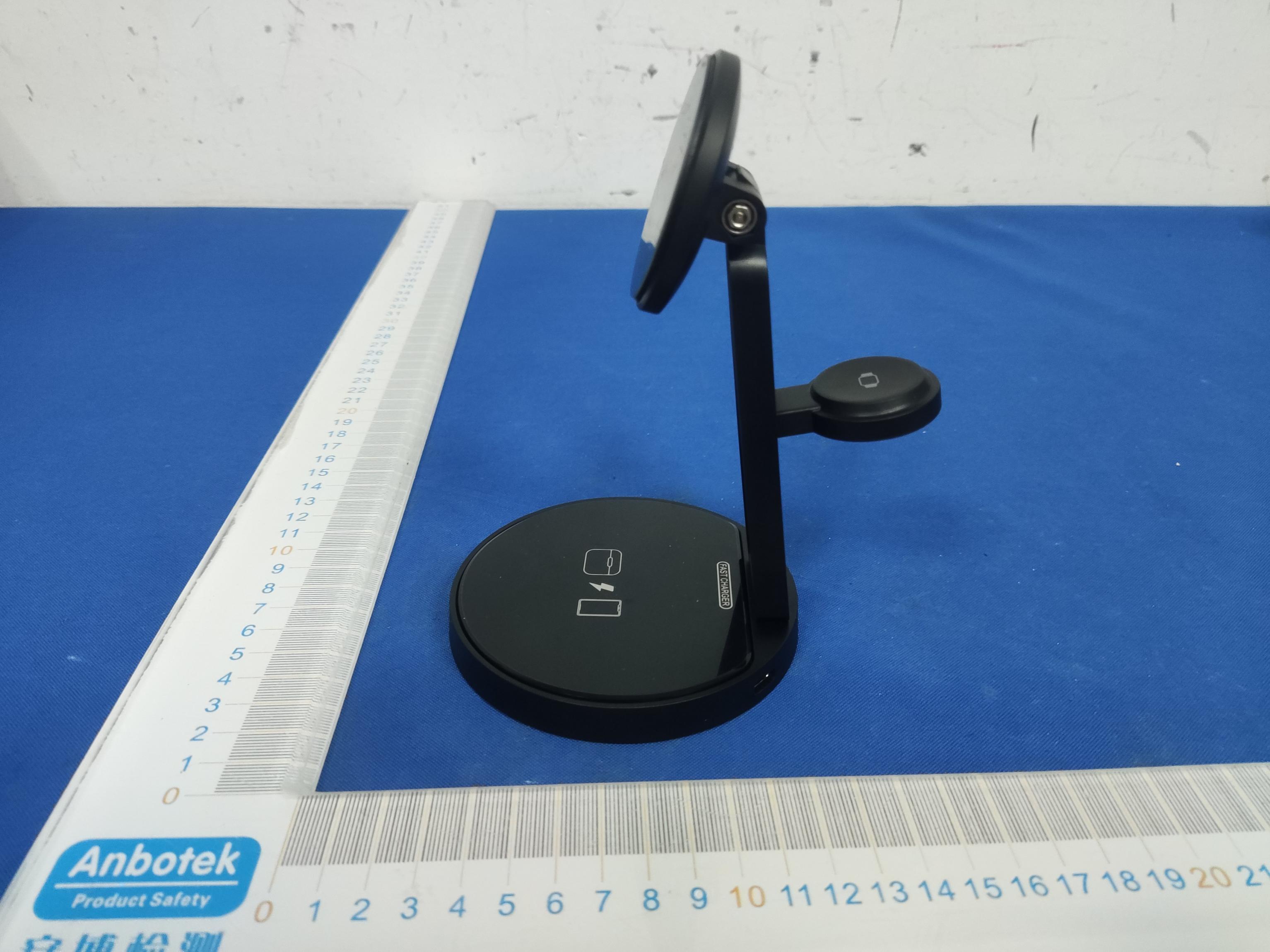

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label ProductName:3in1WirelessCharger ModelNo.:S02 FCCID:2A6SK-S02 ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Code:AB-RF-05-b InternalPhotograph ANT1 Code:AB-RF-05-b ANT3 Code:AB-RF-05-b Code:AB-RF-05-b ANT2 Code:AB-RF-05-b

ShenzhenTenghuiyuanElectronicsCo.,Ltd 客户/Ciient ShenzhenTenghuiyuanElectronicsCo.,Ltd 名称/TYPE A11-6.3UHwirelesschargingandtransmittingcoil 产品型号 ModelNO单线圈G43.5*0.8厚双槽有孔背胶 产品编号Partnunberingsystey Productpictures Operatingfrequency：110.1-205KHz 本公司工程部/ForEnginerDepartnerOnly 修改内容/RrvisedCintent认可日期/APProvedDate 编制/Prepared审核/Checked认可/Approved 万纪美万纪美刘成昭 客户认可回签 /AuthorixedSignaturureCompanyChop 工程 /Enginrer 认可 /QCAPProved 认可日期 /APProved ShenzhenTenghuiyuanElectronicsCo.,Ltd 一、线圈工艺/WindingProcese: NOwindingWiregaugeTurns Winding direction remarks 1N12UEW-B-0.08*105P10TSCCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance） 1.11L0A（单独线圈）=3.8uH±20% 1.12L0A(线圈+磁片)=6.5uH±5% 1.2Q值=80MIN 1.3直流电阻（DCR）：60mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 三．电路图/CIRCUITDIAGRAM N O 项目 MaterialScience 1WIRE￠0.08*105p2UEW- 2FERRITE 43.5*5.3*0.8LTypeBdoubleslotperforatedferritehardmagnet 3GLUEWaterbasedwhiteglue 4SOLDERHQ-996/JS-996 5TinQiandaoPureTin 6 High temperature adhesive 8MMHightemperatureadhesivetape 7 8 ShenzhenTenghuiyuanElectronicsCo.,Ltd 单位： MM 四．外形图/OUTSIDEDIAGRA 注：线圈出线位置缠绕8MM（ref）高温胶纸，磁片背面贴双面背胶。 标准ABCDEFG STD 43.5±0.542.5±0.520.5±0.55.3±0.540±23±12.2±0.5 单位： MM ShenzhenTenghuiyuanElectronicsCo.,Ltd 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特殊要求可定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit. ShenzhenTenghuiyuanElectronicsCo.,Ltd 六、贮存和使用条件StorageandUsecondition 6.1贮存条件Storagecondition 6.1.1建议贮存条件：温度-25°C ~ 85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C~85°C,70%RH(Max.) 6.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeing produced. 6.2使用条件Usecondition 使用条件限制：温度=-25°C ~ 85°C,湿度≤90% Useconditionlimit:T=-25°C~85°C,RH≤90%.

ShenzhenTenghuiyuanElectronicsCo.,Ltd 客户/Ciient ShenzhenTenghuiyuanElectronicsCo.,Ltd 名称/TYPE A11-6.3UHwirelesschargingandtransmittingcoil 产品型号 ModelNOSinglecoilG43.5*0.8thickdoublegrooveperforatedbackglue210long Productpictures Operatingfrequency：110.1-205KHz 本公司工程部 /ForEnginerDepartnerOnly 修改内容 /RrvisedCintent 认可日期 /APProvedDate 编制 /Prepared 审核 /Checked 认可 /Approved 万纪美万纪美刘成昭 客户认可回签/AuthorixedSignaturureCompanyChop 工程/Enginrer认可/QCAPProved认可日期/APProved ShenzhenTenghuiyuanElectronicsCo.,Ltd 一、线圈工艺/WindingProcese: NOwindingWiregaugeTurns Winding direction remarks 1N12UEW-B-0.08*105P10TSCCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance） 1.11L0A（单独线圈）=3.8uH±20% 1.12L0A(线圈+磁片)=6.5uH±5% 1.2Q值=80MIN 1.3直流电阻（DCR）：60mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 三．电路图/CIRCUITDIAGRAM N O 项目MaterialScience 1WIRE￠ 0.08*105p2UEW- 2FERRITE 43.5*5.3*0.8LTypeBdoubleslotperforatedferritehardmagnet 3GLUEWaterbasedwhiteglue 4SOLDERHQ-996/JS-996 5TinQiandaoPureTin 6 High temperature adhesive 8MMHightemperatureadhesivetape 7 8 ShenzhenTenghuiyuanElectronicsCo.,Ltd 单位： MM 四．外形图/OUTSIDEDIAGRA 注：线圈出线位置缠绕8MM（ref）高温胶纸，磁片背面贴双面背胶。 标准ABCDEFG STD 43.5±0.542.5±0.520.5±0.55.3±0.5210±23±12.2±0.5 单位： MM ShenzhenTenghuiyuanElectronicsCo.,Ltd 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特殊要求可定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit. ShenzhenTenghuiyuanElectronicsCo.,Ltd 六、贮存和使用条件StorageandUsecondition 6.1贮存条件Storagecondition 6.1.1建议贮存条件：温度-25°C ~ 85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C~85°C,70%RH(Max.) 6.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeing produced. 6.2使用条件Usecondition 使用条件限制：温度=-25°C ~ 85°C,湿度≤90% Useconditionlimit:T=-25°C~85°C,RH≤90%.

ShenzhenTenghuiyuanElectronicsCo.,Ltd 客户/Ciient ShenzhenTenghuiyuanElectronicsCo.,Ltd 名称/TYPE苹果线圈 产品型号 ModelNOG24.5*7.6*2.5线长10MM背胶带磁铁 产品编号Partnunberingsystey Productpictures Operatingfrequency：127.7KHz 本公司工程部 /ForEnginerDepartnerOnly 修改内容 /RrvisedCintent 认可日期 /APProvedDate 编制 /Prepared 审核 /Checked 认可 /Approved 万纪美万纪美刘成昭 客户认可回签/AuthorixedSignaturureCompanyChop ShenzhenTenghuiyuanElectronicsCo.,Ltd 工程/Enginrer认可/QCAPProved认可日期/APProved 一、线圈工艺/WindingProcese: NOwindingWiregaugeTurns Winding direction remarks 1N12UEW-B-0.08*28P12TSCCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance） 1.11L0A（单独线圈）=3.8uH±5% 1.12L0A(线圈+磁片)=6.9uH±10% 1.2Q值=48MIN 1.3直流电阻（DCR）：10mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers N O 项目 MaterialScience 1WIRE￠0.08*28p2UEW- 2FERRITE 24.5*7.6*3 Hardmagneticpottypeporousferrite 3GLUEWaterbasedwhiteglue 4SOLDERHQ-996/JS-996 5Tin QiandaoPureTin 6 High temperature adhesive 10MMHightemperatureadhesivetape 7 ShenzhenTenghuiyuanElectronicsCo.,Ltd 三．外形图/OUTSIDEDIAGRA 注：线圈出线位置缠绕8MM（ref）高温胶纸，磁片背面贴双面背胶。 标准 ABCDEF STD 14.25±0.223.3±0.224.5± 0.2 10±13±12.5±0.2 单位： MM ShenzhenTenghuiyuanElectronicsCo.,Ltd 四、包装 /PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特殊要求可定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit. ShenzhenTenghuiyuanElectronicsCo.,Ltd 五、贮存和使用条件StorageandUsecondition 5.1贮存条件Storagecondition 5.1.1建议贮存条件：温度-25°C ~ 85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C~85°C,70%RH(Max.) 5.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeing produced. 5.2使用条件Usecondition 使用条件限制：温度=-25°C ~ 85°C,湿度≤90% Useconditionlimit:T=-25°C~85°C,RH≤90%.

version01 ShenzhenTenghuiyuanElectronicsCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:S02,S02-I,S02-S FCCID:2A6SK-S02 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ForPhone:（ANT1) ModelNo.ofantenna:N/A Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz ForEarphone:(ANT2) ModelNo.ofantenna:N/A Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz ForWatch:(ANT3) ModelNo.ofantenna:N/A Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:127.7KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShenzhenTenghuiyuanElectronicsCo.,Ltd. Address: 5/F,BlockC,PenglongpanHi-technologyPark,DafuInd.Zone, Guanlan,LonghuaNewDist,Shenzhen,Guangdong,518000, China City:Shenzhen,Guangdong ZIP/Postalcode:518000 Country:China Place:Date:9/23/2022 Signature:

ReportNo.:18220WC20206802FCCID:2A6SK-S02Page1of11 Code:AB-RF-05-b FCCTestReport ClientName:ShenzhenTenghuiyuanElectronicsCo.,Ltd. ClientAddress: 5/F,BlockC,PenglongpanHi-technology Park,DafuInd.Zone,Guanlan,LonghuaNew Dist,Shenzhen,Guangdong,518000,China ProductName:3in1WirelessCharger ReportDate:Sept.23,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20206802FCCID:2A6SK-S02Page2of11 Code:AB-RF-05-b Contents 1.GeneralInformation...........................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest................................................................................................6 1.4.TestEquipmentList.................................................................................................................................6 1.5.MeasurementUncertainty.....................................................................................................................6 1.6.DescriptionofTestFacility.....................................................................................................................7 2.MeasurementandResult..................................................................................................................................8 2.1.Requirements...........................................................................................................................................8 2.2.TestSetup.................................................................................................................................................9 2.3.TestProcedure.........................................................................................................................................9 2.4.TestResult................................................................................................................................................9 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................11 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................11 APPENDIXIII--INTERNALPHOTOGRAPH..................................................................................................11 ReportNo.:18220WC20206802FCCID:2A6SK-S02Page3of11 Code:AB-RF-05-b TESTREPORT Applicant:ShenzhenTenghuiyuanElectronicsCo.,Ltd. Manufacturer:ShenzhenTenghuiyuanElectronicsCo.,Ltd. ProductName:3in1WirelessCharger ModelNo.:S02,S02-I,S02-S TradeMark: N.A Rating(s): Input:9V3A Wireless1output:15W/10W/7.5W/5W(forPhone) Wireless2output:5W(forEarbuds) Wireless3output:3W(forWatch) TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Sept.01,2022 DateofTest Sept.01~16,2021 PreparedBy (TuTuHong) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC20206802FCCID:2A6SK-S02Page4of11 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.Sept.23,2022 ReportNo.:18220WC20206802FCCID:2A6SK-S02Page5of11 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:ShenzhenTenghuiyuanElectronicsCo.,Ltd. Address: 5/F,BlockC,PenglongpanHi-technologyPark,DafuInd.Zone,Guanlan, LonghuaNewDist,Shenzhen,Guangdong,518000,China Manufacturer:ShenzhenTenghuiyuanElectronicsCo.,Ltd. Address: 5/F,BlockC,PenglongpanHi-technologyPark,DafuInd.Zone,Guanlan, LonghuaNewDist,Shenzhen,Guangdong,518000,China Factory :ShenzhenTenghuiyuanElectronicsCo.,Ltd. Address: 5/F,BlockC,PenglongpanHi-technologyPark,DafuInd.Zone,Guanlan, LonghuaNewDist,Shenzhen,Guangdong,518000,China 1.2.DescriptionofDevice(EUT) ProductName:3in1WirelessCharger ModelNo.: S02,S02-I,S02-S (Note:Allsamplesarethesameexceptthemodelnumber,soweprepare “S02”fortestonly.) TradeMark: N.A TestPowerSupply:AC120V,60Hzforadapter TestSampleNo.: 1-2-1(NormalSample),1-2-2(EngineeringSample) Adapter:N/A WPT: OperationFrequency : Watch:127.7KHz WirelesschargingloadandPhone:110.1-205KHz ModulationType : FSK AntennaType :InductiveloopcoilAntenna AntennaGain(Peak):0dBi(Providedbycustomer) Remark:1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser’sManual. ReportNo.:18220WC20206802FCCID:2A6SK-S02Page6of11 Code:AB-RF-05-b 1.3.AuxiliaryEquipmentUsedDuringTest DescriptionRating(s) AdapterM/N:MDY-11-EX Input:100-240V-0.7A,50-60Hz Output:5V3A,9V3A,12V2.25A,20V1.35A.11V3A WirelesschargingloadManufacturer:ShenzhenOujuTechnologyCo.,Ltd. M/N:CD2874 Power:5W/7.5W/10W/15W LastCal.:Oct.26,2020 Cal.Interval:1Year watchM/N:WR-50M PhoneiPhone12 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1 Electricand Magneticfield Analyzer NARDAEHP-200A180ZX10202Nov.12,20211Year 1.5.MeasurementUncertainty MagneticFieldReading(A/m): +/-0.04282(A/m) ElectricFieldReading(V/m): +/-0.03679(V/m) ReportNo.:18220WC20206802FCCID:2A6SK-S02Page7of11 Code:AB-RF-05-b 1.6.DescriptionofTestFacility Thetestfacilityisrecognized,certifi…

Text truncated - open the document above for the full version.

ReportNo.:18220WC20206801FCCID:2A6SK-S02Page1of22 Code:AB-RF-05-b FCCTestReport ClientName:ShenzhenTenghuiyuanElectronicsCo.,Ltd. ClientAddress: 5/F,BlockC,PenglongpanHi-technology Park,DafuInd.Zone,Guanlan,LonghuaNew Dist,Shenzhen,Guangdong,518000,China ProductName:3in1WirelessCharger ReportDate:Sept.23,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20206801FCCID:2A6SK-S02Page2of22 Code:AB-RF-05-b Contents 1.GeneralInformation...........................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest................................................................................................6 1.4.DescriptionofTestModes.....................................................................................................................6 1.5.DescriptionOfTestSetup......................................................................................................................8 1.6.TestEquipmentList.................................................................................................................................9 1.7.MeasurementUncertainty...................................................................................................................10 1.8.DescriptionofTestFacility...................................................................................................................10 2.SummaryofTestResults................................................................................................................................11 3.ConductedEmissionTest................................................................................................................................12 3.1.TestStandardandLimit.......................................................................................................................12 3.2.TestSetup...............................................................................................................................................12 3.3.TestProcedure.......................................................................................................................................12 3.4.TestData.................................................................................................................................................12 4.RadiationSpuriousEmission.........................................................................................................................15 4.1.TestStandardandLimit.......................................................................................................................15 4.2.TestSetup...............................................................................................................................................15 4.3.TestProcedure.......................................................................................................................................16 4.4.TestData.................................................................................................................................................16 5.AntennaRequirement......................................................................................................................................21 5.1.TestStandardandRequirement.........................................................................................................21 5.2.AntennaConnectedConstruction......................................................................................................21 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................22 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................22 APPENDIXIII--INTERNALPHOTOGRAPH..................................................................................................22 ReportNo.:18220WC20206801FCCID:2A6SK-S02Page3of22 Code:AB-RF-05-b TESTREPORT Applicant:ShenzhenTenghuiyuanElectronicsCo.,Ltd. Manufacturer:ShenzhenTenghuiyuanElectronicsCo.,Ltd. ProductName:3in1WirelessCharger ModelNo.:S02,S02-I,S02-S TradeMark: N.A Rating(s): Input:9V3A Wireless1output:15W/10W/7.5W/5W(forPhone) Wireless2output:5W(forEarbuds) Wireless3output:3W(forWatch) TestStandard(s): FCCPart15SubpartC,Paragraph15.209 TestMethod(s): ANSIC63.10:2020 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart15SubpartCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceiptSept.01,2022 DateofTestSept.01~16,2021 PreparedBy (TuTuHong) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC20206801FCCID:2A6SK-S02Page4of22 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.Sept.23,2022 ReportNo.:18220WC20206801FCCID:2A6SK-S02Page5of22 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:ShenzhenTenghuiyuanElectronicsCo.,Ltd. Address: 5/F,BlockC,PenglongpanHi-technologyPark,DafuInd.Zone,Guanlan, LonghuaNewDist,Shenzhen,Guangdong,518000,China Manufacturer:ShenzhenTenghuiyuanElectronicsCo.,Ltd. Address: 5/F,BlockC,PenglongpanHi-technologyPark,DafuI…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b

Code:AB-RF-05-b TestSetupPhotograph Code:AB-RF-05-b Code:AB-RF-05-b
