2A6T3-PN0200PLAUD NotePin

PLAUD认证说明书_多语言 说明书 英文 ChatGPTEmpoweredAIVoiceRecorder PLAUDNotePin AIVoiceRecorder UserGuide ThankYouLetter ThankyouforpurchasingthePLAUDNotePin. WearededicatedtomakingthisproductthebestAIvoicerecorderfor yourdailyandprofessionalnotespaceexperience.Yoursatisfactionis ourhighestpriority! Forthemoststraightforwardinstructionsonusingthisproduct,we stronglyrecommendyouvisitourwebsiteatwww.plaud.ai. Cheers, PLAUDTeam www.plaud.ai|[email protected] ProductPackage • PLAUDNotePin • MagneticChargingBase • ChargingCable • QuickGuide • UserGuide ProductSpecification • Size:50.7*21.1*14.1mm • Weight:20g • ChargingType:MagneticChargingBase • StorageCapacity:64GB • Battery:3.8V/270mAh • MaximumContinuousRecordingTime:Upto20hours • MaximumStandbyTime:Upto40Days • FileFormat:WAV ProductElements • One-PressRecordButton:Themagicbuttonforyoutoachievethe one-pressrecording. ◦ ShortPress: ▪ Batterystatus ◦ LongPress: ▪ 1TimeVibration:Startrecording ▪ 2TimesVibration:Stoprecording • StatusLight:ThelightthatindicatesthebatteryofPLAUDNotePin, andrecordingstatus. ◦ AppBindingStatus: ▪ WhiteLightON&Flashing:WaitingtoBindPLAUDApp ▪ WhiteLightON:PLAUDAppBindSuccessfully ◦ RecordingStatus: ▪ RedLightON:RecordingON ▪ RedLightOFF:RecordingOFF ▪ RedLightON&Flashing:VARModeON ◦ BatteryStatus: ▪ WhiteLightONfor5seconds:Battery>10% ▪ PurpleLightON&Flashingfor5seconds:Battery<10% ◦ ChargingStatus ▪ GreenLightON:Battery=100% ▪ PurpleLightON:BatteryCharging ◦ Storage ▪ YellowLightFlashing:OutofStorage PLAUDNotePinSetUp Tocustomizeyourrecordingpreferences,wehavedevelopedthePLAUDApp thatcancontrolthedeviceinBluetoothrange,andyoucanaccessand managetherecordedfilesthroughthe PLAUDApp. • SearchforPLAUDintheAppStoreorGooglePlay RegistrationandSignin PleaseregisterandsignintothePLAUDApp.Thenbindthedevicethrough Bluetooth.ThenyoucancustomizethesettingsthroughthePLAUDApp. StartRecording TostartrecordingonPLAUDNotePin,simplypressandholdthebuttonfor 1secondandwaitforthe1quickvibration.Youwillalsoseethered lightonforrecordingstatus. StopRecording Duringrecording,pressthebuttonfor1secondagainandwaitforthe 2quickvibrations,anditwillstoprecording.Theredlightwillbeoff. CheckBatterySituationThelightindicatesthebatterysituation: • GreenLightON:Battery=100%(Whilecharging) • WhiteLightON:Battery>10% • PurpleLightON:Battery<10% PlaybackRecording • Method1:PlaybackrecordingsthroughtheApp.Youcanallowfastsync oftherecordingsbyenablingaWi-FiconnectionontheAppforlong recordings;thespeedofWi-Fitransferis20timesfasterthanthatof Bluetooth. • Method2:ConnecttoMacorWindowscomputerviacableandwaitfor afewsecondsbeforetheUDiskisidentified.Therecordingsareinthe foldersaccordingtoyourscenesettingofPLAUDNotePin. • Method3:UseaUSBadaptertoconnectwithphonesviaitsOTGfunction. OutofStorage Whenyouseeyellowlightflashing,thePLAUDNotePinstorageisfull. PleaseeithersyncyourfiletothePLAUDappanddeleteyourfilesin therecorderorconnectyourPLAUDNotePintocomputetodeleteyourfile inUDisk. OutofBattery Whenyourproductisoutofbattery,pleaserechargeitandconnectit toyourPLAUDapptosynctheaccuratetimezone. ProductWarranty 12MonthsWorry-FreeWarranty CustomersofthePLAUDNotePinVoiceRecorderenjoy12monthsofwarranty serviceasofthedateofpurchase.Customersshallshowvalidinvoices toenjoythewarrantyservice. Thewarrantyserviceappliesif • TheRecorderisnotdismantled,repaired,maintained,ormodified withoutpermission; • TheRecorderisnotoperatedinanabnormalenvironment; • TheRecorderisnotdamagedduetoaviolationoftheuser'smanual; • TheRecorderhasnotexperiencedacollision,falling,orbendingdue toimproperstorageorfaultsandsignificantdeformationsduetoliquid leakageinhumidplaces. Ifyouencounterproblemsusingthisdevice,pleasegetintouchwithus [email protected] outtousoverthecustomerservicemenuinthePLAUDApp.Pleaseprovide yourorderID,SNNumber,andtheAppversionforamoreeffectivereply. PrivacyProtection Alldataisonlystoredonthedeviceorphoneifyoudonotuseourcloud services.Andtherecordingsthatyouuploadtothecloudareencrypted andsafelyprotected. ProductDisclaimer • LegalRestrictions Pleasestrictlyabidebytherelevantlawsanddonotusethisproduct illegally.Thecompanydoesnotmakeanycommitmentsortakeany responsibilityfortheconsequencesofillegalacts. • PrivacyProtection Alldataisonlystoredonthedeviceorphoneifyoudonotuseourcloud services.Andtherecordingsthatyouuploadtothecloudareencrypted andsafelyprotected. • DataSafety Thecompanyisnotresponsibleforthelossordamageofpersonaldata causedbythemishandlingofhardware,software,productmaintenance, batteryreplacement,orotherunexpectedsituations.Itdoesnottake liabilityforotherindirectlossescausedbythis. • ProductSetting Theactualsettingsandusageofthisproductmaybeinconsistentwith thismanualduetotheupgradeofthefirmwareprogram.Pleaseunderstand thechangesduetotheperformanceandfunctionofthisproductwithout priornotice. ImportantNotice • Safety Keepthedeviceandtheaccessoriesawayfromchildren,becausetheymay leadtosuffocationorotherinjuries.Donotexposethebatteries (batterypackorbatteriesinstalled)tofireorexcessiveheat,suchas sunshineorthelike,foralongtime. • Maintenance DonotcleantheRecorderwithchemicalsorreagents,whichwilldamage thesurfaceoftheRecorderandcorrodeit. • RecordingBackUp Backupyourrecordingsregularly,andthemanufacturerisnotheld accountableforanydataloss. • Battery Iftheproductisnotusedforalongtime,pleasechargeanddischarge theproductonceeverythreemonthstopreventbatterydamage. • StorageCapacity Thestoragecapacityofthedeviceis64GB.However,thesystemsoftware willoccupyasmallportionofthestoragespace,usuallyleavingthe remainingstoreat61GB. NoticeThisproductcomplieswiththeradiointerferencerequirements oftheEuropeanCommunity. FCCregulatoryconformance： ThisdevicecomplieswithPart15oftheFCCRules.Operationissubject tothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycause undesiredoperation. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimits foraClassBdigitalde…

Text truncated - open the document above for the full version.

Shenzhen Smart Connect Technology Co., LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-07-25 FCC ID: 2A6T3-PN0200 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Shenzhen Smart Connect Technology Co., LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Shenzhen Smart Connect Technology Co., LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Shenzhen Smart Connect Technology Co., LTD Address: 802, 8th Floor, Building 1, Yongxinhui, No. 4078, Dongbin Road, Nanshan District, Shenzhen 518054 Contact Person: Yimou He Tel.: 18028975905 Email: [email protected] Sincerely, Signature:

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:HOPEKCORPORATIONINC Address:4358SBANNOCKSTENGLEWOOD,CO80110UnitedStates FRN:0034562900 ContactName:PeterDavis TelephoneNo:561-235-6113 E-mail:[email protected] ThisletteristoconfirmthattheUSAgentforServiceofProcessacceptsresponsibilitytoactas alocalrepresentativeonbehalfofShenzhenSmartConnectTechnologyCo.,LTD. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. Applicant: CompanyName:ShenzhenSmartConnectTechnologyCo.,LTD ProductDescription:PLAUDNotePin FRN:0032387805 GranteeCode:2A6T3 FCCID:2A6T3-PN0200 ContactName:YimouHe Address:802,8thFloor,Building1,Yongxinhui,No.4078,DongbinRoad,NanshanDistrict, Shenzhen518054 TelephoneNo:18028975905 E-mail:[email protected] TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. ThisAgreementisvaliduntil(Permanentlyvalid). Date:2024/07/29 Applicant’sName:YimouHeUSAgentforServiceofProcess’sName: Title:CEOTitle:Manager SignatureSignature

Shenzhen Smart Connect Technology Co., LTD Date: July 25, 2024 Product Model Number: PLAUD NotePin FCC ID: 2A6T3-PN0200 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: CEO Email: [email protected] Telephone: 18028975905 On behalf of: Shenzhen Smart Connect Technology Co., LTD

Shenzhen Smart Connect Technology Co., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 25, 2024 Subject; Request for Confidentiality FCC ID: 2A6T3-PN0200 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yimou He Title: CEO

Family models declaration letter July 25, 2024 We Shenzhen Smart Connect Technology Co., LTD Of 802, 8th Floor, Building 1, Yongxinhui, No. 4078, Dongbin Road, Nanshan District, Shenzhen 518054 Declare under our sole responsibility that the product Product: PLAUD NotePin Model Number: PN0200, PN0201, PN0202, PN0203, PN0205, PN0206, PN0207, PN0208, PN0209 All models have the same circuit and module, except for the model and appearance color. Sincerely, Yimou He/ CEO E-mail: : [email protected] Phone: 18028975905 Fax: 18028975905 Address : 802, 8th Floor, Building 1, Yongxinhui, No. 4078, Dongbin Road, Nanshan District, Shenzhen 518054

SPECIFICATION FOR APPROVAL CUSTOMER ： CUSTOMER’S P/N ： PART NUMBER ： WAN3216F245M08 DESCRIPTION ： Chip Antenna 3216 M-Ant 2.45G Type 08 VERSION ： V2.2 ISSUE DATE ： 2020/02/04 CUSTOMER APPROVED R&D CENTER APPROVAL CHECKED DRAWN Ray Tennyson Snow OneWave Electronic Co., Ltd. 1F, No. 151, Li Gong Street, Beitou District, Taipei City 112, Taiwan TEL: +886 2 2898-2220 FAX: +886 2 2898-5055 ONEWAVE TECHNOLOGY CO., LTD. 2/11 3216 Chip antenna For Bluetooth / WLAN Applications Dimension (mm) L 3.23 ± 0.20 W 1.66 ± 0.20 T 0.65 ± 0.20 P/N: WAN3216F245M08 ONEWAVE TECHNOLOGY CO., LTD. 3/11 Part Number Information WAN 3216 F 245 M 08 A B C D E F A Product Series Antenna B Dimension L x W 3.2X1.6mm (+-0.2mm) C Material High K material D Working Frequency 2.4 ~ 2.5GHz E Feeding mode Monopole & Single Feeding F Antenna type Type=08 1.Electrical Specification Remark : Bandwidth & Peak Gain was measured under evaluation board of next page Specification Part Number WAN3216F245M08 Central Frequency 2450 MHz Bandwidth 120 (Min.) MHz Return Loss -10(Max)dB Peak Gain 2.28 dBi Impedance 50 Ohm Operating Temperature -40～+110 °C Maximum Power 4 W Resistance to Soldering Heats 10 ( @ 260°C) sec. Polarization Linear Azimuth Beamwidth Omni-directional Termination Cu / Sn (Leadless) ONEWAVE TECHNOLOGY CO., LTD. 4/11 2.Recommended PCB Pattern 1.Evaluation Board Dimension (If the clearance area is large enough, it is recommended to add Trace at the end of the antenna for b etter performance） Unit : mm 2.Evaluation Board Dimension (If the clearance area is large enough, it is recommended to add Trace at the end of the antenna for better performance） Suggested Matching Circuit Important information: It is recommended to use high-precision inductors with a tolerance of ± 0.1~0.3nH and capacitors with a tolerance of ± 0.1pF for matching components 6.0nH 3.0nH 2.0pF None ONEWAVE TECHNOLOGY CO., LTD. 5/11 1.Layout Dimensions in Clearance area(Size=6.5*6.5mm) 50 ohm transmission Line Matching Circuit 2.Layout Dimensions in Clearance area(Size=7.0*5mm) 50 ohm transmission Line Matching Circuit FootPrint (Unit : mm) 2.3500 1.7000 2.35 2.55 2.35 1.65 ONEWAVE TECHNOLOGY CO., LTD. 6/11 3.Measurement Results Return Loss ONEWAVE TECHNOLOGY CO., LTD. 7/11 Radiation Pattern Efficiency Peak Gain Directivity 2400MHz 61.05 % 1.80 dBi 3.95 dBi 2450MHz 61.87 % 2.28 dBi 4.42 dBi 2500MHz 57.82 % 1.77 dBi 4.15 dBi Chamber Coordinate System Y Z X ONEWAVE TECHNOLOGY CO., LTD. 8/11 4.Reliability and Test Condictions ITEM REQUIREMENTS TEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No visible mechanical damage Pre-heating temperature:150°C/60sec. Solder temperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% 10 ± 0.5 sec. 60 sec . . T E M P ( °C ) 150 °C 2 6 0 °C Pre-heating temperature:150°C/60sec. Solder temperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damageThe device should be reflow soldered(230±5°C for 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with-ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% Phase Temperature(°C) Time(min) 1 +110±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec +110°C=>30±3min -40°C=>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3.No disconnection or short circuit. Temperature: +110±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3.No disconnection or short circuit. Temperature:-40±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3.No disconnection or short circuit. Temperature: 40±2°C Humidity: 90% to 95% RH Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. 4±1 sec. 60sec TEMP (°C) 150°C 230°C ONEWAVE TECHNOLOGY CO., LTD. 9/11 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ‧Preheat circuit and products to 150°C ‧Never contact the ceramic with the iron tip ‧Use a 20 watt soldering iron with tip diameter of 1.0mm ‧280°C tip temperature (max) ‧1.0mm tip diameter (max) ‧Limit soldering time to 3 sec. SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) 60~120 s 10s max. 30~60s 250~260 230 180 150 TIME(sec.) Reflow Soldering SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) within 3s Gradual cooling 150 TIME(sec.) Iron Soldering Over 60s 350 300 ONEWAVE TECHNOLOGY CO., LTD. 10/11 6.Packaging Information ◆Tape Specification: W Ao Bo Ko P F E D D1 Po …

Text truncated - open the document above for the full version.

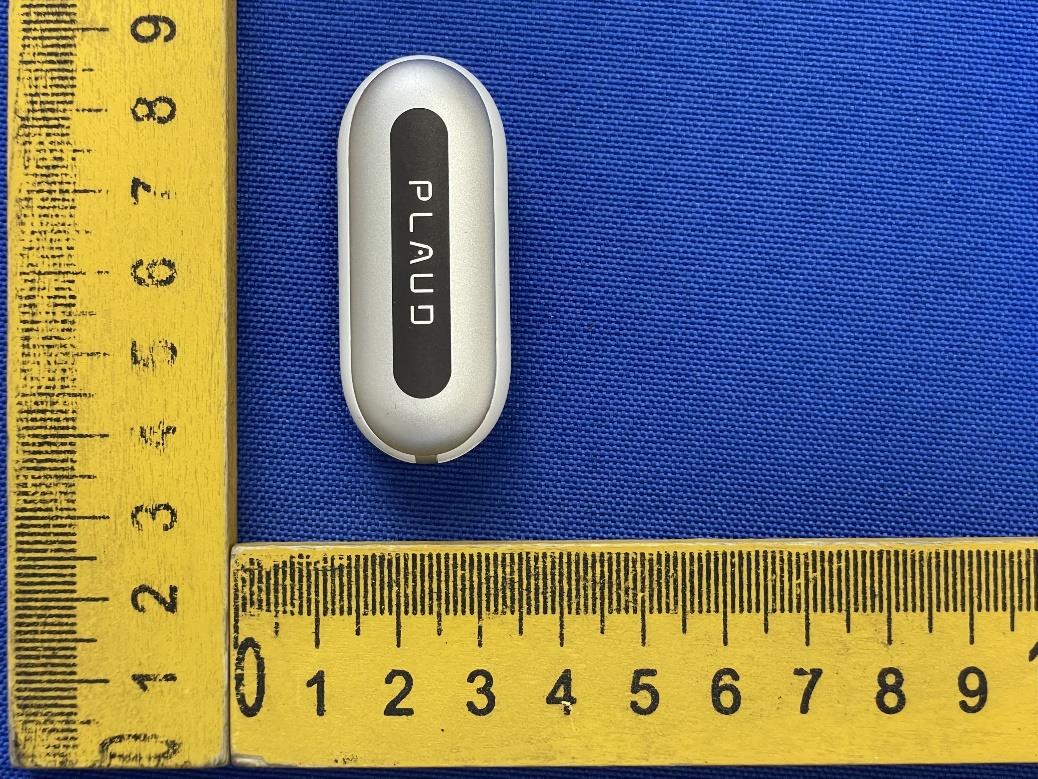

Ext Photos Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Label and Label Location

Int Photo Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 ANT

- Page 1 of 11 - Report No.: HB20240701008E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com RF EXPOSURE Test Report Product: PLAUD NotePin Trade Mark: PLAUD Model Number: PN0200 FCC ID: 2A6T3-PN0200 Prepared for Shenzhen Smart Connect Technology Co., LTD 802, 8th Floor, Building 1, Yongxinhui, No. 4078, Dongbin Road, Nanshan District, Shenzhen 518054 Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 11 - Report No.: HB20240701008E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 5 1.2 TEST MODE .............................................................................................................................................................. 5 1.3 TEST SETUP .............................................................................................................................................................. 5 1.4 ANCILLARY EQUIPMENT .............................................................................................................................................. 6 2 TEST FACILITIES AND ACCREDITATIONS ............................................................................................................ 7 2.1 TEST LABORATORY ..................................................................................................................................................... 7 2.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 7 2.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 7 2.4 TEST SOFTWARE ........................................................................................................................................................ 7 3 LIST OF TEST EQUIPMENT ................................................................................................................................ 8 4 RF EXPOSURE .................................................................................................................................................. 9 4.1 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS........................................................................................................ 9 4.1.1. Limit ............................................................................................................................................................ 9 4.1.2. Test Procedures ........................................................................................................................................... 9 4.1.3. Test Result ................................................................................................................................................. 10 - Page 3 of 11 - Report No.: HB20240701008E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Smart Connect Technology Co., LTD Address ................................. : 802, 8th Floor, Building 1, Yongxinhui, No. 4078, Dongbin Road, Nanshan District, Shenzhen 518054 Manufacturer's Name .......... : Shenzhen Smart Connect Technology Co., LTD Address ................................. : 802, 8th Floor, Building 1, Yongxinhui, No. 4078, Dongbin Road, Nanshan District, Shenzhen 518054 Product description Product name ........................ : PLAUD NotePin Model Number ....................... : PN0200 Standards ............................. : N/A Test procedure ....................... : KDB 447498 D01 General RF Exposure Guidance v06 This device described above has been tested by Shenzhen HongBiao Certification& Testing Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the EMC requirements. And it is applicable only to the tested sample identified in the report. Date of Test ............................................ : Date (s) of performance of tests ............. : July 02, 2024~July 24, 2024 Test Result ............................................... : Pass Testing Engineer : (Zoe Su) Technical Manager : ( G a r y Lu) Authorized Signatory : (L e o S u) - Page 4 of 11 - Report No.: HB20240701008E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Revision History Revised No. Date of Issue Description 01 July 24, 2024 Original - Page 5 of 11 - Report No.: HB20240701008E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 1 General Description 1.1 Description of EUT Product name: PLAUD NotePin …

Text truncated - open the document above for the full version.

- Page 1 of 48 - Report No.: HB20240701008E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Test Report Product: PLAUD NotePin Trade Mark: PLAUD Model Number: PN0200 FCC ID: 2A6T3-PN0200 Prepared for Shenzhen Smart Connect Technology Co., LTD 802, 8th Floor, Building 1, Yongxinhui, No. 4078, Dongbin Road, Nanshan District, Shenzhen 518054 Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 48 - Report No.: HB20240701008E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 6 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 6 1.2 TEST MODE .............................................................................................................................................................. 6 1.3 OPERATION CHANNEL LIST ........................................................................................................................................... 7 1.4 TEST SETUP .............................................................................................................................................................. 7 1.5 ANCILLARY EQUIPMENT .............................................................................................................................................. 7 2 SUMMARY OF TEST RESULT ............................................................................................................................... 8 3 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 9 3.1 TEST LABORATORY ..................................................................................................................................................... 9 3.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 9 3.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 9 3.4 TEST SOFTWARE ........................................................................................................................................................ 9 4 LIST OF TEST EQUIPMENT .................................................................................................................................10 5 TEST ITEM AND RESULTS ...................................................................................................................................12 5.1 ANTENNA REQUIREMENT .......................................................................................................................................... 12 5.1.1 Standard Requirement ............................................................................................................................. 12 5.1.2 Test Result ................................................................................................................................................. 12 5.2 CONDUCTED EMISSION ............................................................................................................................................. 13 5.2.1 Limits ........................................................................................................................................................ 13 5.2.2 Test Procedures ......................................................................................................................................... 13 5.2.3 Test Setup .................................................................................................................................................. 14 5.2.4 Test Result ................................................................................................................................................. 14 5.3 RADIATED EMISSION ................................................................................................................................................ 15 5.3.1 Limits ........................................................................................................................................................ 15 5.3.2 Test Procedures ......................................................................................................................................... 15 5.3.3 Test Setup .................................................................................................................................................. 15 5.3.4 Test Result ................................................................................................................................................. 16 5.3.5 Band Edge - Radiated ............................................................................................................................... 20 5.3.6 Spurious emission in restricted band 1000MHz-25000MHz .................................................................... 21 5.4 PEAK OUTPUT POWER ...............................................................................................................................…

Text truncated - open the document above for the full version.

- Page 1 of 59 - Report No.: HB20240701008E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 2998…

Text truncated - open the document above for the full version.
