2A6TG-B310Floodlight Cam Battery Pro

nooh0 QUICK START GUIDE Floodlight Cam Battery酰 Notice FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1)This device may not cause harmful interference. (2)This device must accept any interference『eceived,including interference that may cause undesired operation Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits a『e designed to provide reasonable p『otectionagainst ha『mfulinterference in a residential installation This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause ha『mfulinte『fe『enceto radio or television『eception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected (4) Consult the dealer or an experienced radio/TV technician for help What's Included Product Overview ｀ .Micmphone Floodlight• - - .“9·· 心°' 三 · 卢 b 1 L S e ta n t s u • s L - ED -• - - - - - （ ［ 二 ( ` 》 • Motion sensor Charge ca e Mounting bracket " ' ． ～心 勹 G ii Q,ck— 志代gu,de Screw packx1 -� ＿咖＿＿�咖＿勹“七 － 1 •-- / -- 0 - － － · 为 nc 比 比 Charging port ／苍 －－ －\ 日 I-----� Mounting hole • ＼ — warning sticker 如m可n... 目 ｝噬Dll..如dJ白 Screwdriver Radio Frequency Exposure Statement The device has been evaluated to meet general RF exposure requirements The device can be used in fixed/mobile exposure condition The min separation distance is 20cm (E This product complies with the radio interference requirements of the European Community. Declaration of Confo『mity This product complies with the essential requirements and other relevant provisions of Directive 2014/53/EU For the declaration of conformity, v;,;1 https://www.noo「;olffe.com/ Battery Safety (Only for the product has batteries} Do not expose the device to fire, explosion or other hazard. Do not use the devfce in the environment at too high or too low temperature, never expose the device under strong sunshine o『 too wet environment. It is recommended to cha『gethe device in an environment with a normal room temperature and good ventilation 宜This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling Prope『disposaland recycling helps protect natural resources, -human health and the environment. For more information on disposal and recycling of th is pro du ct, cont.act your la cal mu mc1 pa lity, disposal service, or the shop where you bought this product. ISED Statement This device complies with Industry Canada licence-exempt RSS standard(s) Operation is subject to the following two co nditions (1) this device may not cause interference, and (2) this device must accept any interference, mdudmg mte「ferencethat may cause undesired o peration of the device. ISED RF Statement: W hen using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements LED Indication Set Up Your Device 1. Scan the code below to get the Nomio app. LED Light Camera Status 2. Tap "Set Up a Device" to add your camera. Flashing blue Ready fo『 setup Solid blue Charging Solid『edRecording Flashing blue quickly Updating For online help and support visit https://suppo『t.nooriolife.com/ Charging Device 勹二 一([) Charging time I 8-12 hours Customer Service Warranty 1 year limited warranty Email Us Customer Support: support@nooriolife com Noo『ioInnovations Limited Level 54, Hopewell Centre, 183 Queen's Road East, HongKong noor,o ISED RSS Warning: Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)l'appareil ne doit pas produire de brou illage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ISED RF exposure statement: Le rayonnement de la classe b repecte ISED fixaient un enviro nnement non contrôlés.Installation et mise en œuvre de ce matériel devrait avecéchangeur distance minimale entre 20 cm ton corps.Lanceurs ou ne peuvent pascoexister cette antenne ou capteurs avec d’autres.

QA-FR-170-B Noorio Innovations Limited ADD: LEVEL 54, HOPEWELL CENTRE, 183 QUEEN'S ROAD EAST, HK TEL: +852 8197 7624 FAX: +852 8197 7624 E-mail: [email protected] FCC Authorization Date: 2022-06-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Noorio Innovations Limited, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Xiangmin Wang Title: Product Manager

QA-FR-172-A Noorio Innovations Limited ADD: LEVEL 54, HOPEWELL CENTRE, 183 QUEEN'S ROAD EAST, HK TEL: +852 8197 7624 FAX: +852 8197 7624 E-mail: [email protected] FCC Confidential Authorization Date: 2022-06-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2A6TG-B310 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Noorio Innovations Limited hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description As well as short-term (secrecy cycle: 180 days) confidential treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature Printed Name: Xiangmin Wang Title: Product Manager

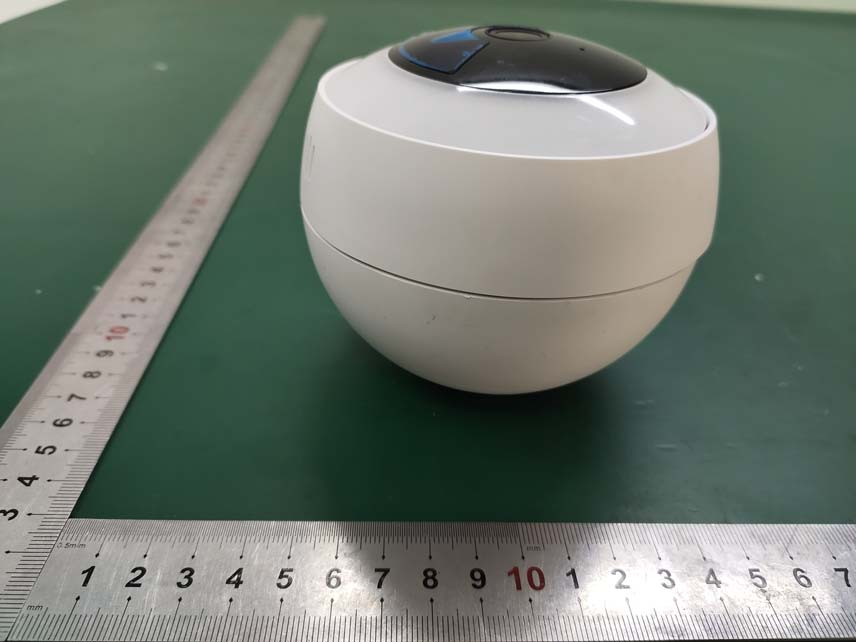

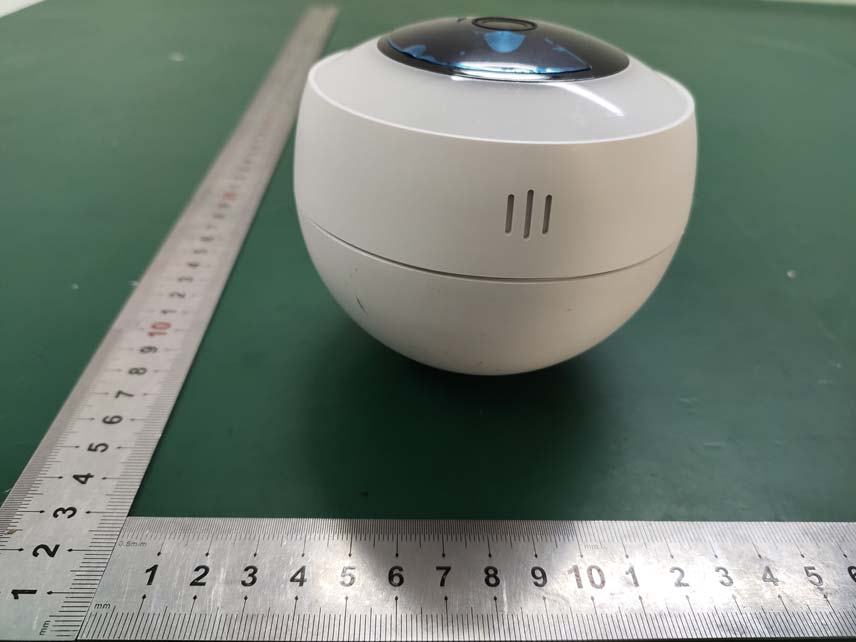

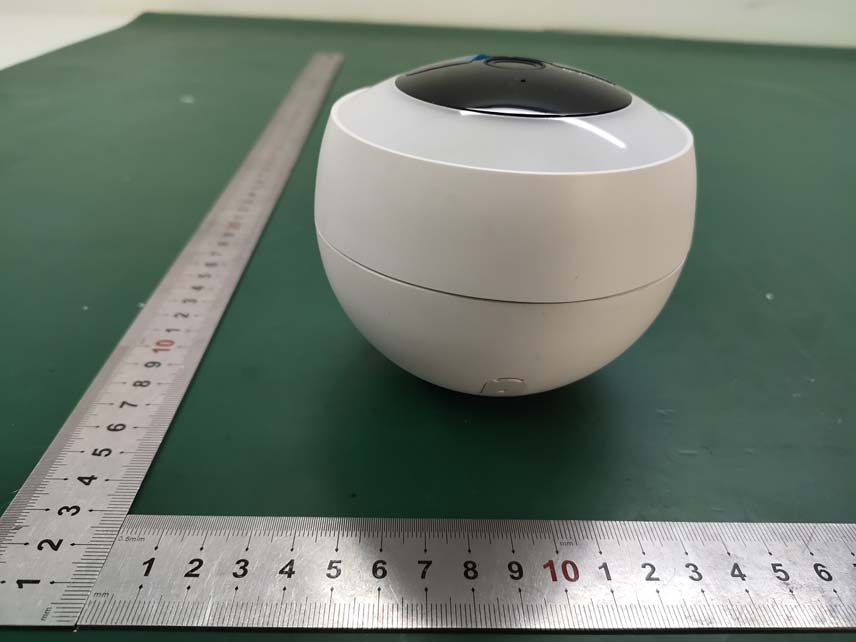

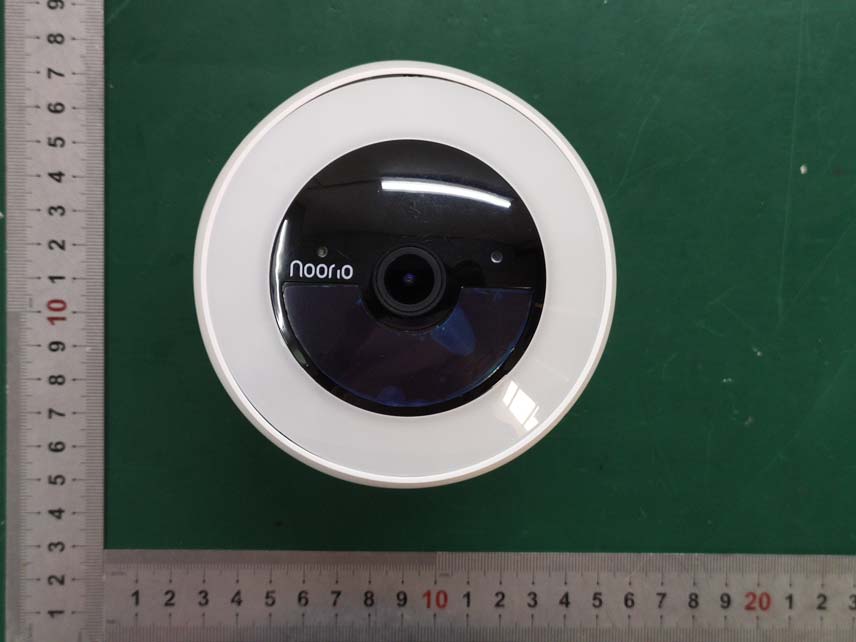

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

( C 三 Noorio Floodlight Cam Battery Pro Model: B310 Input: SV= 2A SN: XXXXXXXX FCC ID: 2A6TG-B310 IC: 28520-B310 Noorio Innovations Limited Made in China Level 54, Hopewell Centre, 183 Queen's Road East, HK

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR22060055-00 Page 46 of 46 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard FCC §15.247 (i) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. 5.2 Procedure According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.3 Measurement Result Frequency (MHz) λ/2π (mm) Distance (mm) Exemption ERP Maximum Conducted Power including Tune-up Tolerance (dBm) ERP (dBm) MPE- Based Exemption (mW)(dBm) 2412-2462 19.80 200 768 28.8522 22.85 Compliant Result: The device compliant the MPE-Based Exemption at 20cm distances. ===== END OF REPORT =====

TEST REPORT Applicant: Noorio Innovations Limited Address: LEVEL 54, HOPEWELL CENTRE, 183 QUEEN'S ROAD EAST, HK FCC ID: 2A6TG-B310 Product Name: Floodlight Cam Battery Pro Model Number: B310 Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR22060055-00 Date Of Issue: 2022-07-26 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR22060055-00 Page 2 of 46 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR22060055-00 Page 3 of 46 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 6 1.2.2 Support Equipment List and Details .............................................................................................................. 6 1.2.3 Support Cable List and Details ...................................................................................................................... 6 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 8 2. SUMMARY OF TEST RESULTS ............................................................................................ 9 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 10 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 10 3.1.1 Applicable Standard ..................................................................................................................................... 10 3.1.2 EUT Setup.................................................................................................................................................... 11 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 11 3.1.4 Test Procedure ............................................................................................................................................. 12 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 12 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 13 3.2.1 Applicable Standard ..................................................................................................................................... 13 3.2.2 EUT Setup.................................................................................................................................................... 13 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 14 3.2.4 Test Procedure ............................................................................................................................................. 14 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 15 3.3.1 Applicable Standard ..................................................................................................................................... 15 3.3.2 EUT Setup...............................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
