2A6TN-SPT-181Bluetooth Page Turner Pedal

-1- NewBee/English Bluetoothpageturner SPT-181 English01-04 Deutsch04-07 Français07-09 Italiano10-13 Español13-15 日本語16-17 Русскийязык18-20 E-mail:[email protected] Website:www.anewbee.com -2- I.ProductOverview ThisBluetoothfootpedalmusicturnerusesBluetooth5.4low-latencyconnectionandis compatiblewithmobilephones,tabletsandvariousmusicnotationsoftware.Type-C charginghaslongbatterylife,iscompactandportable,andfoot-controlledpageturning freesupyourhands,makingitsuitableforpianopractice,stageperformances,andband rehearsals. II.Productfunctions ①Multi-functionbutton ②Bluetoothindicator ③Chargingindicator ④Pageturningmode ⑤Up/downpageturningmode ⑥Left/rightpageturningmode ⑦Previous/Nexttrack ⑧Play/Pause ⑨Leftpedal ⑩Rightpedal III.ProductOperation 1.PowerOn/Off:Pressandholdbutton①for3secondstopoweron.Pressandhold againwhilepoweredontopoweroff. 2.BluetoothConnection:Whenpoweredon,theBluetoothindicatorlightonbutton②will -3- flash,indicatingBluetoothiswaitingtoconnect.TheBluetoothnameis"SPT-181".The lightwillremainonafterasuccessfulconnection.(Thedevicewillautomaticallypoweroff ifthereisnoBluetoothconnectionwithin5minutesofpoweringon.Ifthereisno operationfor2.5hourswhileconnectedviaBluetooth,itwillautomaticallypoweroffto savepower.) 3.PageTurningFunctionSwitching:ThedefaultpageturningmodeistheUP/DNkey whenthedeviceispoweredon.Clickingkey①willswitchtootherfunctions(suchas verticalorhorizontalpageturning). 4.Previous/NextTrackFunction:Withthedevicepoweredonandconnectedvia Bluetooth,pressbutton①threetimes.Theprevious/nexttrackfunctionbutton(⑦)will remainlit.Whiletheconnecteddeviceisplayingmusic,youcanusefootpedals(⑨and ⑩)tocontrolthepreviousornexttrack. 5.Play/PauseFunction:WiththedevicepoweredonandconnectedviaBluetooth,press button①fourtimes.Theplay/pausefunctionbutton(⑧)willremainlit.Whilethe connecteddeviceisplayingmusic,youcanusefootpedals(⑨and⑩)tocontrolplayor pause. 6.SimulatedMouseFunction:WiththedeviceconnectedviaBluetooth,clickbutton① fivetimesuntilbutton⑤flashesblue.Youcanthenusefootpedals(⑨and⑩)toscrollup anddownonfiles.Clickbutton①againuntilbutton⑥flashesblue.Youcanthenuse footpedals(⑨and⑩)toscrollleftandrightonfilesorflipimages.7.Lowbatterymode: Whentheredpowerindicatorlightflashes,pleasechargeitintime.Theredlightwillstay onwhilechargingandwillturnoffwhenfullycharged. IV.ProductParameters ProductModel:SPT-181 BluetoothTransmissionDistance:>10meters ChargingMethod:TYPE-C ChargingVoltage:5V TotalUsageTime:Approximately38hours Power-OffSetting:Automaticallyshutsdownaftermorethan2.5hoursofinactivity followingBluetoothconnection PowerSupply:Built-in250mAhLithiumBattery ChargingCurrent:160mA-180mA ChargingTime:Approximately1.5hours Happy? Thankyouforchoosingourproducts!Wesincerelyhopeitwillbeyournew-found happiness. Ifyouarefullysatisfiedwithyourusingexperience,couldyoupleasekindlysharetoyour -4- friends? Wealsoengagewithourfanstolearnhowwecandobetterbyofferingfreepre-release products.Ifyouareinterested,donothesitatetofollowuson: Facebook:NewBeeBrand Website:https://www.anewbee.com NotHappy? Ifyouhaveanyquestions,concerns,orjustnotsatisfiedwithourproducts,pleasefeel freetocontactusthroughe-mailat: E-mail:[email protected] Tel:（USA）1-626-701-7623（UK）07845854035 Address:3rdFl,BldgE,GuanghaoInd.,No.23,DalangSt.,LonghuaDist.,Shenzhen City,GuangdongProv.,China Deutsch Bluetooth-Notenblätterpedal SPT-181 I.Produktübersicht DiesesBluetooth-NotenblätterpedalverfügtübereineBluetooth5.4-Verbindungmit geringerLatenzundistmitSmartphones,TabletssowieeinerVielzahldigitaler Noten-Appskompatibel. DankdesUSB-Type-C-LadeanschlussesbietetdasGeräteinelangeAkkulaufzeitin einemkompaktenundtragbarenDesign.DiefußgesteuerteUmblätterfunktionhältbeide HändefreiundeignetsichidealzumÜbenvonMusikinstrumenten,fürBühnenauftritte sowiefürBandproben. II.Produktfunktionen ①Multifunktionstaste ②Bluetooth-Anzeige ③Ladeanzeige ④Umblättermodus ⑤Modus„Auf/Abumblättern“ ⑥Modus„Links/Rechtsumblättern“ ⑦VorherigerTitel/NächsterTitel ⑧Wiedergabe/Pause ⑨LinkesFußpedal ⑩RechtesFußpedal -5- III.Produktbedienung 1.Ein-/Ausschalten:HaltenSiedieTaste①3Sekundenlanggedrückt,umdasGerät einzuschalten,haltenSiedieTasteimeingeschaltetenZustandgedrückt,umdasGerät auszuschalten. 2.Bluetooth-Verbindung:ImeingeschaltetenZustandblinktdieBluetooth-Anzeigebei ②,BluetoothwartetaufeineVerbindung,derBluetooth-Gerätenamelautet„SPT-181“, nacherfolgreicherVerbindungleuchtetdieAnzeigedauerhaft.(Wenninnerhalbvon5 MinutennachdemEinschaltendesGerätskeineBluetooth-Verbindunghergestelltwird, schaltetsichdasGerätautomatischaus.WennbeibestehenderBluetooth-Verbindung 2,5StundenlangkeineBedienungerfolgt,schaltetsichdasGerätautomatischaus,um Stromzusparen.) 3.UmschaltenderUmblätterfunktion:ImeingeschaltetenZustandiststandardmäßig dieFunktion„UP/DN“aktiviert,diesistderUmblättermodus,drückenSiedieTaste① einmal,umzuanderenFunktionenzuwechseln,(z.B.Seitenachoben/Seitenachunten oderSeitenachlinks/Seitenachrechts.) 4.Funktion„VorherigerTitel/NächsterTitel“:DrückenSiebeieingeschaltetemGerät undbestehenderBluetooth-VerbindungdieTaste①dreimalkurz,dieFunktionsanzeige ⑦für„VorherigerTitel/NächsterTitel“leuchtetdauerhaft,wennaufdemverbundenen GerätMusikwiedergegebenwird,kannmitdenFußpedalen⑨und⑩zumvorherigen odernächstenTitelgewechseltwerden. -6- 5.Funktion„Wiedergabe/Pause“:DrückenSiebeieingeschaltetemGerätund bestehenderBluetooth-VerbindungdieTaste①viermalkurz,dieFunktionsanzeige⑧für „Wiedergabe/Pause“leuchtetdauerhaft,wennaufdemverbundenenGerätMusik wiedergegebenwird,kanndieWiedergabemitdenFußpedalen⑨und⑩gestartetoder angehaltenwerden. 6.Maus-Emulationsfunktion:DrückenSiebeibestehenderBluetooth-Verbindungdie Taste①fünfmal,bisdieAnzeigeleuchte⑤blaublinkt,anschließendkannmitden Fußpedalen⑨und⑩ineinerDateinachobenunduntengescrolltwerden,drückenSie dieTaste①erneuteinmal,bisdieAnzeigeleuchte⑥blaublinkt,anschließendkannmit denFußpedalen⑨und⑩ineinerDateinachlinksundrechtsgescrolltodereinBild horizontalgespiegeltwerden. 7.NiedrigerAkkuladestand:WenndieAkkustandsanzeigerotblinkt,ladenS…

Text truncated - open the document above for the full version.

Shenzhen Link Dream Electronic Co.,ltd Room 301, Building E, Queshan Guanghao Industrial Park Gaofeng community, Dalang Jiedao, LonghuaQu Shenzhen Guangdong 518000 CN, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/08/21 U.S. Agent Designation Shenzhen Link Dream Electronic Co.,ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A6TN-SPT-181): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Link Dream Electronic Co.,ltdwith the FRN [0032386765] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Macro Liu General manager Shenzhen Link Dream Electronic Co.,ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

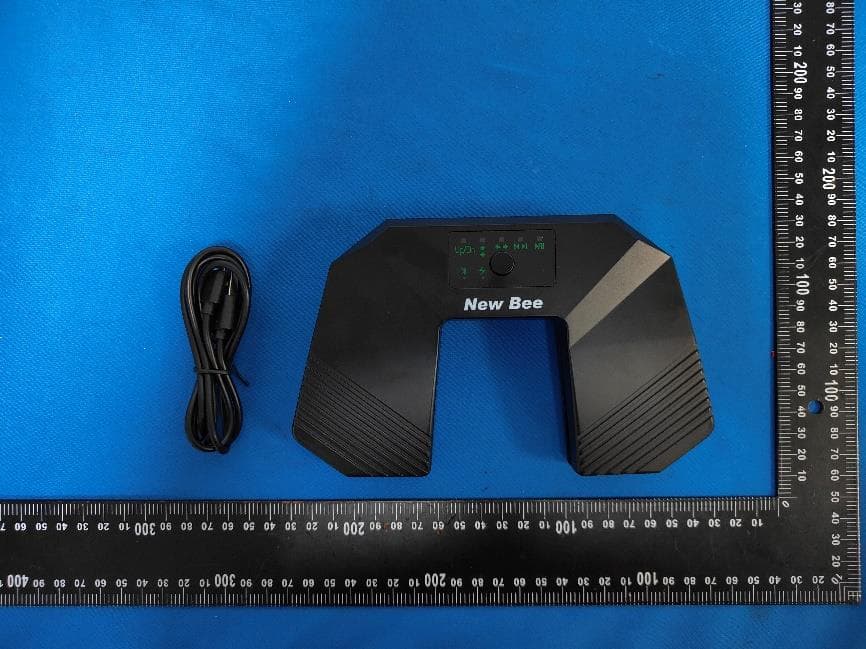

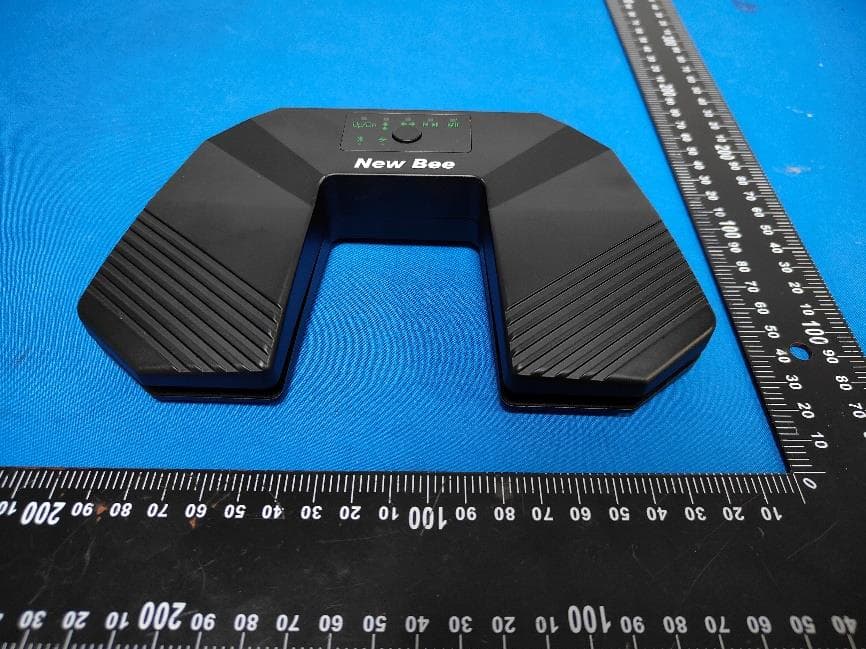

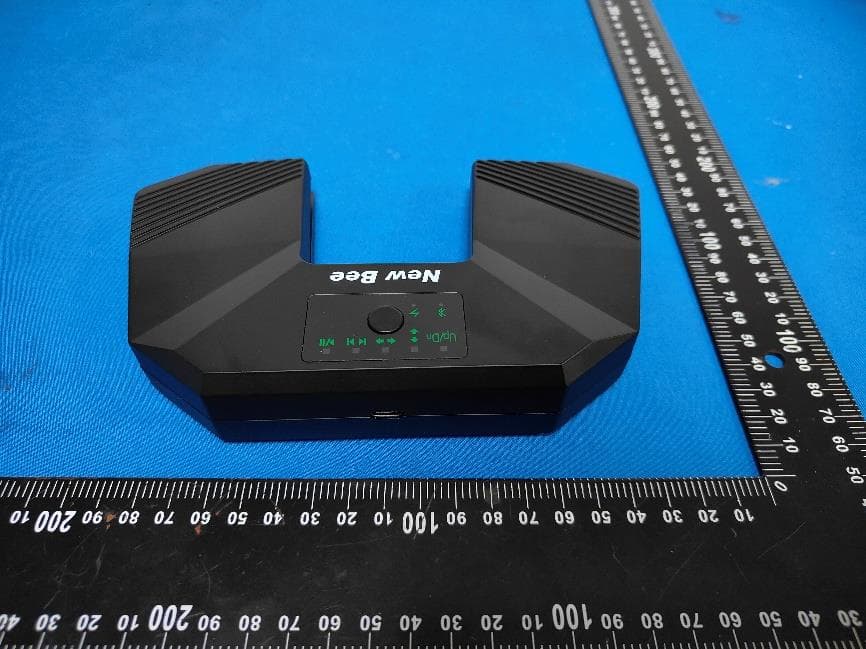

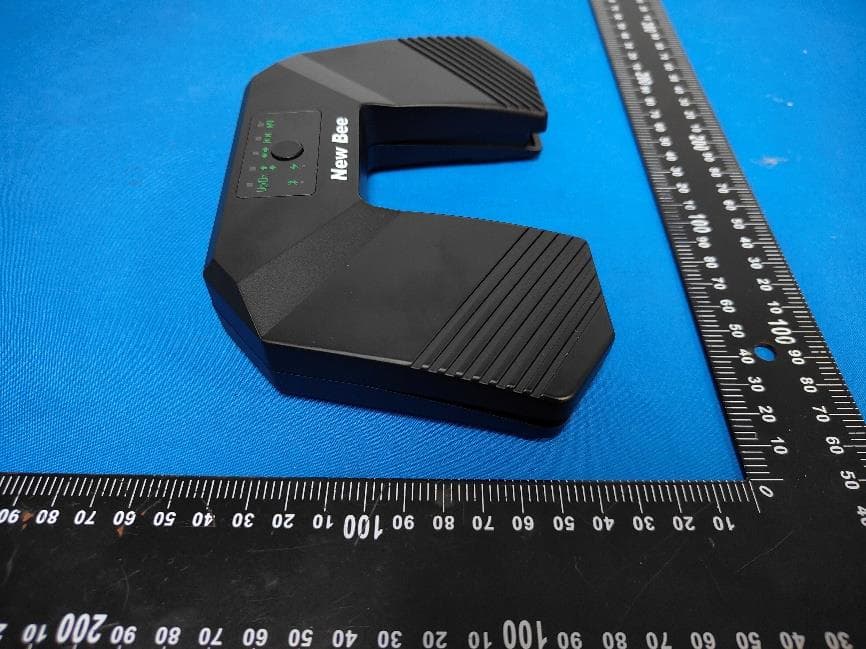

FCC ID:2A6TN-SPT-181 External Photos of the EUT FCC ID:2A6TN-SPT-181 FCC ID:2A6TN-SPT-181

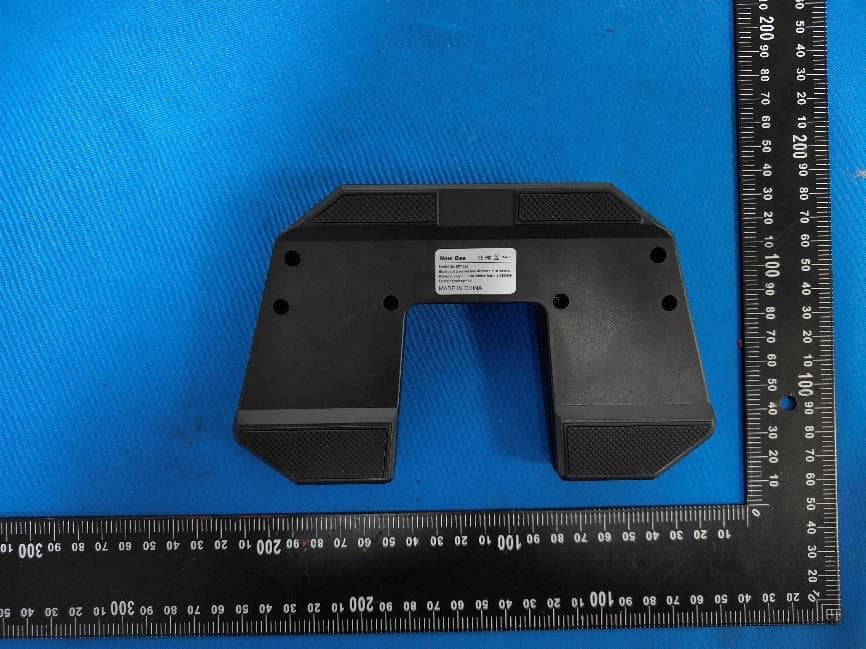

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2A6TN-SPT-181

FCC ID:2A6TN-SPT-181 Internal Photos of the EUT FCC ID:2A6TN-SPT-181 FCC ID:2A6TN-SPT-181 FCC ID:2A6TN-SPT-181 Antenna FCC ID:2A6TN-SPT-181

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26081000702 2A6TN-SPT-181 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 18, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Link Dream Electronic Co.,ltd Address............................................ : Room 301, Building E, Queshan Guanghao Industrial Park Gaofeng community, Dalang Jiedao, LonghuaQu Shenzhen Guangdong 518000 CN, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth Page Turner Pedal Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Link Dream Electronic Co.,ltd Model/Type reference ...................... : SPT-181 Listed Models ................................... : SPT-182, BP-10, BP-11, BP-12 Rating ............................................... : Input: DC 5V Battery: 3.7V 250mAh Result ............................................... : PASS Report No.: CTA26081000702 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth Page Turner Pedal Model /Type : SPT-181 Listed Models : SPT-182, BP-10, BP-11, BP-12 Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these models. So the tests were performed on model SPT-181 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Link Dream Electronic Co.,ltd Address : Room 301, Building E, Queshan Guanghao Industrial Park Gaofeng community, Dalang Jiedao, LonghuaQu Shenzhen Guangdong 518000 CN, China Manufacturer : Shenzhen Link Dream Electronic Co.,ltd Address : Room 301, Building E, Queshan Guanghao Industrial Park Gaofeng community, Dalang Jiedao, LonghuaQu Shenzhen Guangdong 518000 CN, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081000702 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ..................................................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26081000701 2A6TN-SPT-181 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 18, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Link Dream Electronic Co.,ltd Address ............................................ : Room 301, Building E, Queshan Guanghao Industrial Park Gaofeng community, Dalang Jiedao, LonghuaQu Shenzhen Guangdong 518000 CN, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth Page Turner Pedal Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Link Dream Electronic Co.,ltd Model/Type reference ...................... : SPT-181 Listed Models ................................... : SPT-182, BP-10, BP-11, BP-12 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Input: DC 5V Battery: 3.7V 250mAh Result ............................................... : PASS Report No.: CTA26081000701 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth Page Turner Pedal Model /Type : SPT-181 Listed Models : SPT-182, BP-10, BP-11, BP-12 Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these models. So the tests were performed on model SPT-181 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Link Dream Electronic Co.,ltd Address : Room 301, Building E, Queshan Guanghao Industrial Park Gaofeng community, Dalang Jiedao, LonghuaQu Shenzhen Guangdong 518000 CN, China Manufacturer : Shenzhen Link Dream Electronic Co.,ltd Address : Room 301, Building E, Queshan Guanghao Industrial Park Gaofeng community, Dalang Jiedao, LonghuaQu Shenzhen Guangdong 518000 CN, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081000701 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2A6TN-SPT-181 Company : Shenzhen Link Dream Electronic Co.,ltd EUT : Bluetooth Page Turner Pedal Model Number : SPT-181 Report No. : CTA26081000701 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.957 2401.517 2402.474 --- --- 2441 0.951 2440.520 2441.471 --- --- 2480 0.948 2479.520 2480.468 --- --- 2DH5 Ant1 2402 1.329 2401.313 2402.642 --- --- 2441 1.320 2440.316 2441.636 --- --- 2480 1.320 2479.319 2480.639 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.85923 2401.5520 2402.4112 --- --- 2441 0.87049 2440.5468 2441.4173 --- --- 2480 0.85522 2479.5489 2480.4042 --- --- 2DH5 Ant1 2402 1.1731 2401.3938 2402.5669 --- --- 2441 1.1755 2440.3946 2441.5701 --- --- 2480 1.1620 2479.3972 2480.5592 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 3.02 ≤20.97 PASS 2441 2.97 ≤20.97 PASS 2480 3.05 ≤20.97 PASS 2DH5 Ant1 2402 0.71 ≤20.97 PASS 2441 0.79 ≤20.97 PASS 2480 0.77 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.032 ≥0.957 PASS 2DH5 Ant1 Hop 1.014 ≥0.886 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.408 316 0.129 ≤0.4 PASS DH3 Ant1 Hop 1.664 165 0.275 ≤0.4 PASS DH5 Ant1 Hop 2.912 110 0.32 ≤0.4 PASS 2DH1 Ant1 Hop 0.417 318 0.133 ≤0.4 PASS 2DH3 Ant1 Hop 1.669 153 0.255 ≤0.4 PASS 2DH5 Ant1 Hop 2.917 101 0.295 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 2.47 -54.84 ≤-17.53 PASS High 2480 2.57 -53.27 ≤-17.43 PASS Low Hop_2402 -1.18 -57.79 ≤-21.18 PASS High Hop_2480 -0.59 -58.01 ≤-20.59 PASS 2DH5 Ant1 Low 2402 -0.70 -55.73 ≤-20.7 PASS High 2480 -2.28 -57.59 ≤-22.28 PASS Low Hop_2402 -1.37 -57.25 ≤-21.37 PASS High Hop_2480 -0.69 -57.97 ≤-20.69 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference 1.63 1.63 --- PASS 30~1000 1.63 -69.35 ≤-18.37 PASS 1000~26500 1.63 -23.35 ≤-18.37 PASS 2441 Reference 1.94 1.94 --- PASS 30~1000 1.94 -69.05 ≤-18.06 PASS 1000~26500 1.94 -26.2 ≤-18.06 PASS 2480 Reference 1.59 1.59 --- PASS 30~1000 1.59 -68.91 ≤-18.41 PASS 1000~26500 1.59 -28 ≤-18.41 PASS 2DH5 Ant1 2402 Reference -1.46 -1.46 --- PASS 30~1000 -1.46 -69.03 ≤-21.46 PASS 1000~26500 -1.46 -33.59 ≤-21.46 PASS 2441 Reference -1.00 -1.00 --- PASS 30~1000 -1.00 -68.73 ≤-21 PASS 1000~26500 -1.00 -29.24 ≤-21 PASS 2480 Reference -1.61 -1.61 --- PASS 30~1000 -1.61 -68.47 ≤-21.61 PASS 1000~26500 -1.61 -37.09 ≤-21.61 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.93 3.75 78.13 1.07 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.74 78.07 1.08 --- ---

36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480 39 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -60.52 2.00 1.10 37.78 ≤54 PASS AV 2363.630 -59.3 2.00 1.10 39.00 ≤54 PASS AV 2390.000 -59.82 2.00 1.10 38.48 ≤54 PASS Peak 2310.000 -53.51 2.00 0.00 43.69 ≤74 PASS Peak 2313.965 -49.42 2.00 0.00 47.78 ≤74 PASS Peak 2390.000 -52 2.00 0.00 45.20 ≤74 PASS High 2480 AV 2483.500 -56.84 2.00 1.10 41.46 ≤54 PASS AV 2483.760 -56.34 2.00 1.10 41.96 ≤54 PASS AV 2500.000 -59.37 2.00 1.10 38.93 ≤54 PASS Peak 2483.500 -47.73 2.00 0.00 49.47 ≤74 PASS Peak 2483.600 -45.04 2.00 0.00 52.16 ≤74 PASS Peak 2500.000 -50.85 2.00 0.00 46.35 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -60.68 2.00 1.07 37.59 ≤54 PASS AV 2387.045 -59.34 2.00 1.07 38.93 ≤54 PASS AV 2390.000 -59.71 2.00 1.07 38.56 ≤54 PASS Peak 2310.000 -51.59 2.00 0.00 45.61 ≤74 PASS Peak 2353.235 -48.97 2.00 0.00 48.23 ≤74 PASS Peak 2390.000 -52.02 2.00 0.00 45.18 ≤74 PASS High 2480 AV 2483.500 -58.15 2.00 1.08 40.13 ≤54 PASS AV 2483.920 -58.08 2.00 1.08 40.20 ≤54 PASS AV 2500.000 -59.85 2.00 1.08 38.43 ≤54 PASS Peak 2483.500 -51.15 2.00 0.00 46.05 ≤74 PASS Peak 2484.400 -44.29 2.00 0.00 52.91 ≤74 PASS Peak 2500.000 -51.01 2.00 0.00 46.19 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 40 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 41 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 42 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 43

Inverted F Antenna Specification Summary ANT SPECITEM 2.4G ANTModel Name VerticalHorizontal 2500MHz2400MHz2500MHz2400MHz Center Frequency -1.86-2.46-5.25-0.58-0.76-1.26 -0.58dBiMAX. Gain Horizontal and VerticalPolarization Azimuth Beam Pattern Omni-directional 50 OhmImpedance 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Address No. 333 Kexing Road, Xiangzhou District, Zhuhai City 2450MHz2450MHz Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.
