2A6WI-BLR10BLASER RANGEFINDER

Section 1 - Introducing the BLR10b Congratulations on your purchase of the Acura BLR10b Ballistic Rangefinding Binoculars 10x42! Your BLR10b coupled with your Revic Ops App will calculate the right shoot to solution for your rifle and round based upon all of the relevant factors for any shooting scenario. Every time you press the FIRE button, on-board sensors measure distance, incline angle, barometric pressure, temperature, and compass bearing to provide a firing solution. Your ballistic calculations are powered by the Revic doppler ballistic engine that uses precise algorithms configured to provide ultra-fast corrections displayed as a Shoot-To-Range in BDC, MOA or MILs at the measured distance. Wind corrections are also provided in MOA or MILs for each ballistic solution. Section 2 - Getting Started Quick Start/Battery Installment 1.The BLR10b Binocular is powered by a 3 Volt Lithium battery, commonly referred to as CR2. Please note that there will be a battery already installed. Please remove the red insulator sheet in the battery compartment before using it. To install/reinstall the battery: a. Remove the battery compartment cover (found on the underside of your binoculars) by lifting up the hinged tab and turning counter-clockwise, b. Insert the battery, positive end (+) first. c. Re-insert the battery compartment cover and use the hinged tab to turn clockwise. d. Once secure, press down on the hinged tab for a flush end cap. 2.Press and release the larger round FIRE button to power ON the unit. Each time the unit is powered on, the unit is ready to take a measurement. 3.Select a target and look through the eyepiece and use the center circular reticle to aim at the target. 4.Press and hold the FIRE button. The distance hash marks will flash while the laser is active. The laser will remain active for up to 10 seconds while acquiring data about the target. Release the FIRE button once the distance is displayed. If the distance is not displayed, release the FIRE button and repeat. 1 Connect your BLR10b to a Device Your BLR10b communicates with the Revic Ops App to access the ballistic profiles that you can customize inside the app. For your BLR10b to access and connect to your ballistic files, do the following: 1.Download the Revic app from the Google Play Store or the Apple App Store, or gunwerks.com/app, or simply take a picture of the QR code below and you will be taken directly to the app store. 2.Program the ballistic profile of your rifle inside the app. 2 3.When powered on, the BLR10b is configured so the Bluetooth is on and actively searching for a device to connect to. The Bluetooth icon will flash until connected to the Revic app. 4.In the Revic app, select the Bluetooth icon to show the available devices and select your BLR10b Device ID number from the list. 5.Once the device is connected via bluetooth, the bluetooth icon in the BLR10b will remain solid, and the signal icon in the app will be illuminated. Selecting a Profile 3 Select your desired rifle’s profile to add it to your BLR10b by doing the following: 1.In the app, from the main screen, open the Sync Module. 2.Select the icon next to the ballistic profile you would like to add. 3.Next, press the Sync button to transmit the your desired profile to the connected BLR10b device. The app will confirm the selected profile has been successfully synced to the binocular. The BLR10b will store 1 synced profile from the app. This is to make sure that you don’t accidentally use the wrong profile in a critical shooting situation. Powering OFF the BLR10b If no button presses are detected after 20 seconds, the BLR10b will enter sleep mode to conserve battery power. The BLR10b will power OFF automatically after 60 seconds of the display being off. If a Bluetooth connection was established, power off will occur automatically 5 min from the last button press. 4 Section 3 - Basic Operations Buttons The BLR10b has a 4-button keypad located on the top panel of the binocular. The buttons provide easy access to the instrument functions, programming, and operating commands while using your BLR10b. Operation of the buttons is further detailed in section 3 and 4. 5 Ranging Reticle The center circular reticle shown below is used to aim the binoculars. The reticle is dimensioned to be the same size as the spread of the laser beam. Eyecup The adjustable eyecups are designed for comfort and to block extraneous light. To adjust the eyepiece, turn it counter-clockwise. To return the eyepiece to its original position, turn it clockwise. 6 Eyepiece Diopter Adjustment The eyepiece diopter adjustment rings allow you to focus the LCD display for your eye. To adjust the focus: 1.Adjust the eyecups to your preferred position. 2.Adjust the focus knob until a clear image is achieved. 3.With the display illuminated, turn the Right diopter adjustment ring in or out until the display is clear. 4.Adjust the Left diopter adjustment ring until the image and display are clear. LCD Display An Organic Light-Emitting Diode (OLED) Display is mounted within the optical system and projects information into the field of view. Laser Range Sensor The IEC Class 1M laser range sensor emits eye-safe invisible infrared energy pulses. The BLR10b determines distance by measuring the time it takes for each pulse to travel from the rangefinder to the target and back. The ranging reticle flashes whenever the laser is being transmitted. The laser may be active for a maximum of 10 seconds while it scans. Targeting The BLR10b automatically provides the best accuracy and acquisition distance to a given target. The maximum measurement distance varies with target quality and environmental conditions. The maximum measurement distance in ideal conditions is approximately 5,000 yards on a reflective target. 7 When selecting a target, you should consider the following for better-ranging results: • Reflectivity: Lighter colors and shiny surfaces provide better reflection. • Angle: Aiming pe…

Text truncated - open the document above for the full version.

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 2/16/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A6WI-BLR10B Per section 2.911(d)(7) of the FCC rules, Gunwerks, LLC. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Gunwerks, LLC. FCC Registration Number (FRN): 0032398018 Physical U.S. Company Address: 201 Blackburn St. Cody, WY 82414 Contact Person: Haizhou Li Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Haizhou Li Title: System Architect Company Name: Gunwerks, LLC. Date: 2/16/2023

Gunwerks,LLC.–201BlackburnStreet-Cody,WY82414 Covered Equipment Certification Attestation Letter 2/16/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A6WI-BLR10B Gunwerks,LLC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the currentCovered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Gunwerks,LLC. (“the applicant”) certifies that, as of the date of the filing of the application, the applicantis notidentified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Haizhou Li Title: System Architect Company Name: Gunwerks,LLC. Date: 2/16/2023

Gunwerks,LLC.–201BlackburnStreet-Cody,WY82414 DATE: 2022-11-15 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 AuthoritytoAct asAgent On our behalf, I appoint DONGGUAN SHUOXIN ELECTRONIC TECHNOLOGY CO., LTD. Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Gunwerks, LLC. ; 201 Blackburn St. Cody, WY 82414. Name:HaizhouLi Title: System Architect Applicant Company: Gunwerks, LLC.

Gunwerks,LLC.–201BlackburnStreet-Cody,WY82414 DATE : 2022-11-15 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A6WI-BLR10b Product Name: LASER RANGEFINDER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. __________________________ Name:HaizhouLi Title: Systme Architect Applicant Company: Gunwerks, LLC. FCC ID: 2A6WI-BLR10B

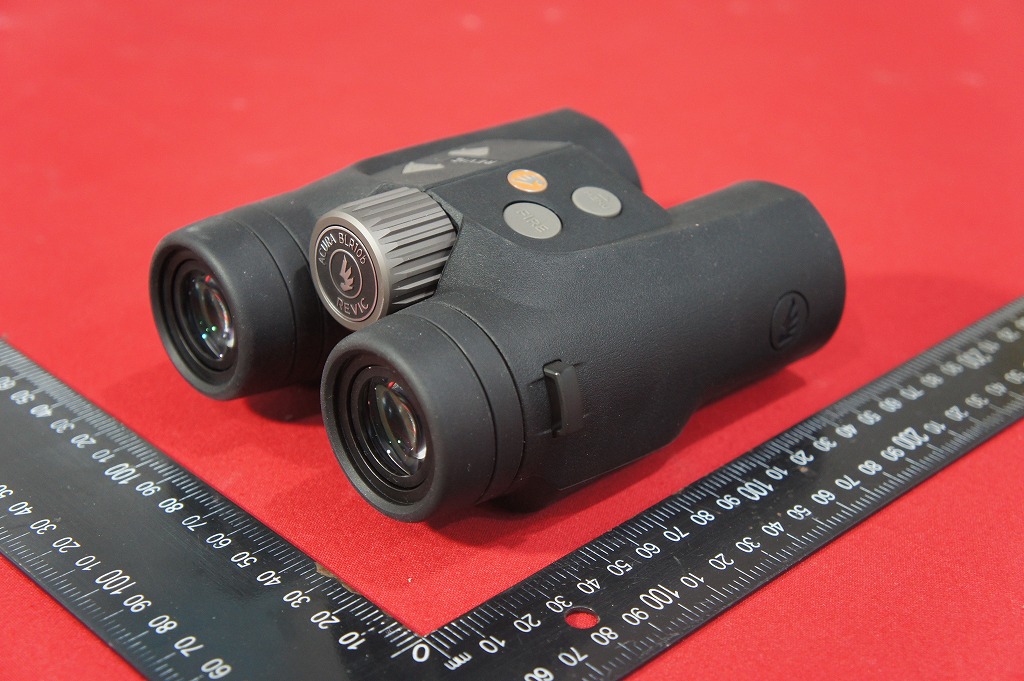

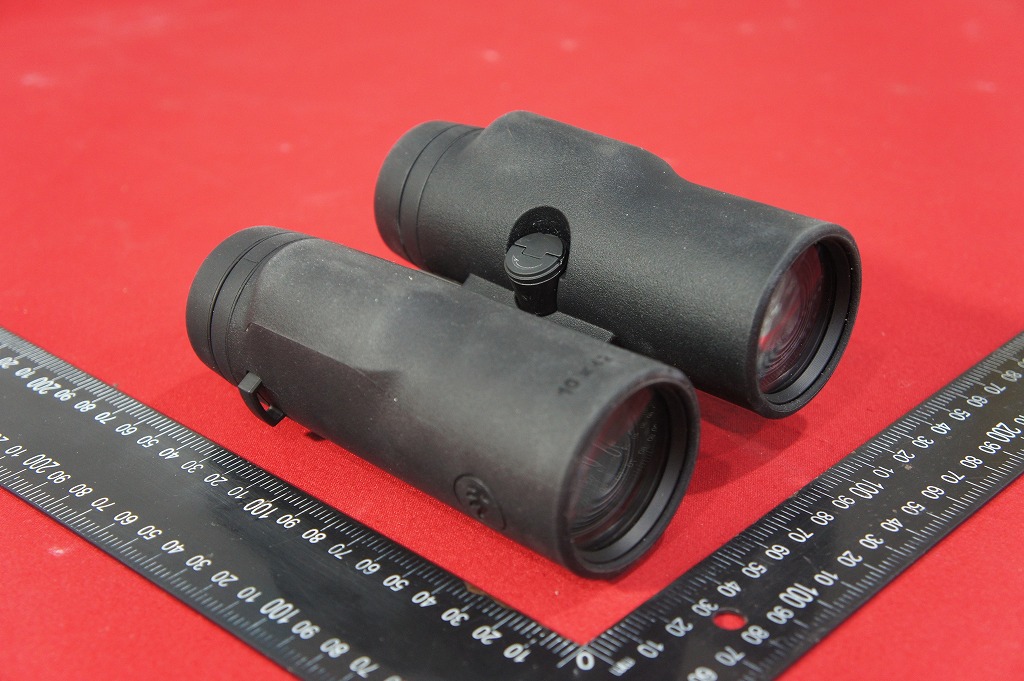

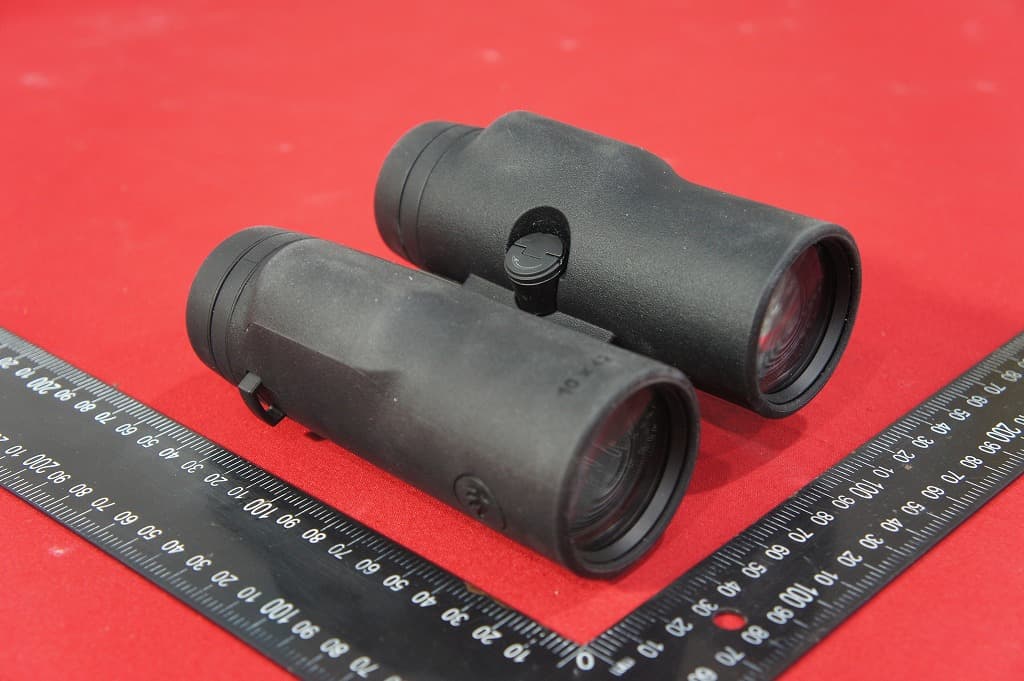

1 / 3 External photos 2 / 3 3 / 3 END

Lab 1 / 1 el Loca ation

1 / 13 Internal photos 2 / 13 Antenna location 3 / 13 4 / 13 5 / 13 6 / 13 7 / 13

8 / 13 9 / 13 10 / 13 11 / 13 12 / 13 13 / 13 ----------------------- BLANK BELOW ------------------------- Bluetooth Antenna

Report No.: 22EFSS9077 09721 RF EXPOSURE REPORT FCC ID: 2A6WI-BLR10B Report Reference No. ................ : 22EFSS9077 09721 Date of issue .............................. : 2022-10-29 Applicant’s name ........................ : Gunwerks, LLC. Address ...................................... : 201 Blackburn St. Cody, WY 82414 Manufacturer .............................. : Gunwerks, LLC. Equipment .................................. : LASER RANGEFINDER Trade Mark ................................. : Model ........................................ : ACURA BLR10b Ratings ....................................... : Input: DC 3V for battery. Output: -- Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China According ................................... : KDB 447498 D01 General RF Exposure Guidance v06 Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 22EFSS9077 09721 MPE CALCULATION METHOD: Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 Walsin Technology Corporation RFANT5220110 A0T Chip/Ceramic SMT 2 Report No.: 22EFSS9077 09721 TEST RESULTS Ant gain =2dBi MAX output power：0.198dBm@2440MHz ERP=0.198+2-2.15=0.048dBm WORSE CASE: 10^0.0198=1.047mW <2.715mW Then SAR evaluation is not required END

FCC & ISED Radio Test Report FCC ID: 2A6WI-BLR10B IC: 28543-BLR10B The report concerns: Original Grant Report Reference No. ................. : 22EFSS09077 09711 Date Sample(s) Received ........... : 2022-09-22 Date of Tested ............................. : From 2022-10-18 to 2022-10-29 Date of issue ............................... : 2022-10-29 Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name for FCC ........... : Gunwerks, LLC. Address for FCC ......................... : 201 Blackburn St. Cody, WY 82414 Applicant’s name for IC ............... : Gunwerks, LLC Address for IC ............................. : SW 26-39-21w4 Erskine, AB T0C 1G0 Canada Manufacturer............................... : Gunwerks, LLC. Equipment................................... : LASER RANGEFINDER Trade Mark ................................. : Model ........................................ : ACURA BLR10b Ratings ....................................... : Input: DC 3V for battery. Output: -- Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 22EFSS09077 09711 Page 2 of 53 Table of Contents Page 1 TEST REPORT DECLARE 4 2 SUMMARY OF TEST RESULTS 5 2.1 MEASUREMENT UNCERTAINTY 6 3 GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 9 3.3 PARAMETERS OF TEST SOFTWARE 9 3.4 BLOCK DIAGRAM SHOWINGTHECONFIGURATIONOFSYSTEM TESTED 10 3.5 SUPPORT UNITS 10 3.6 TEST ENVIRONMENT CONDITIONS 10 4 RADIATED EMISSION TEST 11 4.1 LIMIT 11 4.2 TEST PROCEDURE 12 4.3 MEASUREMENT INSTRUMENTS LIST 13 4.4 TESTSETUP 13 4.5 EUT OPERATING CONDITIONS 14 4.6 TEST RESULT- 9KHZ TO 30MHZ 15 4.7 TEST RESULT- 30MHZ TO 1000MHZ 16 4.8 TEST RESULT- ABOVE 1000MHZ(BAND EDGE) 18 4.9 TEST RESULTS - ABOVE 1000MHZ(HARMONIC) 26 5 BANDWIDTH TEST 38 5.1 LIMIT 38 5.2 TEST PROCEDURE AND SETTING 38 5.3 MEASUREMENT INSTRUMENTS LIST 38 5.4 TEST SETUP 38 5.5 EUT OPERATION CONDITIONS 38 5.6 TESTRESULTS 39 6 MAXIMUM OUTPUT POWER 41 6.1 LIMIT 41 6.2 TEST PROCEDURE 41 6.3 MEASUREMENT INSTRUMENTS LIST 41 6.4 TEST SETUP 41 6.5 EUT OPERATION CONDITIONS 41 6.6 TESTRESULTS 42 Report No.: 22EFSS09077 09711 Page 3 of 53 Table of Contents Page 7 CONDUCTED SPURIOUS EMISSION 44 7.1 LIMIT 44 7.2 TEST PROCEDURE 44 7.3 MEASUREMENT INSTRUMENTS LIST 44 7.4 TEST SETUP 44 7.5 EUT OPERATION CONDITIONS 44 7.6 TEST RESULTS 45 8 POWER SPECTRAL DENSITY TEST 49 8.1 LIMIT 49 8.2 TEST PROCEDURE 49 8.3 MEASUREMENT INSTRUMENTS LIST 49 8.4 TEST SETUP 49 8.5 EUT OPERATION CONDITIONS 49 8.6 TEST RESULTS 50 9 FREQUENCY STABILITY MEASUREMENT 52 9.1 LIMIT 52 9.2 TEST PROCEDURE 52 9.3 MEASUREMENT INSTRUMENTS LIST 52 9.4 TEST SETUP 52 9.5 EUT OPERATION CONDITIONS 52 9.6 TEST RESULTS 53 Re W T a T t A r A r i i eport No.: 22 1 TEST R Applicant Address f Applicant Address f Manufact Address Factory Address Equipme Model No Trade Ma Standard We Declare The equipm Ltd(ATT). a above. The Technology these tests. ATT is not received. ATT's repo responsibili identical ele inferences o EFSS09077 REPORT D t for FCC for FCC t for IC for IC turer nt o. ark : ment descri and in the c e test resul y Co., Ltd.(A . responsib l rts apply o ty to ensur e ectrical and or generaliz 09711 DECLARE Gunwerks, 201 Blackb Gunwerks, SW 26-39-2 Gunwerks, 201 Blackb BURST TR Mandalay - Lwin Towns LASER RA ACURA BL FCC Part15 RSS-247 Is RSS-Gen Is ANSI C63.1 bed above configuration ts are cont ATT) is assu le for the s nly to the s e that addit mechanica zations draw LLC. burn St. Cod LLC 21w4 Erskin LLC. burn St. Cod RANSMISSI - Lashio Ro ship, Manda ANGEFINDE LR10b 5, Subpart C ssue 2, Feb ssue 5, Ma 10-2013 is tested b n tested the tained in th umed of full sampling st specific sam tional produ al compone wn by the c dy, WY 8241 ne, AB T0C dy, WY 8241 ON CO., LT ad, Yatanar alay Region ER C (15.247) b. 2017 r. 2019 by DongGu e equipmen his test rep responsibil tage, so th mples teste uction units ents. ATT sh lient or othe 14 C 1G0 Cana 14 TD rpon Myothi n, Myanmar an ShuoXin nt complied port and Do ity for the a he results o ed under co of this mod hall have no ers from ATT ada it, Plot No. 3 r. n Electronic with the st ongGuan S ccuracy an d only apply onditions. It del are man o liability for T issued re 3,4,11, Pyin c Te c h n o l og tandards sp huoXin Ele d completen to the sam t is manufa ufactured w r any declar ports. Page 4 of n Oo gy Co., pecified ectronic ness of mple as acture’s with the rations, 53 Report No.: 22EFSS09077 09711 Page 5 of 53 2 SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 RSS-Gen8.8 AC Power Line Conducted Emissions N/A ------ 15.247(d) 15.205(a) 15.209(a) RSS-247 5.5 RSS-Gen8.9 RSS-Gen8.10 Radiated Emissions PASS ------ 15.247(a)(2) RSS-247 5.2 (a) RSS-Gen6.7 Bandwidth PASS ------ 15.247(b)(3) RSS-247 5.4 (d) Maximum Output Power PASS ------ 15.247(d) RSS-247 5.5 ConductedSpurious EmissionPASS ------ 15.247(e) RSS-247 5.2 (b) Power Spectral Density PASS ------ - RSS-Gen 6.11 Frequency Stability PASS ------ 15.203 - Antenna Requirement PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient tocomply with the provisions of 15.203. Report No.: 22EFSS09077 09711 Page 6 of 53 2.1 MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conduction emission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Polarize: H) Uncertainty for Radiation Emission test (200MHz-1GHz) 6.10 dB (Polarize: V) 5.08 dB (Polarize: H) Uncertainty for Radiation Emission test (1GHz-6GHz) …
