2A6WM45873608913Active UWB Antenna

Original instructions iGo neo Supplement to the standard operating instructions for the OPX OPX 20 OPX 25 OPX-L 12 OPX-L 20 OPX-L 20 S 1089 1090 1091 1092 1093 50108046112 - 07/2020 (03) 50108046112 EN - 07/2020 (03) I Address of manufacturer and contact details STILL GmbH Berzeliusstraße 10 22113 Hamburg, Germany Tel. +49 (0) 40 7339-0 Fax: +49 (0) 40 7339-1622 Email: [email protected] Website: http://www.still.de OEM of the iGo Neo’s Ultra- wideband radio frequency sensor system Comnovo GmbH Emil-Figge-Str. 76 44227 Dortmund, Germany Tel. +49-231-700996-10 Fax: +49-231-700996-14 Rules for the operating com- pany of industrial trucks In addition to these operating instructions, a code of practice containing additional informa- tion for the operating companies of industrial trucks is also available. This guide provides information for handling industrial trucks: ● Support for the creation of the statutory hazard assessment ● Information on how to select suitable indus- trial trucks for a particular area of applica- tion ● Prerequisites for the safe operation of in- dustrial trucks ● Information on the use of industrial trucks ● Information on transport, initial commission- ing and storage of industrial trucks Preface II 50108046112 EN - 07/2020 (03) Internet address and QR code The information can be accessed at any time by pasting the address https://m.still.de/vdma in a web browser or by scanning the QR code. Preface Table of contents 50108046112 EN - 07/2020 (03) III 1 Foreword Your iGo neo ................................................................................................................... 2 Intelligent order picking - your iGo neo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Using the iGo neo ........................................................................................................... 5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Improper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Requirements for the place of use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Cold store application (variant) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Requirements for load carriers and loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Required safety distances in the aisle ............................................................................. 10 Customer-specific configuration by the authorised service centre .................................... 11 Copyright clause for open-source programs .................................................................... 12 FCC and ISED regulatory specification ........................................................................... 12 Roadways ...................................................................................................................... 13 Requirements for the ground conditions of roadways ...................................................... 13 Suitable roadways ........................................................................................................... 13 Information about the documentation ......................................................................... 15 Validity of this supplement to the operating instructions ................................................... 15 Issue date and topicality of the operating instructions ...................................................... 15 Copyright and trademark rights ....................................................................................... 16 Explanation of information symbols used......................................................................... 16 The term "rack" in these operating instructions ................................................................ 16 Environmental considerations ..................................................................................... 18 Disposing of components used for "Assistance" mode..................................................... 18 2 Safety Definition of terms used for responsible persons ....................................................... 20 Duties of the operating company ..................................................................................... 20 Duties of the operator ...................................................................................................... 21 Additional requirements applicable to the authorised service centre ................................. 22 Specialist ........................................................................................................................ 23 Basic principles for safe operation .............................................................................. 24 Modifications and retrofitting ........................................................................................... 24 Warning regarding non-genuine parts ............................................................................. 25 Damage, defects and misuse of safety systems .............................................................. 25 Medical equipment .......................................................................................................... 26 Residual risk ................................................................................................................. 27 Table of contents IV 50108046112 EN - 07/2020 (03) Residual dangers, residual risks ..................................................................................... 27 Overview of hazards and countermeasures .................................................................... 28 Danger to employees when "Assistance" mode is used .................................................. 30 Safety tests ................…

Text truncated - open the document above for the full version.

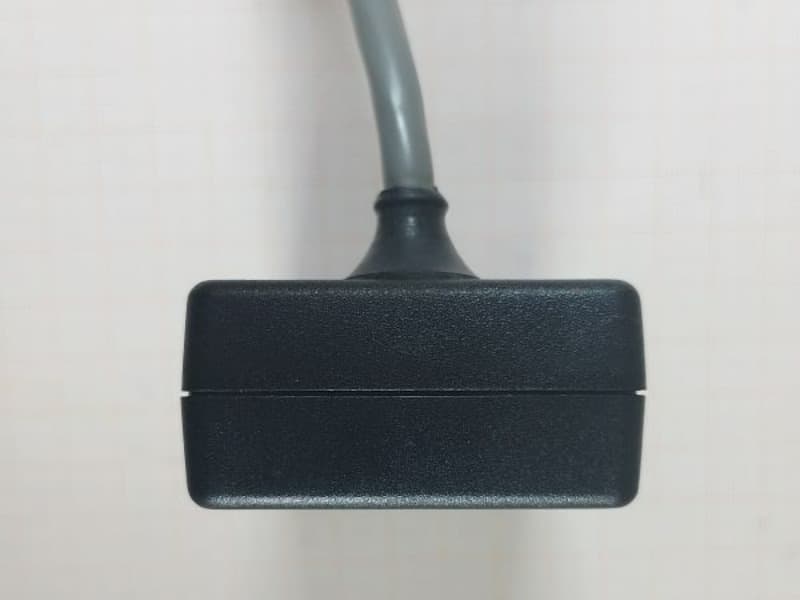

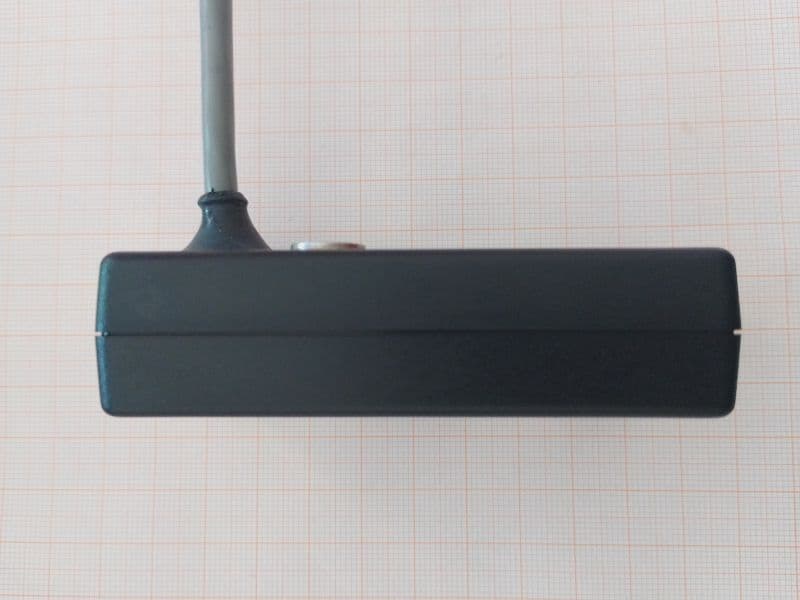

Annex A No.1-4029/22-01-01_Annex_A External photos of the Device Under Test This document is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: David Lang Lang Manager Radio Communications CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Annex A Photo 1: DUT - front view Photo 2: DUT - rear view 2022-07-13Document 1-4029/22-01-01_Annex_A2/4 Photo 3: DUT - side view Photo 4: DUT - side view 2022-07-13Document 1-4029/22-01-01_Annex_A3/4 Photo 5: DUT - side view Photo 6: DUT - side view - END OF DOCUMENT - 2022-07-13Document 1-4029/22-01-01_Annex_A4/4

CIG-11/02 NA Remote Control Antenna Part-No.: 45873608913 S/N: XX-XXXXXX-CW/YY Input: 12/24 V DC –0,25 A HW-Version 2.00 BL-Version 2.00 MAC: A0:33:D1:6B:94:12:5C:03 FCC ID: 2A6WM45873608913 ISED: 28586-45873608913 This devicecomplieswithPart 15 oftheFCC Rules and with Industry Canada license-exemptRSS standard(s). Operation is subjecttothefollowingtwoconditions: (1) thisdevicemaynot causeharmfulinterferenceand, (2) thisdevicemustacceptanyinterferencereceived, includingthatmaycauseundesiredoperation Le présentappareilestconformeauxCNR d‘industrieCanada applicablesauxappareilsradioexemptsde licence. L‘exploitationestautoriseauxdeux conditionssuivantes: (1) l‘appareilne doitpasproduirede brouillage, et (2) l‘utilisateurde l‘appareildoitacceptertoutbrouillage radioélectriquesubi, mêmesi le brouillageestsusceptible d‘encompromettrele fonctionnement

Annex B 1-4029/22-01-01_AnnexB Internal photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Michael Dorongovski Lab Manager Radio Communications CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2022-11-14Document No. 1-4029/22-01-01_AnnexB2/4 Photo 3 2022-11-14Document No. 1-4029/22-01-01_AnnexB3/4 Document history VersionApplied changesDate of release initial release2022-11-14 - END OF DOCUMENT - 2022-11-14Document No. 1-4029/22-01-01_AnnexB4/4

SAR Test exemption documentation according to CFR 47 §1.1307 Report identification number: 1-4029/22-01-03 Exemption / MPE (FCC) contains the module with the following certification numbers FCC ID 2A6WM45873608913 This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Test report no.: 1-4029/22-01-03 © CTC advanced GmbH Page 2 of 2 EUT technologies: MPE based exempted technologies: Technologies: Max. measured E.I.R.P. per BW=1MHz: BW Max. declared E.I.R.P. for Full BW: Max.decl.E.I.R.P. @1MHz x (BW/1MHz) Qualified for 1mW blanket exemption # (dBm) (μW) (MHz) UWB 3100 to 10600 MHz -42.7 0.054 0.054 0.054μW x 669 = 36.1μW yes A Details and origins of the measurements shown in the table above: # Results from: Additional information A 1-4029/22-01-02-A CTC Advanced GmbH Page 31 Blanket test exemption according CFR 47 §1.1307: §1.1307(b)(3)(i)(A) – A single RF source is exempt if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. (Applicable from 100 kHz to 100 GHz)

TEST REPORT Test report no.: 1-4029/22-01-0 2-A Testing laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.ctcadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01. STILL GmbH Berzeliusstr. 10 22113 Hamburg / GERMANY Phone: +49 231 700996 10 Fax: +49 231 700996 14 Contact: Volker Köster e-mail: [email protected] Manufacturer Comnovo GmbH Emil-Figge-Str. 76 44227 Dortmund / GERMANY Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 220 Issue 1, amendment 1 Spectrum Management and Telecommunications Radio Standards Specification - Devices Using Ultra-Wideband (UWB) Technology For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: External forklift truck antenna for iGo Neo system Model name: Remote Control Antenna FCC ID: 2A6WM45873608913 IC: 28586-45873608913 Frequency: 3100 MHz to 10600 MHz Technology tested: UWB Antenna: Integrated antenna Power supply: 12 V / 24 V DC by external power supply Temperature range: -40°C to +85°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: p.o. Thomas Vogler Frank Heussner Lab Manager Testing Manager Test report no.: 1-4029/22-01-02-A © CTC advanced GmbH Page 2 of 51 Radio Communications Radio Communications 1 Table of contents 1 Table of contents ............................................................................................................................................. 2 2 General information ......................................................................................................................................... 3 2.1 Notes and disclaimer ........................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 2.3 Test laboratories sub-contracted ........................................................................................................ 3 3 Test standard/s, references and accreditations .............................................................................................. 4 4 Reporting statements of conformity – decision rule ...................................................................................... 5 5 Test environment ............................................................................................................................................. 6 6 Test item........................................................................................................................................................... 6 6.1 General description ............................................................................................................................. 6 6.2 Additional information......................................................................................................................... 7 7 Description of the test setup ............................................................................................................................ 8 7.1 Shielded semi anechoic chamber ....................................................................................................... 9 7.2 Shielded fully anechoic chamber ...................................................................................................... 11 7.3 Radiated measurements > 18 GHz .................................................................................................... 14 8 Sequence of testing ....................................................................................................................................... 16 8.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................. 16 8.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ................................................................. 17 8.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................. 18 8.4 Sequence of testing radiated spurious above 18 GHz ...................................................................... 19 8.5 Sequence of testing efficient use of spectrum ................................................................................. 20 9 Measurement uncertainty .............................................................................................................................. 21 10 Summary of measurement results ............................................................................................................ 22 11 Additional comments ................................................................................................................................ 22 12 Measurement results ................................................................................................................................ 24 12.1 10 dB - Bandwidth ............................................................................................................................. 24 12.2 TX Radiated Emissions...................................................................................................................... 27 12.3 Efficient use of spectrum acc. to §…

Text truncated - open the document above for the full version.

`Dielectric Chip Antenna - 1 - Stub L W T Chip Antenna Dimension Chip Antenna Soldering Pad Dimension PCB Soldering Land & Stub Dimension B A B C A C A A E A E A F D A Soldering Land D L8.0 W6.0 T1.2 A1.0 B2.0 C1.5 D2.1 E1.6 F13.0 ■ ELECTRICAL CHARACTERISTICS SWR & Smith chart ■ MECHANICAL DIMENSION (unit : mm, tolerance : ± 0.1) This specification covers the dielectric chip antenna ACS5200HFAUWB used in3200~7200MHzWireless Communication. ■ P/N : ACS5200HFAUWB `Dielectric Chip Antenna - 2 - ■ ELECTRICAL CHARACTERISTICS (2D) 2D Measurement Frequency [MHz]32004200520062007200 Gain Azimuth Theta Peak-0.882.732.514.161.31 Average-4.26-1.22-1.88-1.10-4.82 Phi Peak-3.84-2.16-1.91-2.61-5.20 Average-9.61-8.20-8.16-9.96-11.63 Elevation 1 Theta Peak-5.05-2.32-1.030.30-0.68 Average-10.36-8.84-7.90-6.99-8.06 Phi Peak-2.991.981.812.920.20 Average-6.65-3.30-3.37-3.04-3.71 Elevation 2 Theta Peak-5.83-3.38-2.050.26-3.56 Average-10.76-9.16-7.01-5.74-8.27 Phi Peak-0.522.231.521.391.12 Average-5.23-3.30-3.66-3.90-4.74 Azimuth PlaneElevation1 PlaneElevation2 Plane 0° 90° 180° 270° 0° 90° 180° 270° 0°180° 90° 270° ThetaVertical field of measured plane PhiHorizontal field of measured plane `Dielectric Chip Antenna - 3 - Azimuth Theta -50 -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 Amplitude [dB] 3.2000 G 4.2000 G 5.2000 G 6.2000 G 7.2000 G Azimuth Theta Azimuth Phi -50 -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 Amplitude [dB] 3.2000 G 4.2000 G 5.2000 G 6.2000 G 7.2000 G Azimuth Phi ■ 2D RADIATION PATTERN `Dielectric Chip Antenna - 4 - Elevation1 Theta -50 -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 Amplitude [dB] 3.2000 G 4.2000 G 5.2000 G 6.2000 G 7.2000 G Elevation1 Theta Elevation1 Phi -50 -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 Amplitude [dB] 3.2000 G 4.2000 G 5.2000 G 6.2000 G 7.2000 G Elevation1 Phi ■ 2D RADIATION PATTERN `Dielectric Chip Antenna - 5 - Elevation2 Theta -50 -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 Amplitude [dB] 3.2000 G 4.2000 G 5.2000 G 6.2000 G 7.2000 G Elevation2 Theta Elevation2 Phi -50 -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 Amplitude [dB] 3.2000 G 4.2000 G 5.2000 G 6.2000 G 7.2000 G Elevation2 Phi ■ 2D RADIATION PATTERN `Dielectric Chip Antenna - 6 - ■ Gain Measurement block diagram ■ Soldering Condition - Reflow Soldering - Reflow Soldering Preheat 130 ~ 180°C 200°C 160°C 100°C 25°C 0°C Peak temp. 260±5°C 90 ~ 180sec Max 30sec 30~60sec 260°C Time [sec] - Manual Soldering Condition Pre-Heating Temperature120 °C ,60 ∼ 300 sec Soldering Temperature340 °C ±5 °C , 5 sec max per each terminal `Dielectric Chip Antenna - 7 - GND clearance region Ground Region Stub region Antenna GND clearance region Ground Region < Top View >< Bottom View > ■ Recommended Test Board(CAD) ■ FEEDING METHOD (unit : mm, tolerance : ± 0.05) Unit : mm Board thickness : 1.0mm `Dielectric Chip Antenna - 8 - ■ LOT 번호 표기법 &Marking ◀ UWB 3 C ①②③④ ① Feeding Direction ② Model ③년 : 0 - 2010, 1 - 2011, 2 - 2012, 3 - 2013, 4 - 2014, .... ④ 월 :1-1 월 ,2-2 월 , .... ,A-10 월 ,B-11 월 ,C-12 월 Marking View

Annex D 1-4029/22-01-01_AnnexD Setup photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Michael Dorongovski Lab Manager Radio Communications CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2022-11-14Document No. 1-4029/22-01-01_AnnexD2/5 Photo 3 Photo 4 2022-11-14Document No. 1-4029/22-01-01_AnnexD3/5 Photo 5 Photo 6 2022-11-14Document No. 1-4029/22-01-01_AnnexD4/5 Document history VersionApplied changesDate of release initial release2022-11-14 - END OF DOCUMENT - 2022-11-14Document No. 1-4029/22-01-01_AnnexD5/5
